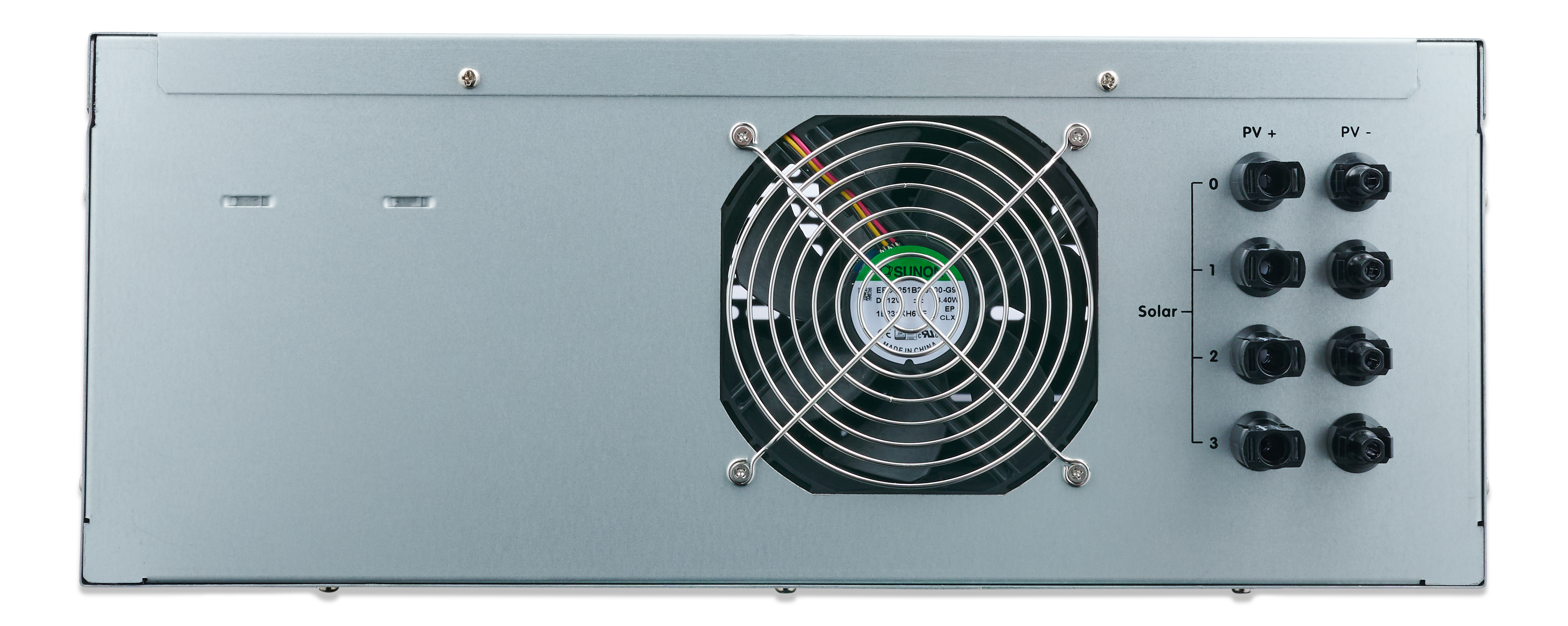

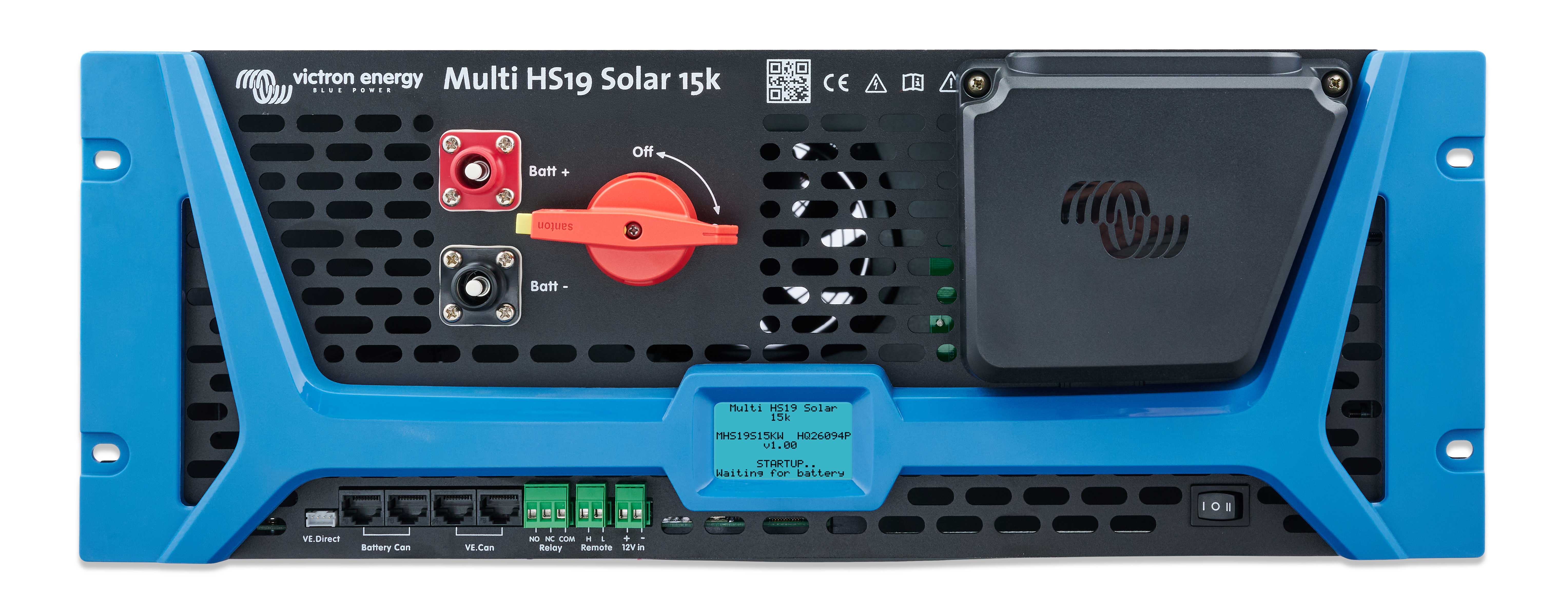

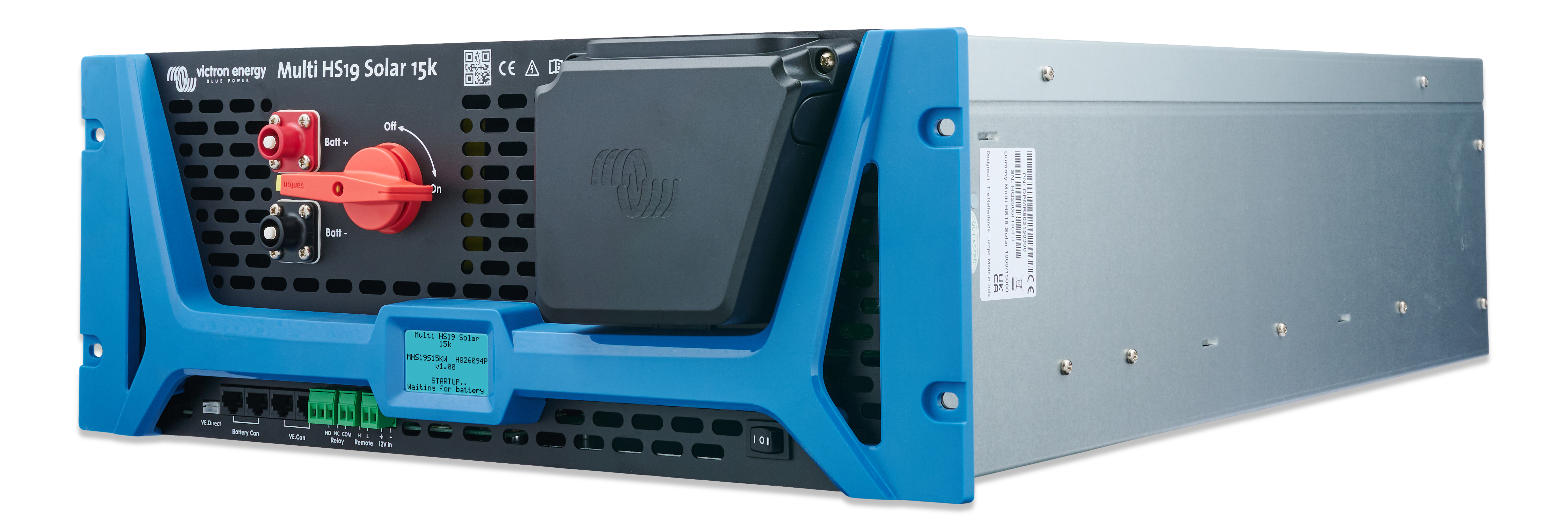

Multi HS19 Solar
SKU principal: PMR803150300
Multi HS19 Solar
<p>Multi HS19 Solar <br><br></p>
Códigos SKU
PMR803150300
VICTRON ENERGY
DATOS DEL FABRICANTE
Especificaciones técnicas
- Power Control
- 1
- Power Assist
- 1
- Parallel Operation
- Three Phase Operation
- Includes M P P T
- 1
- Number Ac Inputs
- 1
- Transfer Switch Current Rating
- 32 A
- Battery Voltage Nominal
- 800 V
- D C Input Voltage Range
- [ 650, 1, 000 ] V
- A C Output Voltage
- 400 V
- Maximum Cont Inv Current
- 22 A
- Frequency
- 50
- Cont Power V A25
- 15, 000 VA
- Cont Power W40
- 15, 000 W
- Peak Power Rating3S
- 22, 000 W
- Short Circuit Current
- 32 A
- Max Efficiency
- 98 %
- Zero Load Power
- 50 W
- Max Dc Voltage
- 600 V
- Startup Voltage
- 300 V
- Mppt Operating Voltage Range
- [ 100, 600 ] V
- Max Pv Operational Current
- 13.5 A
- Max P V Short Circuit Current Rev Pol
- 13.5 A
- Max Solar Charge Power
- 32, 000 W
- Max P V Short Circuit Current
- 13.5 A
- Charge Voltage Range
- [ 650, 1, 000 ] V
- Maximum Battery Charge Current
- 41 A
- Battery Voltage Sense
- 1
- Protections
- Overcurrent, Solar earth leakage
- Communication Port
- VE.Can, BMS-Can, VE.Direct, Bluetooth
- Bluetooth
- Yes, -4dBm, 2402 – 2480 MHz
- Remote On Off
- 1
- Fully Programmable Ports
- Operating Temp Range
- [ -∞, 60 ] °C
- Fan Assist Cooling
- 1
- Max Altitude
- 2, 000 m
- Max Humidity
- 95 %
- Max Ac Input Current
- 32 A
- A C Input Frequency Range
- [ 45, 65 ] Hz
- Pollution Degree
- 2
- Auxiliary Output
- 1
- Number Ac Outputs
- 2
- A C Connection Terminal Type
- Rigid cable 0.2mm² - 10mm² / Flexible cable 0.25mm² - 6mm²
- Battery Connection
- Amphenol SurLok 5.7mm
- Colour
- Blue (RAL 5012) and Black (RAL 9017)
- Material
- Steel
- Protection Category
- IP20
- Weight
- 26.5 kg
- Height
- 177.8 mm
- Width
- 482.6 mm
- Depth
- 700 mm
- Safety
- EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
- Emission Immunity
- EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
