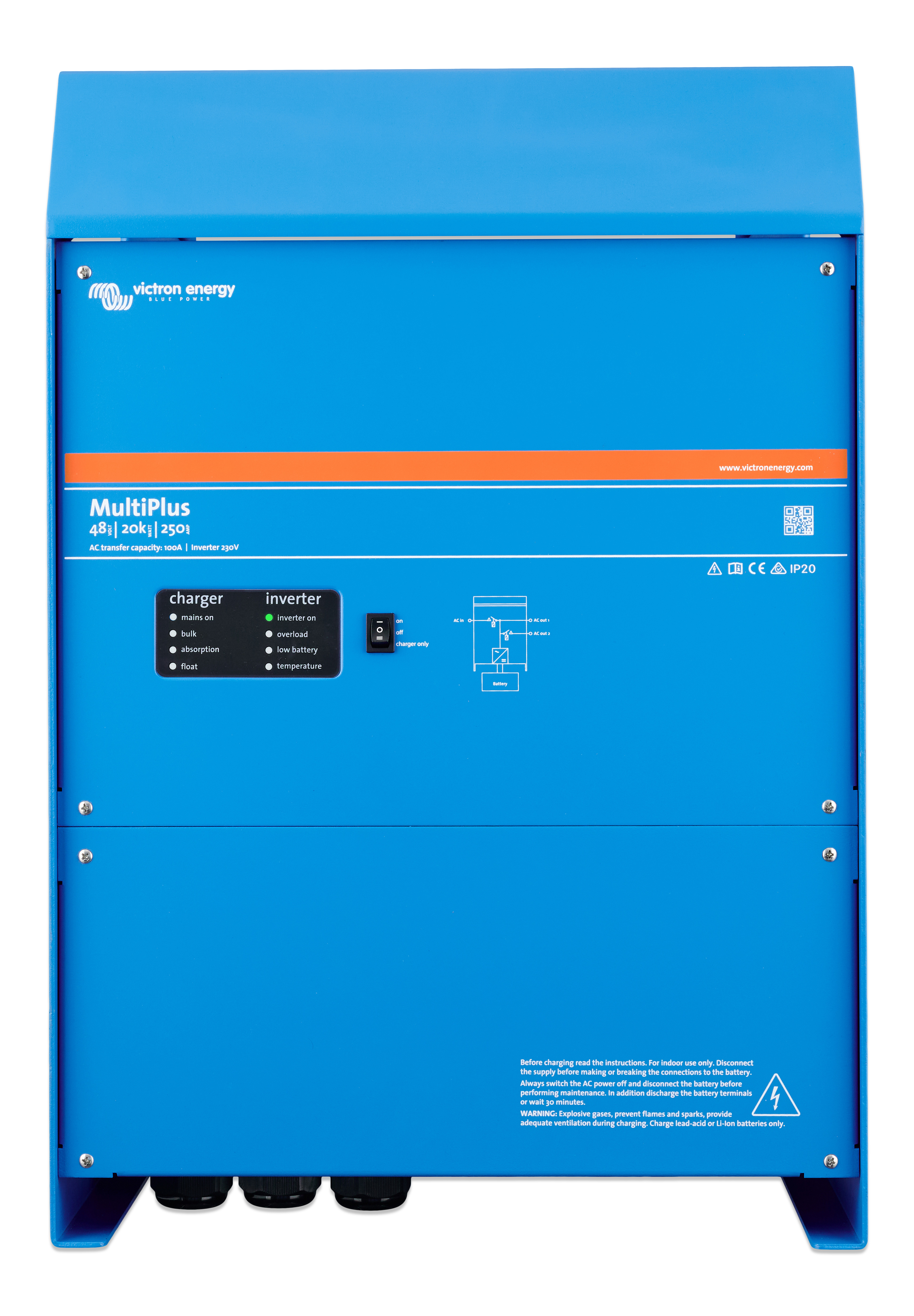

MultiPlus

SKU principal: CMP122200000

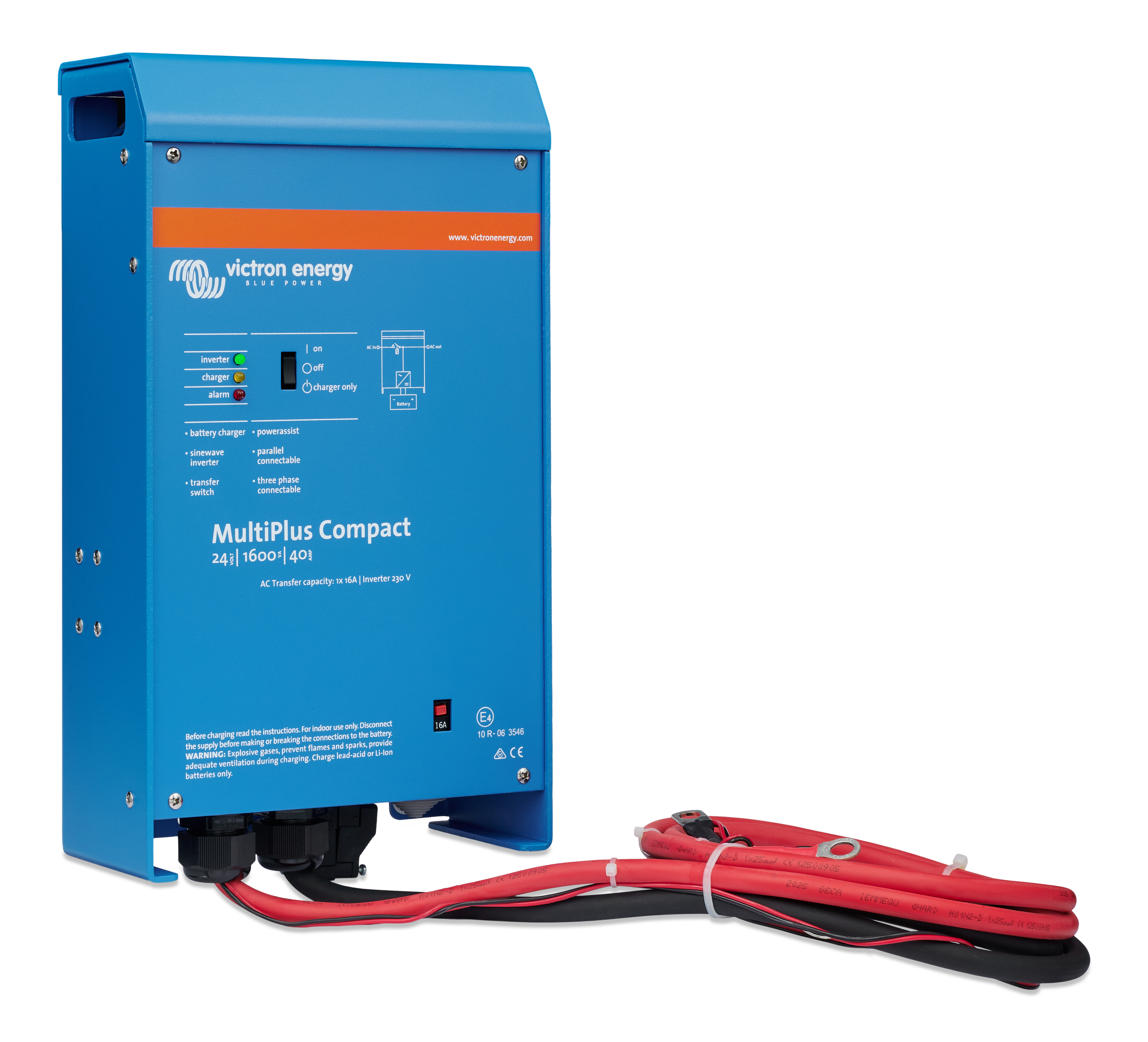

MultiPlus

<p>The MultiPlus,
as the name suggests,
is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter,
adaptive charging,
hybrid PowerAssist technology,
plus multiple system integration features. </p><p>New model: MultiPlus 20k</p>

Códigos SKU

CMP122200000 PMP483020001 PMP483021010 PMP485021010 PMP123021102 PMP243021102 PMP123021010 PMP122300001 PMP245021010 PMP122301102 PMP242301102 PMP242300001 PMP242301011 CMP122200102 CMP242200000 CMP242200100 CMP242160000 CMP122200100 CMP128010000 CMP121220000 CMP241220000 CMP241620000 CMP122160000 CMP242120000 CMP122120000 CMP121620000 CMP121800000 PMC483200400 PMP482300000

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 250 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
D C Input Current: 250 V
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Output Ac Current: 11 A
Max Output Ac Current Fault: 32 A
Max Efficiency: 93 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 8 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 120 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 18 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 250 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
D C Input Current: 250 V
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Output Ac Current: 93 A
Max Output Ac Current Fault: 32 A
Max Efficiency: 93 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 8 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 120 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 18 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ -0.8, 0.8 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 38, 66 ] VDC
D C Input Current: 65 V
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Output Ac Current: 11 A
Max Output Ac Current Fault: 32 A
Max Efficiency: 95 %
Zero Load Power: 25 W
Zero Load Power A E S: 20 W
Zero Load Power Search: 12 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 35 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 18 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti Islanding Standard: See our website
Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 250 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 38, 66 ] VDC
D C Input Current: 65 V
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Output Ac Current: 11 A
Max Output Ac Current Fault: 32 A
Max Efficiency: 95 %
Zero Load Power: 25 W
Zero Load Power A E S: 20 W
Zero Load Power Search: 12 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 35 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 18 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti Islanding Standard: See our website
Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 250 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 100 A
D C Input Voltage Range: [ 38, 66 ] VDC
D C Input Current: 118 V
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 5, 000 VA
Cont Power W25: 4, 000 W
Cont Power W40: 3, 700 W
Cont Power W65: 3, 000 W
Peak Power Rating: 10, 000 W
Max Output Ac Current: 19 A
Max Output Ac Current Fault: 53 A
Max Efficiency: 95 %
Zero Load Power: 35 W
Zero Load Power A E S: 30 W
Zero Load Power Search: 15 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: M6 bolts
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 30 kg
Height: 444 mm
Width: 328 mm
Depth: 240 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti Islanding Standard: See our website
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ -0.8, 0.8 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 100 A
D C Input Voltage Range: [ 18, 33 ] VDC
D C Input Current: 125 V
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 5, 000 VA
Cont Power W25: 4, 000 W
Cont Power W40: 3, 700 W
Cont Power W65: 3, 000 W
Peak Power Rating: 10, 000 W
Max Output Ac Current: 19 A
Max Output Ac Current Fault: 53 A
Max Efficiency: 94 %
Zero Load Power: 30 W
Zero Load Power A E S: 25 W
Zero Load Power Search: 10 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 120 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: M6 bolts
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 30 kg
Height: 444 mm
Width: 328 mm
Depth: 240 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 178, 250 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 19, 33 ] VDC
D C Input Current: 125 V
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Output Ac Current: 11 A
Max Output Ac Current Fault: 32 A
Max Efficiency: 94 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 10 W
A C Input Voltage Range: [ 187, 256 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 18 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 250 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 19, 33 ] VDC
D C Input Current: 125 V
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Output Ac Current: 11 A
Max Output Ac Current Fault: 32 A
Max Efficiency: 94 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 10 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 18 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 100 W
Peak Power Rating: 4, 000 W
Max Efficiency: 94 %
Zero Load Power: 11 W
Zero Load Power A E S: 8 W
Zero Load Power Search: 4 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 50 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 13 kg
Height: 520 mm
Width: 255 mm
Depth: 125 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, UL 458
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 250 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 30 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 400 W
Cont Power W65: 1, 000 W
Peak Power Rating: 4, 000 W
Max Efficiency: 93 %
Zero Load Power: 9 W
Zero Load Power A E S: 7 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 80 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Spring clamp
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 12 kg
Height: 520 mm
Width: 255 mm
Depth: 125 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ -0.8, 0.8 ] VAC
Transfer Switch Current Rating: 30 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 400 W
Cont Power W65: 1, 000 W
Peak Power Rating: 4, 000 W
Max Efficiency: 94 %
Zero Load Power: 11 W
Zero Load Power A E S: 9 W
Zero Load Power Search: 4 W
A C Input Voltage Range: [ 187, 230 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 50 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Spring clamp
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 12 kg
Height: 520 mm
Width: 255 mm
Depth: 125 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 265 ] VAC
Frequency Select: 50Hz
Transfer Switch Current Rating: 100 A
Max Ac Input Current: 100 A
D C Input Voltage Range: [ 38, 60 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Short Name: 20kW
Cont Power W25: 20, 000 W
Cont Power W40: 18, 000 W
Cont Power W65: 14, 000 W
Peak Power Rating: 25, 000 W
Max App Feedin Power: 20, 000 W
Max Efficiency: 96 %
Zero Load Power: 65 W
Zero Load Power A E S: 40 W
Zero Load Power Search: 13 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 250 A
Temperature Sensor: Included
Auxiliary Output: 1
External Ac Current Sensor: 100A (optional)
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: M6 bolts
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Weight: 80 kg
Height: 616 mm
Width: 422 mm
Depth: 357 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti Islanding Standard: Please consult the certificates on our website
Ups Standard: Please consult the certificates on our website
Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 2
A C Input Voltage Range1: [ -0.8, 0.8 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 38, 66 ] VDC
D C Input Current: 65 V
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Output Ac Current: 11 A
Max Output Ac Current Fault: 32 A
Max Efficiency: 95 %
Zero Load Power: 25 W
Zero Load Power A E S: 20 W
Zero Load Power Search: 12 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 35 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 18 kg
Height: 364 mm
Width: 295 mm
Depth: 221 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti Islanding Standard: See our website

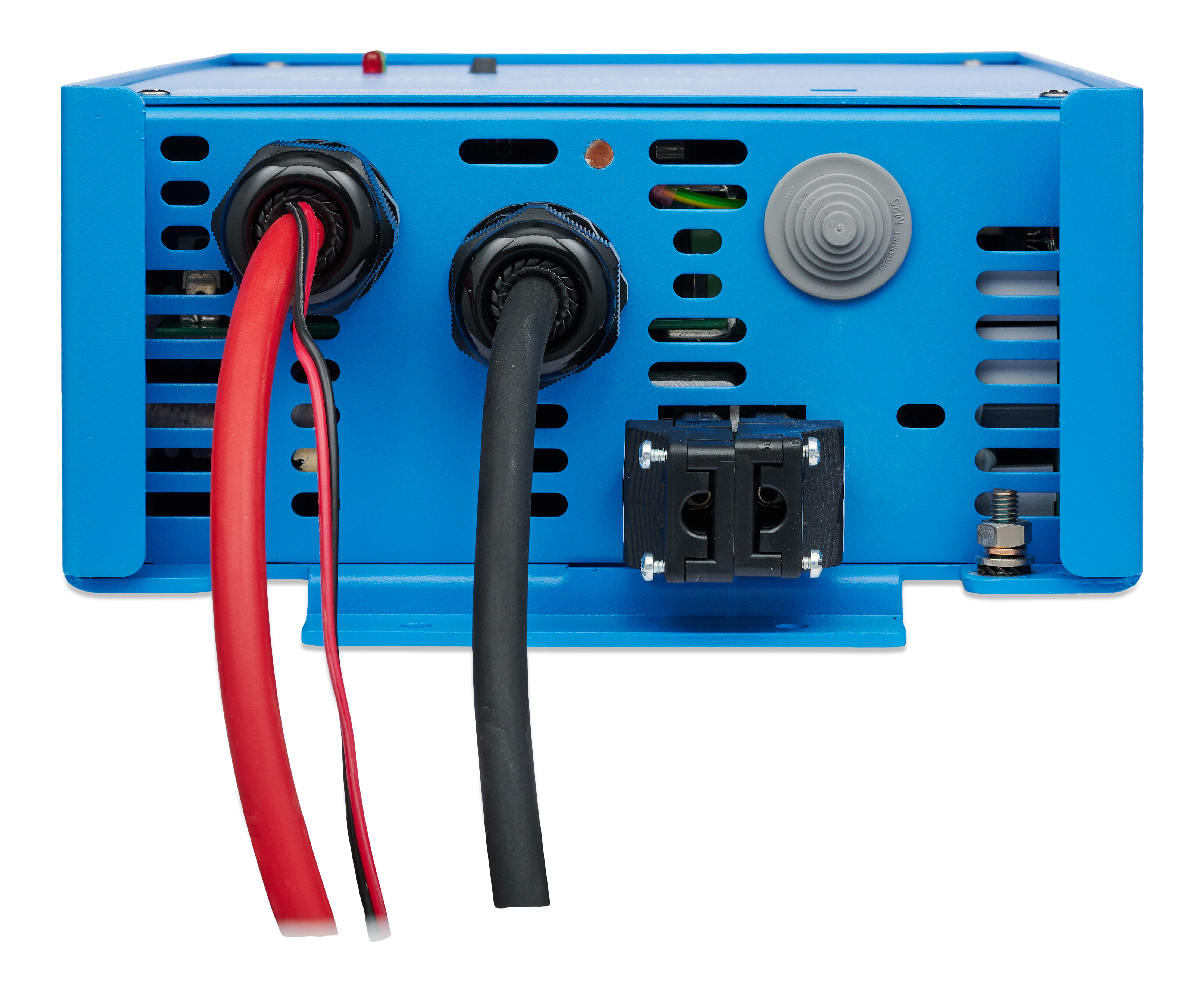

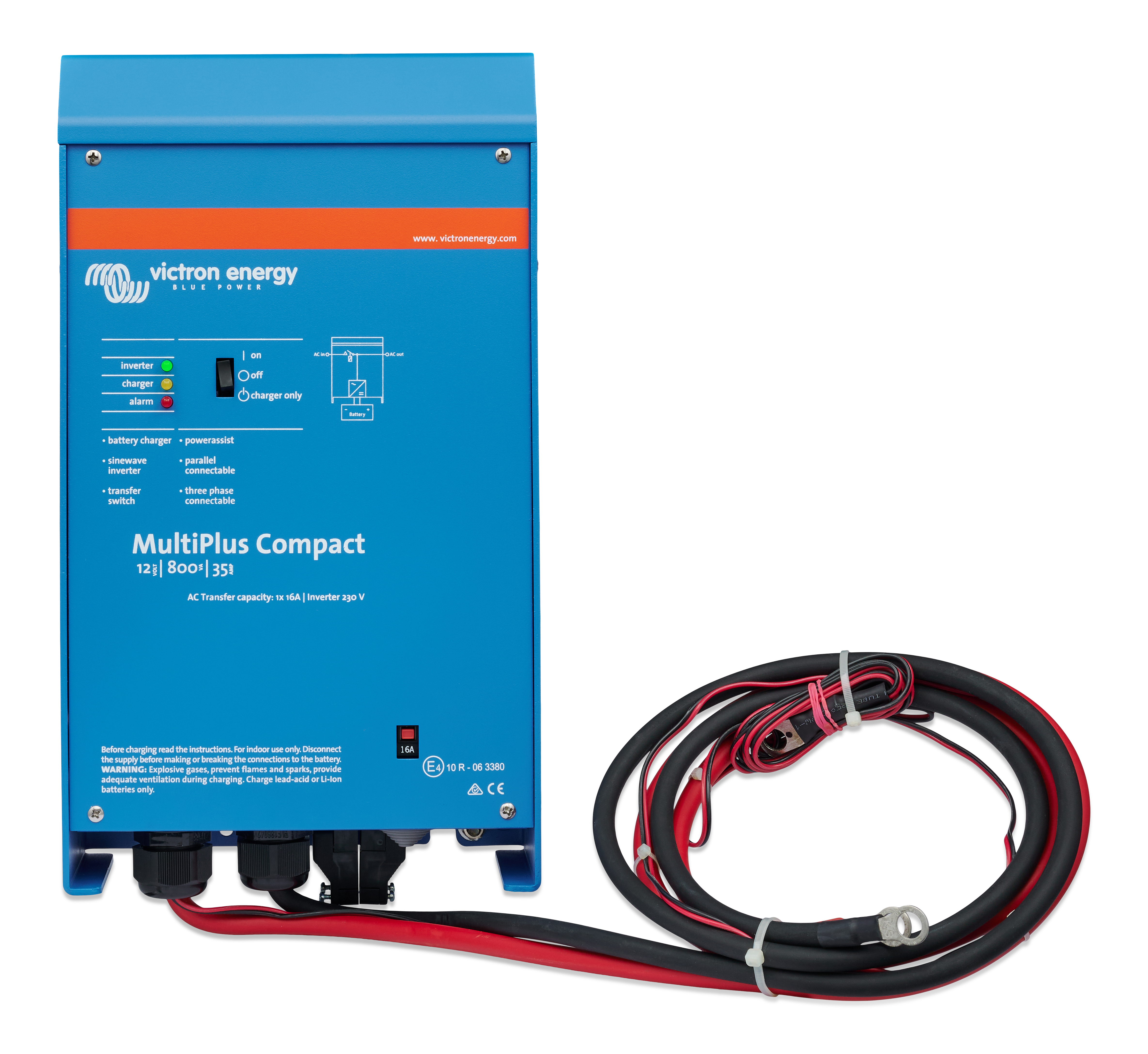

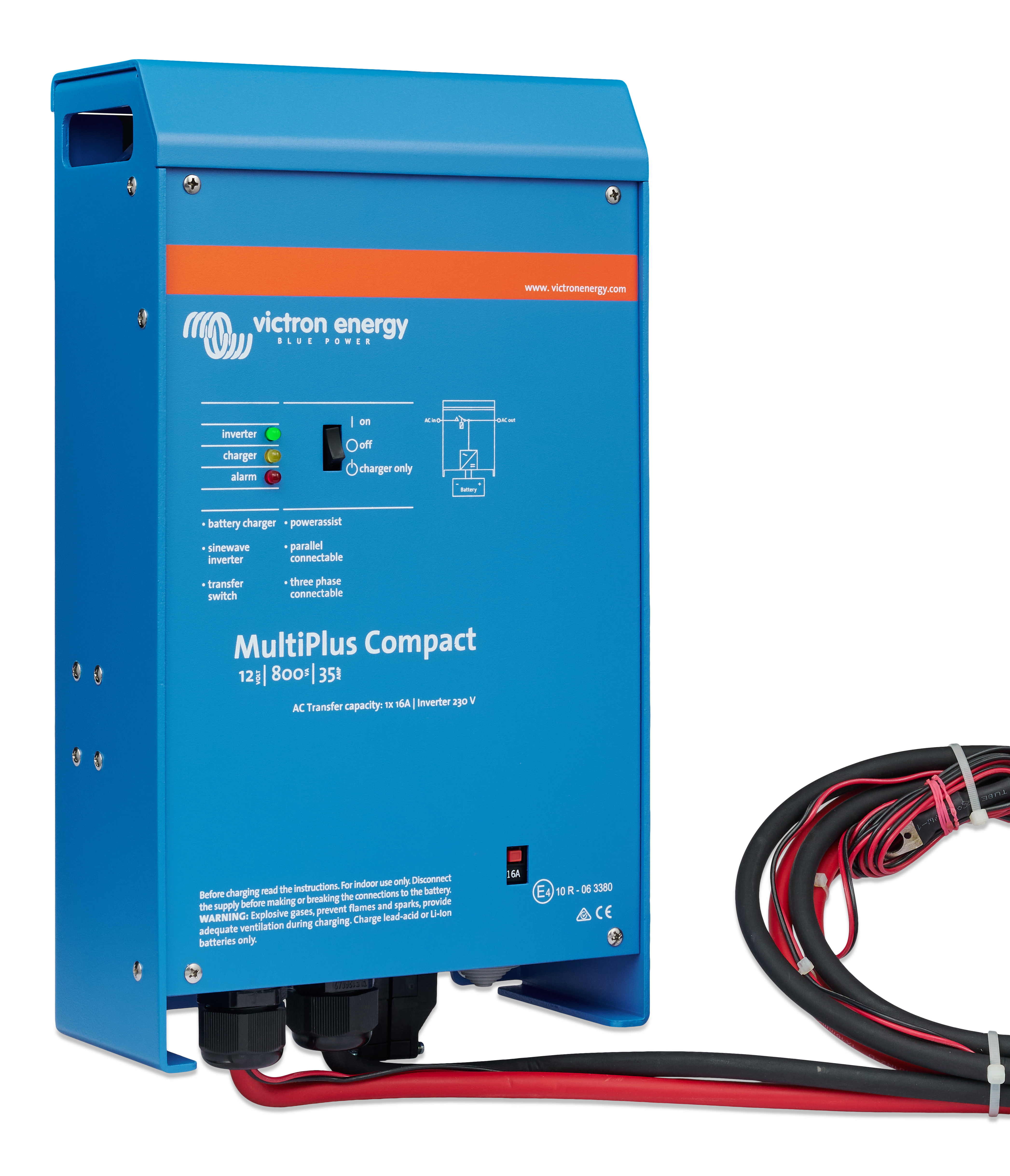

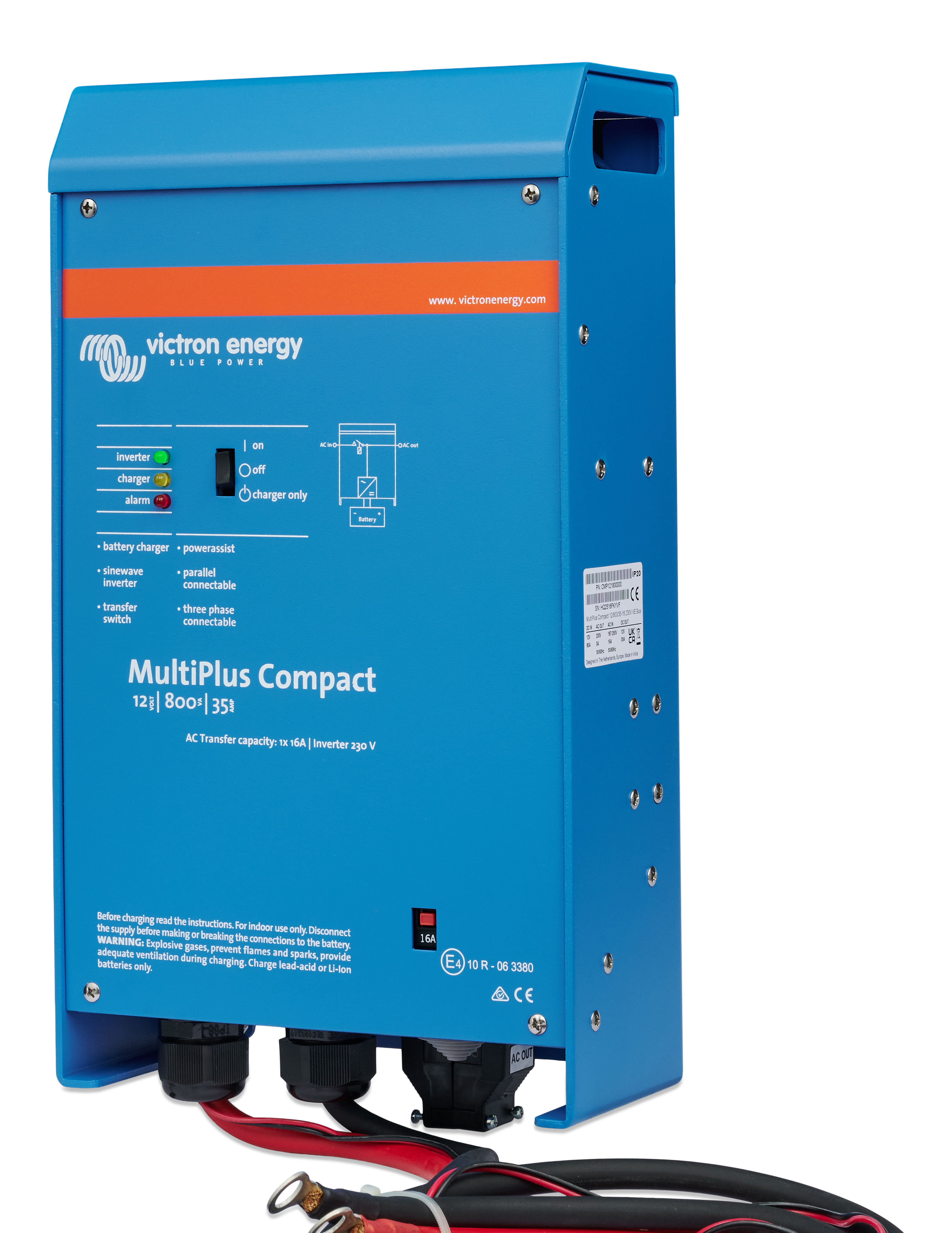

Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 250 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 800 VA
Cont Power W25: 700 W
Cont Power W40: 650 W
Cont Power W65: 400 W
Peak Power Rating: 1, 600 W
Max Efficiency: 92 %
Zero Load Power: 8 W
Zero Load Power A E S: 5 W
Zero Load Power Search: 2 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 35 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m

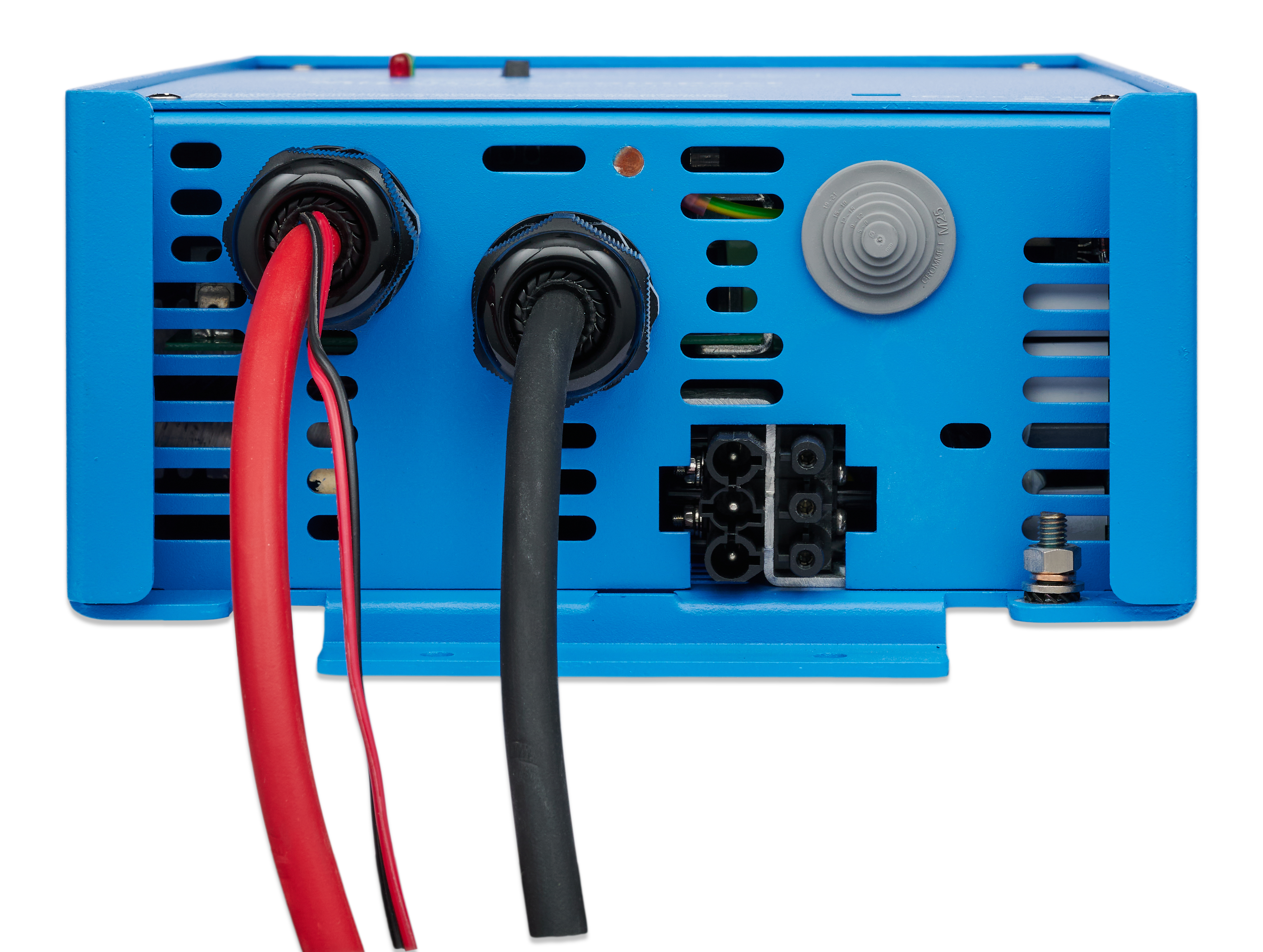

A C Connection Terminal Type: G-ST18i plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with M8 eyelets
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 10 kg
Height: 375 mm
Width: 214 mm
Depth: 110 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website

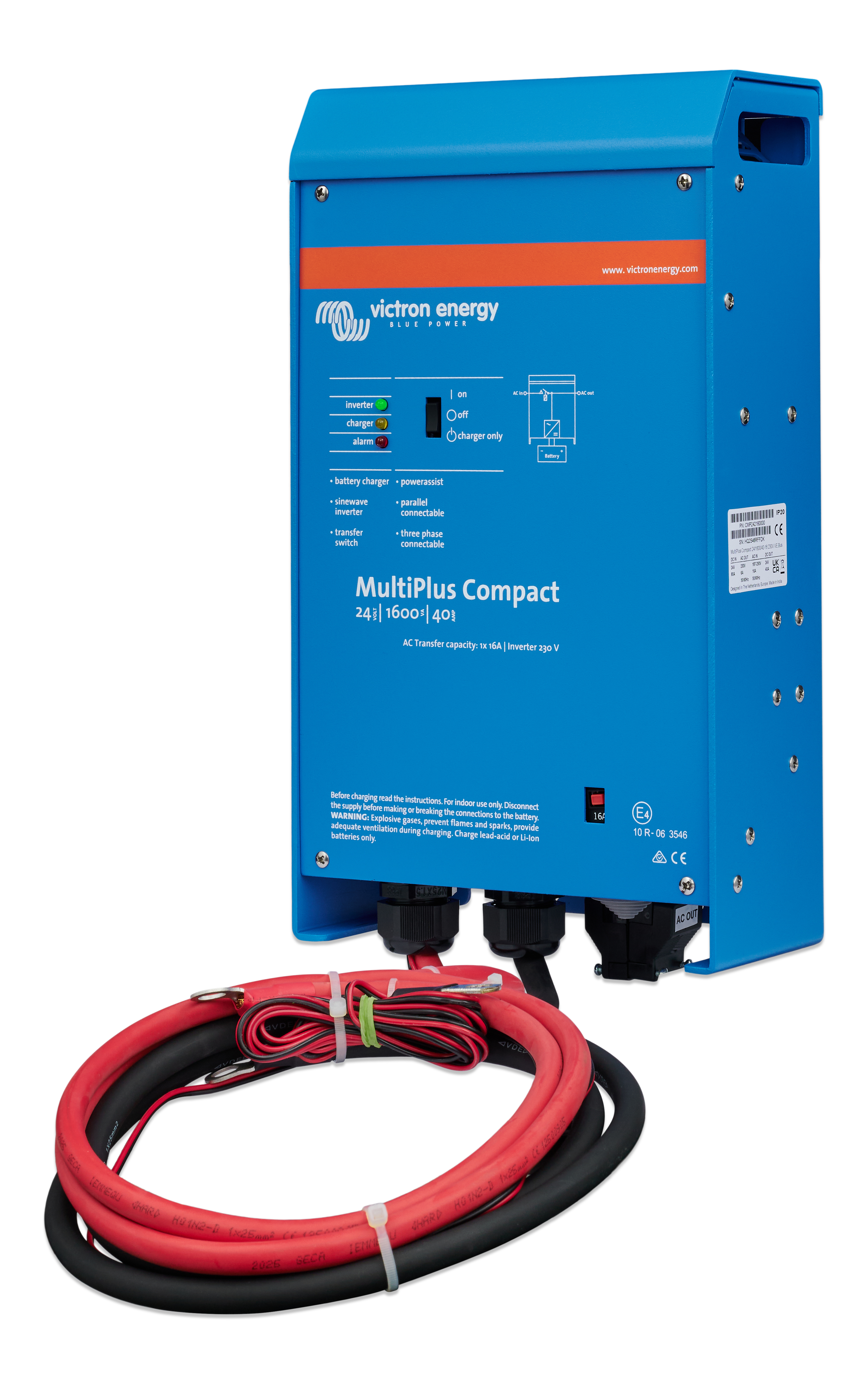

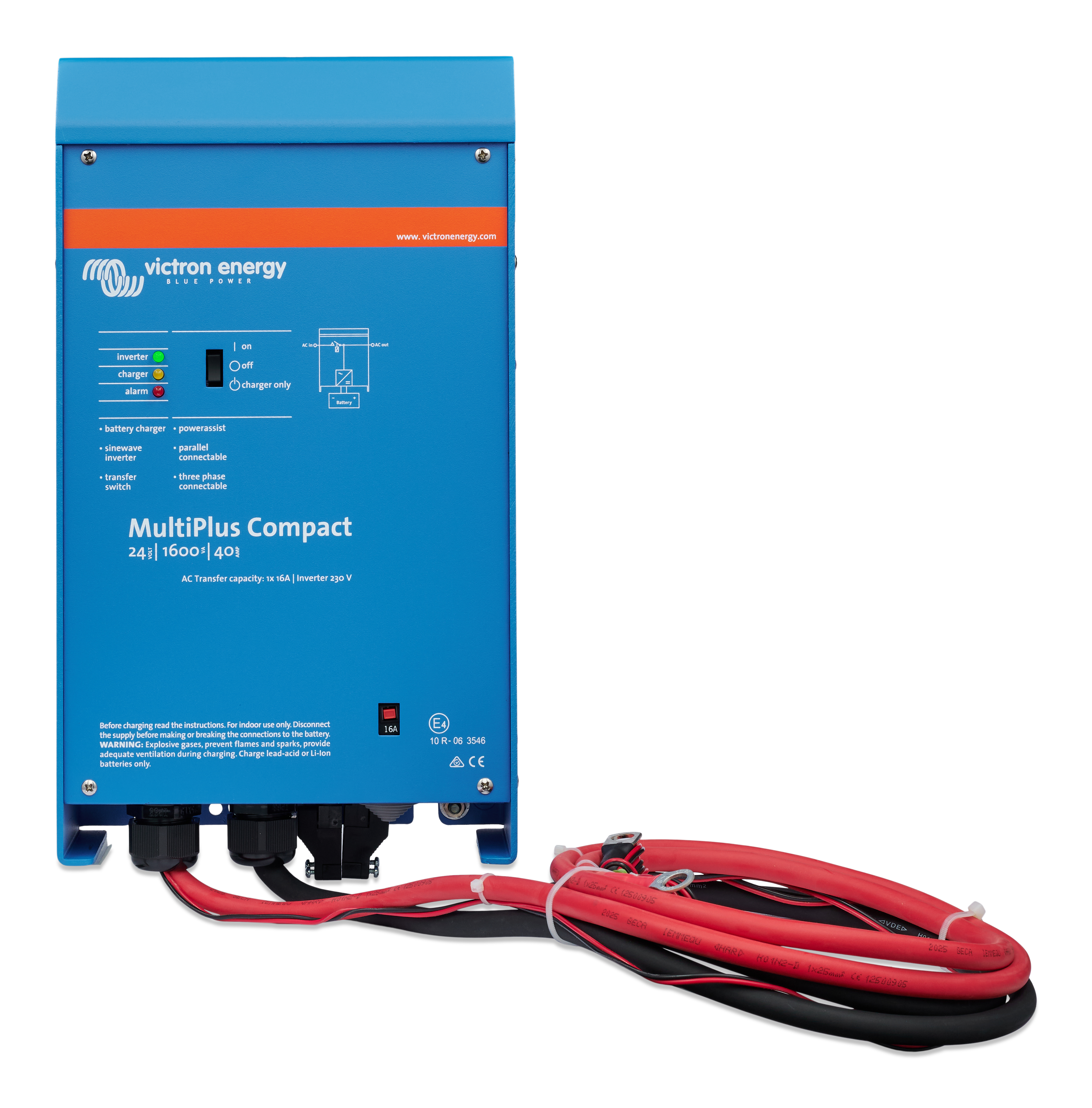

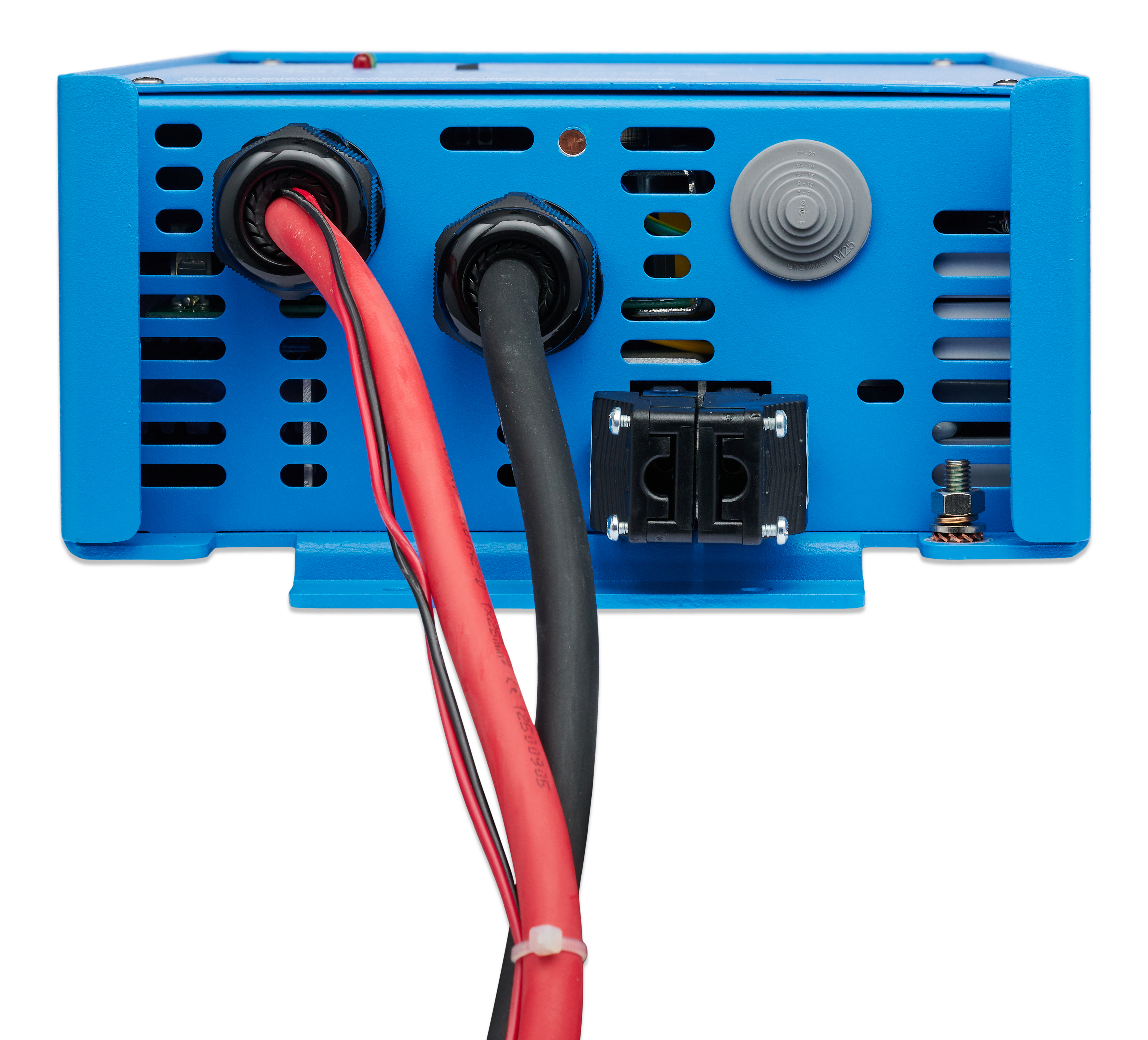

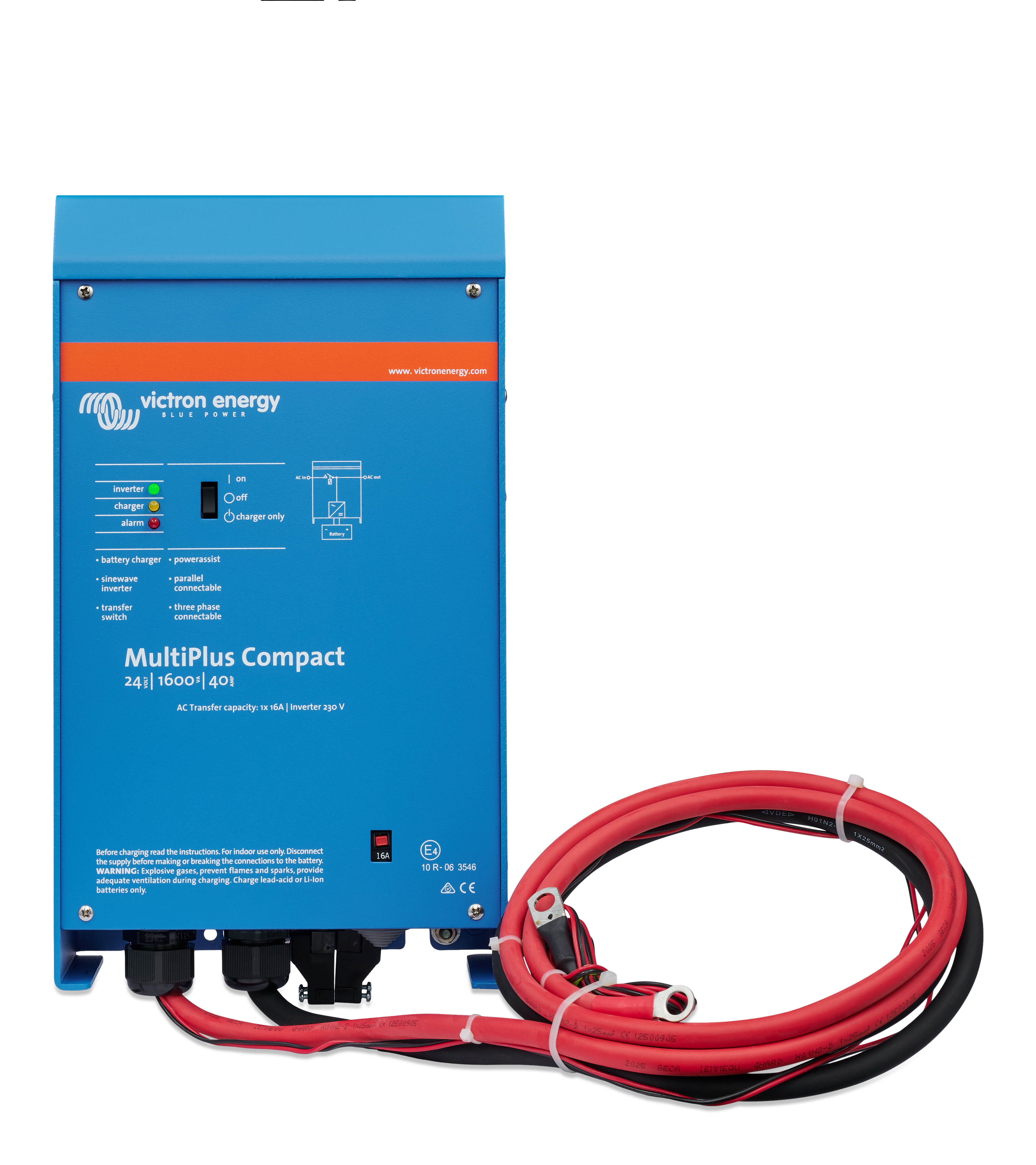

Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 250 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Cont Power W65: 800 W
Peak Power Rating: 3, 000 W
Max Efficiency: 94 %
Zero Load Power: 10 W
Zero Load Power A E S: 8 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 40 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m

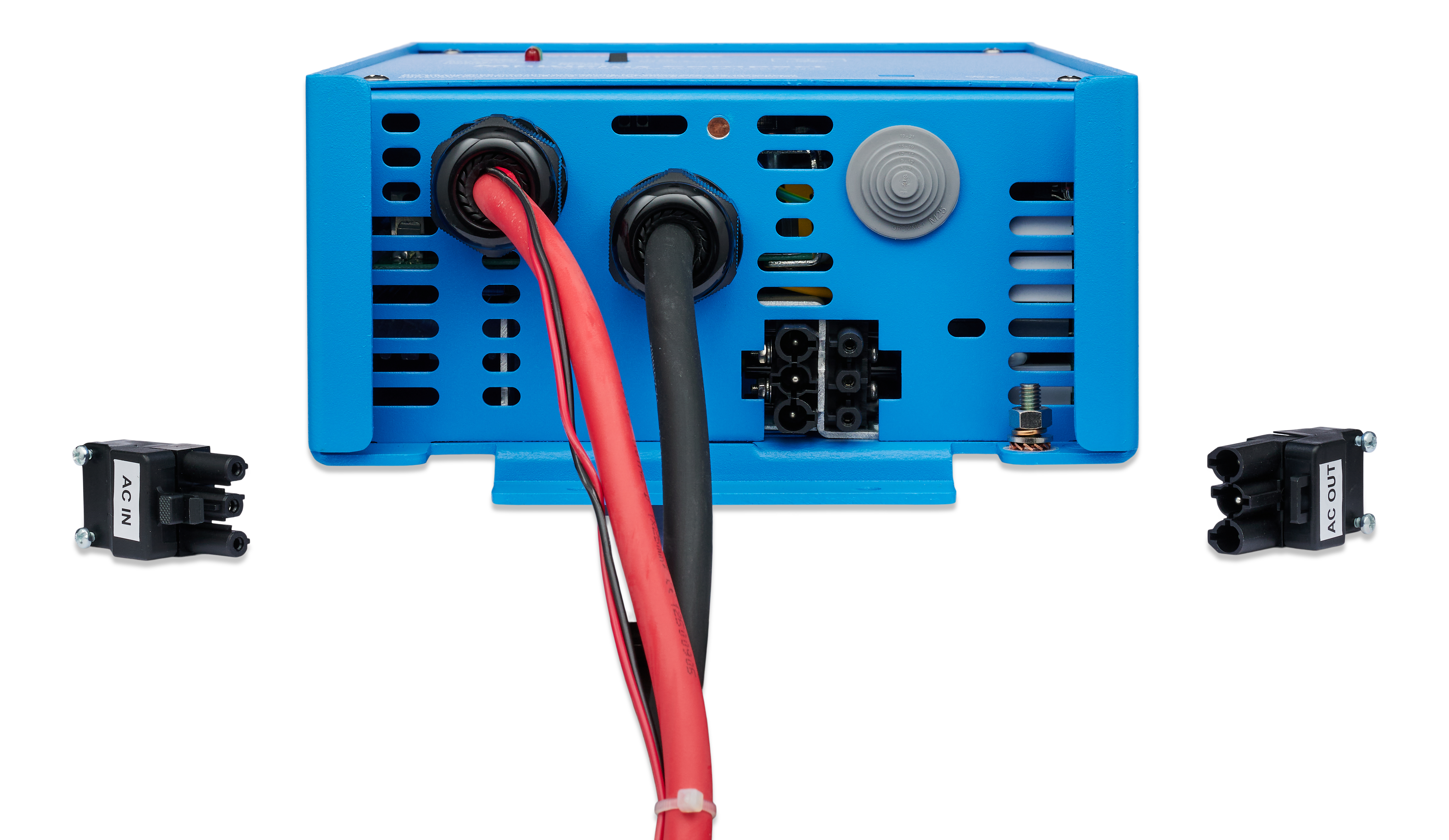

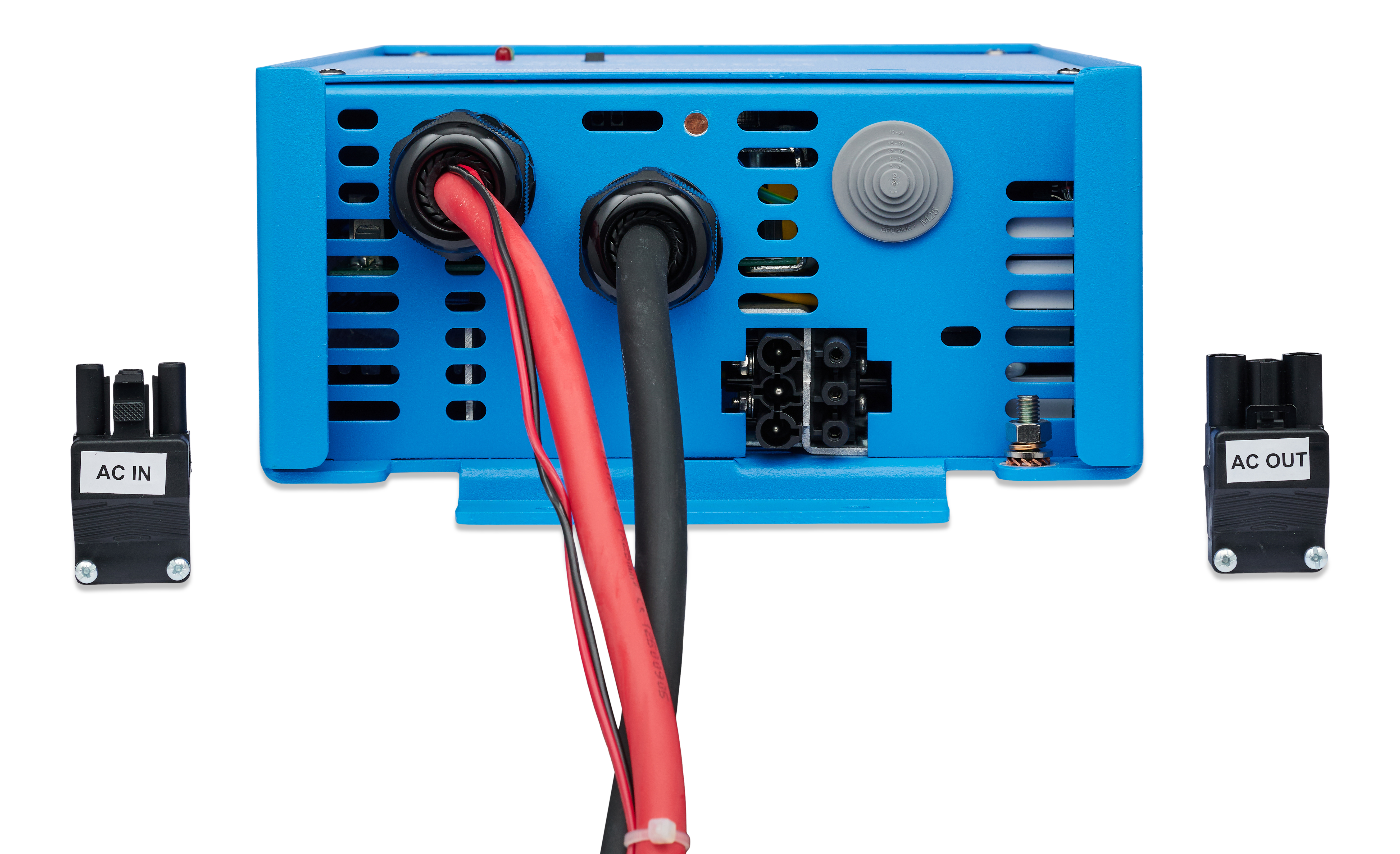

A C Connection Terminal Type: G-ST18i plug
Battery Connection Terminal Type: Red and black 1.5 meter cable
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: One RJ45 terminal, RJ45-spliter ASS030065510 to expand to two ports
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 10 kg
Height: 375 mm
Width: 214 mm
Depth: 110 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 100 W
Peak Power Rating: 4, 000 W
Max Efficiency: 92 %
Zero Load Power: 9 W
Zero Load Power A E S: 7 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 80 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 13 kg
Height: 520 mm
Width: 255 mm
Depth: 125 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, UL 458
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 250 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Cont Power W65: 800 W
Peak Power Rating: 3, 000 W
Max Efficiency: 93 %
Zero Load Power: 8 W
Zero Load Power A E S: 5 W
Zero Load Power Search: 2 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: G-ST18i plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with M8 eyelets
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 10 kg
Height: 375 mm
Width: 214 mm
Depth: 110 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Ups Standard: Please consult the certificates on our website
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ -0.8, 0.8 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 900 W
Cont Power W65: 600 W
Peak Power Rating: 2, 400 W
Max Efficiency: 94 %
Zero Load Power: 10 W
Zero Load Power A E S: 8 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 25 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Auxiliary Output
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: G-ST18i plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with M8 eyelets
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 10 kg
Height: 375 mm
Width: 214 mm
Depth: 110 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
Max Ac Input Current: 50 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 100 W
Peak Power Rating: 4, 000 W
Max Efficiency: 93 %
Zero Load Power: 11 W
Zero Load Power A E S: 8 W
Zero Load Power Search: 4 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 80 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 13 kg
Height: 520 mm
Width: 255 mm
Depth: 125 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission Immunity: EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ -0.8, 0.8 ] VAC
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Cont Power W65: 800 W
Peak Power Rating: 3, 000 W
Max Efficiency: 94 %
Zero Load Power: 10 W
Zero Load Power A E S: 8 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 40 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: G-ST18i plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with M8 eyelets
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 10 kg
Height: 375 mm
Width: 214 mm
Depth: 110 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 250 ] VAC
Frequency Select: 50Hz or 60Hz
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 900 W
Cont Power W65: 600 W
Peak Power Rating: 2, 400 W
Max Efficiency: 93 %
Zero Load Power: 8 W
Zero Load Power A E S: 5 W
Zero Load Power Search: 2 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 50 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: G-ST18i plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with M8 eyelets
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP20
Pollution Degree: 2
Ovciii Icw: 6kA 30mS
Weight: 10 kg
Height: 375 mm
Width: 214 mm
Depth: 110 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Anti Islanding Standard: See our website
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Efficiency: 93 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 8 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 120 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple, AC voltage on inverter output
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 19 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, UL 458
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Efficiency: 93 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 8 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 120 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 19 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3, EN-IEC 61000-3-2, EN-IEC 61000-3-3
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Efficiency: 94 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 10 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 19 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission Immunity: EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Efficiency: 94 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 10 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
Programmable Relay: AC rating: 120V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off / Charger only
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 19 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, UL 458
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3

← Volver a productos Victron
