MultiPlus 2000VA

SKU principal: PMP122200000

MultiPlus 2000VA

<p>The MultiPlus,
as the name suggests,
is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter,
adaptive charging,
hybrid PowerAssist technology,
plus multiple system integration features.</p>

Códigos SKU

PMP122200000 PMP242200102 PMP242200100 PMP242200000 PMP482200000 PMP122200100 PMP122200102 PMP482200100

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 32 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 400 W
Cont Power W65: 1, 000 W
Peak Power Rating: 3, 500 W
Max Efficiency: 94 %
Zero Load Power: 9 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 50 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General
Remote Terminal: On / Off
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m

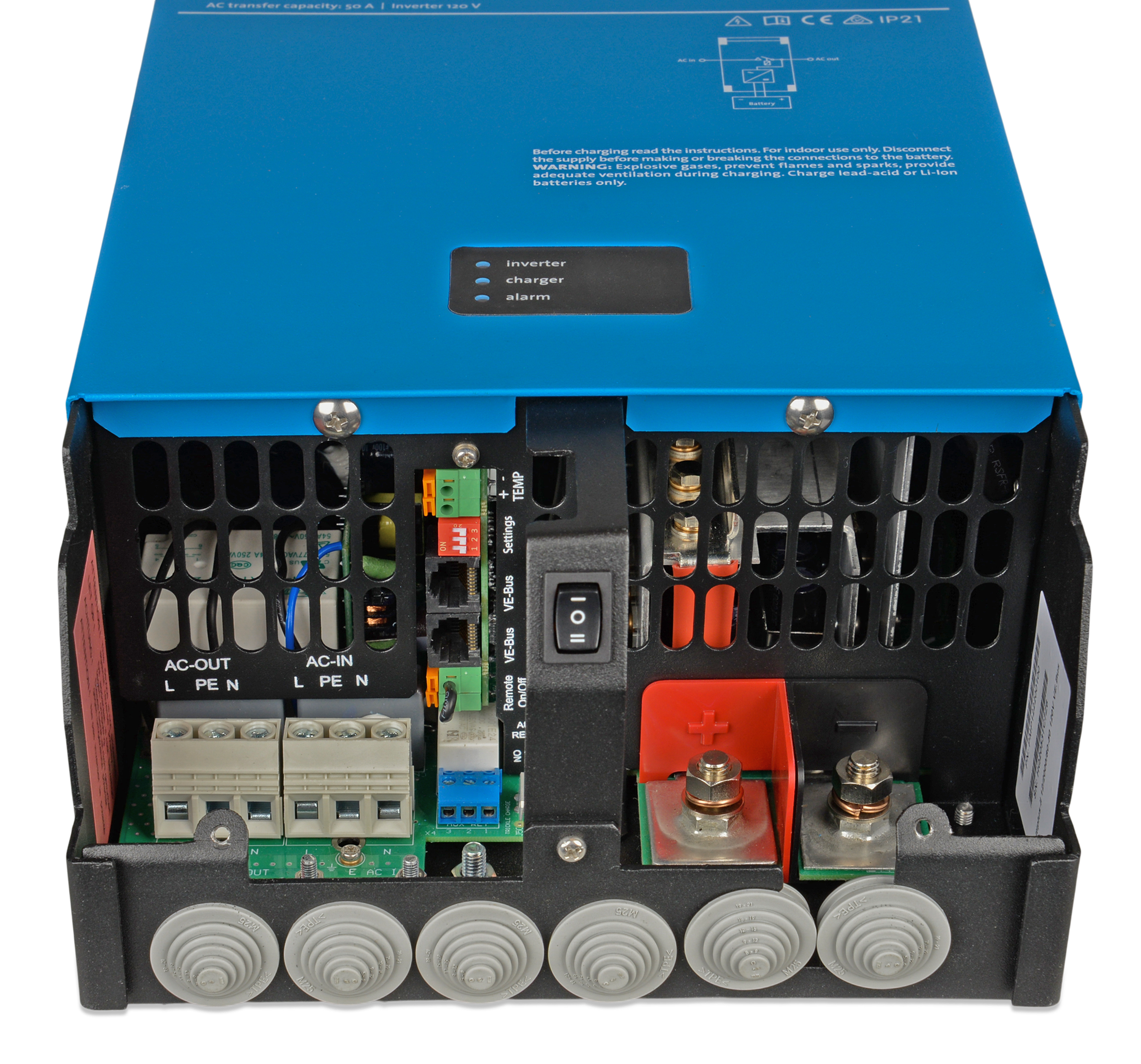

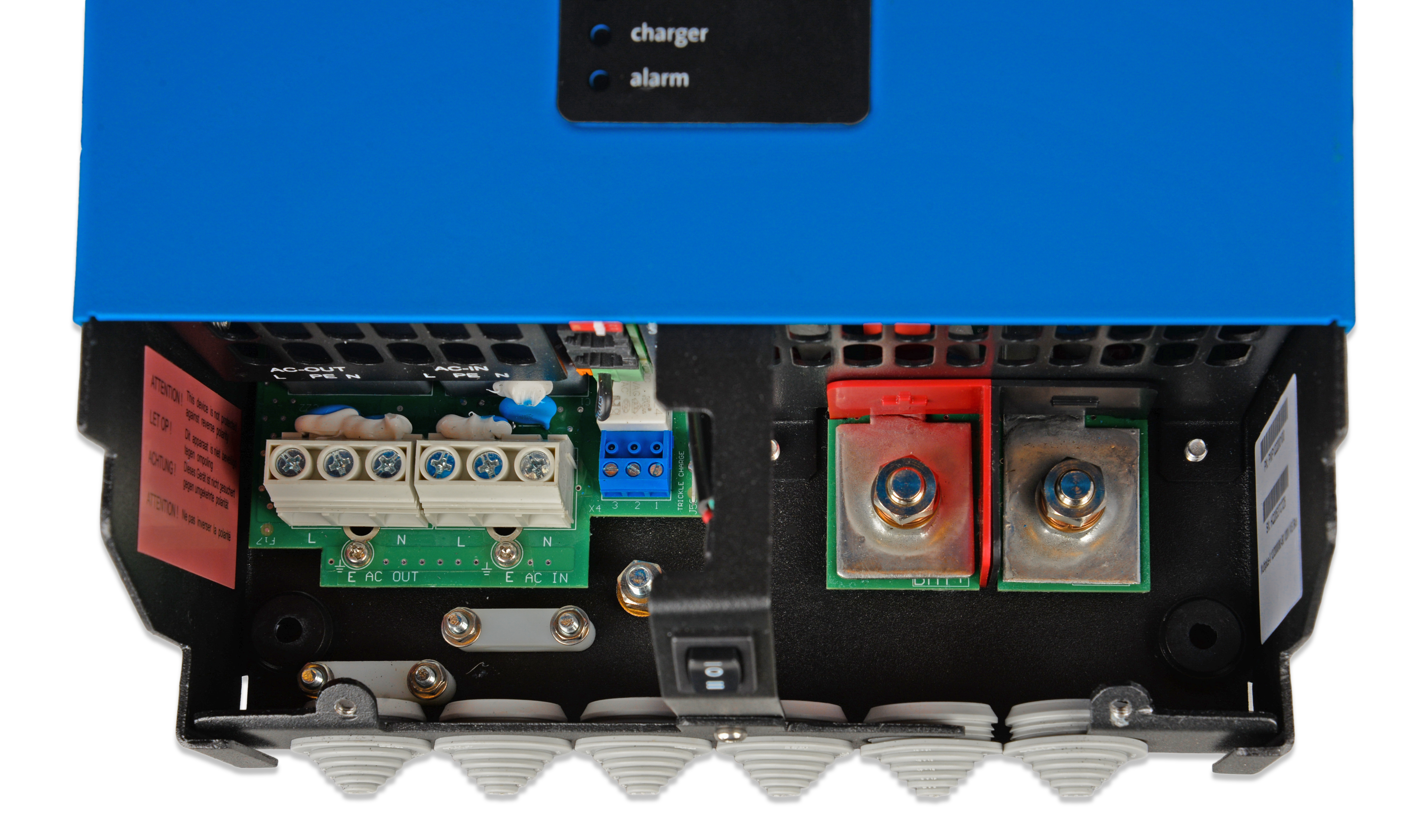

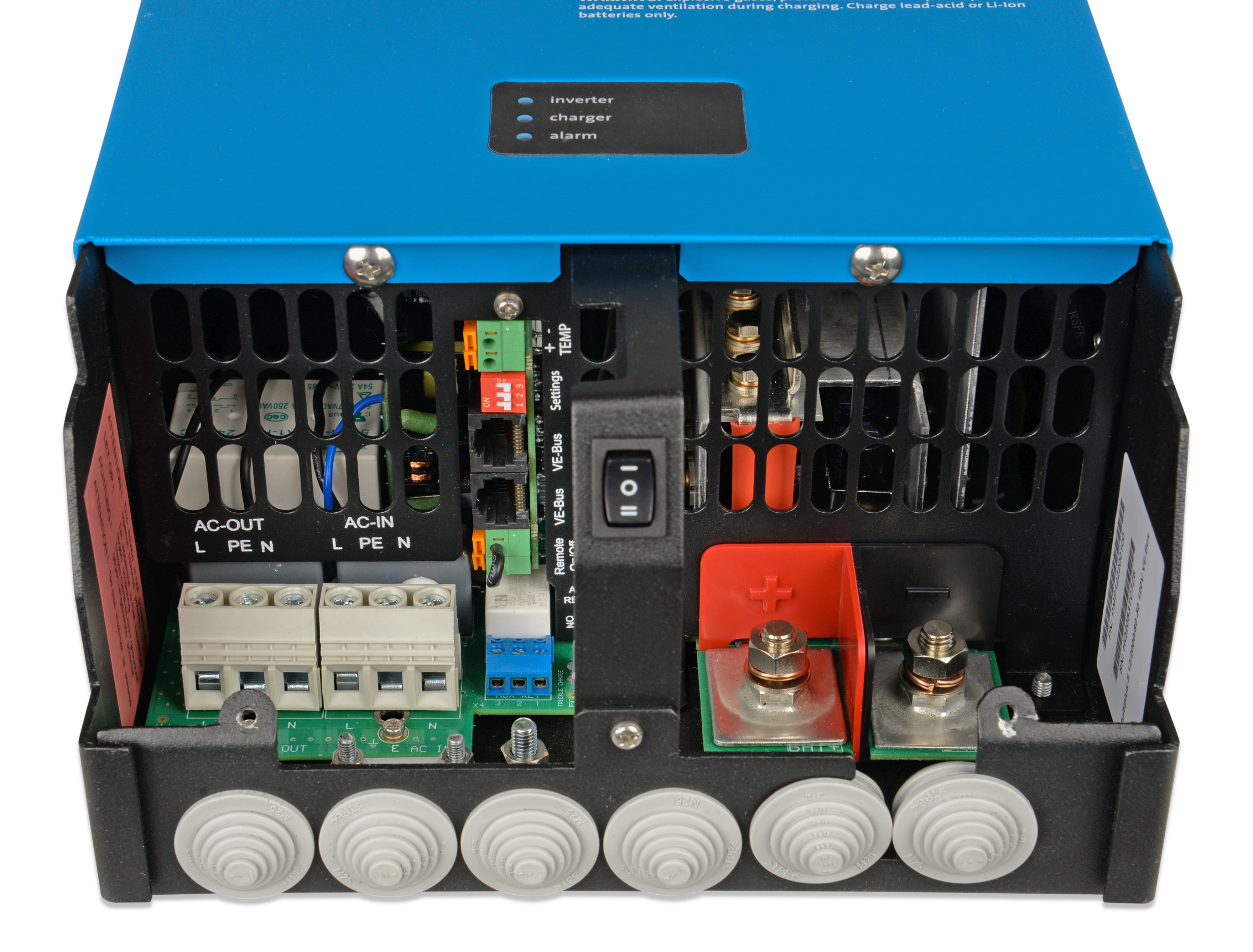

A C Connection Terminal Type: Screw terminals
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 15.5 kg
Height: 506 mm
Width: 236 mm
Depth: 147 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 2
Transfer Switch Current Rating: 50 A
Max Ac Input Current: 50 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 100 W
Peak Power Rating: 4, 000 W
Max Efficiency: 94 %
Zero Load Power: 11 W
Zero Load Power A E S: 8 W
Zero Load Power Search: 4 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 80 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 13 kg
Height: 520 mm
Width: 255 mm
Depth: 125 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 265 ] VAC
Transfer Switch Current Rating: 32 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 400 W
Cont Power W65: 1, 000 W
Peak Power Rating: 3, 500 W
Max Efficiency: 93 %
Zero Load Power: 10 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 80 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 1 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 265 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel chassis with ABS cover
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 15.5 kg
Height: 506 mm
Width: 236 mm
Depth: 147 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Anti Islanding Standard: Please consult the certificates on our website
Ups Standard: Please consult the certificates on our website
Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 32 A
D C Input Voltage Range: [ 38, 66 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 400 W
Cont Power W65: 1, 000 W
Peak Power Rating: 3, 500 W
Max Efficiency: 95 %
Zero Load Power: 10 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 25 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off
D I P Switches Programming: 1
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 15.5 kg
Height: 506 mm
Width: 236 mm
Depth: 147 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
Max Ac Input Current: 50 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 400 W
Cont Power W65: 1, 000 W
Peak Power Rating: 3, 500 W
Max Efficiency: 93 %
Zero Load Power: 10 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 80 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 1 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple, Overcurrent, Automatic load disconnect
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 15.5 kg
Height: 506 mm
Width: 236 mm
Depth: 147 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 38, 66 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 400 W
Cont Power W65: 1, 000 W
Peak Power Rating: 3, 500 W
Max Efficiency: 95 %
Zero Load Power: 11 W
Zero Load Power Search: 4 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 25 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
D I P Switches Programming
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 15.5 kg
Height: 506 mm
Width: 236 mm
Depth: 147 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 100 W
Peak Power Rating: 4, 000 W
Max Efficiency: 94 %
Zero Load Power: 11 W
Zero Load Power A E S: 8 W
Zero Load Power Search: 4 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 55, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 50 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %

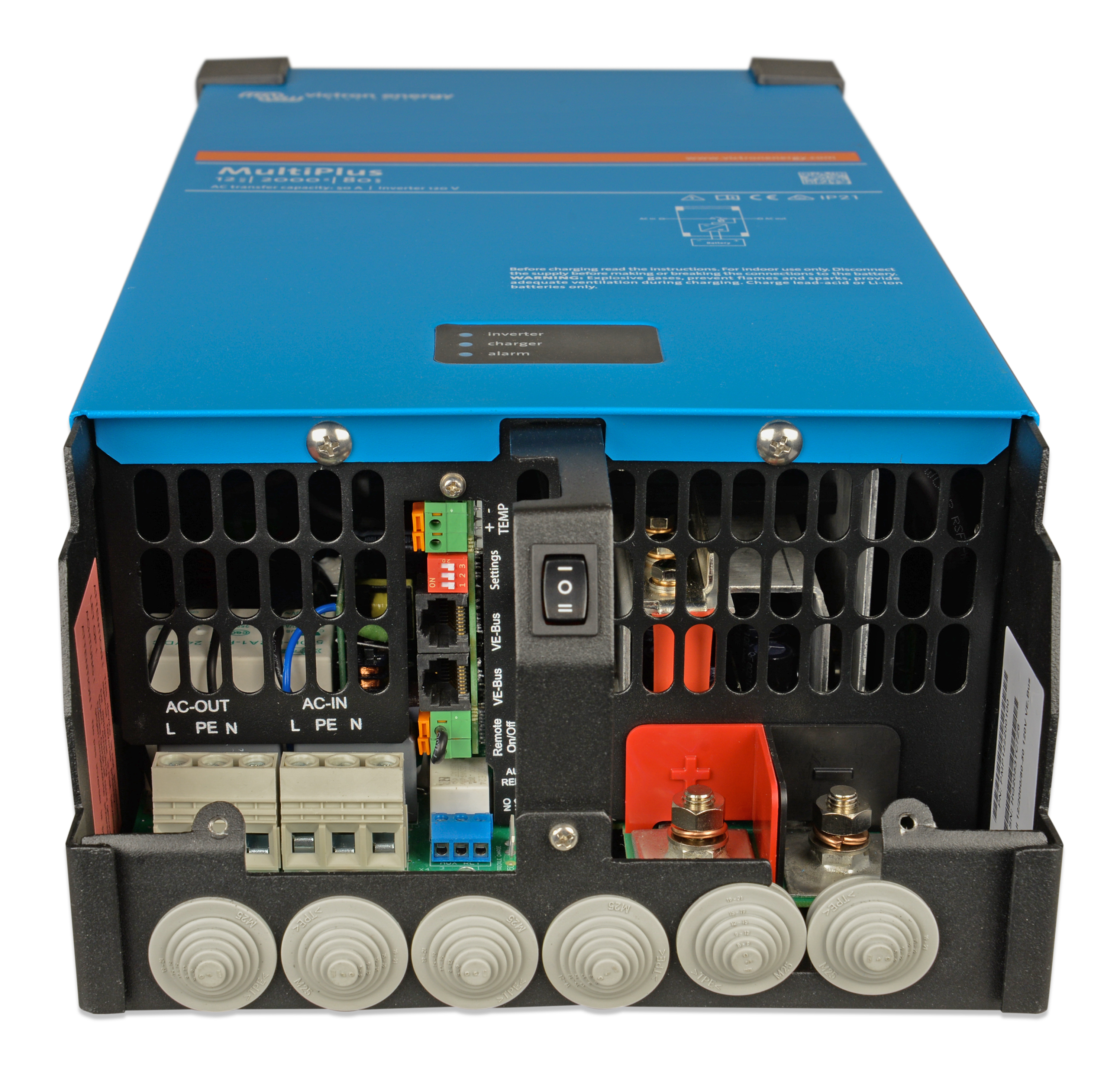

A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 13 kg
Height: 520 mm
Width: 255 mm
Depth: 125 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission Immunity: EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 100 W
Peak Power Rating: 4, 000 W
Max Efficiency: 94 %
Zero Load Power: 11 W
Zero Load Power A E S: 8 W
Zero Load Power Search: 4 W
A C Input Voltage Range: [ 95, 140 ] VAC
A C Input Frequency Range: [ 55, 65 ] Hz
Power Factor: 1
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 50 A
Starter Battery Charge Output: 1
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Number Ac Outputs: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 15.5 kg
Height: 506 mm
Width: 236 mm
Depth: 147 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5

← Volver a productos Victron
