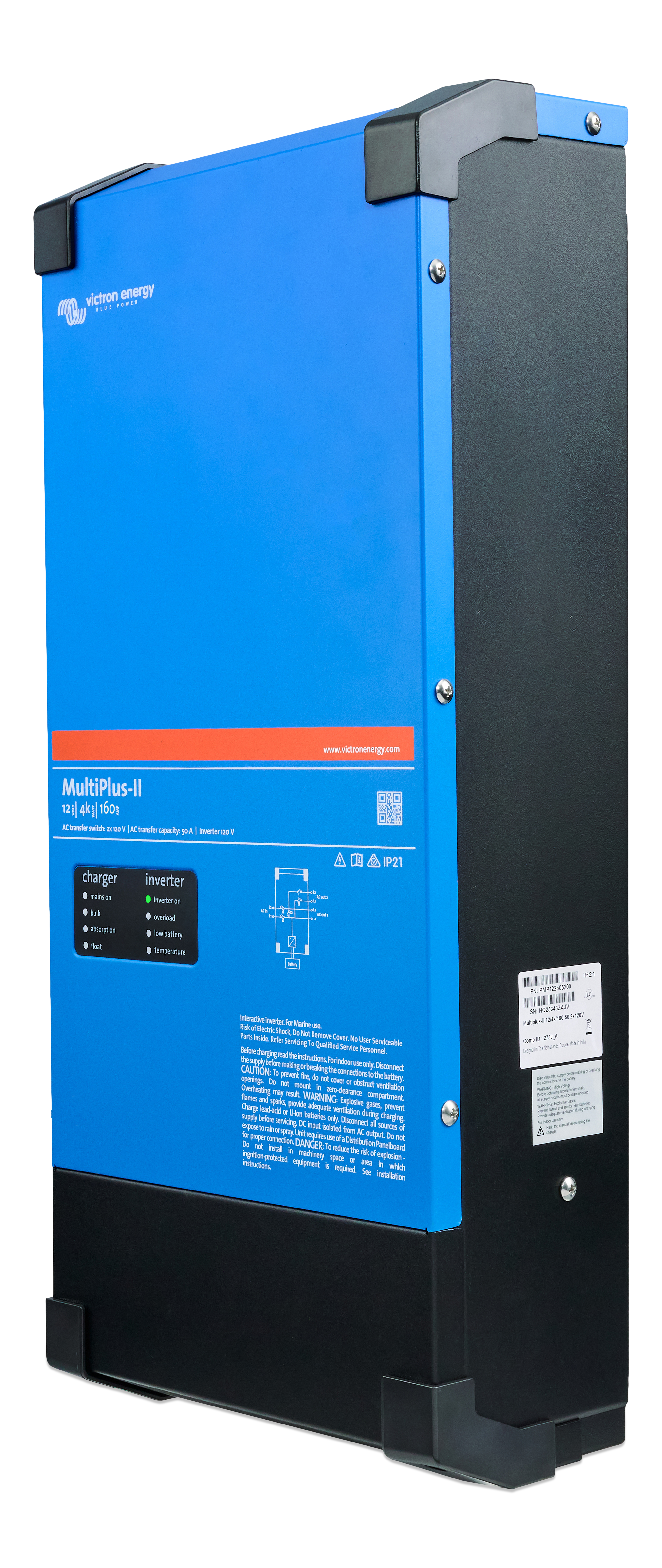

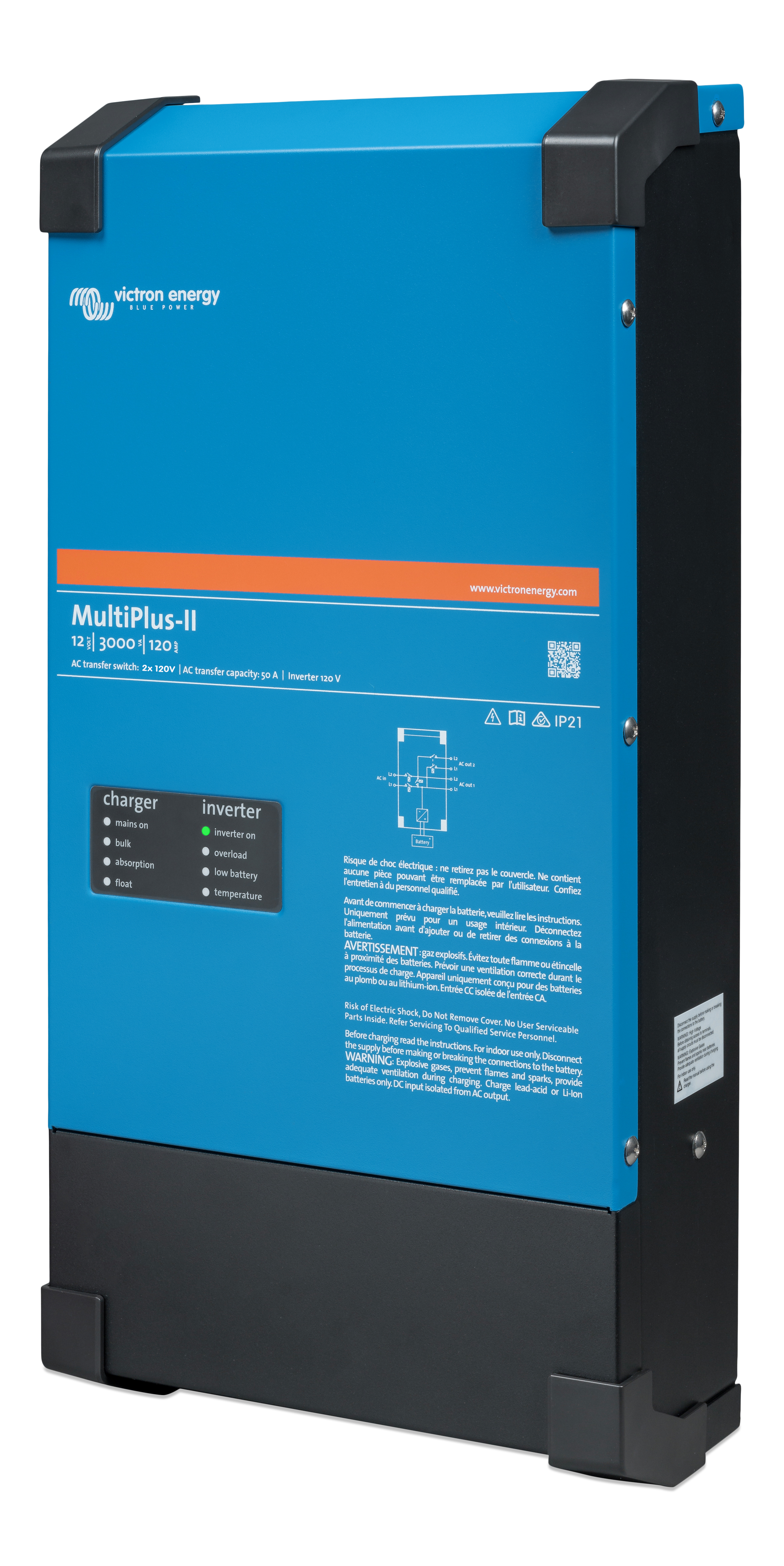

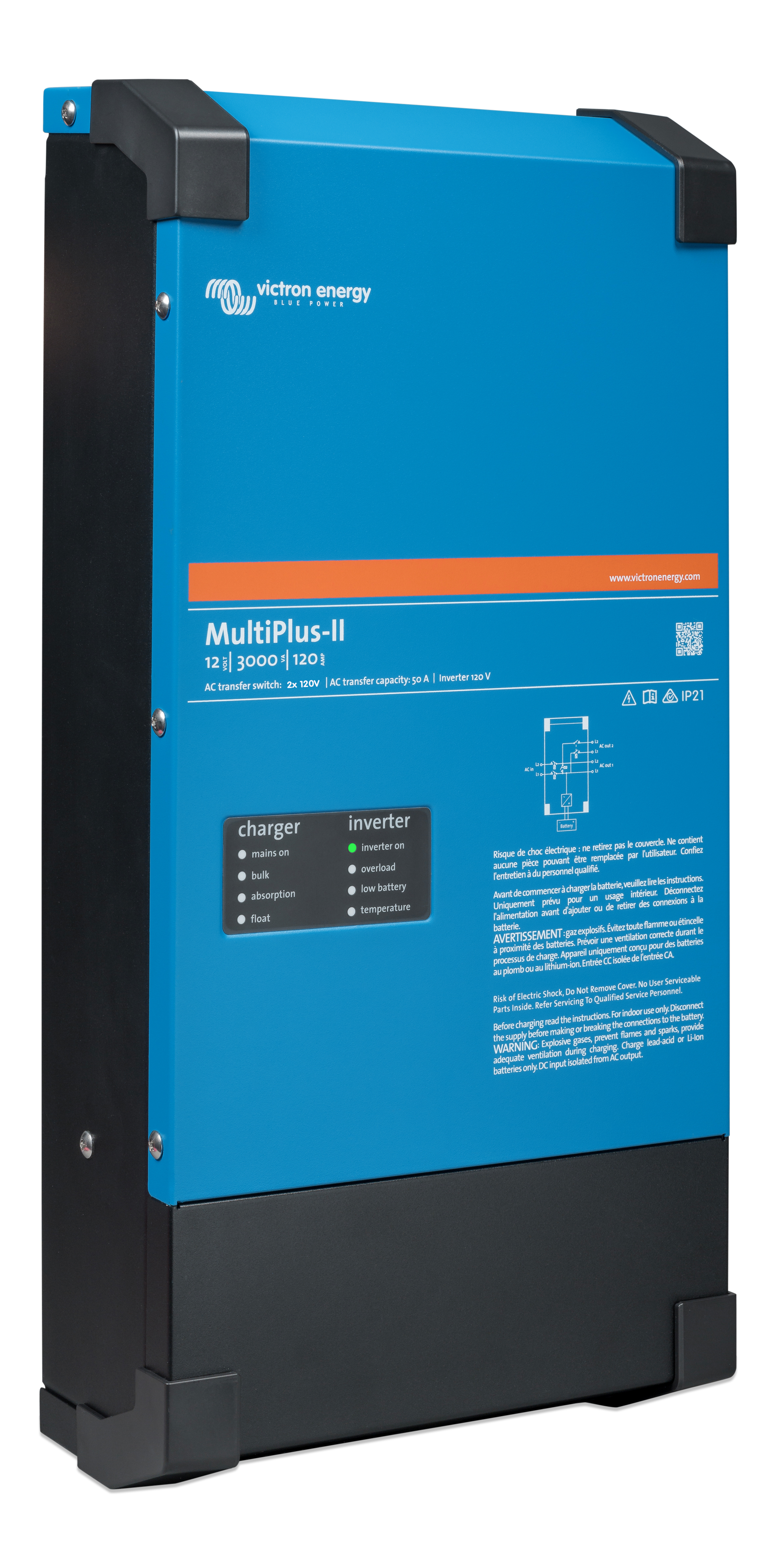

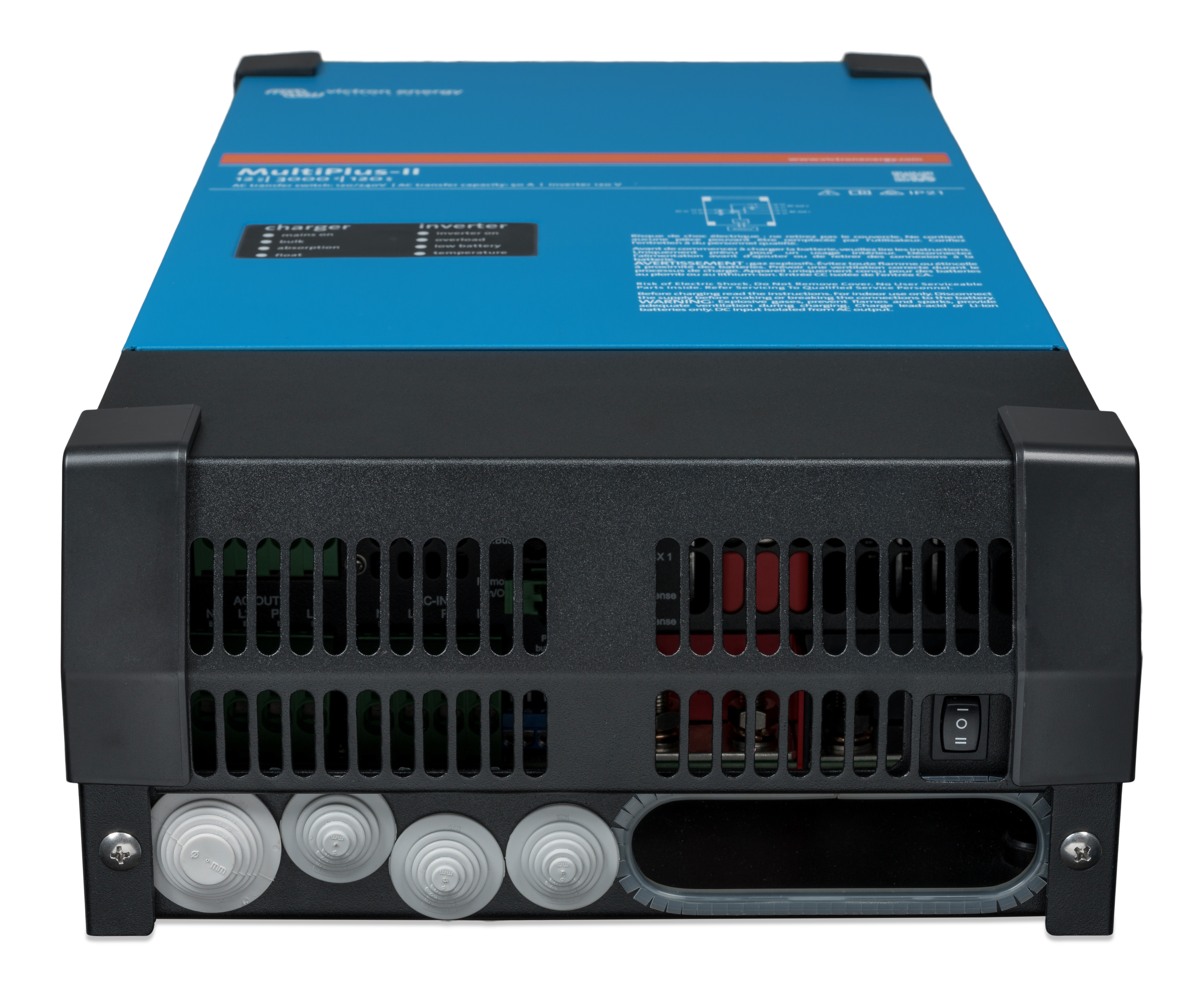

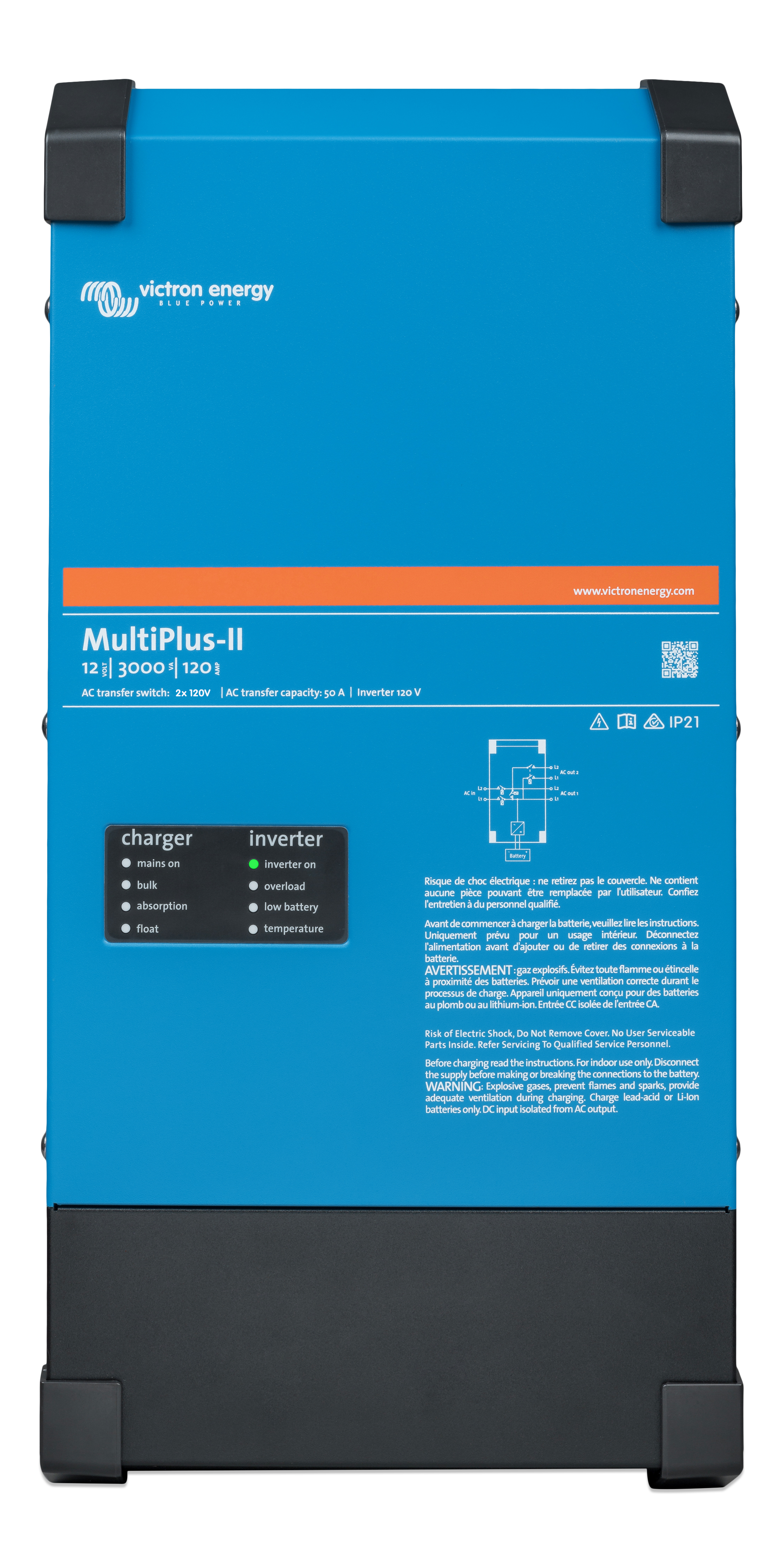

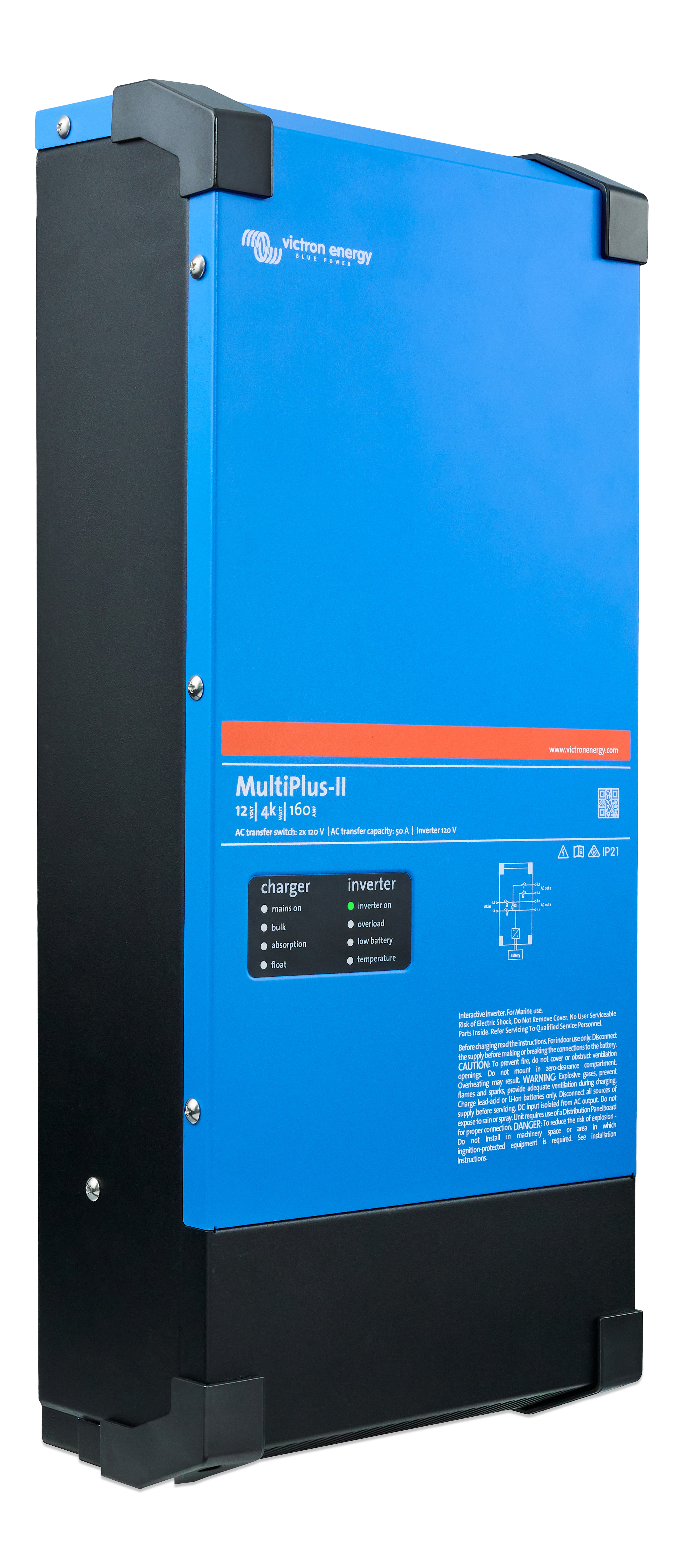

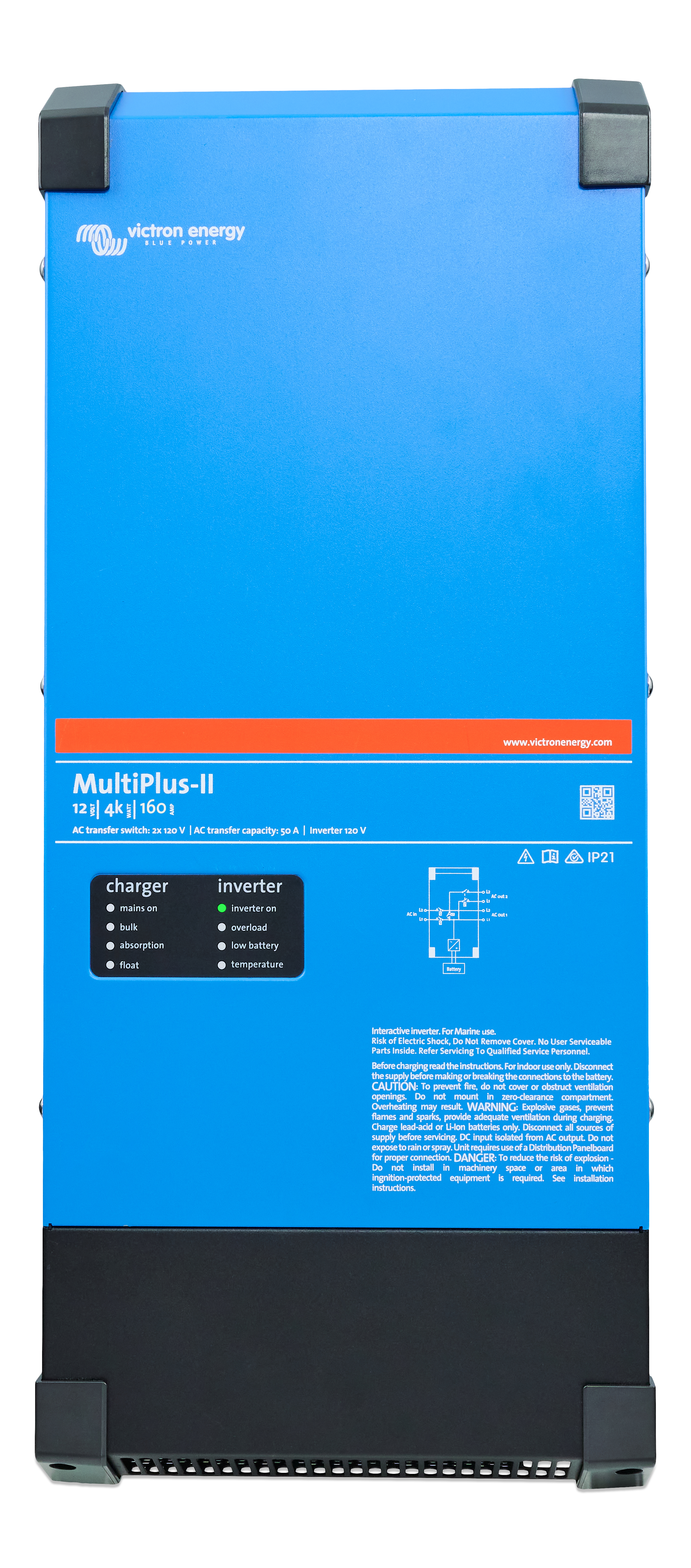

MultiPlus-II 2x 120V

SKU principal: PMP122305100

<p class="xstyle1" style="background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">The MultiPlus-II 2x 120V is the perfect one-box mobile solution for standard North American 50A 120/240VAC split-phase applications. Whether it is supplied from shore power or a generator,
the MultiPlus-II 2x120V can accept and passthrough both lines of a 120/240V supply,
with the capability to utilize the full 50A for charging and AC loads. When connecting to a single phase 120V supply,
the L1 input of the MultiPlus-II 2x120V will accept incoming power for charging and passthrough,
while combining the L1 and L2 outputs for single-phase 120V on each line. <p class="xstyle1" style="background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; margin-top: 2.4rem;"><o:p></o:p><p class="xstyle1" style="background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; margin-top: 2.4rem;">The MultiPlus switches to inverter operation when no AC source is available. The inverter output is also 120V single phase. In inverter mode,
the MultiPlus-II 2x120V internally connects both lines L1 and L2 together to provide 120VAC to loads on either output. Therefore,
in all connection circumstances,
both sides of a distribution panel will be supplied with 120V. However,
240VAC is only available when the MultiPlus is supplied by a split phase 120/240VAC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery.<p class="xstyle1" style="background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; margin-top: 2.4rem;">The MultiPlus-II 2x 120V has all of the expected features of our versatile inverter/charger range,
including PowerControl,
PowerAssist,
Input Current Limit,
two AC outputs,
as well as parallel and 3ph configuration for larger capacity VE.Bus systems. Suitable for LiFePO4 batteries and a variety of other battery technologies.

Códigos SKU

PMP122305100 PMP122305102 PMP242305130 PMP242305132 PMP122405200

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 24 V
Power Control And Assist: 1
Transfer Switch Current Rating: 50 A
Max Ac Input Current: 50 A
Number Ac Inputs: 1
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Max App Feedin Power: 2, 500 VA
Peak Power Rating: 5, 500 W
Max Efficiency: 94 %
Zero Load Power: 11 W
Zero Load Power A E S: 8 W
Zero Load Power Search: 4 W
A C Input Voltage Range Split: [ 180, 280 ] VAC
A C Input Voltage Range Single: [ 90, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Temperature Sensor: Included
Auxiliary Output: 1
Programmable Relay: AC rating: 120V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %

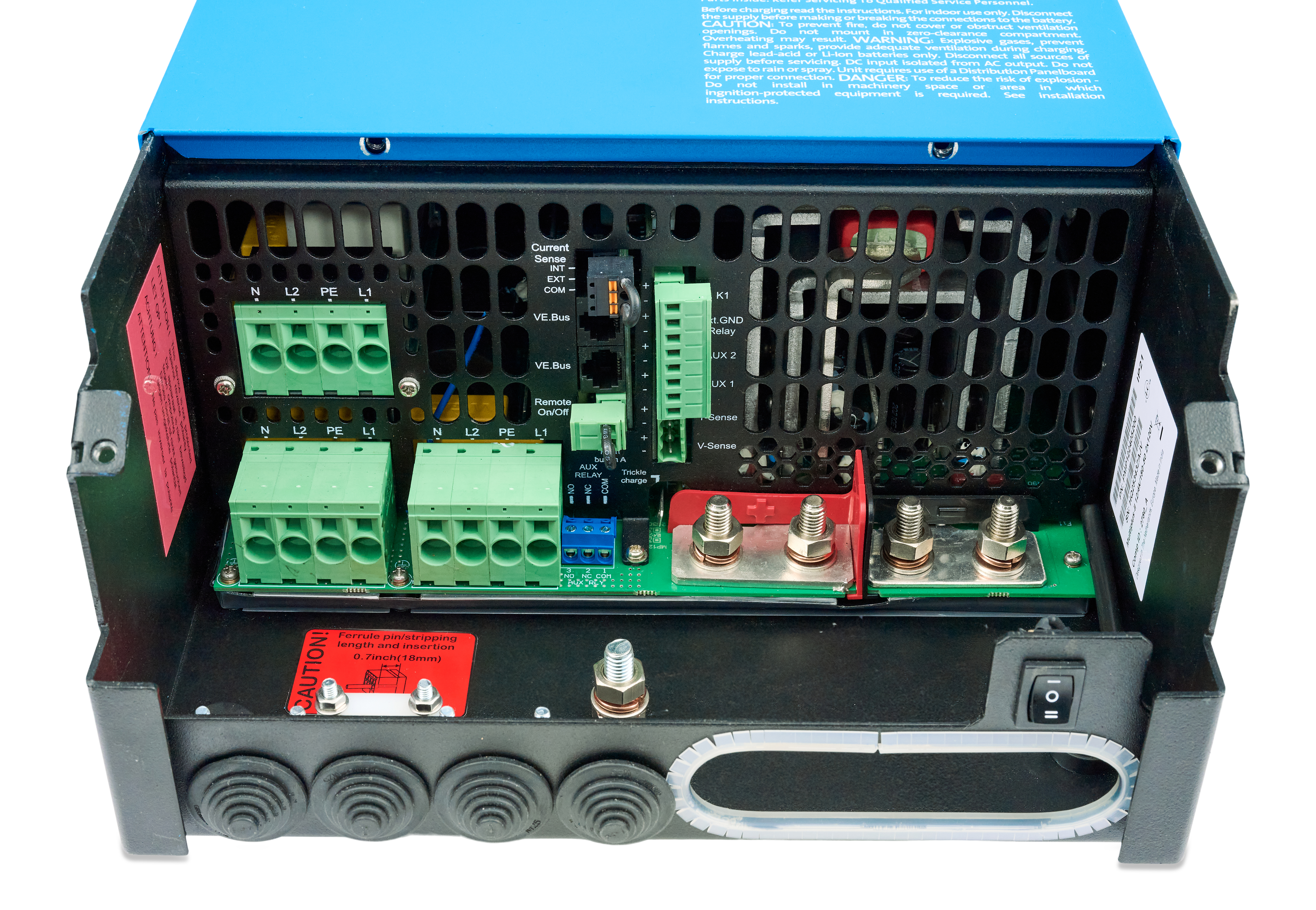

A C Connection Terminal Type: Screw terminals 21 mm² (4 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 22 kg
Height: 578 mm
Width: 275 mm
Depth: 148 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Battery Voltage Nominal: 24 V
Power Control And Assist: 1
Transfer Switch Current Rating: 50 A
Max Ac Input Current: 50 A
Number Ac Inputs: 1
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Max App Feedin Power: 2, 500 VA
Peak Power Rating: 5, 500 W
Max Efficiency: 94 %
Zero Load Power: 11 W
Zero Load Power A E S: 8 W
Zero Load Power Search: 4 W
A C Input Voltage Range Split: [ 180, 280 ] VAC
A C Input Voltage Range Single: [ 90, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Temperature Sensor: Included
Auxiliary Output: 1
Programmable Relay: AC rating: 120V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 21 mm² (4 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 22 kg
Height: 578 mm
Width: 275 mm
Depth: 148 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, UL 458
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Power Control: 1
Power Assist: 1
Parallel Operation
Three Phase Operation
Battery Voltage Nominal: 12 V
Transfer Switch Current Rating: 50 A
Max Ac Input Current: 50 A
Number Ac Inputs: 1
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Max App Feedin Power: 2, 500 VA
Peak Power Rating: 5, 500 W
Max Efficiency: 93 %
Zero Load Power: 15 W
Zero Load Power A E S: 10 W
Zero Load Power Search: 4 W
A C Input Voltage Range Split: [ 180, 280 ] VAC
A C Input Voltage Range Single: [ 90, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 120 A
Temperature Sensor: Included
Auxiliary Output: 1
Programmable Relay: AC rating: 120V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 21 mm² (4 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 22 kg
Height: 578 mm
Width: 275 mm
Depth: 148 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Power Control: 1
Power Assist: 1
Battery Voltage Nominal: 12 V
Transfer Switch Current Rating: 50 A
Max Ac Input Current: 50 A
Number Ac Inputs: 1
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 120 VAC
A C Output Frequency: 60 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Max App Feedin Power: 2, 500 VA
Peak Power Rating: 5, 500 W
Max Efficiency: 93 %
Zero Load Power: 15 W
Zero Load Power A E S: 10 W
Zero Load Power Search: 4 W
A C Input Voltage Range Split: [ 180, 280 ] VAC
A C Input Voltage Range Single: [ 90, 140 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 120 A
Temperature Sensor: Included
Auxiliary Output: 1
Programmable Relay: AC rating: 120V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: Screw terminals 21 mm² (4 AWG)
Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 22 kg
Height: 578 mm
Width: 275 mm
Depth: 148 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, UL 458
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
