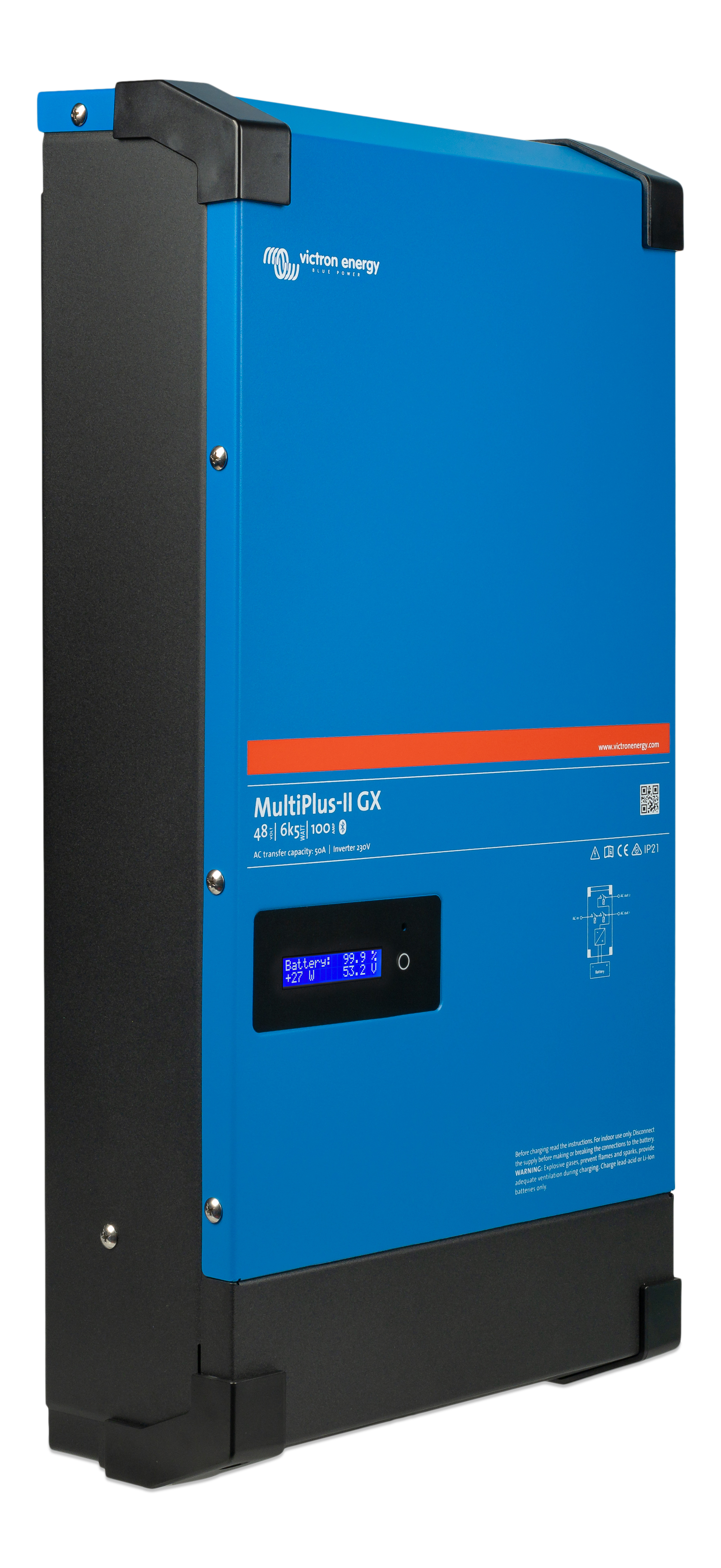

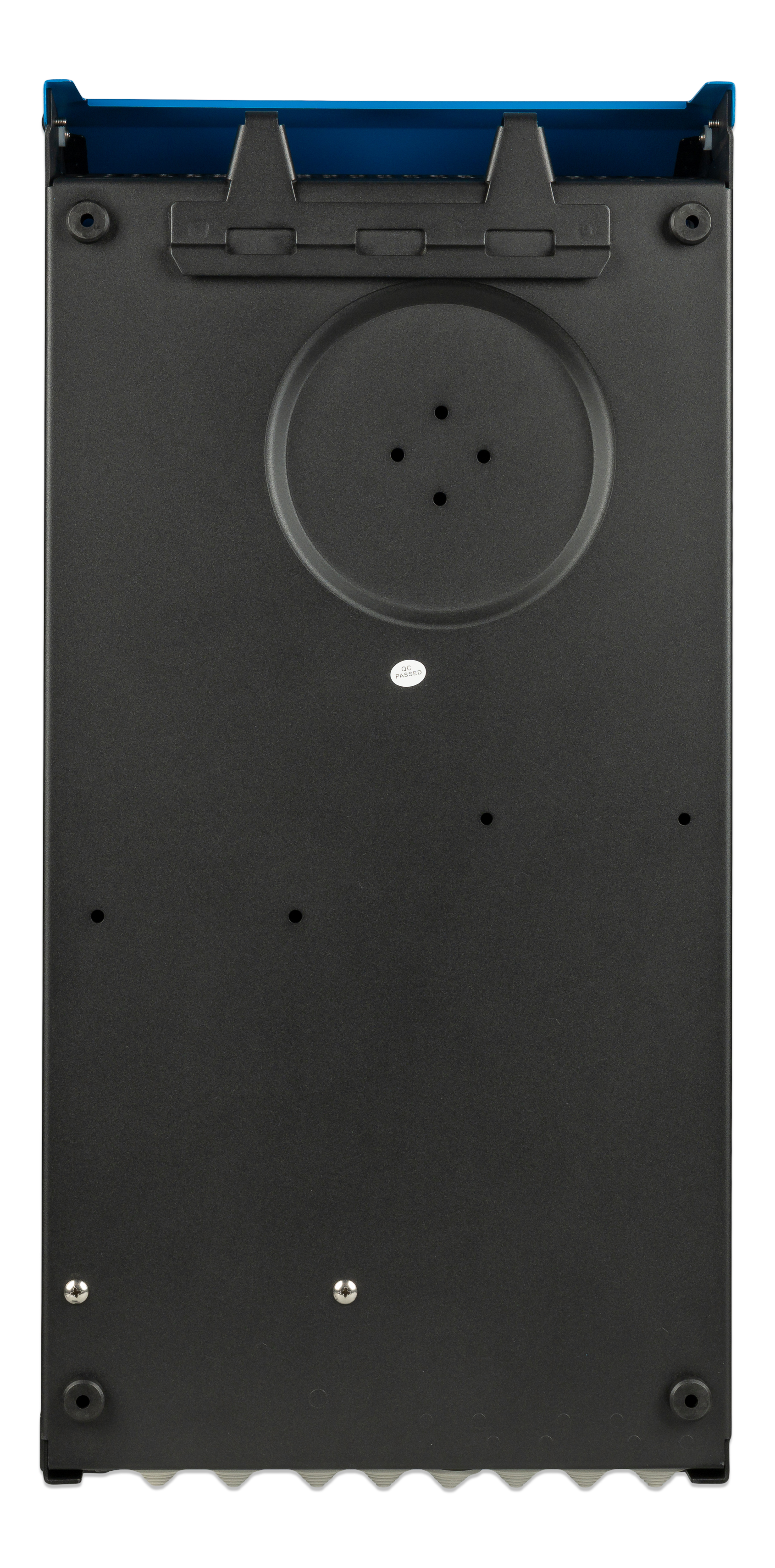

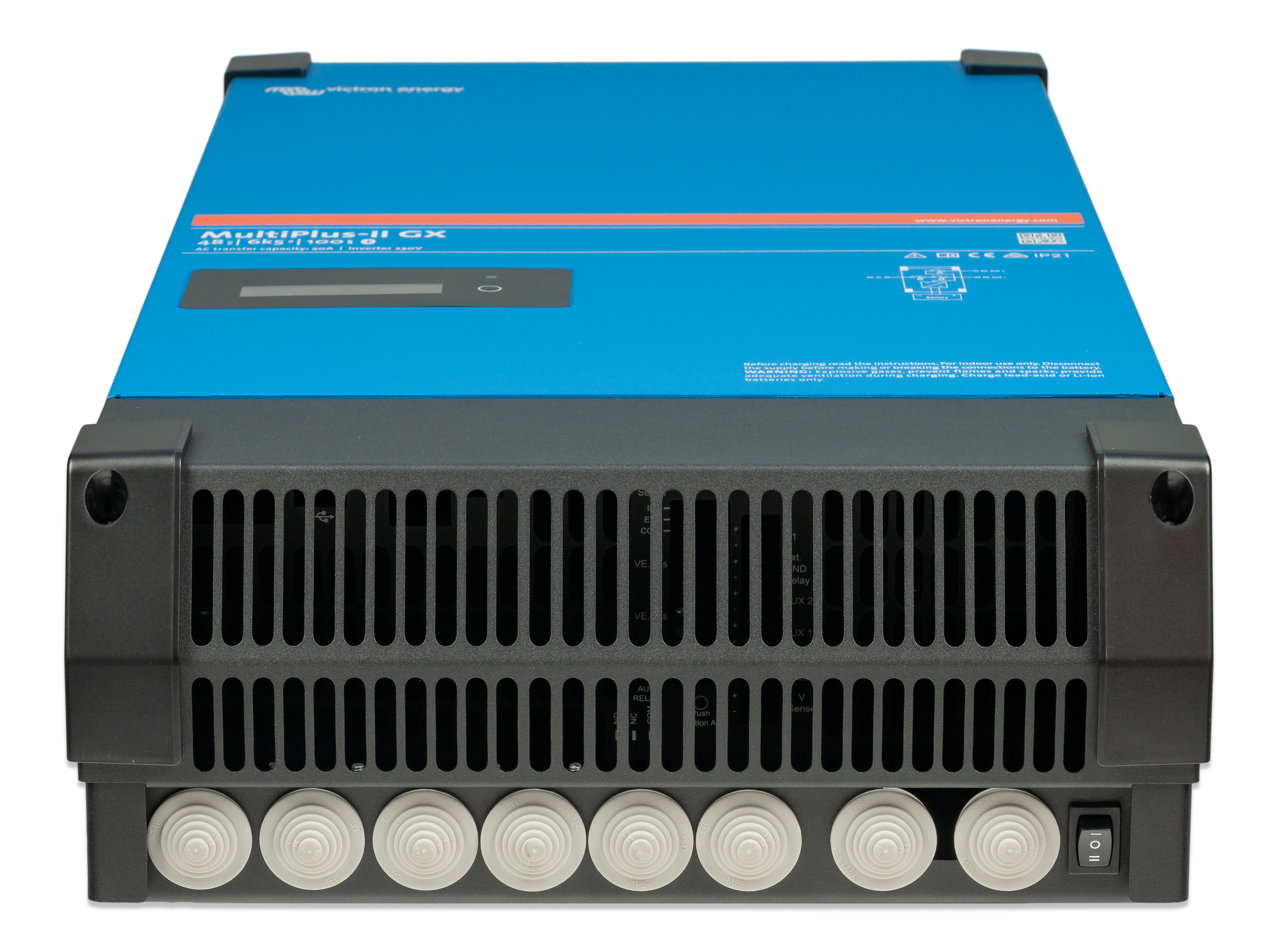

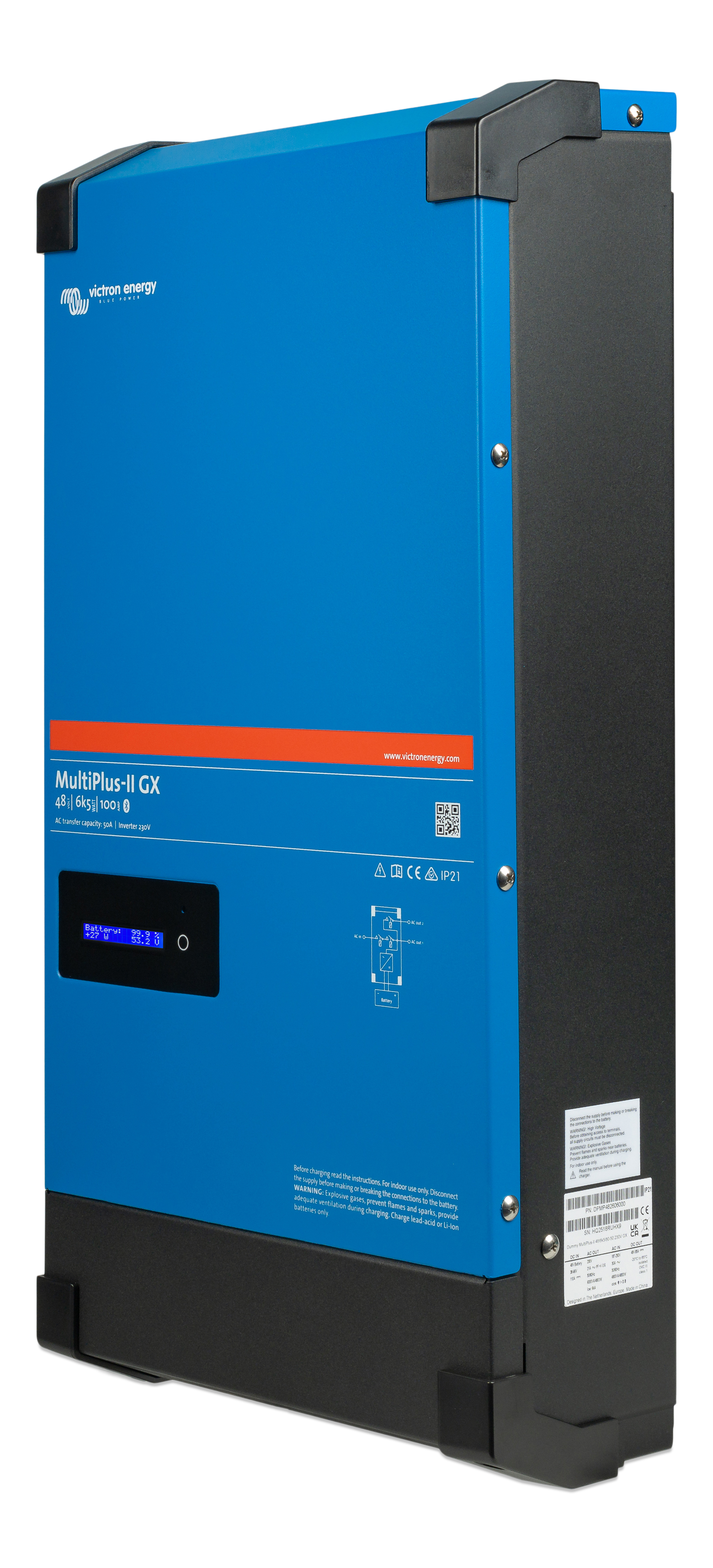

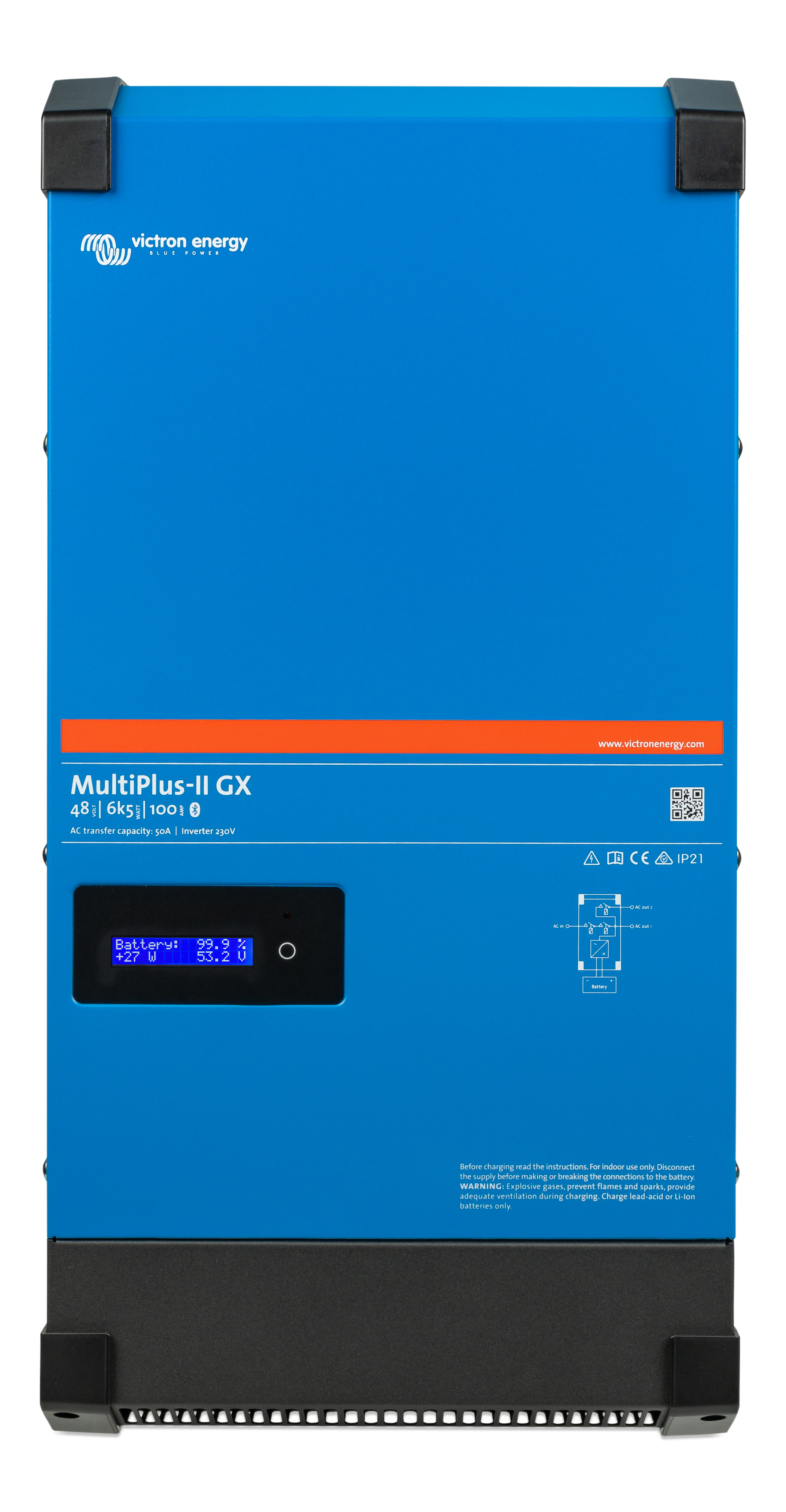

MultiPlus-II GX

SKU principal: PMP482306000

MultiPlus-II GX

<p>An Inverter/Charger with device networking built-in,
the MultiPlus-II GX communicates with a solar charger,
batteries,
and other devices to control a grid-connected,
off-grid,
or remote power installation. Capable of parallel operation for increased power output,
or battery charge-rates,
the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features - such as uninterrupted power supply,
setting load limits,
and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.</p>

Códigos SKU

PMP482306000 PMP482506000 PMP242306000 PMP482406000 PMP482606000 PMP482506020

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
Max Ac Input Current: 50 A
D C Input Voltage Range: [ 38, 66 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 5, 000 VA
Cont Power W25: 4, 000 W
Cont Power W40: 3, 700 W
Cont Power W65: 3, 000 W
Peak Power Rating: 9, 000 W
Max App Feedin Power: 5, 000 VA
Max Efficiency: 96 %
Zero Load Power: 18 W
Zero Load Power A E S: 12 W
Zero Load Power Search: 2 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Temperature Sensor: Included
Number Ac Outputs: 2
External Ac Current Sensor: 50A or 100A (optional)
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple, Overcurrent
Communication Port: VE.Direct, VE.Bus, VE.Can, BMS-Can, WiFi, Ethernet
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 31 kg
Height: 565 mm
Width: 323 mm
Depth: 148 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti Islanding Standard: Please consult the certificates on our website
Ups Standard: IEC 62040-1
Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
Max Ac Input Current: 50 A
D C Input Voltage Range: [ 38, 66 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 5, 000 VA
Cont Power W25: 4, 000 W
Cont Power W40: 3, 700 W
Cont Power W65: 3, 000 W
Peak Power Rating: 9, 000 W
Max App Feedin Power: 5, 000 VA
Max Efficiency: 96 %
Zero Load Power: 18 W
Zero Load Power A E S: 12 W
Zero Load Power Search: 2 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
External Ac Current Sensor: 50A or 100A (optional)
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Direct, VE.Bus, VE.Can, BMS-Can, WiFi, Ethernet
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 31 kg
Height: 565 mm
Width: 323 mm
Depth: 148 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti Islanding Standard: Please consult the certificates on our website
Ups Standard: IEC 62040-1
Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 265 ] VAC
Transfer Switch Current Rating: 50 A
Max Ac Input Current: 50 A
D C Input Voltage Range: [ 38, 60 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Short Name: 6k5
Cont Power W25: 6, 000 W
Cont Power W40: 5, 700 W
Cont Power W65: 4, 600 W
Peak Power Rating: 11, 000 W
Max App Feedin Power: 6, 000 W
Max Efficiency: 96 %
Zero Load Power: 28 W
Zero Load Power A E S: 18 W
Zero Load Power Search: 8 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 100 A
Temperature Sensor: Included
Auxiliary Output: 1
External Ac Current Sensor: 50A or 100A (optional)
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 29 kg
Height: 644 mm
Width: 320 mm
Depth: 150 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 32 A
Max Ac Input Current: 32 A
D C Input Voltage Range: [ 38, 66 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 5, 500 W
Max App Feedin Power: 3, 000 VA
Max Efficiency: 95 %
Zero Load Power: 11 W
Zero Load Power A E S: 7 W
Zero Load Power Search: 2 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 35 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
External Ac Current Sensor: 50A or 100A (optional)
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Direct, VE.Bus, VE.Can, BMS-Can, WiFi, Ethernet
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 20 kg
Height: 506 mm
Width: 275 mm
Depth: 147 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti Islanding Standard: Please consult the certificates on our website
Ups Standard: IEC 62040-1
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 32 A
Max Ac Input Current: 32 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 5, 500 W
Max App Feedin Power: 3, 000 VA
Max Efficiency: 94 %
Zero Load Power: 13 W
Zero Load Power A E S: 9 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
External Ac Current Sensor: 50A or 100A (optional)
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus, VE.Can, VE.Direct, BMS-Can, WiFi, Ethernet
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 20 kg
Height: 506 mm
Width: 275 mm
Depth: 147 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Anti Islanding Standard: Please consult the certificates on our website
Ups Standard: IEC 62040-1
Battery Voltage Nominal: 48 V
Power Control: 1
Power Assist: 1
Parallel Operation: 1
Three Phase Operation: 1
Number Ac Inputs: 1
A C Input Voltage Range1: [ 187, 265 ] VAC
Transfer Switch Current Rating: 32 A
Max Ac Input Current: 32 A
D C Input Voltage Range: [ 38, 60 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Short Name: 4k5
Cont Power W25: 4, 000 W
Cont Power W40: 3, 700 W
Cont Power W65: 3, 000 W
Peak Power Rating: 7, 000 W
Max App Feedin Power: 4, 000 VA
Max Efficiency: 95 %
Zero Load Power: 20 W
Zero Load Power A E S: 13 W
Zero Load Power Search: 8 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 55 A
Temperature Sensor: Included
Number Ac Outputs: 2
Auxiliary Output: 1
External Ac Current Sensor: 50A or 100A (optional)
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Bus
Communication Port General: 1
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -40, 65 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 13 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 21.4 kg
Height: 590 mm
Width: 275 mm
Depth: 149 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Ups Standard: IEC 62040-1

← Volver a productos Victron
