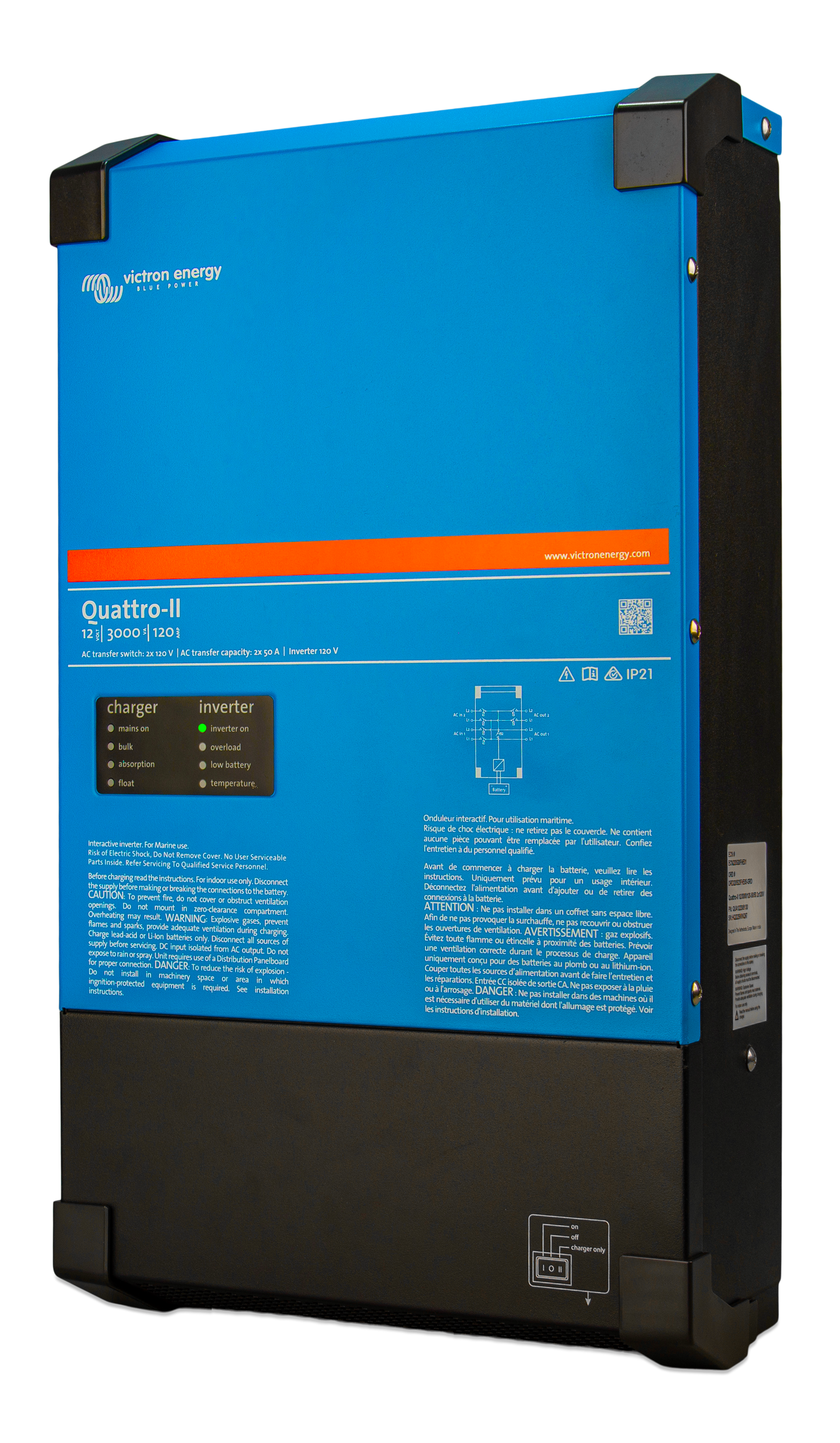

Quattro-II 2x 120V

<p class="MsoNormal"><span lang="EN-AU" style="">Similar to the MultiPlus-II 2x120V,
the Quattro-II 2x120V is a combined inverter and charger specifically designed for standard North American 50A 120/240VAC split-phase applications. Additionally,
it can accept two AC inputs and automatically connects to the active source.</span></p> <p class="MsoNormal"><span lang="EN-AU" style="">Whether it is supplied from shore power or a generator,
the Quattro-II 2x120V can accept and pass through both lines of a 120/240V supply,
with the capability to utilise the full 50A for charging and AC loads. When connecting to a single-phase 120V supply,
the L1 input of the Quattro-II 2x120V will accept incoming power for charging and passthrough while combining the L1 and L2 outputs for single-phase 120V on each line.</span></p> <p class="MsoNormal"><span lang="EN-AU" style="">The Quattro switches to inverter operation when no AC sources are available. The inverter output is also 120V single-phase. In inverter mode,
the Quattro-II 2x120V internally connects both lines L1 and L2 together to provide 120VAC to loads on either output. Therefore,
in all connection circumstances,
both sides of a distribution panel will be supplied with 120V. However,
240VAC is only available when the Quattro is supplied by a split phase 120/240VAC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery.</span></p> <p class="MsoNormal"><span lang="EN-AU" style="">The Quattro-II 2x 120V has all of the expected features of our versatile inverter/charger range,
including PowerControl,
PowerAssist,
Input Current Limit,
two AC outputs,
as well as parallel and 3-phase configuration for larger capacity VE.Bus systems. Suitable for LiFePO4 batteries and a variety of other battery technologies.<font face="Verdana,
