EasySolar

SKU principal: CEP121621000

EasySolar

<p>The EasySolar combines a MPPT Solar Charge Controller,
an inverter/charger and AC distribution in one enclosure. The product is easy to install,
with a minimum of wiring. </p>

Códigos SKU

CEP121621000 CEP241621010 PMP243027010 PMP485027010 CEP122161000 CEP242161010

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Includes M P P T: 1
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Peak Power Rating: 3, 000 W
Max Efficiency: 94 %
Zero Load Power: 10 W
Zero Load Power A E S: 3 W
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 28 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 40 A
Temperature Sensor: Included
Solar Charger Model: MPPT 100/50
Max Output Current Solar: 50 A
Max Pv Power: 1, 400 W
Max Pv Open Circuit Voltage: 100 V
Maxi Efficiency Solar Charger: 98 %
Self Consumption: 10 mA
Charge Voltage Absorption1: 28.8 VDC
Charge Voltage Float1: 27.6 VDC
Charge Algorithm1: Adaptive, 4-stage
Temperature Compensation: -32 mV/°C
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Direct
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -20, 50 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %

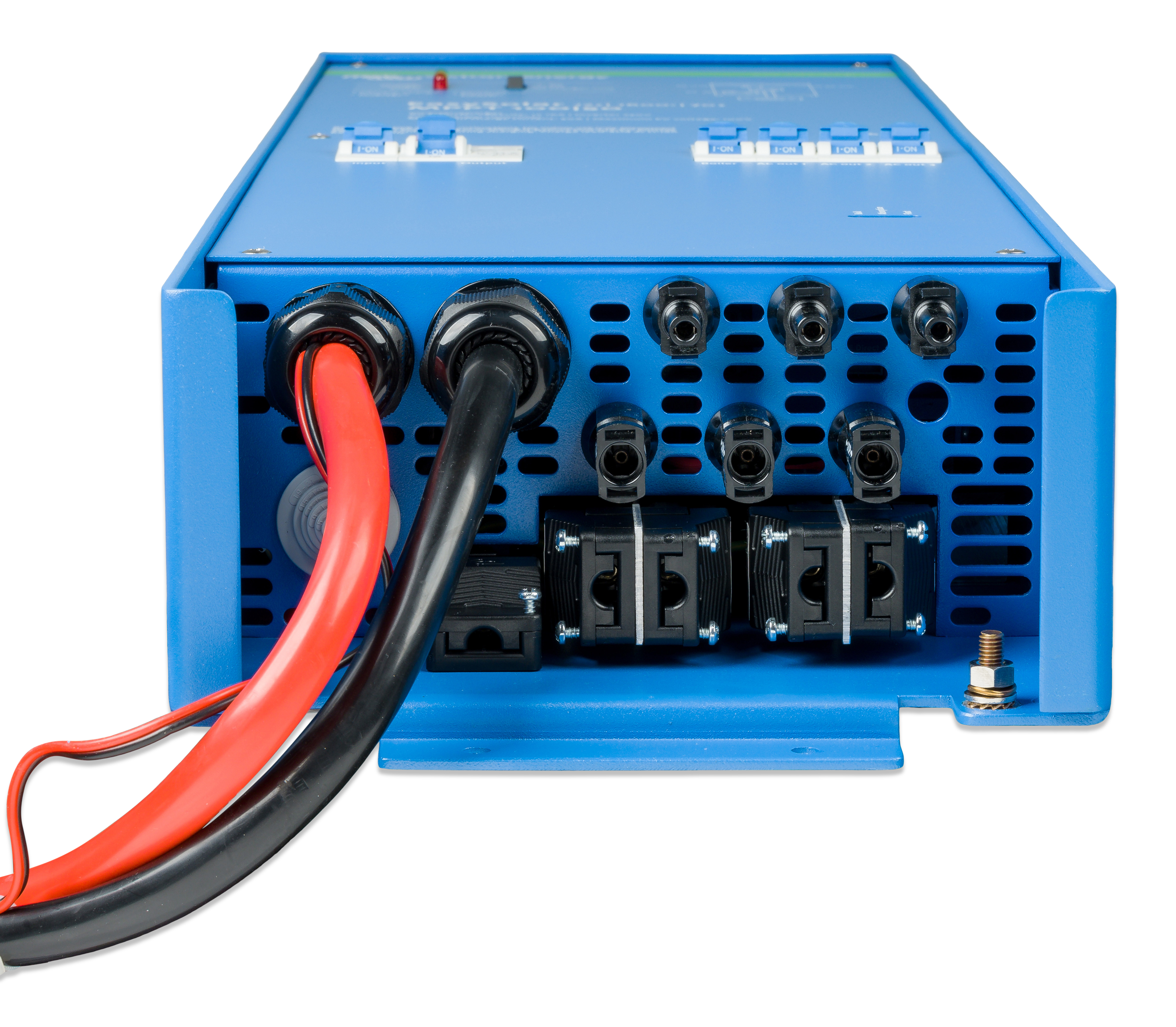

A C Connection Terminal Type: G-ST18i plug
Battery Connection Terminal Type: Red and black 1.5 meter cable
P V Connection Terminal Type: MC4 connectors (three pairs)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 15 kg
Height: 745 mm
Width: 214 mm
Depth: 110 mm
Safety: EN 60335-1, EN 60335-2-29, EN 62109
Emission Immunity: EN 55014-1, EN 55014-2, EN 61000-3-3
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Transfer Switch Current Rating: 16 A
Heavy Ac Current: 16 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Peak Power Rating: 3, 000 W
Max Efficiency: 92 %
Zero Load Power: 8 W
Zero Load Power Search: 2 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Multi-stage adaptive
Maximum Battery Charge Current: 70 A
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Solar Charger Model: MPPT 100/50
Max Output Current Solar: 50 A
Max Pv Power: 700 W
Max Pv Open Circuit Voltage: 100 V
Maxi Efficiency Solar Charger: 98 %
Self Consumption: 10 mA
Charge Voltage Absorption1: 14.4 VDC
Charge Voltage Float1: 13.8 VDC
Charge Algorithm1: Multi-stage adaptive
Temperature Compensation: -60 mV/°C
Auxiliary Output: 1
Programmable Relay: Yes
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Direct
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -20, 50 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: G-ST18i plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with M8 eyelets
P V Connection Terminal Type: MC4 connectors (three pairs)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 15 kg
Height: 745 mm
Width: 214 mm
Depth: 110 mm
Safety: EN 60335-1, EN 60335-2-29, EN 62109
Emission Immunity: EN 55014-1, EN 55014-2, EN 61000-3-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Transfer Switch Current Rating: 16 A
Heavy Ac Current: 19 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Peak Power Rating: 3, 000 W
Max Efficiency: 94 %
Zero Load Power: 10 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 40 A
Starter Battery Charge Current: 4 A
Temperature Sensor: Included
Solar Charger Model: MPPT 100/50
Max Output Current Solar: 40 A
Max Pv Power: 1, 400 W
Max Pv Open Circuit Voltage: 100 V
Maxi Efficiency Solar Charger: 98 %
Self Consumption: 10 mA
Charge Voltage Absorption1: 28.8 VDC
Charge Voltage Float1: 27.6 VDC
Charge Algorithm1: Multi-stage adaptive
Temperature Compensation: -32 mV/°C
Auxiliary Output: 1
Programmable Relay: Yes
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Direct
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -20, 50 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: G-ST18i plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with M8 eyelets
P V Connection Terminal Type: MC4 connectors (three pairs)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 15 kg
Height: 745 mm
Width: 214 mm
Depth: 110 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Power Control: 1
Power Assist: 1
Transfer Switch Current Rating: 16 A
D C Input Voltage Range: [ 9.5, 17 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Peak Power Rating: 3, 000 W
Max Efficiency: 92 %
Zero Load Power: 8 W
Zero Load Power Search: 2 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Temperature Sensor: Included
Solar Charger Model: MPPT 100/50
Max Output Current Solar: 50 A
Max Pv Power: 700 W
Max Pv Open Circuit Voltage: 100 V
Maxi Efficiency Solar Charger: 98 %
Self Consumption: 10 mA
Charge Voltage Absorption1: 14.4 VDC
Charge Voltage Float1: 13.8 VDC
Charge Algorithm1: Multi-stage adaptive
Temperature Compensation: -16 mV/°C
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Direct
Remote Terminal: On / Off / Charger only
Computer Programming: 1
Operating Temp Range: [ -20, 50 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
A C Connection Terminal Type: G-ST18i plug
Battery Connection Terminal Type: Red and black 1.5 meter cable
P V Connection Terminal Type: MC4 connectors (three pairs)
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 15 kg
Height: 745 mm
Width: 214 mm
Depth: 110 mm
Safety: EN 60335-1, EN 60335-2-29, EN 62109
Emission Immunity: EN 55014-1, EN 55014-2, EN 61000-3-3
Battery Voltage Nominal: 24 V
Power Control: 1
Power Assist: 1
Includes M P P T: 1
Number Ac Inputs: 1
Transfer Switch Current Rating: 50 A
Max Ac Input Current: 50 A
D C Input Voltage Range: [ 19, 33 ] VDC
A C Output Voltage: 230 VAC
A C Output Frequency: 50 Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W55: 1, 700 W
Peak Power Rating: 5, 500 W
Max App Feedin Power: 3, 000 VA
Max Efficiency: 94 %
Zero Load Power: 13 W
Zero Load Power A E S: 9 W
Zero Load Power Search: 3 W
A C Input Voltage Range: [ 187, 265 ] VAC
A C Input Frequency Range: [ 45, 65 ] Hz
Charge Voltage Absorption: 28.8 VDC
Charge Voltage Float: 27.6 VDC
Charge Voltage Storage: 26.4 VDC
Charge Algorithm: Adaptive, 4-stage
Maximum Battery Charge Current: 70 A
Temperature Sensor: Included
Max Output Current Solar: 70 A
Max Pv Power: 2, 000 W
Max Pv Open Circuit Voltage: 150 V
Maxi Efficiency Solar Charger: 99 %
Self Consumption: 20 mA
Charge Algorithm Solar: Adaptive, 4-stage
Auxiliary Output: 1
Number Ac Outputs: 2
External Ac Current Sensor: 100A (optional)
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Communication Port: VE.Direct, VE.Bus, VE.Can, BMS-Can, WiFi, Ethernet
Remote Terminal: On / Off
Computer Programming: 1
Operating Temp Range: [ -20, 45 ] °C
Fan Assist Cooling: 1
Max Humidity: 95 %
Max Altitude: 2, 000 m
A C Connection Terminal Type: Screw terminals 16 mm² (6 AWG)
Battery Connection Terminal Type: M8 bolts
P V Connection Terminal Type: M6 bolts
Remote Terminal Type: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Vebus Terminal Type: Two RJ45 terminals
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
