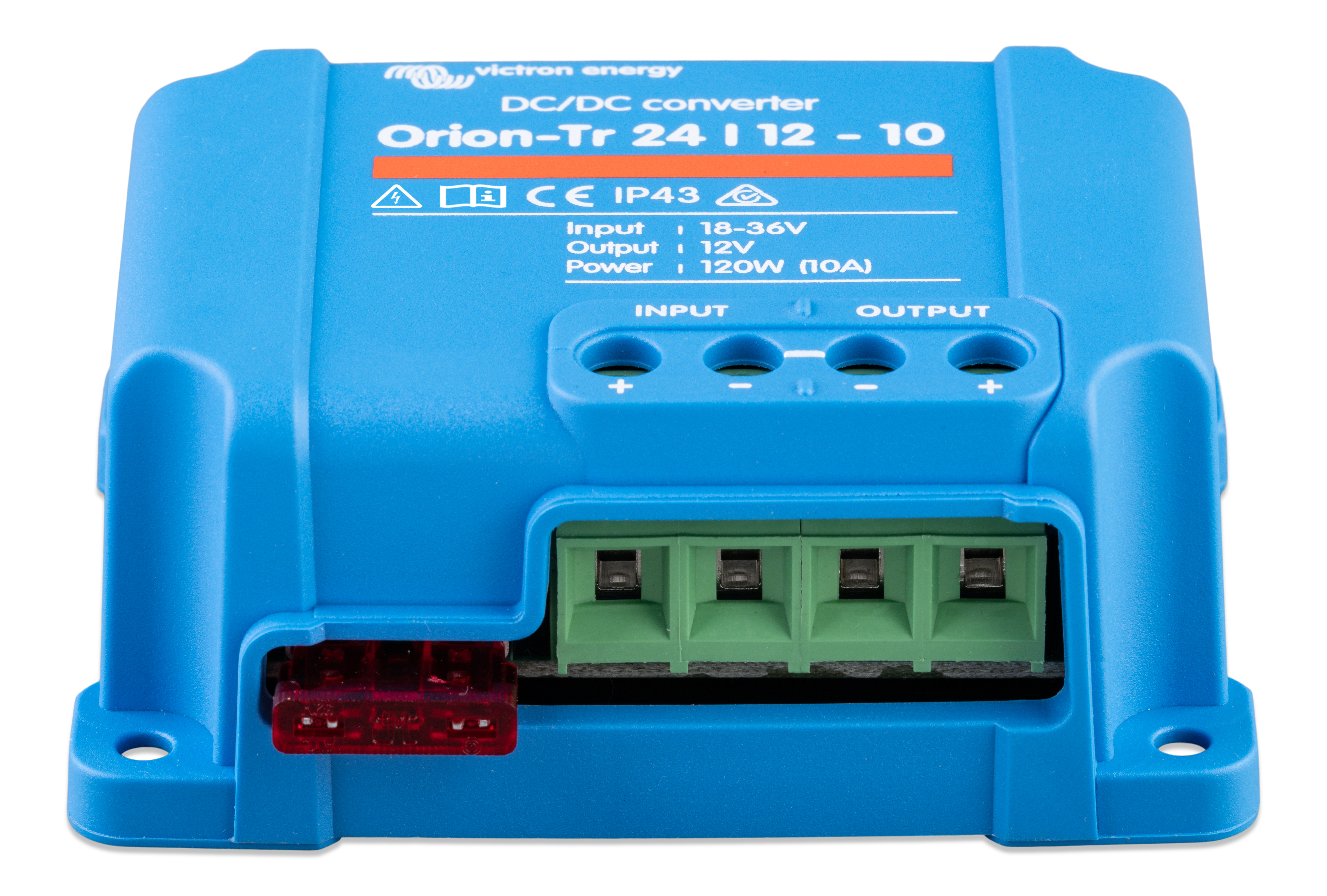

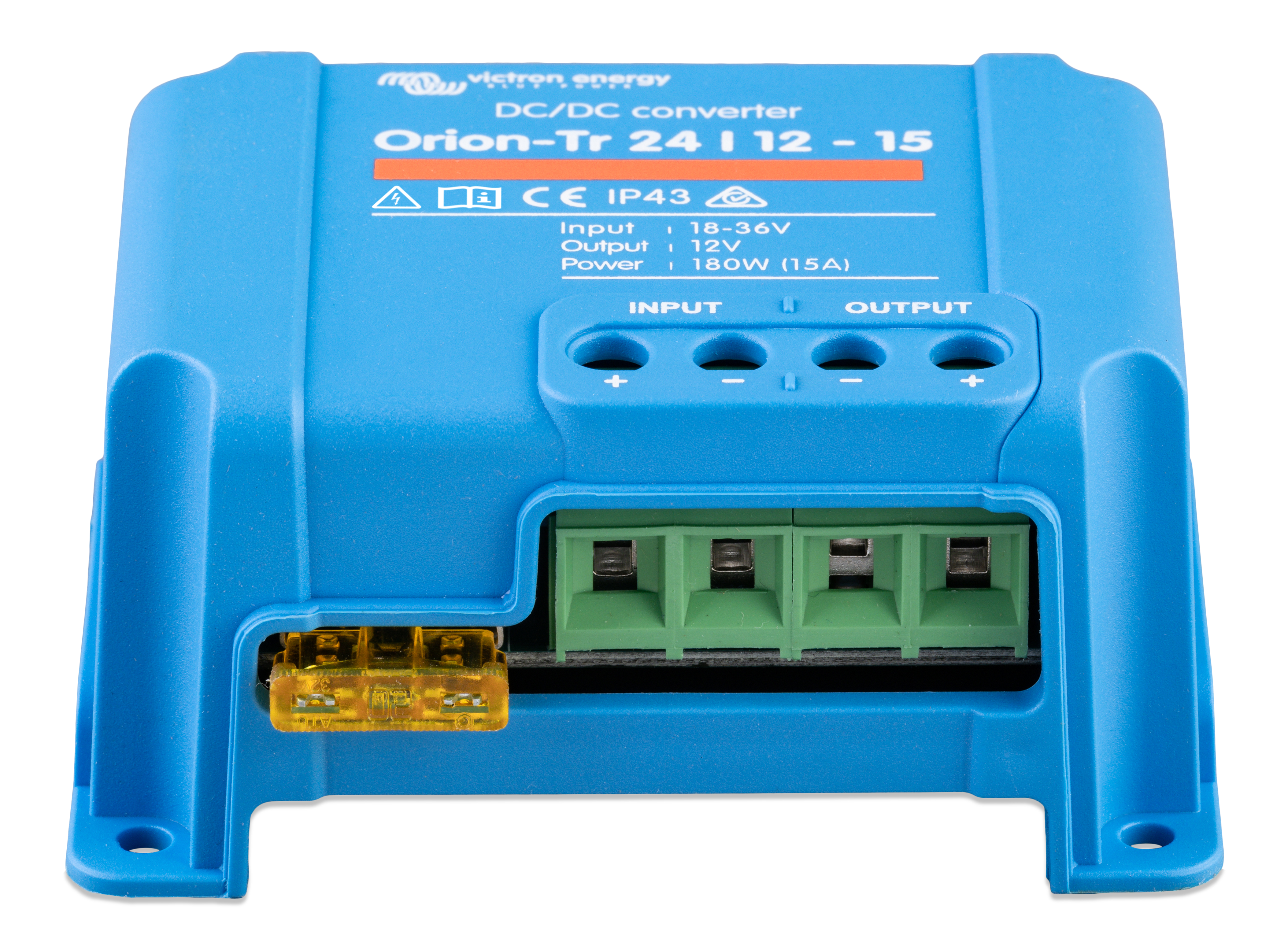

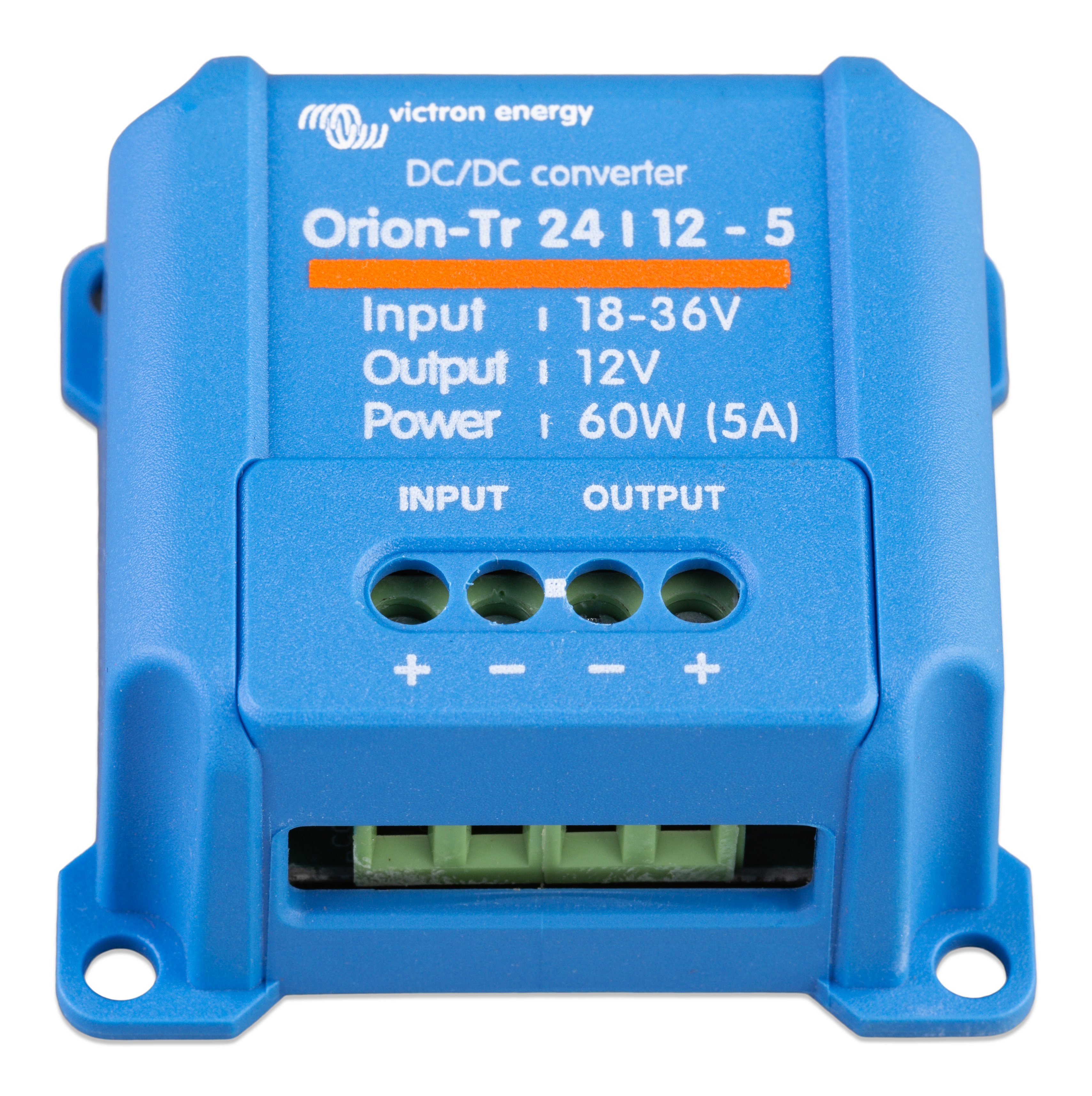

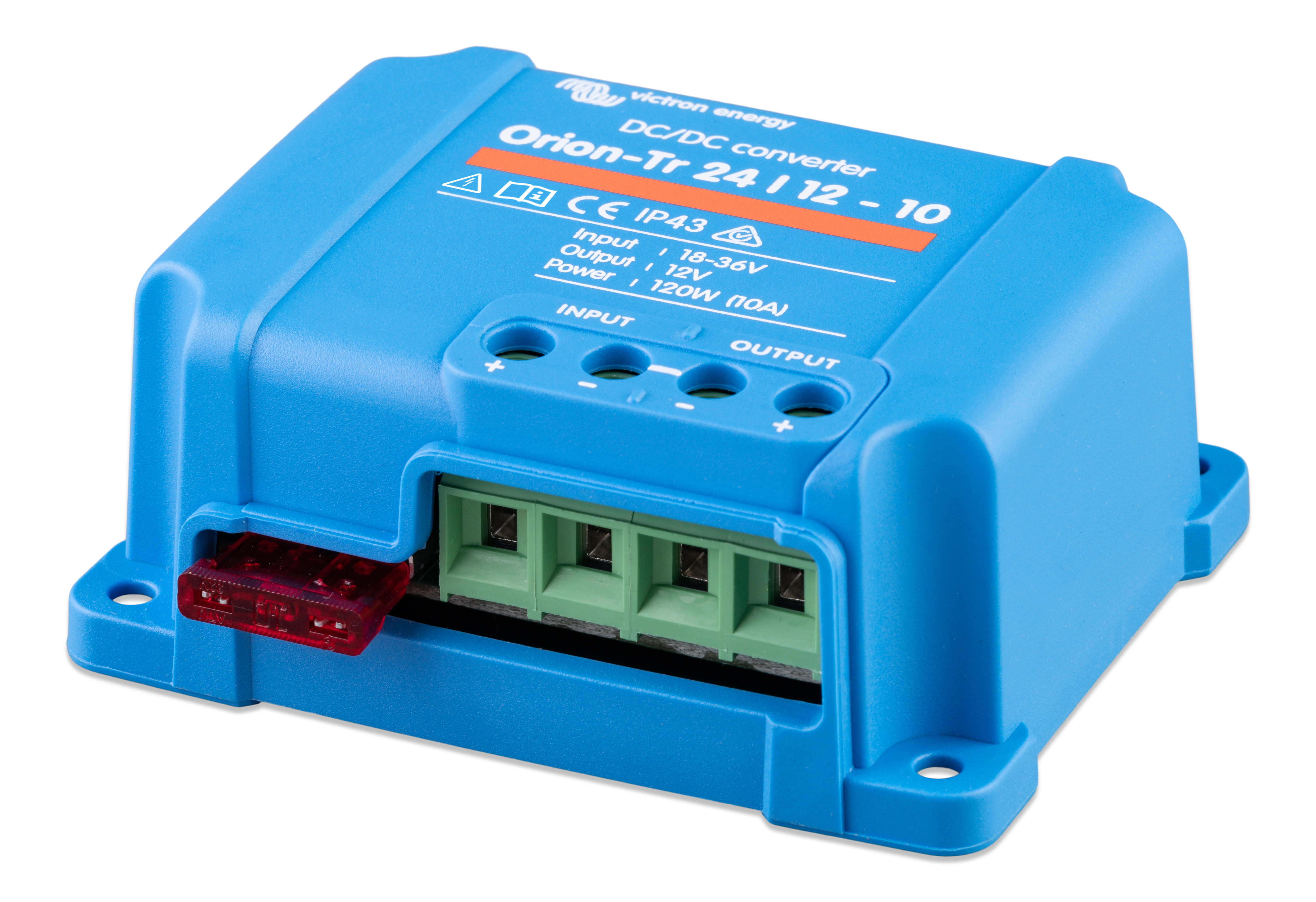

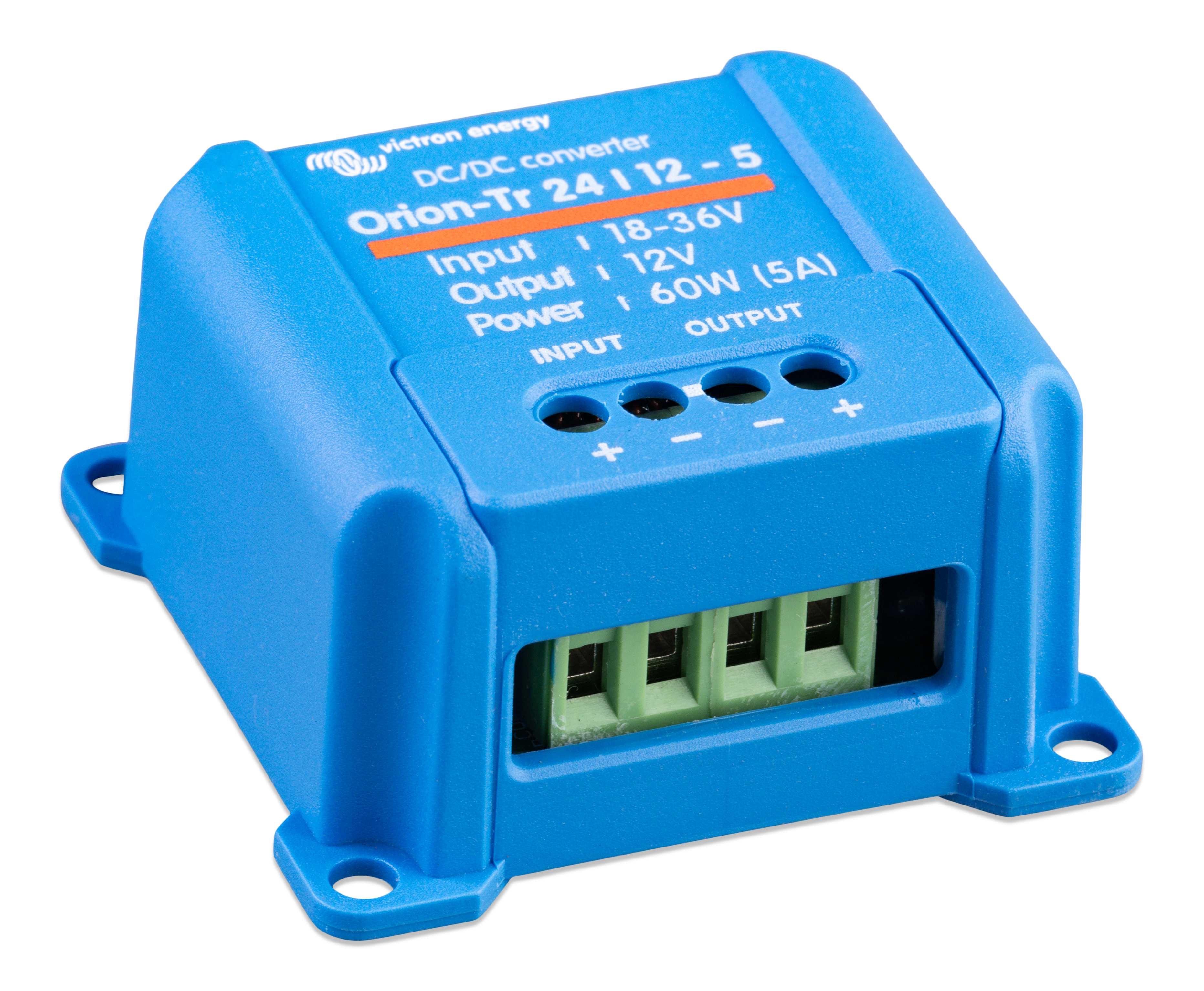

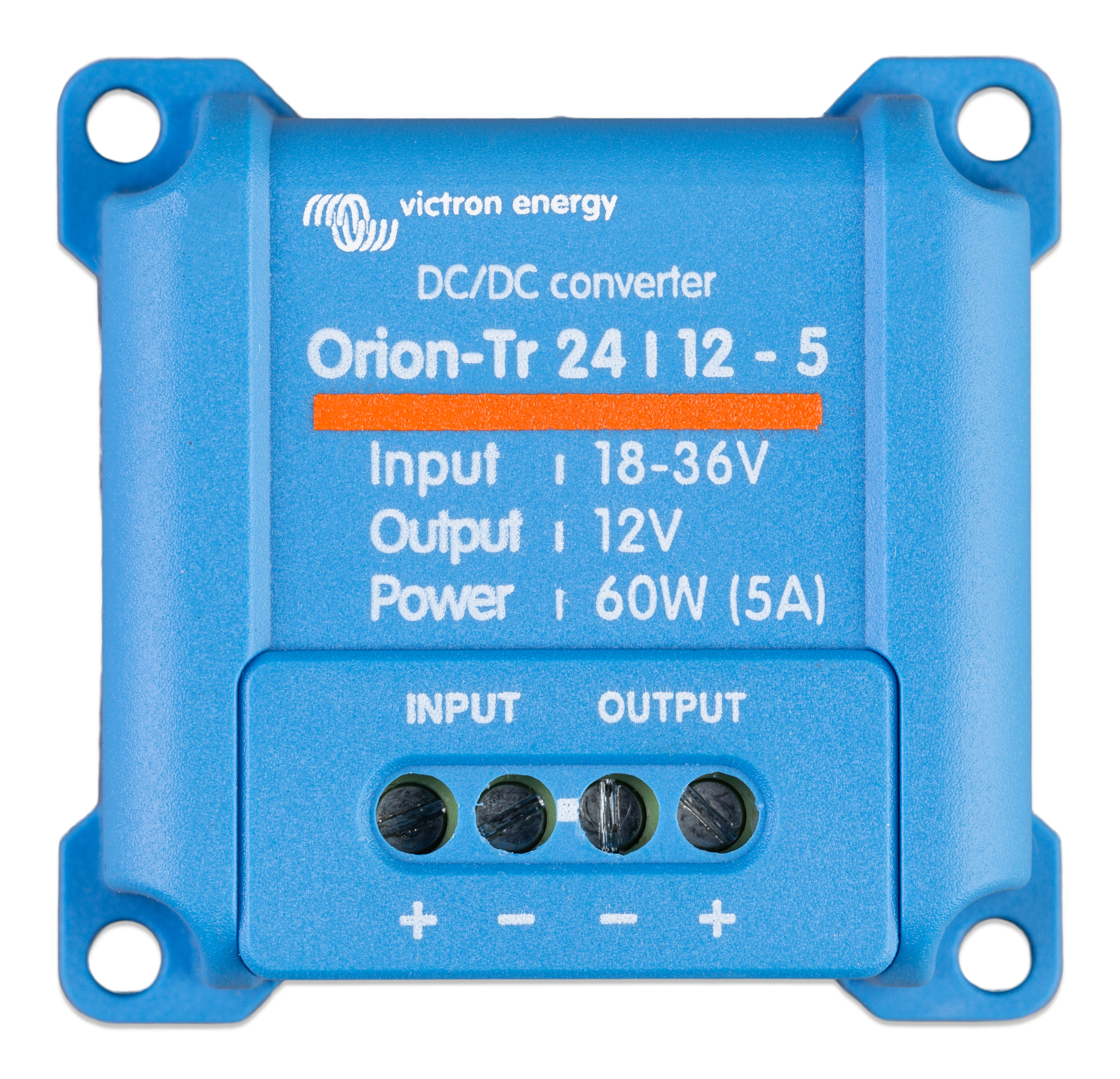

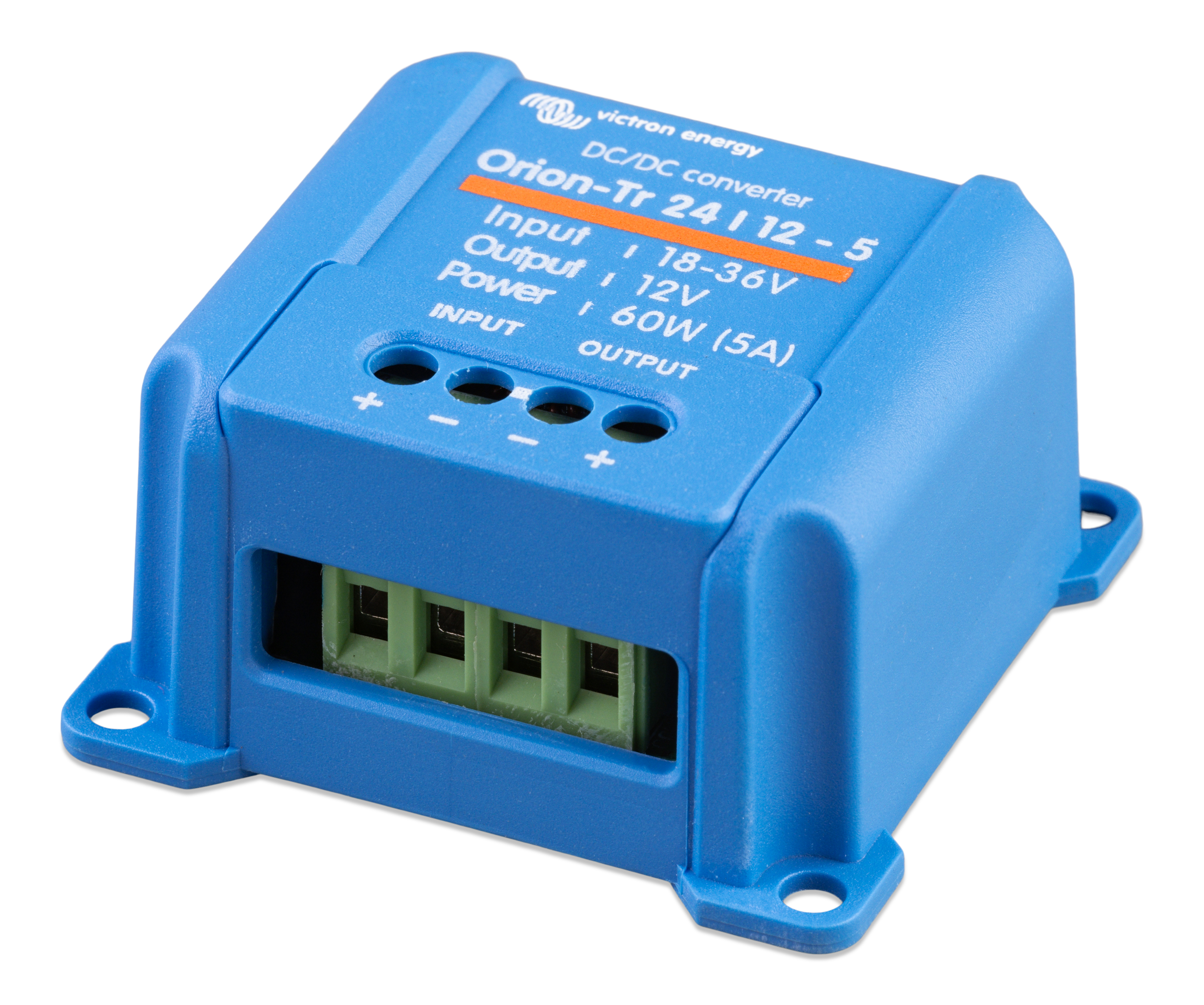

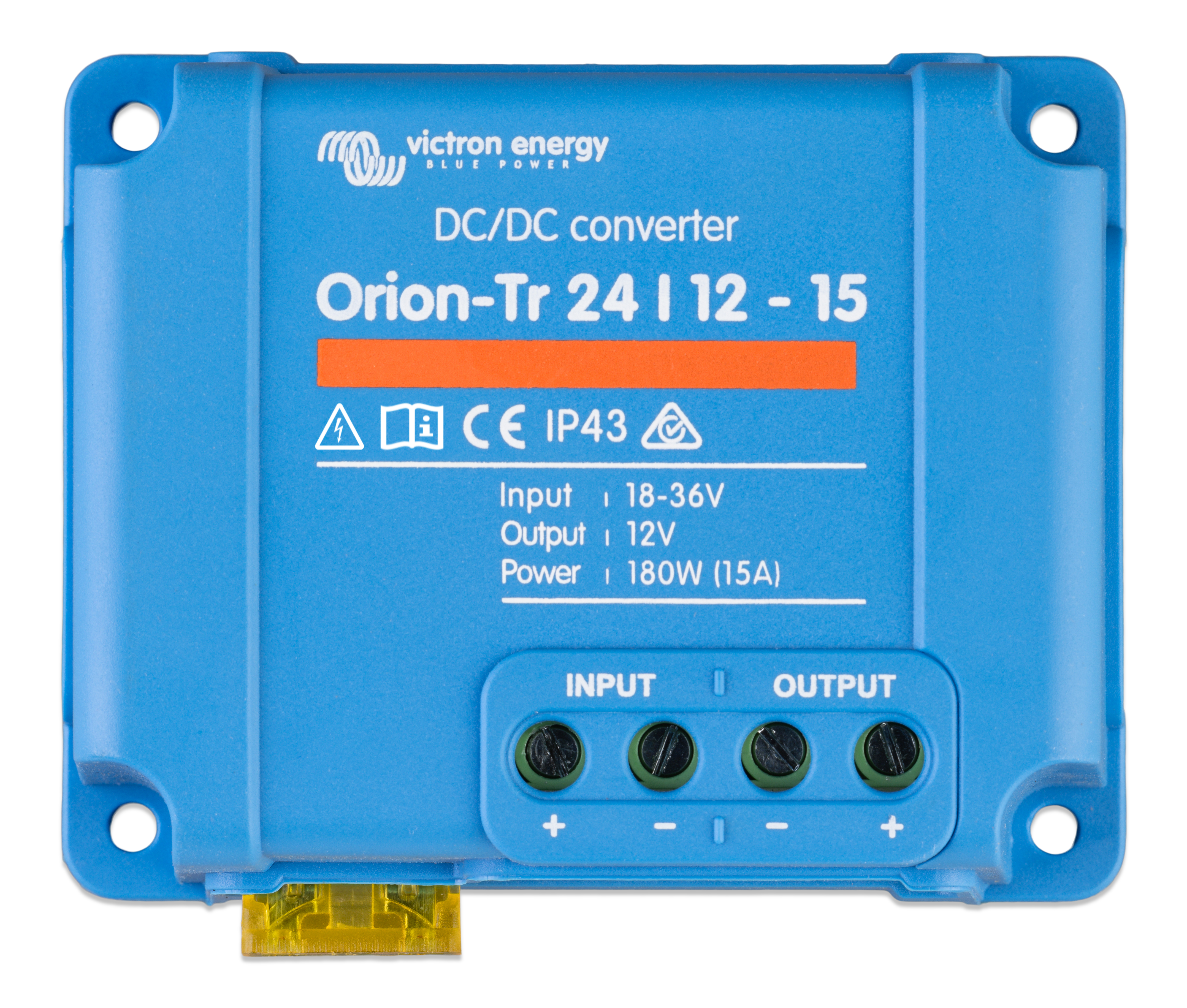

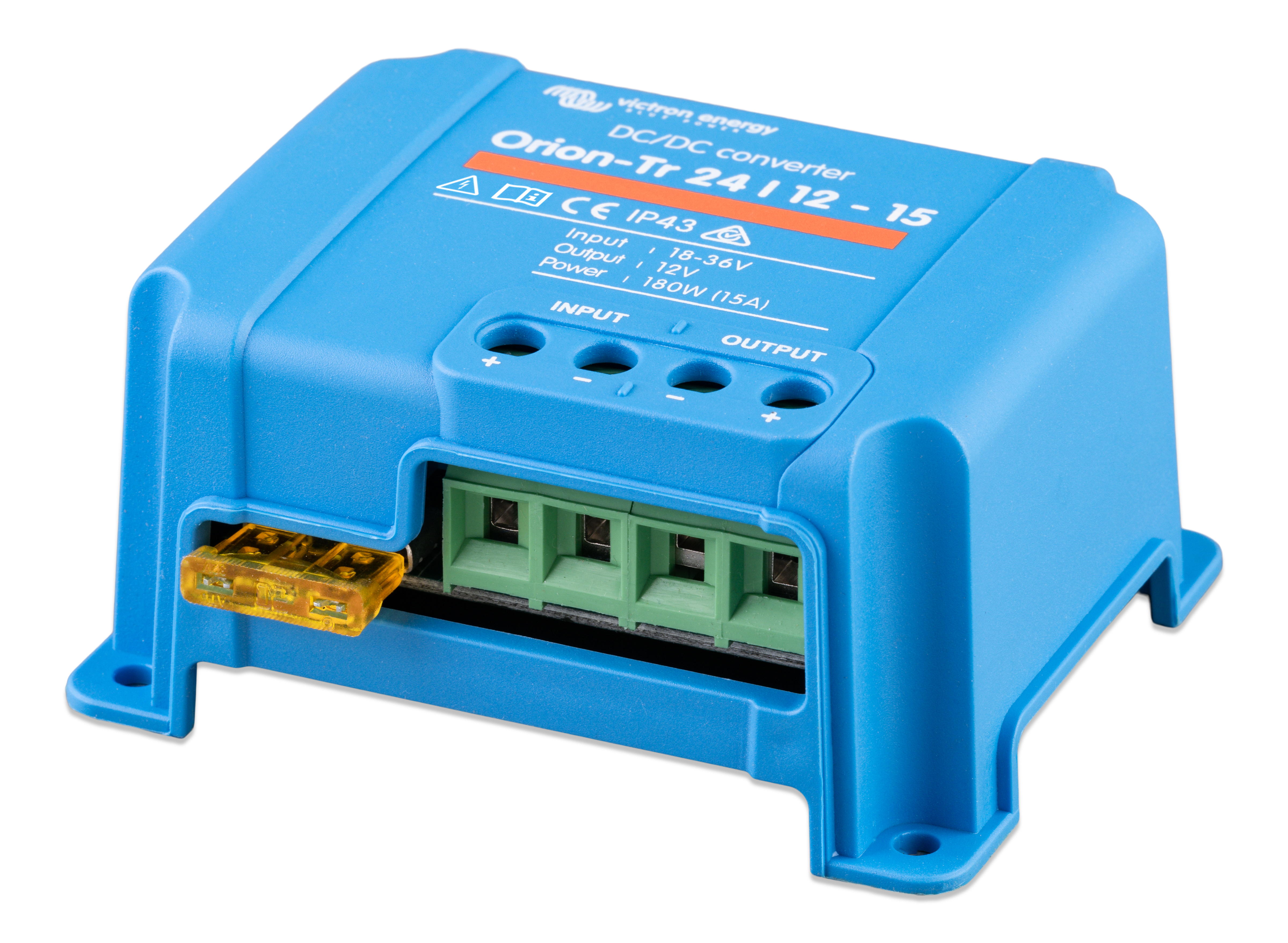

Orion-Tr DC-DC Converters Non-isolated

SKU principal: ORI241205200

High efficiency Using synchronous rectification,
full load efficiency exceeds 95%. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation.

Códigos SKU

ORI241205200 ORI241205200R ORI241210200 ORI241210200R ORI241215200 ORI241215200R ORI241220200 ORI241220200R

DATOS DEL FABRICANTE

Especificaciones técnicas

Input Voltage Range: [ 18, 35 ] V
Output Voltage: 12.7 V
Continuous Output Current: 5 A
Maximum Output Current: 7 A
Output Derating Above40: 3 %
Off Load Current: 20
Max Efficiency: 95
Operating Temp Range: [ -22, 55 ] °C
Dc Connection Terminal Type: Screw terminals 3.3 mm² (12 AWG)
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 0.09 kg
Height: 53 mm
Width: 51 mm
Depth: 27 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Input Voltage Range: [ 18, 35 ] V
Output Voltage: 12.7 V
Continuous Output Current: 5 A
Maximum Output Current: 7 A
Output Derating Above40: 3 %
Off Load Current: 20
Max Efficiency: 95
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Screw terminals 3.3 mm² (12 AWG)
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 0.09 kg
Height: 53 mm
Width: 51 mm
Depth: 27 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Input Voltage Range: [ 18, 35 ] V
Output Voltage: 12.5 V
Continuous Output Current: 15 A
Maximum Output Current: 20 A
Output Derating Above40: 3 %
Off Load Current: 35
Max Efficiency: 97
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Screw terminals 6 mm² (10 AWG)
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 0.25 kg
Height: 73 mm
Width: 94 mm
Depth: 45 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive Directive: ECE R10-4
Input Voltage Range: [ 18, 35 ] V
Output Voltage: 12.5 V
Continuous Output Current: 20 A
Maximum Output Current: 25 A
Output Derating Above40: 3 %
Off Load Current: 35
Max Efficiency: 97
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Screw terminals 6 mm² (10 AWG)
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 0.25 kg
Height: 73 mm
Width: 94 mm
Depth: 45 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Input Voltage Range: [ 18, 35 ] V
Output Voltage: 12.5 V
Continuous Output Current: 20 A
Maximum Output Current: 25 A
Output Derating Above40: 3 %
Off Load Current: 35
Max Efficiency: 97
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Screw terminals 6 mm² (10 AWG)
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 0.25 kg
Height: 73 mm
Width: 94 mm
Depth: 45 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Input Voltage Range: [ 18, 35 ] V
Output Voltage: 12.5 V
Continuous Output Current: 10 A
Maximum Output Current: 12 A
Output Derating Above40: 3 %
Off Load Current: 45
Max Efficiency: 97
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Screw terminals 6 mm² (10 AWG)
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 0.2 kg
Height: 73 mm
Width: 94 mm
Depth: 37 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-6
Input Voltage Range: [ 18, 35 ] V
Output Voltage: 12.5 V
Continuous Output Current: 10 A
Maximum Output Current: 12 A
Output Derating Above40: 3 %
Off Load Current: 45
Max Efficiency: 97
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Screw terminals 6 mm² (10 AWG)
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 0.2 kg
Height: 73 mm
Width: 94 mm
Depth: 37 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive Directive: ECE R10-6
Input Voltage Range: [ 18, 35 ] V
Output Voltage: 12.5 V
Continuous Output Current: 15 A
Maximum Output Current: 20 A
Output Derating Above40: 3 %
Off Load Current: 35
Max Efficiency: 97
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Screw terminals 6 mm² (10 AWG)
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 0.25 kg
Height: 73 mm
Width: 94 mm
Depth: 45 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
