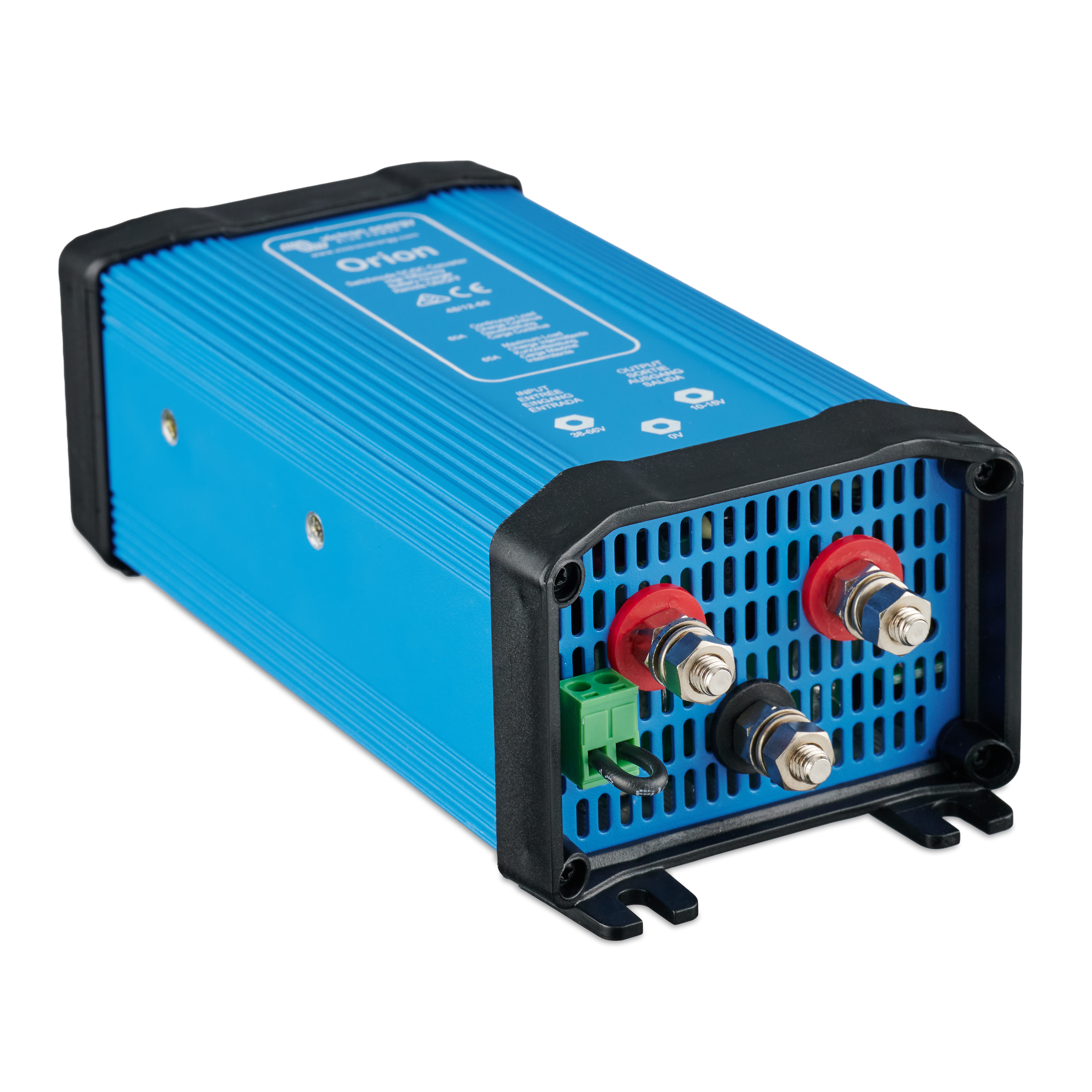

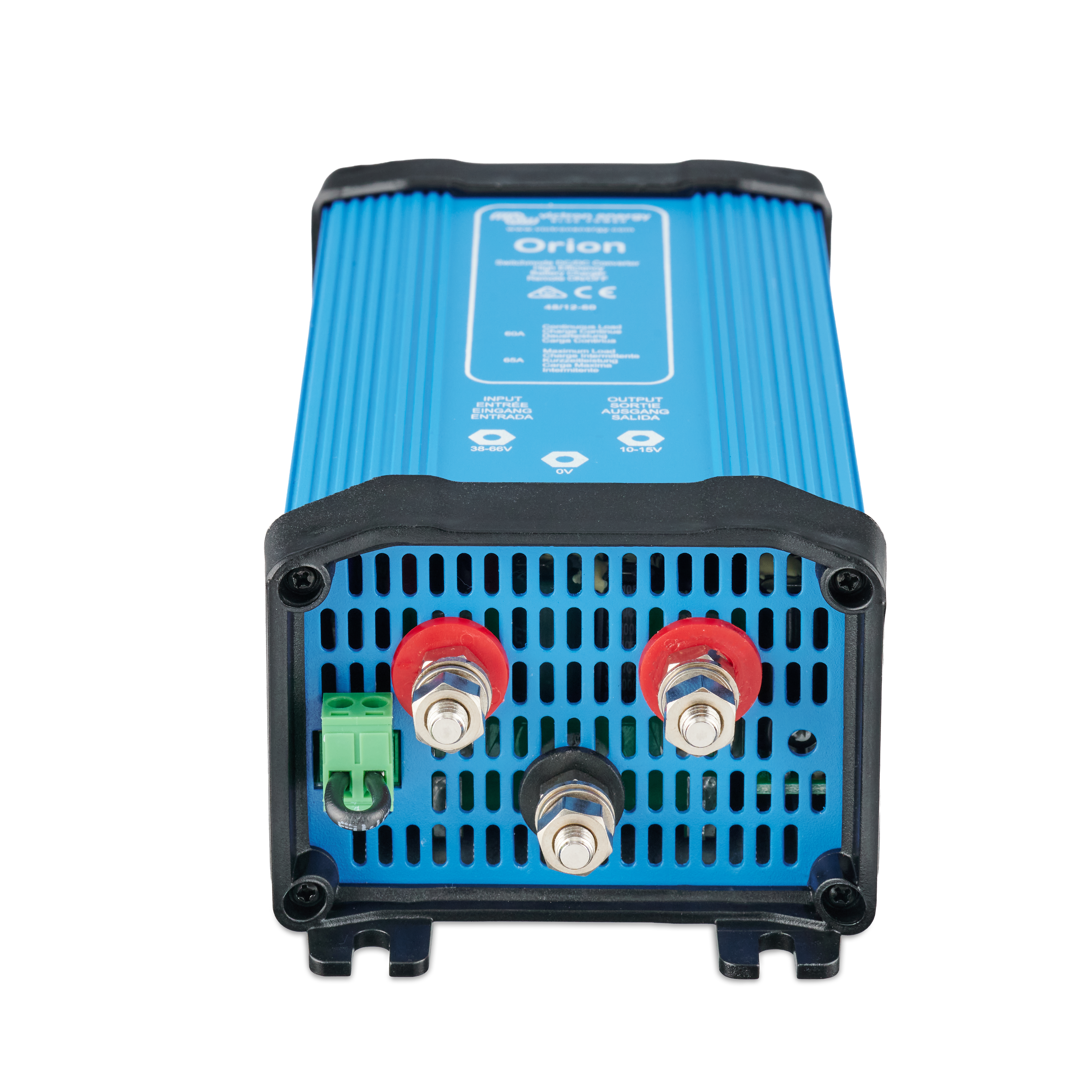

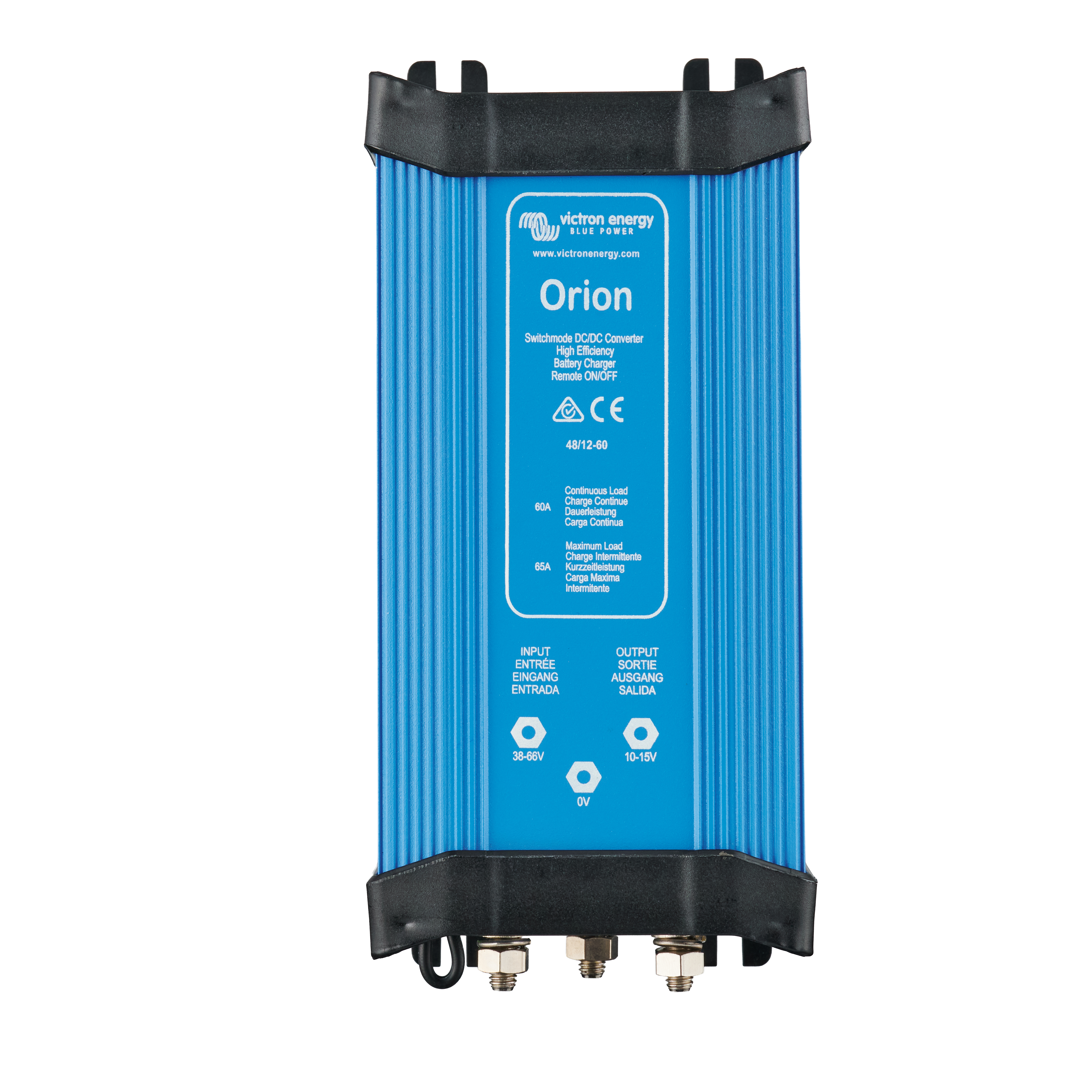

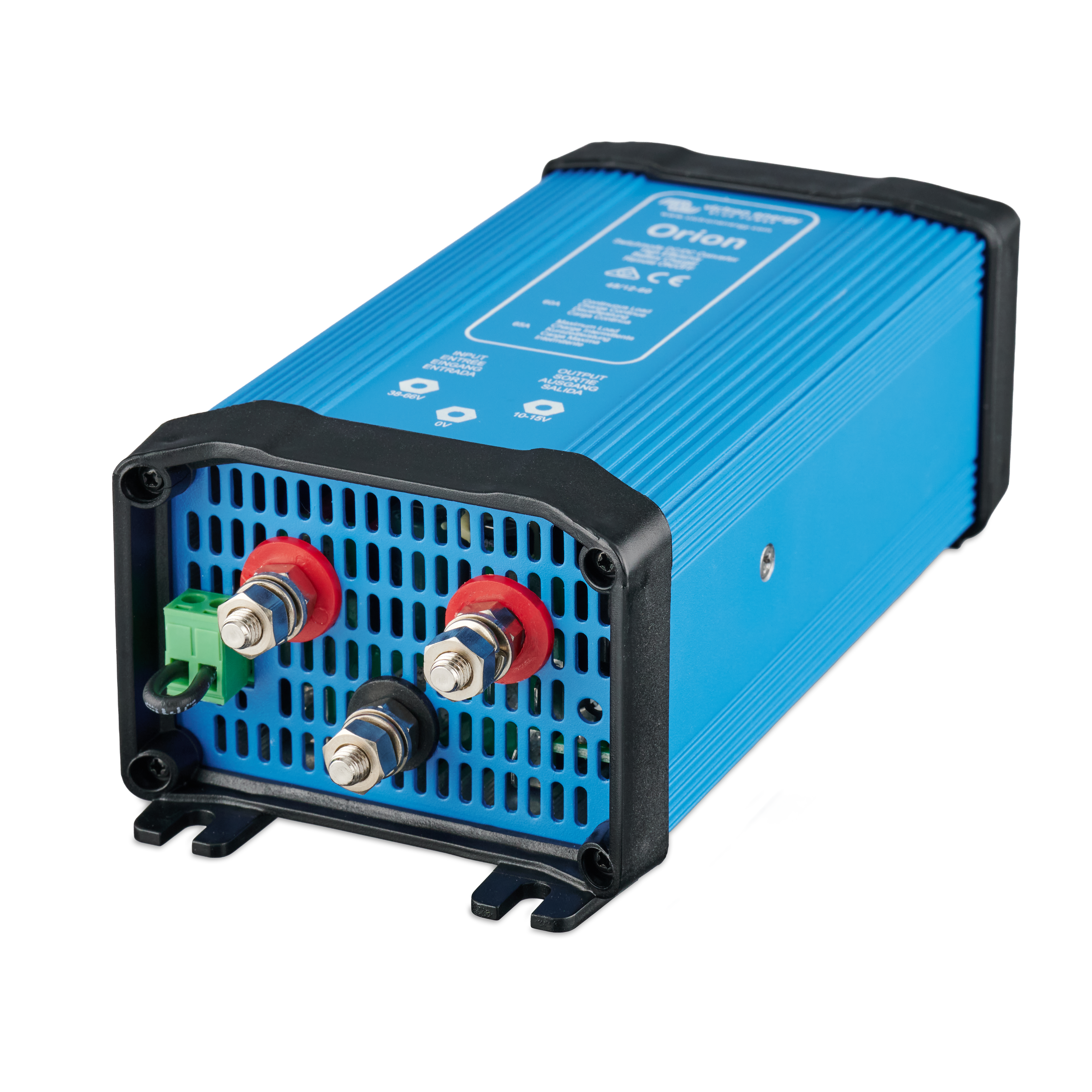

Orion DC-DC Converters Non-isolated, High power

SKU principal: ORI241225020

Remote on/off connector The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.

Códigos SKU

ORI241225020 ORI241240021 ORI241270020 ORI241270030 ORI122408020 ORI122410020 ORI122420020 ORI241221226 ORI122421226 ORI241230022 ORI241260020 ORI241280020 ORI241280030 ORI481260020

DATOS DEL FABRICANTE

Especificaciones técnicas

Input Voltage Range: [ 18, 35 ] V
Under Voltage Shutdown: 14 V
Under Voltage Restart: 18 V
Output Voltage Range: [ 10, 15 ] V
Continuous Output Current: 80 A
Maximum Output Current: 90 A
Output Derating Above40: 3 %
Off Load Current: 20 mA
Max Efficiency: 92 %
Buffer Charge: 1
Parallelable: 1
Fan Assisted Cooling: 1
Remote On Off Terminal: 1
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: M6 bolts
Remote On Off Terminal Connection: Removable multi-connector with screw terminals
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP20
Weight: 0.9 kg
Height: 65 mm
Width: 88 mm
Depth: 195 mm
Safety: EN 60950
Emission: EN-IEC 61000-6-3, EN 55014-1
Immunity: EN-IEC 61000-6-2, EN-IEC 61000-6-1, EN 55014-2
Input Voltage Range: [ 18, 35 ] V
Under Voltage Shutdown: 14 V
Under Voltage Restart: 18 V
Output Voltage Range: [ 10, 15 ] V
Continuous Output Current: 80 A
Maximum Output Current: 90 A
Output Derating Above40: 3 %
Off Load Current: 20 mA
Max Efficiency: 95 %
Buffer Charge: 1
Parallelable: 1
Fan Assisted Cooling: 1
Remote On Off Terminal: 1
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Binding post
Remote On Off Terminal Connection: Removable multi-connector with screw terminals
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP20
Weight: 0.9 kg
Height: 65 mm
Width: 88 mm
Depth: 195 mm
Safety: EN 60950
Emission: EN-IEC 61000-6-3, EN 55014-1
Immunity: EN-IEC 61000-6-2, EN-IEC 61000-6-1, EN 55014-2
Input Voltage Range: [ 18, 35 ] V
Under Voltage Shutdown: 14 V
Under Voltage Restart: 18 V
Output Voltage: 13.2 V
Maximum Output Current: 55 A
Output Derating Above40: 40 %
Off Load Current: 20
Max Efficiency: 95
Fan Assisted Cooling: 1
Remote On Off Terminal: 1
Operating Temp Range: [ -20, 50 ] °C
Dc Connection Terminal Type: Faston tab 6.3 mm
Remote On Off Terminal Connection: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Aluminium
Weight: 0.58 kg
Height: 65 mm
Width: 88 mm
Depth: 185 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive Directive: ECE R10-4
Input Voltage Range: [ 18, 35 ] V
Under Voltage Shutdown: 14 V
Under Voltage Restart: 18 V
Output Voltage: 13.2 V
Output Voltage Range: [ 10, 15 ] V
Continuous Output Current: 25
Maximum Output Current: 35 A
Cont Output Current Rating40: 25 W
Output Derating Above40: 3 %
No Load Current Consumption: 15 mA
Max Efficiency: 96
Buffer Charge: 1
Parallelable: 1
Remote On Off Terminal: 1
Operating Temp Range: [ -20, 55 ] °C
Full Rating Temperature: 40 °C
Dc Connection Terminal Type: Faston tab 6.3 mm
Remote On Off Terminal Connection: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Aluminium
Weight: 0.7 kg
Height: 65 mm
Width: 88 mm
Depth: 160 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN 55014-2
Automotive Directive: ECE R10-4
Input Voltage Range: [ 18, 35 ] V
Under Voltage Shutdown: 14 V
Under Voltage Restart: 18 V
Output Voltage: 13.2 V
Continuous Output Current: 60 A
Maximum Output Current: 70 A
Output Derating Above40: 3 %
Off Load Current: 20 mA
Max Efficiency: 95 %
Fan Assisted Cooling: 1
Remote On Off Terminal: 1
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Faston tab 6.3 x 0.8 mm
Remote On Off Terminal Connection: Removable multi-connector with screw terminals
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP20
Weight: 0.85 kg
Height: 65 mm
Width: 88 mm
Depth: 185 mm
Safety: EN 60950
Emission: EN-IEC 61000-6-3, EN 55014-1
Immunity: EN-IEC 61000-6-2, EN-IEC 61000-6-1, EN 55014-2
Input Voltage Range: [ 9, 18 ] V
Under Voltage Shutdown: 8 V
Under Voltage Restart: 10 V
Output Voltage: 26.4 V
Output Voltage Range: [ 20, 30 ] V
Maximum Output Current: 30 A
Cont Output Current Rating40: 20 A
No Load Current Consumption: 30 mA
Max Efficiency: 93
Buffer Charge: 1
Parallelable: 1
Fan Assisted Cooling: 1
Remote On Off Terminal: 1
Dc Connection Terminal Type: M6 bolts
Remote On Off Terminal Connection: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Aluminium
Weight: 0.9 kg
Height: 65 mm
Width: 88 mm
Depth: 195 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive Directive: ECE R10-4
Input Voltage Range: [ 18, 35 ] V
Under Voltage Shutdown: 14 V
Under Voltage Restart: 18 V
Output Voltage Range: [ 10, 15 ] V
Continuous Output Current: 30 A
Maximum Output Current: 40 A
Output Derating Above40: 3 %
Off Load Current: 15 mA
Max Efficiency: 96 %
Buffer Charge: 1
Parallelable: 1
Galvanic Isolation
Remote On Off Terminal: 1
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Faston tab 6.3 x 0.8 mm
Remote On Off Terminal Connection: Removable multi-connector with screw terminals
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP20
Weight: 0.7 kg
Height: 65 mm
Width: 88 mm
Depth: 160 mm
Safety: EN 60950
Emission: EN-IEC 61000-6-3, EN 55014-2
Immunity: EN-IEC 61000-6-2, EN-IEC 61000-6-1, EN 55014-2
Input Voltage Range: [ 9, 18 ] V
Under Voltage Shutdown: 8 V
Under Voltage Restart: 10 V
Output Voltage: 24 V
Continuous Output Current: 8 A
Maximum Output Current: 20 A
Output Derating Above40: 3 %
Max Efficiency: 95 %
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Faston tab 6.3 x 0.8 mm
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP20
Weight: 0.4 kg
Height: 45 mm
Width: 90 mm
Depth: 115 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive Directive: ECE R10-4
Input Voltage Range: [ 18, 53 ] V
Under Voltage Shutdown: 14 V
Under Voltage Restart: 18 V
Output Voltage: 13.2 V
Output Voltage Range: [ 10, 15 ] V
Maximum Output Current: 85 A
Cont Output Current Rating40: 70 A
No Load Current Consumption: 20 mA
Max Efficiency: 92
Buffer Charge: 1
Parallelable: 1
Fan Assisted Cooling: 1
Remote On Off Terminal: 1
Operating Temp Range: [ -20, 50 ] °C
Dc Connection Terminal Type: Binding post
Remote On Off Terminal Connection: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Aluminium
Weight: 0.9 kg
Height: 65 mm
Width: 88 mm
Depth: 195 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive Directive: ECE R10-4
Input Voltage Range: [ 9, 18 ] V
Under Voltage Shutdown: 8 V
Under Voltage Restart: 10 V
Output Voltage: 26.4 V
Output Voltage Range: [ 20, 30 ] V
Continuous Output Current: 10 A
Maximum Output Current: 20 A
Output Derating Above40: 3 %
No Load Current Consumption: 15 mA
Max Efficiency: 95
Buffer Charge: 1
Parallelable: 1
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: Faston tab 6.3 x 0.8 mm
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP20
Weight: 0.4 kg
Height: 45 mm
Width: 90 mm
Depth: 125 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Automotive Directive: ECE R10-4
Input Voltage Range: [ 18, 35 ] V
Under Voltage Shutdown: 14 V
Under Voltage Restart: 18 V
Output Voltage: 13.2 V
Output Voltage Range: [ 10, 15 ] V
Continuous Output Current: 85 A
Cont Output Current Rating40: 70 A
Max Efficiency: 92
Buffer Charge: 1
Parallelable: 1
Fan Assisted Cooling: 1
Remote On Off Terminal: 1
Operating Temp Range: [ -20, 55 ] °C
Dc Connection Terminal Type: M6 bolts
Remote On Off Terminal Connection: Screw terminal two pole
Input Voltage Range: [ 10, 15 ] V
Under Voltage Shutdown: 8 V
Under Voltage Restart: 9 V
Output Voltage: 24 V
Output Voltage Tolerance: 3 %
Ripple And Noise: 150 Vmpp
Maximum Output Current: 50 A
No Load Current Consumption: 45 mA
Max Efficiency: 96
Protections: Overload, Short-circuit proof, Reverse polarity (fuse)
Operating Temp Range: [ -40, 70 ] °C
Dc Connection Terminal Type: M6 bolts
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP67
Weight: 2.15 kg
Height: 265 mm
Width: 127 mm
Depth: 63 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G
Input Voltage Range: [ 18, 35 ] V
Under Voltage Shutdown: 15 V
Under Voltage Restart: 16 V
Output Voltage: 12 V
Output Voltage Tolerance: 3 %
Ripple And Noise: 0.15 Vmpp
Maximum Output Current: 100 A
Output Derating Above40: 3 %
No Load Current Consumption: 85 mA
Max Efficiency: 96
Protections: Short-circuit proof, Reverse polarity (fuse), Overload, Over temperature
Operating Temp Range: [ -40, 70 ] °C
Dc Connection Terminal Type: M6 bolts
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP67
Weight: 2.15 kg
Height: 265 mm
Width: 127 mm
Depth: 63 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G
