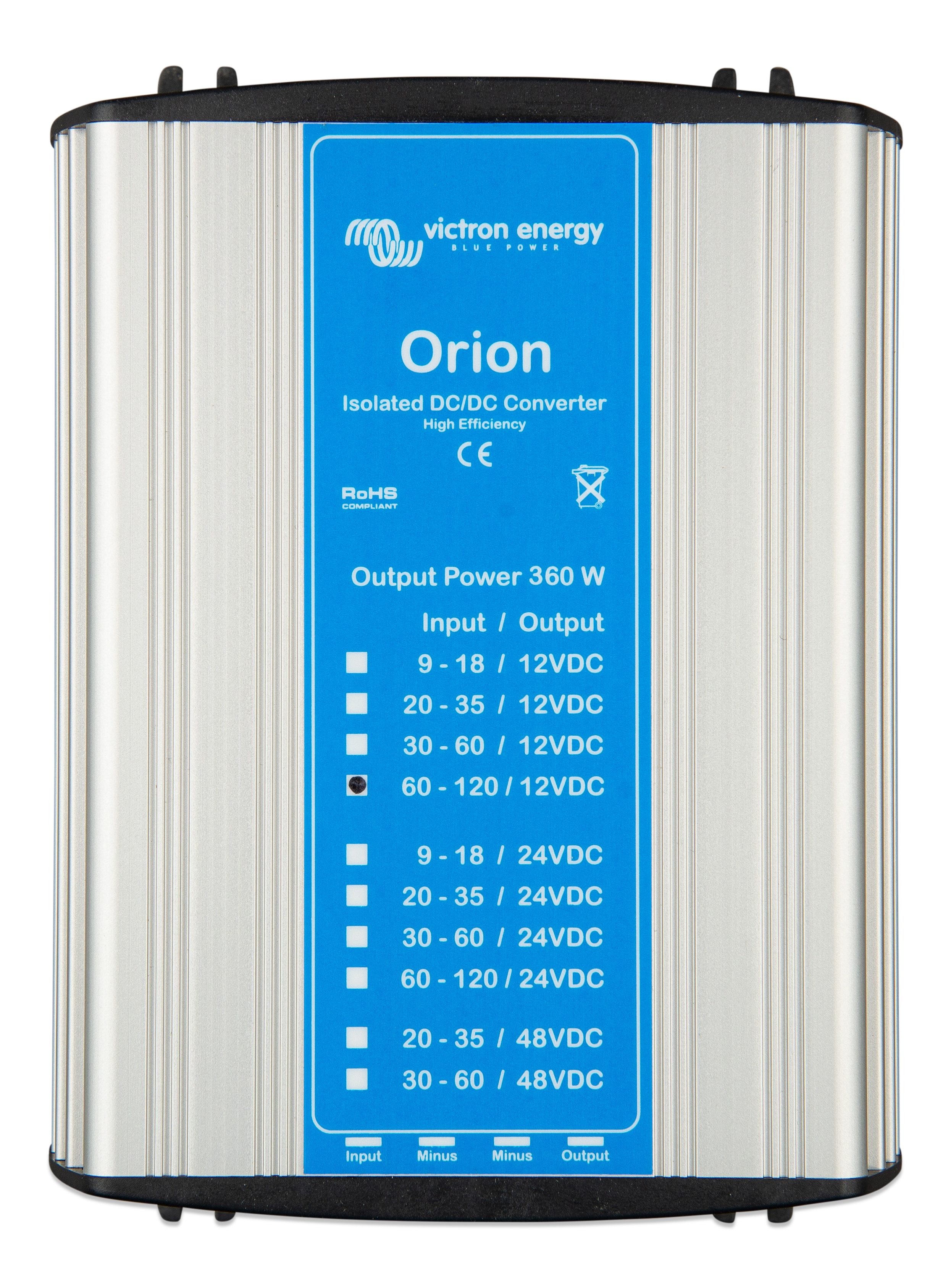

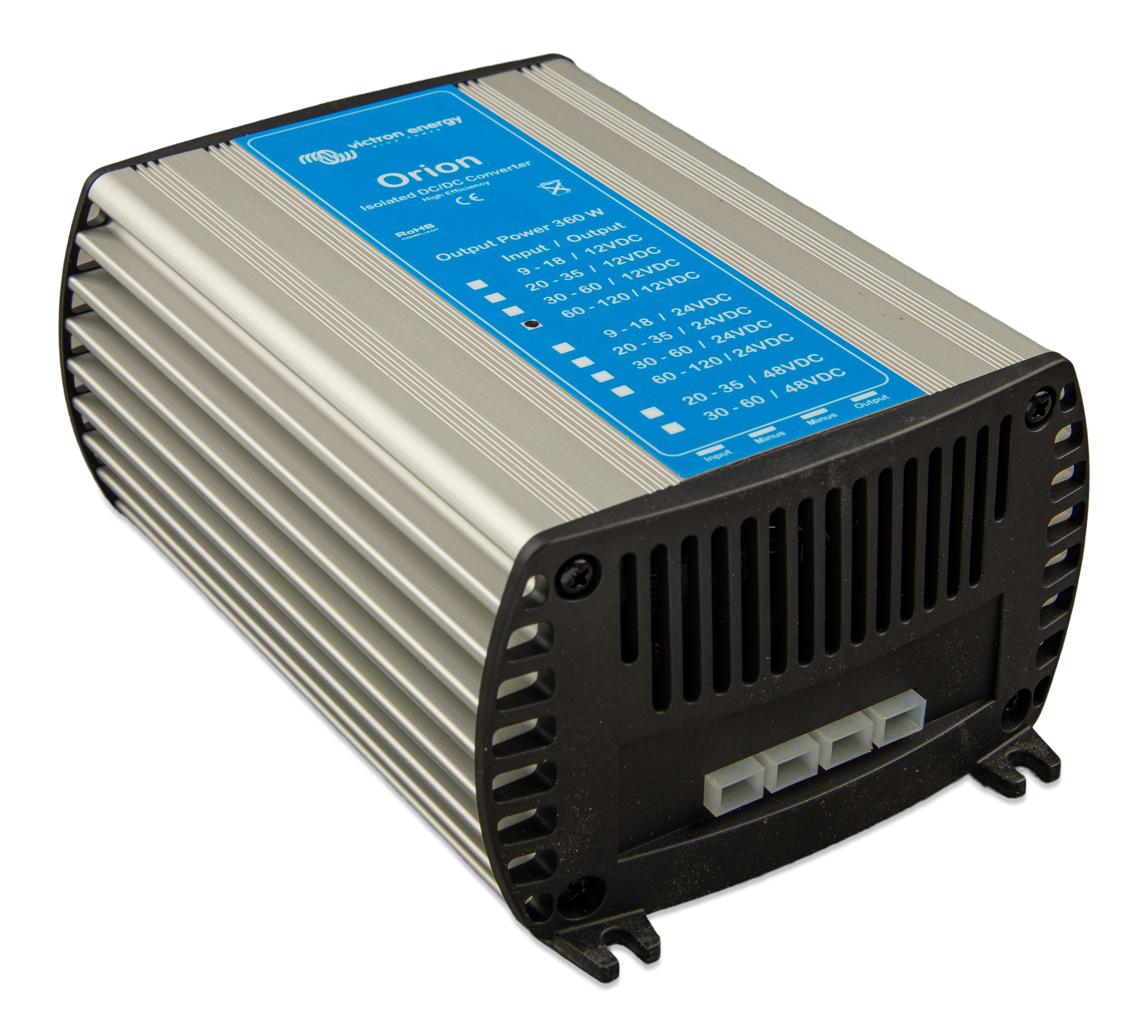

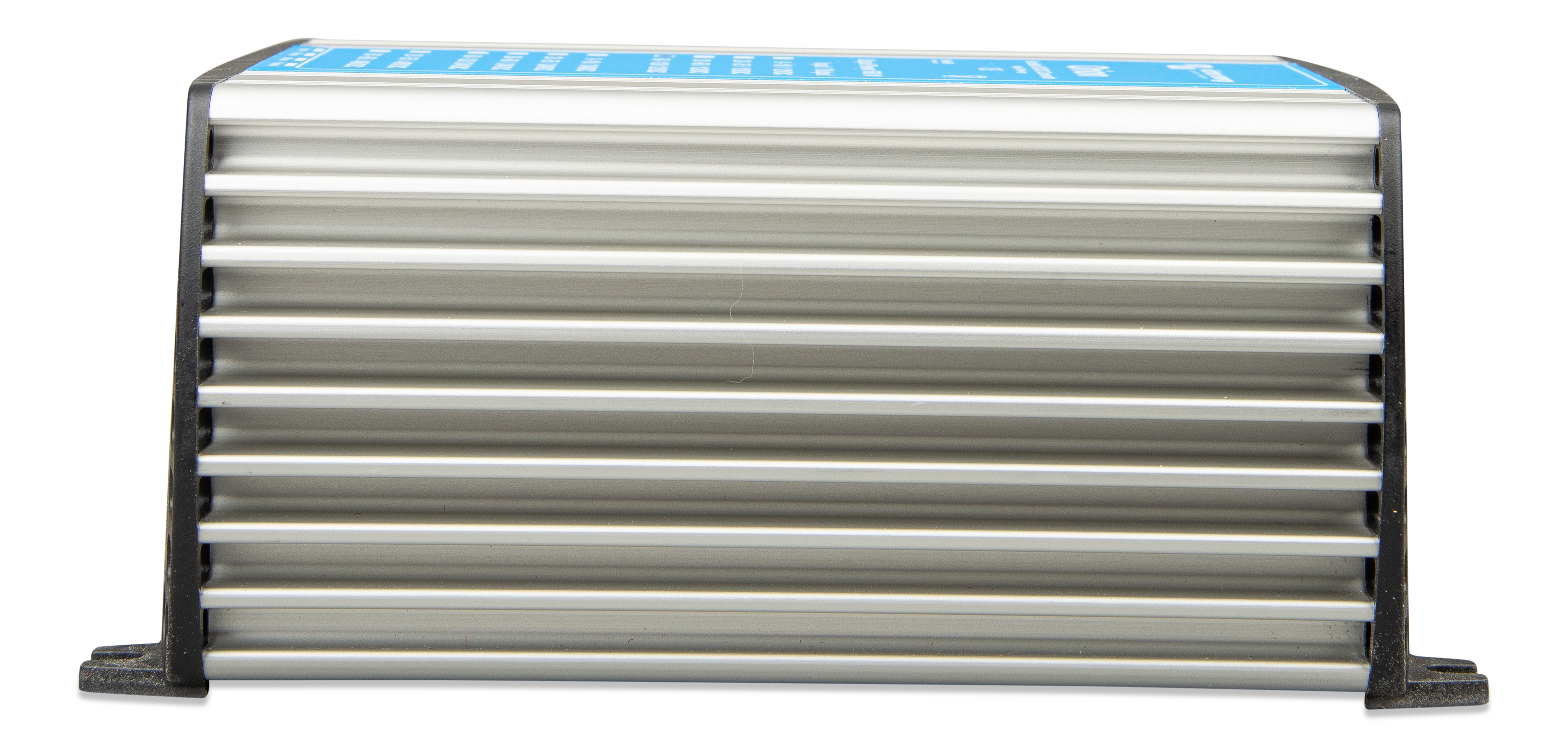

Orion DC-DC Converters 110V, Isolated

SKU principal: ORI110123610

<div>The isolated 110V Orion DC-DC Converters are designed to convert a 110V DC input (range: 60 to 140V) to a stable 12.5V or 24V DC output at 360W.</div><div>It has built-in protections against short circuits,
overheating,
reverse polarity and overvoltage. </div>

Códigos SKU

ORI110123610 ORI110243610

DATOS DEL FABRICANTE

Especificaciones técnicas

Input Voltage Range: [ 60, 140 ] V
Output Voltage: 12.5 V
Output Voltage Stability: 2 %
Output Voltage Tolerance: 3 %
Output Voltage Noise: 50 mVrms
Continuous Output Current: 30 A
Power Rating: 360 W
Off Load Current: 25
Max Efficiency: 85
Fan Assisted Cooling: 1
Galvanic Isolation: 1
Protections: Battery reverse polarity (fuse), Overload, Overcurrent, Over temperature
Isolation: 400 Vrms
Operating Temp Range: [ -20, 40 ] °C
Max Humidity: 95 %
Dc Connection Terminal Type: Faston tab 6.3 mm
Colour: Grey
Material: Anodized aluminium
Weight: 1.4 kg
Height: 82 mm
Width: 132 mm
Depth: 190 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Input Voltage Range: [ 60, 140 ] V
Output Voltage: 24 V
Output Voltage Stability: 2 %
Output Voltage Tolerance: 3 %
Output Voltage Noise: 50 mVrms
Continuous Output Current: 15 A
Power Rating: 360 W
Off Load Current: 25 mA
Max Efficiency: 85
Fan Assisted Cooling: 1
Galvanic Isolation: 1
Protections: Over temperature, Overcurrent, Overvoltage, Battery reverse polarity (fuse)
Isolation: 400 Vrms
Operating Temp Range: [ -20, 40 ] °C
Max Humidity: 95 %
Dc Connection Terminal Type: Faston tab 6.3 mm
Colour: Grey
Material: Anodized aluminium
Weight: 1.4 kg
Height: 82 mm
Width: 132 mm
Depth: 190 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
