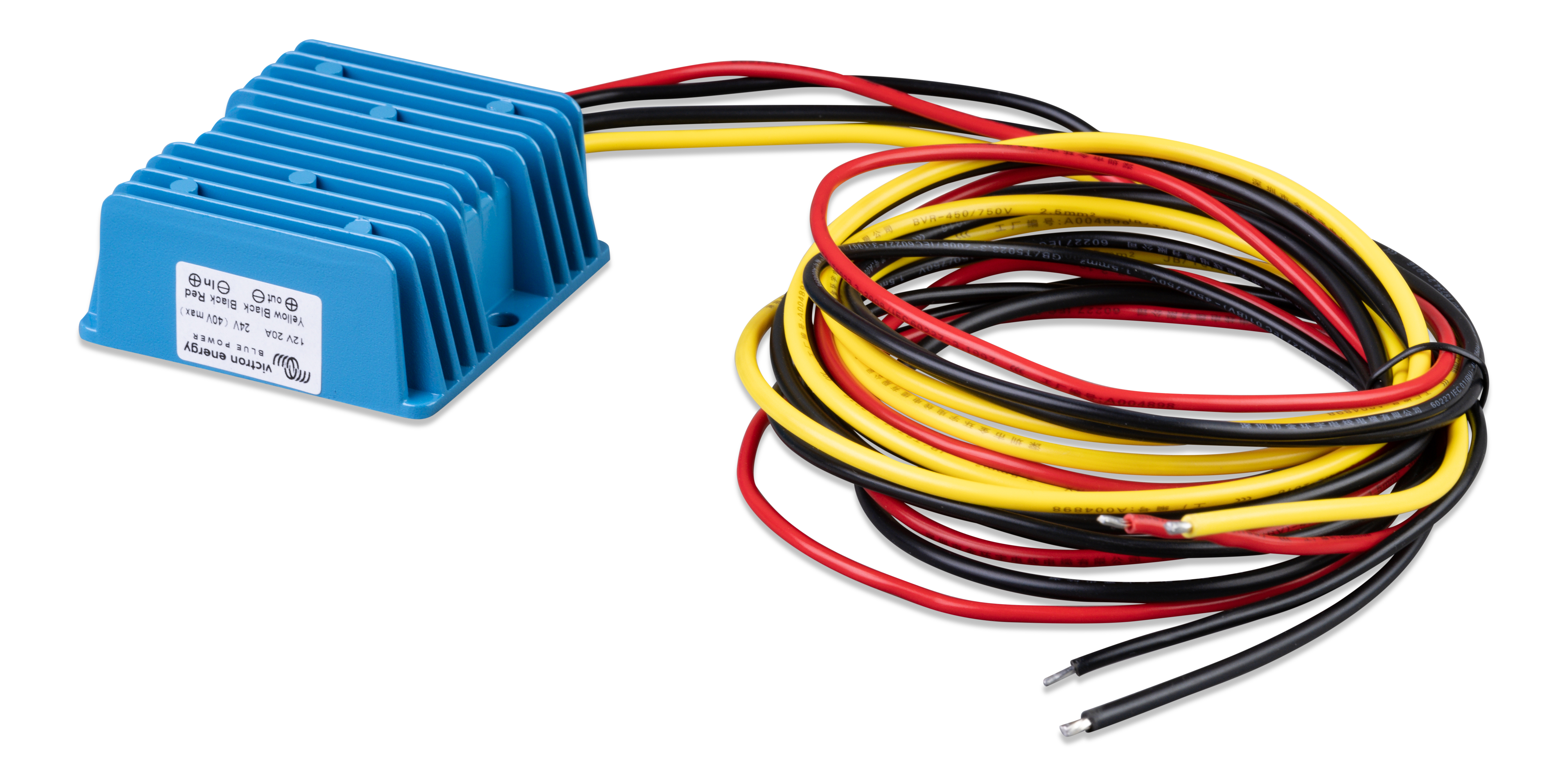

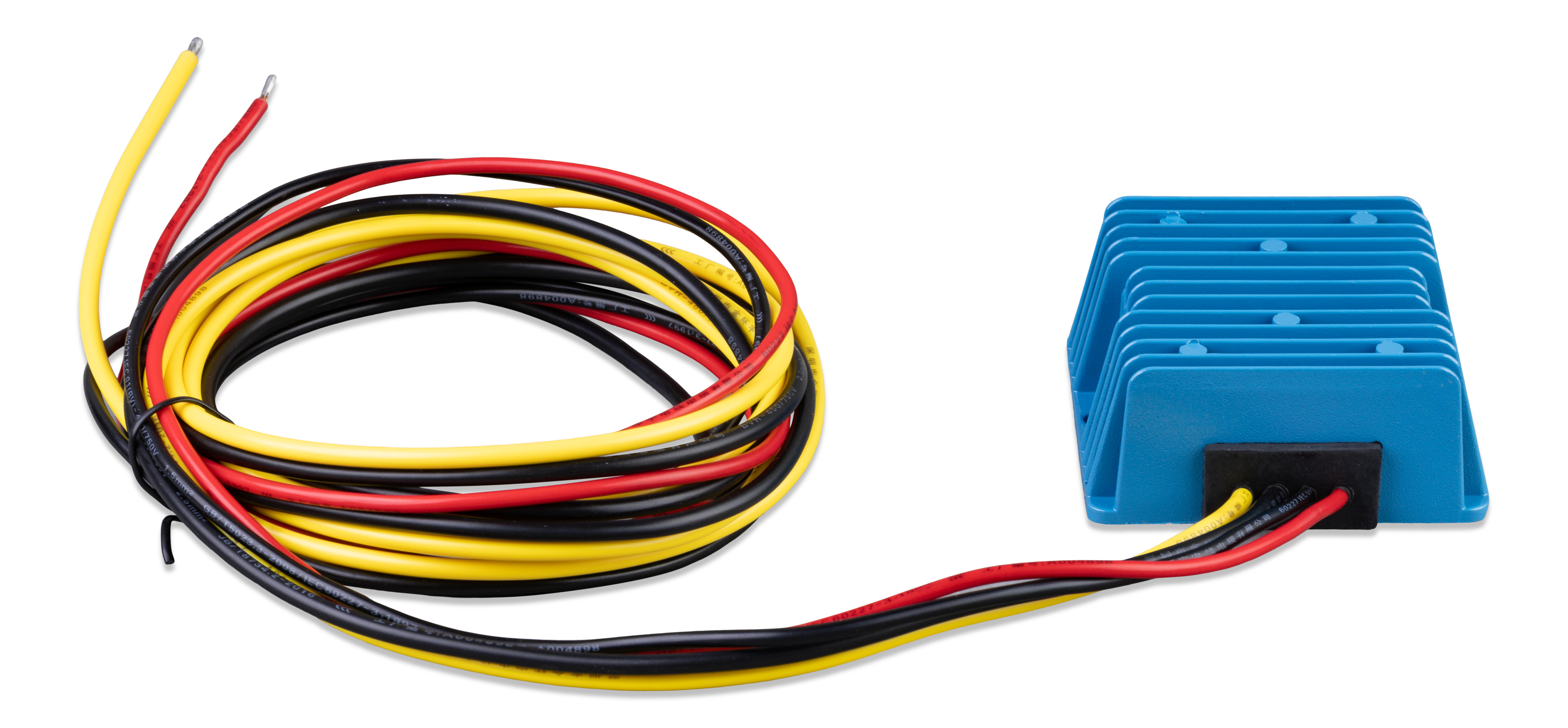

Orion IP67 24/12 and 12/24 DC-DC Converters

SKU principal: ORI241210260

Completely encapsulated: waterproof,
shockproof and ignition protected Water,

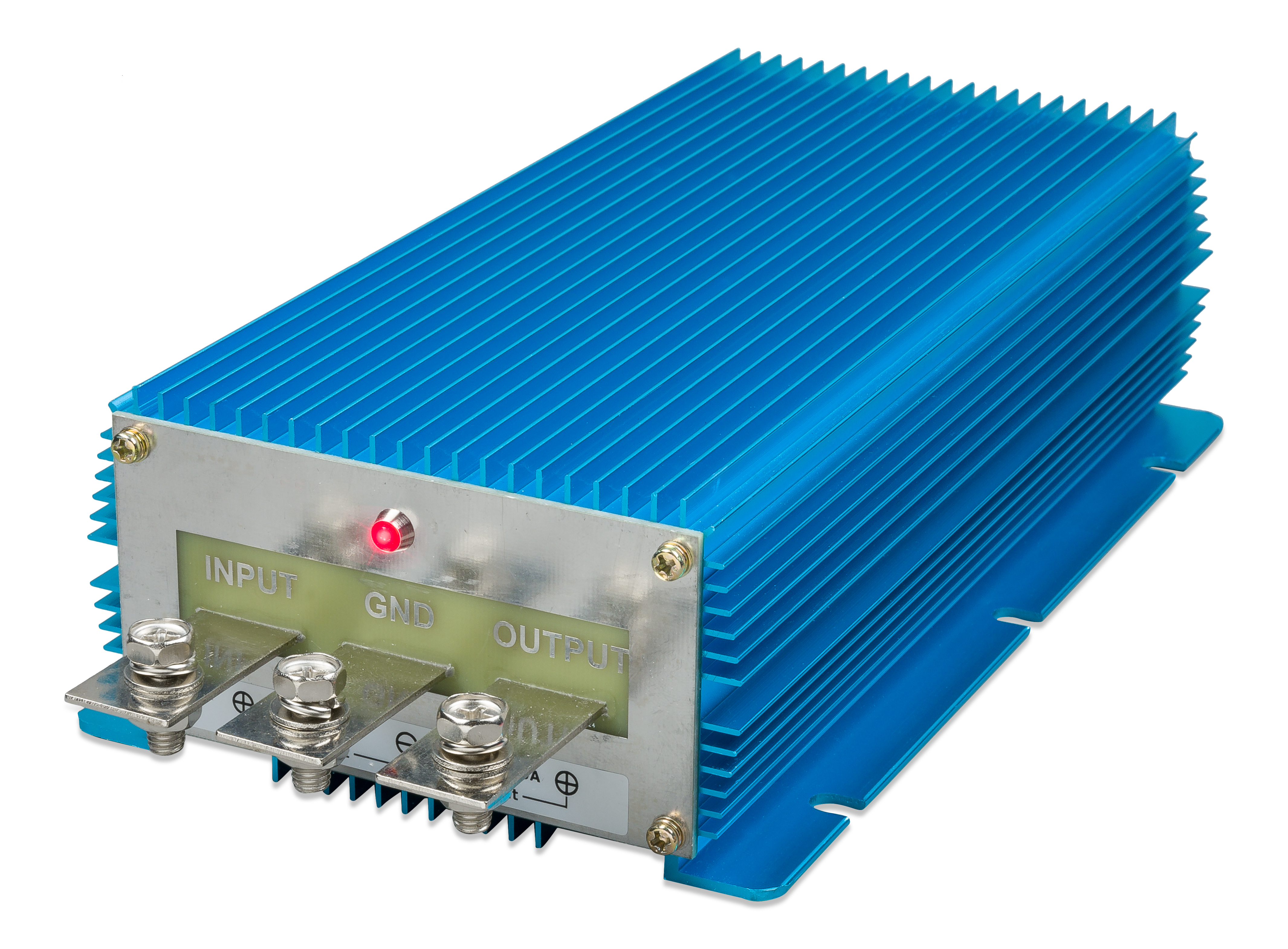

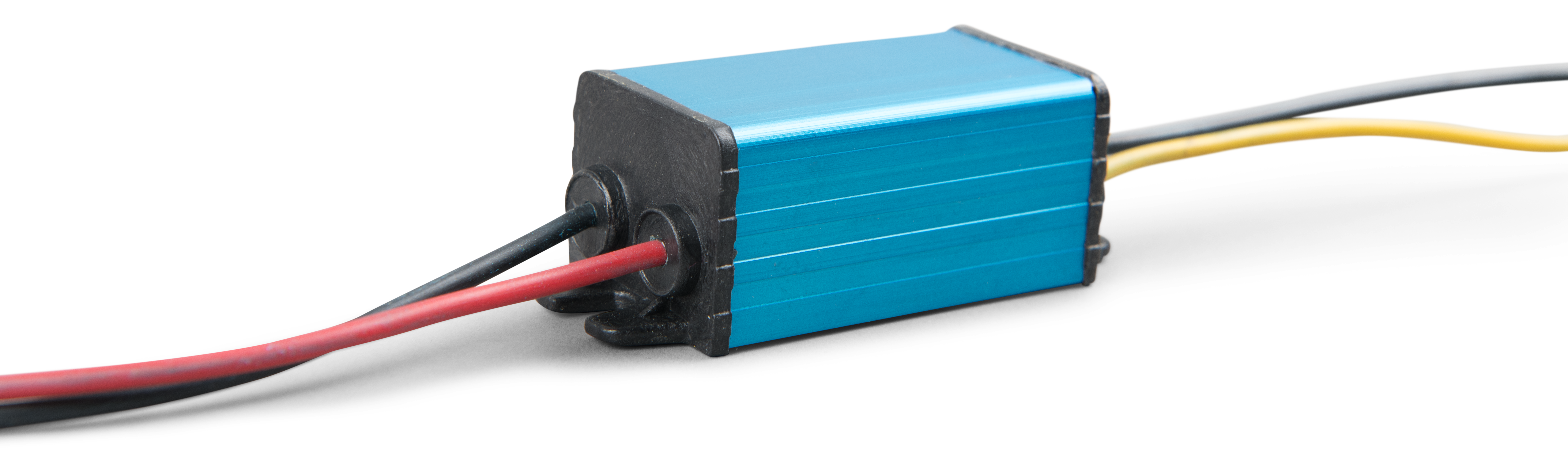

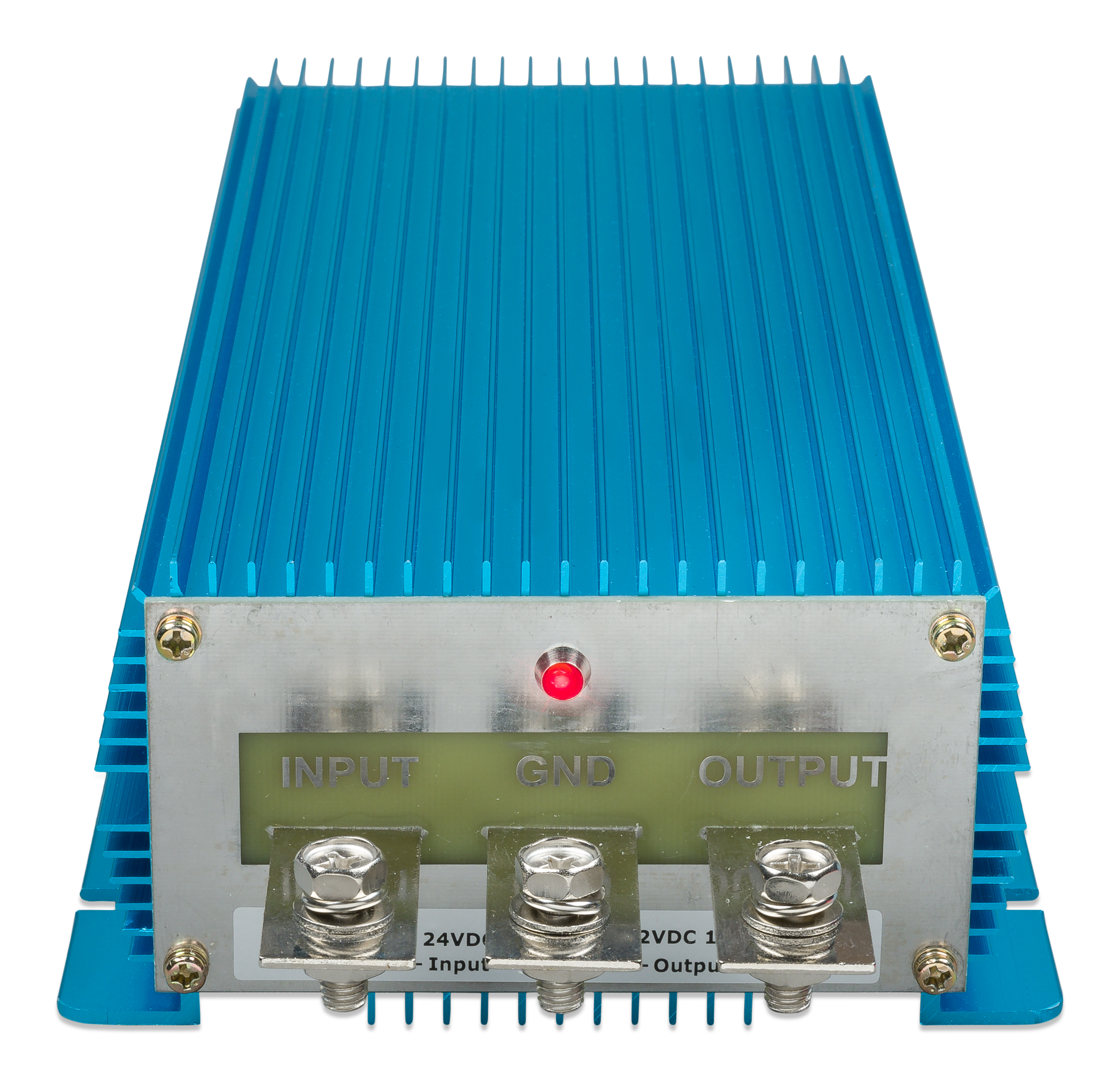

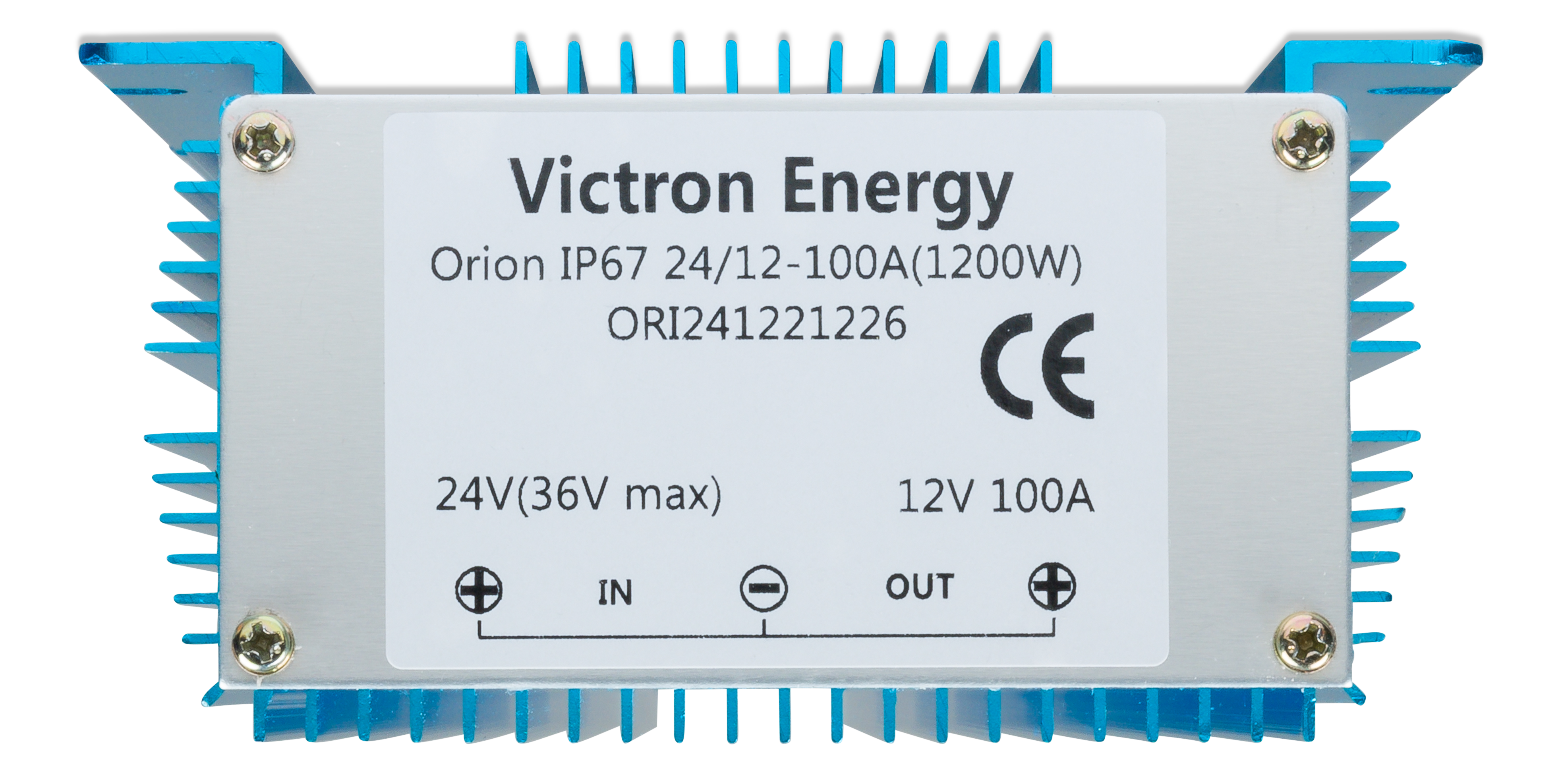

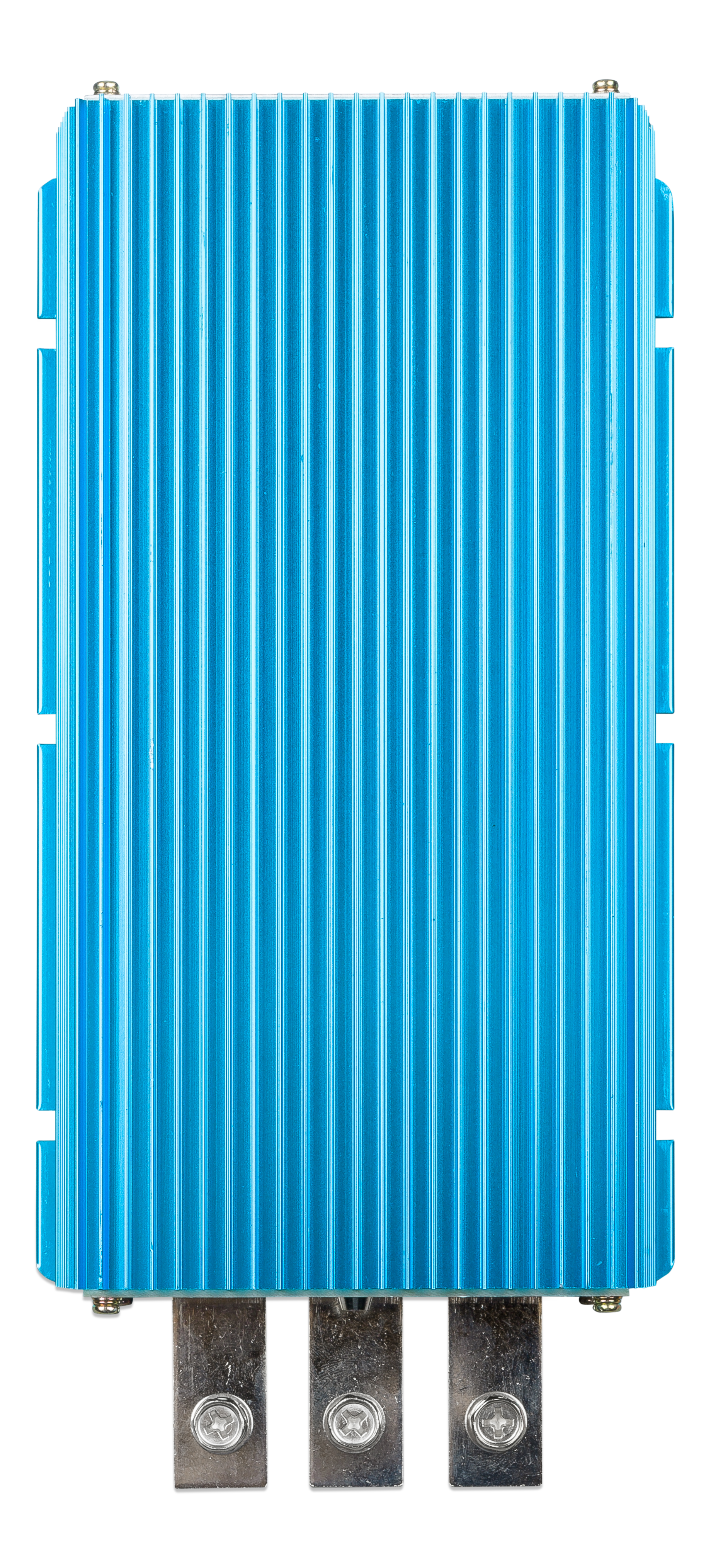

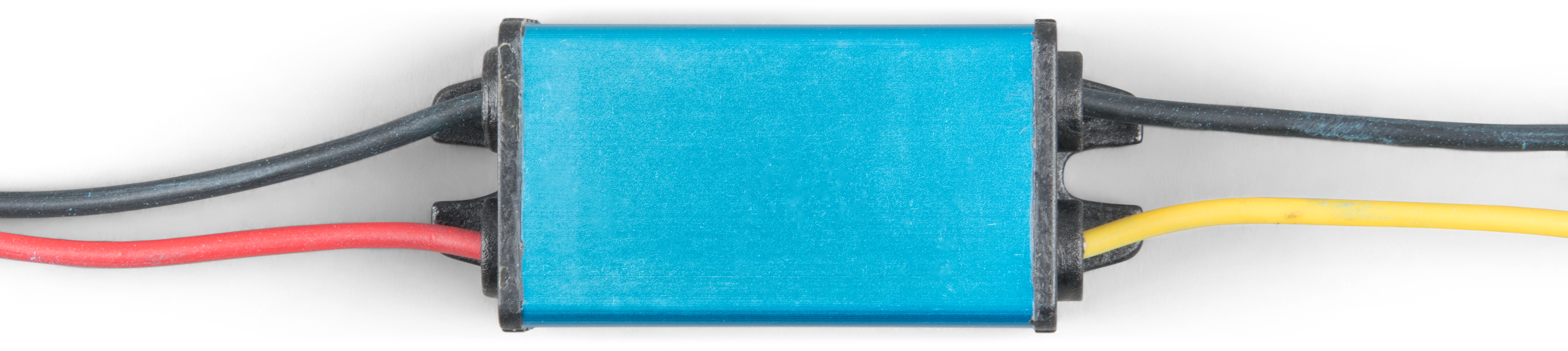

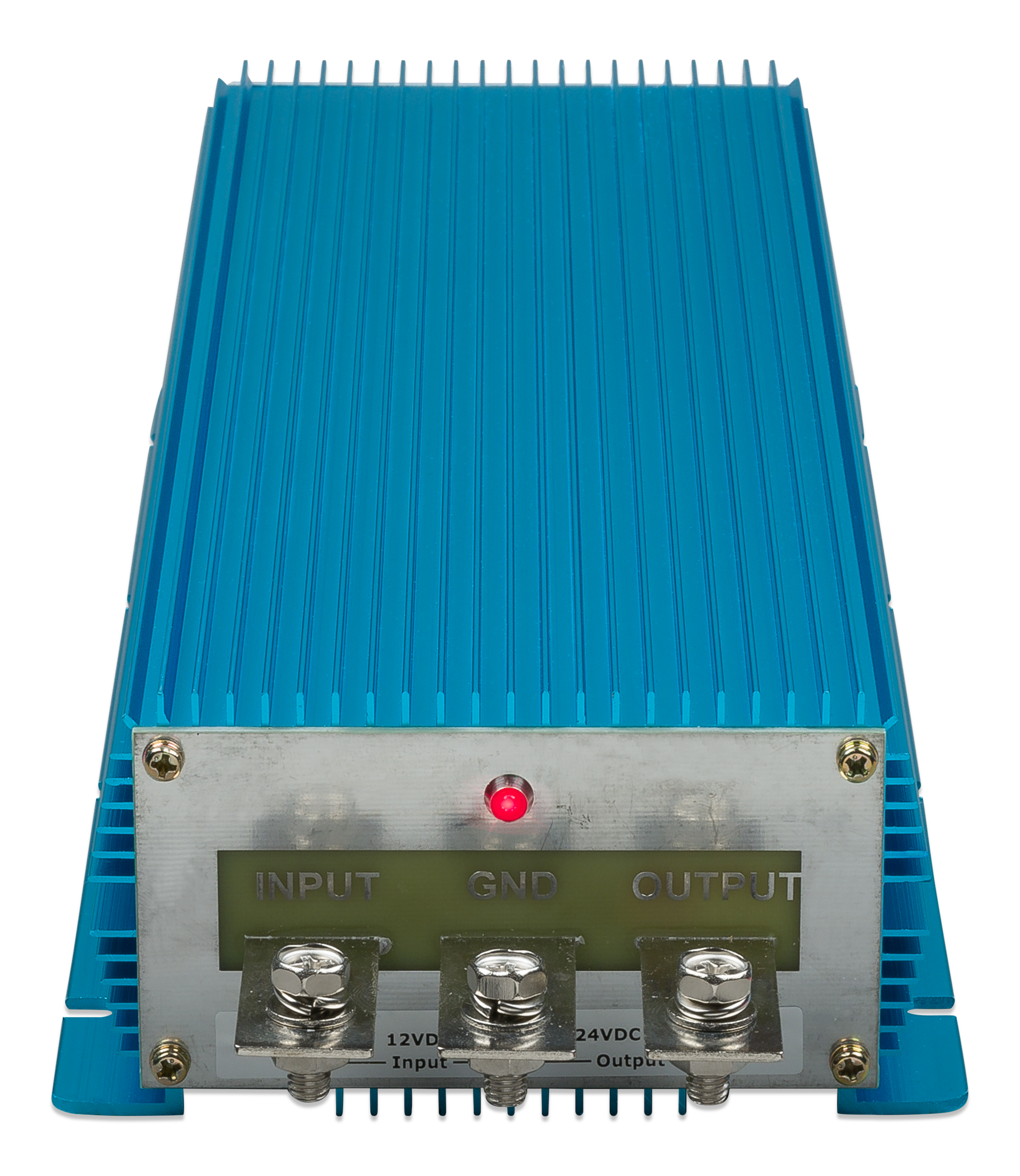

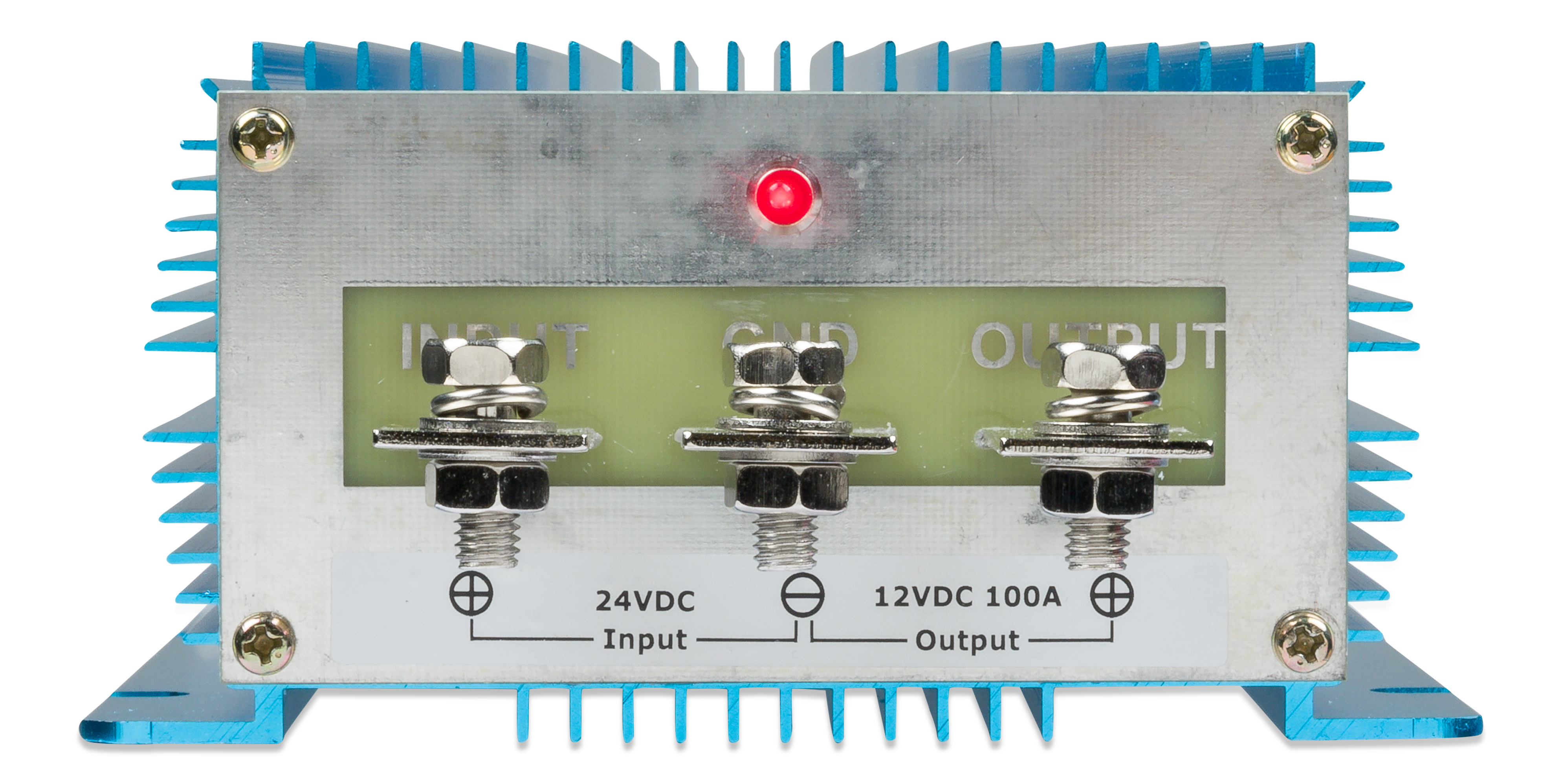

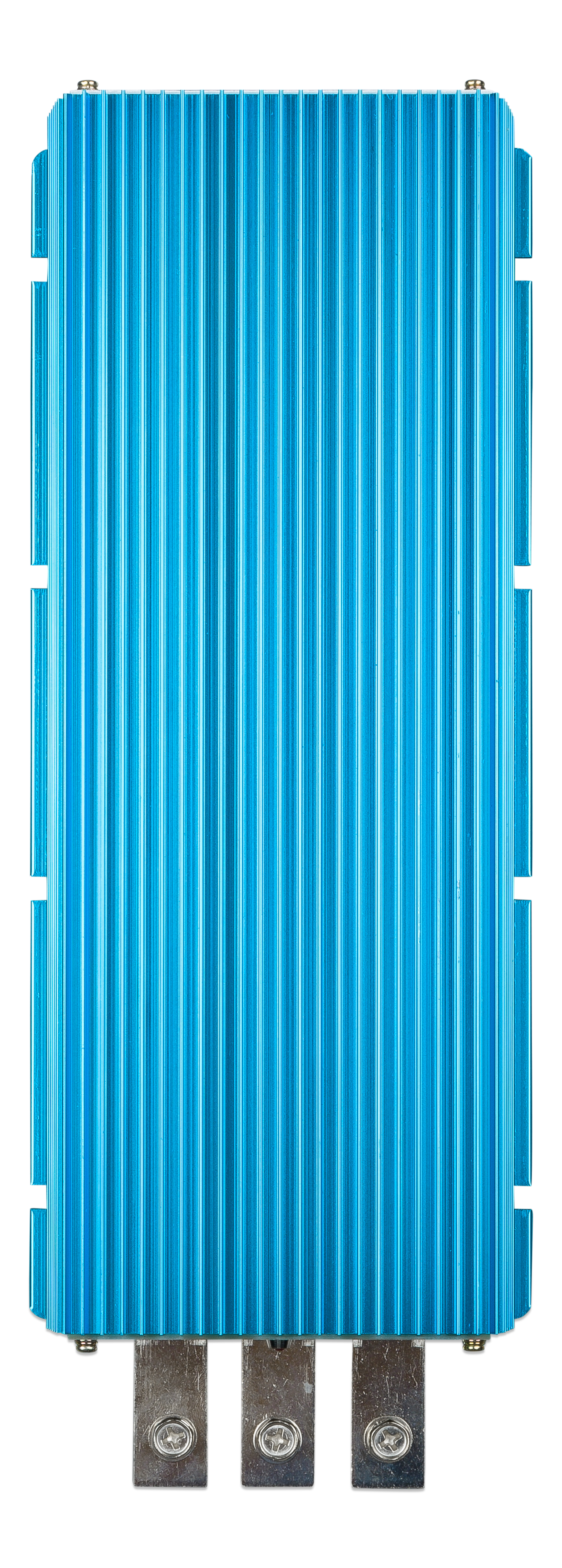

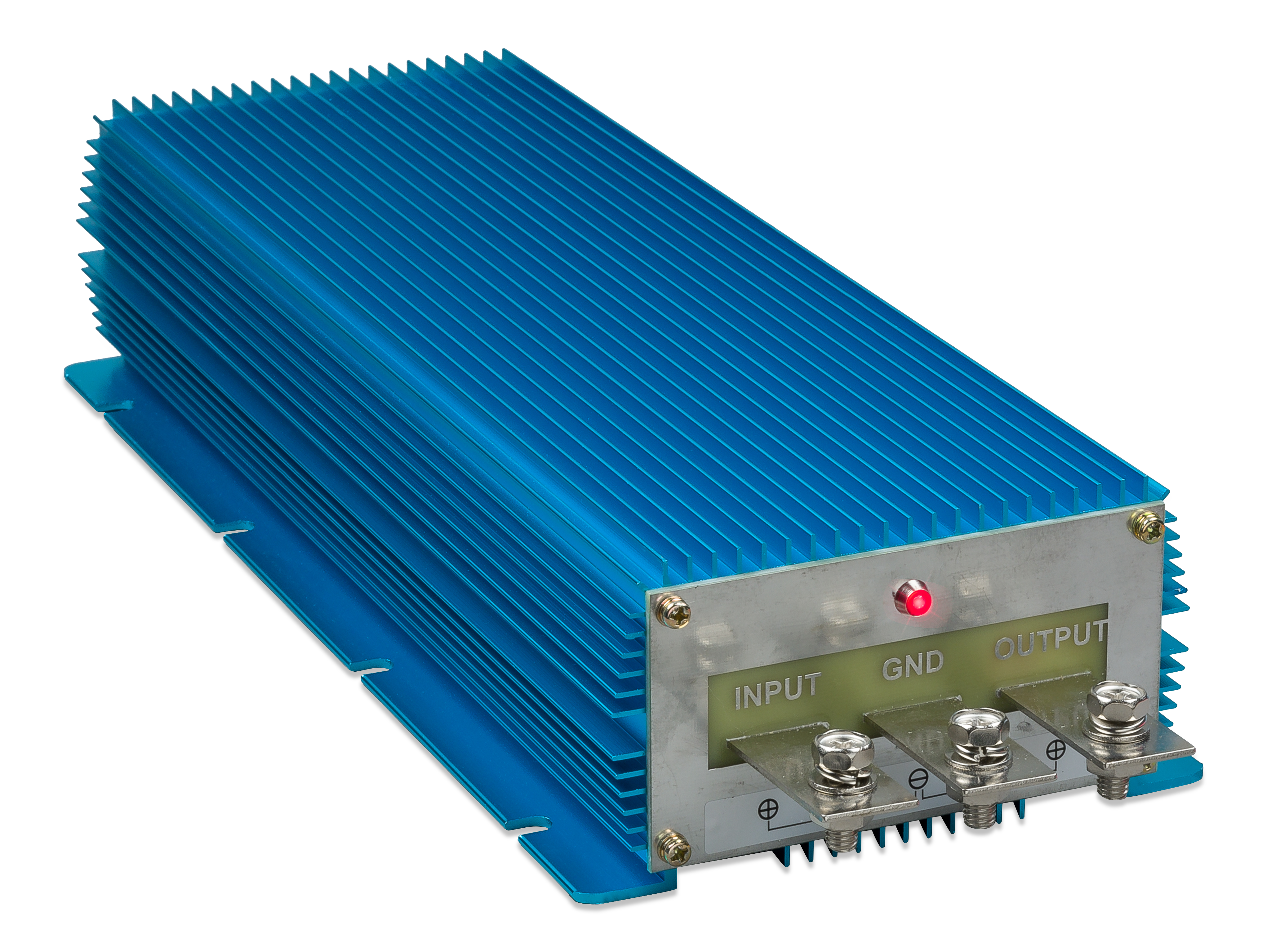

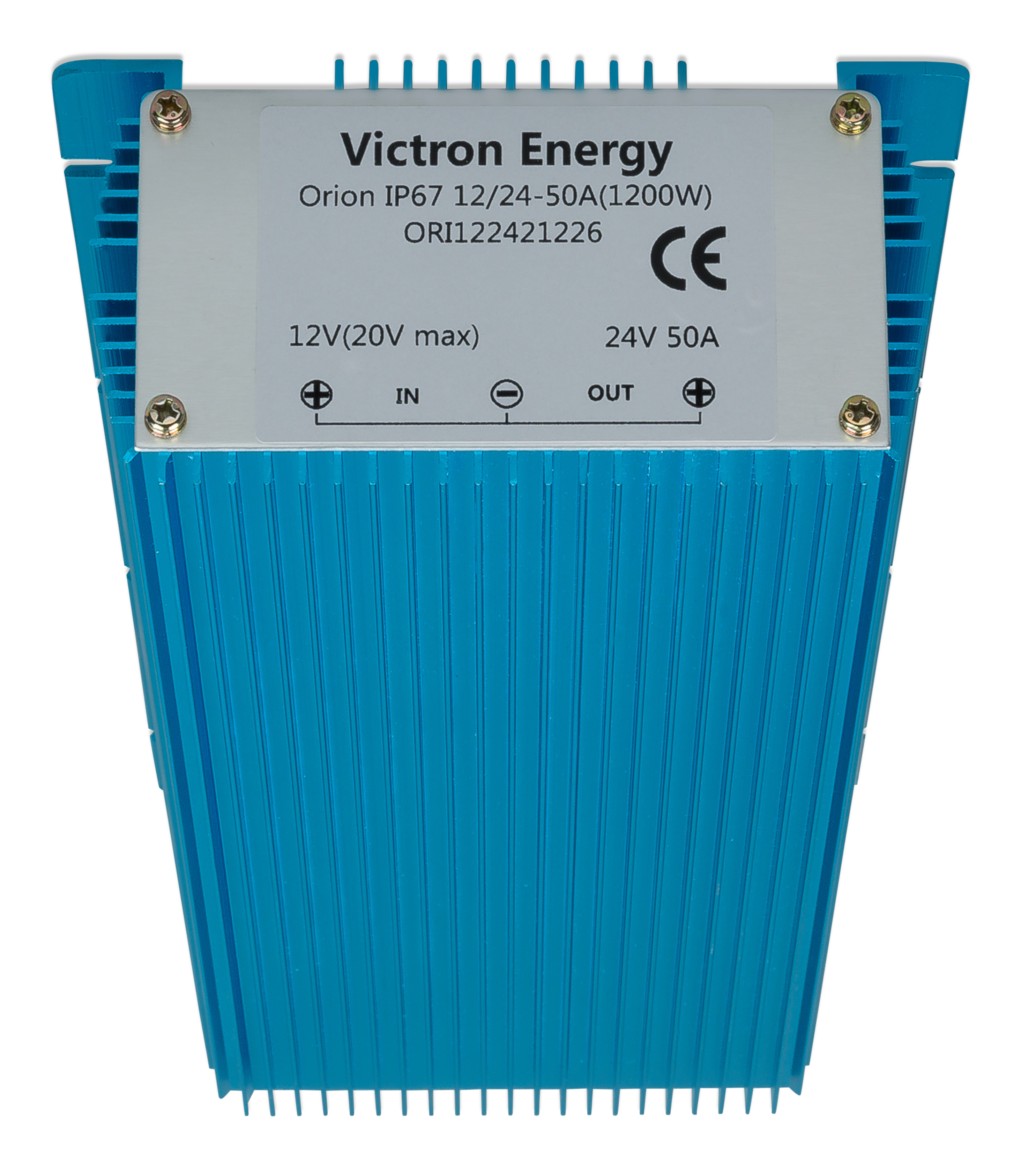

oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin. Available in 5 models Orion IP67 24/12-5 Orion IP67 24/12-10 Orion IP67 24/12-20 Orion IP67 24/12-100 Orion IP67 12/24-50

Códigos SKU

ORI241210260 ORI241205260 ORI241220260

DATOS DEL FABRICANTE

Especificaciones técnicas

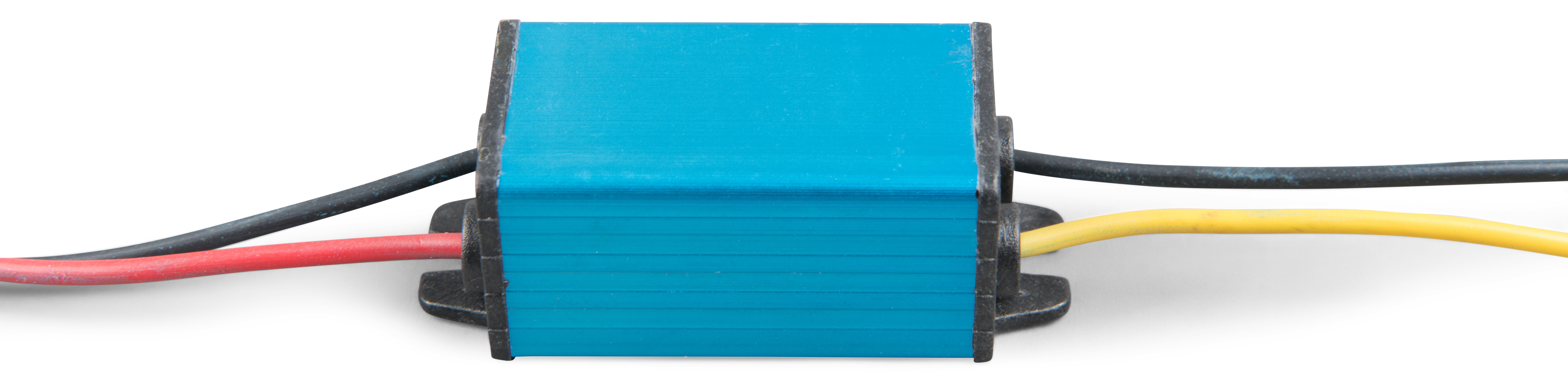

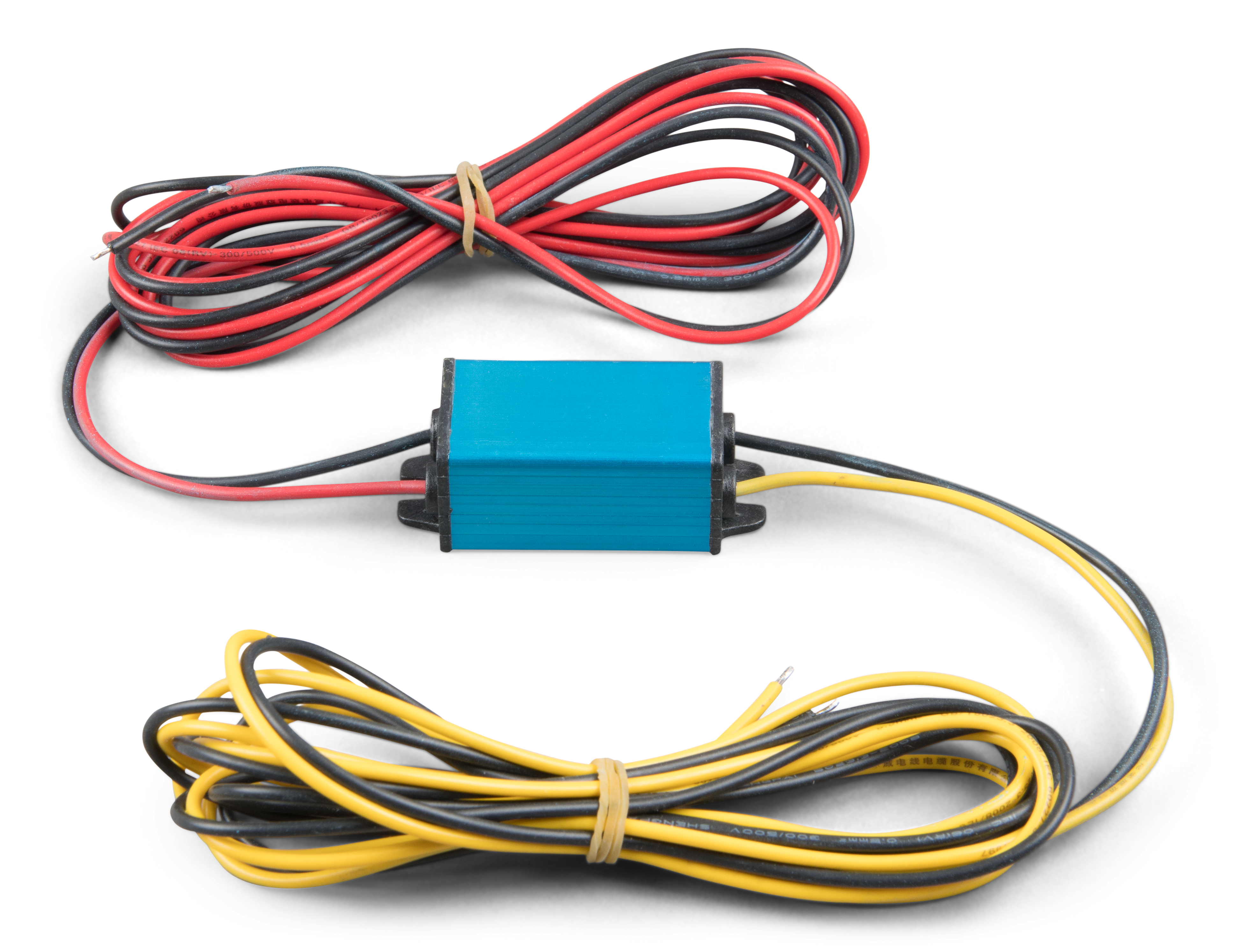

Input Voltage Range: [ 15, 40 ] V
Under Voltage Shutdown: 13 V
Under Voltage Restart: 14 V
Output Voltage: 12 V
Output Voltage Tolerance: 3 %
Ripple And Noise: 0.075 Vmpp
Maximum Output Current: 5 A
Output Derating Above40: 3 %
No Load Current Consumption: 1 mA
Max Efficiency: 93
Protections: Overload, Short-circuit proof, Reverse polarity (fuse), Over temperature
Operating Temp Range: [ -40, 70 ] °C
Dc Connection Terminal Type: Two 1.8m input and output cables 0.8 mm² (18 AWG)
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP67
Weight: 0.05 kg
Height: 25 mm
Width: 43 mm
Depth: 20 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G

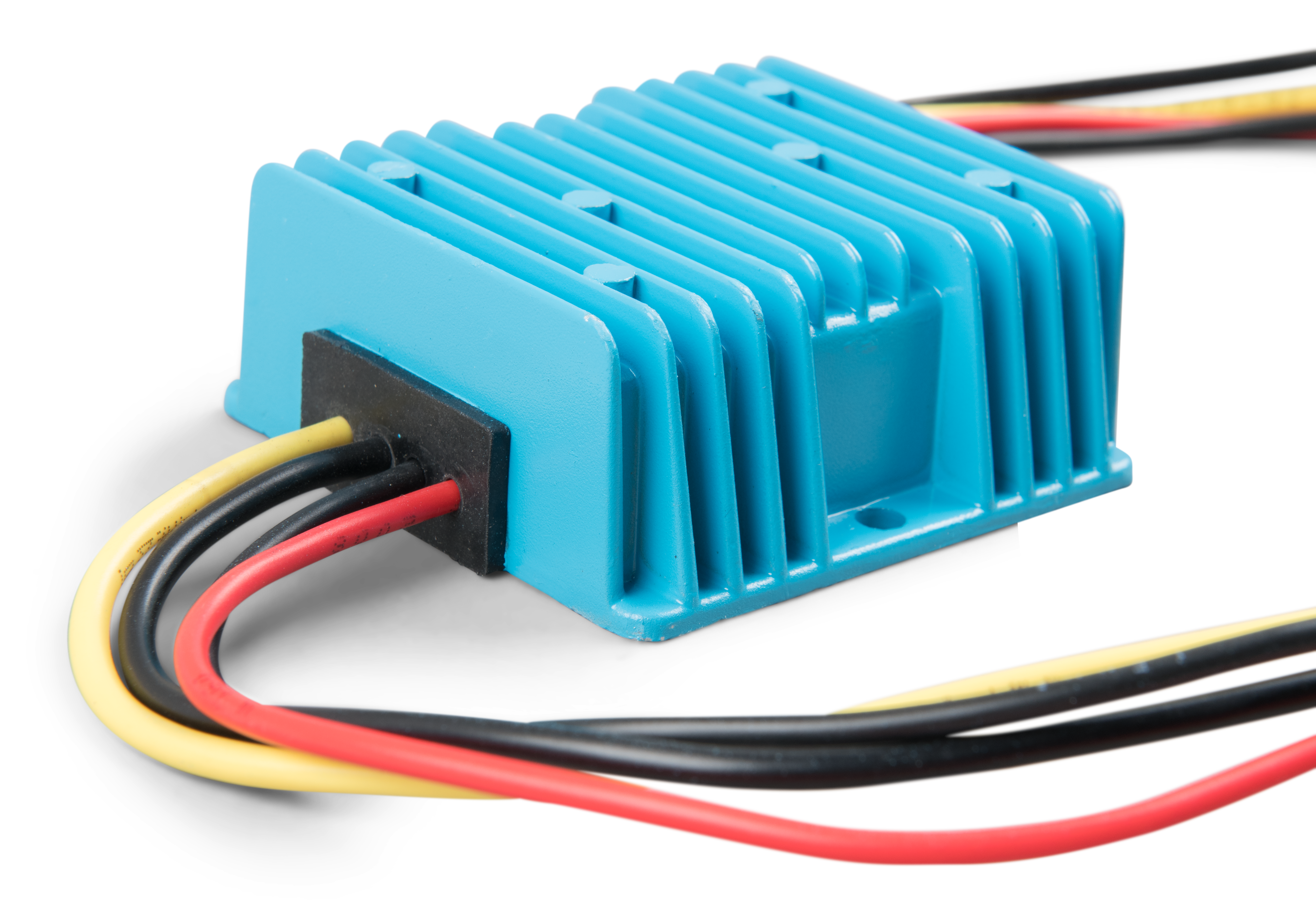

Input Voltage Range: [ 15, 40 ] V
Under Voltage Shutdown: 13 V
Under Voltage Restart: 14 V
Output Voltage: 12 V
Output Voltage Tolerance: 3 %
Ripple And Noise: 0.075 Vmpp
Maximum Output Current: 10 A
Output Derating Above40: 3 %
No Load Current Consumption: 20 mA
Max Efficiency: 93
Protections: Short-circuit proof, Reverse polarity (fuse), Overload, Over temperature
Operating Temp Range: [ -40, 70 ] °C
Dc Connection Terminal Type: Two 1.8m input and output cables 1.5 mm² (15 AWG)
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP67
Weight: 0.3 kg
Height: 74 mm
Width: 74 mm
Depth: 32 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G

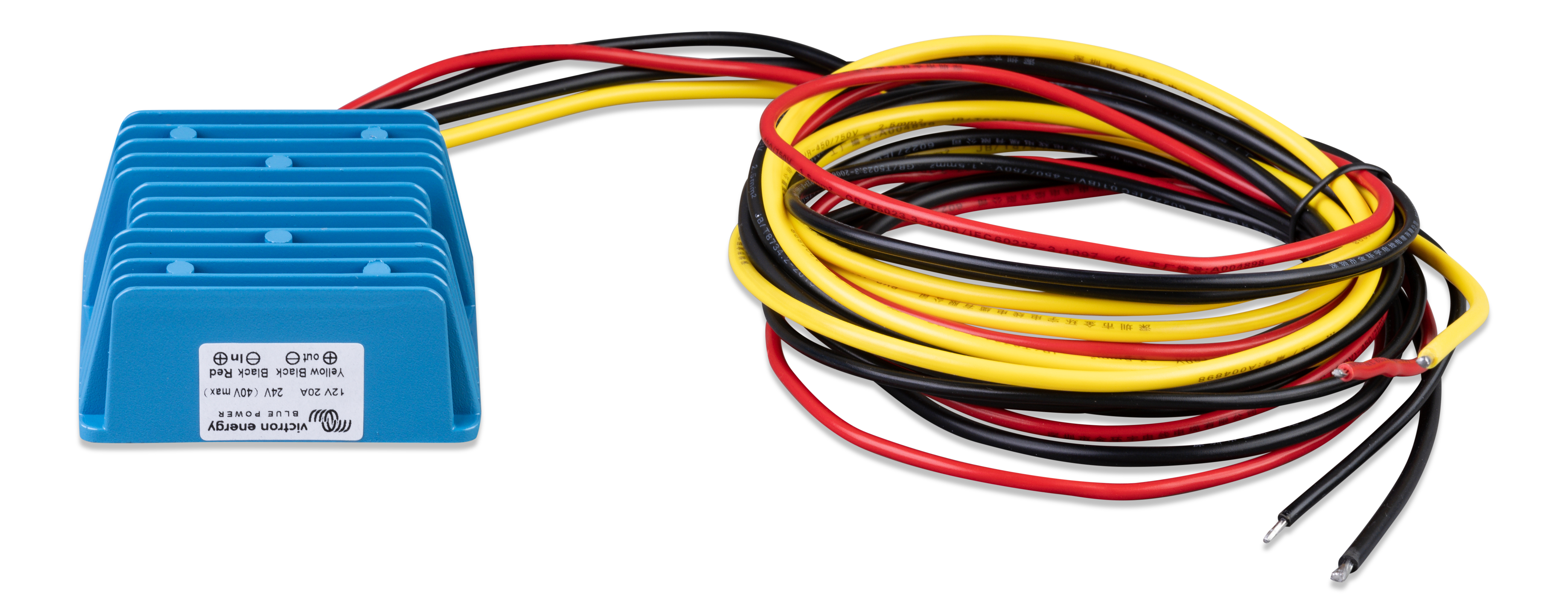

Input Voltage Range: [ 15, 40 ] V
Under Voltage Shutdown: 13 V
Under Voltage Restart: 14 V
Output Voltage: 12 V
Output Voltage Tolerance: 3 %
Ripple And Noise: 0.075 Vmpp
Maximum Output Current: 20 A
Output Derating Above40: 3 %
No Load Current Consumption: 50 mA
Max Efficiency: 95
Protections: Short-circuit proof, Overload, Reverse polarity (fuse), Over temperature
Operating Temp Range: [ -40, 70 ] °C
Dc Connection Terminal Type: Two 1.8m input and output cables 2.6 mm² (13 AWG)
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP67
Weight: 0.3 kg
Height: 74 mm
Width: 74 mm
Depth: 32 mm
Safety: EN 60950
Emission: EN 55014-1, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G
