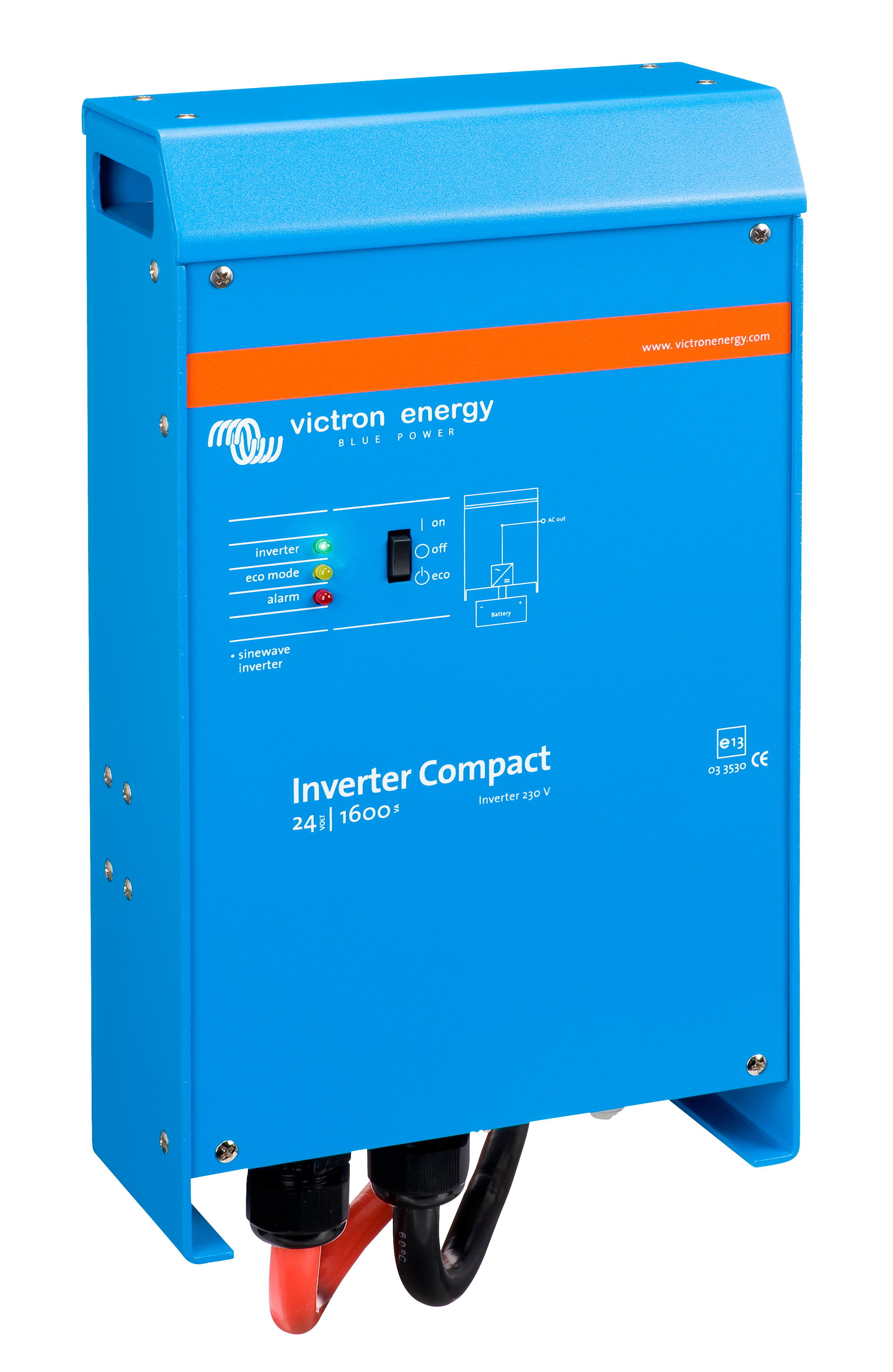

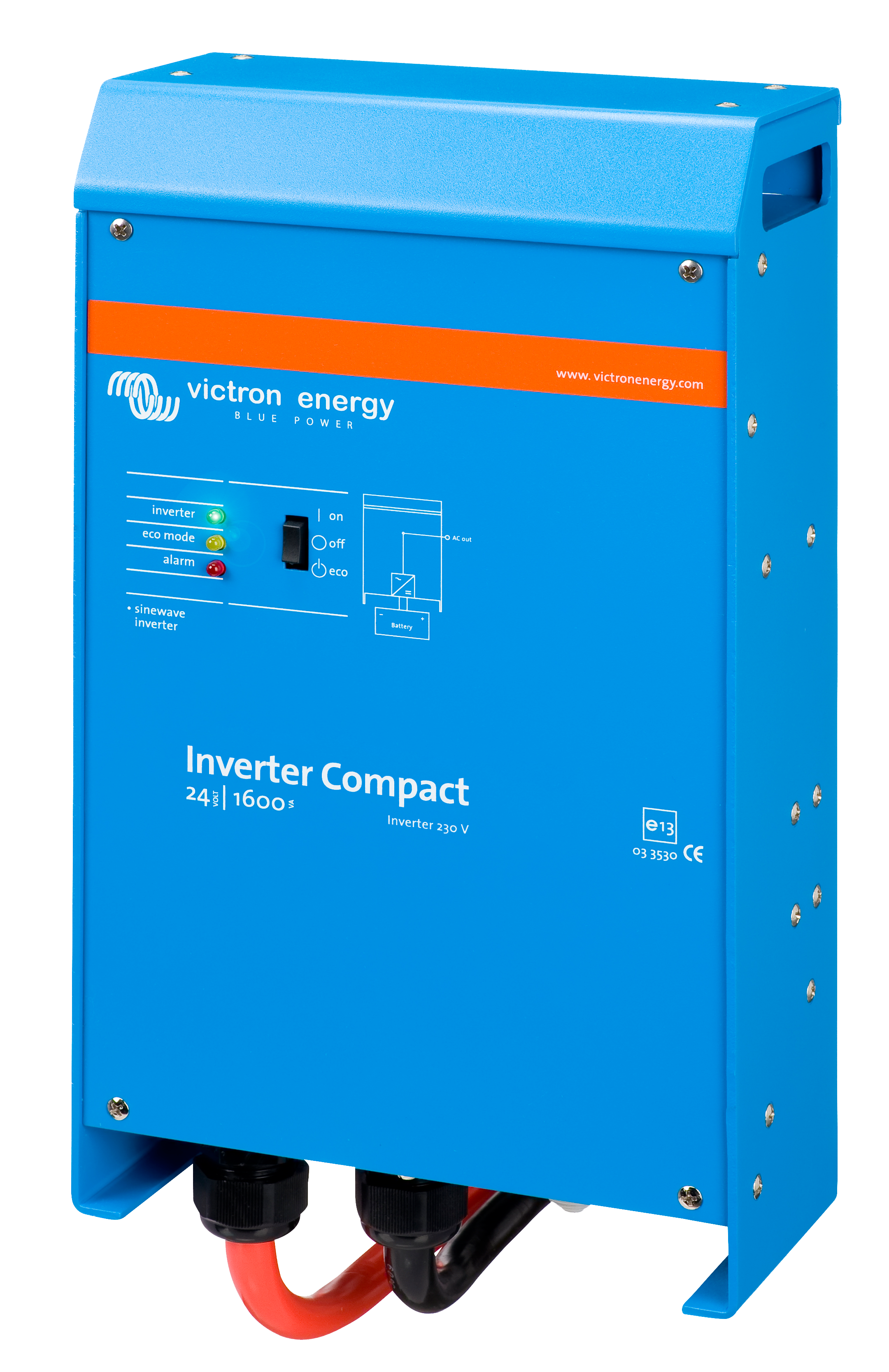

Inverter Compact 1200VA - 2000VA

SKU principal: CIN121620000

The Inverter Compact is a pure sine wave inverter with a high efficiency. It is developed for professional duty and suitable for the wide range of applications. <br>The Inverters Compact is available from 1200VA up to 2000VA in 12V or 24V.

Códigos SKU

CIN121620000 CIN122200000 CIN241220000 CIN241620000 CIN242200000 CIN122160000 CIN121220000 CIN242160000 CIN122120000

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 12 V
D C Input Voltage Range: [ 9.5, 17 ] V
A C Output Voltage: 230 V
Frequency Select: 50Hz or 60Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Cont Power W65: 800 W
Peak Power Rating: 3, 000 W
Max Efficiency: 92 %
Zero Load Power: 8 W
Zero Load Power A E S: 5 W
Zero Load Power Search: 2 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Ac Connection: G-ST18i plug
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 10 kg
Height: 375 mm
Width: 214 mm
Depth: 110 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
Battery Voltage Nominal: 24 V
D C Input Voltage Range: [ 19, 33 ] V
A C Output Voltage: 230 V
Frequency Select: 50Hz or 60Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Cont Power W65: 800 W
Peak Power Rating: 3, 000 W
Max Efficiency: 94 %
Zero Load Power: 10 W
Zero Load Power A E S: 8 W
Zero Load Power Search: 3 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: Red and black 1.5 meter cable with M8 eyelets
Ac Connection: G-ST18i plug
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 10 kg
Height: 375 mm
Width: 214 mm
Depth: 110 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
Battery Voltage Nominal: 24 V
D C Input Voltage Range: [ 19, 33 ] V
A C Output Voltage: 230 V
Frequency Select: 50Hz or 60Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 000 W
Peak Power Rating: 4, 000 W
Max Efficiency: 92 %
Zero Load Power: 11 W
Zero Load Power A E S: 9 W
Zero Load Power Search: 4 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: M8 bolts
Ac Connection: Spring clamp
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 12 kg
Height: 520 mm
Width: 255 mm
Depth: 125 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
Battery Voltage Nominal: 12 V
D C Input Voltage Range: [ 9.5, 17 ] V
A C Output Voltage: 230 V
Frequency Select: 50Hz or 60Hz
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 900 W
Cont Power W65: 600 W
Peak Power Rating: 2, 400 W
Max Efficiency: 92 %
Zero Load Power: 8 W
Zero Load Power A E S: 5 W
Zero Load Power Search: 2 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: Red and black 1.5 meter cable with M8 eyelets
Ac Connection: G-ST18i plug
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 10 kg
Height: 375 mm
Width: 214 mm
Depth: 110 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
Battery Voltage Nominal: 12 V
D C Input Voltage Range: [ 9.5, 17 ] V
A C Output Voltage: 230 V
Frequency Select: 50Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 000 W
Peak Power Rating: 4, 000 W
Max Efficiency: 92 %
Zero Load Power: 9 W
Zero Load Power A E S: 7 W
Zero Load Power Search: 3 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: M8 bolts
Ac Connection: Spring clamp
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 12 kg
Height: 520 mm
Width: 255 mm
Depth: 125 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
