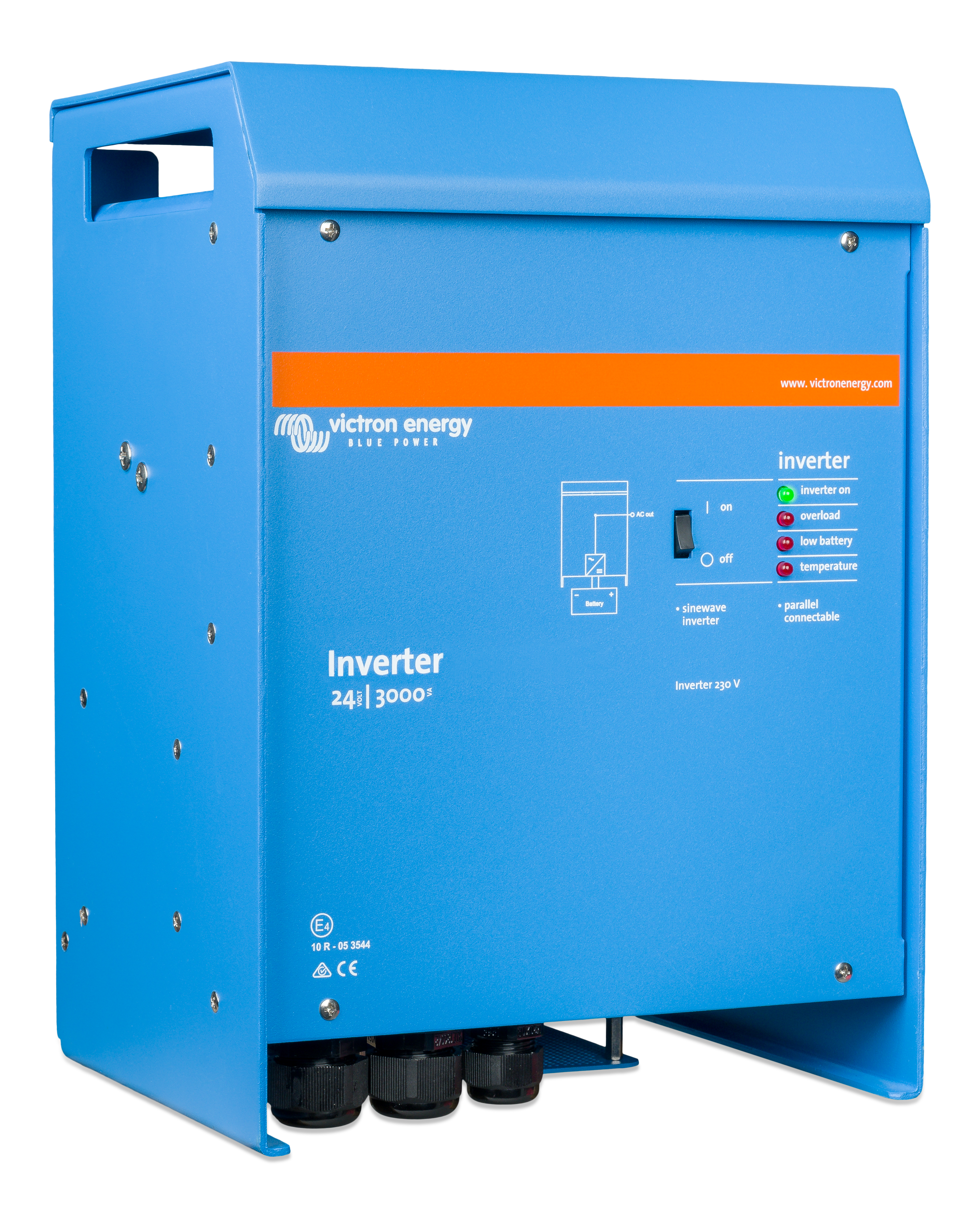

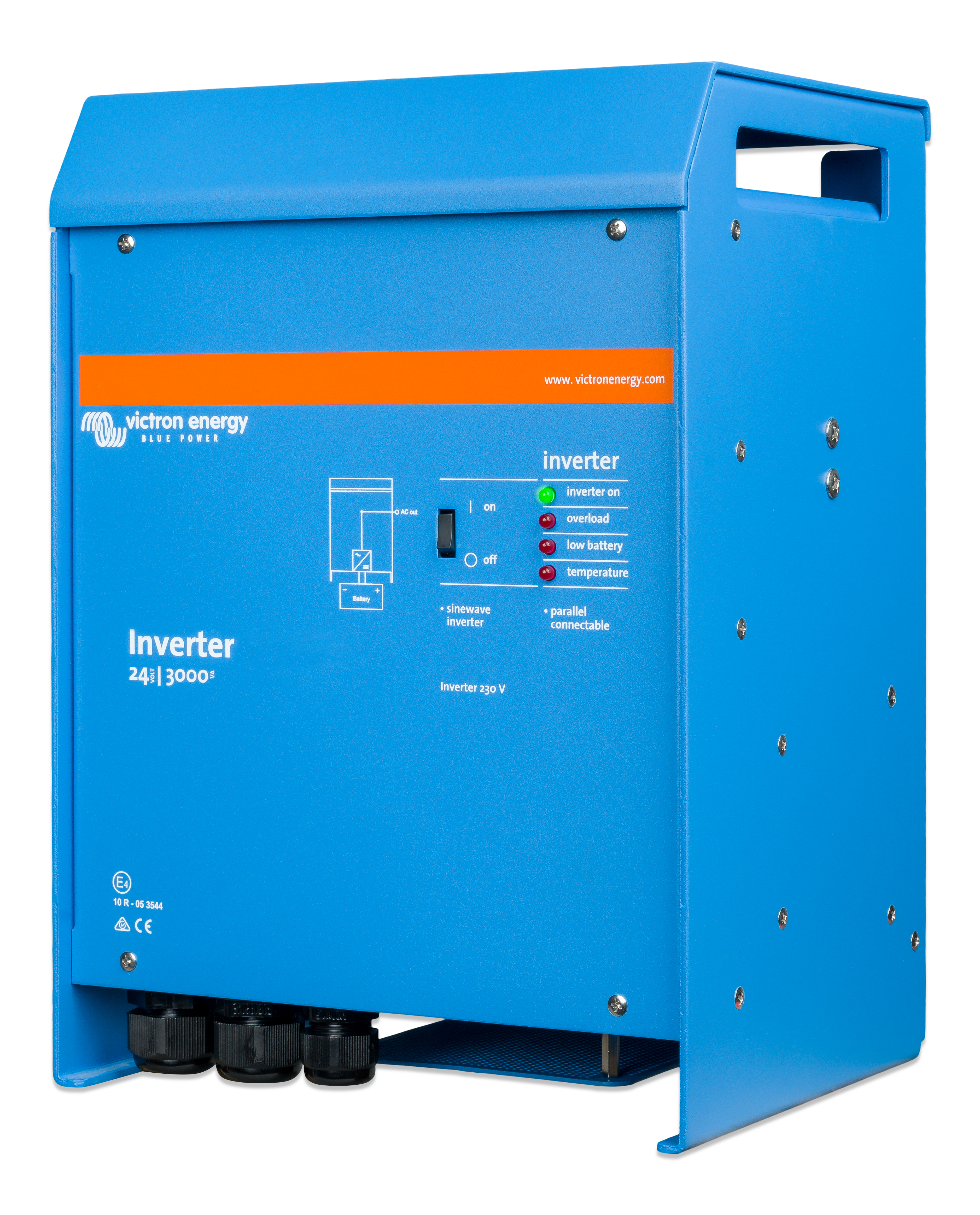

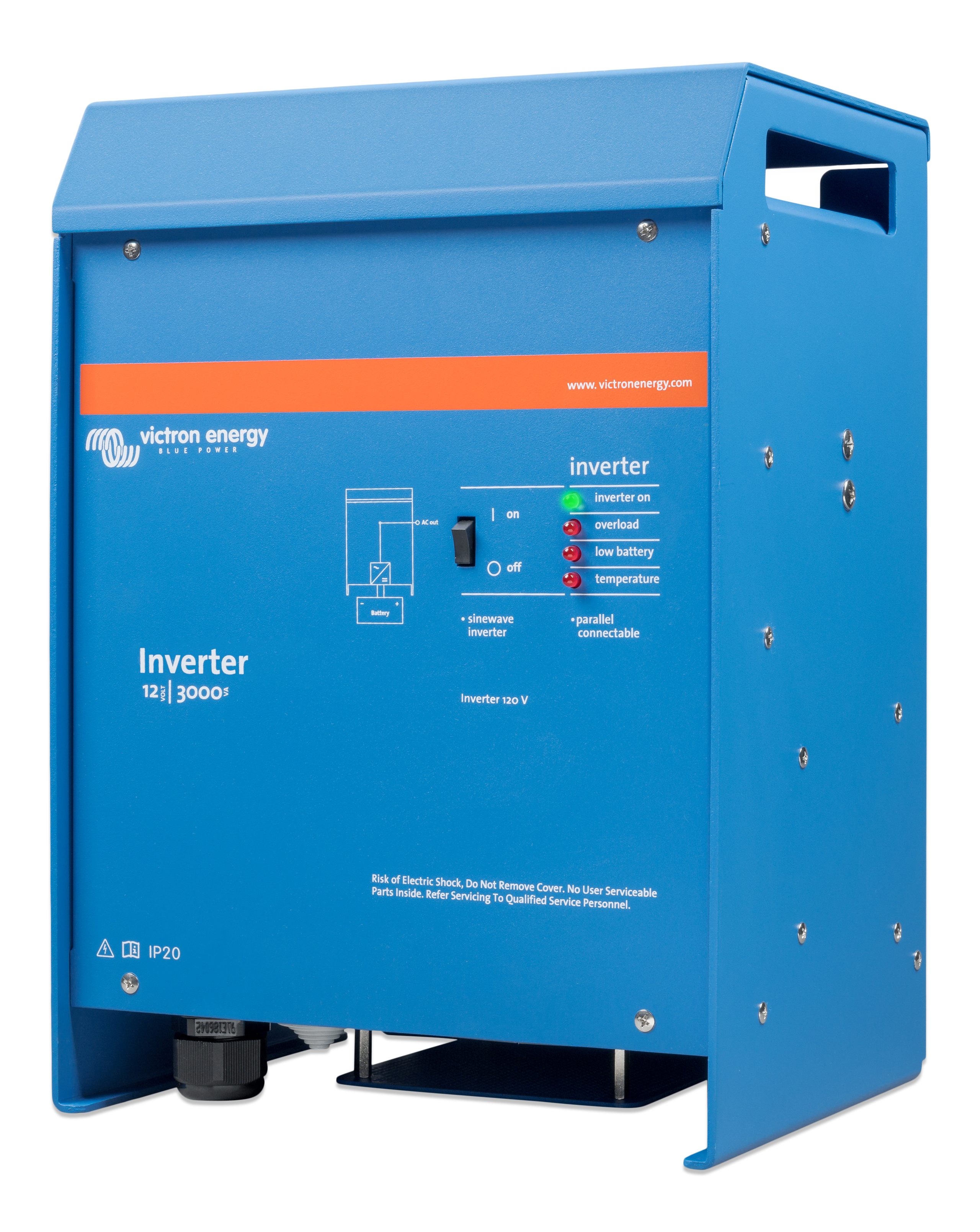

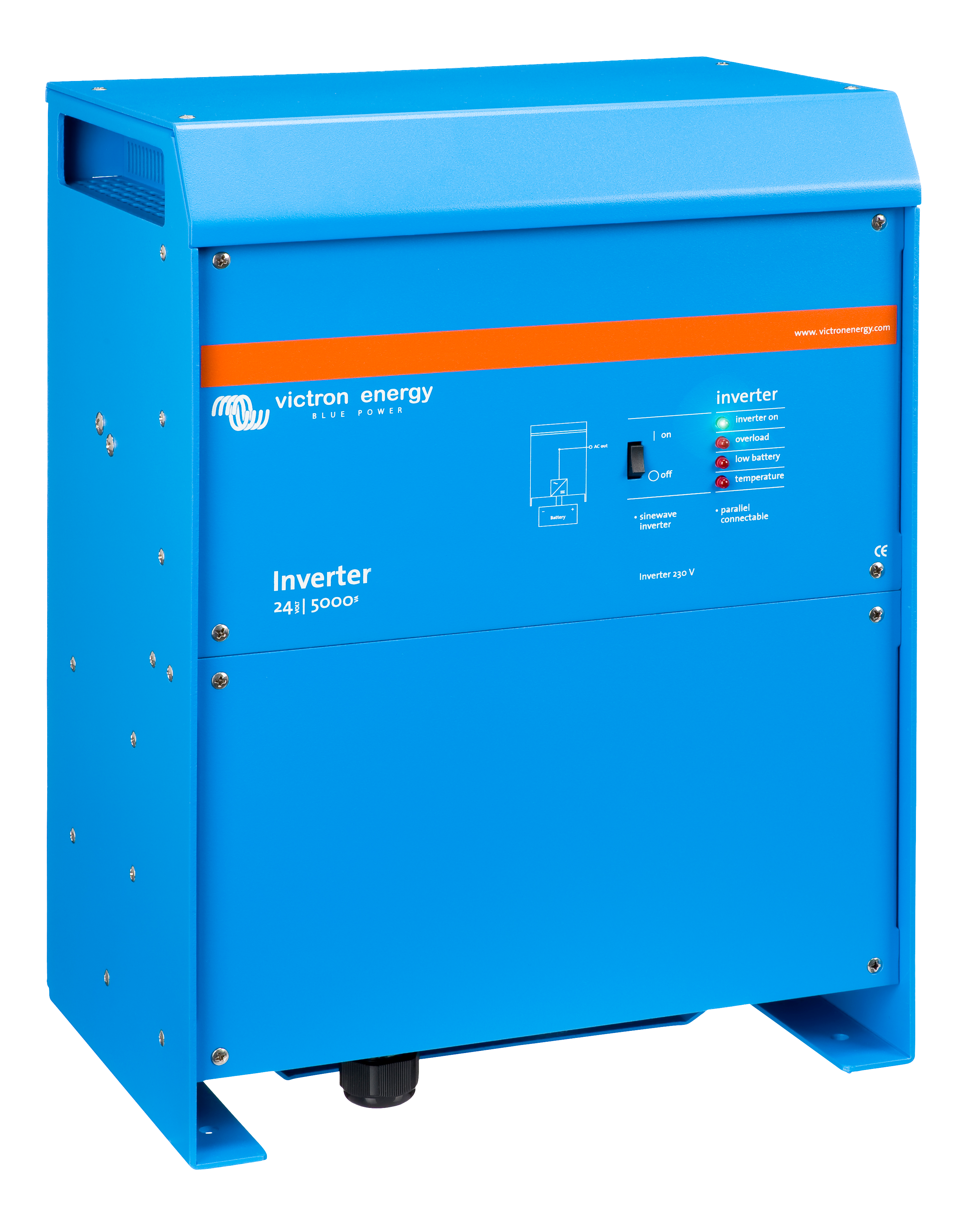

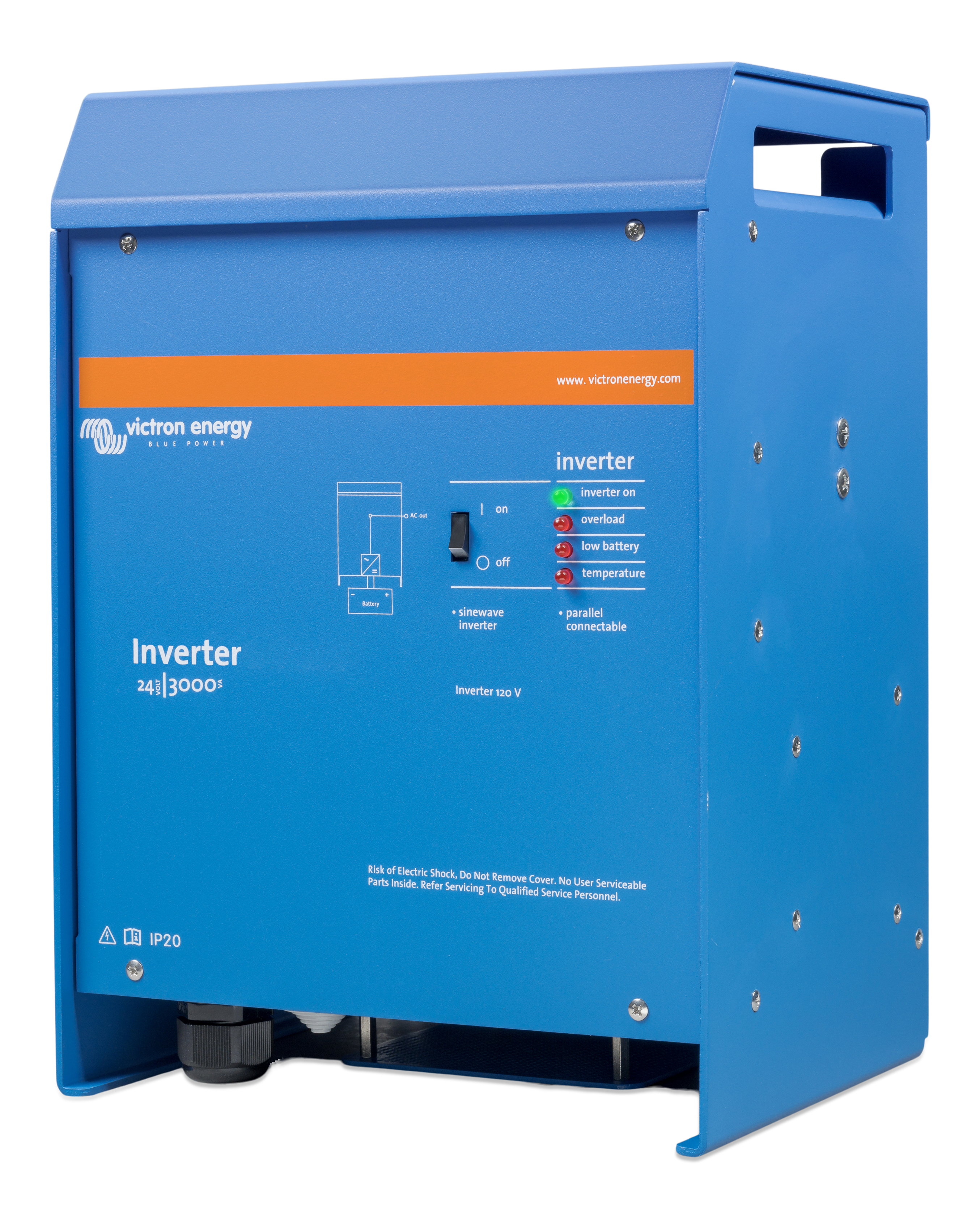

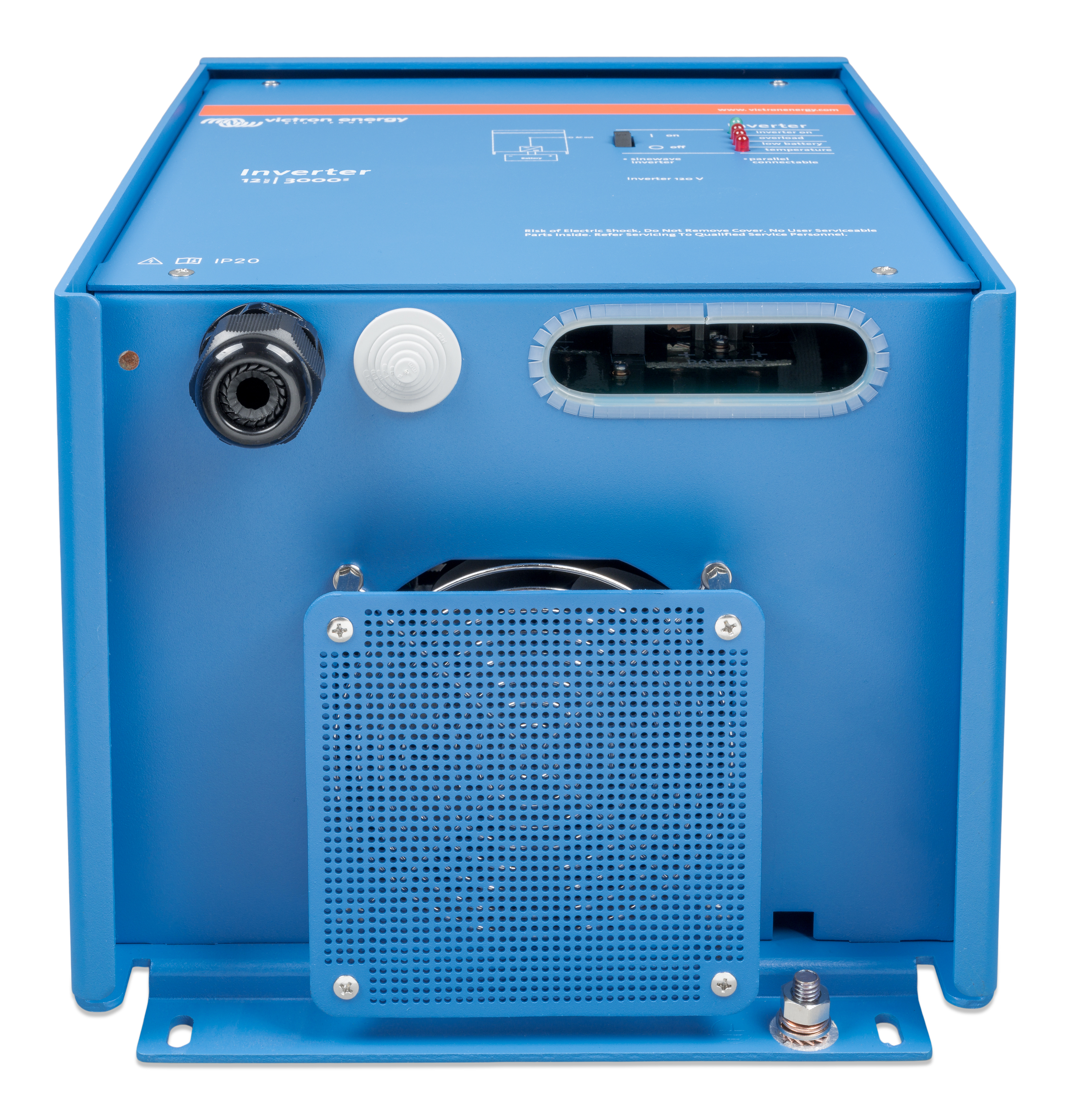

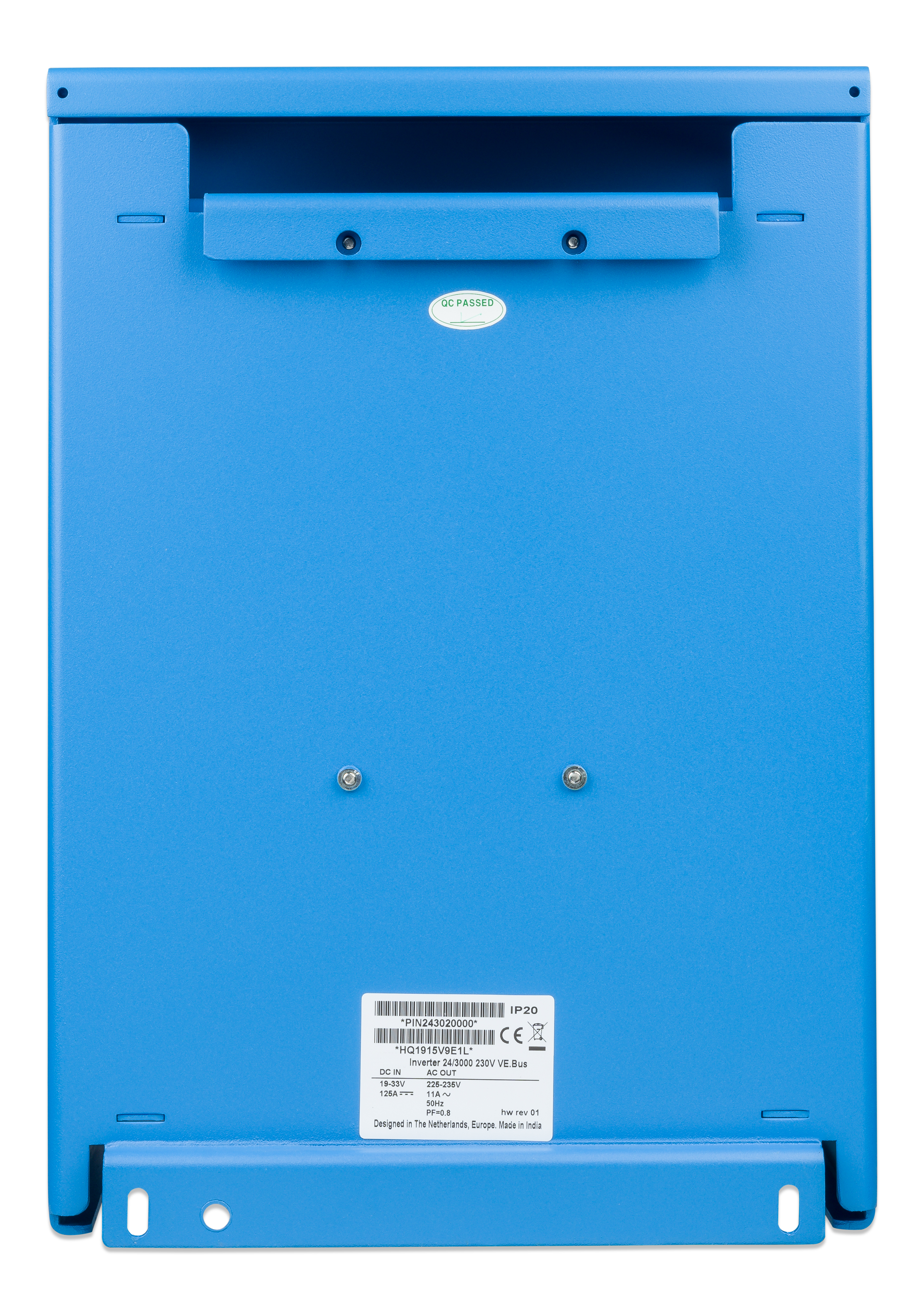

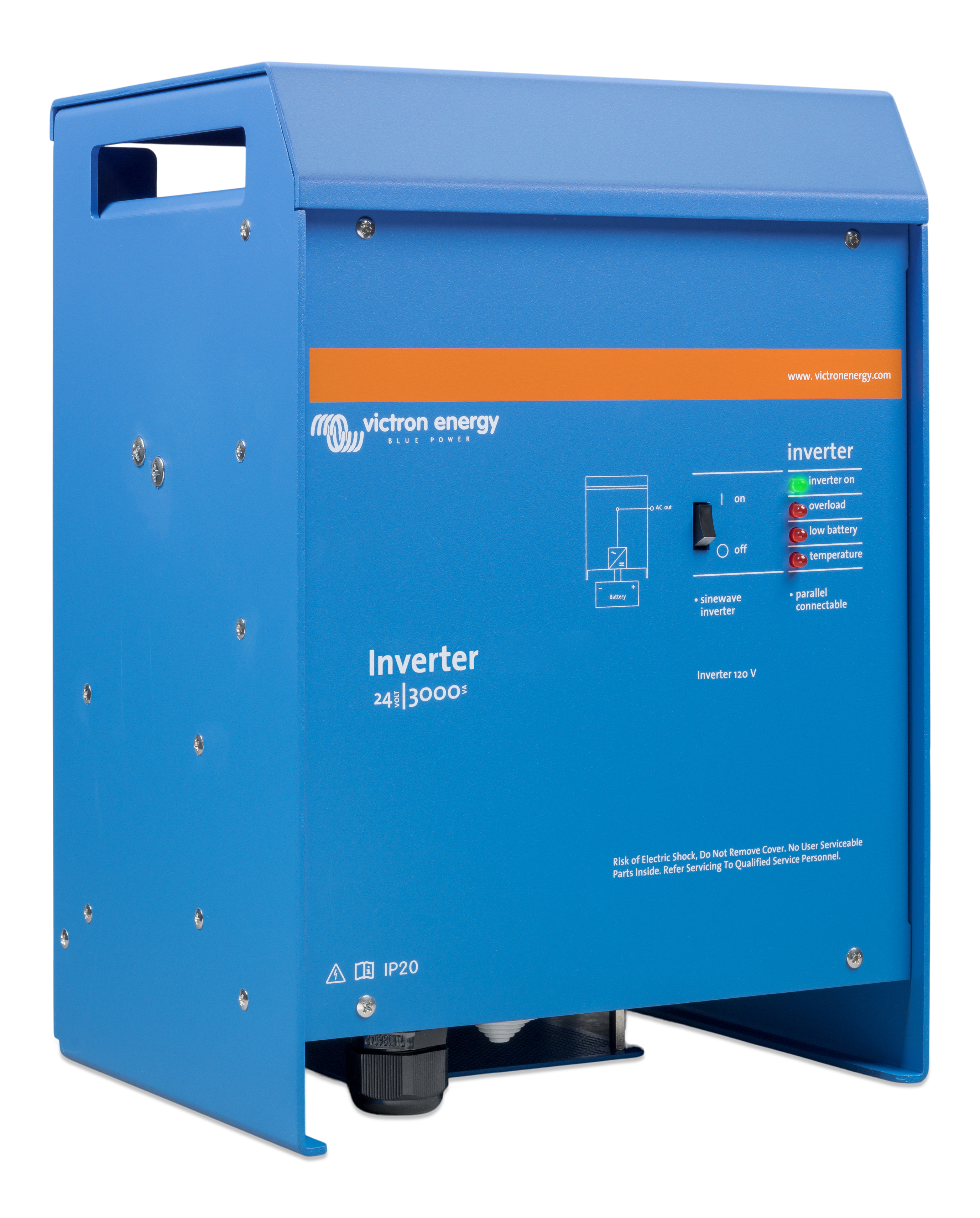

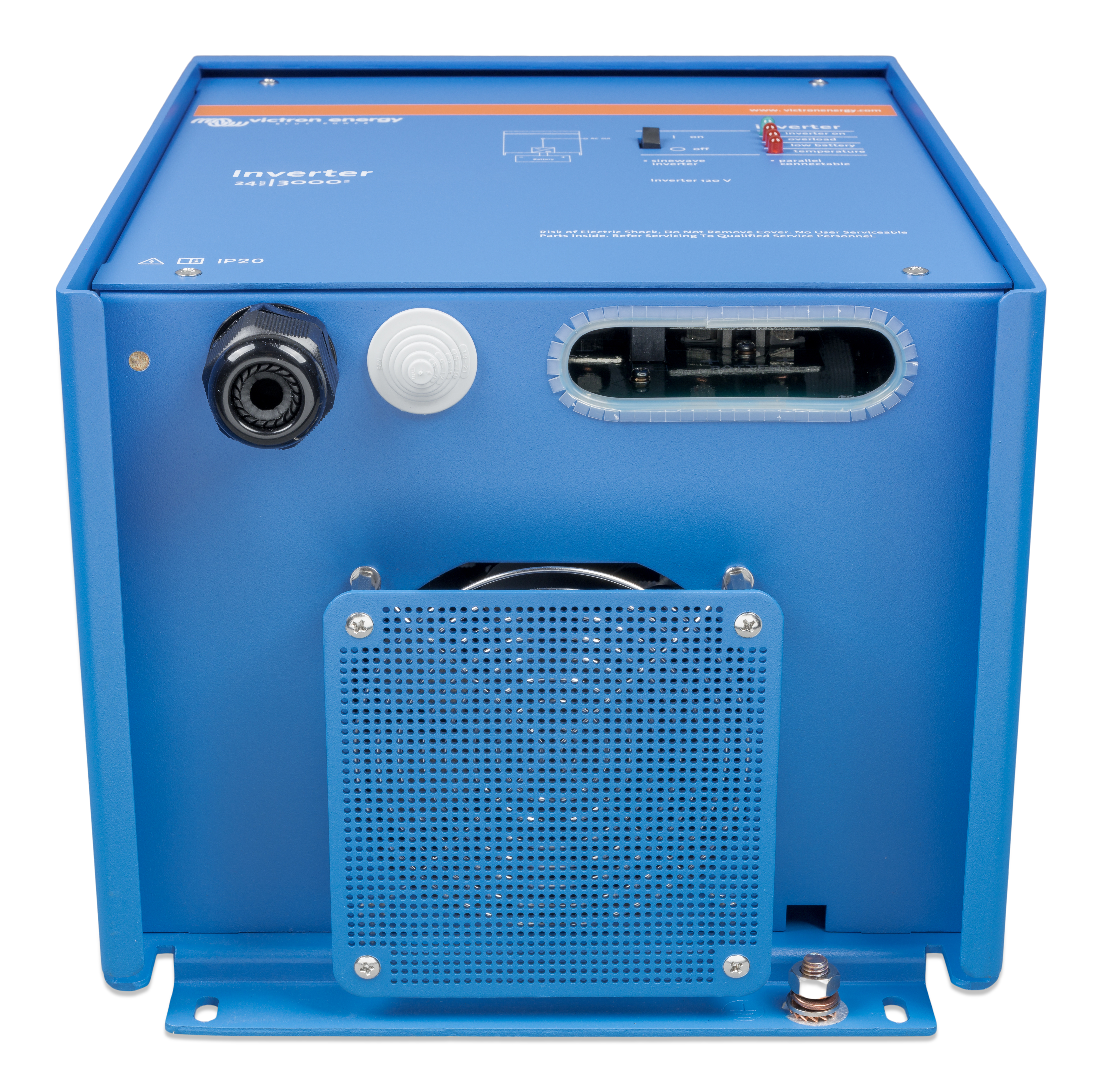

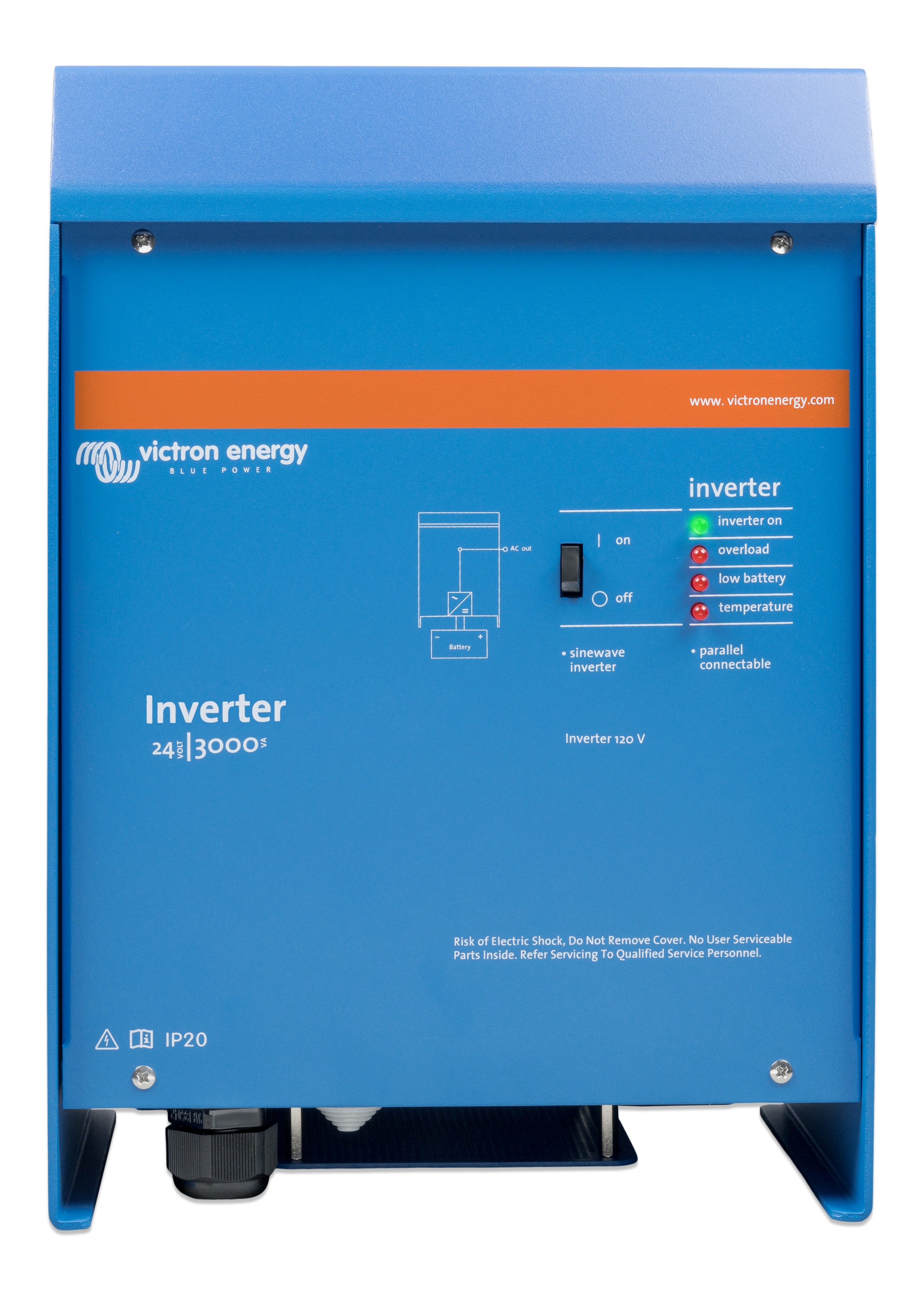

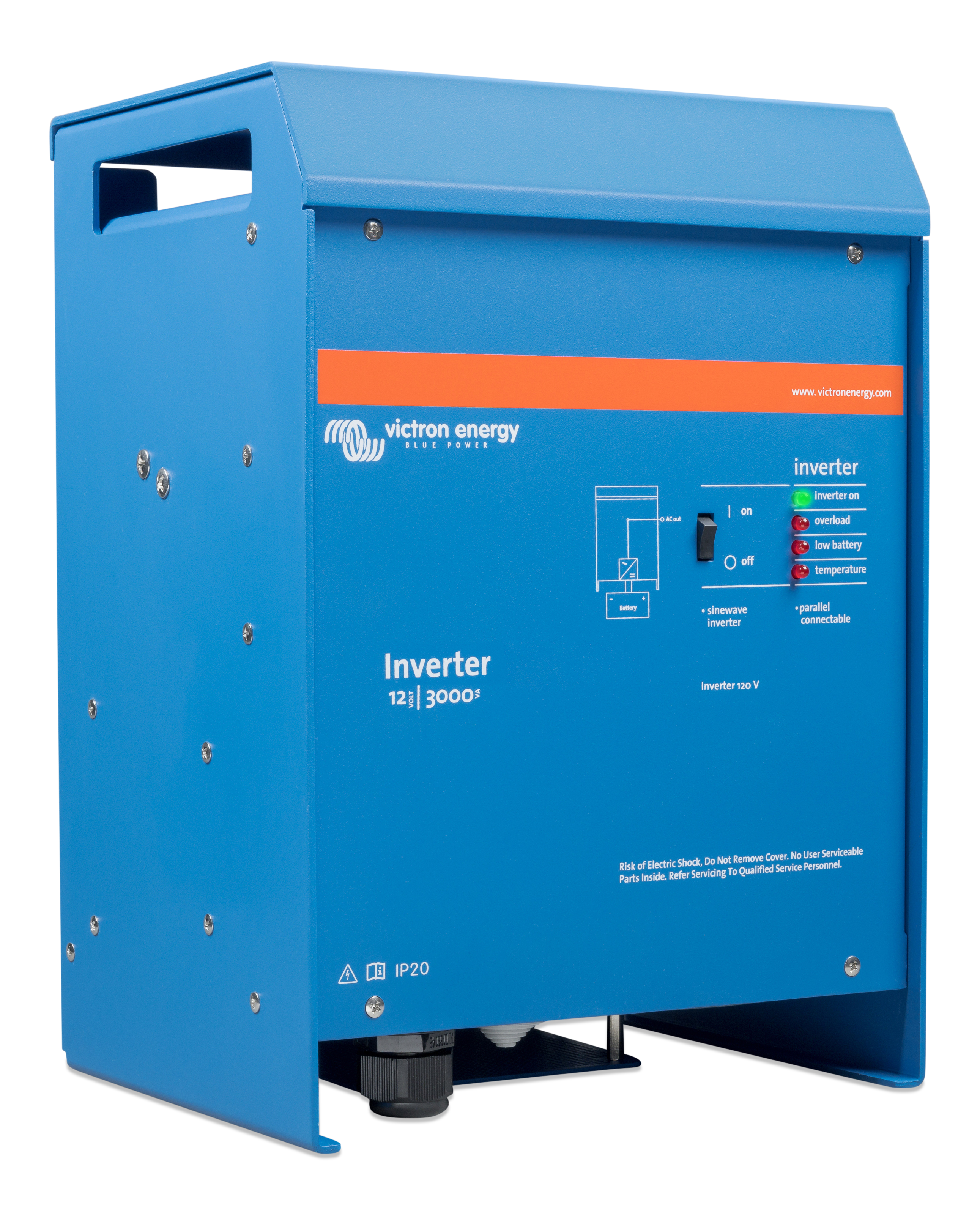

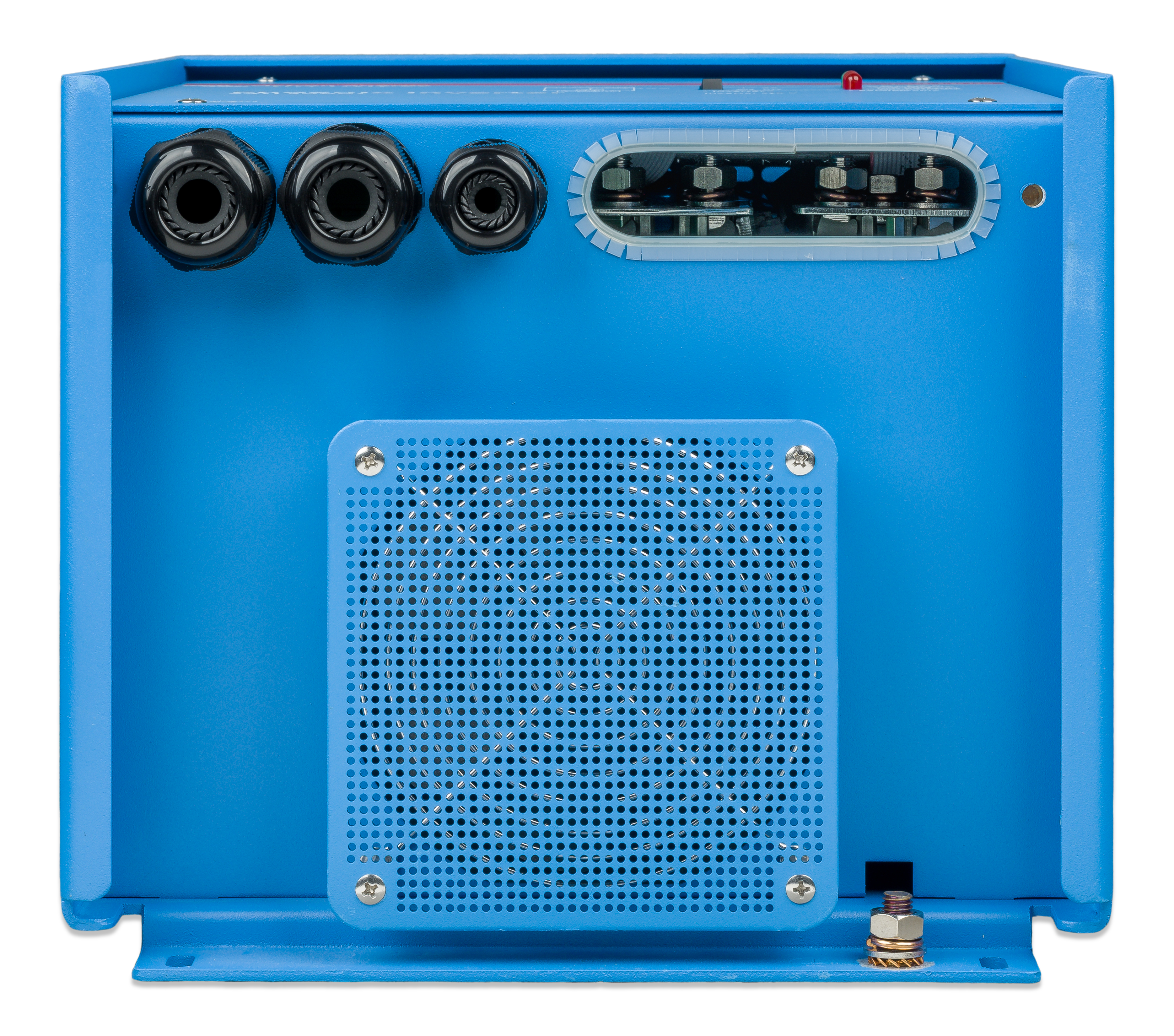

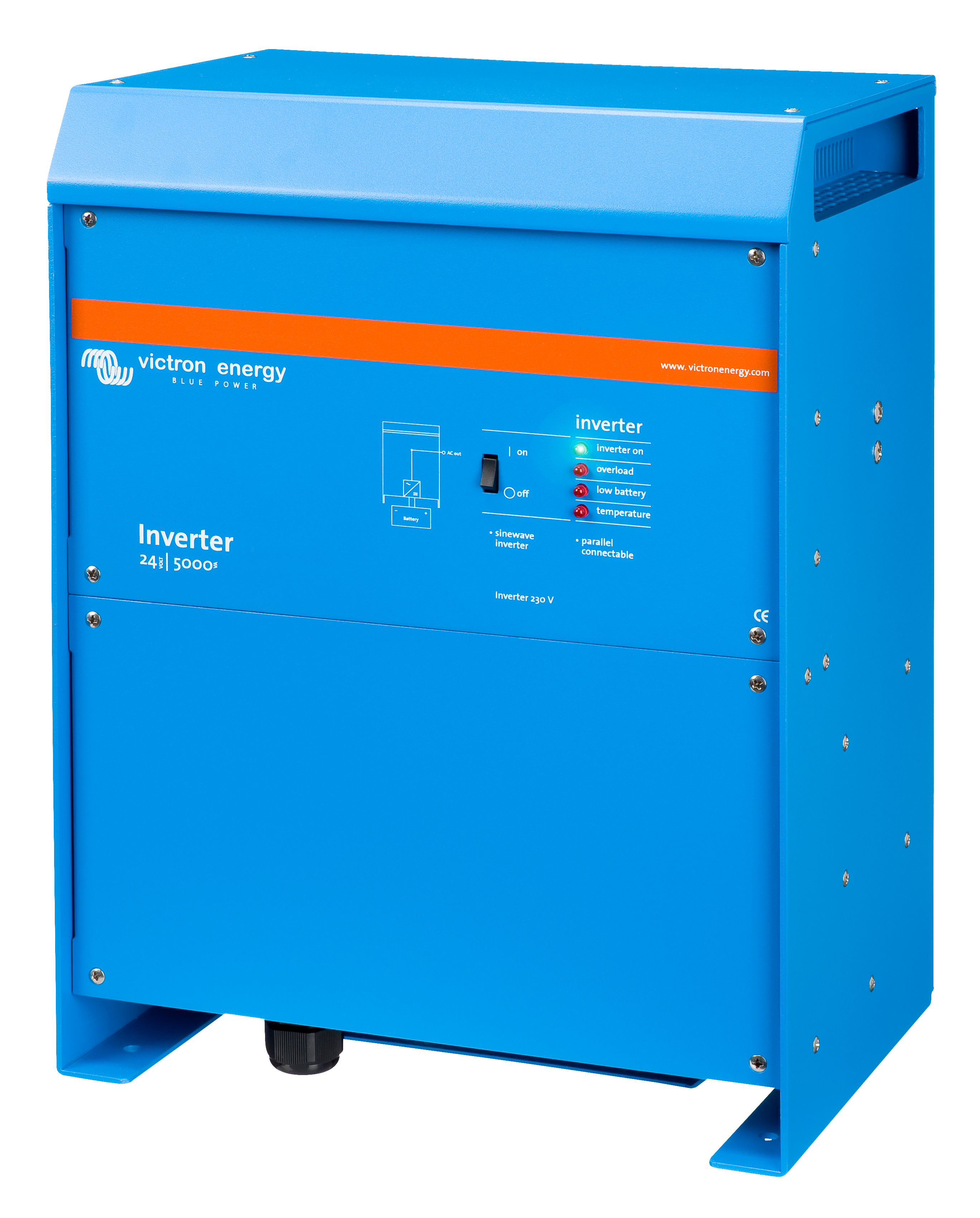

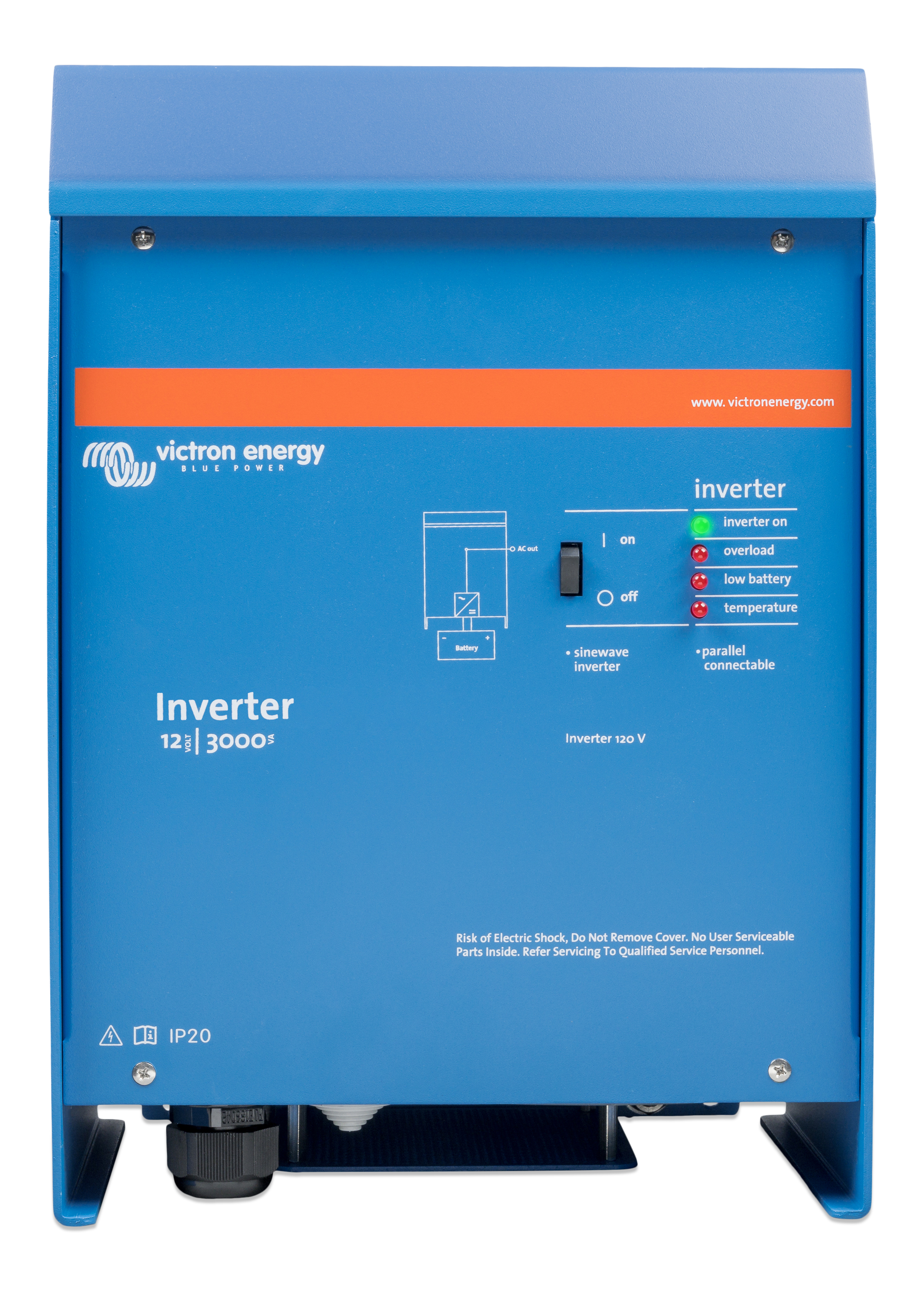

Inverter

SKU principal: PIN123020000

Inverter

Pure sine wave output,
high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds. SinusMax - Superior engineering Developed for professional duty,
this range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology,
the result is a top quality product with compact dimensions,
light in weight and capable of supplying power,
problem free,
to any load. Parallel and 3-phase operation capability Up to 6 Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units,
for example,
will provide 24 kW / 30 kVA output power. Operation in 3-phase configuration is also possible.

Códigos SKU

PIN123020000 PIN243020000 PIN245020000 PIN483020000 PIN485020000 PIN123020100 PIN243020100

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 48 V
D C Input Voltage Range: [ 38, 66 ] V
A C Output Voltage: 230 V
Frequency Select: 50Hz or 60Hz
Cont Power V A25: 5, 000 VA
Cont Power W25: 4, 000 W
Cont Power W40: 3, 700 W
Cont Power W65: 3, 000 W
Peak Power Rating: 10, 000 W
Max Efficiency: 95 %
Zero Load Power: 35 W
Zero Load Power A E S: 30 W
Zero Load Power Search: 15 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: M8 bolts (two for positive and two for negative connection)
Ac Connection: Screw terminals
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 30 kg
Height: 444 mm
Width: 328 mm
Depth: 240 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
Battery Voltage Nominal: 12 V
D C Input Voltage Range: [ 9.5, 17 ] V
A C Output Voltage: 120 V
Frequency Select: 50Hz or 60Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Efficiency: 93 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 8 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: M8 bolts (two for positive and two for negative connection)
Ac Connection: Screw terminals
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 18 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
Battery Voltage Nominal: 24 V
D C Input Voltage Range: [ 19, 33 ] V
A C Output Voltage: 230 V
Frequency Select: 50Hz or 60Hz
Cont Power V A25: 5, 000 VA
Cont Power W25: 4, 000 W
Cont Power W40: 3, 700 W
Cont Power W65: 3, 000 W
Peak Power Rating: 10, 000 W
Max Efficiency: 94 %
Zero Load Power: 30 W
Zero Load Power A E S: 25 W
Zero Load Power Search: 10 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: M8 bolts (two for positive and two for negative connection)
Ac Connection: Screw terminals
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 30 kg
Height: 4, 444 mm
Width: 328 mm
Depth: 240 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
Battery Voltage Nominal: 24 V
D C Input Voltage Range: [ 19, 33 ] V
A C Output Voltage: 120 V
Frequency Select: 50Hz or 60Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Efficiency: 94 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 10 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: M8 bolts (two for positive and two for negative connection)
Ac Connection: Screw terminals
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 18 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
Battery Voltage Nominal: 12 V
D C Input Voltage Range: [ 9.5, 17 ] V
A C Output Voltage: 230 V
Frequency Select: 50Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Efficiency: 93 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 8 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: M8 bolts (two for positive and two for negative connection)
Ac Connection: Screw terminals
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 18 kg
Height: 364 mm
Width: 295 mm
Depth: 221 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
Battery Voltage Nominal: 24 V
D C Input Voltage Range: [ 19, 33 ] V
A C Output Voltage: 230 V
Frequency Select: 50Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Efficiency: 94 %
Zero Load Power: 20 W
Zero Load Power A E S: 15 W
Zero Load Power Search: 10 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: M8 bolts (two for positive and two for negative connection)
Ac Connection: Screw terminals
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 18 kg
Height: 364 mm
Width: 295 mm
Depth: 221 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
Battery Voltage Nominal: 48 V
D C Input Voltage Range: [ 38, 66 ] V
A C Output Voltage: 230 V
Frequency Select: 50Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Max Efficiency: 95 %
Zero Load Power: 25 W
Zero Load Power A E S: 20 W
Zero Load Power Search: 12 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Remote On Off Terminal: 1
Communication Port: VE.Bus
Fully Programable: 1
Parallel3Phase: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Humidity: 95 %
Battery Connection: M8 bolts (two for positive and two for negative connection)
Ac Connection: Screw terminals
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 18 kg
Height: 364 mm
Width: 295 mm
Depth: 221 mm
Safety: EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2
