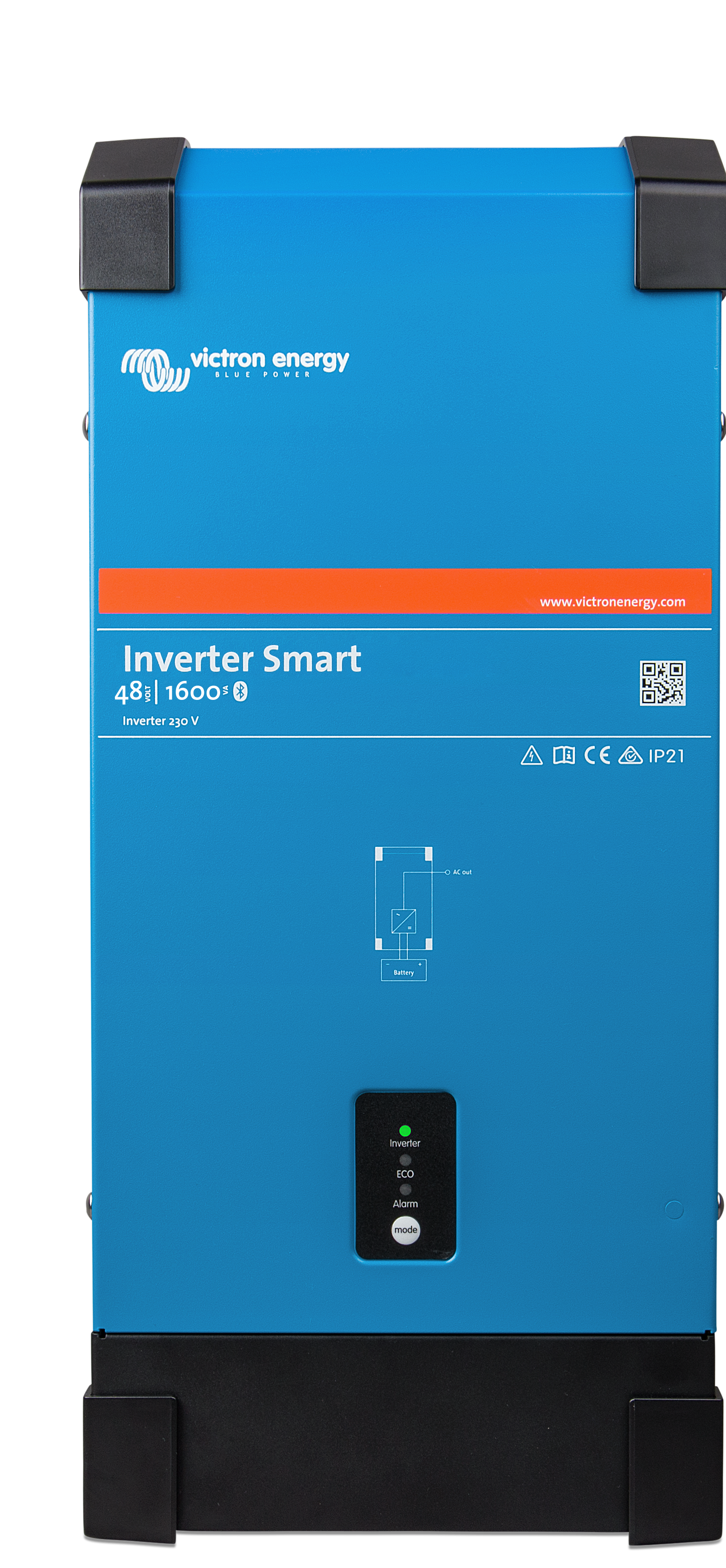

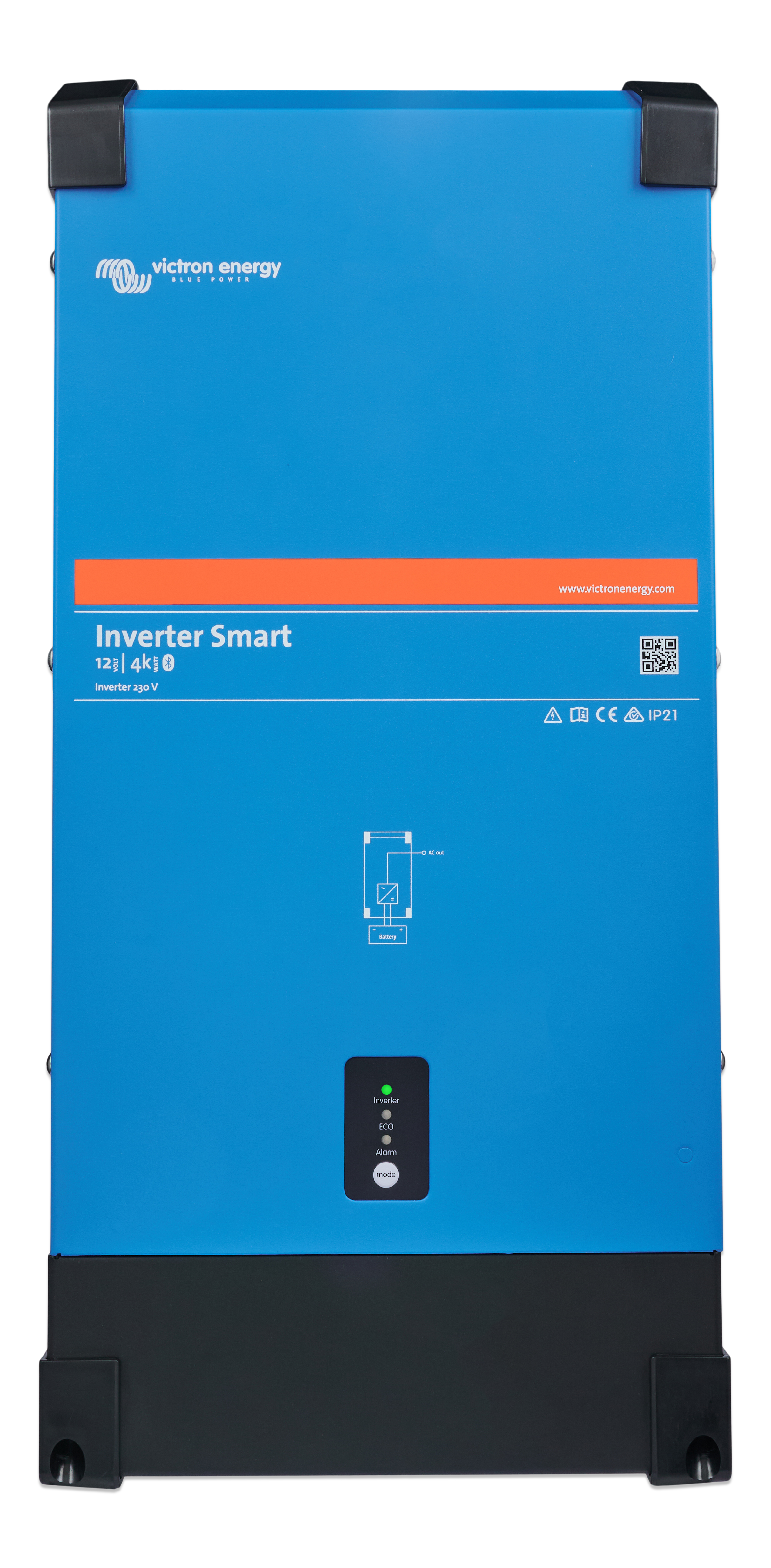

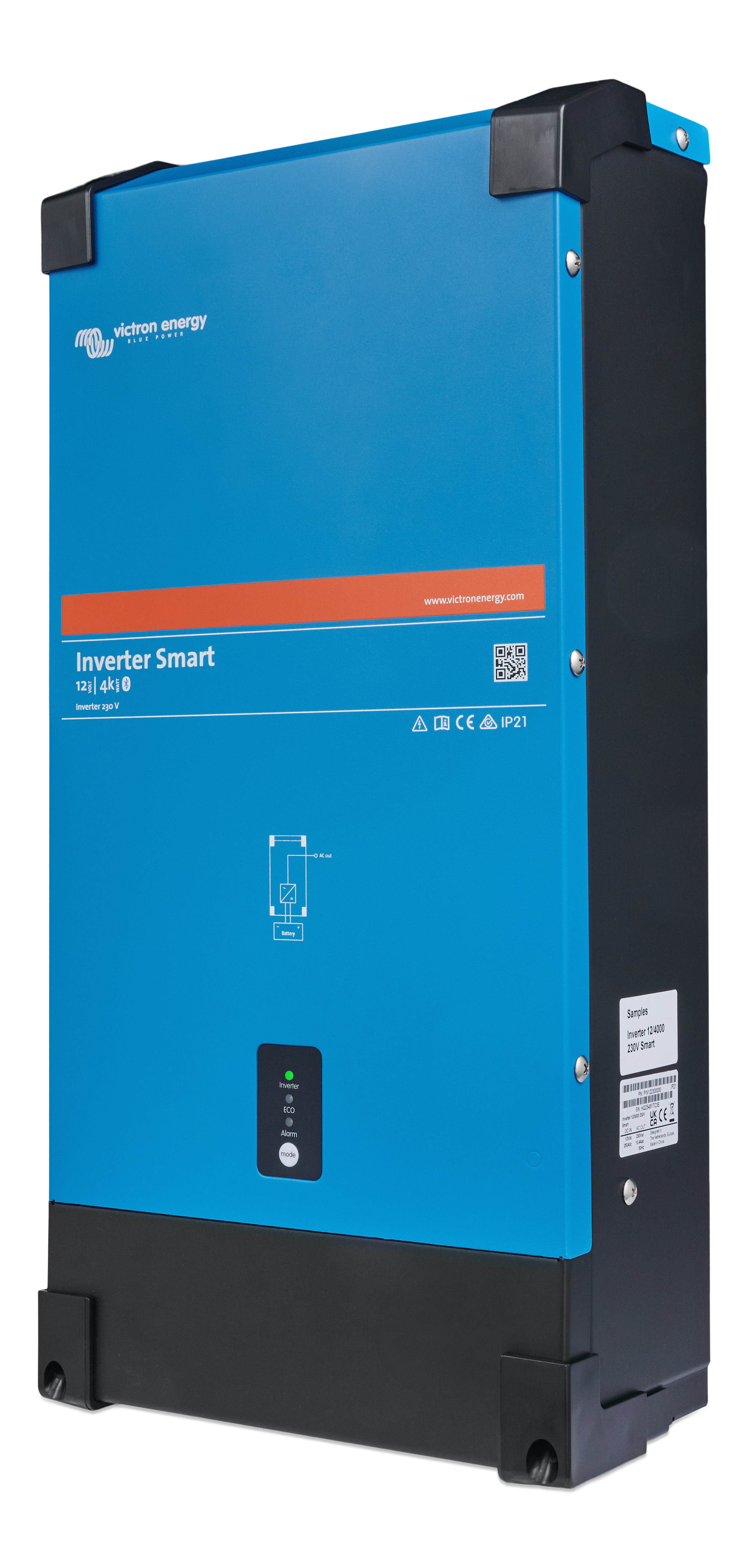

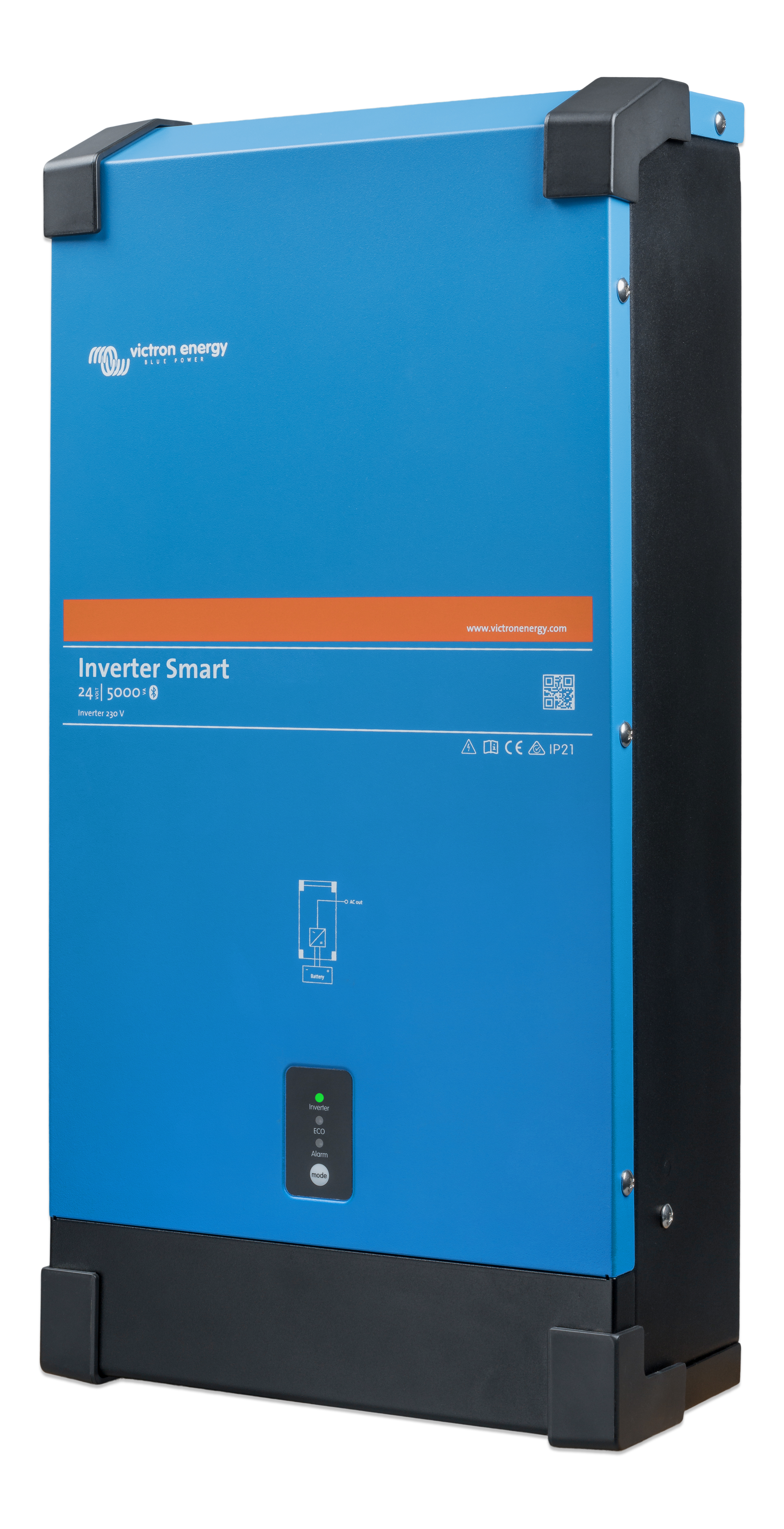

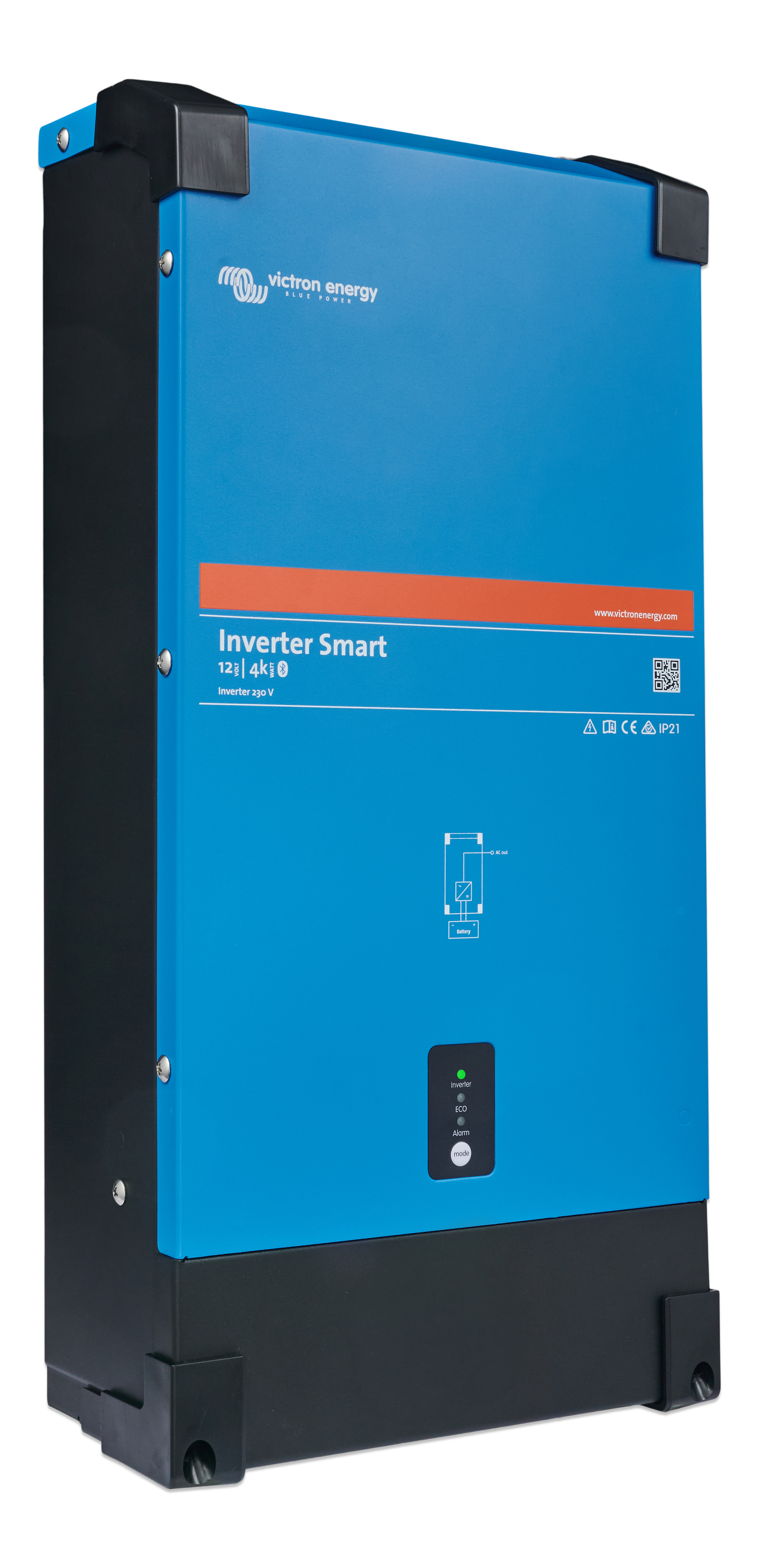

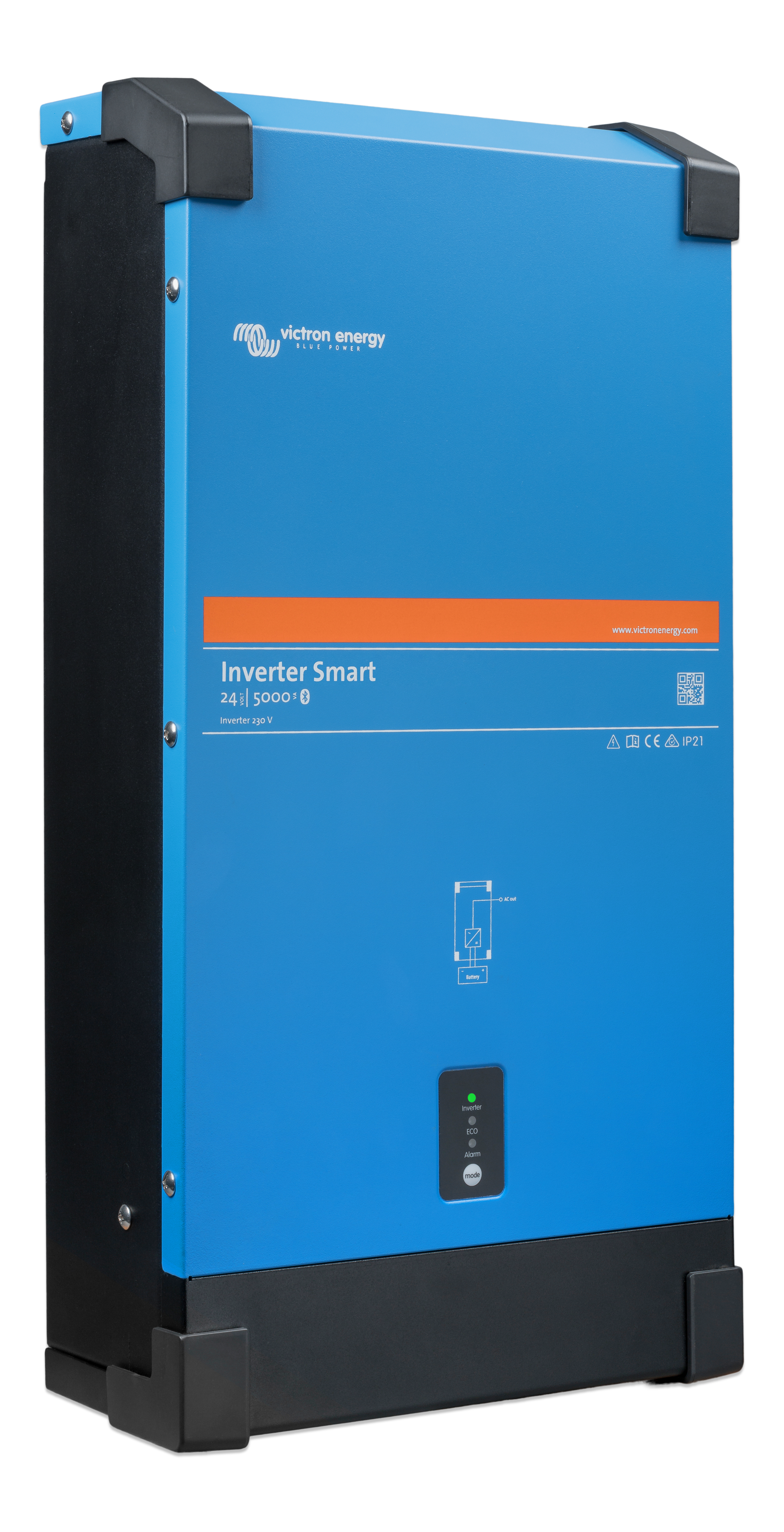

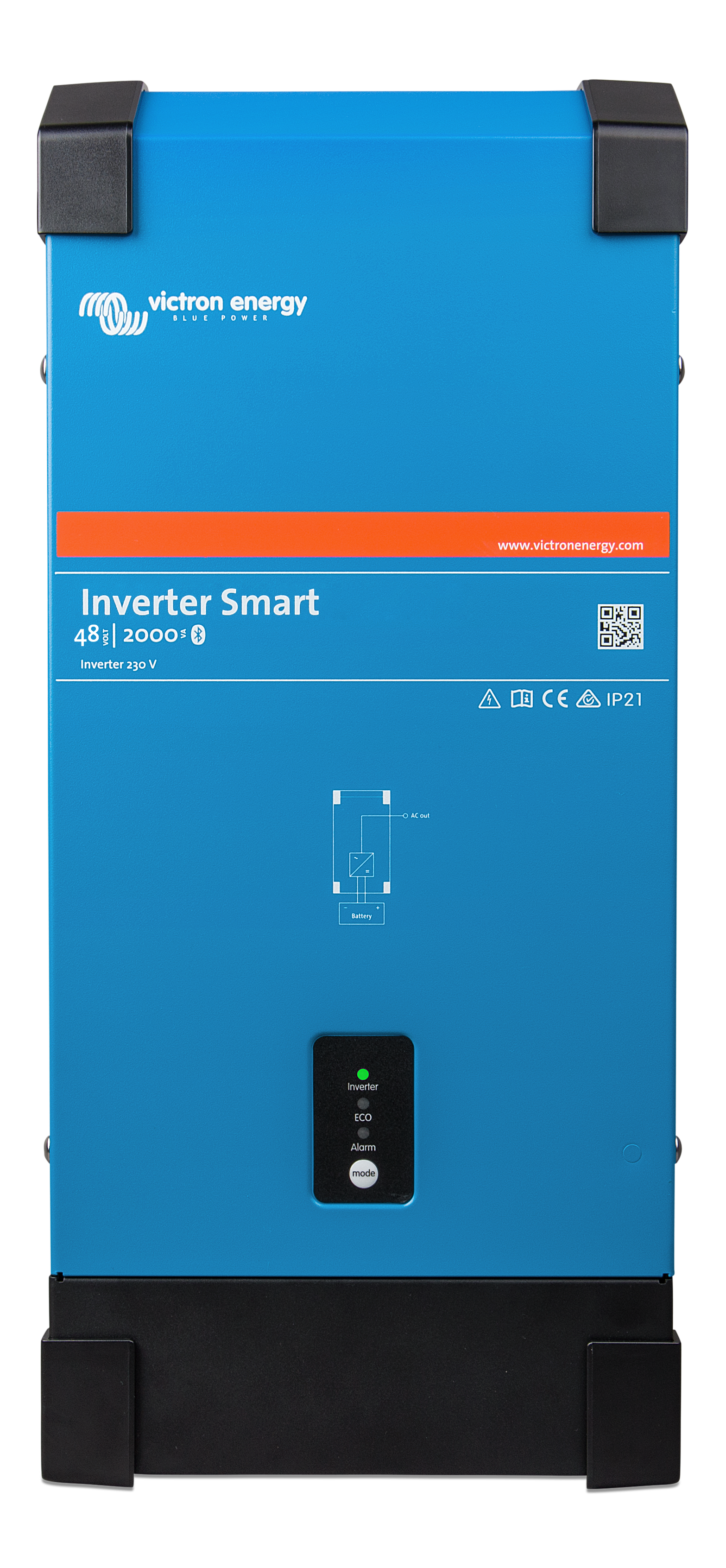

Inverter Smart 1600VA - 5000VA

SKU principal: PIN482160000

The Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested inverter platform,
it now comes with a new slimmer design and full metal casing. Models are available in 1600VA,
2000VA,
3000VA and 5000VA for 12,
24 or 48V systems. It’s powerful enough to supply most common plug in appliances in your car,
boat,
caravan or home. A toroidal transformer provides a high peak power surge capacity,
stable voltage,
frequency and high quality sine-wave. Installation is simpler than ever before with terminals now more accessible for the installer,
enabling a more professional finish. Bluetooth is built-in,
and makes setting up your high power inverter easier than ever before. Configure alarms,
alarm relay,
voltage cut-off,
output voltage,
frequency,
eco-mode and more,
all from within VictronConnect.

Códigos SKU

PIN482160000 PIN242160000 PIN242200000 PIN122160000 PIN122200000 PIN122300000 PIN242300000 PIN482300000 PIN242500000 PIN482500000 PIN482201000 PIN122161000 PIN242161000 PIN242201000 PIN122201000 PIN242501000 PIN482161000

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 48 V
D C Input Voltage Range: [ 37.2, 68 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Cont Power W65: 800 W
Peak Power Rating: 3, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 94 %
Zero Load Power: 11 W
Zero Load Power Eco Mode: 2.1 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase: 1
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: Bluetooth, VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %

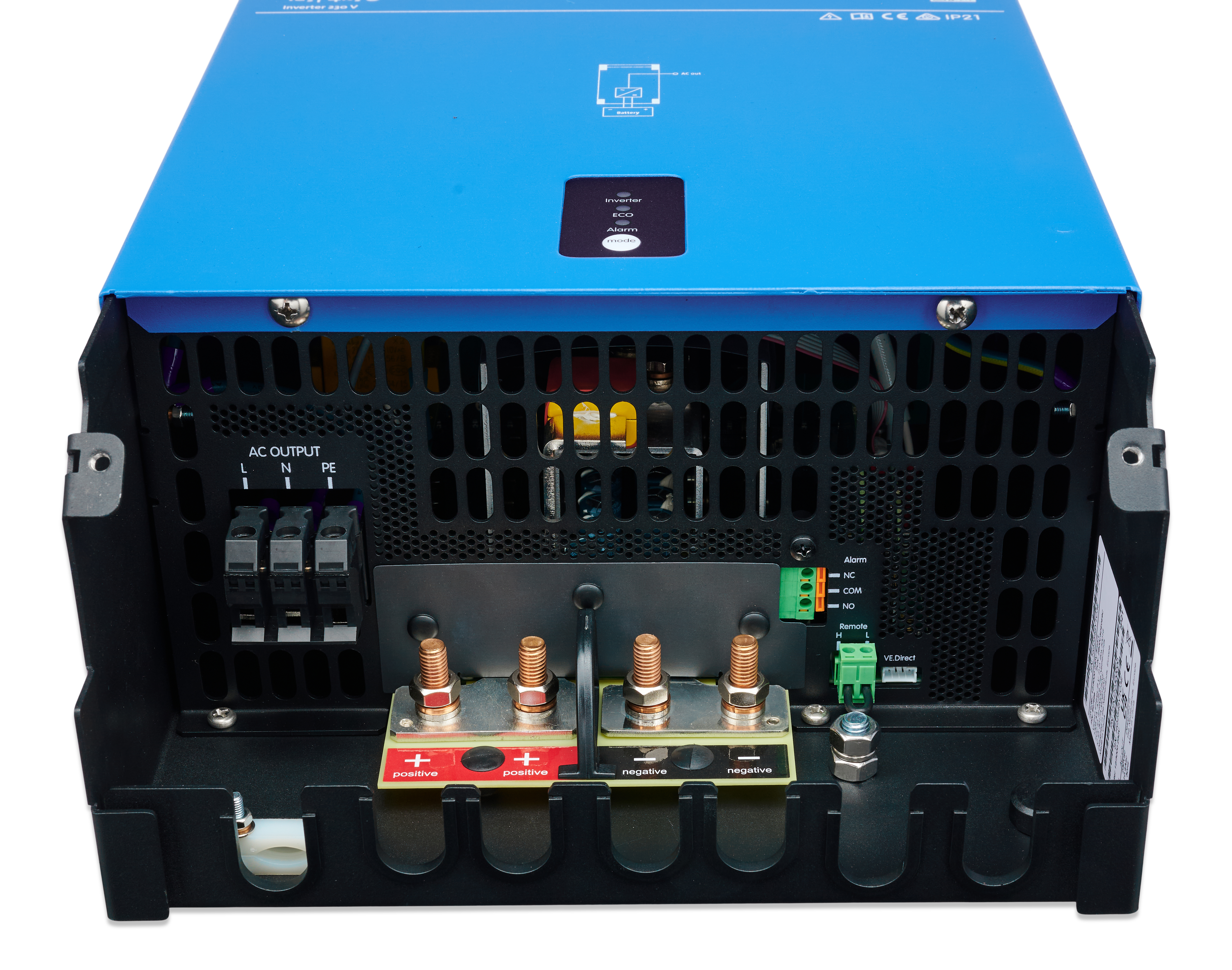

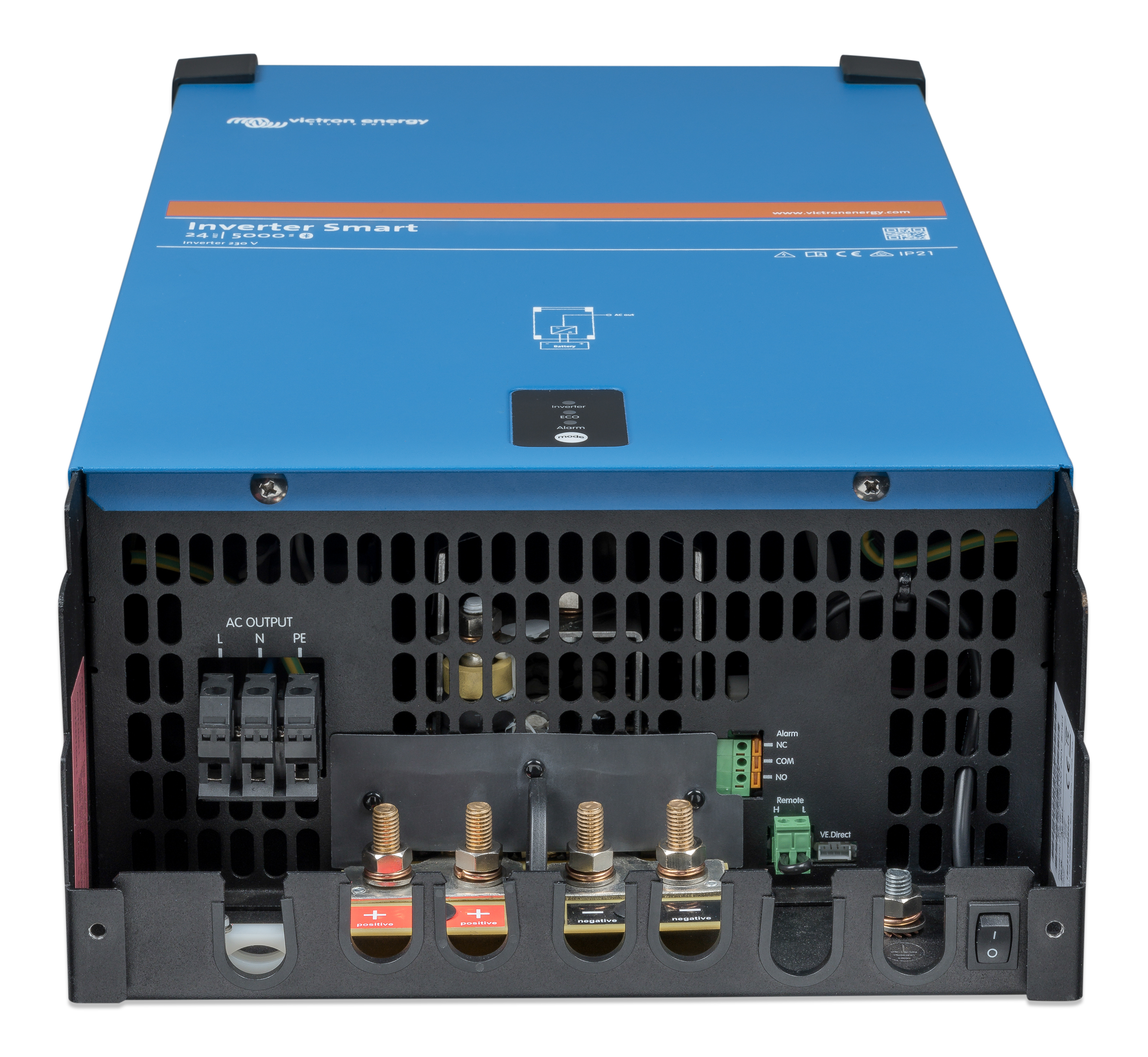

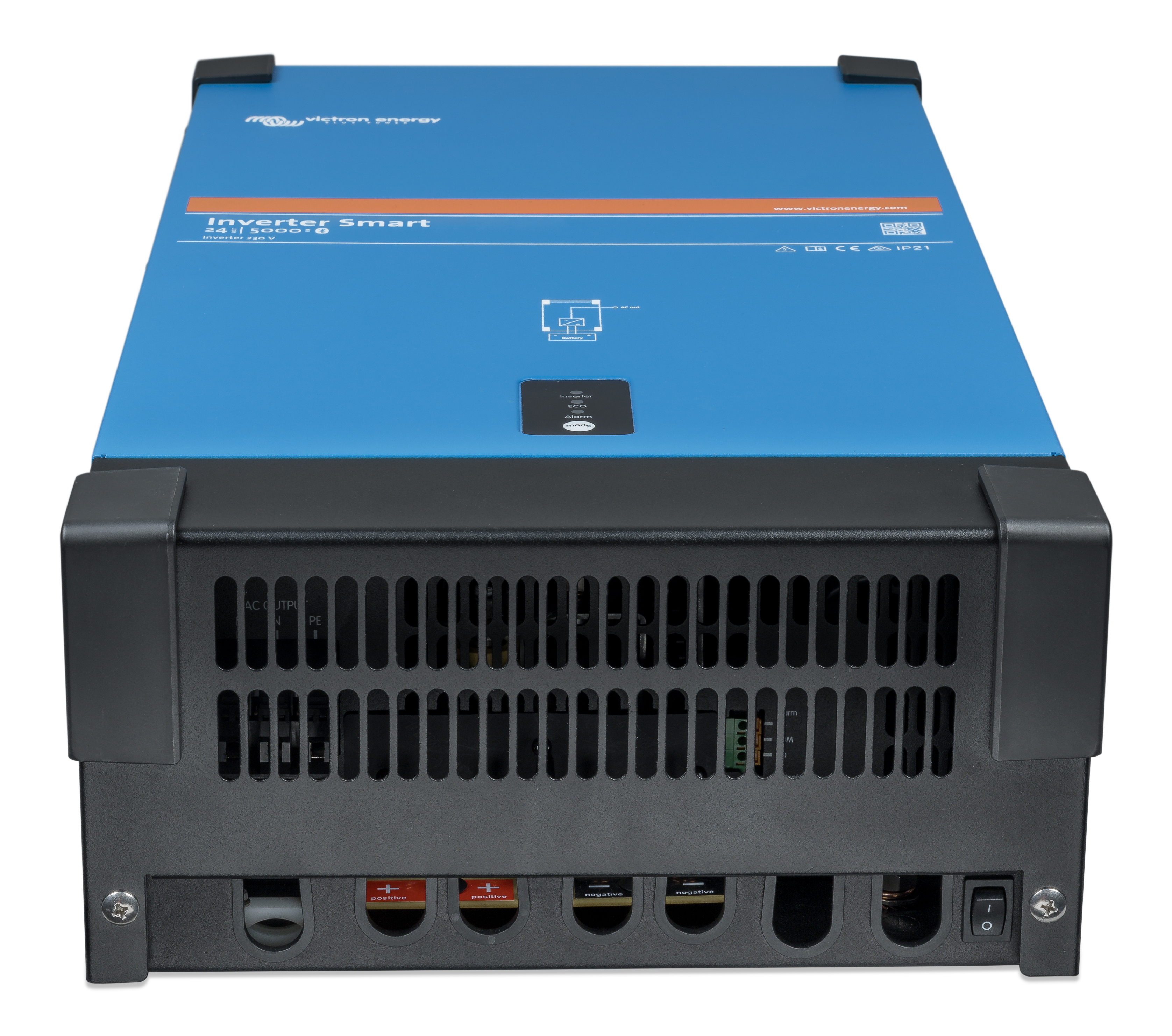

Ac Connection: Screw terminals
Battery Connection: M8 bolts
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 12 kg
Height: 485 mm
Width: 219 mm
Depth: 125 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 12 V
D C Input Voltage Range: [ 9.3, 17 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 000 W
Peak Power Rating: 4, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 92 %
Zero Load Power: 8 W
Zero Load Power Eco Mode: 0.6 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase: 1
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: VE.Direct, Bluetooth
Fully Programable: 1
Protections: Output short-circuit, High battery voltage, Low battery voltage, AC voltage on inverter output, Excessive DC ripple, Overload, Over temperature
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Ac Connection: Screw terminals
Battery Connection: M8 bolts
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 13 kg
Height: 485 mm
Width: 219 mm
Depth: 125 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 12 V
D C Input Voltage Range: [ 9.3, 17 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 93 %
Zero Load Power: 12 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: Bluetooth, VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Ac Connection: Screw terminals
Battery Connection: M8 bolts (two for positive and two for negative connection)
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 19 kg
Height: 533 mm
Width: 285 mm
Depth: 150 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 24 V
D C Input Voltage Range: [ 18.6, 34 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Cont Power W65: 800 W
Peak Power Rating: 3, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 94 %
Zero Load Power: 9 W
Zero Load Power Eco Mode: 1.3 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: Bluetooth, VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Ac Connection: Screw terminals
Battery Connection: M8 bolts
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 12 kg
Height: 485 mm
Width: 219 mm
Depth: 125 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 12 V
D C Input Voltage Range: [ 9.3, 17 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 000 W
Peak Power Rating: 4, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 92 %
Zero Load Power: 8 W
Zero Load Power Eco Mode: 0.6 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: VE.Direct, Bluetooth
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Ac Connection: Screw terminals
Battery Connection: M8 bolts
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 13 kg
Height: 485 mm
Width: 219 mm
Depth: 125 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 24 V
D C Input Voltage Range: [ 18.6, 34 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 000 W
Peak Power Rating: 4, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 94 %
Zero Load Power: 9 W
Zero Load Power Eco Mode: 1.3 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: Bluetooth, VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Ac Connection: Screw terminals
Battery Connection: M8 bolts
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 13 kg
Height: 485 mm
Width: 219 mm
Depth: 125 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 24 V
D C Input Voltage Range: [ 18.6, 34 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 94 %
Zero Load Power: 13 W
Zero Load Power Eco Mode: 1.9 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: Bluetooth, VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Ac Connection: Screw terminals
Battery Connection: M8 bolts (two for positive and two for negative connection)
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 19 kg
Height: 485 mm
Width: 285 mm
Depth: 150 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 48 V
D C Input Voltage Range: [ 37.2, 68 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 3, 000 VA
Cont Power W25: 2, 400 W
Cont Power W40: 2, 200 W
Cont Power W65: 1, 700 W
Peak Power Rating: 6, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 95 %
Zero Load Power: 15 W
Zero Load Power Eco Mode: 2.8 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: Bluetooth, VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Ac Connection: Screw terminals
Battery Connection: M8 bolts
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 19 kg
Height: 485 mm
Width: 285 mm
Depth: 150 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 48 V
D C Input Voltage Range: [ 37.2, 68 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 5, 000 VA
Cont Power W25: 4, 000 W
Cont Power W40: 3, 700 W
Cont Power W65: 2, 800 W
Peak Power Rating: 10, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 96 %
Zero Load Power: 20 W
Zero Load Power Eco Mode: 3.2 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: Bluetooth, VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Ac Connection: Screw terminals
Battery Connection: M8 bolts
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 28 kg
Height: 555 mm
Width: 295 mm
Depth: 160 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 48 V
D C Input Voltage Range: [ 37.2, 68 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 2, 000 VA
Cont Power W25: 1, 600 W
Cont Power W40: 1, 450 W
Cont Power W65: 1, 000 W
Peak Power Rating: 4, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 94 %
Zero Load Power: 11 W
Zero Load Power Eco Mode: 2.1 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: Bluetooth, VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Ac Connection: Screw terminals
Battery Connection: M8 bolts
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 13 kg
Height: 485 mm
Width: 219 mm
Depth: 125 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 12 V
D C Input Voltage Range: [ 9.3, 17 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 1, 600 VA
Cont Power W25: 1, 300 W
Cont Power W40: 1, 200 W
Cont Power W65: 800 W
Peak Power Rating: 3, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 92 %
Zero Load Power: 8 W
Zero Load Power Eco Mode: 0.6 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: Bluetooth, VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Ac Connection: Screw terminals
Battery Connection: M8 bolts
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 12 kg
Height: 482 mm
Width: 219 mm
Depth: 125 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 24 V
D C Input Voltage Range: [ 18.6, 34 ] V
A C Output Voltage: 230 V
Frequency1: 50Hz or 60Hz
Cont Power V A25: 5, 000 VA
Cont Power W25: 4, 000 W
Cont Power W40: 3, 700 W
Cont Power W65: 2, 800 W
Peak Power Rating: 10, 000 W
Dynamic Low D C Shutdown: 1
Max Efficiency: 95 %
Zero Load Power: 18 W
Zero Load Power Eco Mode: 2.2 W
Eco Mode Stop Start Power Setting: Adjustable
Parallel3Phase
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Bluetooth: 1
Communication Port: Bluetooth, VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Ac Connection: Screw terminals
Battery Connection: M8 bolts (two for positive and two for negative connection)
Remote Terminal: Screw terminal two pole
Relay Terminal: Screw terminal 3-pole
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 29 kg
Height: 595 mm
Width: 195 mm
Depth: 160 mm
Safety: EN-IEC 60335-1
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-5

← Volver a productos Victron
