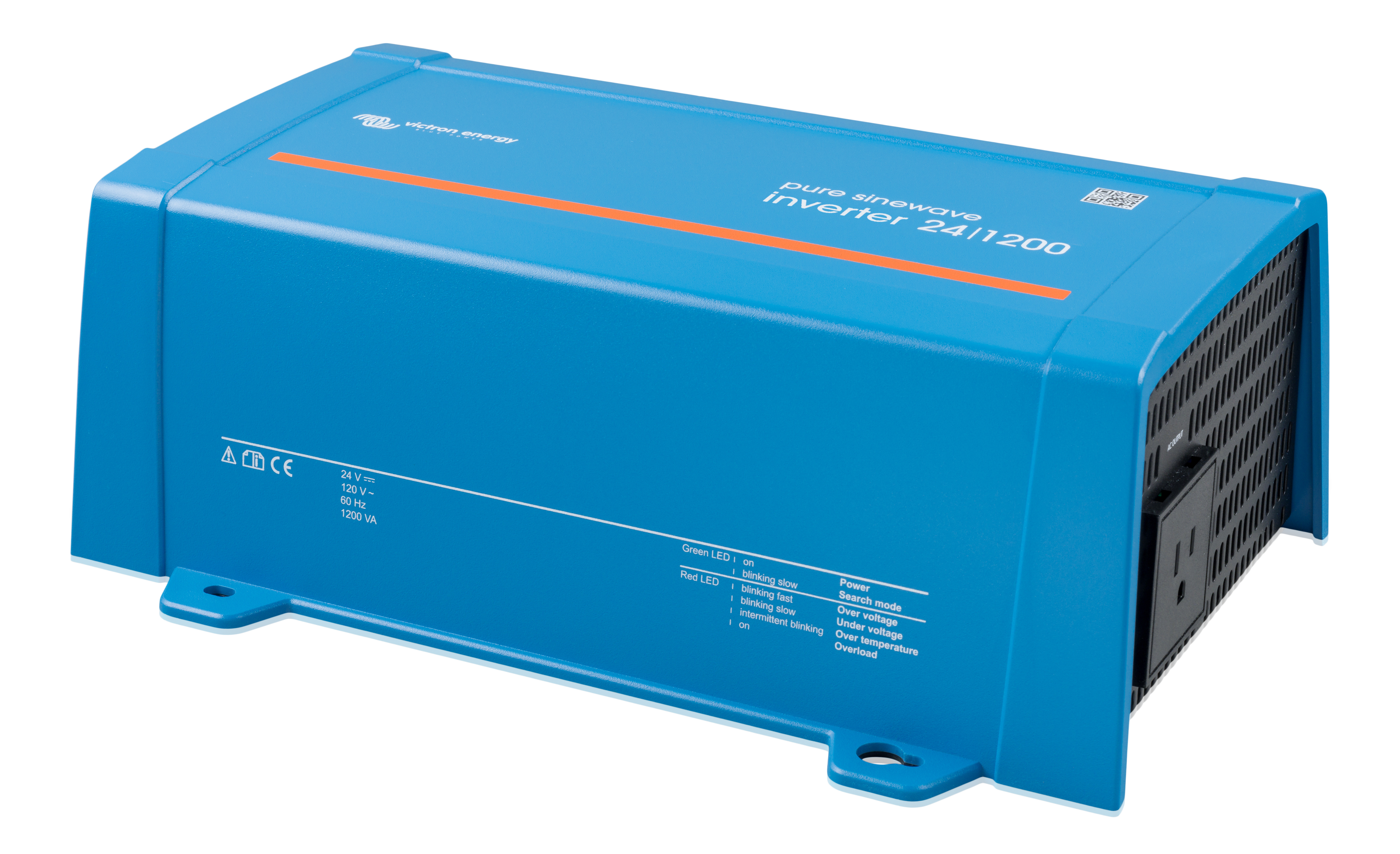

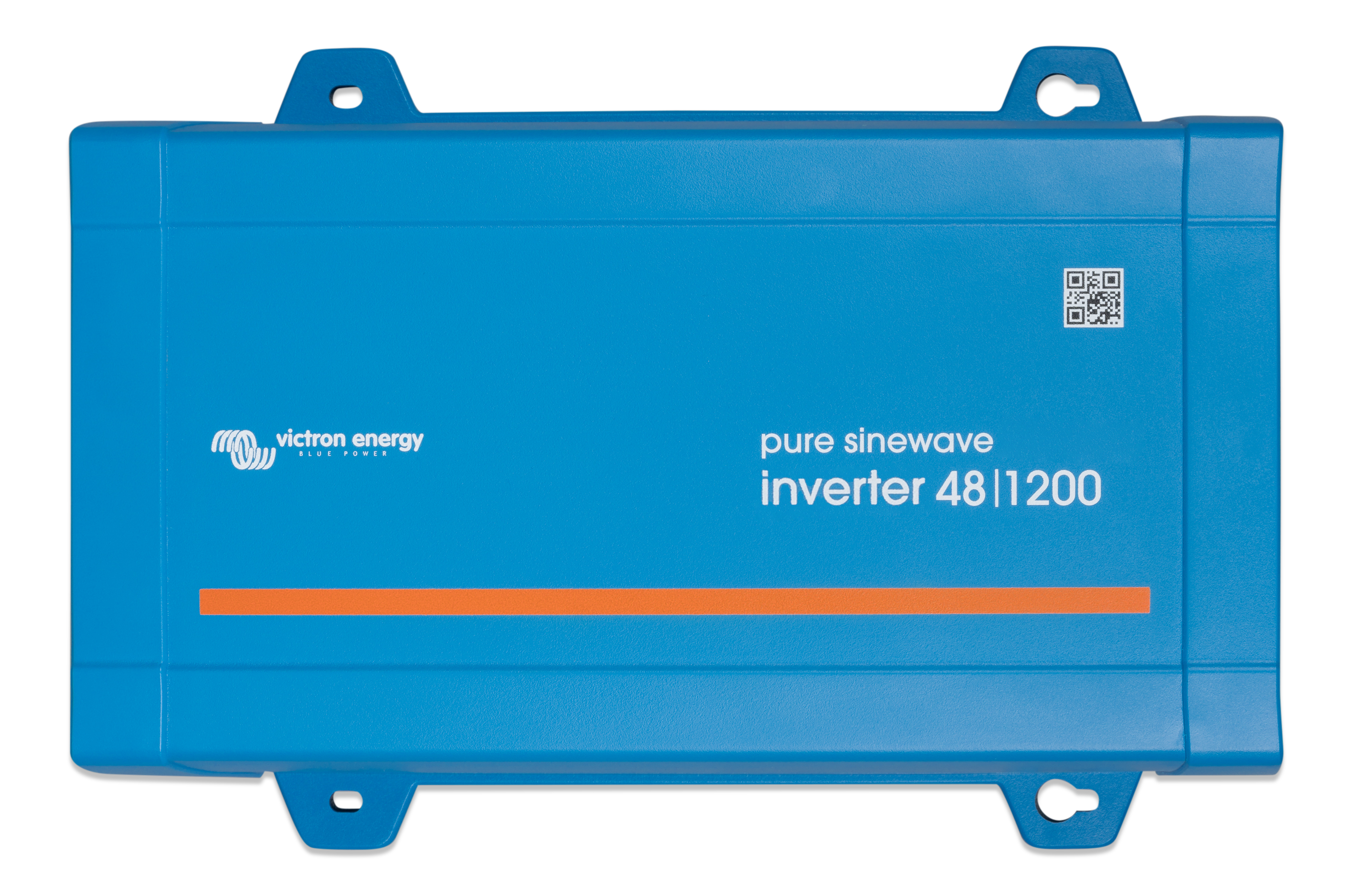

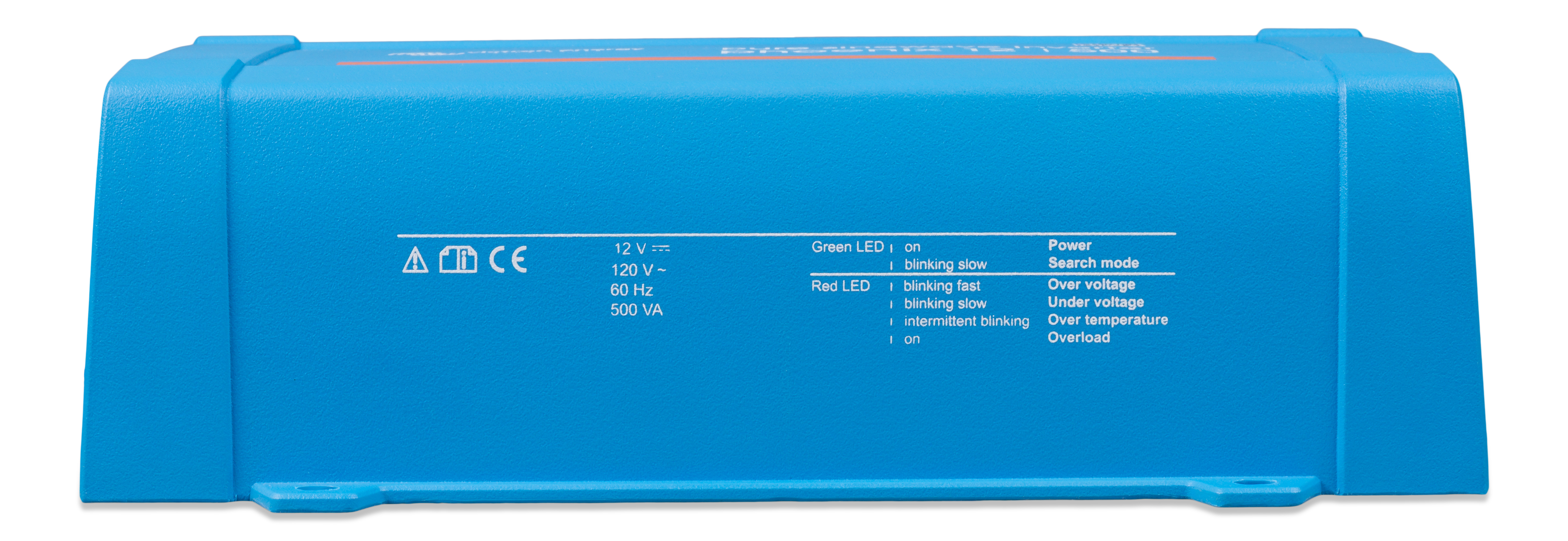

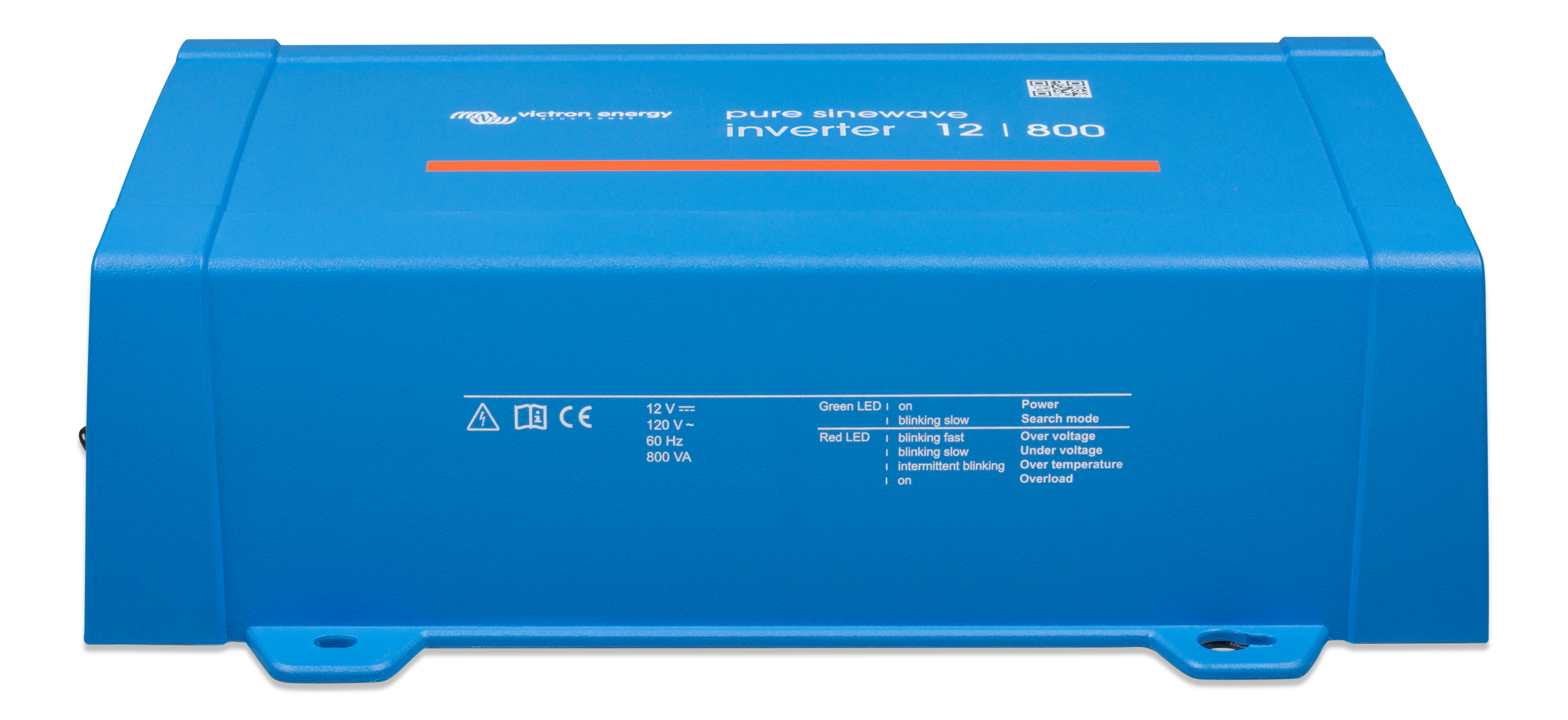

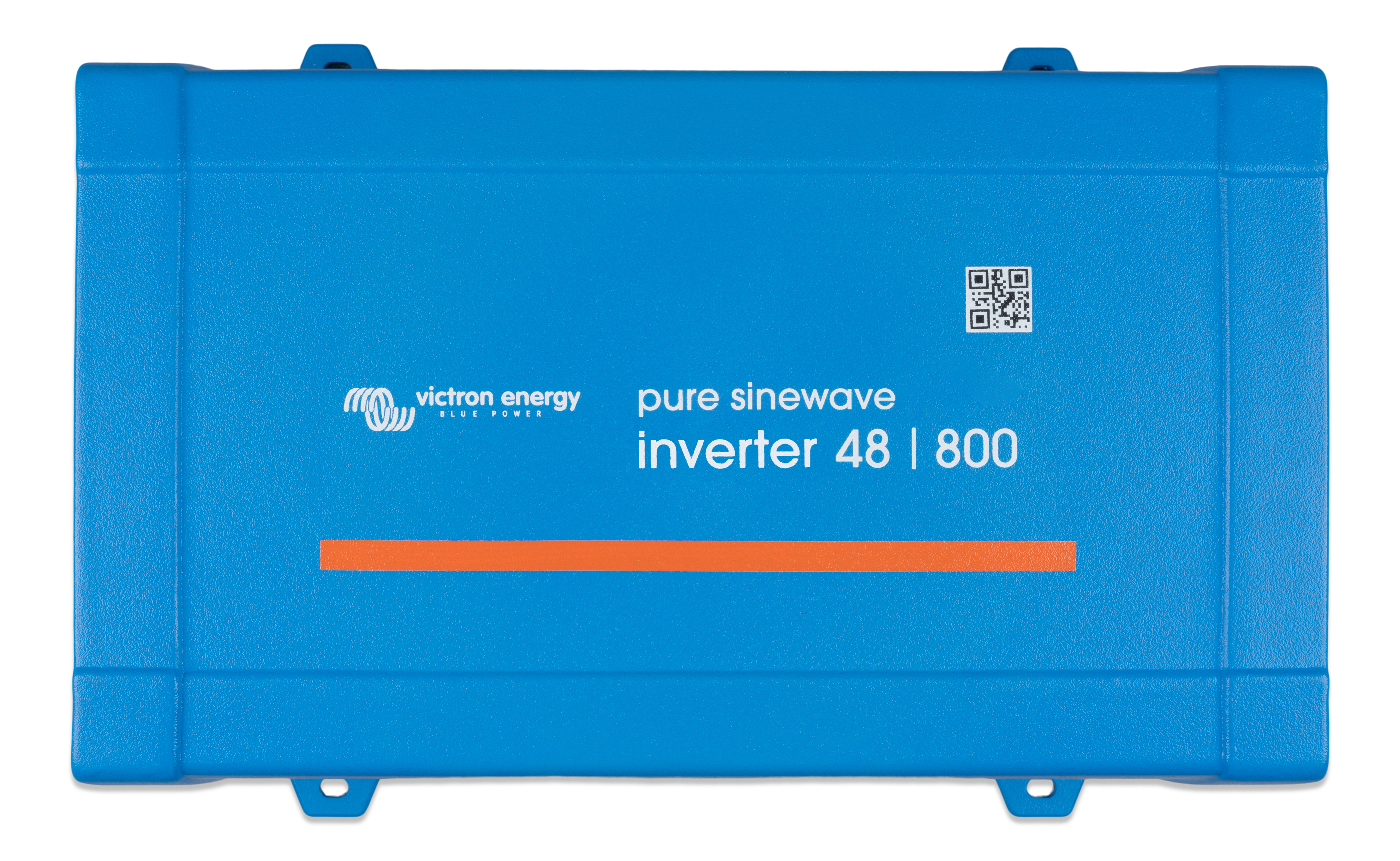

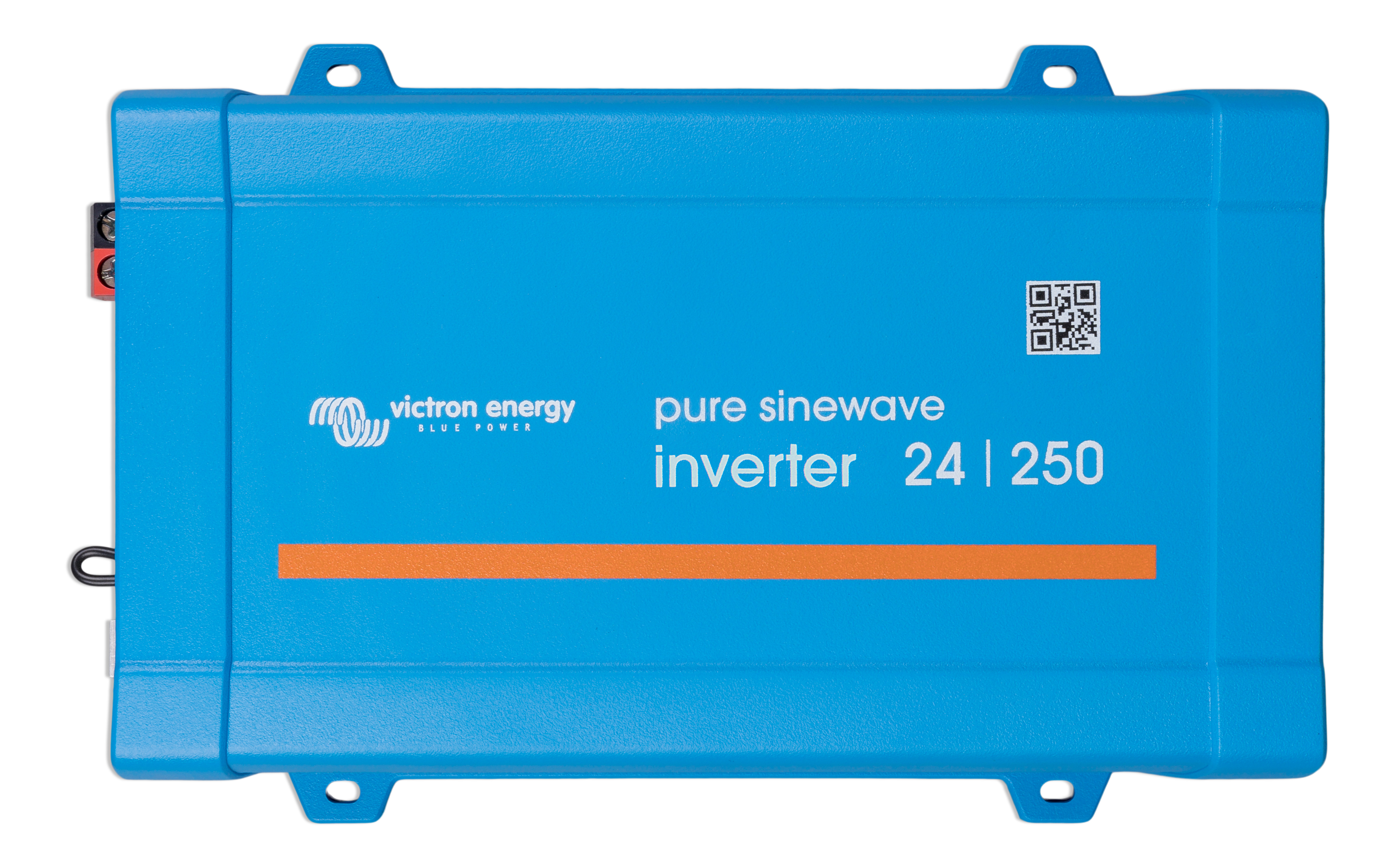

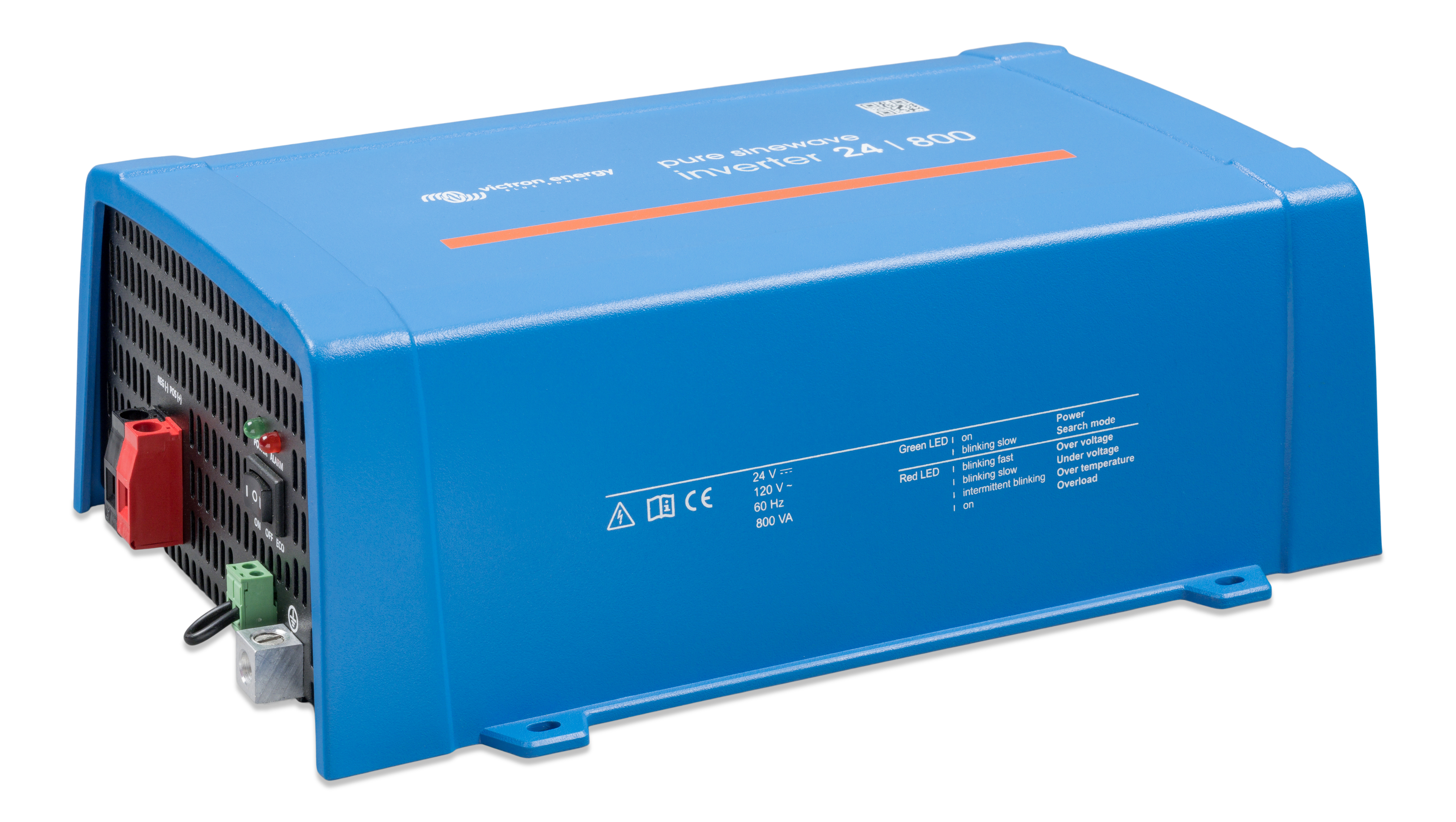

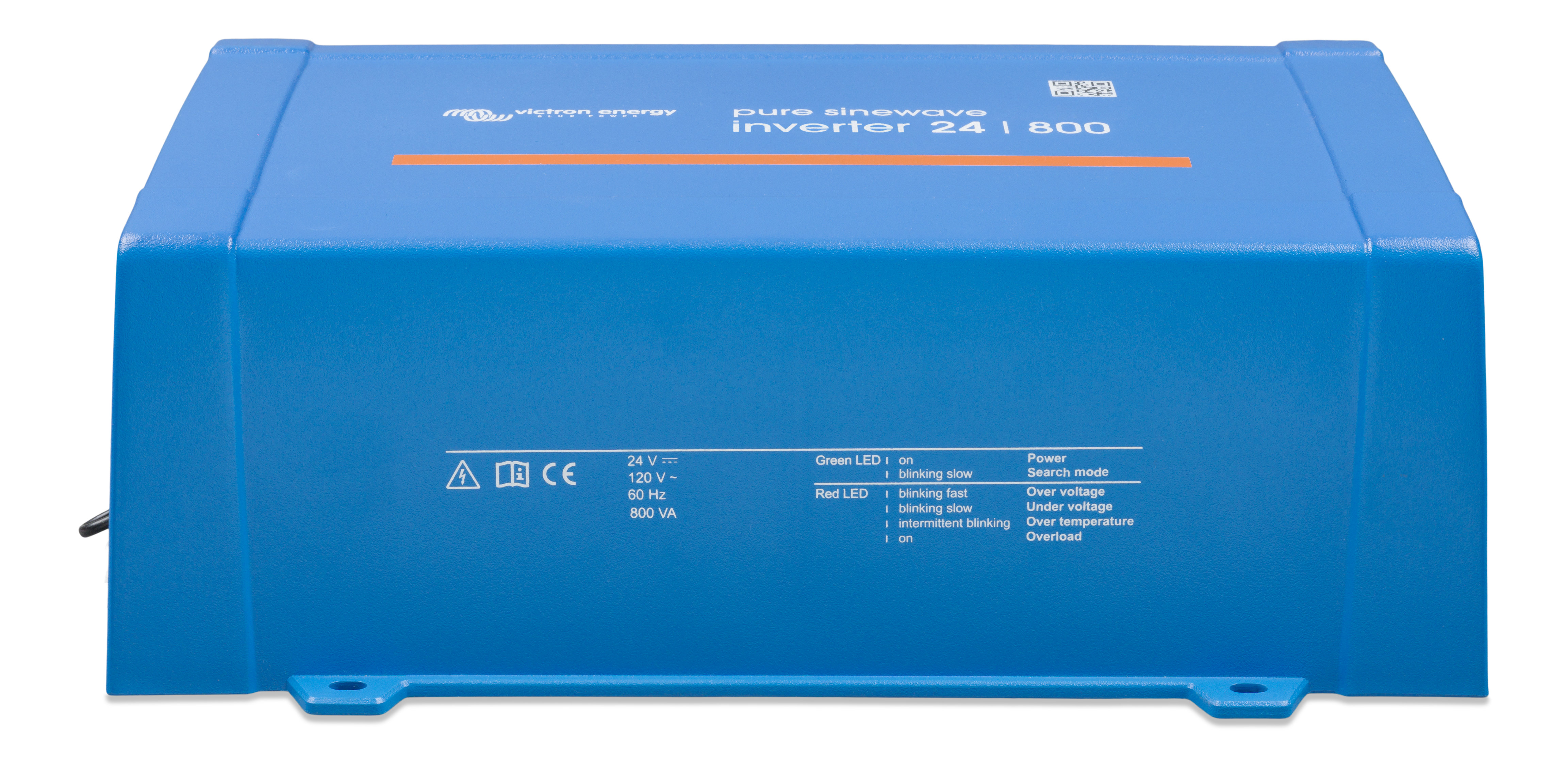

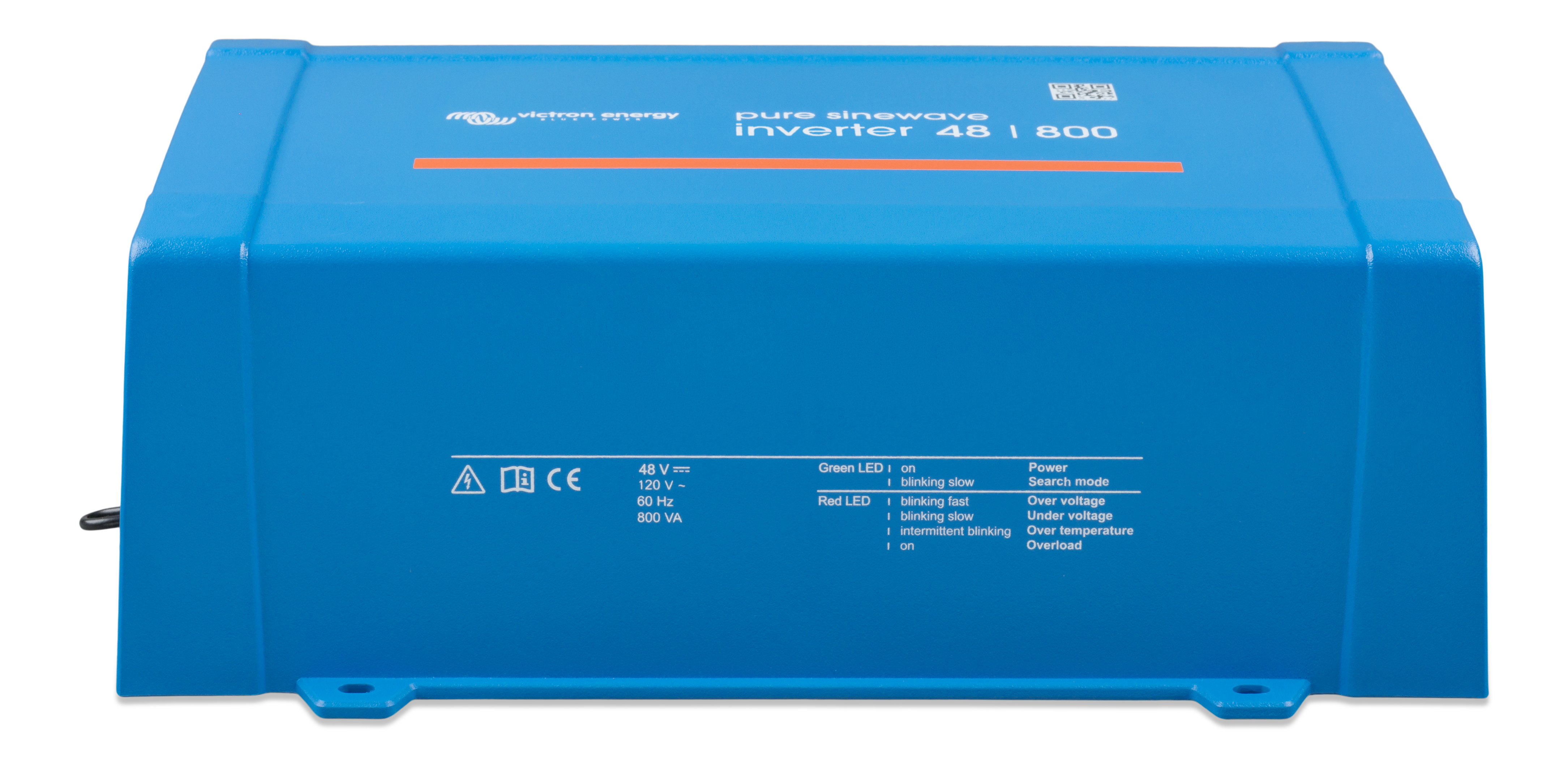

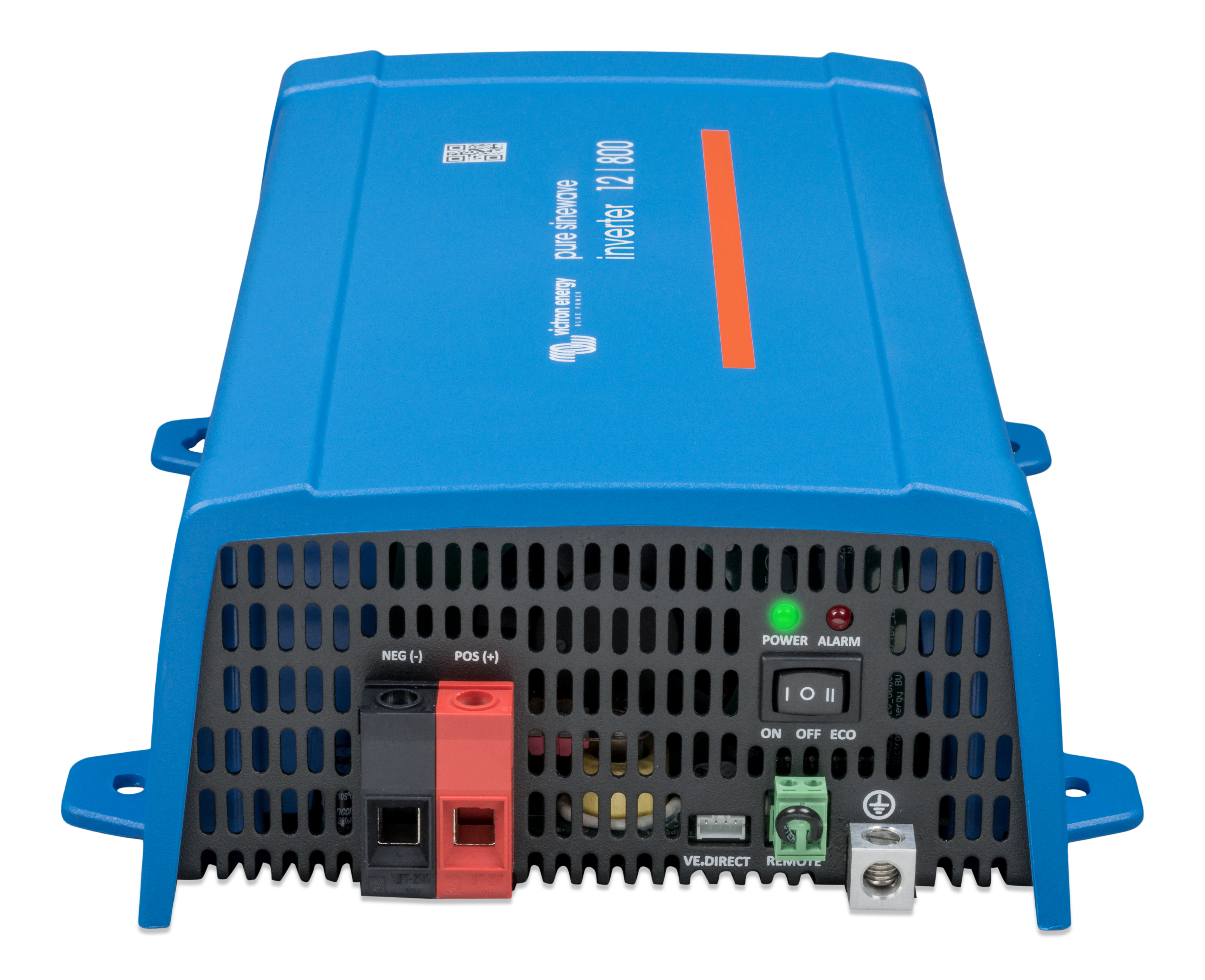

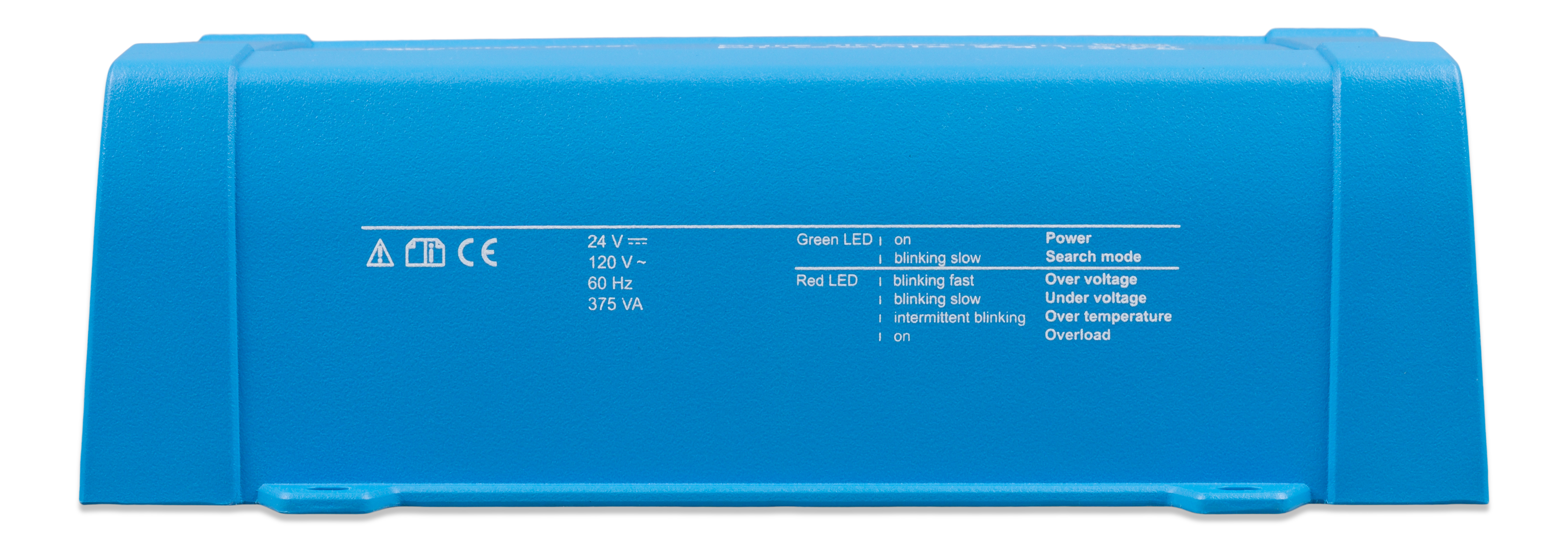

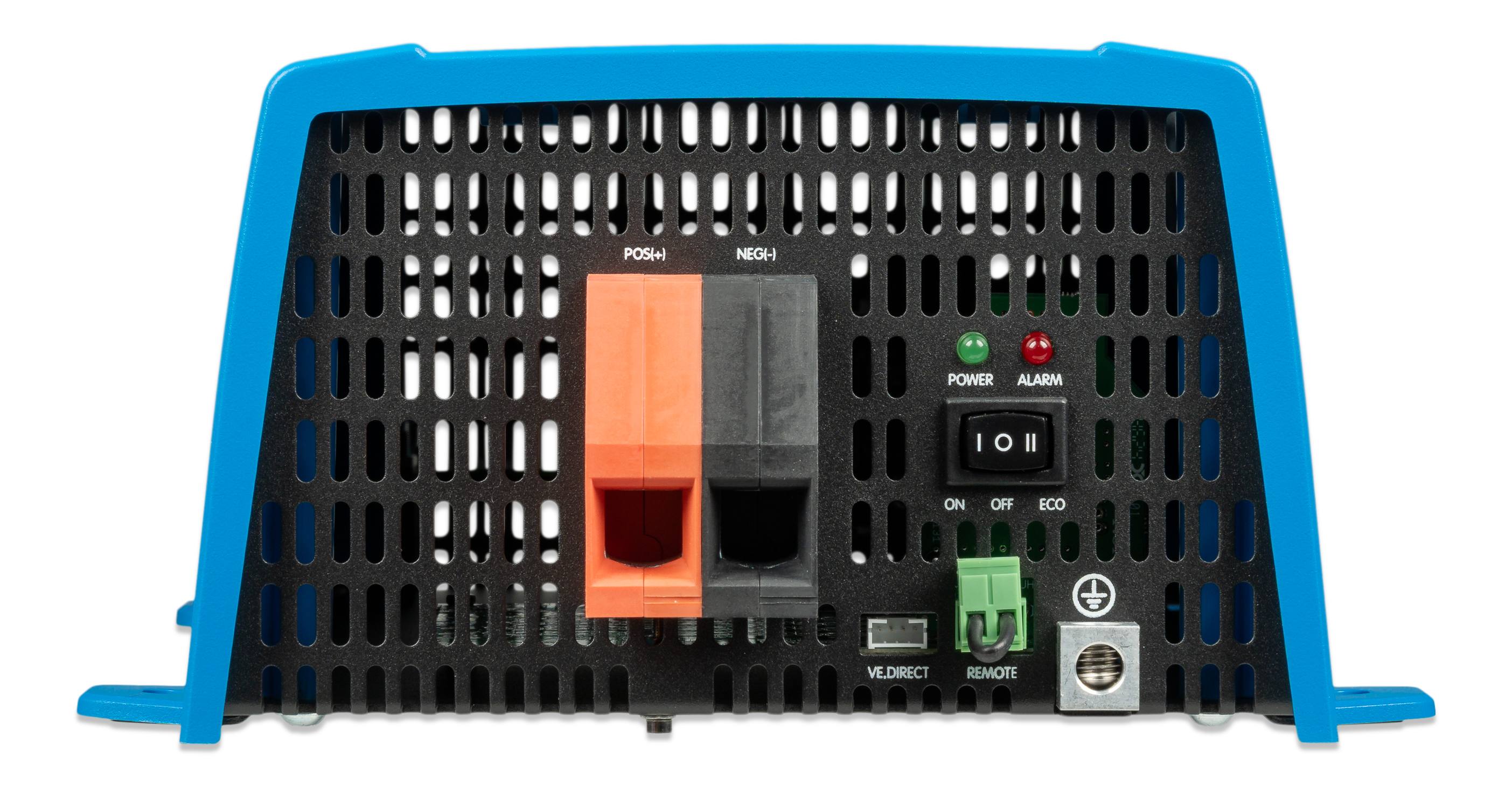

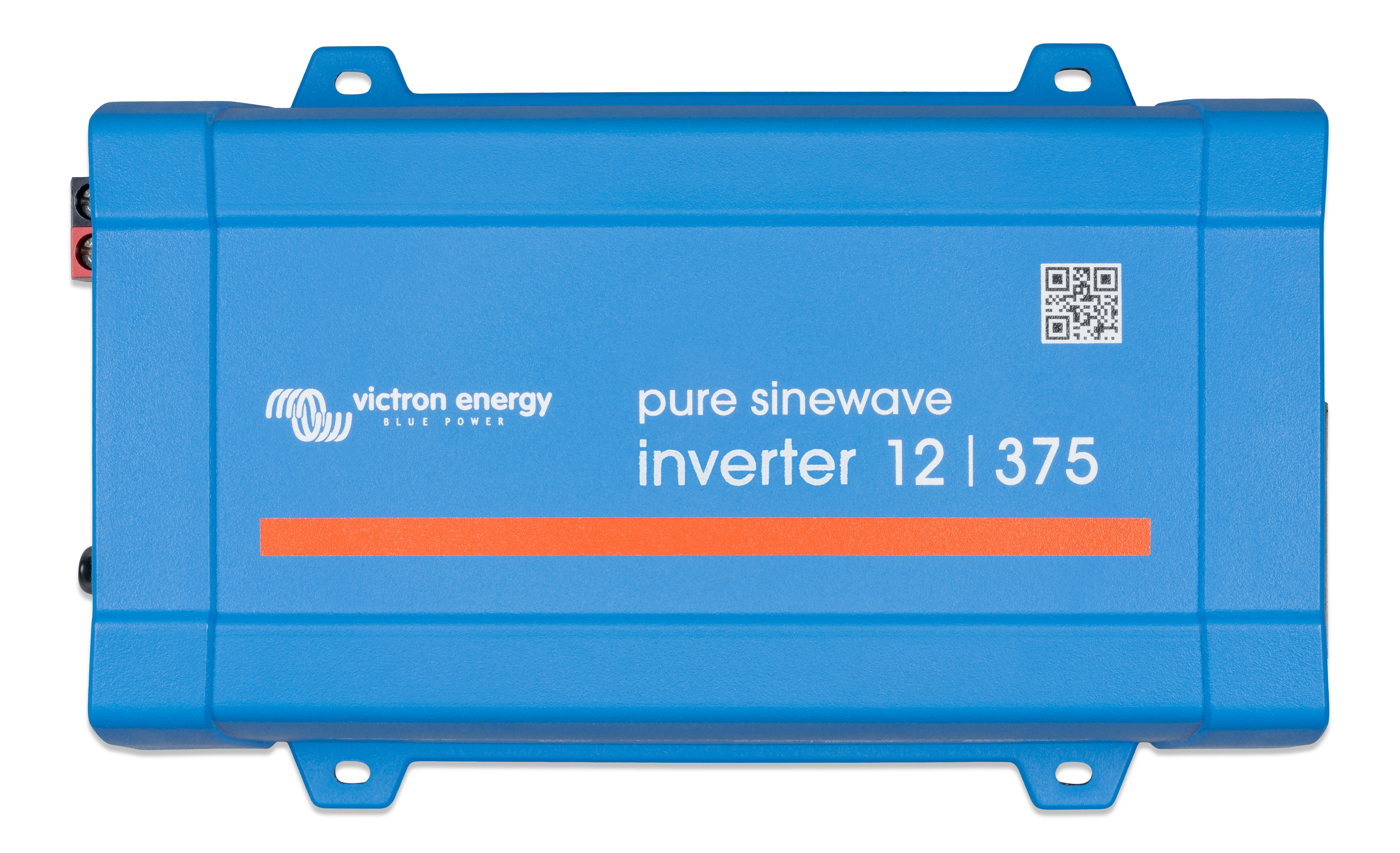

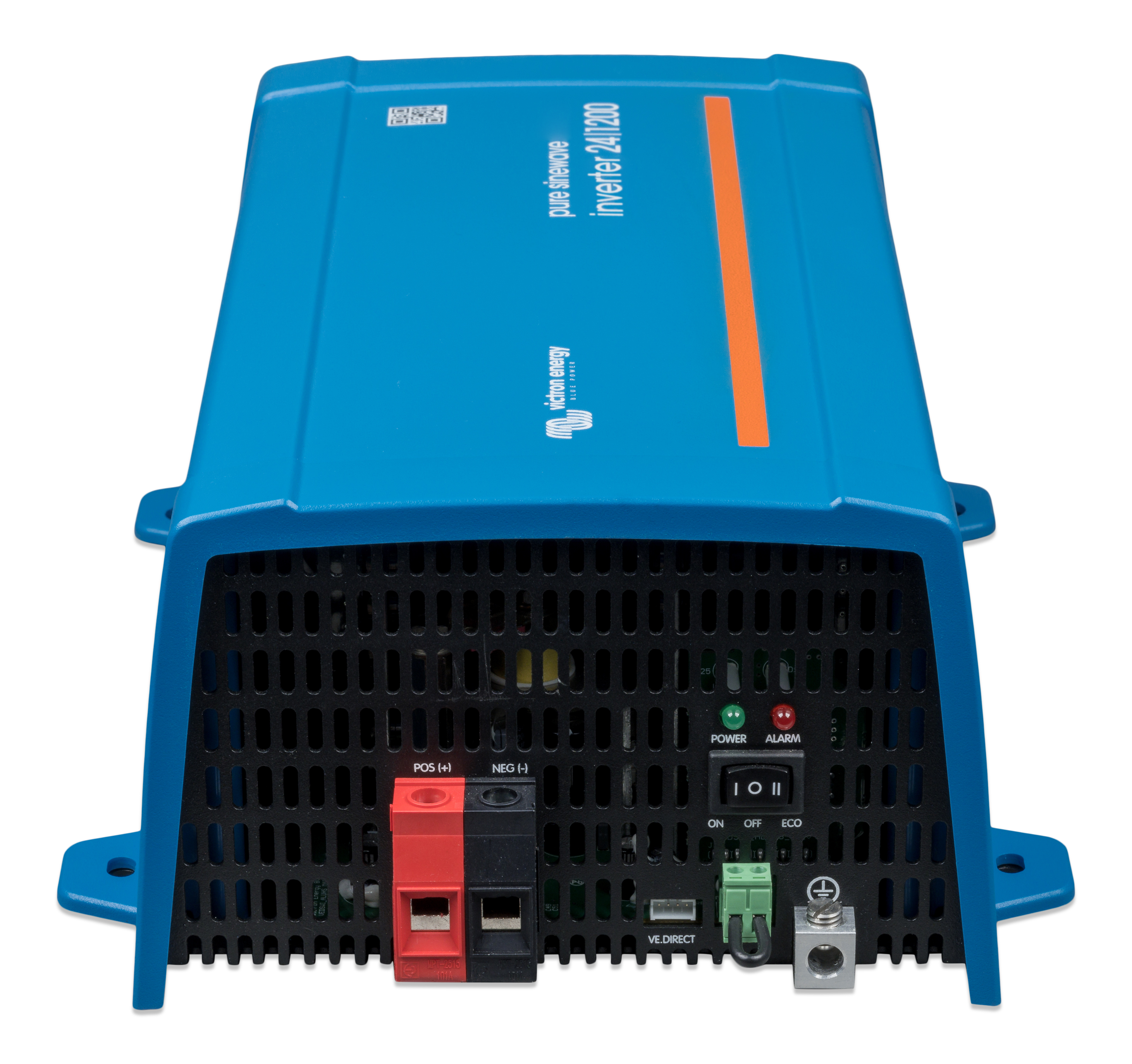

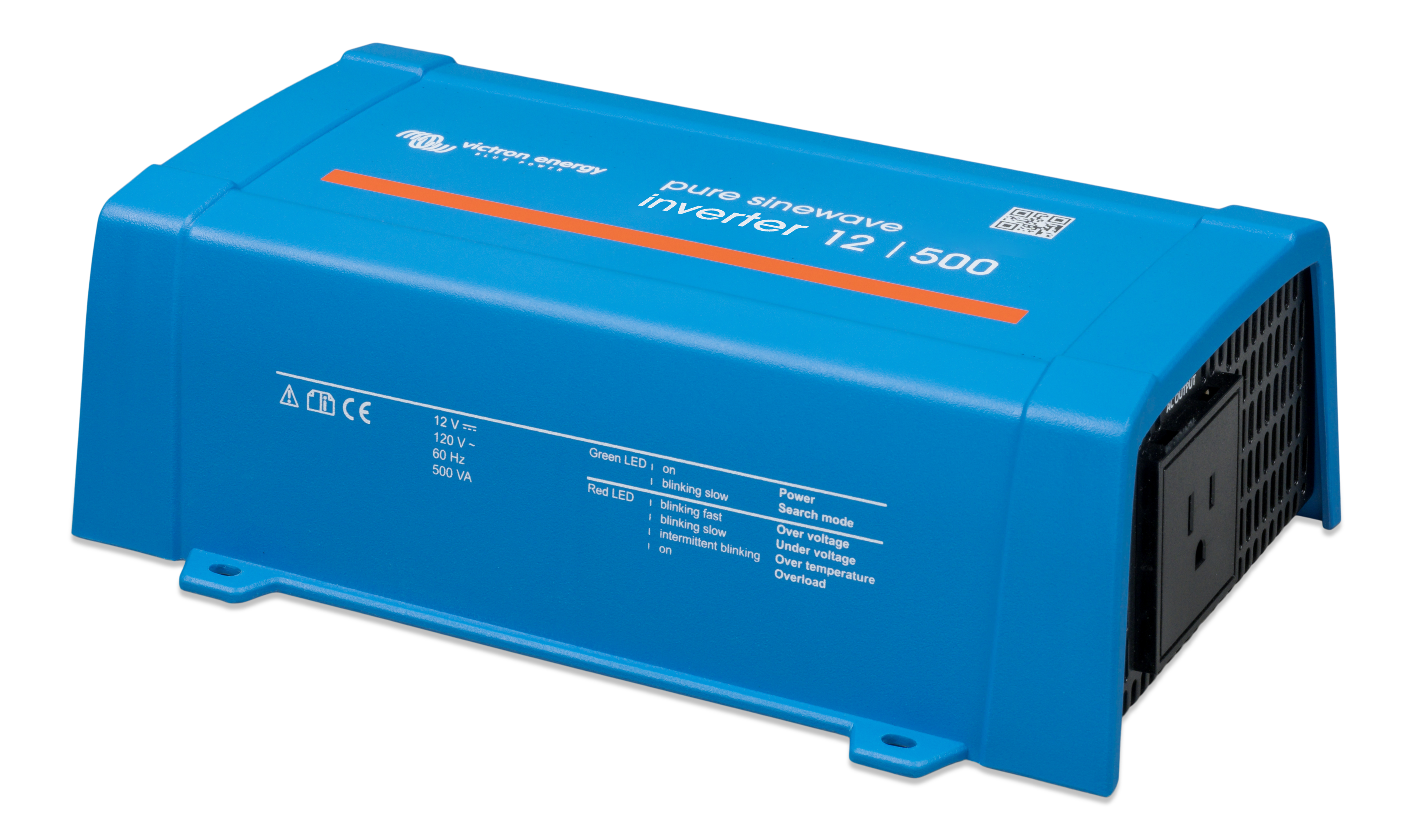

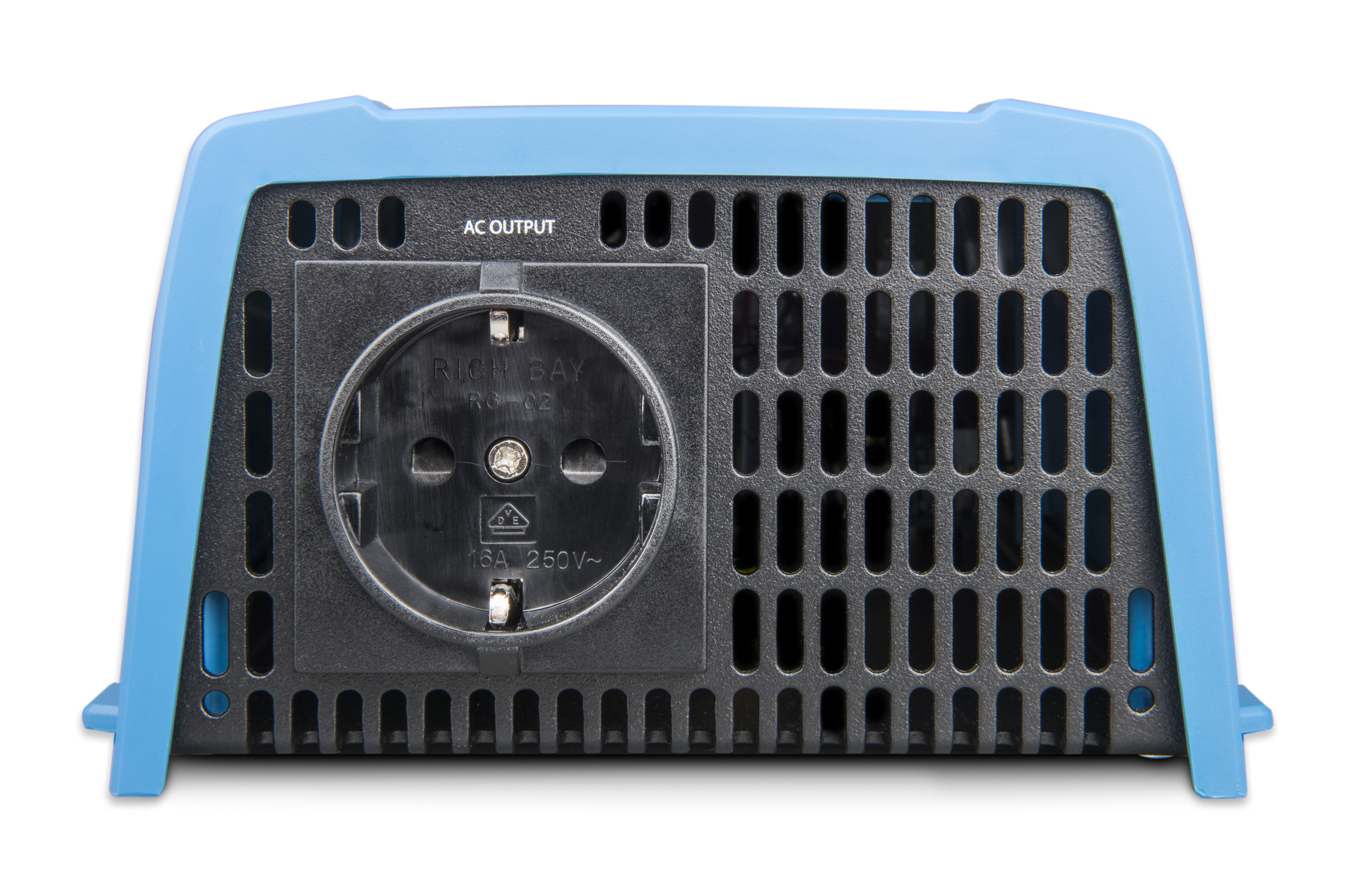

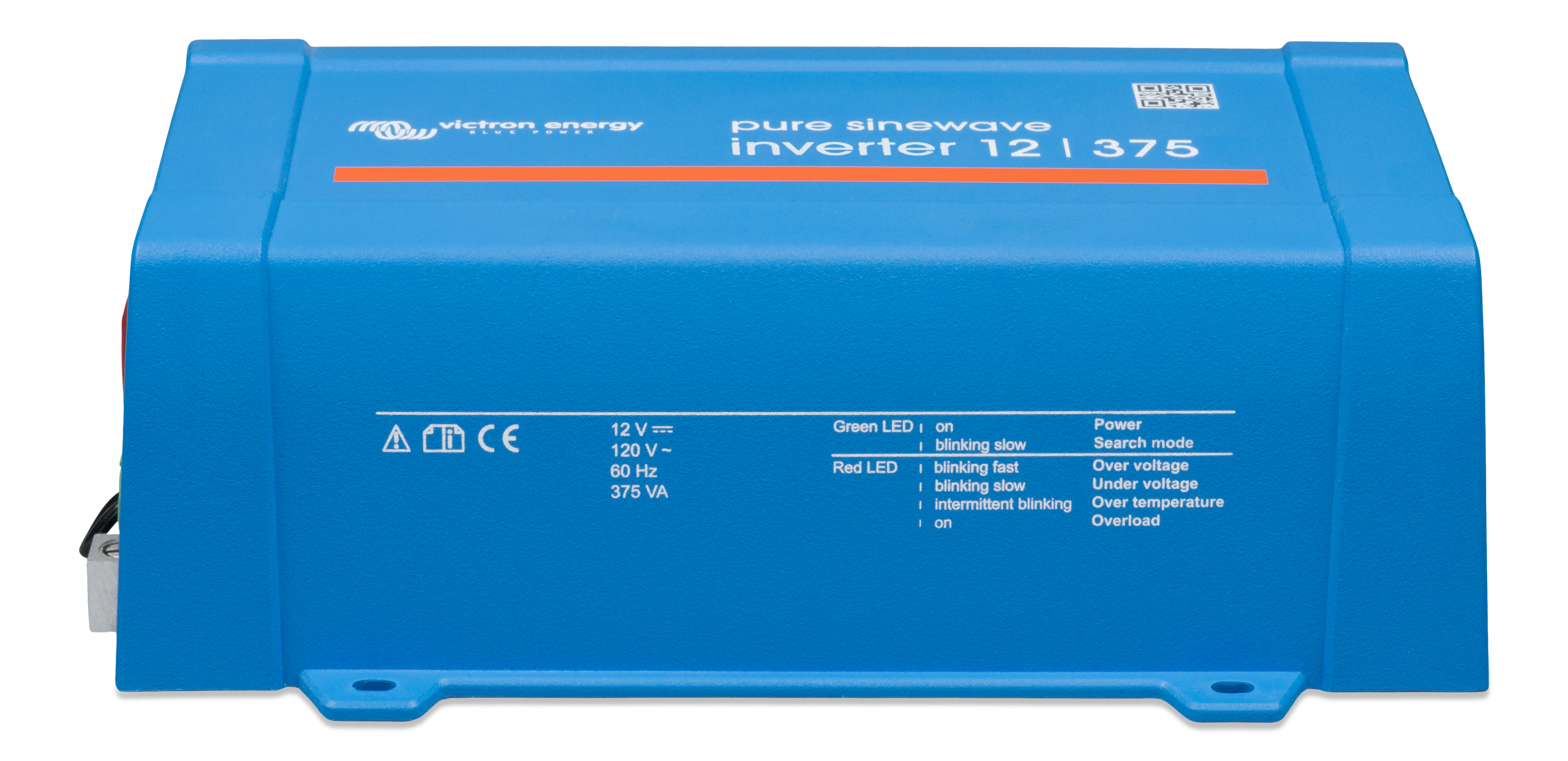

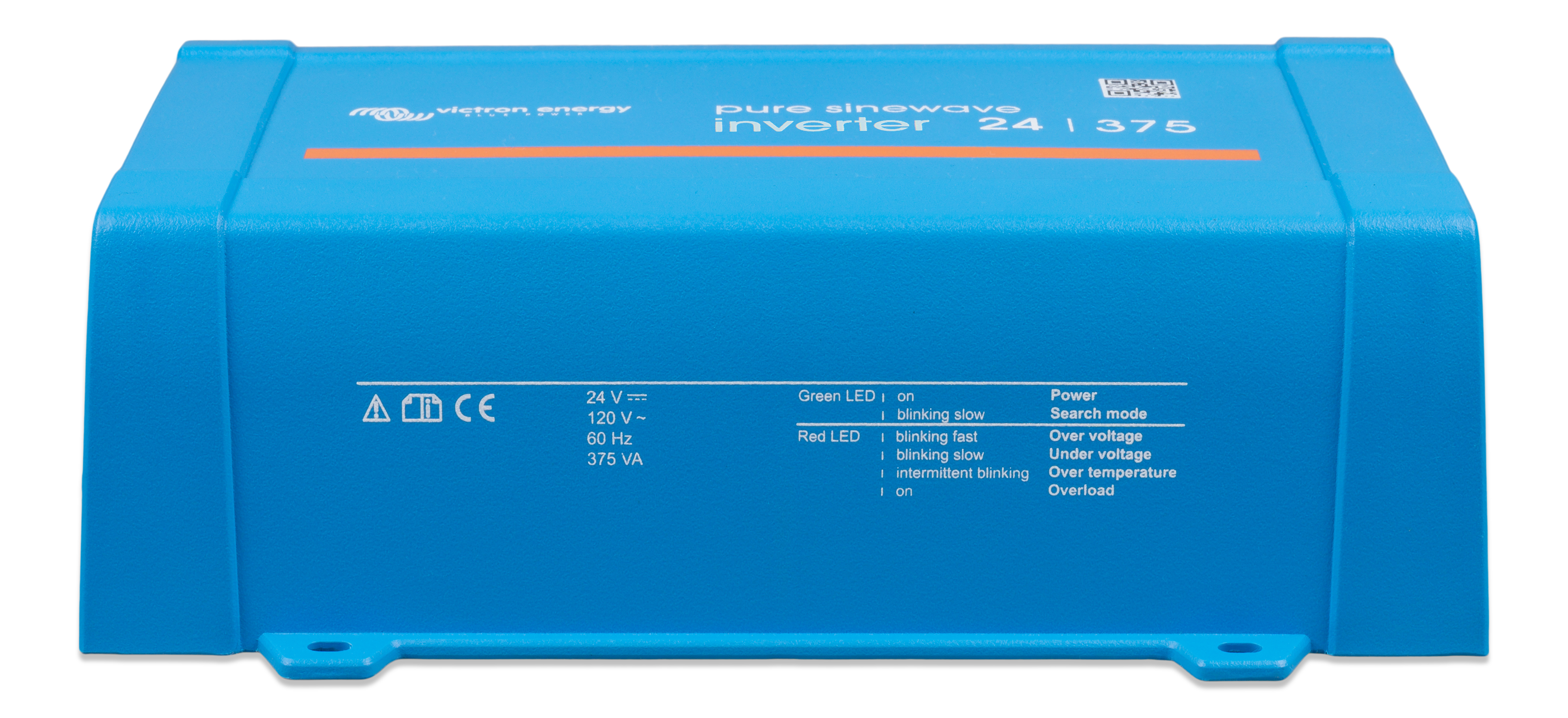

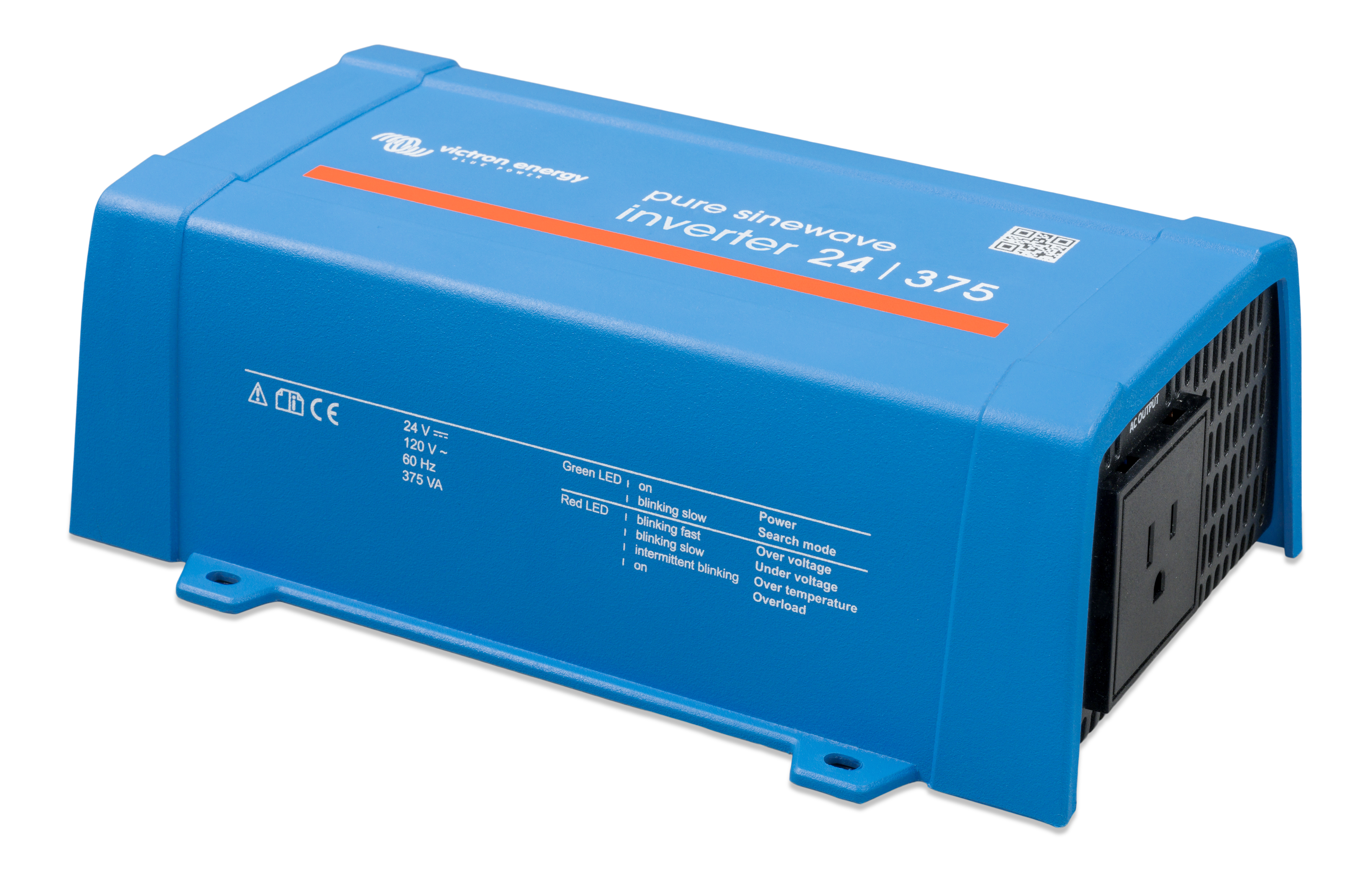

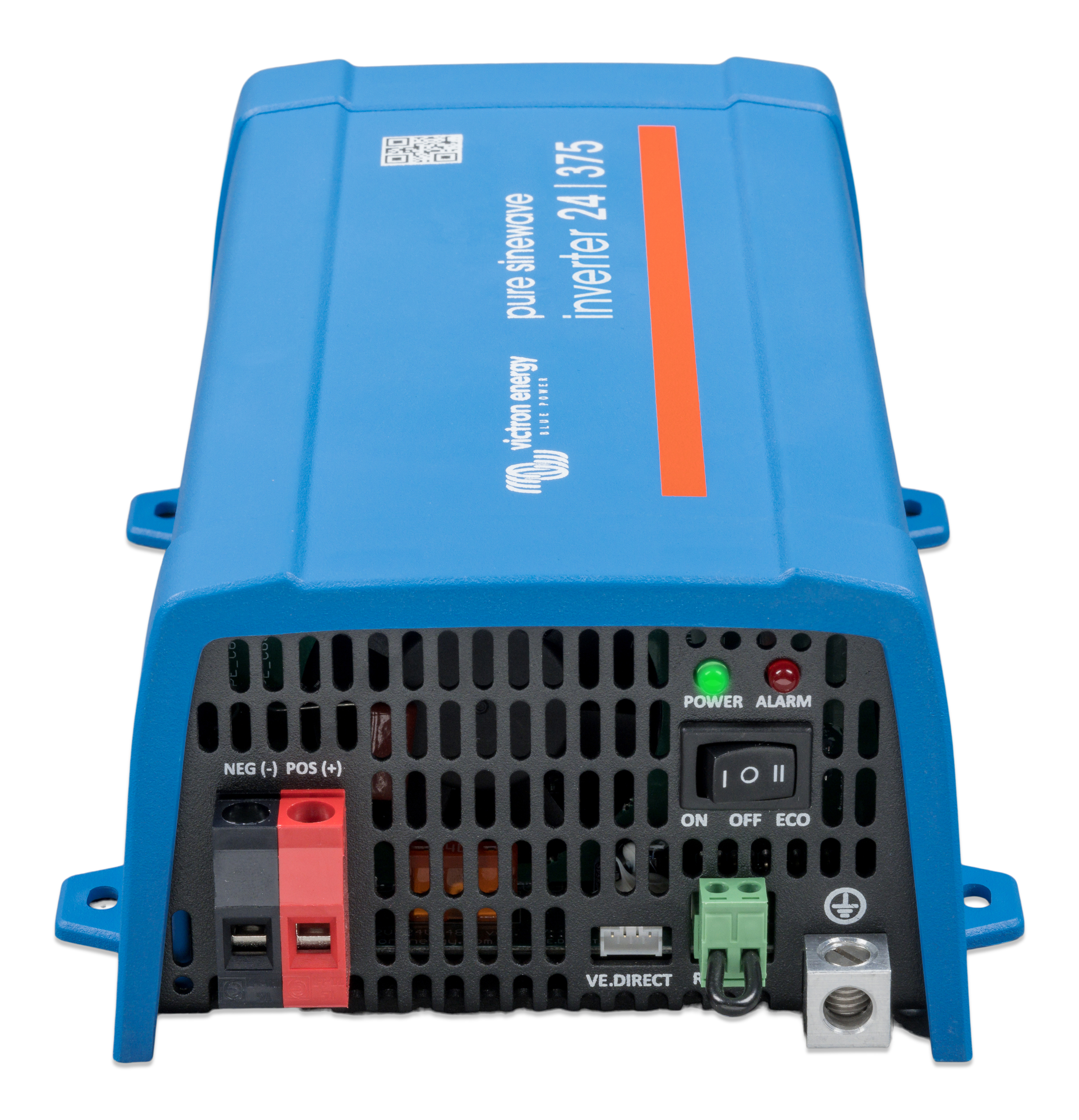

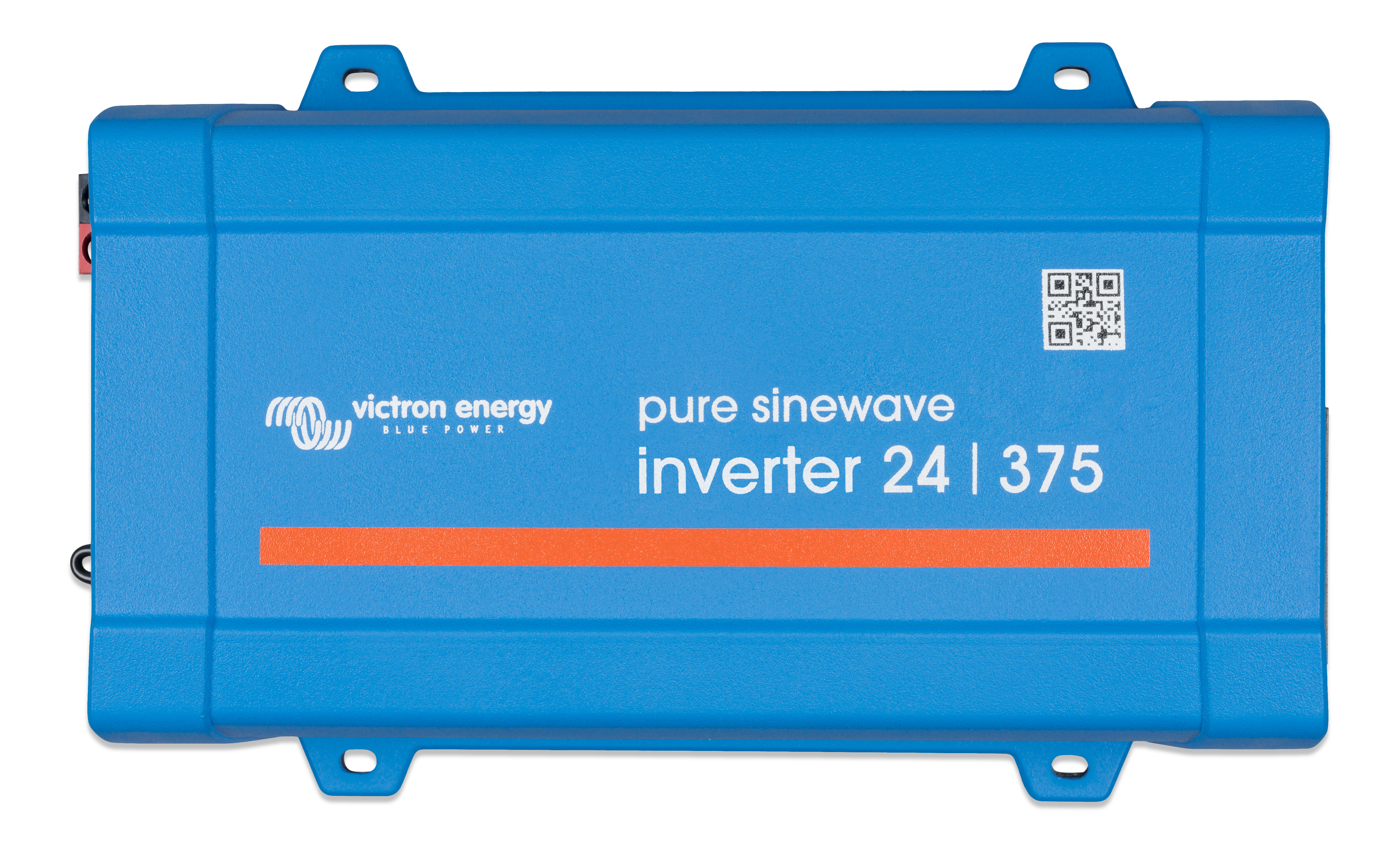

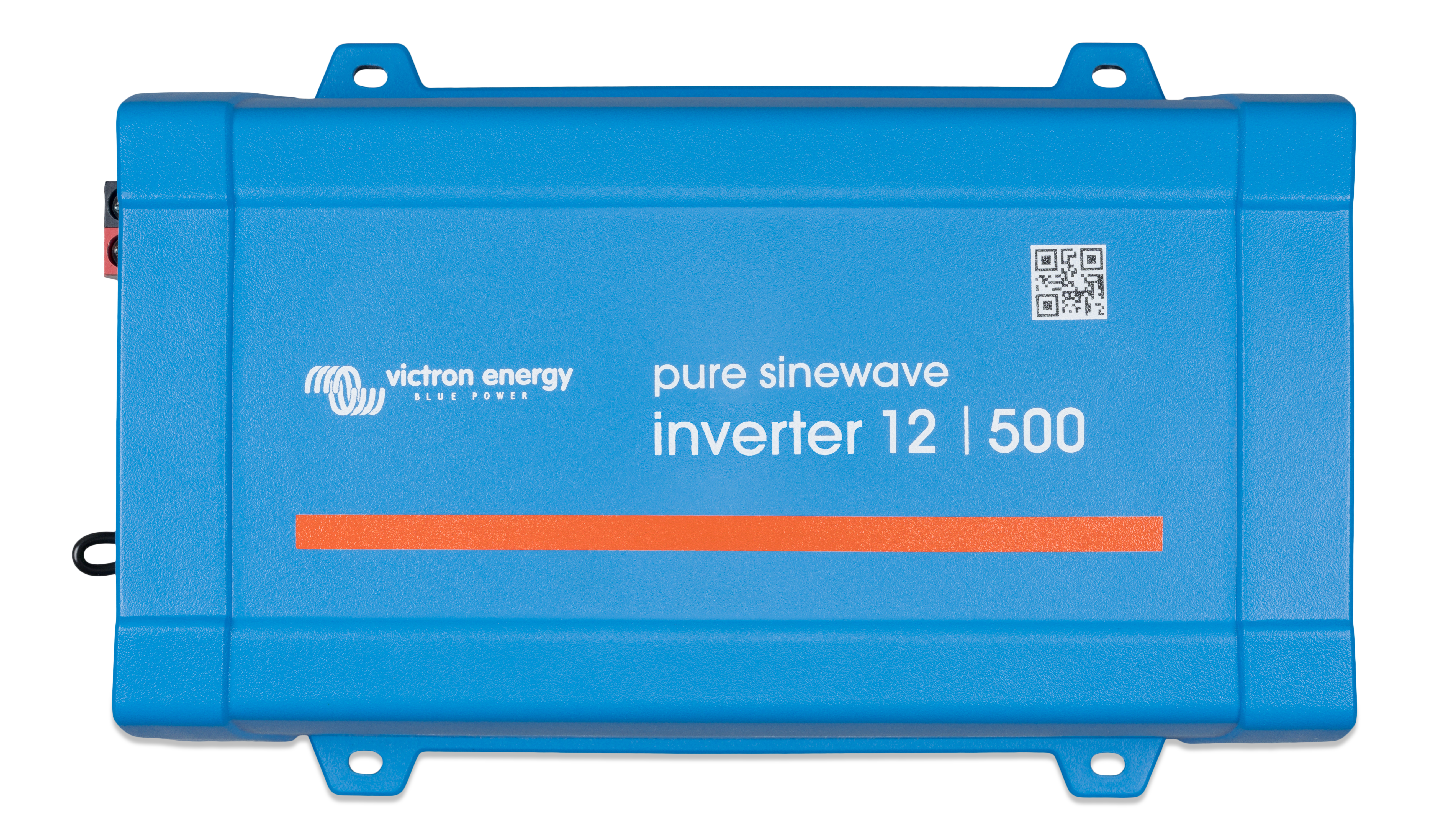

Inverter VE.Direct

SKU principal: PIN121800400

Inverter VE.Direct

<p>Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V,
24V or 48V DC.</p>

Códigos SKU

PIN121800400 PIN482510100 PIN482510200 PIN482510300 PIN482510400 PIN483750100 PIN483750200 PIN483750300 PIN485010100 PIN485010200 PIN485010300 PIN481800200 PIN242510200 PIN242510400 PIN243750100 PIN243750200 PIN245010100 PIN241800300 PIN241800400 PIN485010400 PIN482120100 PIN482120200 PIN482120400 PIN122510500 PIN123750500 PIN125010500 PIN121800500 PIN242510500 PIN243750500 PIN245010500 PIN241800500 PIN482510500 PIN483750500 PIN485010500 PIN481800500 PIN121251200 PIN122120400 PIN121501200 PIN121251100 PIN121371100 PIN121371200 PIN121501100 PIN121801200 PIN121801100 PIN482120510 PIN121800510 PIN241800510 PIN481800510 PIN121371300 PIN121251400 PIN121501400 PIN242510510 PIN243750510 PIN245010510 PIN242122510 PIN122122510 PIN122510510 PIN123750510 PIN125010510 PIN482510510 PIN482122510 PIN483750510 PIN485010510 PIN241801100 PIN122121200 PIN242122500 PIN122122500 PIN122121300 PIN121371400 PIN121801400 PIN122121100 PIN122121400 PIN241801200 PIN242121200 PIN241501200 PIN121501300 PIN121801300 PIN241501300 PIN242121400 PIN242121300 PIN481801100 PIN241251100 PIN241371200 PIN241371100 PIN121251300 PIN241251300 PIN241501400 PIN241801300 PIN242121100 PIN481371300 PIN481801400 PIN241371400 PIN241371300 PIN241251200 PIN481251200 PIN482121200 PIN481371200 PIN481801300 PIN481251100 PIN481251300 PIN481371100 PIN481371400 PIN481501200 PIN481501300 PIN482121100 PIN482122500 PIN241251400 PIN241501100 PIN481501100 PIN481801200 PIN122121410 PIN122121210 PIN122121310 PIN122161200 PIN122161400 PIN122161100 PIN122161300 PIN122161500 PIN122121110 PIN242161500 PIN482161500 PIN121251310 PIN241370500 PIN241500500 PIN482122520 PIN121501310 PIN122122520 PIN121500500 PIN482122530 PIN121501110 PIN241250500 PIN121371110 PIN121371410 PIN121250500 PIN121801210 PIN242161510 PIN242122520 PIN241251110 PIN121251210

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 12 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 87 %
Zero Load Power: 4.2 W
Zero Load Power Eco Mode: 0.8 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)

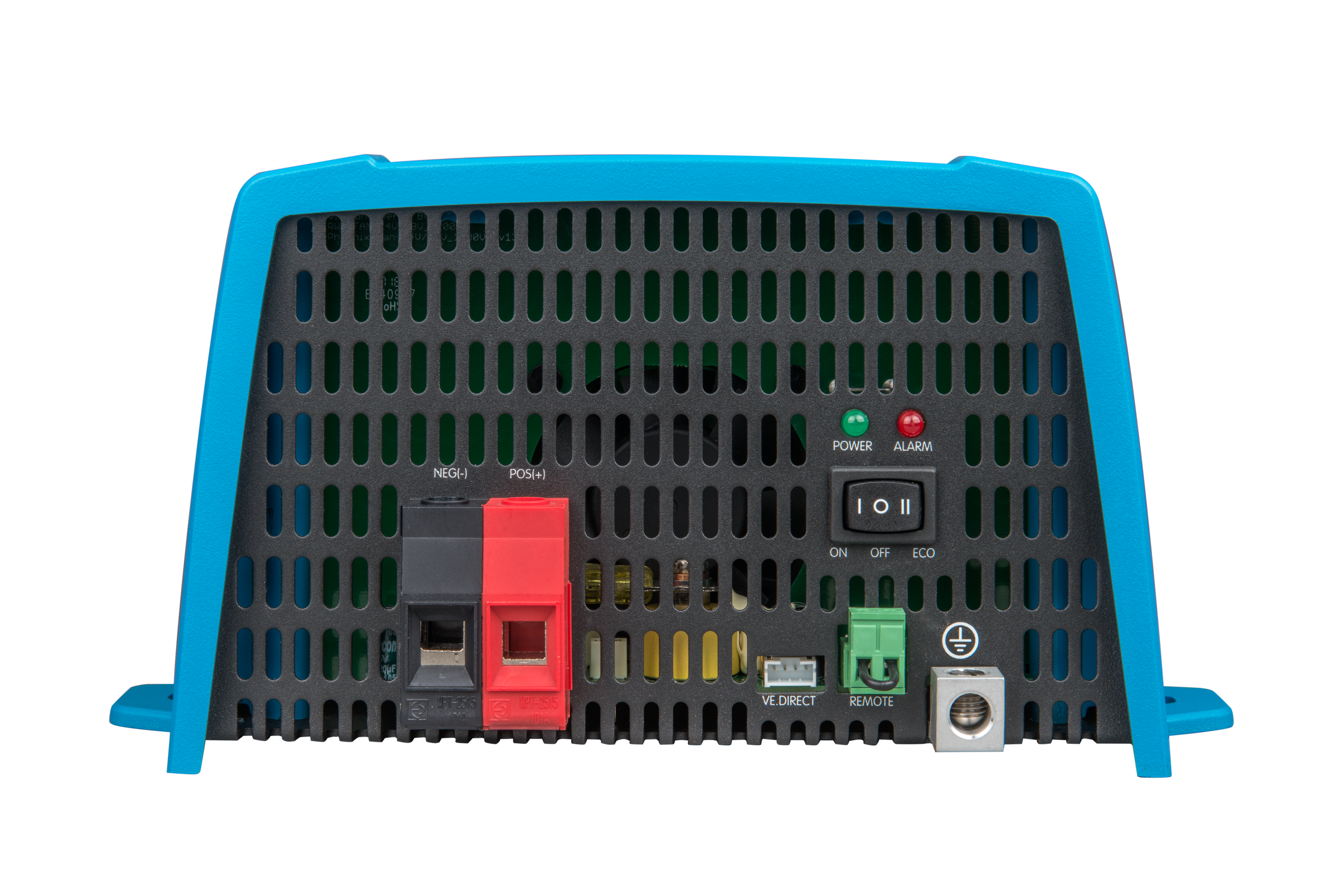

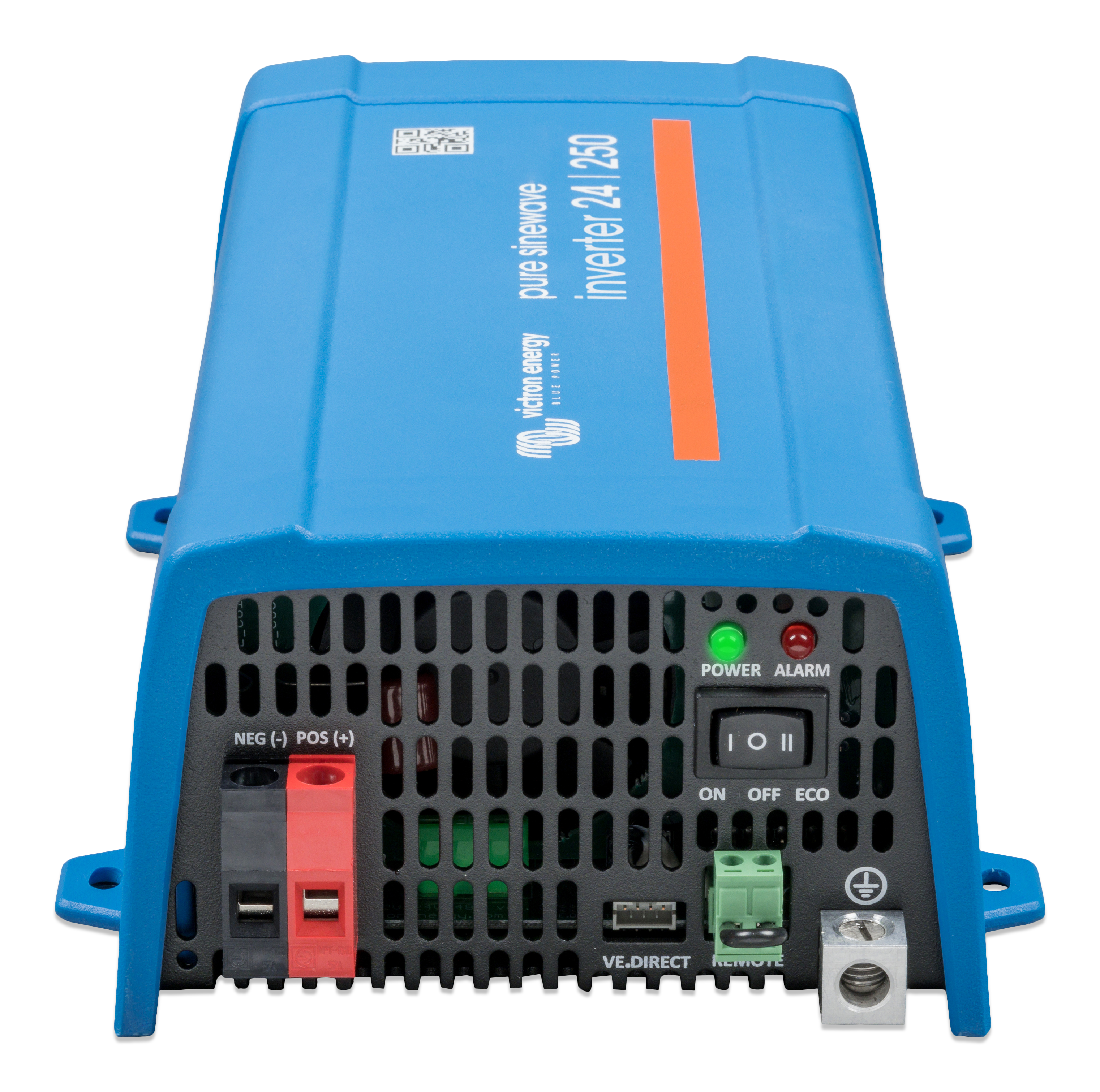

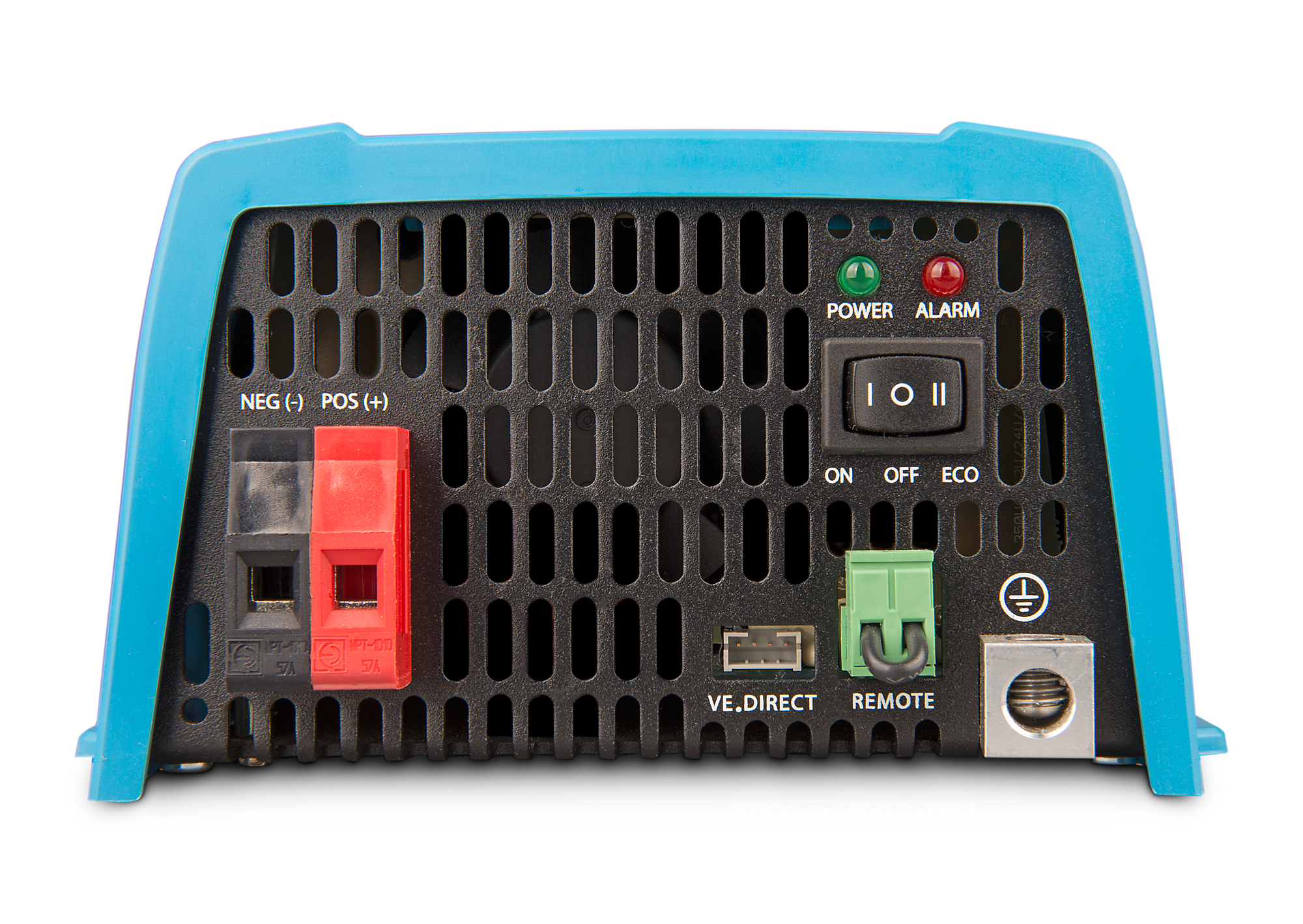

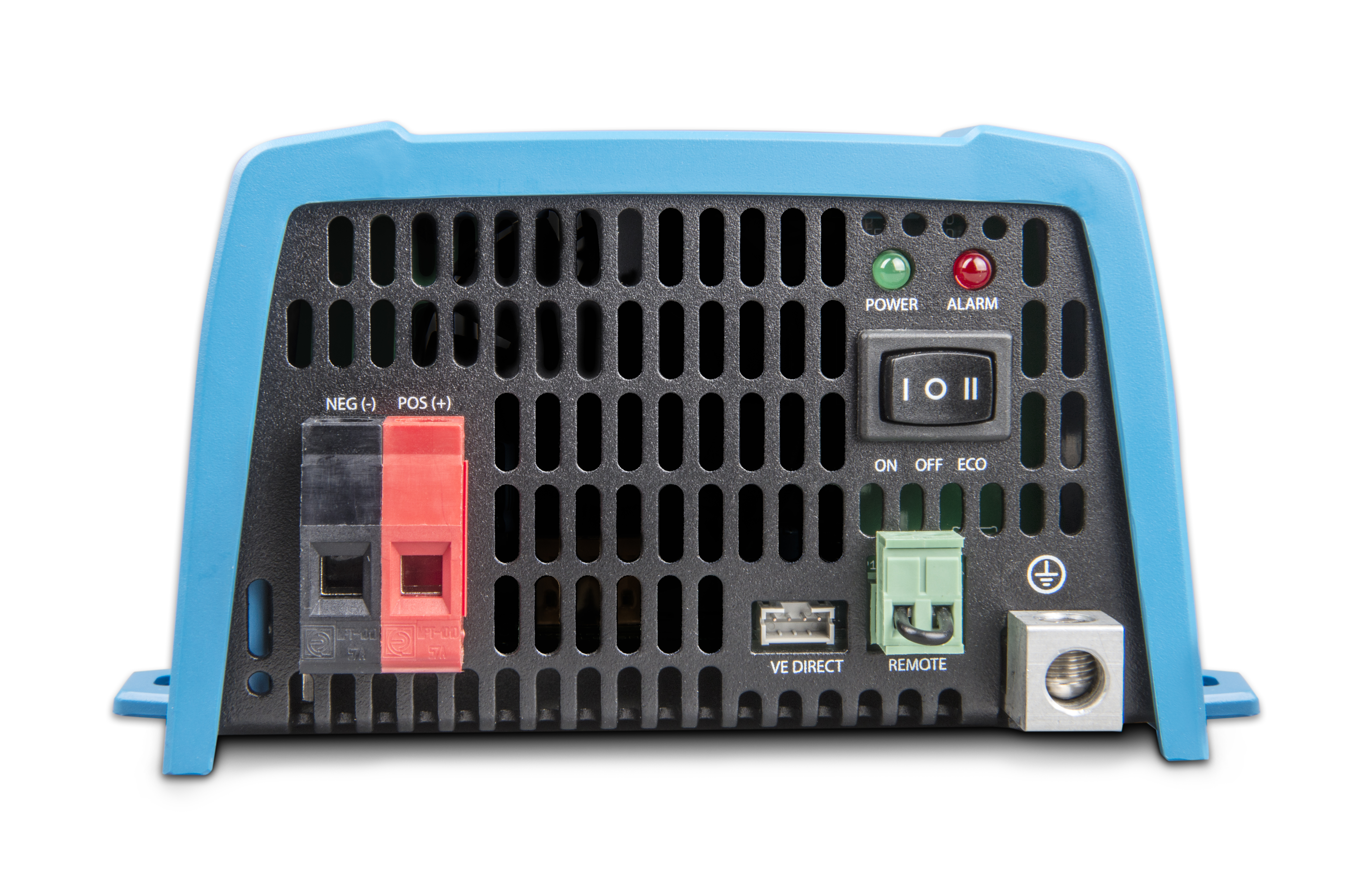

Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 VDC
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 VAC
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] VDC
D C Low Shut Down: 9.3 VDC
D C Low Restart Alarm: 10.9 VDC
Battery Charged Detection Voltage: 14 VDC
Max Efficiency: 89 %
Zero Load Power: 5.6 W
Zero Load Power Eco Mode: 0.9 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminals
Material: Steel chassis and plastic cover
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1
Emission: EN 55014-1, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4

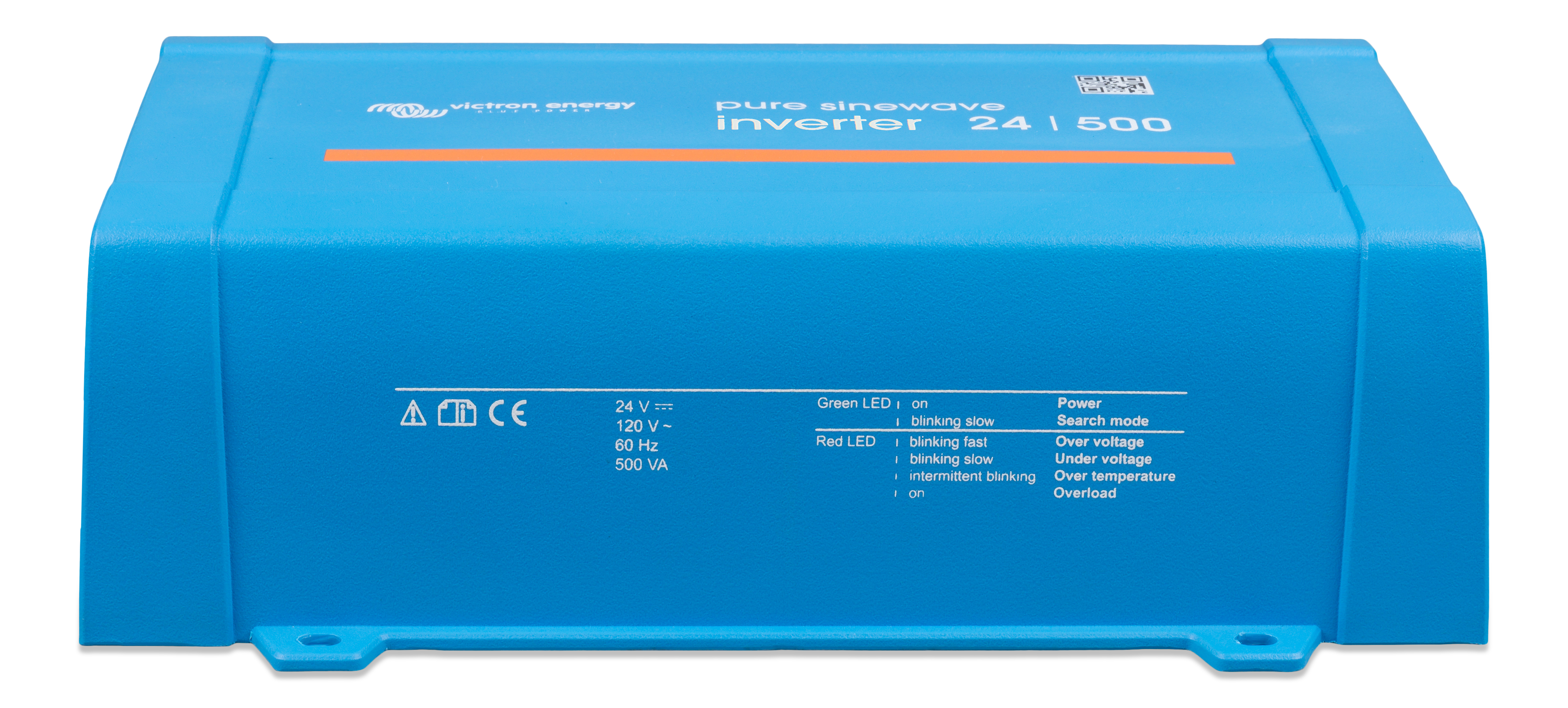

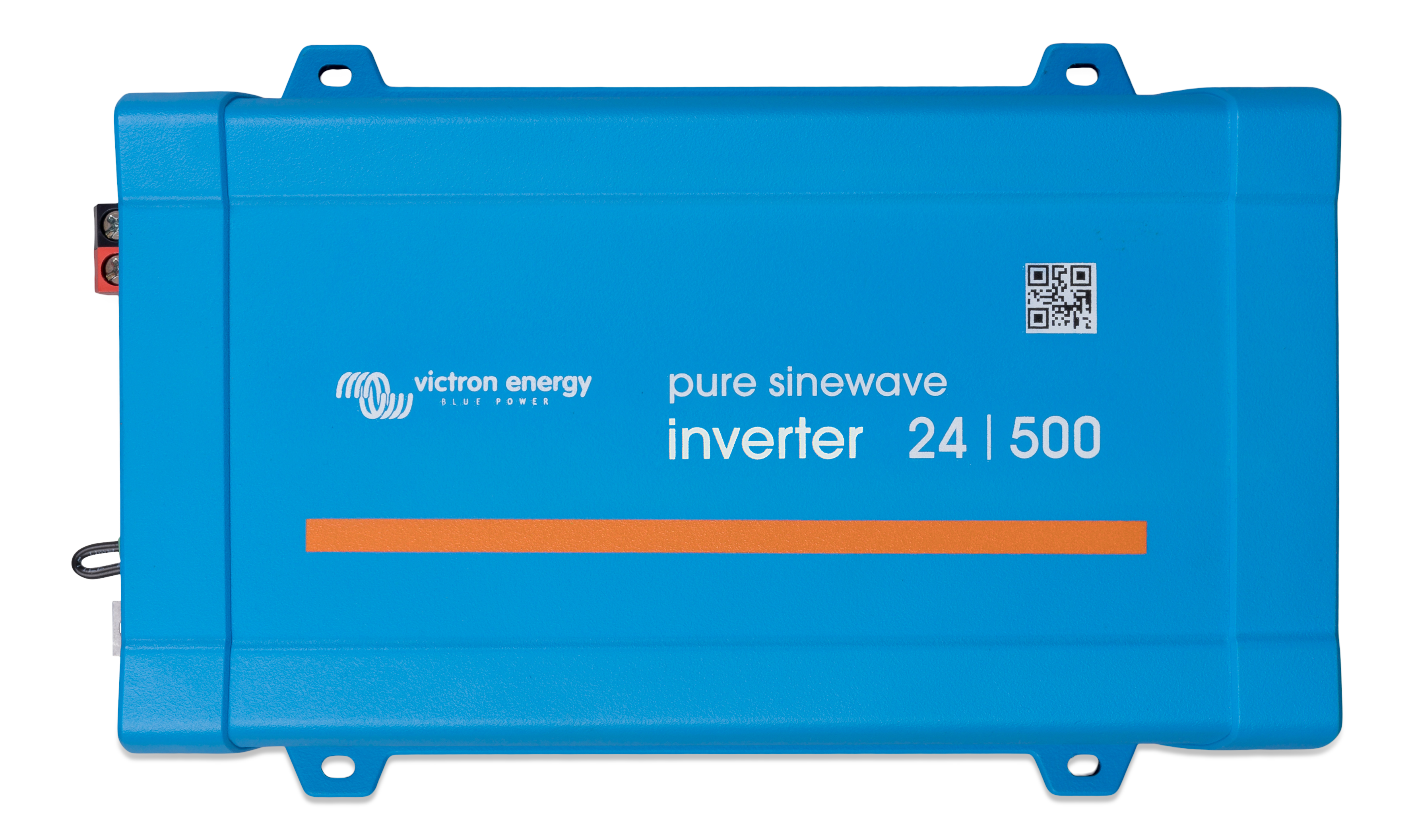

Battery Voltage Nominal: 24 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %

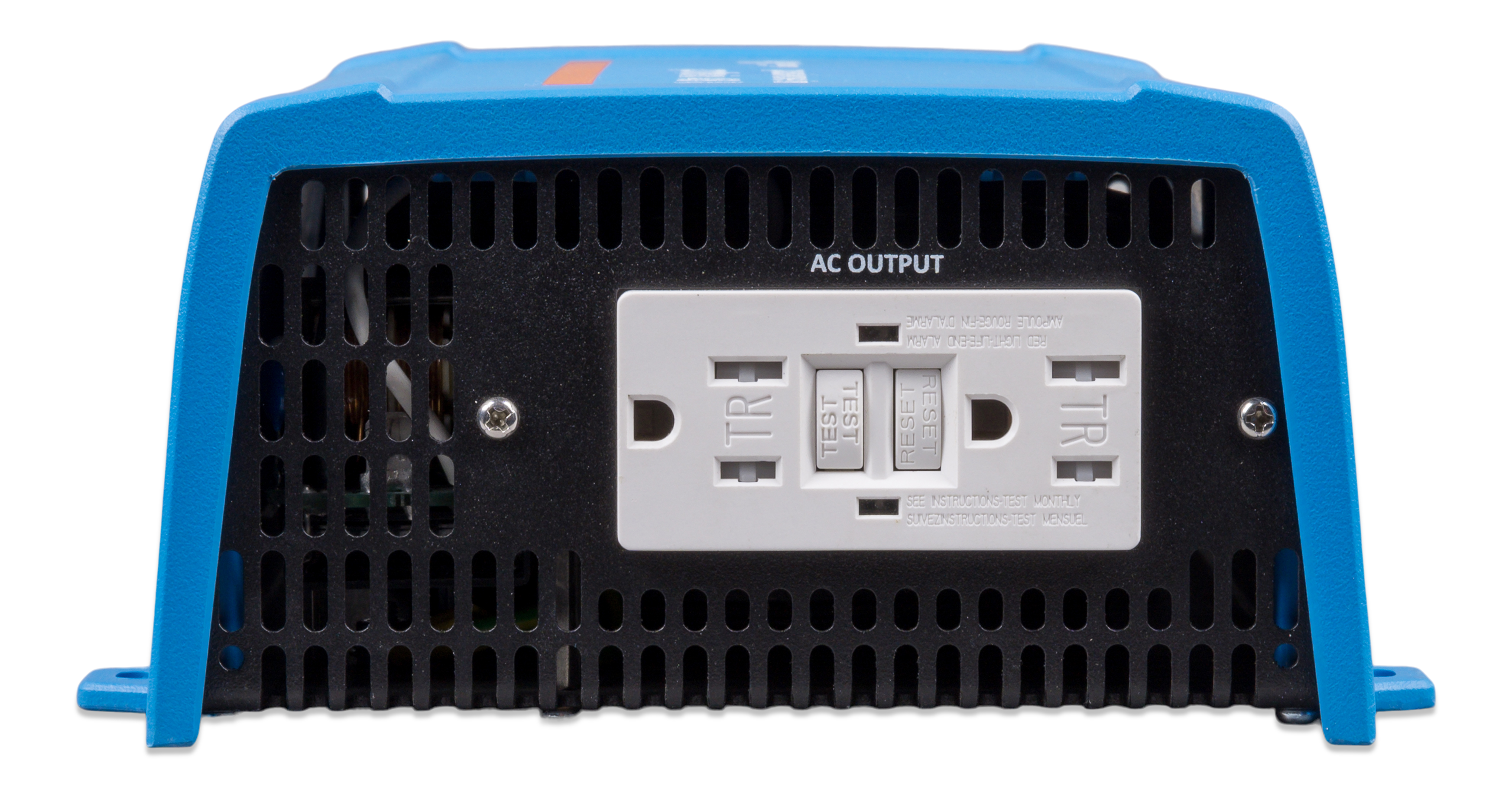

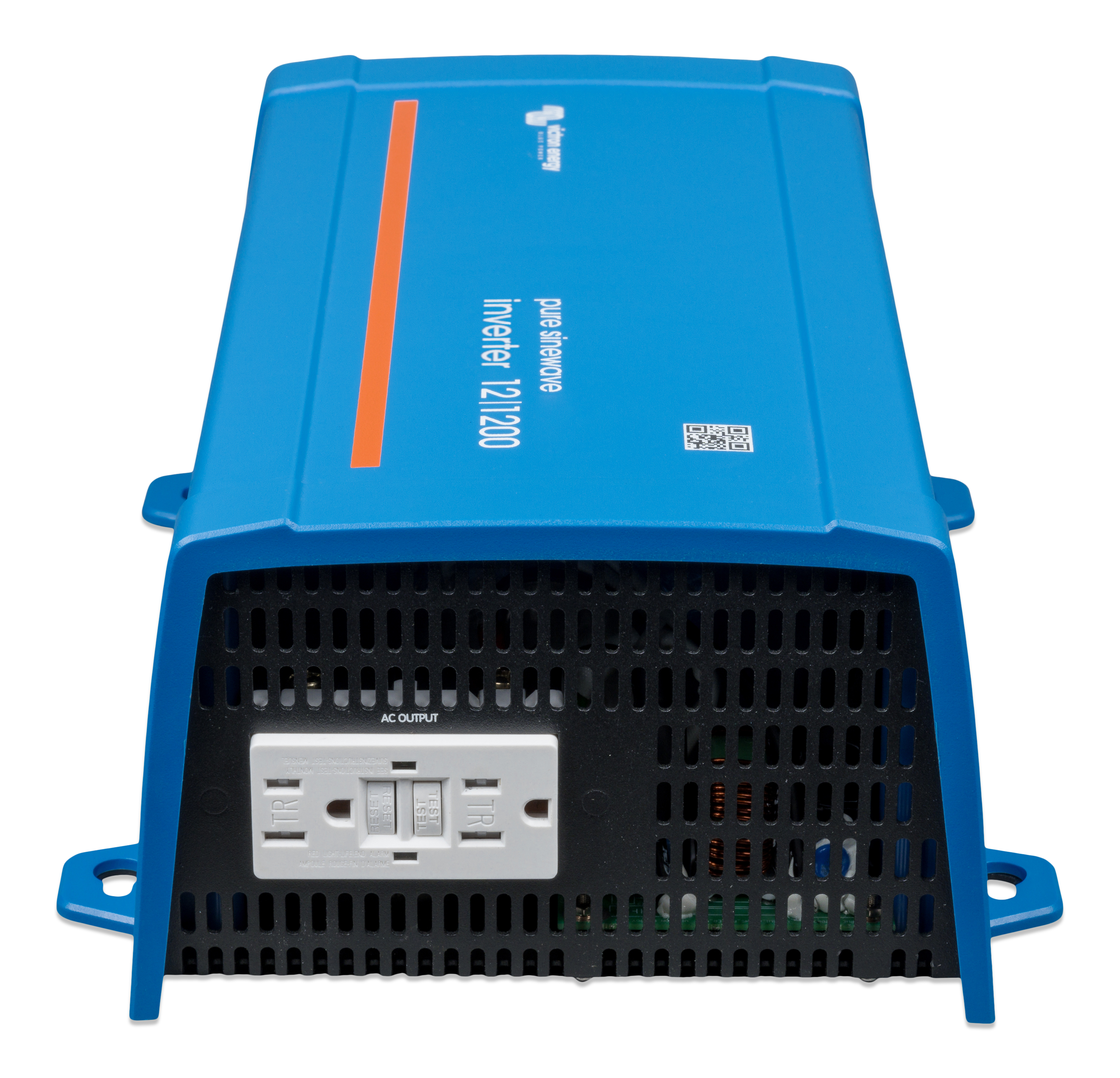

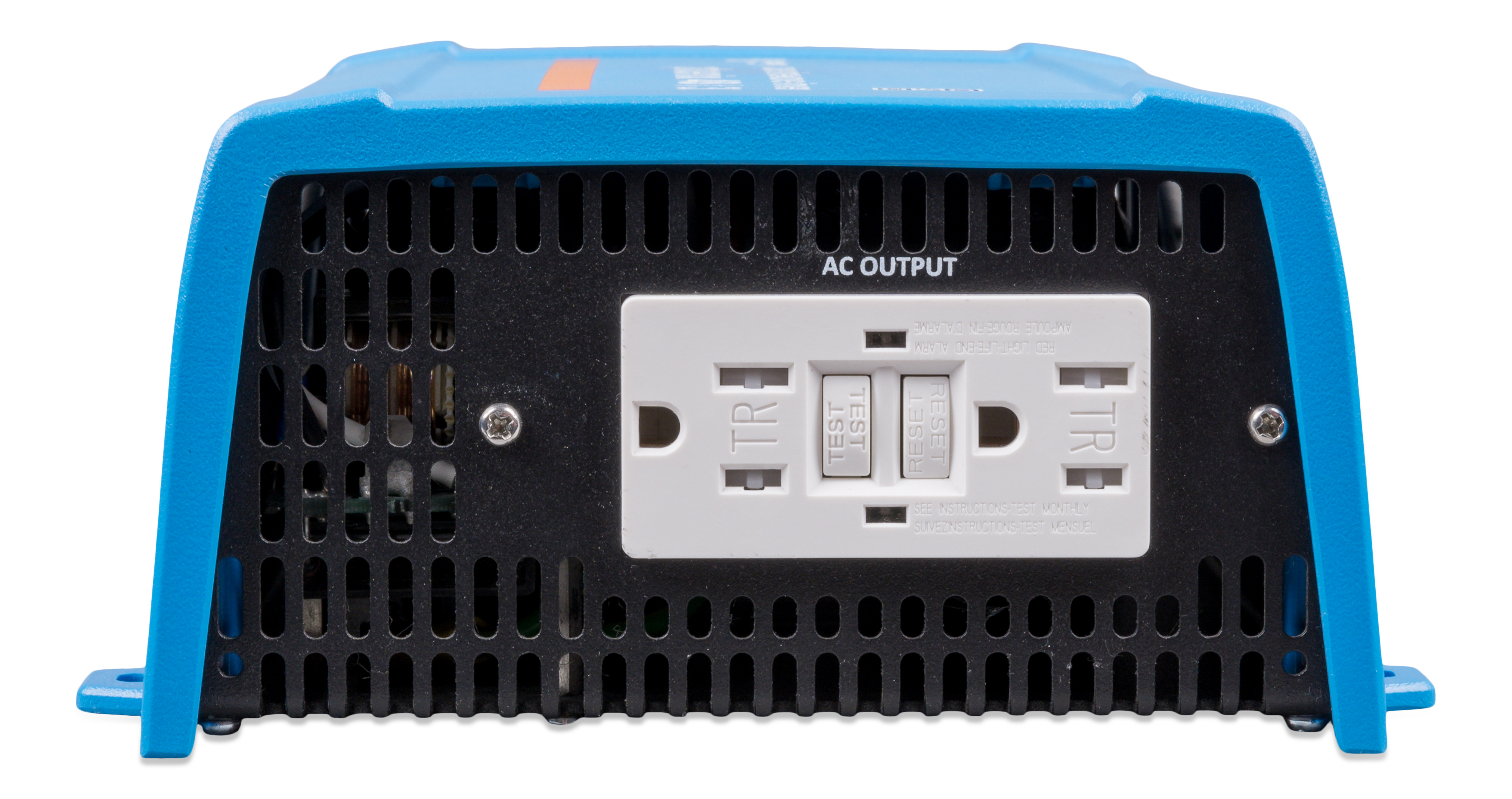

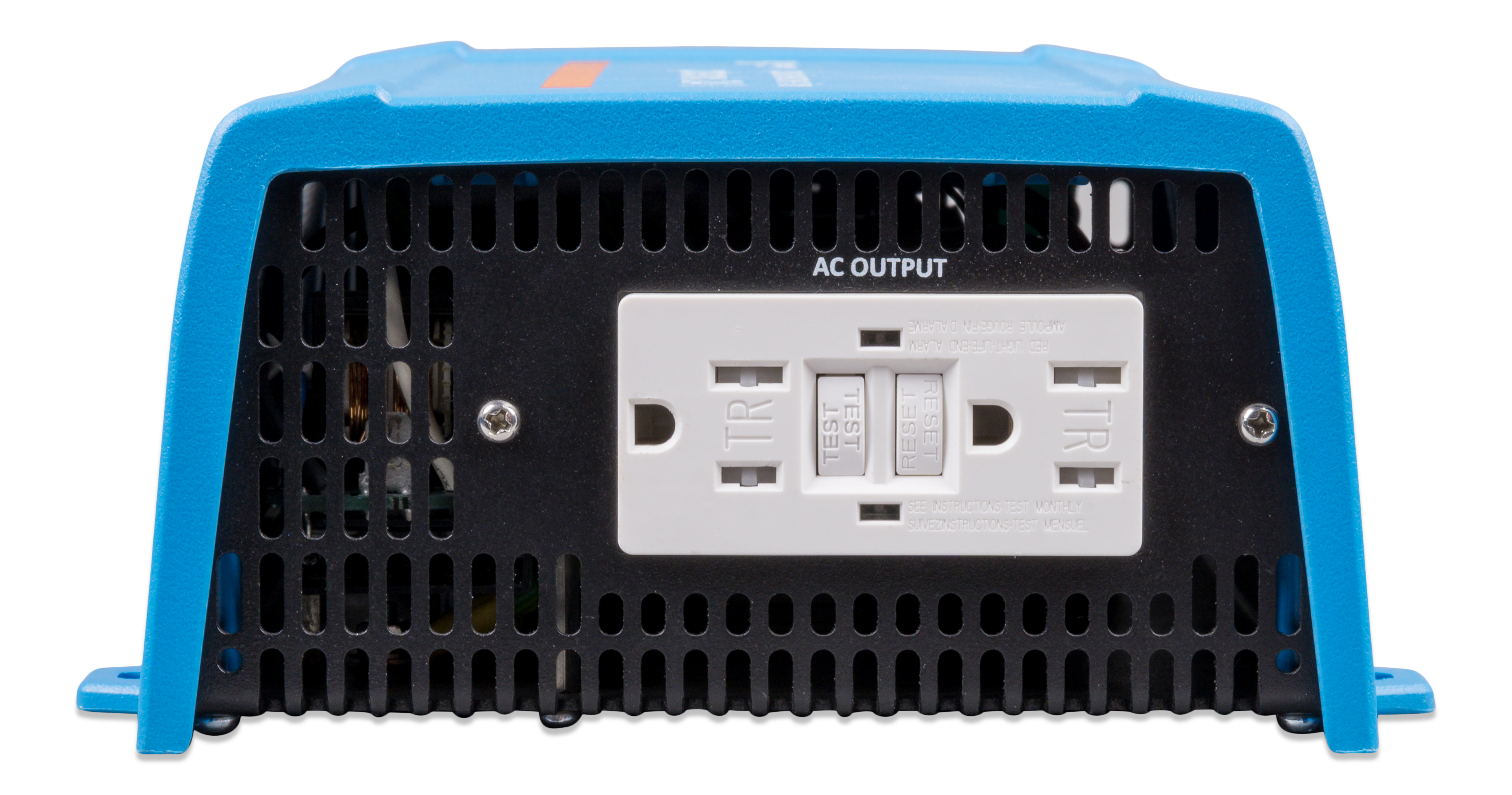

A C Outlet Socket: Nema 5-15R, GFCI

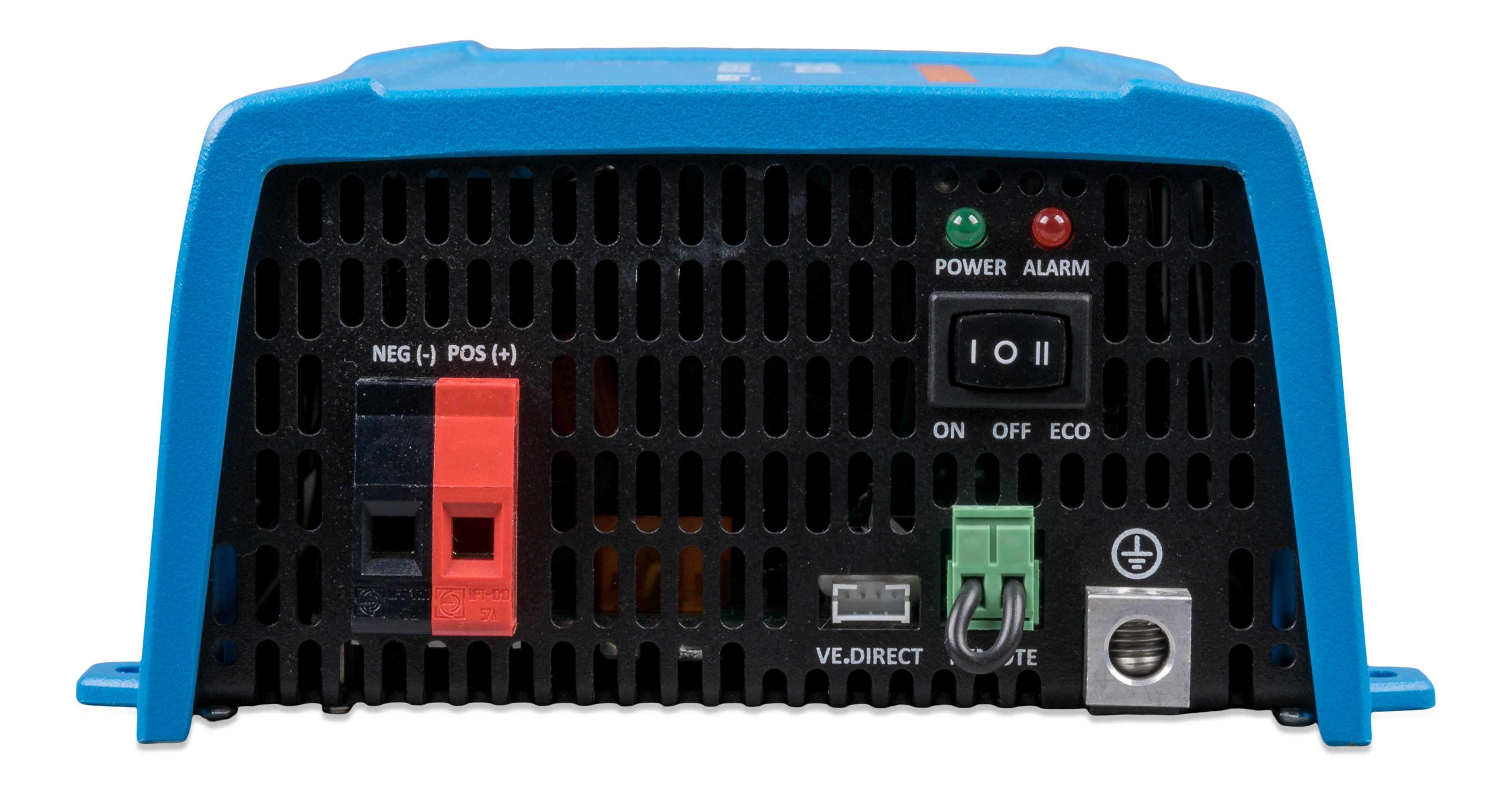

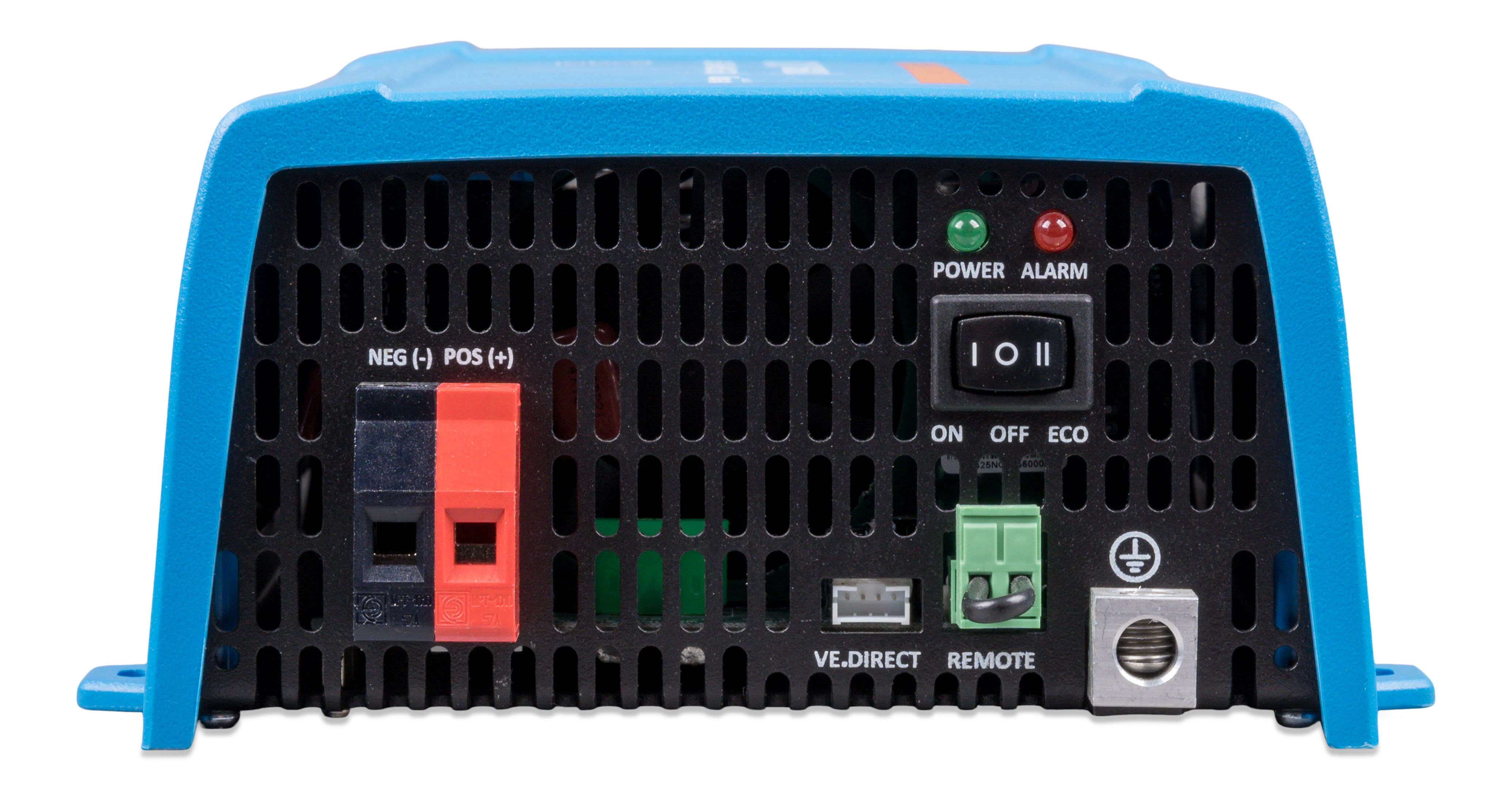

Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 85 mm
Width: 182 mm
Depth: 274 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 90 %
Zero Load Power: 8.5 W
Zero Load Power Eco Mode: 2.6 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %

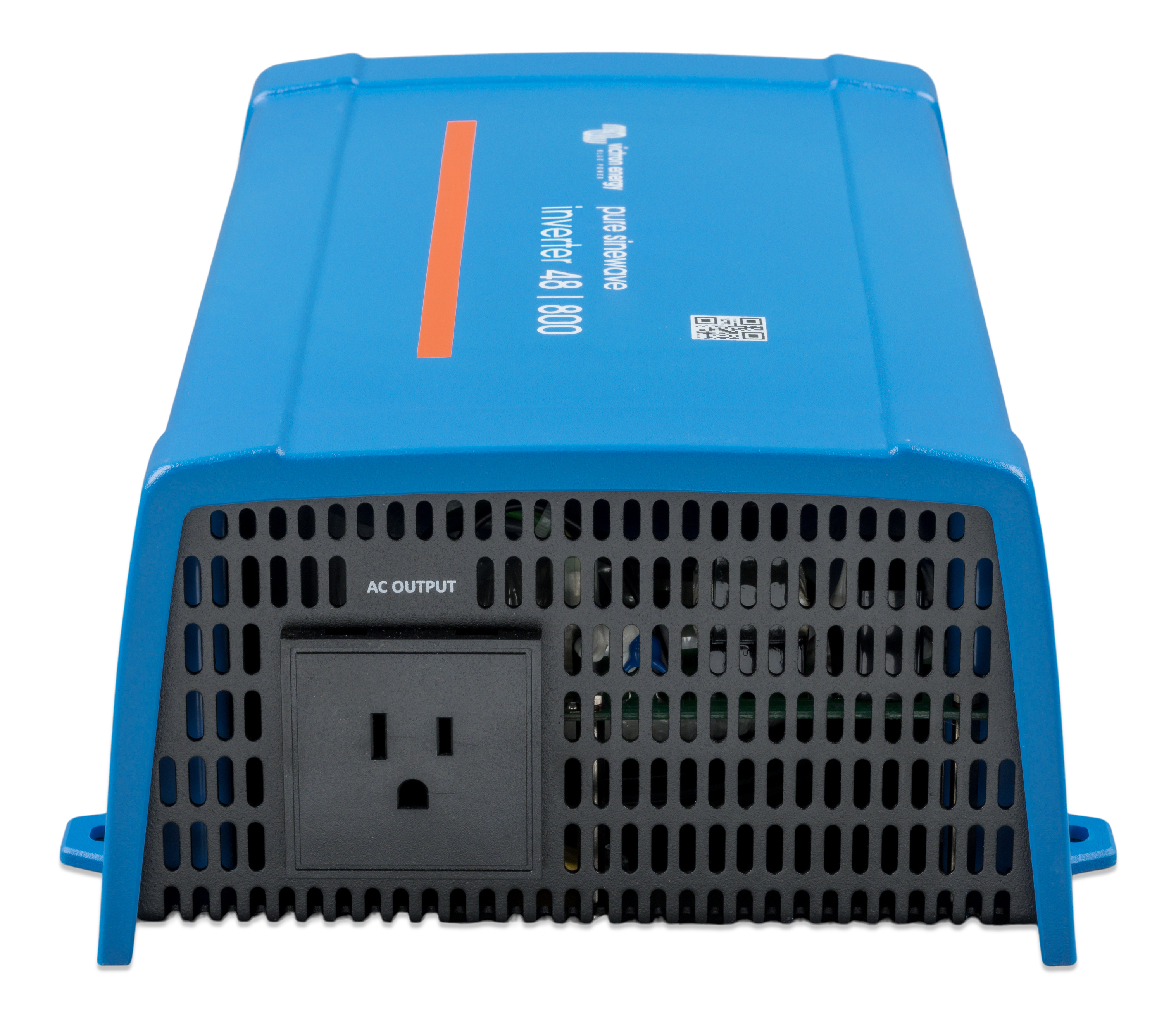

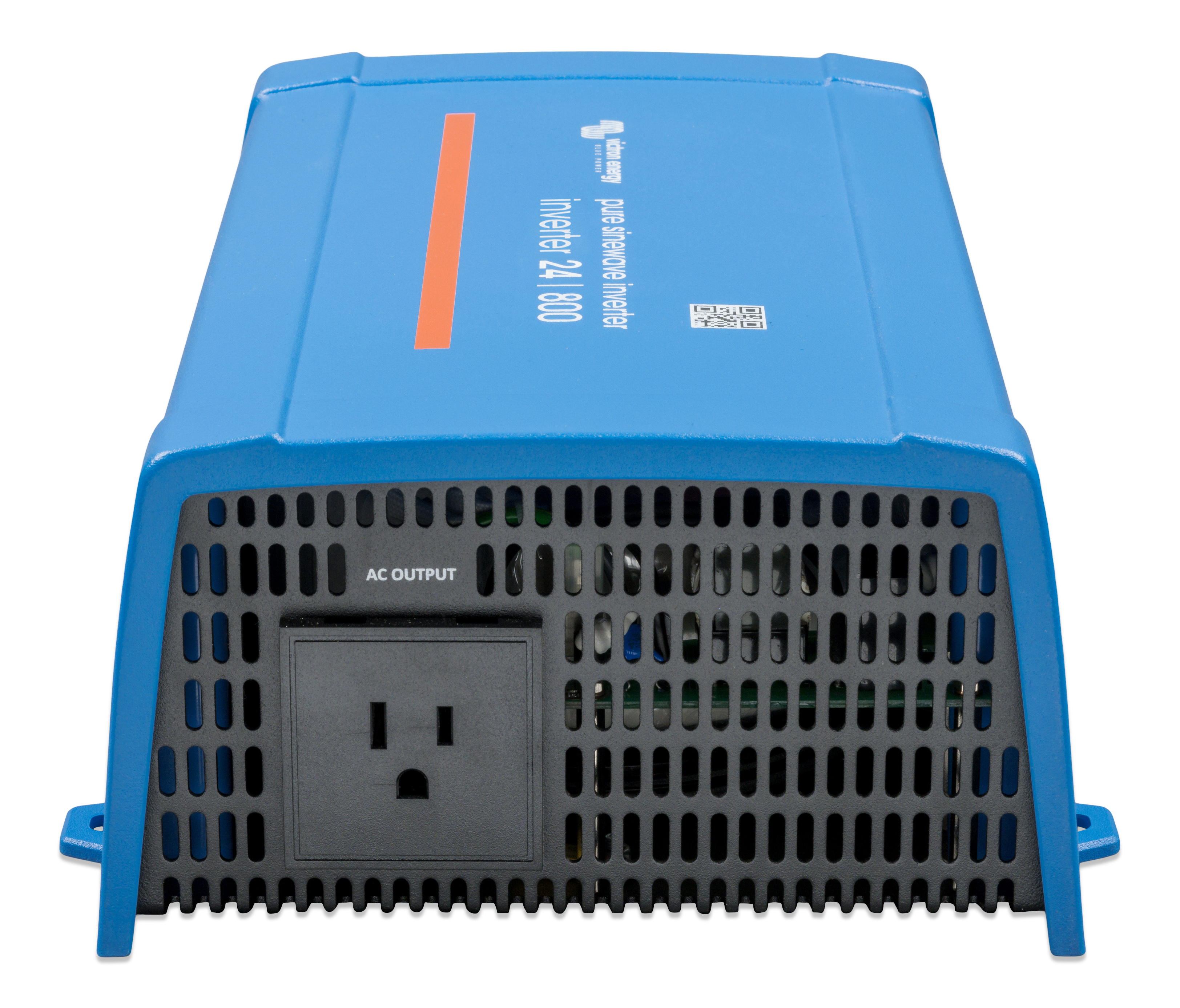

A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.6 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 88 %
Zero Load Power: 7.9 W
Zero Load Power Eco Mode: 2.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 87 %
Zero Load Power: 4.2 W
Zero Load Power Eco Mode: 0.8 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 89 %
Zero Load Power: 5.6 W
Zero Load Power Eco Mode: 0.9 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 60 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 88 %
Zero Load Power: 7.9 W
Zero Load Power Eco Mode: 2.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 465 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 90 %
Zero Load Power: 8.5 W
Zero Load Power Eco Mode: 2.6 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 26 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 90 %
Zero Load Power: 8.5 W
Zero Load Power Eco Mode: 2.6 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 92 %
Zero Load Power: 10 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 327 mm
Safety: EN-IEC 62109-1, EN-IEC 60335-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 88 %
Zero Load Power: 5.2 W
Zero Load Power Eco Mode: 1.3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 88 %
Zero Load Power: 5.2 W
Zero Load Power Eco Mode: 1.3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 88 %
Zero Load Power: 5.2 W
Zero Load Power Eco Mode: 1.3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overcurrent, Overvoltage
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 89 %
Zero Load Power: 6.1 W
Zero Load Power Eco Mode: 1.4 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 90 %
Zero Load Power: 8.5 W
Zero Load Power Eco Mode: 2.6 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 230 mm
Depth: 325 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 90 %
Zero Load Power: 8.5 W
Zero Load Power Eco Mode: 2.6 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 230 mm
Depth: 325 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 91 %
Zero Load Power: 7 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Excessive DC ripple, Over temperature
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 362 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9.5 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 216 mm
Depth: 305 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 89 %
Zero Load Power: 6.1 W
Zero Load Power Eco Mode: 1.4 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 89 %
Zero Load Power: 5.6 W
Zero Load Power Eco Mode: 0.9 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overcurrent, Overvoltage
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 87 %
Zero Load Power: 4.2 W
Zero Load Power Eco Mode: 0.8 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overcurrent, Overvoltage
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R, GFCI
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 85 mm
Width: 182 mm
Depth: 255 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9.5 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 216 mm
Depth: 305 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9.5 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 216 mm
Depth: 305 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 88 %
Zero Load Power: 7.9 W
Zero Load Power Eco Mode: 2.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 88 %
Zero Load Power: 7.9 W
Zero Load Power Eco Mode: 2.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 230 mm
Depth: 325 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 7 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 216 mm
Depth: 305 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 7 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 216 mm
Depth: 305 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 89 %
Zero Load Power: 6.1 W
Zero Load Power Eco Mode: 1.4 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 88 %
Zero Load Power: 5.2 W
Zero Load Power Eco Mode: 1.3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R, GFCI
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 85 mm
Width: 182 mm
Depth: 255 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 89 %
Zero Load Power: 5.6 W
Zero Load Power Eco Mode: 0.9 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R, GFCI
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 85 mm
Width: 182 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R, GFCI
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 85 mm
Width: 182 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R, GFCI
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 230 mm
Depth: 325 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-2, EN-IEC 61000-6-3, EN-IEC 61000-6-1
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 88 %
Zero Load Power: 7.9 W
Zero Load Power Eco Mode: 2.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 7 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 126 mm
Depth: 305 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 7 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 216 mm
Depth: 305 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 87 %
Zero Load Power: 4.2 W
Zero Load Power Eco Mode: 0.8 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Overcurrent, Overvoltage
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 88 %
Zero Load Power: 5.2 W
Zero Load Power Eco Mode: 1.3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 88 %
Zero Load Power: 5.2 W
Zero Load Power Eco Mode: 1.3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple, Overvoltage
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 91 %
Zero Load Power: 7 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 362 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 7 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 216 mm
Depth: 305 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 91 %
Zero Load Power: 7 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: High battery voltage, Low battery voltage, Excessive DC ripple, Overload, Over temperature, Output short-circuit
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 362 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 89 %
Zero Load Power: 61 W
Zero Load Power Eco Mode: 1.4 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 88 %
Zero Load Power: 7.9 W
Zero Load Power Eco Mode: 2.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 88 %
Zero Load Power: 7.9 W
Zero Load Power Eco Mode: 2.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 90 %
Zero Load Power: 8.5 W
Zero Load Power Eco Mode: 2.6 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 88 %
Zero Load Power: 7.9 W
Zero Load Power Eco Mode: 2.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 90 %
Zero Load Power: 8.5 W
Zero Load Power Eco Mode: 2.6 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 89 %
Zero Load Power: 6.1 W
Zero Load Power Eco Mode: 1.4 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R GFCI
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 91 %
Zero Load Power: 10 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Over temperature, Output short-circuit, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 362 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 88 %
Zero Load Power: 5.2 W
Zero Load Power Eco Mode: 1.3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 91 %
Zero Load Power: 11 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 327 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 91 %
Zero Load Power: 11 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: AU/NZ (AS/NZS 3112)
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 327 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 91 %
Zero Load Power: 11 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 327 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 91 %
Zero Load Power: 10 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 362 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 91 %
Zero Load Power: 11 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 327 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 89 %
Zero Load Power: 6.1 W
Zero Load Power Eco Mode: 1.4 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9.5 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 216 mm
Depth: 305 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 92 %
Zero Load Power: 12 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 327 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 92 %
Zero Load Power: 12 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 327 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 90 %
Zero Load Power: 7 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R, GFCI
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 216 mm
Depth: 305 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 91 %
Zero Load Power: 10 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 362 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 92 %
Zero Load Power: 12 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 327 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 91 %
Zero Load Power: 11 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R, GFCI
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 327 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 91 %
Zero Load Power: 9.5 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 216 mm
Depth: 305 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 230 mm
Depth: 325 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 91 %
Zero Load Power: 10 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R, GFCI
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 362 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 89 %
Zero Load Power: 5.6 W
Zero Load Power Eco Mode: 0.9 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 VDC
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 VAC
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] VDC
D C Low Shut Down: 9.3 VDC
D C Low Restart Alarm: 10.9 VDC
Battery Charged Detection Voltage: 14 VDC
Max Efficiency: 89 %
Zero Load Power: 5.6 W
Zero Load Power Eco Mode: 0.9 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Excessive temperature, Excessive DC ripple
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: IEC-320 (male plug included)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminals
Material: Steel chassis and plastic cover
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN 60335-1, UL 458, EN-IEC 62109-1
Emission: EN 55014-1, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 800 VA
Cont Power W25: 650 W
Cont Power W40: 560 W
Peak Power Rating: 1, 500 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 5.5 kg
Height: 105 mm
Width: 230 mm
Depth: 325 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 87 %
Zero Load Power: 4.2 W
Zero Load Power Eco Mode: 0.8 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 88 %
Zero Load Power: 5.2 W
Zero Load Power Eco Mode: 1.3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 250 VA
Cont Power W25: 200 W
Cont Power W40: 175 W
Peak Power Rating: 400 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 87 %
Zero Load Power: 4.2 W
Zero Load Power Eco Mode: 0.8 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overcurrent, Overvoltage
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Schuko (CEE 7/4)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 2.4 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 375 VA
Cont Power W25: 300 W
Cont Power W40: 260 W
Peak Power Rating: 700 W
A C Output Voltage: 230 V
Frequency: 50 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 89 %
Zero Load Power: 5.6 W
Zero Load Power Eco Mode: 0.9 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: UK (BS 1363)
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3 kg
Height: 86 mm
Width: 165 mm
Depth: 260 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 24 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 18.4, 34 ] V
D C Low Shut Down: 18.6 V
D C Low Restart Alarm: 21.8 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 28 V
Max Efficiency: 91 %
Zero Load Power: 11 W
Zero Load Power Eco Mode: 1.5 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Battery Connection Terminal Type: Screw terminals 25 mm² (4 AWG)
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 327 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 12 V
Cont Power V A25: 500 VA
Cont Power W25: 400 W
Cont Power W40: 350 W
Peak Power Rating: 900 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 9.2, 17 ] V
D C Low Shut Down: 9.3 V
D C Low Restart Alarm: 10.9 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 14 V
Max Efficiency: 90 %
Zero Load Power: 6 W
Zero Load Power Eco Mode: 1 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overcurrent, Overvoltage
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 3.9 kg
Height: 86 mm
Width: 172 mm
Depth: 275 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Cont Power V A25: 1, 200 VA
Cont Power W25: 1, 000 W
Cont Power W40: 850 W
Peak Power Rating: 2, 200 W
A C Output Voltage: 120 V
Frequency: 60 Hz
D C Input Voltage Range: [ 36.8, 62 ] V
D C Low Shut Down: 37.2 V
D C Low Restart Alarm: 43.6 V
Dynamic Low D C Shutdown: 1
Battery Charged Detection Voltage: 56 V
Max Efficiency: 92 %
Zero Load Power: 12 W
Zero Load Power Eco Mode: 3 W
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Remote On Off Terminal: 1
Communication Port: VE.Direct
Fully Programable: 1
Protections: Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload
Operating Temp Range: [ -40, 65 ] °C
Max Humidity: 95 %
Power Deration: 1.25 %
A C Outlet Socket: Nema 5-15R
Remote Terminal: Screw terminal two pole
Colour: Blue (RAL 5012)
Material: Steel chassis and plastic cover
Protection Category: IP21
Weight: 7.4 kg
Height: 117 mm
Width: 232 mm
Depth: 327 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1
E M C: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive Directive: ECE R10-4

← Volver a productos Victron
