Inverter RS Smart

SKU principal: PIN482600000

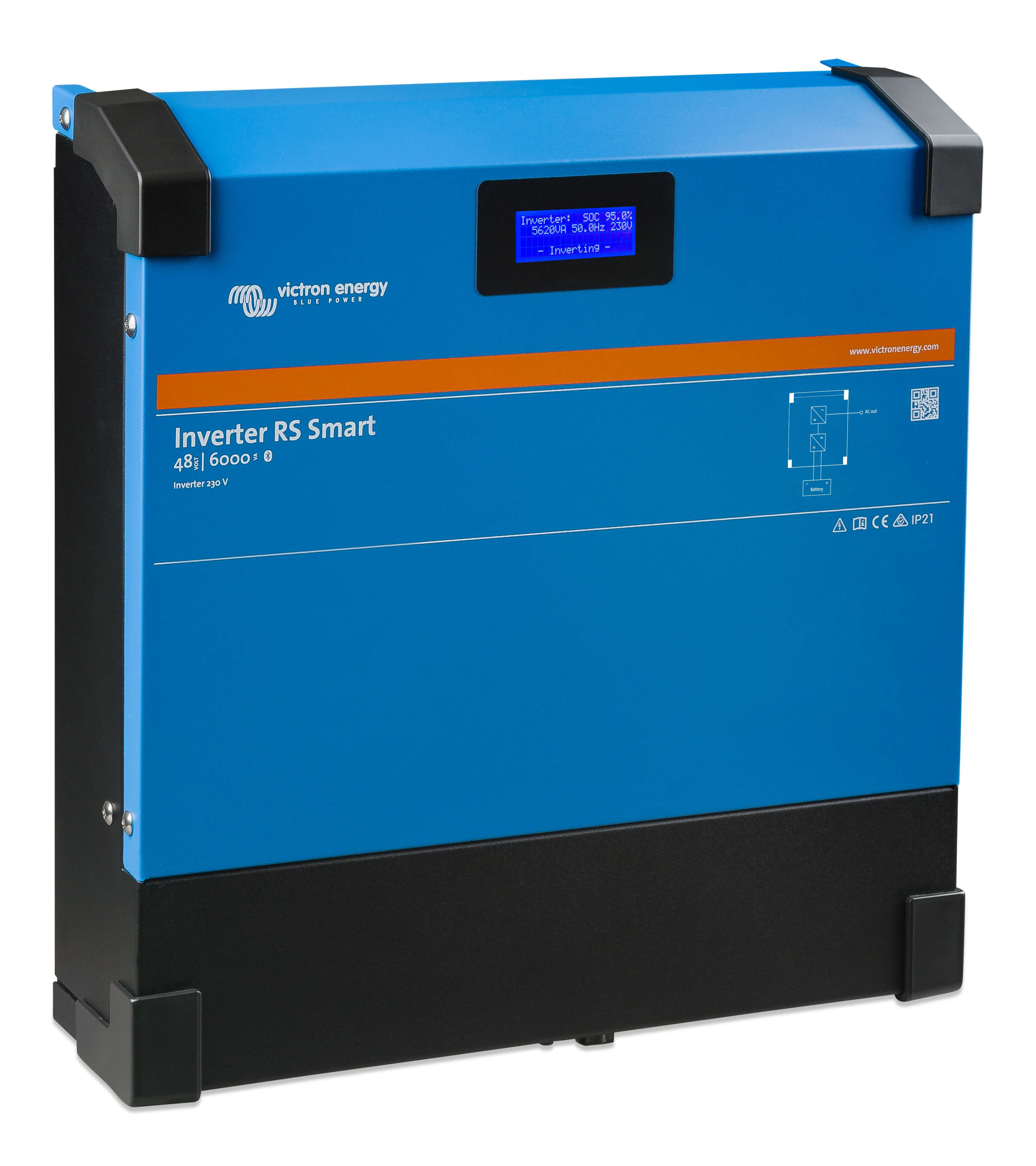

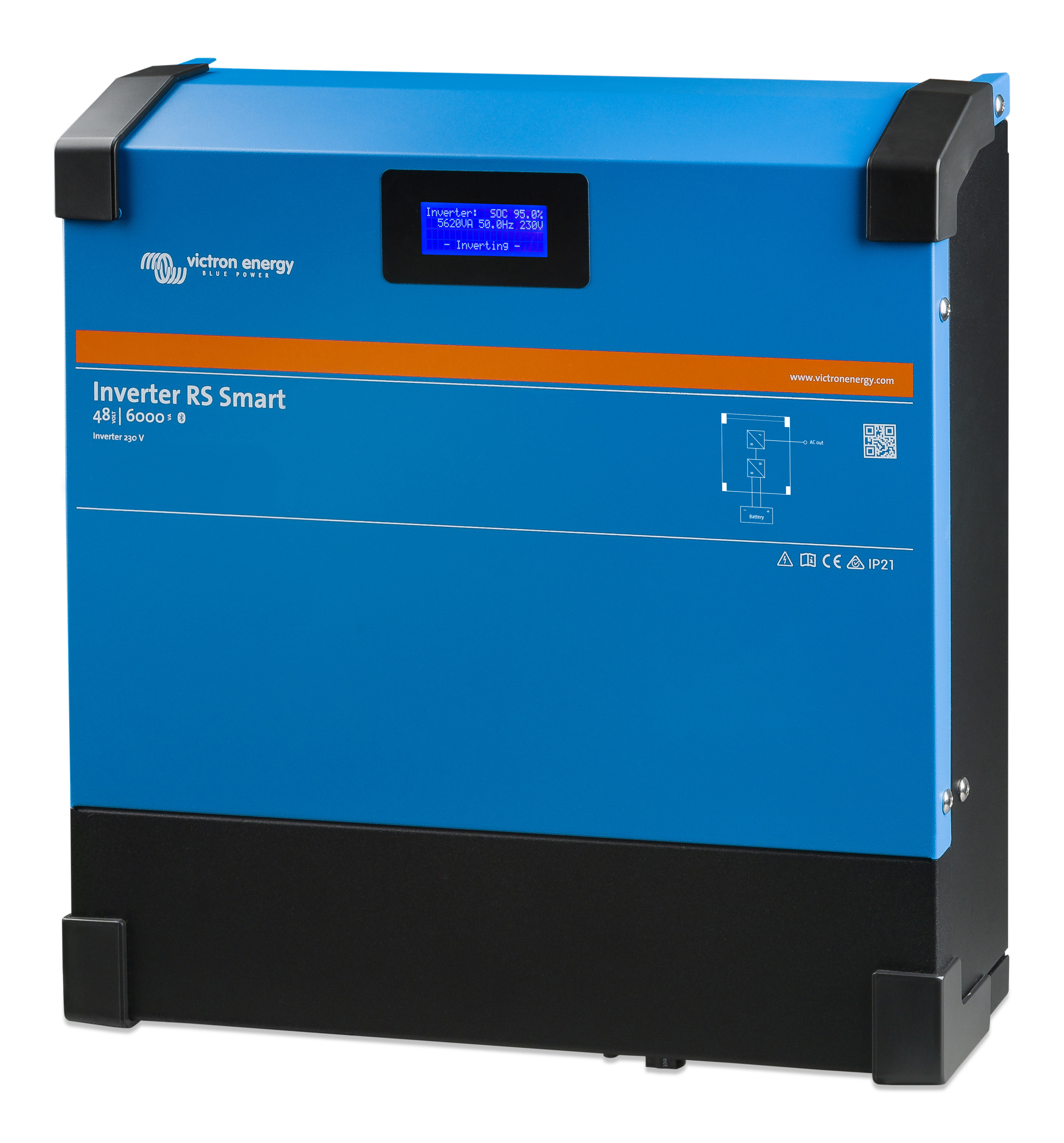

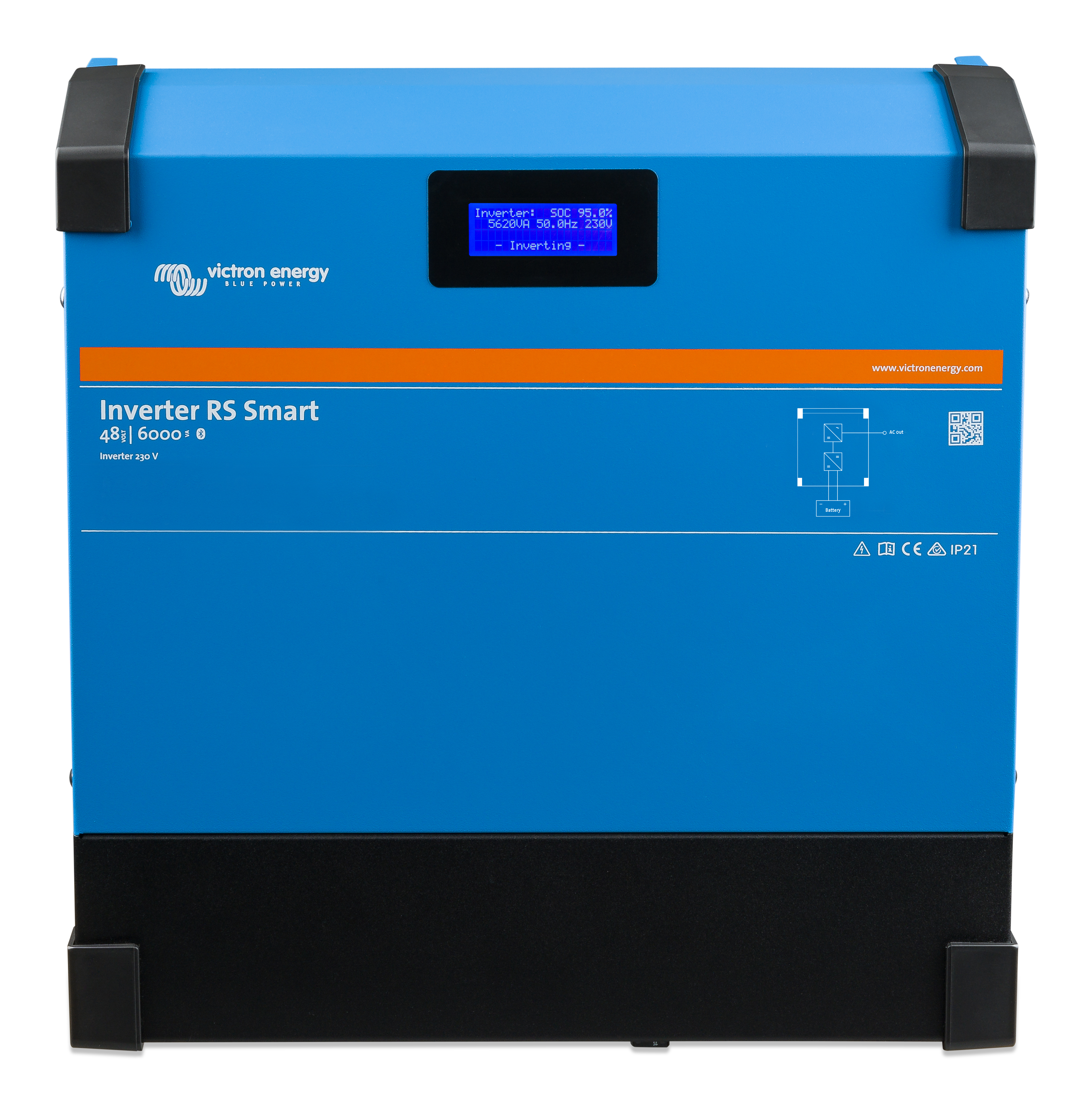

Inverter RS Smart

The Inverter RS Smart is a powerful 48 VDC,
6 kVA 230 VAC inverter. It features a modern design and high frequency technology,
weighing only 11kg and has excellent efficiency,
low standby power,
and very quiet operation. <o:p></o:p> The inverter is equipped with a display to read out battery and inverter details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this,
the inverter has a VE.Can Port,
for connection to a GX device for system monitoring.

Códigos SKU

PIN482600000

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 48 V
D C Input Voltage Range: [ 38, 62 ] V
A C Output Voltage: 230 V
Frequency: 50 Hz
Maximum Cont Inv Current: 25 A
Cont Power W25A: 4, 800 W
Cont Power W25B: 5, 300 W
Cont Power W40: 4, 500 W
Cont Power W65: 3, 000 W
Peak Power Rating3S: 9, 000 W
Peak Power Rating4M: 7, 000 W
Short Circuit Current: 50 A
Max Efficiency: 96.5 %
Zero Load Power: 20 W
Charge Voltage Range: [ 36, 60 ] V
Charge Voltage Absorption: 57.6 V
Charge Voltage Float: 55.2 V
Max Ac Coupled Solar: 5, 000 W
Max Charge Current: 88 A
Battery Temperature Sensor: Included
Battery Voltage Sense: 1
Parallel3Phase: 12 parallel units supported, 3 phase supports 4 units per phase
Programmable Relay: DC rating: 4A up to 35VDC and 1A up to 70VDC
Protections: Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output
Communication Port: Bluetooth, VE.Direct, VE.Can
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
General Purpose Port: Yes, 2x
Remote On Off: 1
Fully Programable: 1
Operating Temp Range: [ -40, 65 ] °C
Cooling: 1
Max Altitude: 2, 000 m
Max Humidity: 95 %

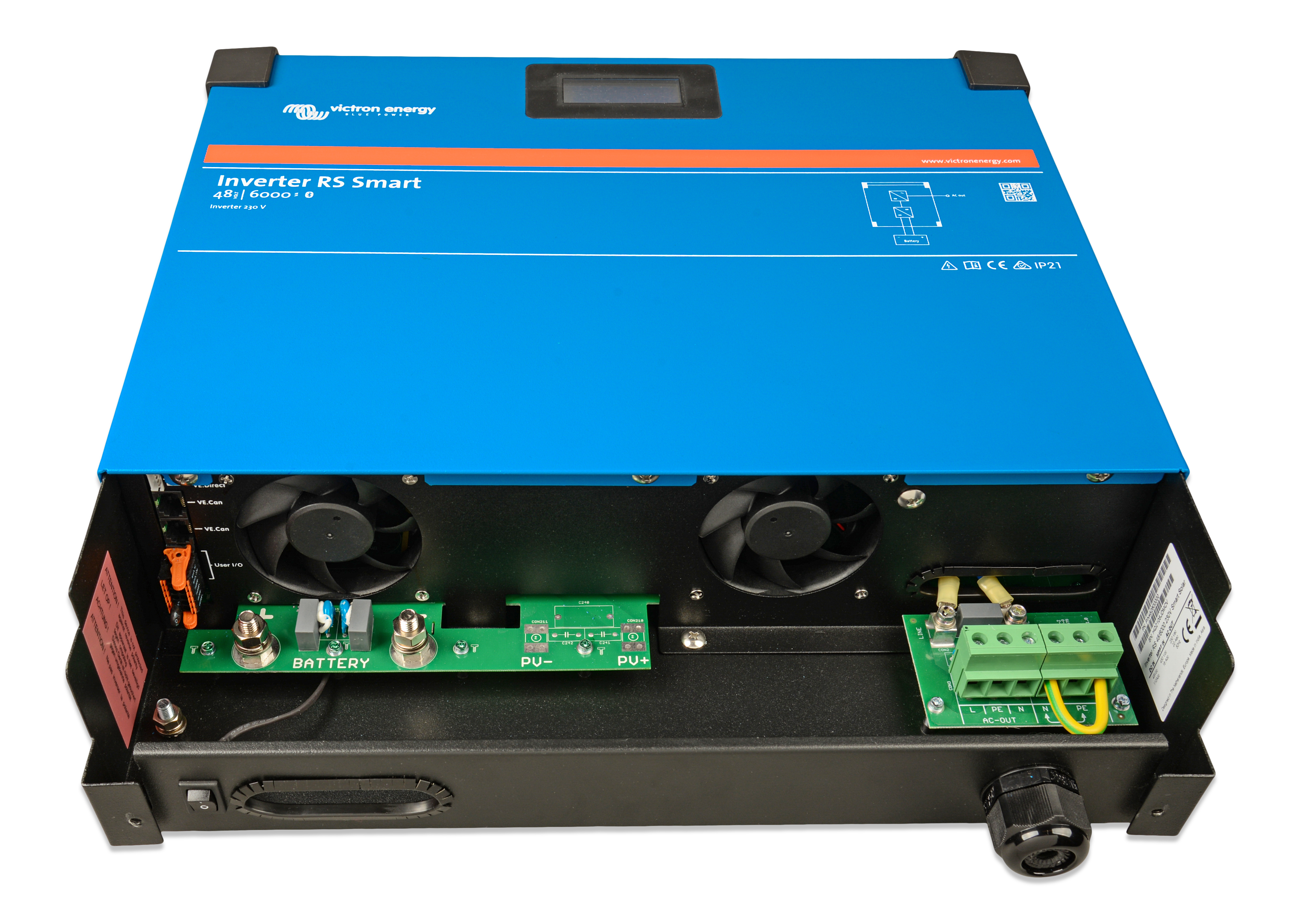

Ac Connection: Screw terminals 10 mm² (8 AWG)
Battery Connection: M8 bolts
Colour: Blue (RAL 5012) and Black (RAL 9017)
Material: Steel
Protection Category: IP21
Weight: 11 kg
Height: 425 mm
Width: 440 mm
Depth: 125 mm
Safety: EN-IEC 60335-1, EN-IEC 62109-1, EN-IEC 62109-2
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
