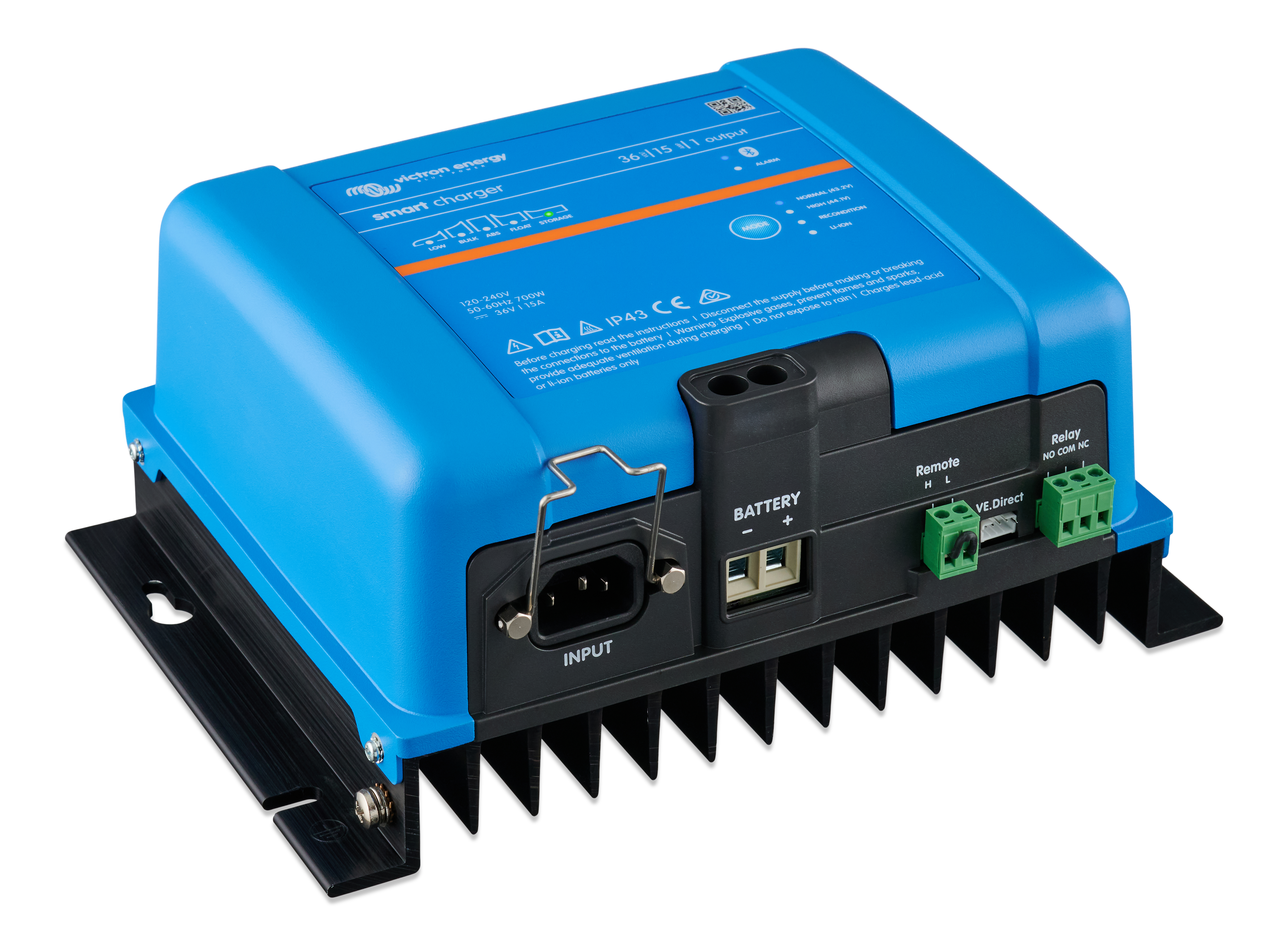

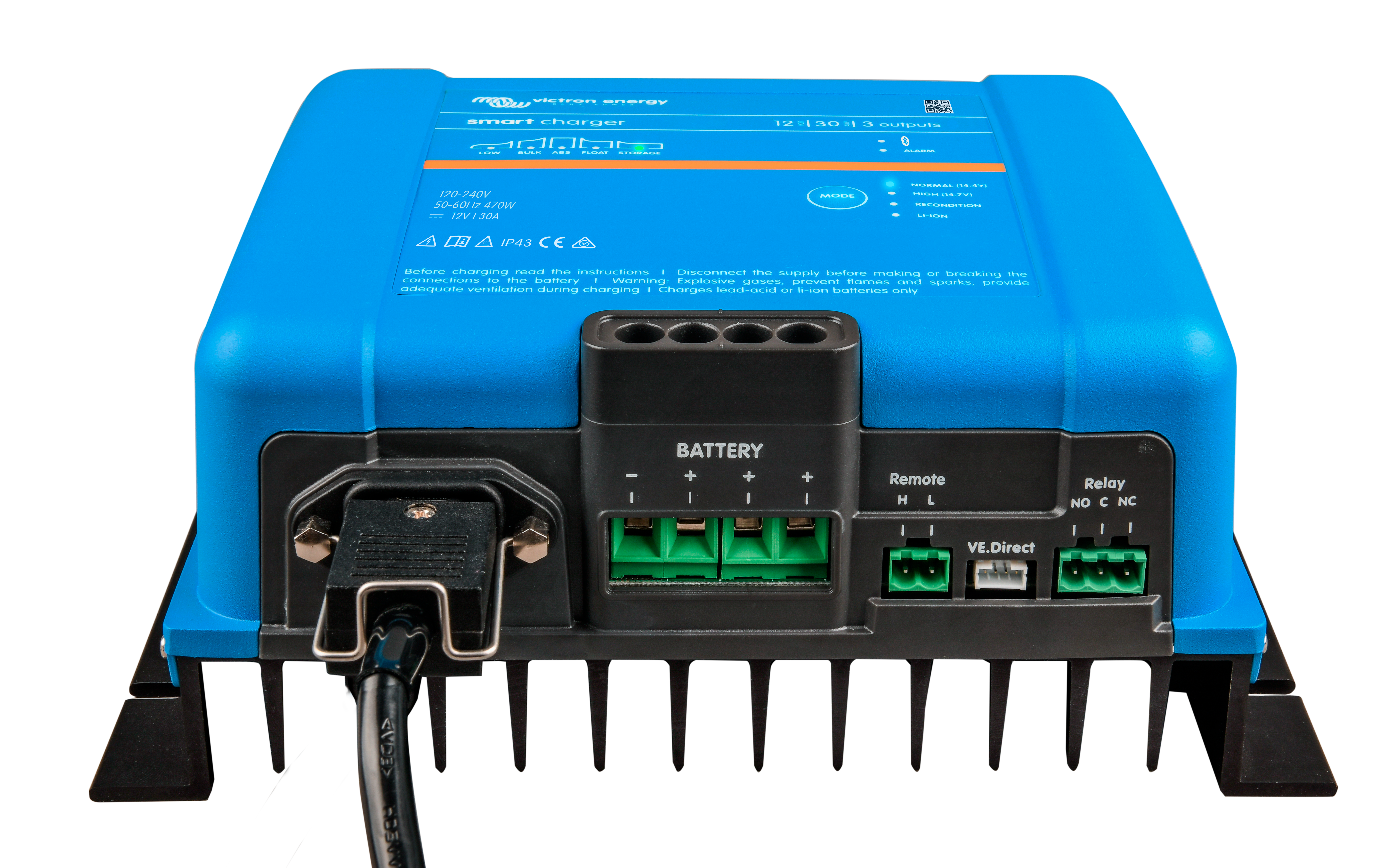

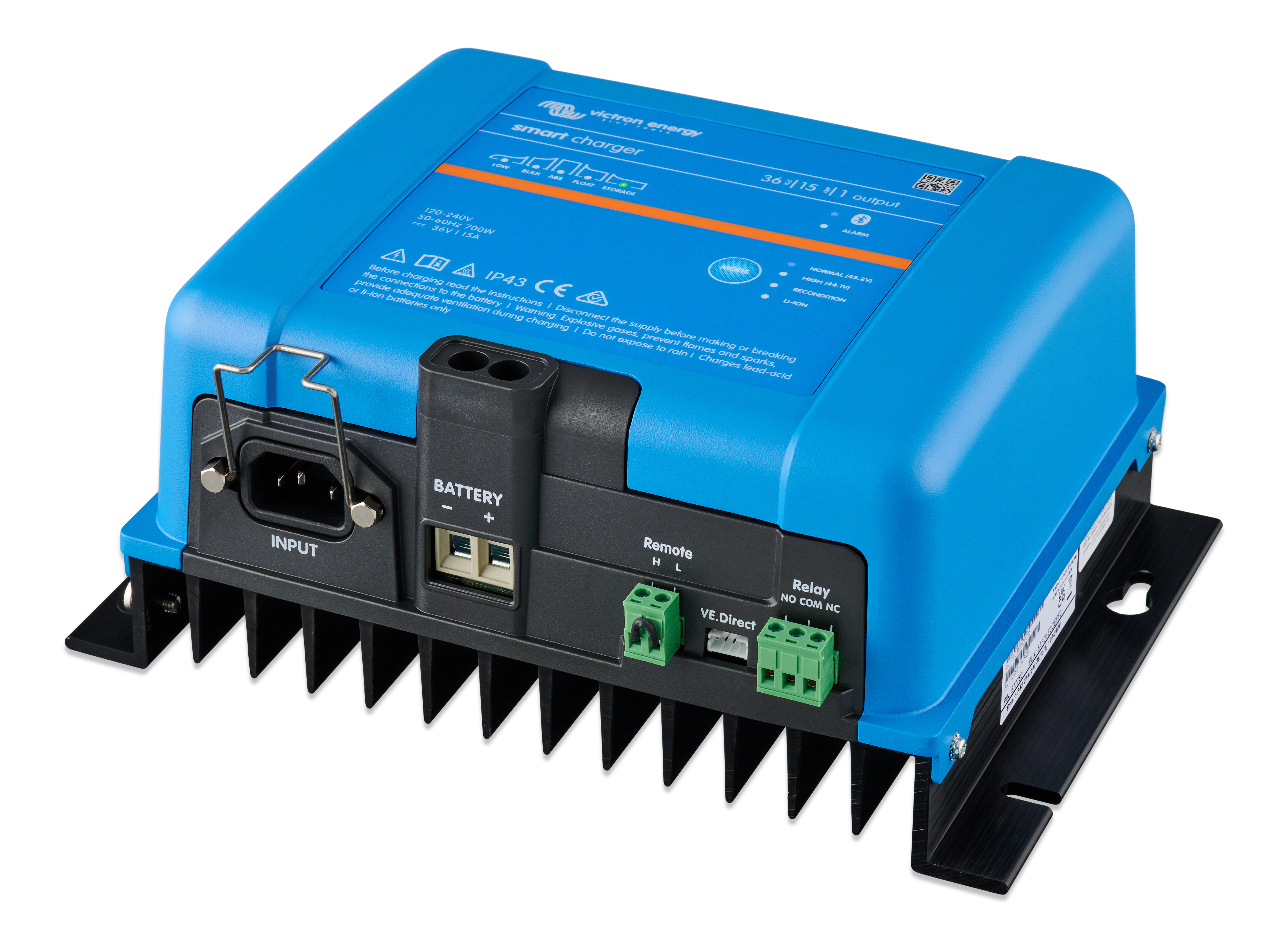

Smart IP43 Charger

SKU principal: PSC123051085

Smart IP43 Charger

The Smart IP43 Charger is an adaptive,
intelligent charger available across all four common battery voltages: 12V,
24V,
36V and 48V,
making it suitable for a wide range of applications including marine,
eMobility,
leisure and off-grid,
and industrial.<o:p></o:p> With built-in Bluetooth,
monitor,
configure and set alarms directly from your phone using the VictronConnect app,
or connect via VE.Direct to a GX device for full system integration and remote monitoring via the VRM Portal.The adaptive 6-stage charging algorithm,
VE.Smart Networking,
LiFePO₄ compatibility,
and fully programmable charge algorithm make the Smart IP43 a versatile and future-proof choice for any system from 12V to 48V.<o:p></o:p>

Códigos SKU

PSC123051085 PSC123053085 PSC125051085 PSC125053085 PSC241651085 PSC241653085 PSC242551085 PSC242553085 PSC125051095 PSC125053095 PSC123051095 PSC123053095 PSC241651095 PSC242551095 PSC242553095 PSC361550095 PSC481350095

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 24 V
A C Input Voltage Range: [ 58, 250 ] VAC
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 375 ] VDC
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Back Current Drain: 1 mA
No Load Power Consumption: 1 W
Efficiency: 96 %
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 6-stage
Lithium Compatible: 1
Charge Current Nominal: 25 A
Charge Current Low: 12.5 A
Number Full Outputs: 1
Low Currentoutput: 1
Temperature Compensation: -32 mV/°C
Temperature Sensor: Optional (Smart Battery Sense)
Power Supply Mode: 1
Fully Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Data Communication: Bluetooth, VE.Direct
Remote On Off Terminal: 1
Programmable Relay: SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC
Protections: Battery reverse polarity (fuse not user accessible), Output short-circuit, Over temperature
Operating Temperature Range: [ -20, 60 ] °C
Ouput Full Rated: 40 °C
Linearly Derating: 20 %
Max Humidity: 95 %
Ac Connection Terminal Type: Inlet IEC 320 C14 with retainer clip (AC cord ordered separately)
Battery Connection Terminal Type: Screw terminals 16 mm² (6 AWG)
Start Battery Terminal Type: Screw terminal two pole
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 2.7 kg
Height: 180 mm
Width: 249 mm
Depth: 116 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G
Battery Voltage Nominal: 24 V
A C Input Voltage Range: [ 85, 250 ] VAC
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 375 ] VDC
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 3
Power Factor: 1
Back Current Drain: 1 mA
No Load Power Consumption: 1 W
Efficiency: 96 %
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 6-stage
Lithium Compatible: 1
Charge Current Nominal: 25 A
Charge Current Low: 12.5 A
Number Full Outputs: 3
Temperature Compensation: -32 mV/°C
Temperature Sensor: Optional (Smart Battery Sense)
Power Supply Mode: 1
Fully Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Data Communication: VE.Direct, Bluetooth
Remote On Off Terminal: 1
Programmable Relay: SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC
Protections: Battery reverse polarity (fuse not user accessible), Output short-circuit, Over temperature
Operating Temperature Range: [ -20, 60 ] °C
Ouput Full Rated: 40 °C
Linearly Derating: 20 %
Max Humidity: 95 %
Ac Connection Terminal Type: Inlet IEC 320 C14 with retainer clip (AC cord ordered separately)
Battery Connection Terminal Type: Screw terminals 16 mm² (6 AWG)
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP43 (electronic components)
Weight: 2.7 kg
Height: 180 mm
Width: 249 mm
Depth: 116 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G
Battery Voltage Nominal: 36 V
A C Input Voltage Range: [ 85, 250 ] VAC
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 375 ] VDC
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Power Factor: 1
Back Current Drain: 1 mA
No Load Power Consumption: 1 W
Charge Voltage Absorption: Normal: 43.2V High: 44.1V Lithium: 42.6V
Charge Voltage Float: Normal: 41.4V High: 41.4V Lithium: N/A
Charge Voltage Storage: Normal: 52.8V High: 52.8V Lithium: 54V
Charge Algorithm: Adaptive, 6-stage
Lithium Compatible: 1
Charge Current Nominal: 15 A
Charge Current Low: 7.5 A
Number Full Outputs: 1
Temperature Compensation: -48 mV/°C
Temperature Sensor: Optional (Smart Battery Sense)
Power Supply Mode: 1
Fully Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Data Communication: VE.Direct, Bluetooth
Remote On Off Terminal: 1
Programmable Relay: SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC
Protections: Battery reverse polarity (fuse not user accessible), Output short-circuit, Over temperature
Operating Temperature Range: [ -20, 60 ] °C
Ouput Full Rated: 40 °C
Linearly Derating: 20 %
Max Humidity: 95 %
Ac Connection Terminal Type: Inlet IEC 320 C14 with retainer clip (AC cord ordered separately)
Battery Connection Terminal Type: Screw terminals 16 mm² (6 AWG)
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 2.7 kg
Height: 180 mm
Width: 249 mm
Depth: 116 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-6-1, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-3-3
Vibration: IEC68-2-6:10-150Hz/1.0G
Battery Voltage Nominal: 48 V
A C Input Voltage Range: [ 85, 250 ] VAC
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 375 ] VDC
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Power Factor: 1
Back Current Drain: 1 mA
No Load Power Consumption: 1 W
Efficiency: 94 %
Charge Voltage Absorption: Normal: 57.6V High: 58.8V Lithium: 56.8V
Charge Voltage Float: Normal: 55.2V High: 55.2V Lithium: N/A
Charge Voltage Storage: Normal: 52.8V High: 52.8V Lithium: 54V
Charge Algorithm: Adaptive, 6-stage
Lithium Compatible: 1
Charge Current Nominal: 13 A
Charge Current Low: 6.5 A
Number Full Outputs: 1
Temperature Compensation: -64 mV/°C
Temperature Sensor: Optional (Smart Battery Sense)
Power Supply Mode: 1
Fully Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Data Communication: VE.Direct, Bluetooth
Remote On Off Terminal: 1
Programmable Relay: SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC
Protections: Battery reverse polarity (fuse not user accessible), Output short-circuit, Over temperature
Operating Temperature Range: [ -20, 60 ] °C
Ouput Full Rated: 40 °C
Linearly Derating: 20 %
Max Humidity: 95 %
Ac Connection Terminal Type: Inlet IEC 320 C14 with retainer clip (AC cord ordered separately)
Battery Connection Terminal Type: Screw terminals 16 mm² (6 AWG)
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 2.7 kg
Height: 180 mm
Width: 249 mm
Depth: 116 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-6-3, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-3-3
Vibration: IEC68-2-6:10-150Hz/1.0G
Battery Voltage Nominal: 12 V
A C Input Voltage Range: [ 85, 250 ] VAC
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 375 ] VDC
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Back Current Drain: 1 mA
No Load Power Consumption: 1 W
Efficiency: 94 %
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 6-stage
Lithium Compatible: 1
Charge Current Nominal: 50 A
Charge Current Low: 25 A
Number Full Outputs: 1
Low Currentoutput: 1
Temperature Compensation: -16 mV/°C
Temperature Sensor: Optional (Smart Battery Sense)
Power Supply Mode: 1
Fully Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Data Communication: VE.Direct, Bluetooth
Remote On Off Terminal: 1
Programmable Relay: SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC
Protections: Battery reverse polarity (fuse not user accessible), Output short-circuit, Over temperature
Operating Temperature Range: [ -20, 60 ] °C
Ouput Full Rated: 40 °C
Linearly Derating: 20 %
Max Humidity: 95 %
Ac Connection Terminal Type: Inlet IEC 320 C14 with retainer clip (AC cord ordered separately)
Battery Connection Terminal Type: Screw terminals 16 mm² (6 AWG)
Start Battery Terminal Type: Screw terminal two pole
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 2.7 kg
Height: 180 mm
Width: 249 mm
Depth: 116 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G
Battery Voltage Nominal: 24 V
A C Input Voltage Range: [ 85, 250 ] VAC
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 375 ] VDC
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Back Current Drain: 1 mA
No Load Power Consumption: 1 W
Efficiency: 96 %
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 6-stage
Lithium Compatible: 1
Charge Current Nominal: 16 A
Charge Current Low: 8 A
Number Full Outputs: 1
Low Currentoutput: 1
Temperature Compensation: -32 mV/°C
Temperature Sensor: Optional (Smart Battery Sense)
Power Supply Mode: 1
Fully Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Data Communication: Bluetooth, VE.Direct
Remote On Off Terminal: 1
Programmable Relay: SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC
Protections: Battery reverse polarity (fuse not user accessible), Output short-circuit, Over temperature
Operating Temperature Range: [ -20, 60 ] °C
Ouput Full Rated: 40 °C
Linearly Derating: 20 %
Max Humidity: 95 %
Ac Connection Terminal Type: Inlet IEC 320 C14 with retainer clip (AC cord ordered separately)
Battery Connection Terminal Type: Screw terminals 16 mm² (6 AWG)
Start Battery Terminal Type: Screw terminal two pole
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 2.7 kg
Height: 180 mm
Width: 249 mm
Depth: 116 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G
Battery Voltage Nominal: 12 V
A C Input Voltage Range: [ 85, 250 ] VAC
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 375 ] VDC
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 3
Power Factor: 1
Back Current Drain: 1 mA
No Load Power Consumption: 1 W
Efficiency: 95 %
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 6-stage
Lithium Compatible: 1
Charge Current Nominal: 30 A
Charge Current Low: 15 A
Number Full Outputs: 3
Temperature Compensation: -16 mV/°C
Temperature Sensor: Optional (Smart Battery Sense)
Power Supply Mode: 1
Fully Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Data Communication: Bluetooth, VE.Direct
Remote On Off Terminal: 1
Programmable Relay: SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC
Protections: Battery reverse polarity (fuse not user accessible), Output short-circuit, Over temperature
Operating Temperature Range: [ -20, 60 ] °C
Ouput Full Rated: 40 °C
Linearly Derating: 20 %
Max Humidity: 95 %
Ac Connection Terminal Type: Inlet IEC 320 C14 with retainer clip (AC cord ordered separately)
Battery Connection Terminal Type: Screw terminals 16 mm² (6 AWG)
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 2.7 kg
Height: 180 mm
Width: 249 mm
Depth: 116 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G
Battery Voltage Nominal: 12 V
A C Input Voltage Range: [ 85, 250 ] VAC
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 375 ] VDC
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 3
Power Factor: 1
Back Current Drain: 1 mA
No Load Power Consumption: 1 W
Efficiency: 94 %
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 6-stage
Lithium Compatible: 1
Charge Current Nominal: 50 A
Charge Current Low: 25 A
Number Full Outputs: 3
Temperature Compensation: -16 mV/°C
Temperature Sensor: Optional (Smart Battery Sense)
Power Supply Mode: 1
Fully Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Data Communication: Bluetooth, VE.Direct
Remote On Off Terminal: 1
Programmable Relay: SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC
Protections: Battery reverse polarity (fuse not user accessible), Output short-circuit, Over temperature
Operating Temperature Range: [ -20, 60 ] °C
Ouput Full Rated: 40 °C
Linearly Derating: 20 %
Max Humidity: 95 %
Ac Connection Terminal Type: Inlet IEC 320 C14 with retainer clip (AC cord ordered separately)
Battery Connection Terminal Type: Screw terminals 16 mm² (6 AWG)
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 2.7 kg
Height: 180 mm
Width: 249 mm
Depth: 116 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G
Battery Voltage Nominal: 12 V
A C Input Voltage Range: [ 85, 250 ] VAC
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 375 ] VDC
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Back Current Drain: 1 mA
No Load Power Consumption: 1 W
Efficiency: 95 %
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 6-stage
Lithium Compatible: 1
Charge Current Nominal: 30 A
Charge Current Low: 15 A
Number Full Outputs: 1
Low Currentoutput: 1
Temperature Compensation: -16 mV/°C
Temperature Sensor: Optional (Smart Battery Sense)
Power Supply Mode: 1
Fully Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Data Communication: Bluetooth, VE.Direct
Remote On Off Terminal: 1
Programmable Relay: SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC
Protections: Battery reverse polarity (fuse not user accessible), Output short-circuit, Over temperature
Operating Temperature Range: [ -20, 60 ] °C
Ouput Full Rated: 40 °C
Linearly Derating: 20 %
Max Humidity: 95 %
Ac Connection Terminal Type: Inlet IEC 320 C14 with retainer clip (AC cord ordered separately)
Battery Connection Terminal Type: Screw terminals 16 mm² (6 AWG)
Start Battery Terminal Type: Screw terminal two pole
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP43
Weight: 2.7 kg
Height: 180 mm
Width: 249 mm
Depth: 116 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Vibration: IEC68-2-6:10-150Hz/1.0G

← Volver a productos Victron
