Skylla-IP65

SKU principal: SKY012070000

Skylla-IP65

A powerful,
waterproof and intelligent battery charger with a 7-stage adaptive charge algorithm,
suitable for a wide range of battery types and chemistries featuring a dedicated Lithium-ion charge algorithm.The wide range universal input voltage adds flexibility to the installation,
the charger will maintain its full output power no matter where it is located in the world. The IP65 rating makes this charger especially suitable for marine,
mobile,
and industrial applications and it can withstand the rigors of an adverse environment: heat,

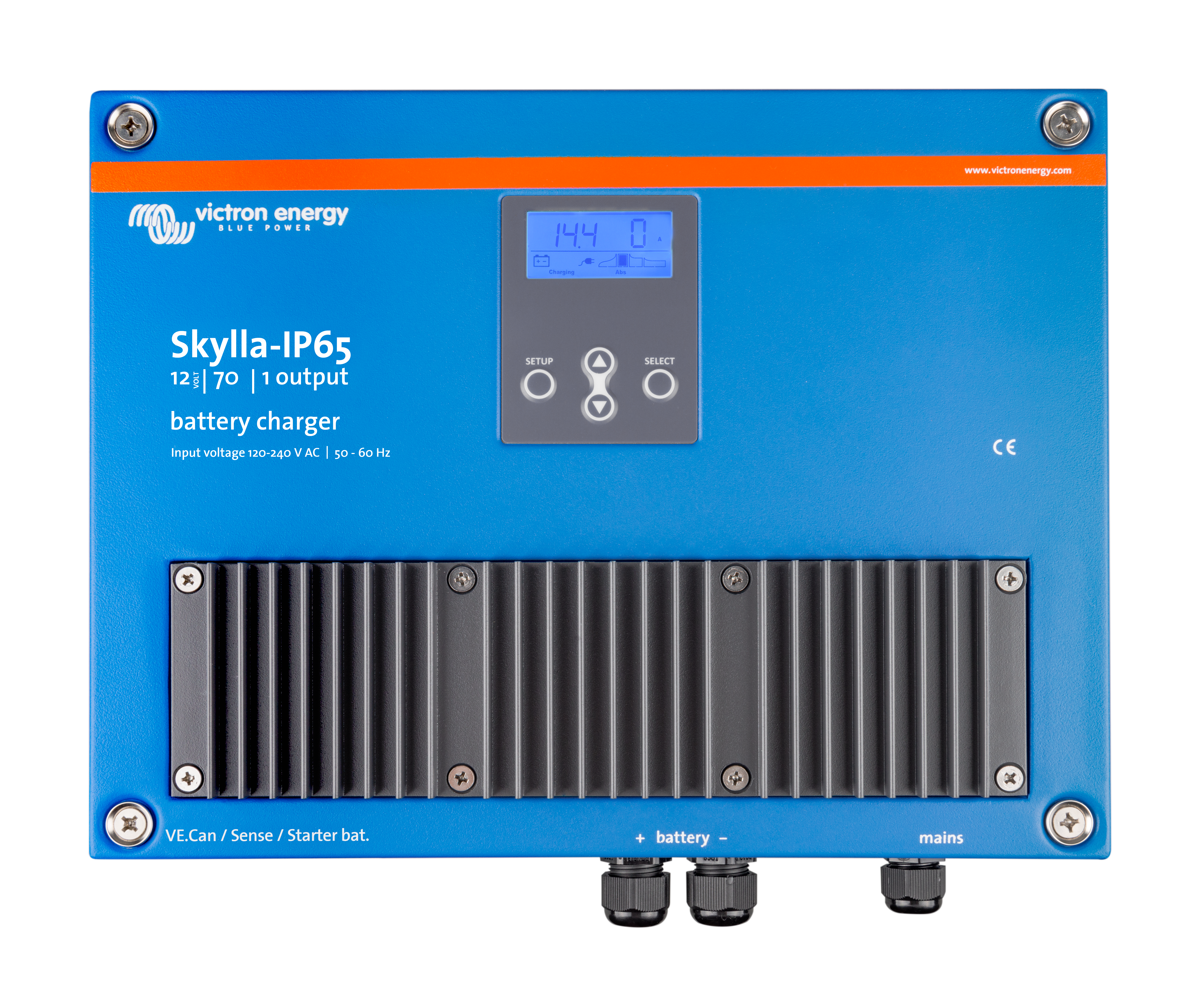

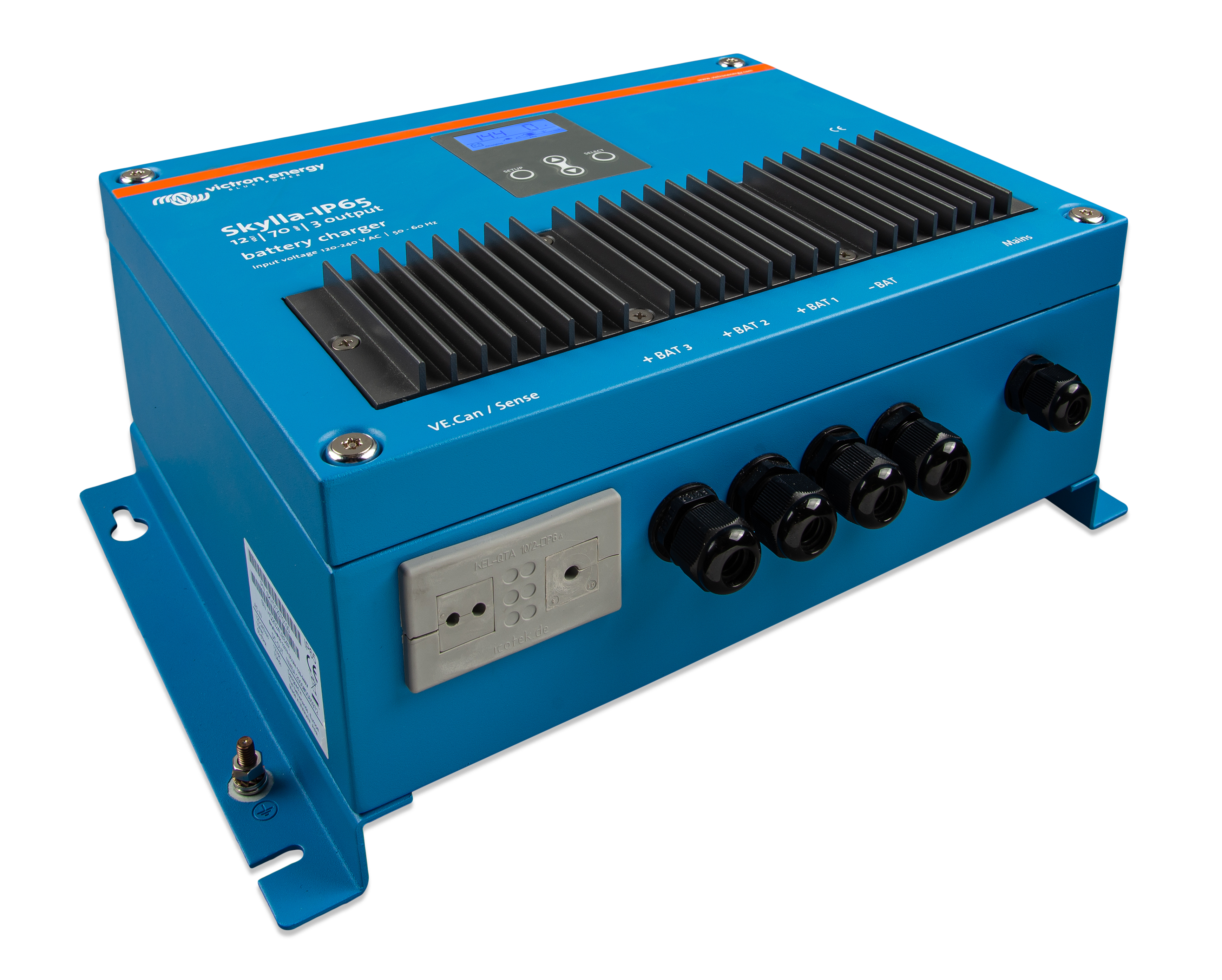

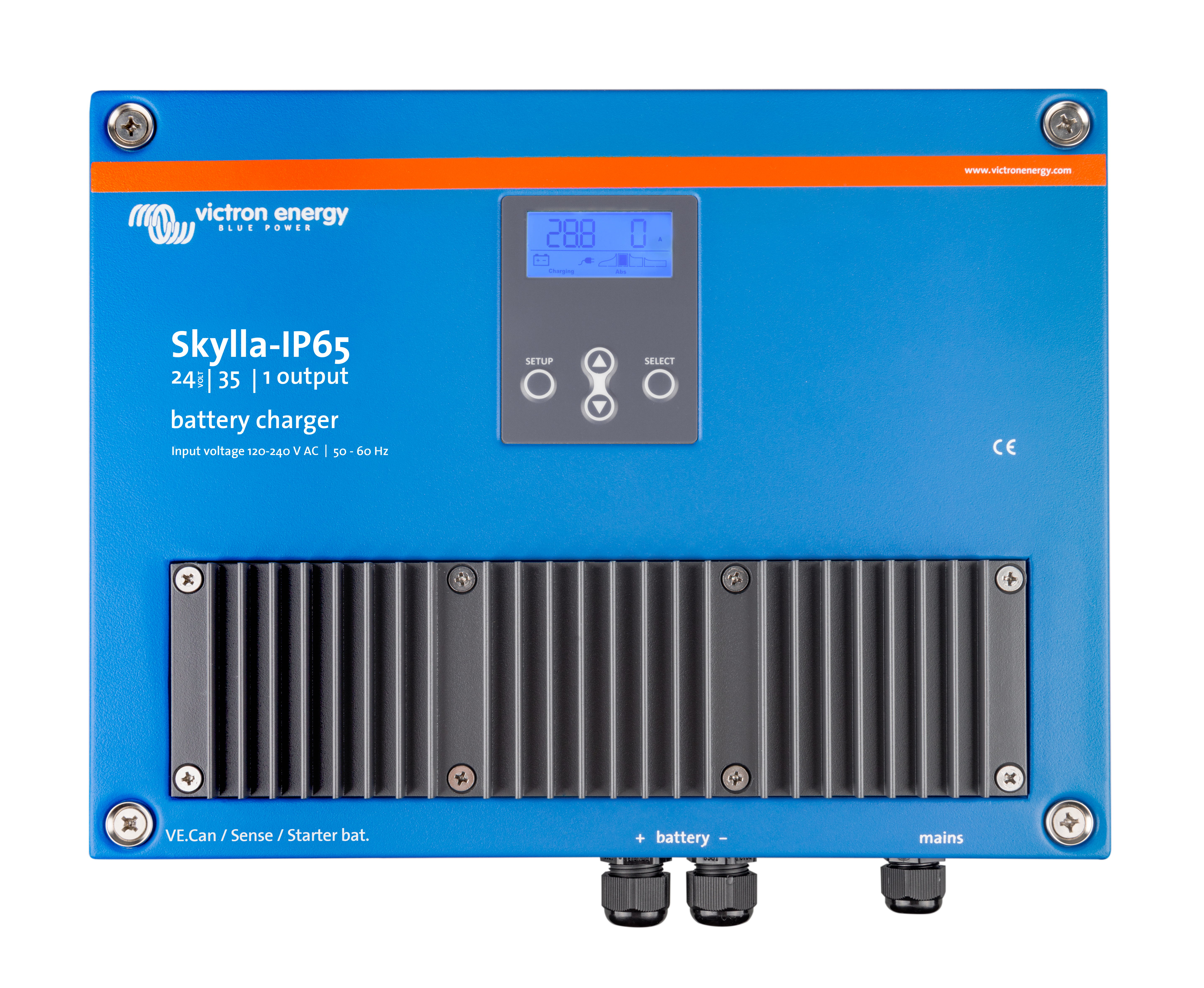

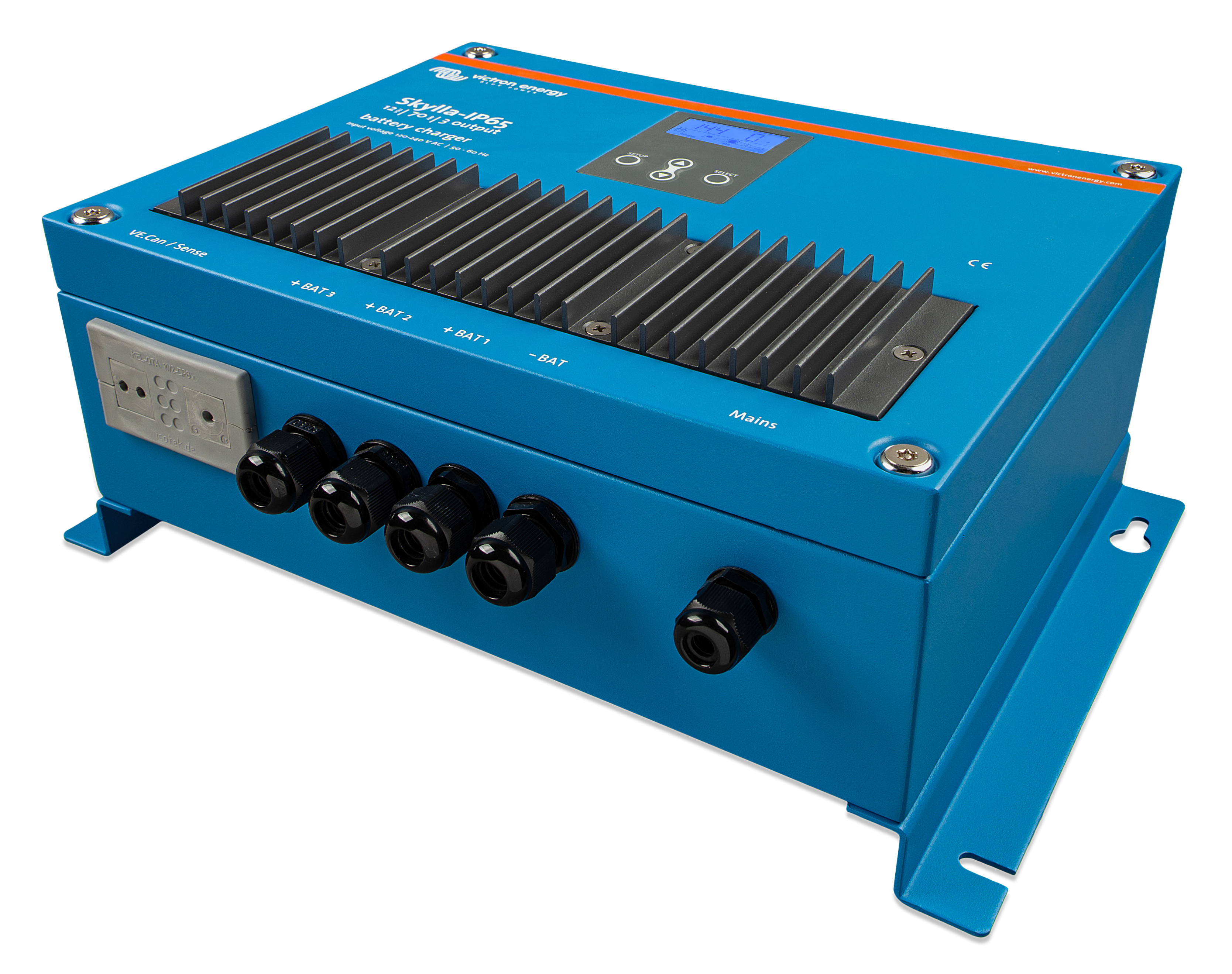

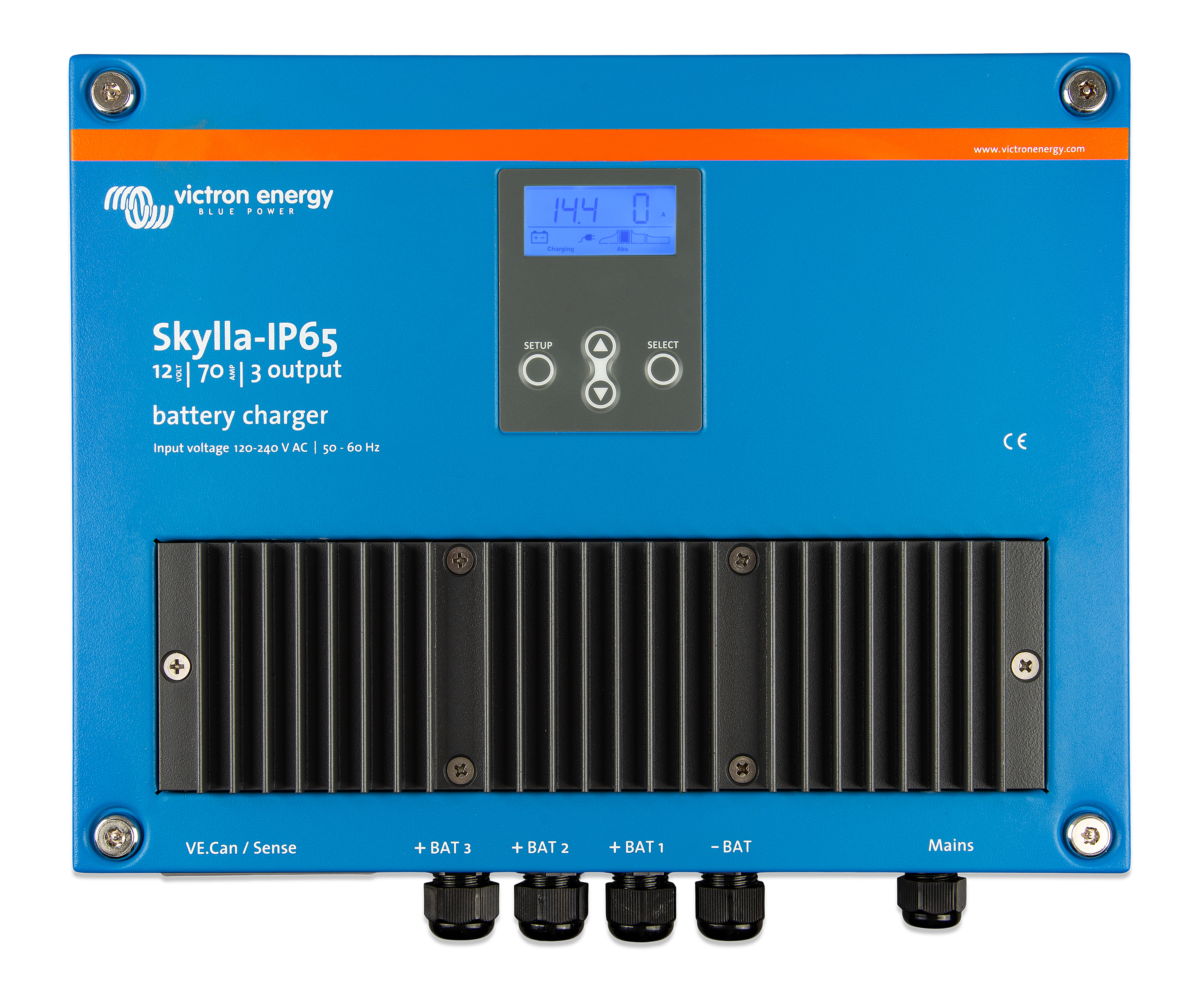

humidity and salt air. Both models are available in two versions: <ul><li>3 full rated outputs</li><li>1 full rated output together with an isolated 3A trickle charge output for a starter battery</li></ul>

Códigos SKU

SKY012070000 SKY012070100 SKY024035000 SKY024035100

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 12 V
Charge Current Nominal: 70 A
A C Input Voltage: 120V or 230V
A C Input Voltage Range: [ 90, 265 ] V
A C Input Voltage Bucket: 120 V - 240 V
Max Ac Input Current100: 12 A
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 3
Power Factor: 0.98
Charge Voltage Absorption: 14.4 V
Charge Voltage Float: 13.8 V
Charge Voltage Storage: 13.2 V
Number Full Outputs: 3
Charge Algorithm: Adaptive, 7-stage
Battery Capacity Range: [ 350, 700 ] Ah
Charge Algorithm Lithium: Three stage, with on-off control or CAN-bus control
Temperature Sensor: Included
Programable: 1
Can Be Used As Power Supply: 1
Remote Port: Yes (can be connected to a Li-Ion BMS
Can Port: VE.Can, two RJ45 connectors, NMEA2000 protocol, not isolated
Parallel Operation: Yes, with VE.Can
Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Forced Cooling: 1
Protections: Output short-circuit, Over temperature, Battery reverse polarity (fuse)
Operating Temperature Range: [ -20, 60 ] °C
Max Humidity: 95 %
Ac Connection Terminal Type: screw-clamp 6 mm² (AWG 10)
Battery Connection Terminal Type: M6 bolts
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP65
Weight: 6 kg
Height: 401 mm
Width: 265 mm
Depth: 151 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 35 A
A C Input Voltage: 120V or 230V
A C Input Voltage Range: [ 90, 265 ] V
A C Input Voltage Bucket: 120 V - 240 V
Max Ac Input Current100: 12 A
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 0.98
Charge Voltage Absorption: 28.8 V
Charge Voltage Float: 27.6 V
Charge Voltage Storage: 26.4 V
Number Full Outputs: 1
Low Currentoutput: 1
Charge Current Starter: 3 A
Charge Algorithm: Adaptive, 7-stage
Battery Capacity Range: [ 150, 350 ] Ah
Charge Algorithm Lithium: Three stage, with on-off control or CAN-bus control
Temperature Sensor: Included
Programable: 1
Can Be Used As Power Supply: 1
Remote Port: Yes (can be connected to a Li-Ion BMS
Can Port: VE.Can, two RJ45 connectors, NMEA2000 protocol, not isolated
Parallel Operation: Yes, with VE.Can
Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Forced Cooling: 1
Protections: Output short-circuit, Over temperature, Battery reverse polarity (fuse)
Operating Temperature Range: [ -20, 60 ] °C
Max Humidity: 95 %
Ac Connection Terminal Type: screw-clamp 6 mm² (AWG 10)
Battery Connection Terminal Type: M6 bolts
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP65
Weight: 6 kg
Height: 401 mm
Width: 265 mm
Depth: 151 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 35 A
A C Input Voltage: 120V or 230V
A C Input Voltage Range: [ 90, 265 ] V
A C Input Voltage Bucket: 120 V - 240 V
Max Ac Input Current100: 12 A
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 3
Power Factor: 0.98
Charge Voltage Absorption: 28.8 V
Charge Voltage Float: 27.6 V
Charge Voltage Storage: 26.4 V
Number Full Outputs: 3
Low Currentoutput
Charge Algorithm: Adaptive, 7-stage
Battery Capacity Range: [ 150, 350 ] Ah
Charge Algorithm Lithium: Three stage, with on-off control or CAN-bus control
Temperature Sensor: Included
Programable: 1
Can Be Used As Power Supply: 1
Remote Port: Yes (can be connected to a Li-Ion BMS
Can Port: VE.Can, two RJ45 connectors, NMEA2000 protocol, not isolated
Parallel Operation: Yes, with VE.Can
Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Forced Cooling: 1
Protections: Output short-circuit, Over temperature, Battery reverse polarity (fuse)
Operating Temperature Range: [ -20, 60 ] °C
Max Humidity: 95 %
Ac Connection Terminal Type: screw-clamp 6 mm² (AWG 10)
Battery Connection Terminal Type: M6 bolts
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP65
Weight: 6 kg
Height: 401 mm
Width: 265 mm
Depth: 151 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 70 A
A C Input Voltage: 120V or 230V
A C Input Voltage Range: [ 90, 265 ] V
A C Input Voltage Bucket: 120 V - 240 V
Max Ac Input Current100: 12 A
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 0.98
Charge Voltage Absorption: 14.4 V
Charge Voltage Float: 13.8 V
Charge Voltage Storage: 13.2 V
Number Full Outputs: 1
Low Currentoutput: 1
Charge Current Starter: 3 A
Charge Algorithm: Adaptive, 7-stage
Charge Algorithm Lithium: Three stage, with on-off control or CAN-bus control
Temperature Sensor: Included
Programable: 1
Can Be Used As Power Supply: 1
Remote Port: Yes (can be connected to a Li-Ion BMS
Can Port: VE.Can, two RJ45 connectors, NMEA2000 protocol, not isolated
Parallel Operation: Yes, with VE.Can
Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Forced Cooling: 1
Protections: Battery reverse polarity (fuse), Over temperature, Output short-circuit
Operating Temperature Range: [ -20, 60 ] °C
Max Humidity: 95 %
Ac Connection Terminal Type: screw-clamp 6 mm² (AWG 10)
Battery Connection Terminal Type: M6 bolts
Material: Steel
Colour: Blue (RAL 5012)
Protection Category: IP65
Weight: 6 kg
Height: 401 mm
Width: 265 mm
Depth: 151 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
