Charger

SKU principal: PCH012030001

Charger

Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V,
50/60Hz. The Charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.

Códigos SKU

PCH012030001 PCH012050001 PCH024016001 PCH024025001

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 12 V
A C Input Voltage Range: [ 90, 265 ] V
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 3
Power Factor: 1
Charge Voltage Absorption: 14.4 V
Charge Voltage Float: 13.8 V
Charge Voltage Storage: 13.2 V

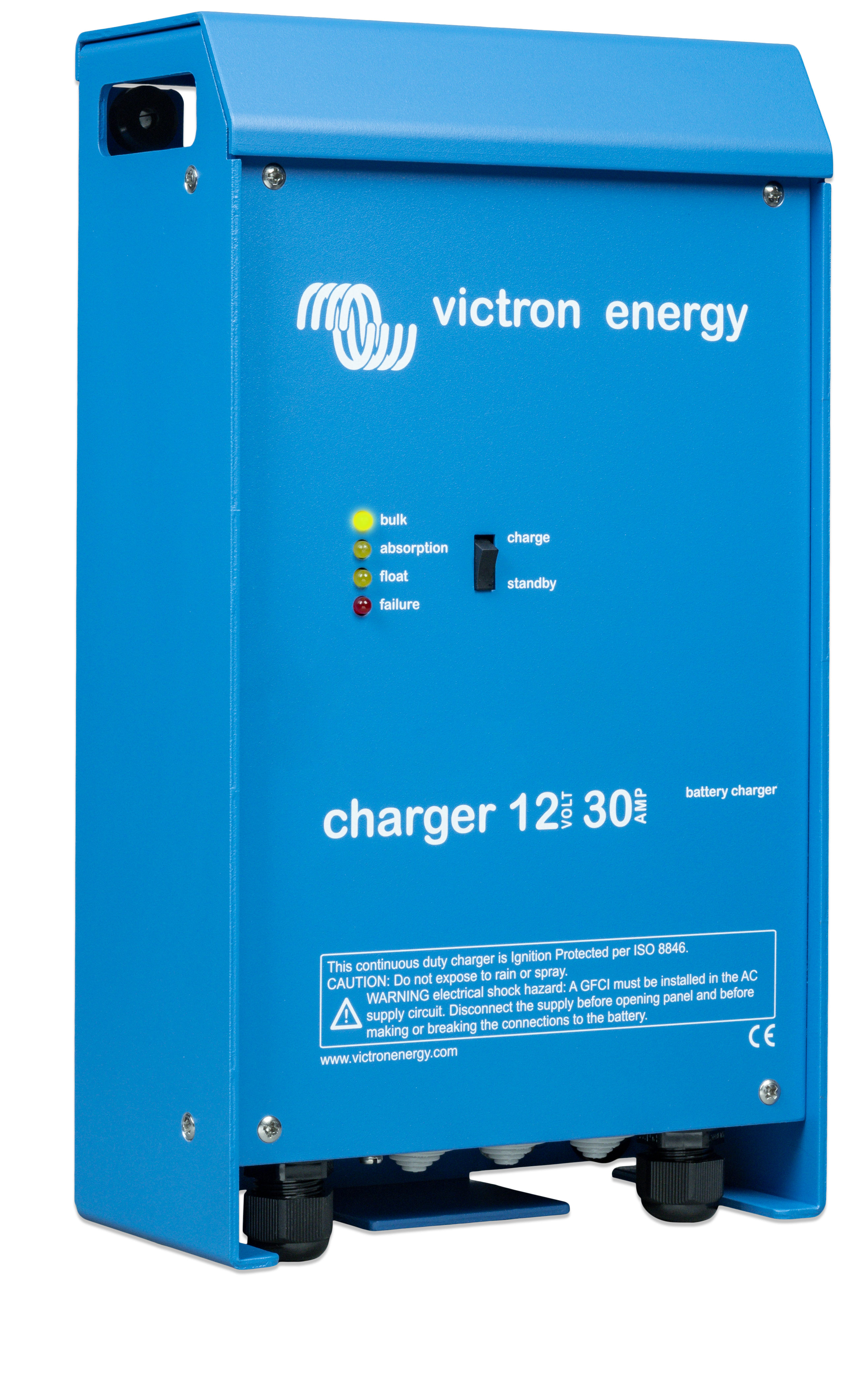

Charge Current Nominal: 30 A
Charge Current Starter: 4 A
Charge Algorithm: Adaptive, 4-stage
Battery Capacity Range: [ 100, 400 ] Ah
Temperature Sensor: Included
Programable: Settings can be change via a data port. RJ45 UTP cable and MK2-USB interface are required (not included)
Can Be Used As Power Supply: 1
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Battery reverse polarity, Over temperature
Operating Temperature Range: [ -20, 60 ] °C
Max Humidity: 95 %
Ac Connection Terminal Type: Screw terminals 4 mm² (11 AWG)
Battery Connection Terminal Type: M6 bolts
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 3.8 kg
Height: 350 mm
Width: 200 mm
Depth: 108 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3
Vibration: IEC68-2-6:10-150Hz/1.0G
Battery Voltage Nominal: 12 V
A C Input Voltage Range: [ 90, 265 ] V
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 3
Power Factor: 1
Charge Voltage Absorption: 14.4 V
Charge Voltage Float: 13.8 V
Charge Voltage Storage: 13.2 V

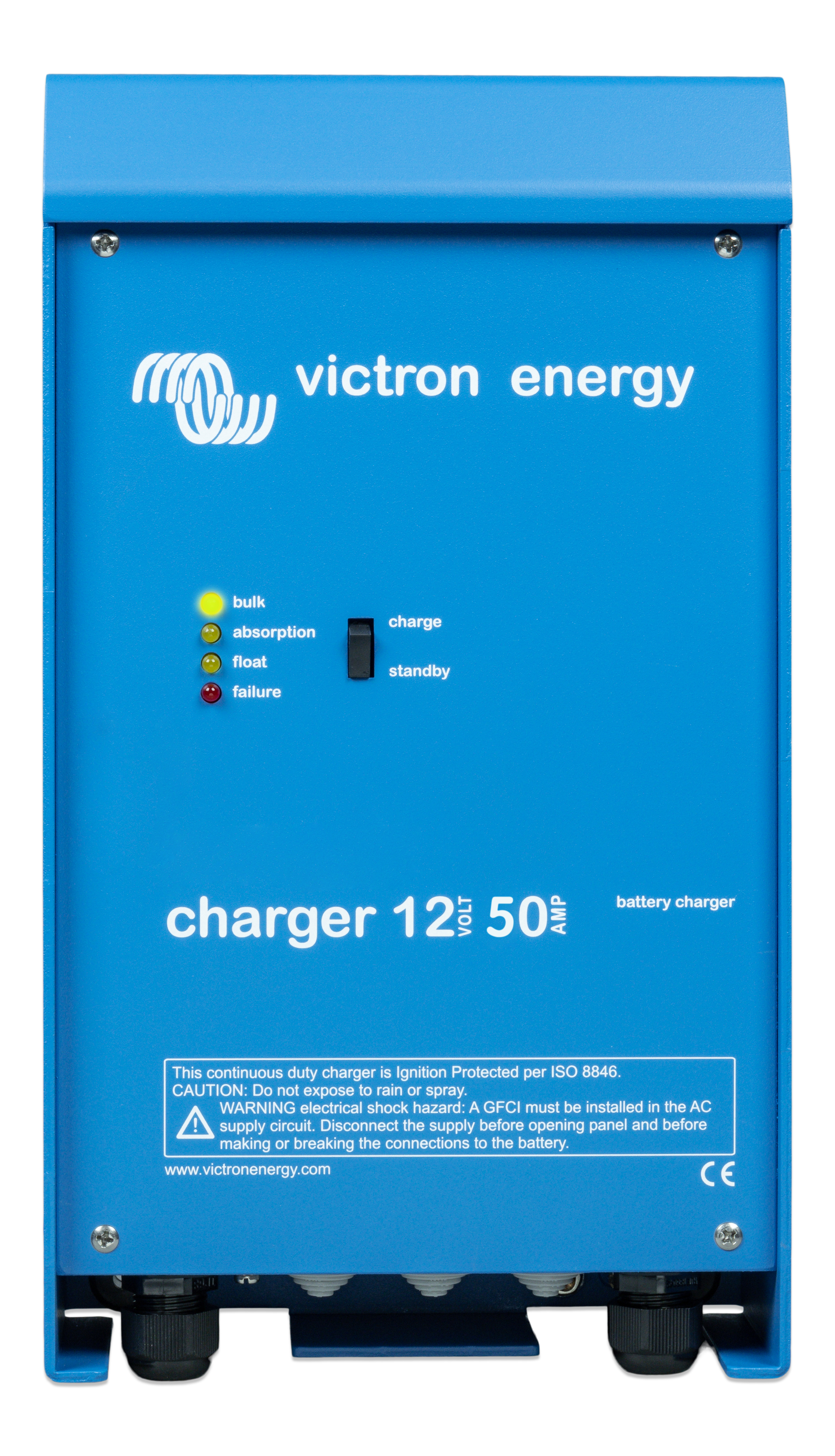

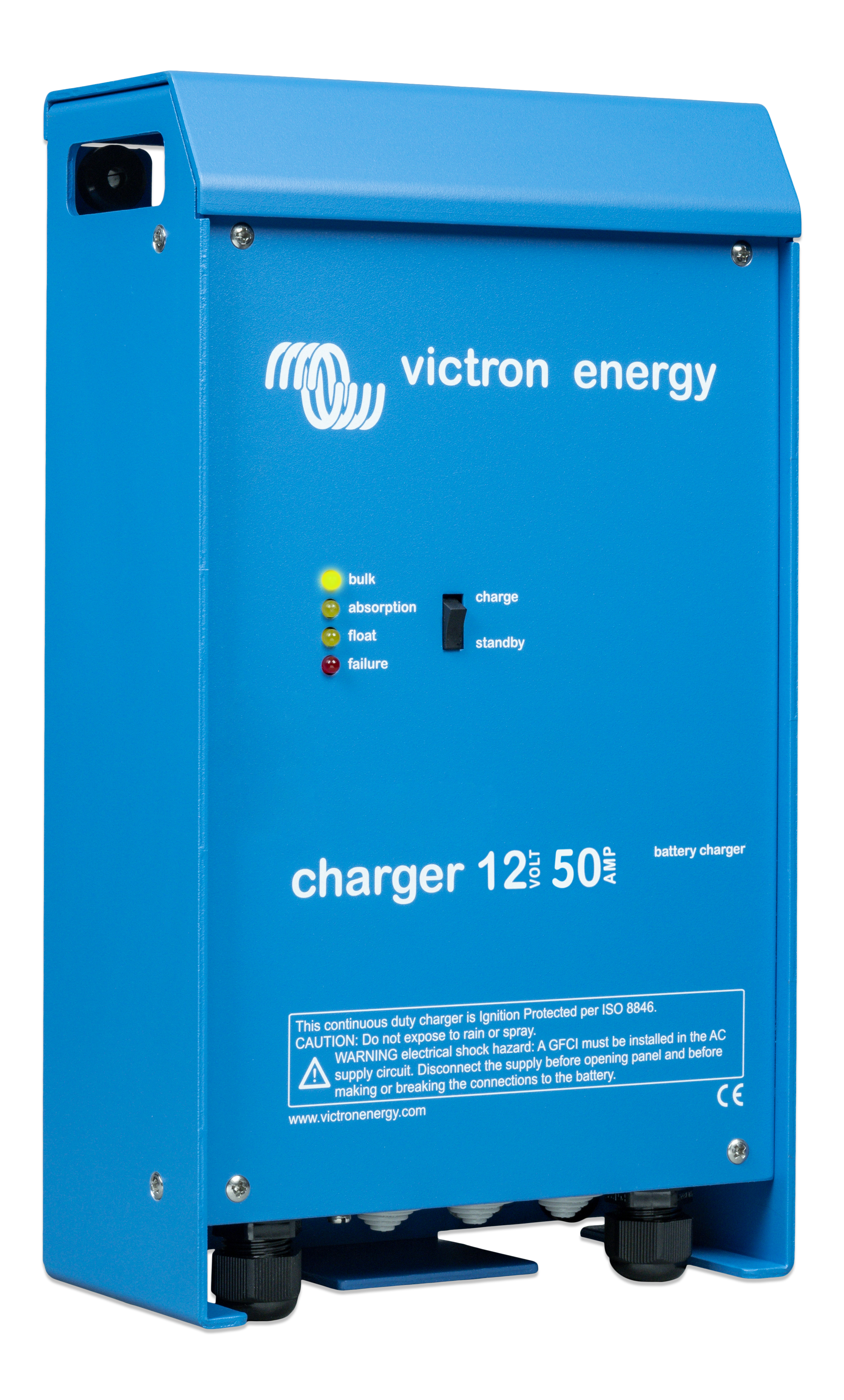

Charge Current Nominal: 50 A
Charge Current Starter: 4 A
Charge Algorithm: Adaptive, 4-stage
Battery Capacity Range: [ 200, 800 ] Ah
Temperature Sensor: Included
Programable: Settings can be change via a data port. RJ45 UTP cable and MK2-USB interface are required (not included)
Can Be Used As Power Supply: 1
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -20, 60 ] °C
Max Humidity: 95 %
Ac Connection Terminal Type: Screw terminals 4 mm² (11 AWG)
Battery Connection Terminal Type: M6 bolts
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 3.8 kg
Height: 350 mm
Width: 200 mm
Depth: 108 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3
Vibration: IEC68-2-6:10-150Hz/1.0G
Battery Voltage Nominal: 24 V
A C Input Voltage Range: [ 90, 265 ] V
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 3
Power Factor: 1
Charge Voltage Absorption: 28.8 V
Charge Voltage Float: 27.6 V
Charge Voltage Storage: 26.4 V

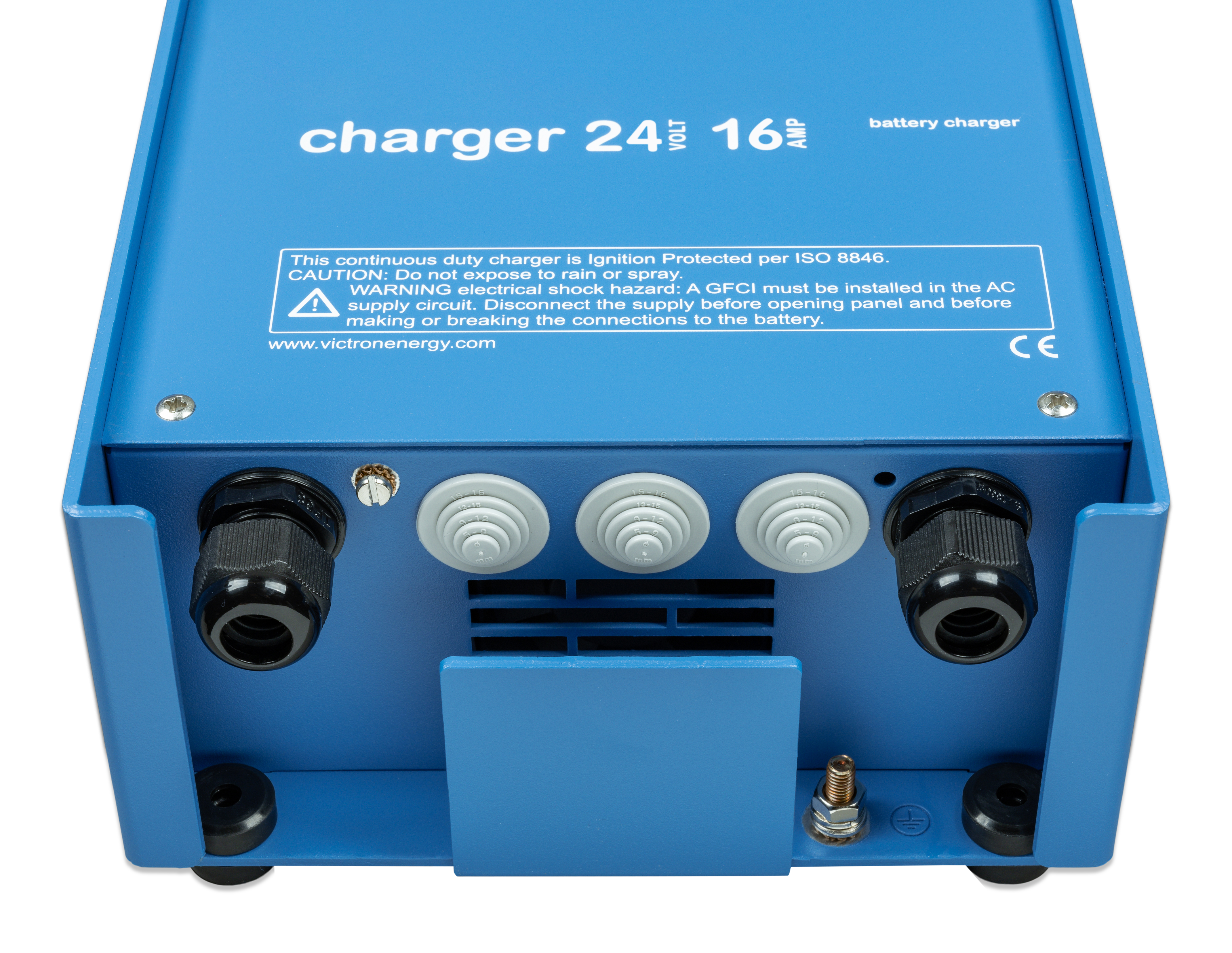

Charge Current Nominal: 16 A
Charge Current Starter: 4 A
Charge Algorithm: Adaptive, 4-stage
Battery Capacity Range: [ 100, 200 ] Ah
Temperature Sensor: Included
Programable: Settings can be change via a data port. RJ45 UTP cable and MK2-USB interface are required (not included)
Can Be Used As Power Supply: 1
Forced Cooling: 1
Protections: Output short-circuit, Over temperature, High battery voltage, Battery reverse polarity
Operating Temperature Range: [ -20, 60 ] °C
Max Humidity: 95 %
Ac Connection Terminal Type: Screw terminals 4 mm² (11 AWG)
Battery Connection Terminal Type: M6 bolts
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 3.8 kg
Height: 350 mm
Width: 200 mm
Depth: 108 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3
Vibration: IEC68-2-6:10-150Hz/1.0G
Battery Voltage Nominal: 24 V
A C Input Voltage Range: [ 90, 265 ] V
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 3
Power Factor: 1
Charge Voltage Absorption: 28.8 V
Charge Voltage Float: 27.6 V
Charge Voltage Storage: 26.4 V
Charge Current Nominal: 25 A
Charge Current Starter: 4 A
Charge Algorithm: Adaptive, 4-stage
Battery Capacity Range: [ 100, 400 ] Ah
Temperature Sensor: Included
Programable: Settings can be change via a data port. RJ45 UTP cable and MK2-USB interface are required (not included)
Can Be Used As Power Supply: 1
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -20, 60 ] °C
Max Humidity: 95 %
Ac Connection Terminal Type: Screw terminals 4 mm² (11 AWG)
Battery Connection Terminal Type: M6 bolts
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 3.8 kg
Height: 350 mm
Width: 200 mm
Depth: 108 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3
Vibration: IEC68-2-6:10-150Hz/1.0G
