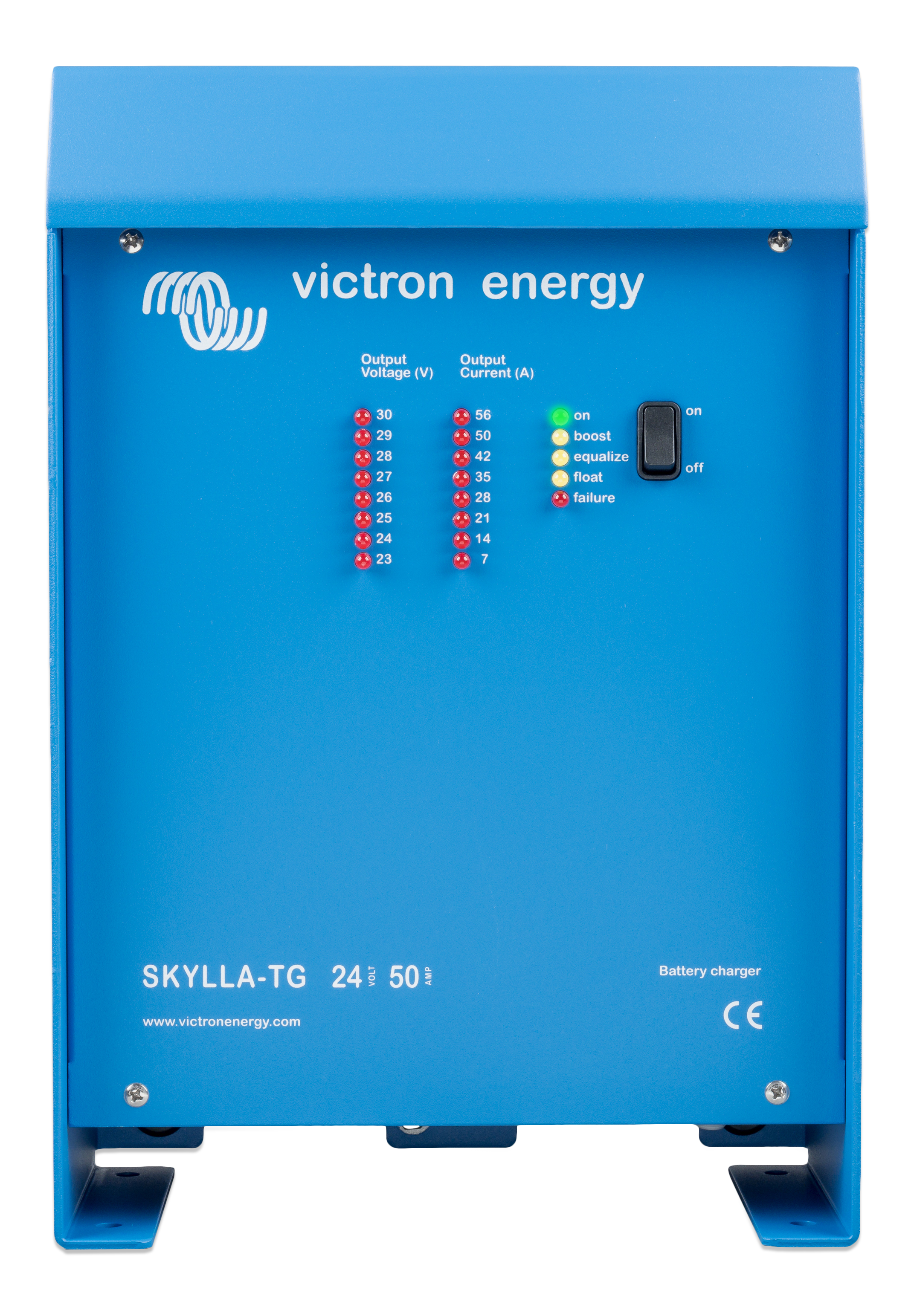

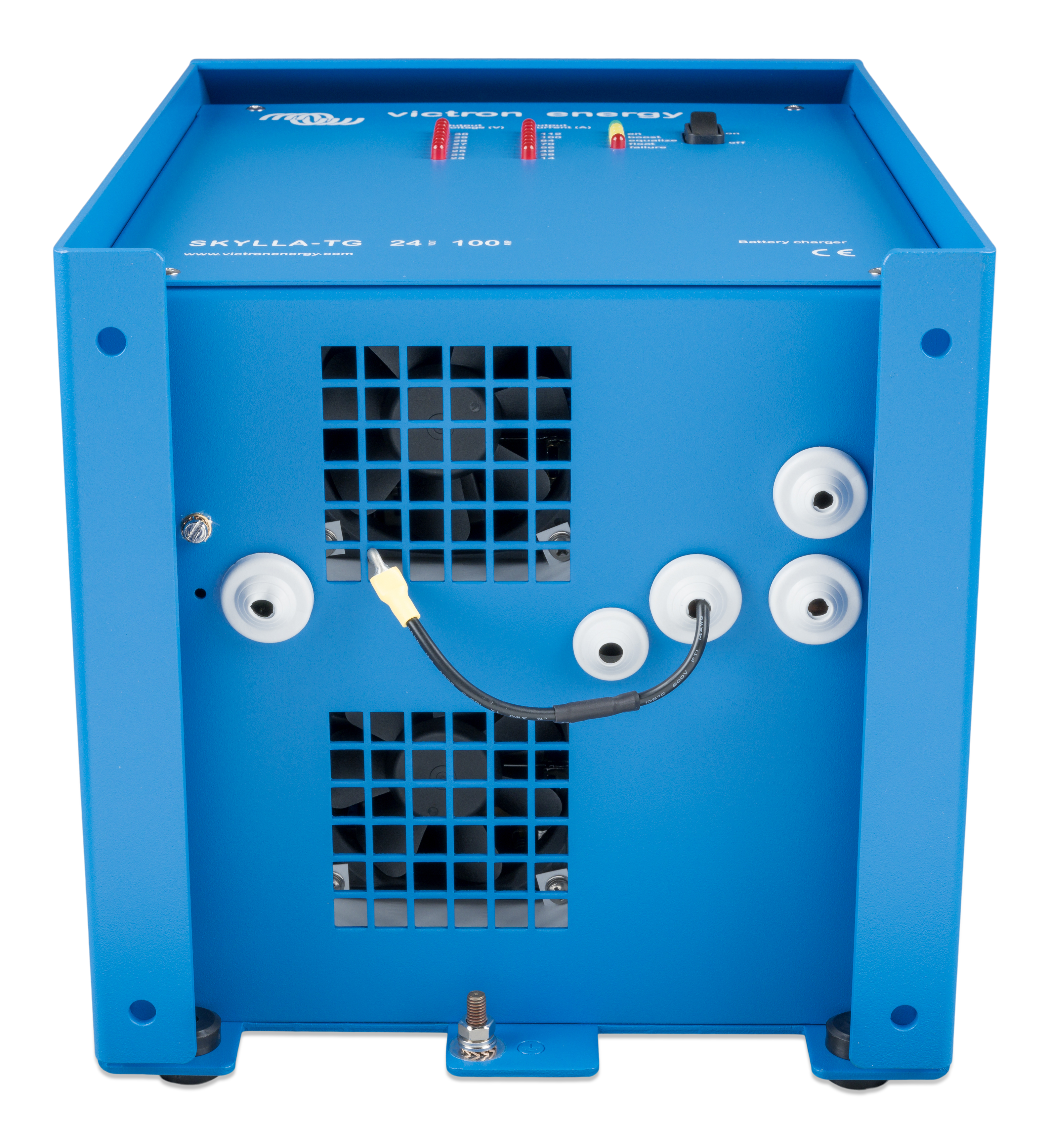

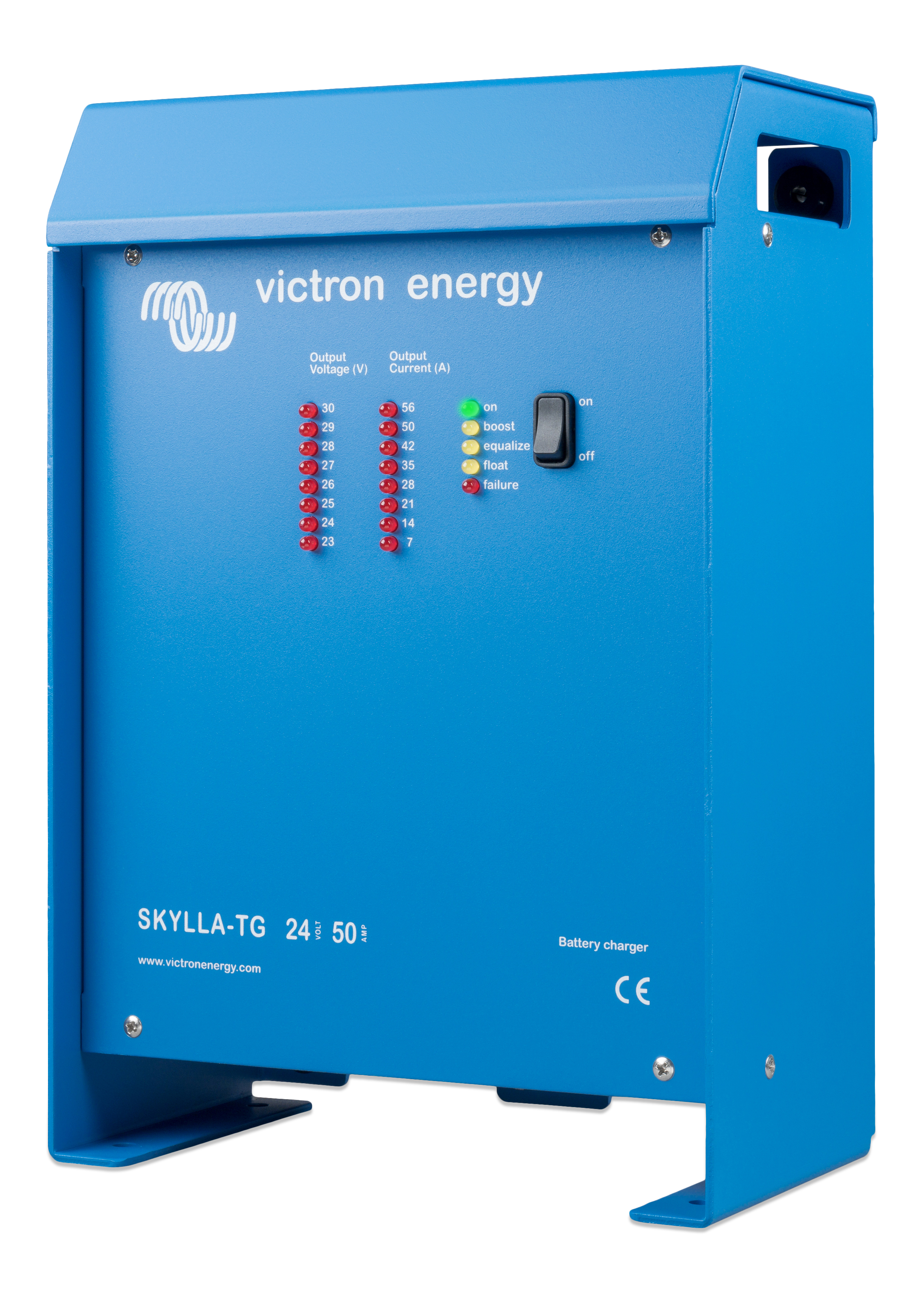

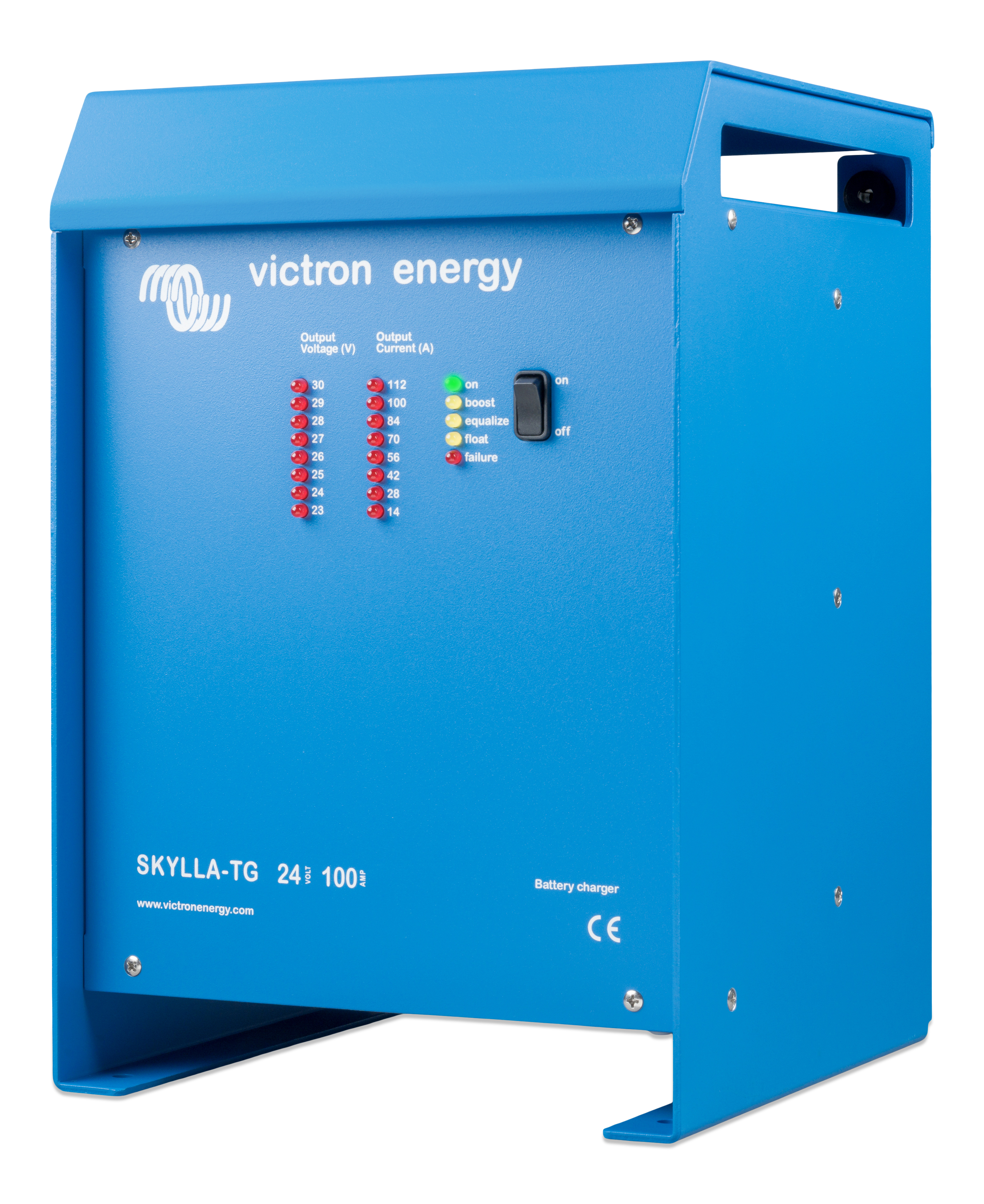

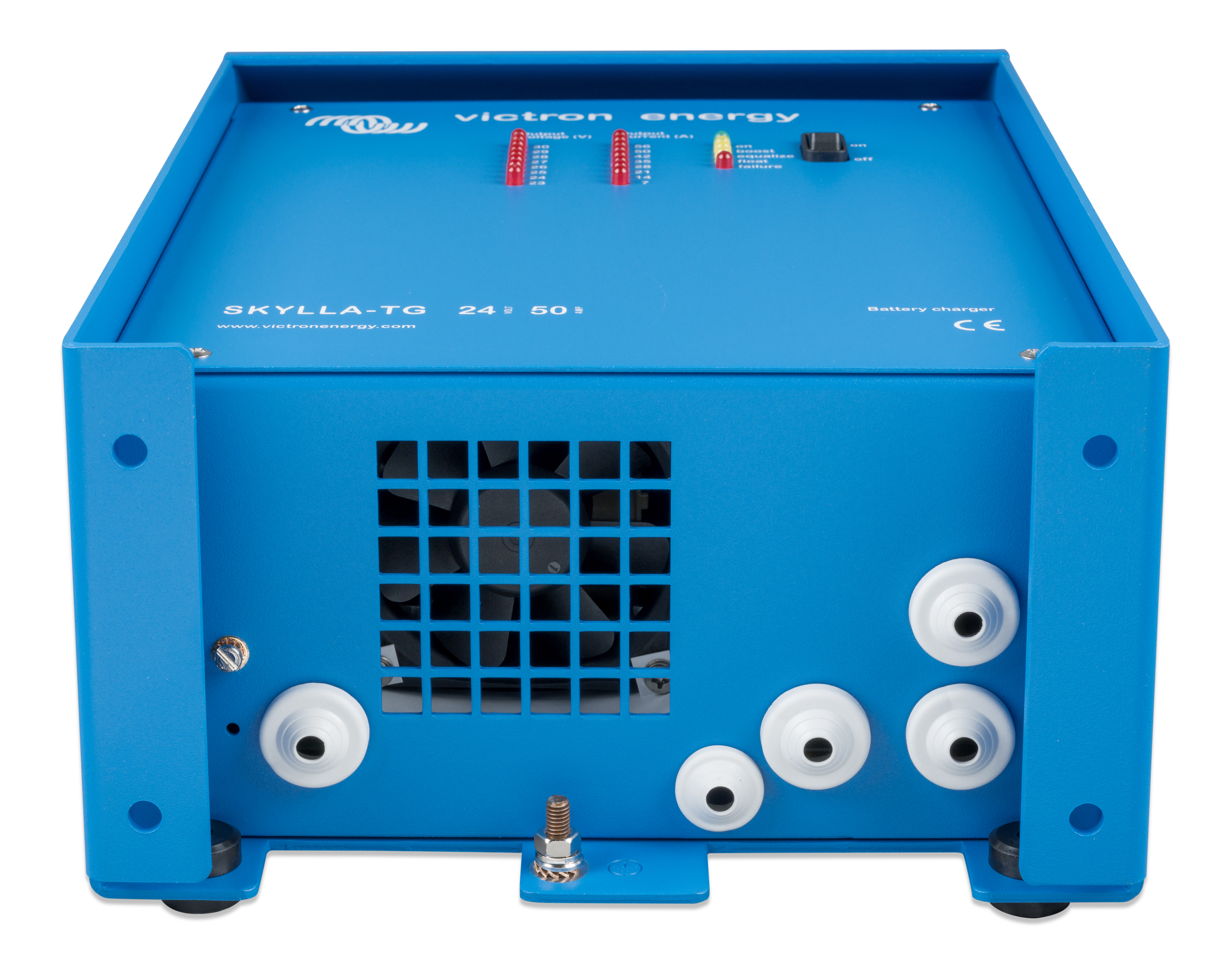

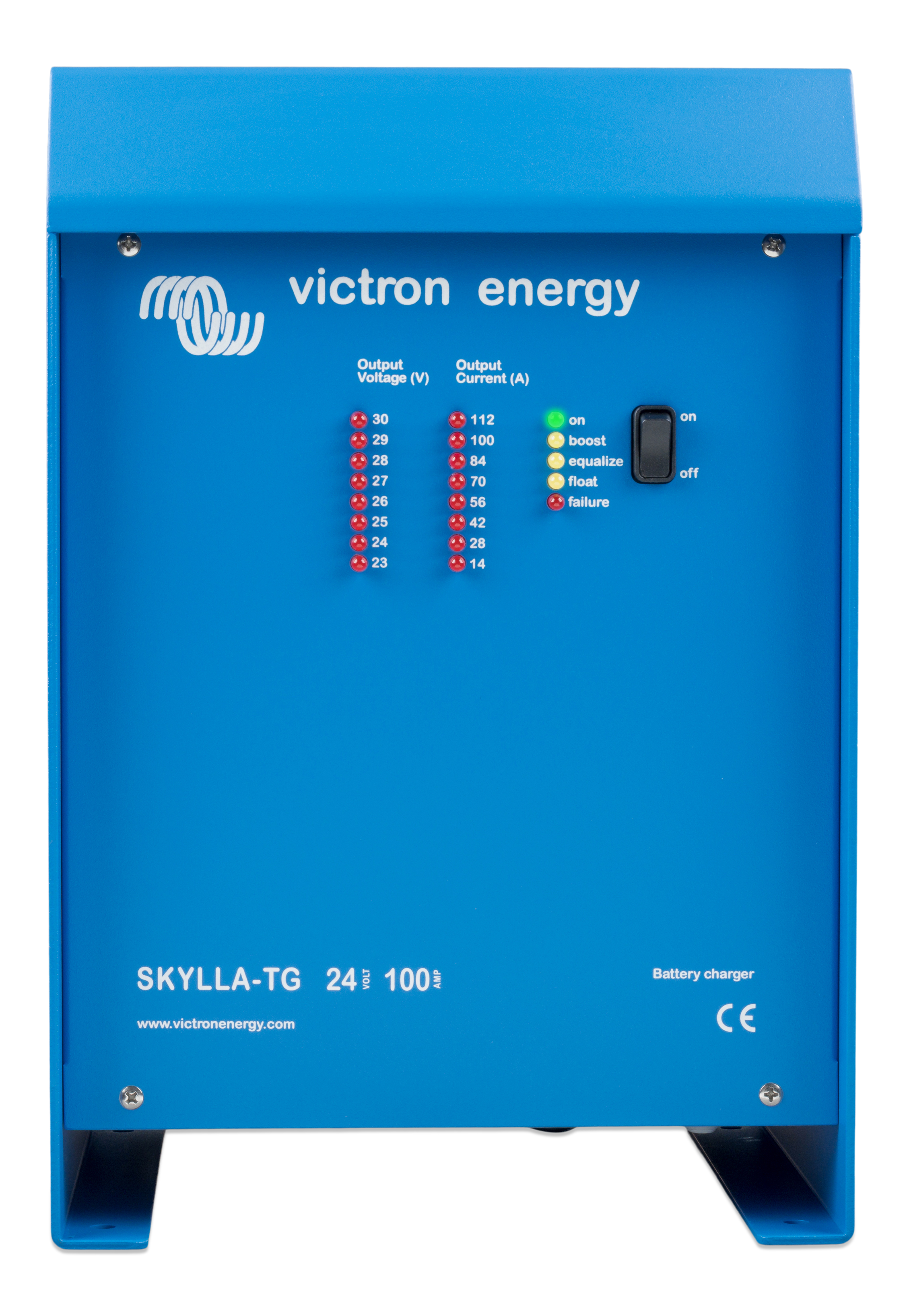

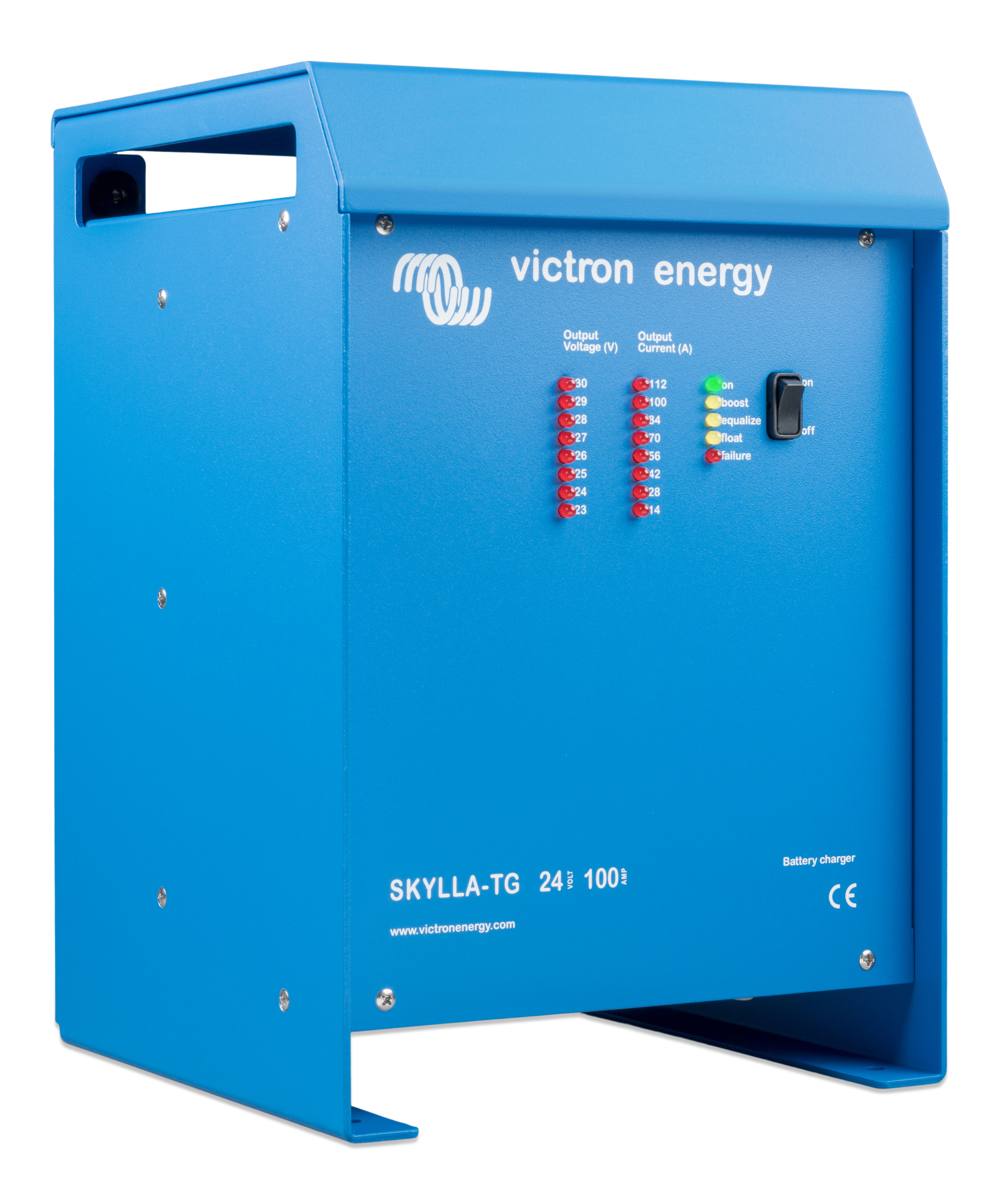

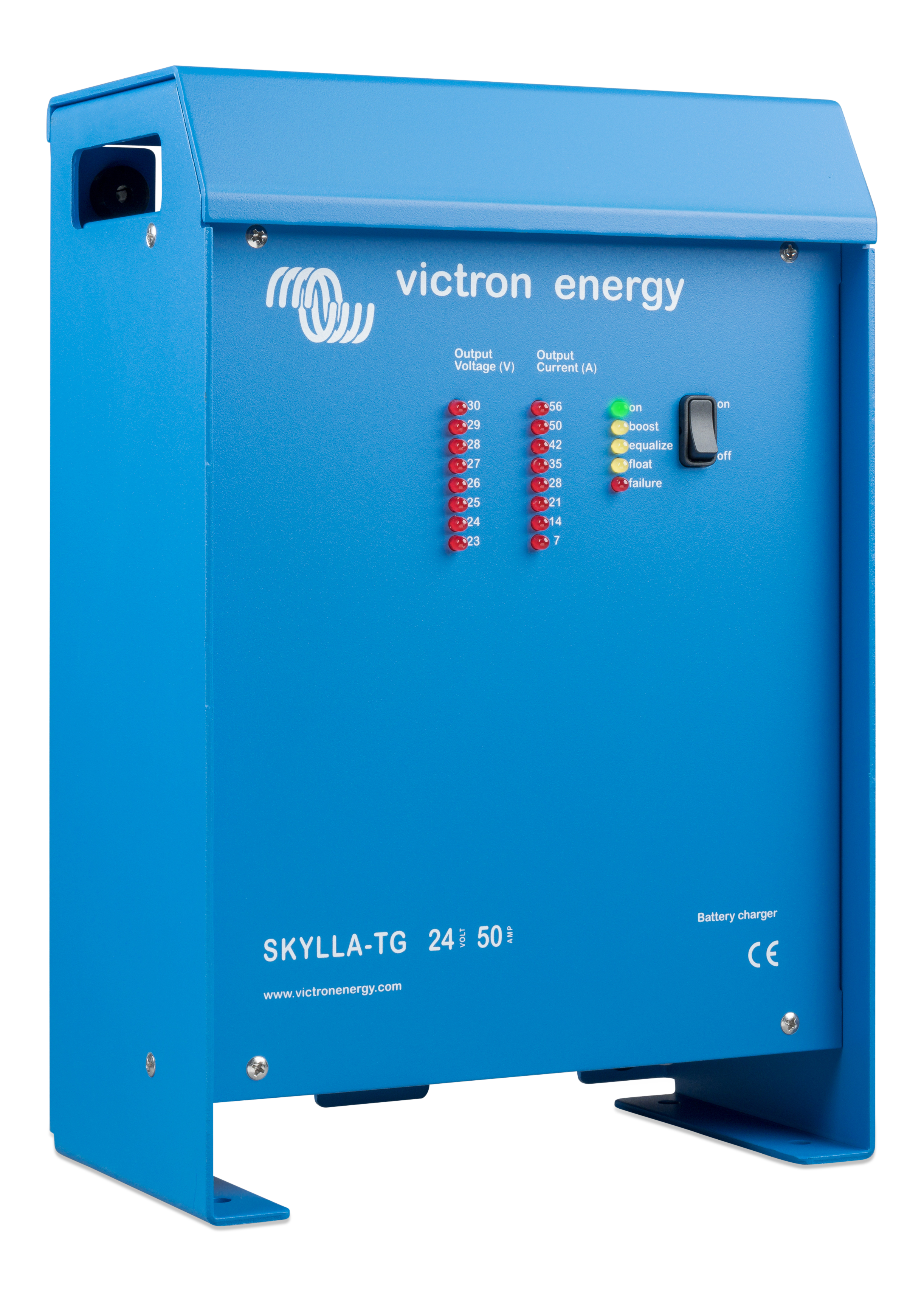

Skylla-TG Charger

SKU principal: SDTG2400301

Skylla-TG Charger

One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.

Códigos SKU

SDTG2400301 SDTG2400501 SDTG2400801 SDTG2401001 STG024050300 STG024100300 SDTG2400303 SDTG2400503 SDTG2401003 SDTG4800251 SDTG4800501

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 24 V
Charge Current Nominal: 50 A
A C Input Voltage: 230V
A C Input Voltage Range: [ 185, 264 ] V
A C Input Voltage Bucket: 230 V
D C Input Voltage Range: [ 180, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Charge Voltage Absorption: 28.5 V
Charge Voltage Float: 26.5 V
Charge Current Main110: 30 A
Charge Current Starter: 4 A
Charge Algorithm: IUoU, three stage charging
Battery Capacity Range: [ 150, 500 ] Ah
Temperature Sensor: Included
Programable: Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply: 1
Remote Alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -40, 50 ] °C
Max Humidity: 95 %
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 5.5 kg
Height: 365 mm
Width: 250 mm
Depth: 147 mm
Ac Connection Terminal Type: screw-clamp 2.5 mm² (AWG 6)
Battery Connection Terminal Type: M8 bolts
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-3-3
Battery Voltage Nominal: 24 V
Charge Current Nominal: 80 A
A C Input Voltage: 230V
A C Input Voltage Range: [ 185, 264 ] V
A C Input Voltage Bucket: 230 V
D C Input Voltage Range: [ 180, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Charge Voltage Absorption: 28.5 V
Charge Voltage Float: 26.5 V
Charge Current Main110: 60 A
Charge Current Starter: 4 A
Charge Algorithm: IUoU, three stage charging
Battery Capacity Range: [ 400, 800 ] Ah
Temperature Sensor: Included
Programable: Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply: 1
Remote Alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -40, 50 ] °C
Max Humidity: 95 %
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 10 kg
Height: 365 mm
Width: 250 mm
Depth: 257 mm
Ac Connection Terminal Type: screw-clamp 2.5 mm² (AWG 6)
Battery Connection Terminal Type: M8 bolts
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-3-3
Battery Voltage Nominal: 24 V
Charge Current Nominal: 100 A
A C Input Voltage: 230V
A C Input Voltage Range: [ 185, 264 ] V
A C Input Voltage Bucket: 230 V
D C Input Voltage Range: [ 180, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Charge Voltage Absorption: 28.5 V
Charge Voltage Float: 26.5 V
Charge Current Main110: 60 A
Charge Current Starter: 4 A
Charge Algorithm: IUoU, three stage charging
Battery Capacity Range: [ 500, 1, 000 ] Ah
Temperature Sensor: Included
Programable: Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply: 1
Remote Alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -40, 50 ] °C
Max Humidity: 95 %
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 10 kg
Height: 365 mm
Width: 250 mm
Depth: 257 mm
Ac Connection Terminal Type: screw-clamp 2.5 mm² (AWG 6)
Battery Connection Terminal Type: M8 bolts
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-3-3
Battery Voltage Nominal: 48 V
Charge Current Nominal: 50 A
A C Input Voltage: 230V
A C Input Voltage Range: [ 185, 264 ] V
A C Input Voltage Bucket: 230 V
D C Input Voltage Range: [ 180, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Power Factor: 1
Charge Voltage Absorption: 57 V
Charge Voltage Float: 53 V
Charge Current Main110: 30 A
Charge Current Starter: 4 A
Charge Algorithm: IUoU, three stage charging
Battery Capacity Range: [ 250, 500 ] Ah
Temperature Sensor: Included
Programable: Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply: 1
Remote Alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -40, 50 ] °C
Max Humidity: 95 %
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 10 kg
Height: 365 mm
Width: 250 mm
Depth: 257 mm
Ac Connection Terminal Type: screw-clamp 2.5 mm² (AWG 6)
Battery Connection Terminal Type: M8 bolts
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-3-3
Battery Voltage Nominal: 48 V
Charge Current Nominal: 25 A
A C Input Voltage: 230V
A C Input Voltage Range: [ 185, 264 ] V
A C Input Voltage Bucket: 230 V
D C Input Voltage Range: [ 180, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Power Factor: 1
Charge Voltage Absorption: 57 V
Charge Voltage Float: 53 V
Charge Current Main110: 15 A
Charge Current Starter: 4 A
Charge Algorithm: IUoU, three stage charging
Battery Capacity Range: [ 125, 250 ] Ah
Temperature Sensor: Included
Programable: Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply: 1
Remote Alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -40, 50 ] °C
Max Humidity: 95 %
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 5.5 kg
Height: 265 mm
Width: 250 mm
Depth: 147 mm
Ac Connection Terminal Type: screw-clamp 2.5 mm² (AWG 6)
Battery Connection Terminal Type: M8 bolts
Safety: EN 60950, EN-IEC 60335-1
Emission: EN 55014-1, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-3-3
Battery Voltage Nominal: 24 V
Charge Current Nominal: 30 A
A C Input Voltage: 120V or 230V
A C Input Voltage Range: [ 95, 264 ] V
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 120, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Charge Voltage Absorption: 28.5 V
Charge Voltage Float: 26.5 V
Charge Current Main110: 30 A
Charge Current Starter: 4 A
Charge Algorithm: IUoU, three stage charging
Battery Capacity Range: [ 150, 500 ] Ah
Temperature Sensor: Included
Programable: Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply: 1
Remote Alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -40, 50 ] °C
Max Humidity: 95 %
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 5.5 kg
Height: 365 mm
Width: 250 mm
Depth: 147 mm
Ac Connection Terminal Type: screw-clamp 2.5 mm² (AWG 6)
Battery Connection Terminal Type: M8 bolts
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-3-3
Battery Voltage Nominal: 24 V
Charge Current Nominal: 50 A
A C Input Voltage: 120V or 230V
A C Input Voltage Range: [ 90, 265 ] V
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Charge Voltage Absorption: 28.5 V
Charge Voltage Float: 26.5 V
Charge Current Starter: 4 A
Charge Algorithm: IUoU, three stage charging
Battery Capacity Range: [ 250, 500 ] Ah
Temperature Sensor: Included
Programable: Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply: 1
Remote Alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -40, 50 ] °C
Max Humidity: 95 %
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 5.5 kg
Height: 365 mm
Width: 250 mm
Depth: 147 mm
Ac Connection Terminal Type: screw-clamp 2.5 mm² (AWG 6)
Battery Connection Terminal Type: M8 bolts
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-3-3
Vibration: IEC 60945: 0.7g
G L: Certificate 54 758 - 08HH
Battery Voltage Nominal: 24 V
Charge Current Nominal: 100 A
A C Input Voltage: 120V or 230V
A C Input Voltage Range: [ 90, 265 ] V
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Charge Voltage Absorption: 28.5 V
Charge Voltage Float: 26.5 V
Charge Current Starter: 4 A
Charge Algorithm: IUoU, three stage charging
Battery Capacity Range: [ 500, 1, 000 ] Ah
Temperature Sensor: Included
Programable: Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply: 1
Remote Alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -40, 50 ] °C
Max Humidity: 95 %
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 10 kg
Height: 365 mm
Width: 250 mm
Depth: 257 mm
Ac Connection Terminal Type: screw-clamp 2.5 mm² (AWG 6)
Battery Connection Terminal Type: M8 bolts
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-3-3
Vibration: IEC 60945: 0.7g
G L: Certificate 54 758 - 08HH
Battery Voltage Nominal: 24 V
Charge Current Nominal: 30 A
A C Input Voltage: 120V or 230V
A C Input Voltage Range: [ 90, 265 ] V
A C Input Voltage Bucket: 120 V - 240 V
D C Input Voltage Range: [ 90, 400 ] V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Charge Voltage Absorption: 28.5 V
Charge Voltage Float: 26.5 V
Charge Current Starter: 4 A
Charge Algorithm: IUoU, three stage charging
Battery Capacity Range: [ 150, 300 ] Ah
Temperature Sensor: Included
Programable: Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply: 1
Remote Alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -40, 50 ] °C
Max Humidity: 95 %
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 5.5 kg
Height: 365 mm
Width: 250 mm
Depth: 147 mm
Ac Connection Terminal Type: screw-clamp 2.5 mm² (AWG 6)
Battery Connection Terminal Type: M8 bolts
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-3-3
Vibration: IEC 60945: 0.7g
G L: Certificate 54 758 - 08HH
Battery Voltage Nominal: 24 V
Charge Current Nominal: 100 A
A C Input Voltage: 3 x 400V
A C Input Voltage Range: [ 320, 450 ] V
A C Input Voltage Bucket: 3 x 400 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Charge Voltage Absorption: 28.5 V
Charge Voltage Float: 26.5 V
Charge Current Starter: 4 A
Charge Algorithm: IUoU, three stage charging
Battery Capacity Range: [ 500, 1, 000 ] Ah
Temperature Sensor: Included
Programable: Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply: 1
Remote Alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -40, 50 ] °C
Max Humidity: 95 %
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 23 kg
Height: 515 mm
Width: 260 mm
Depth: 265 mm
Ac Connection Terminal Type: screw-clamp 2.5 mm² (AWG 6)
Battery Connection Terminal Type: M8 bolts
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2
Immunity: EN 55014-2, EN-IEC 61000-3-3
Battery Voltage Nominal: 24 V
Charge Current Nominal: 50 A
A C Input Voltage: 3 x 400V
A C Input Voltage Range: [ 320, 450 ] V
A C Input Voltage Bucket: 3 x 400 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 2
Power Factor: 1
Charge Voltage Absorption: 28.5 V
Charge Voltage Float: 26.5 V
Charge Current Starter: 4 A
Charge Algorithm: IUoU, three stage charging
Battery Capacity Range: [ 250, 500 ] Ah
Temperature Sensor: Included
Programable: Settings can be changed via DIP switches and potentiometers
Can Be Used As Power Supply: 1
Remote Alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
Forced Cooling: 1
Protections: Output short-circuit, High battery voltage, Over temperature, Battery reverse polarity
Operating Temperature Range: [ -40, 50 ] °C
Max Humidity: 95 %
Material: Aluminium
Colour: Blue (RAL 5012)
Protection Category: IP21
Weight: 13 kg
Height: 365 mm
Width: 250 mm
Depth: 257 mm
Ac Connection Terminal Type: screw-clamp 2.5 mm² (AWG 6)
Battery Connection Terminal Type: M8 bolts
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-2, EN-IEC 61000-3-3
Immunity: EN 55014-2, EN-IEC 61000-3-3

← Volver a productos Victron
