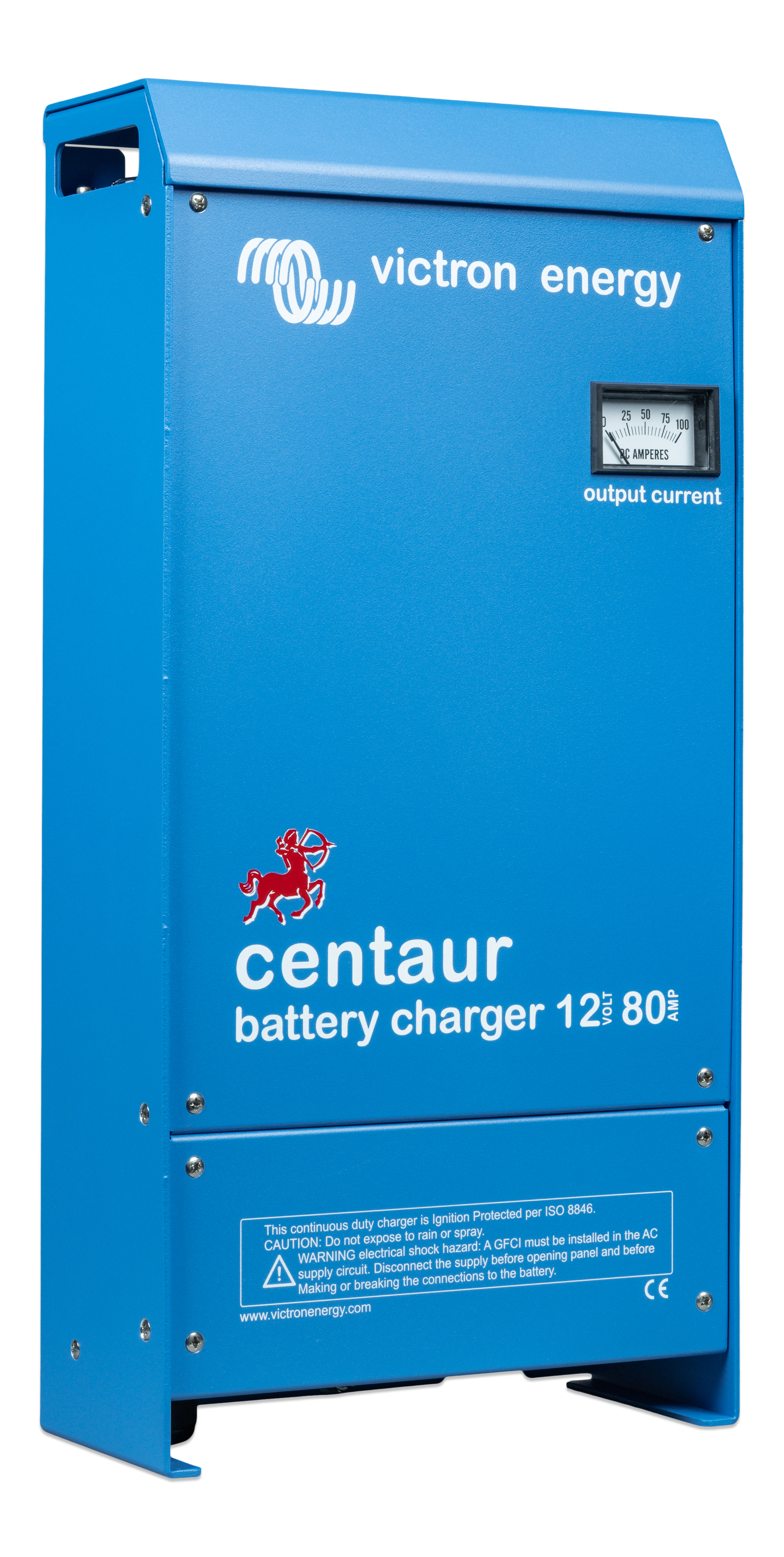

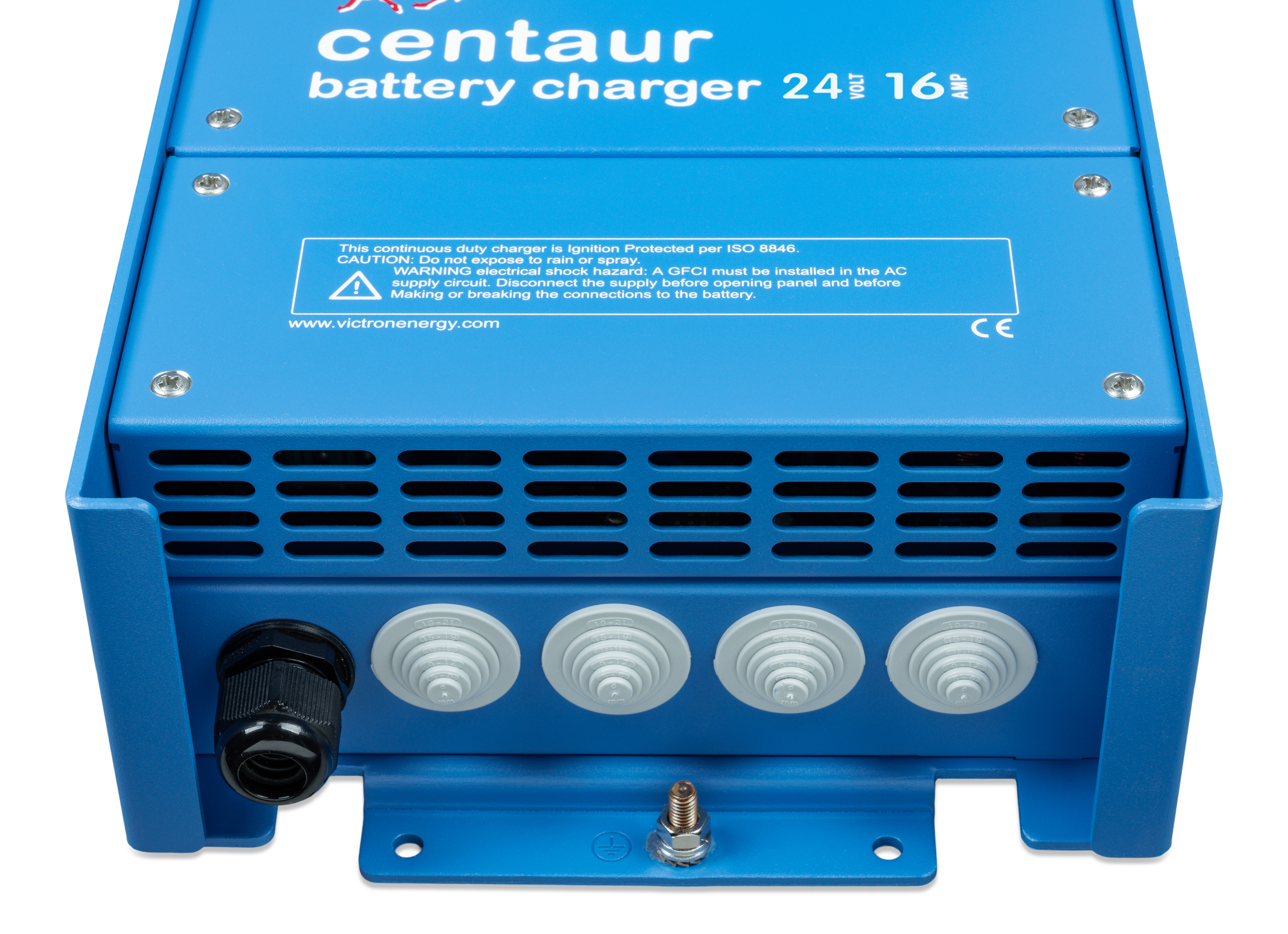

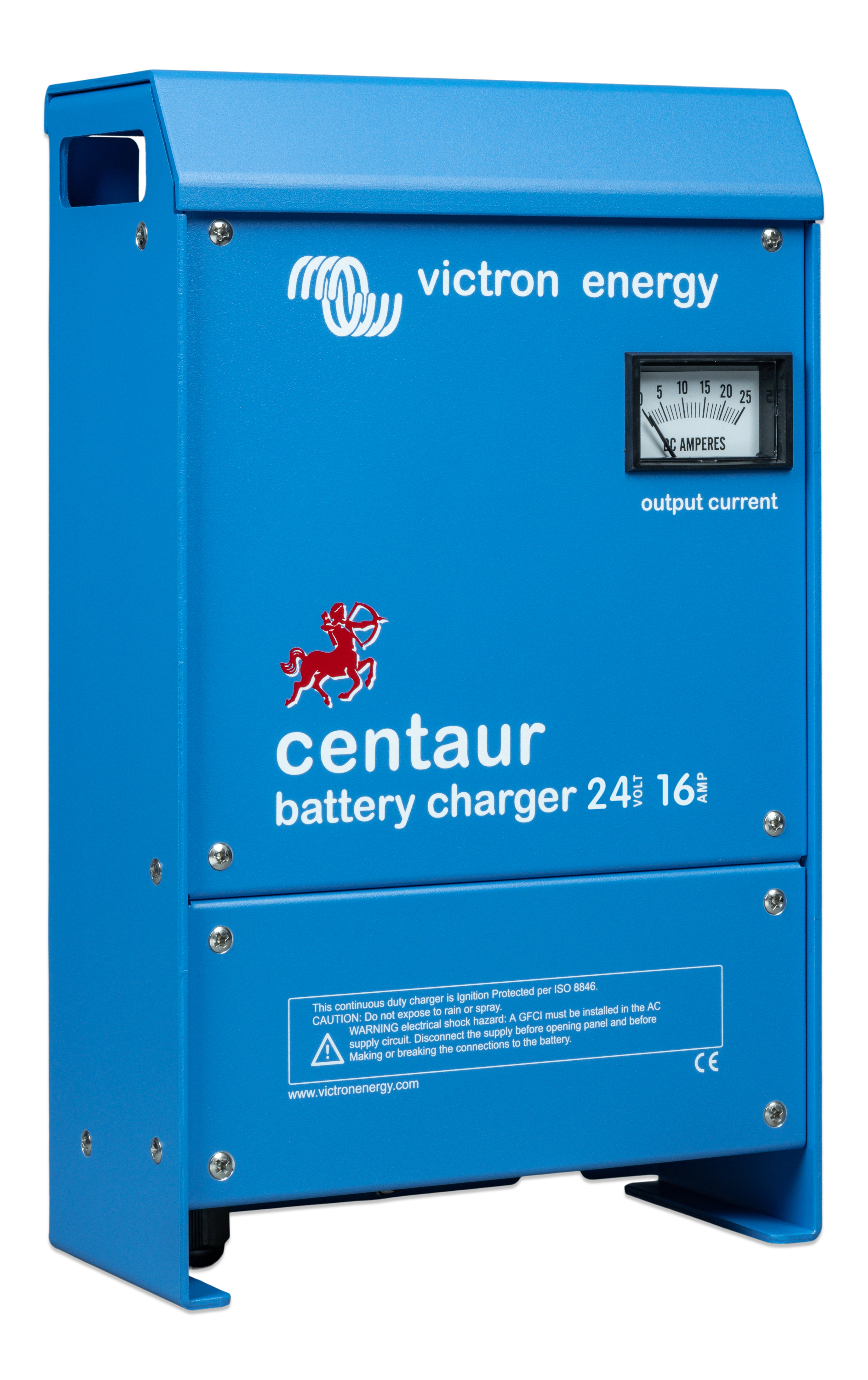

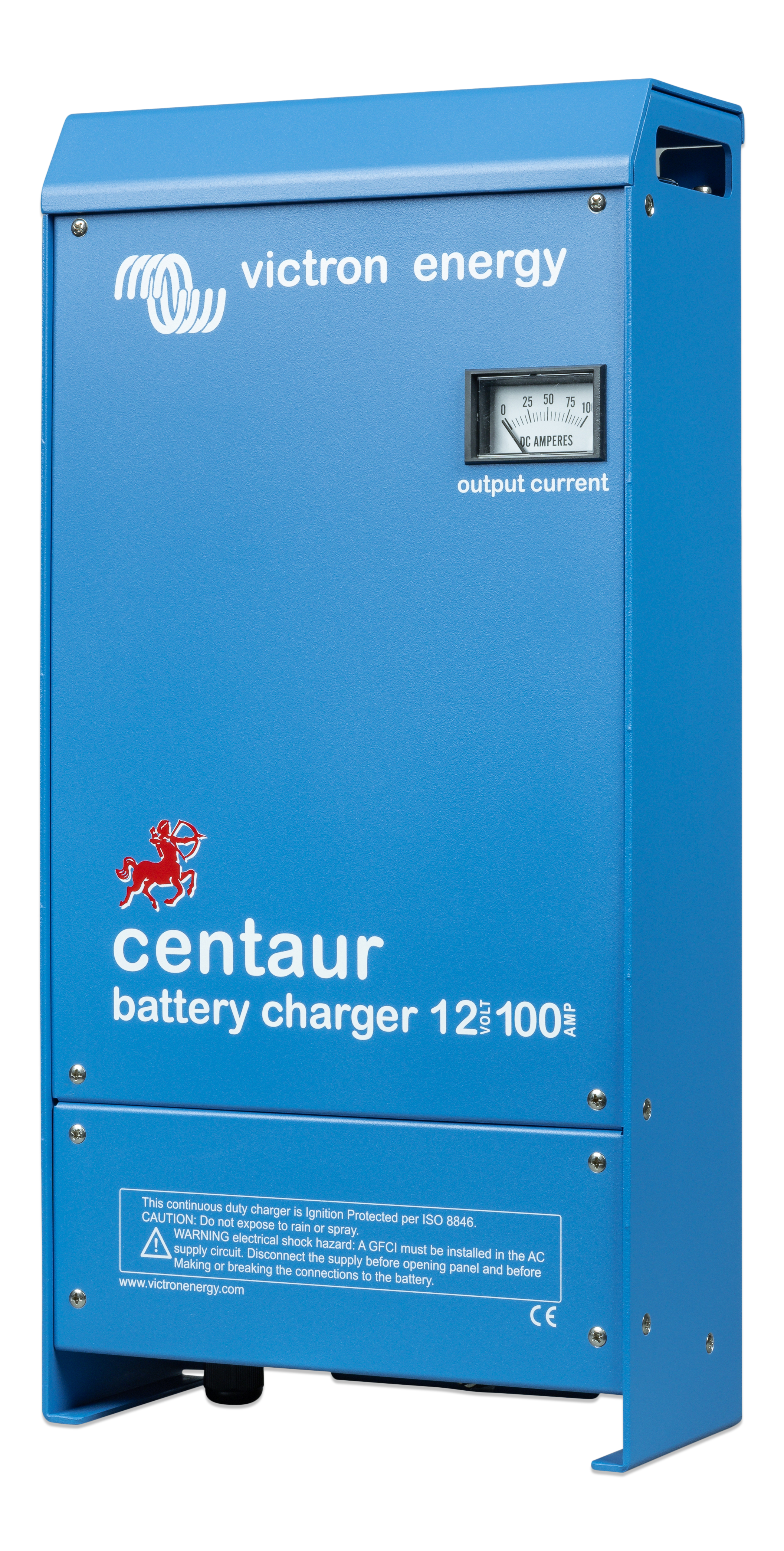

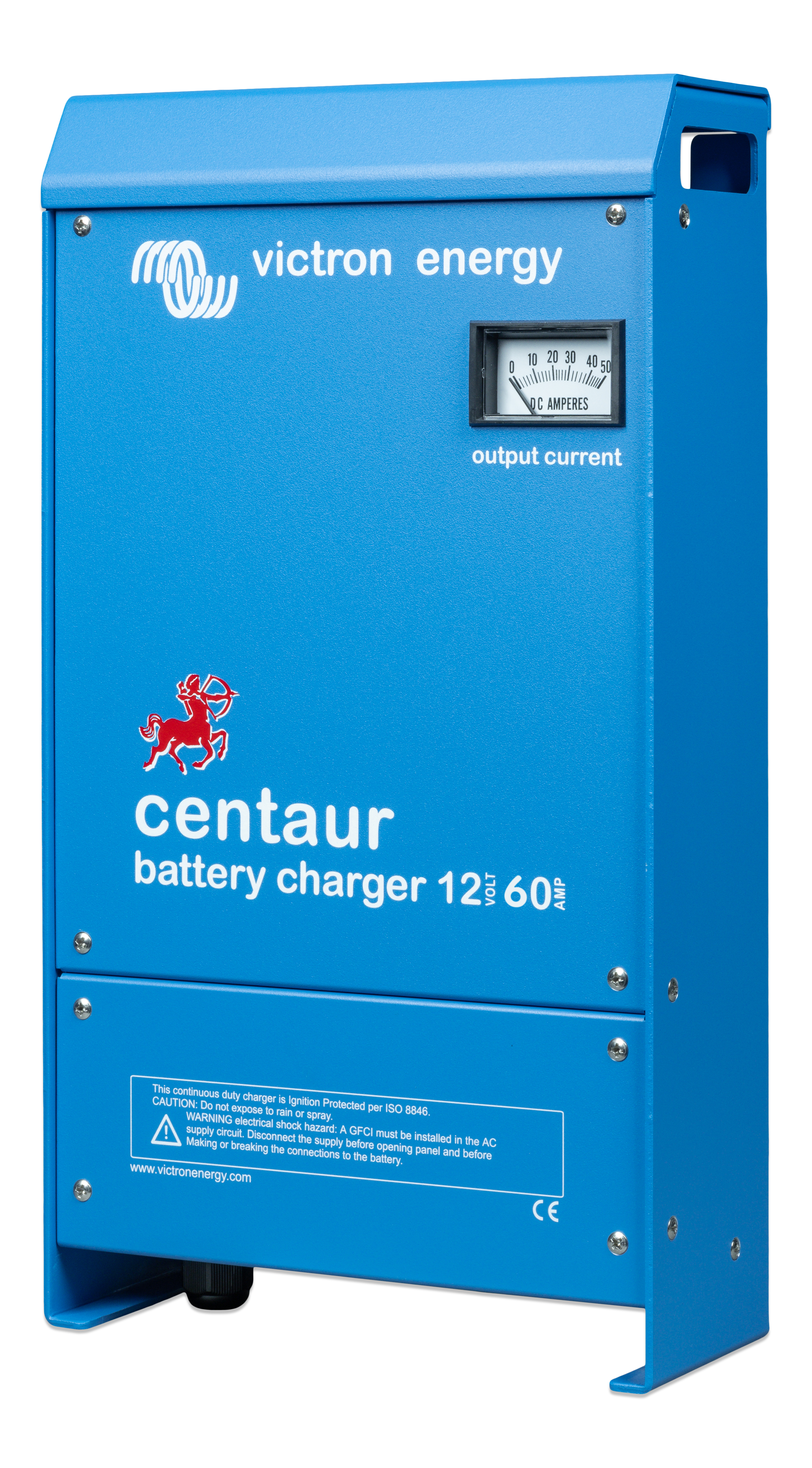

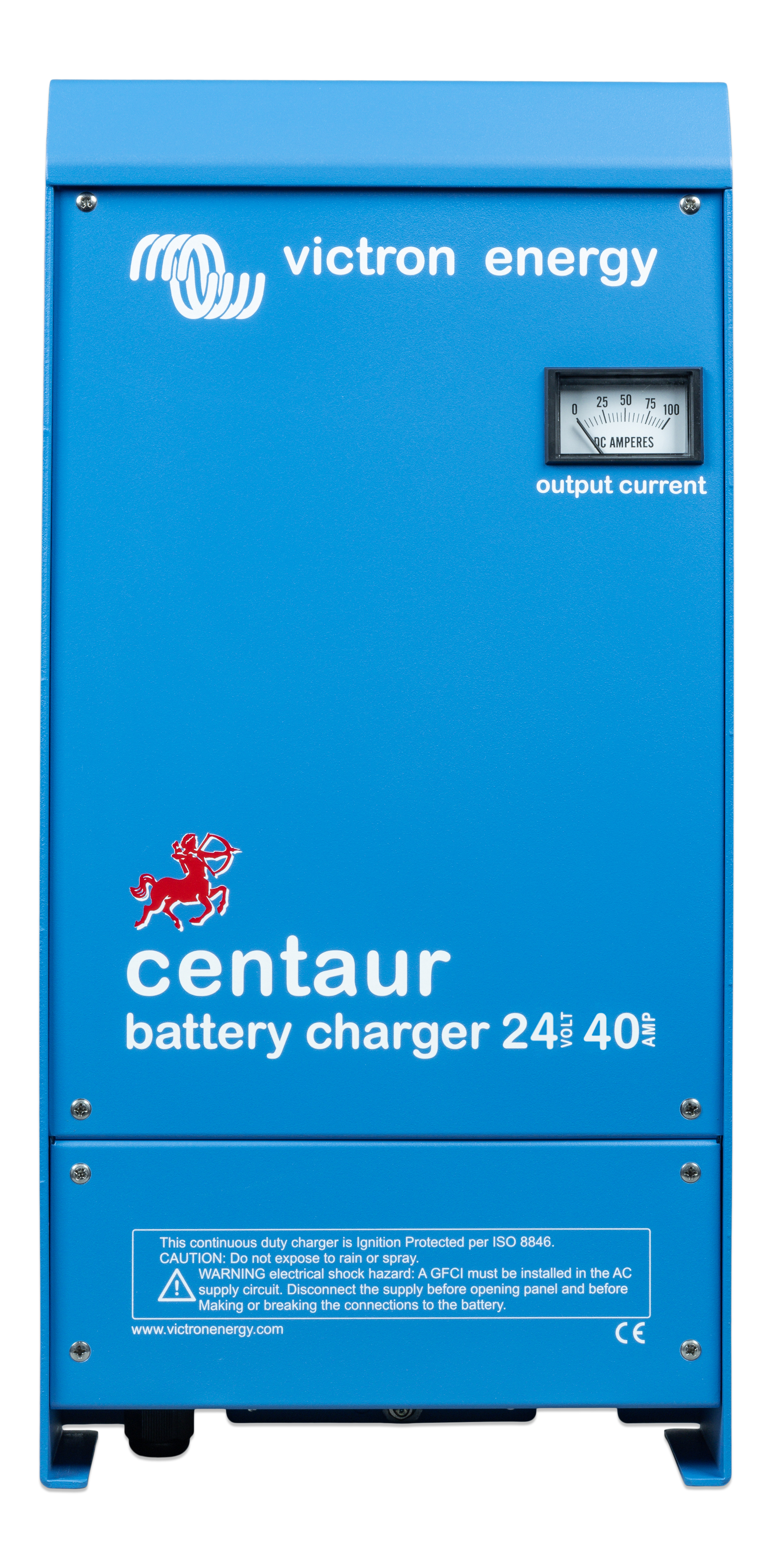

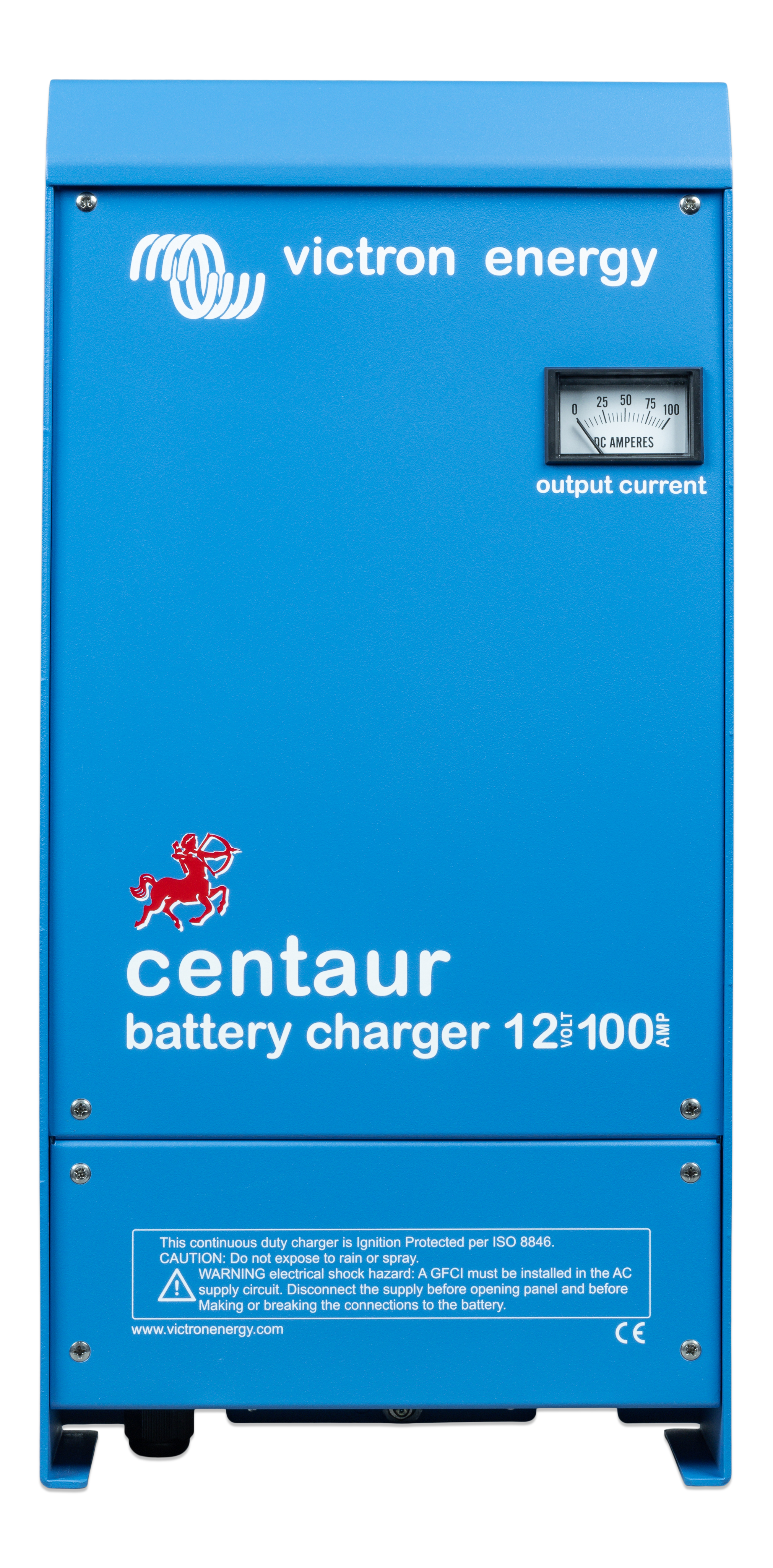

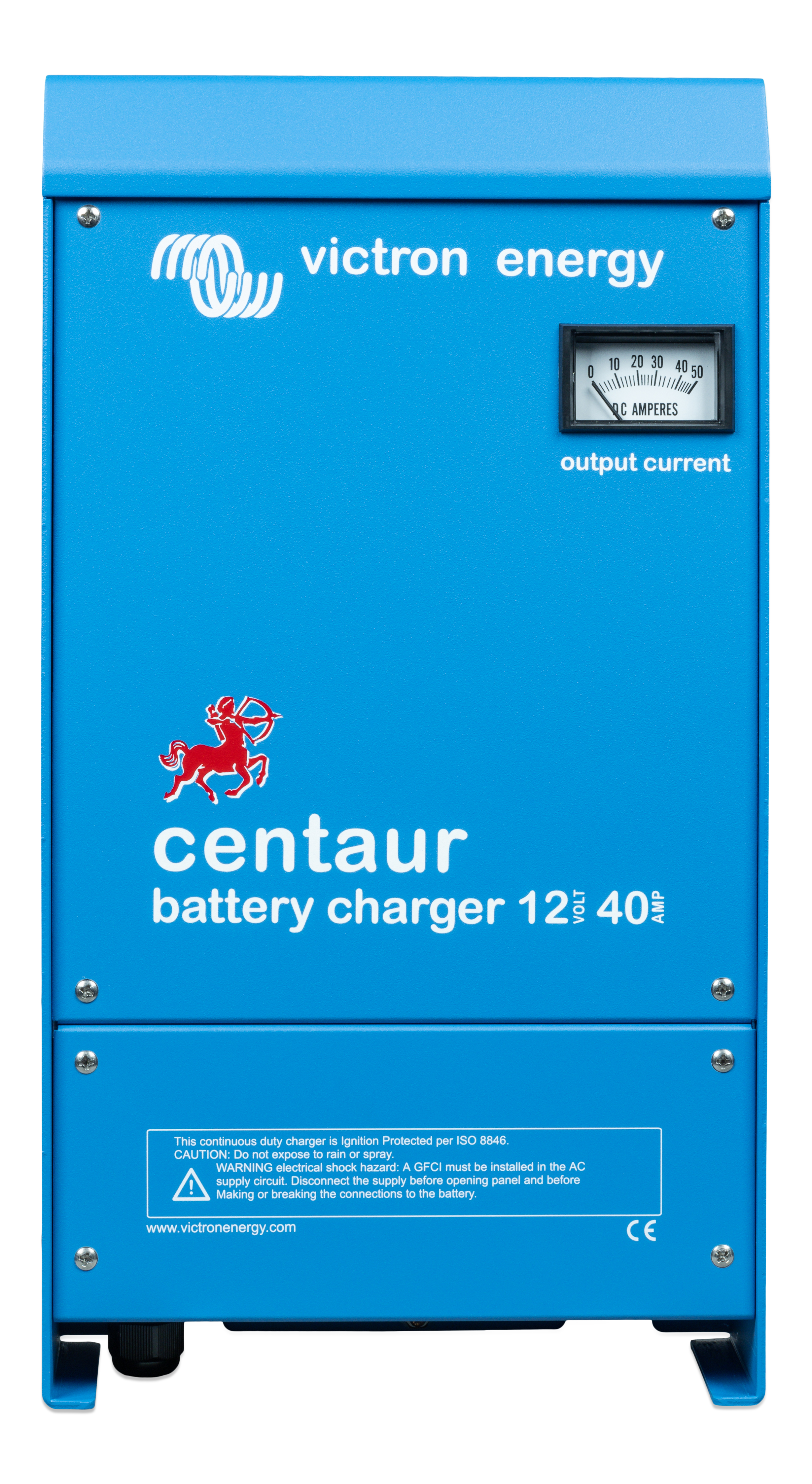

VICTRON ENERGY Centaur Charger
Chargers

Centaur Charger

SKU principal: CCH012020000

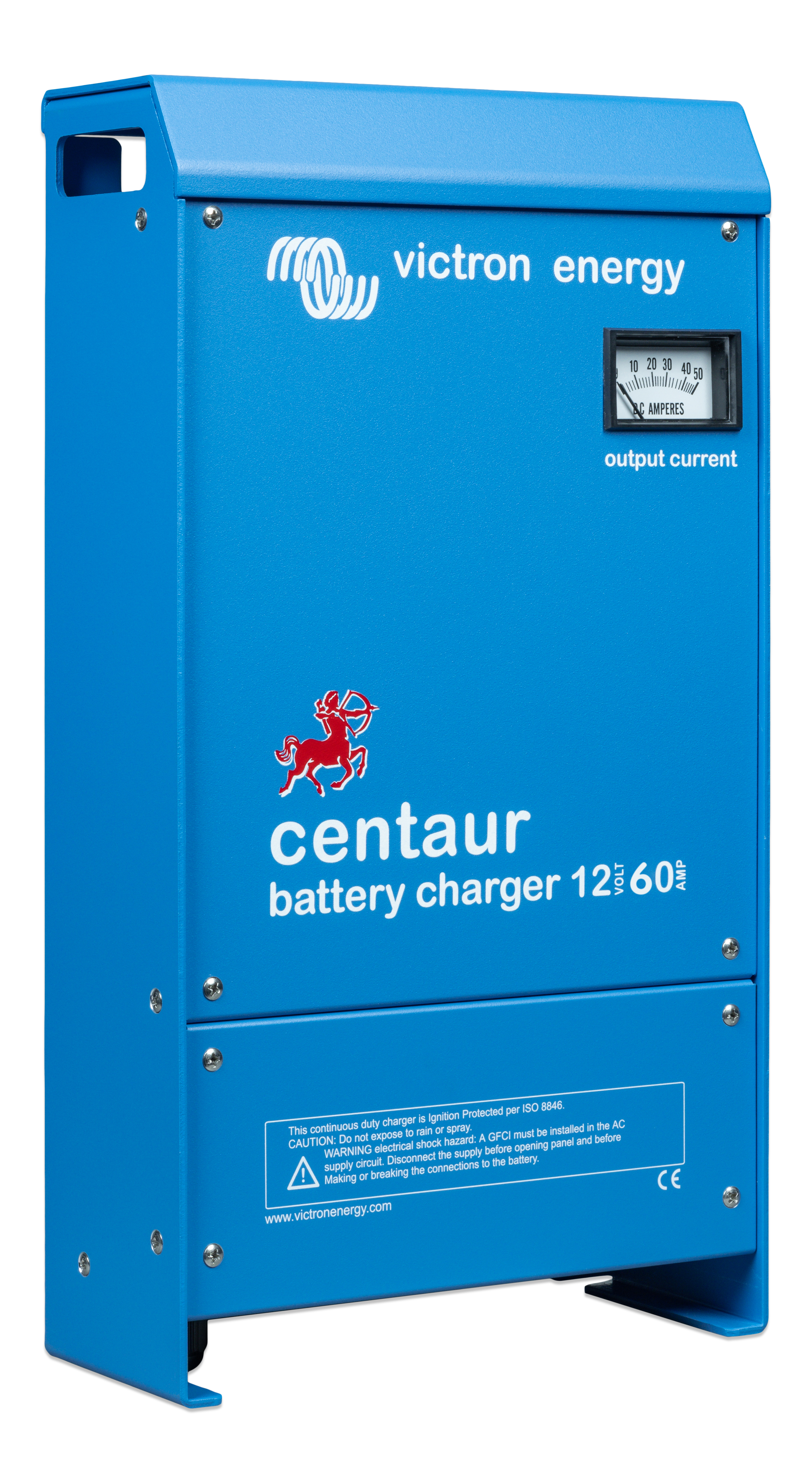

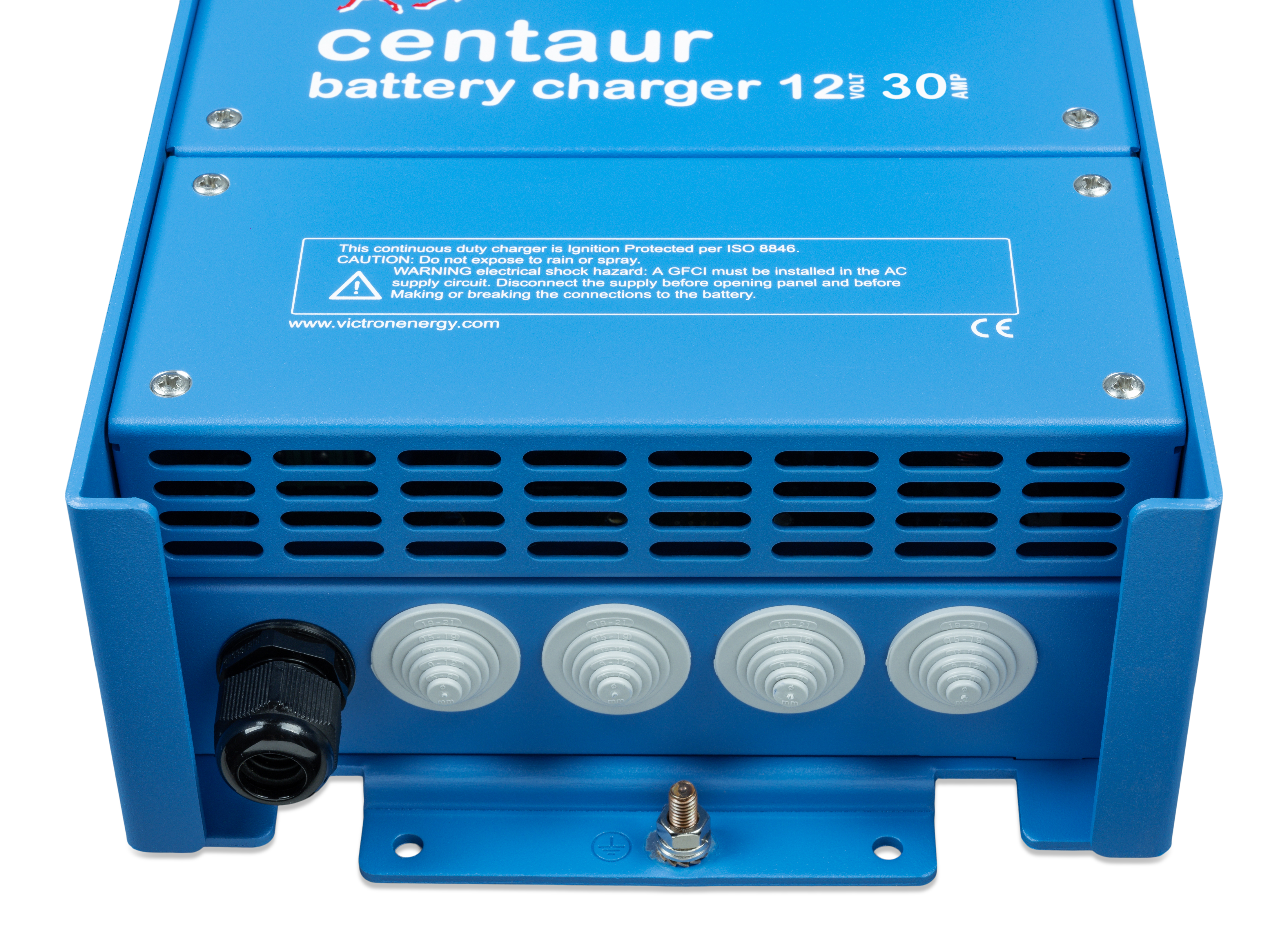

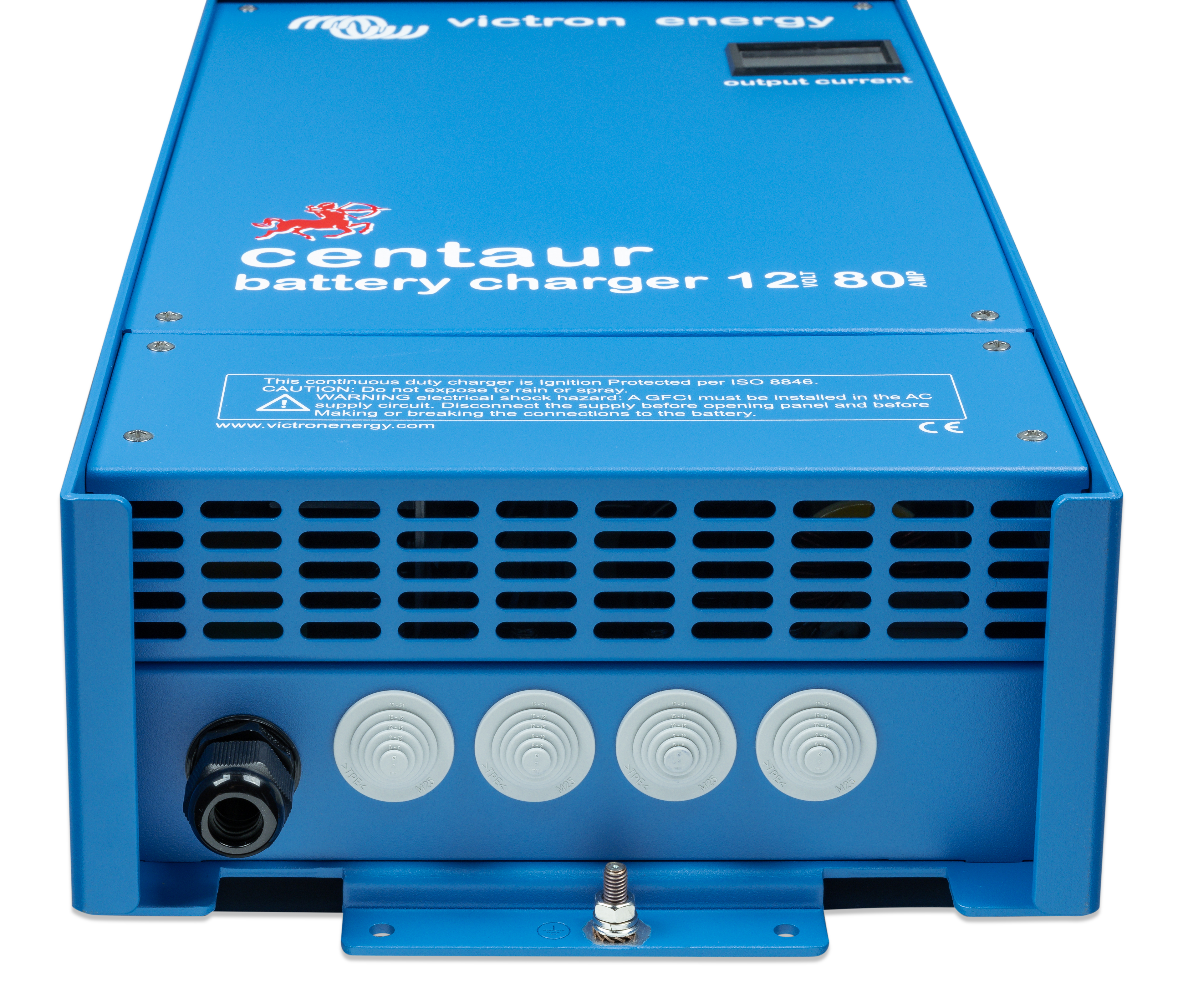

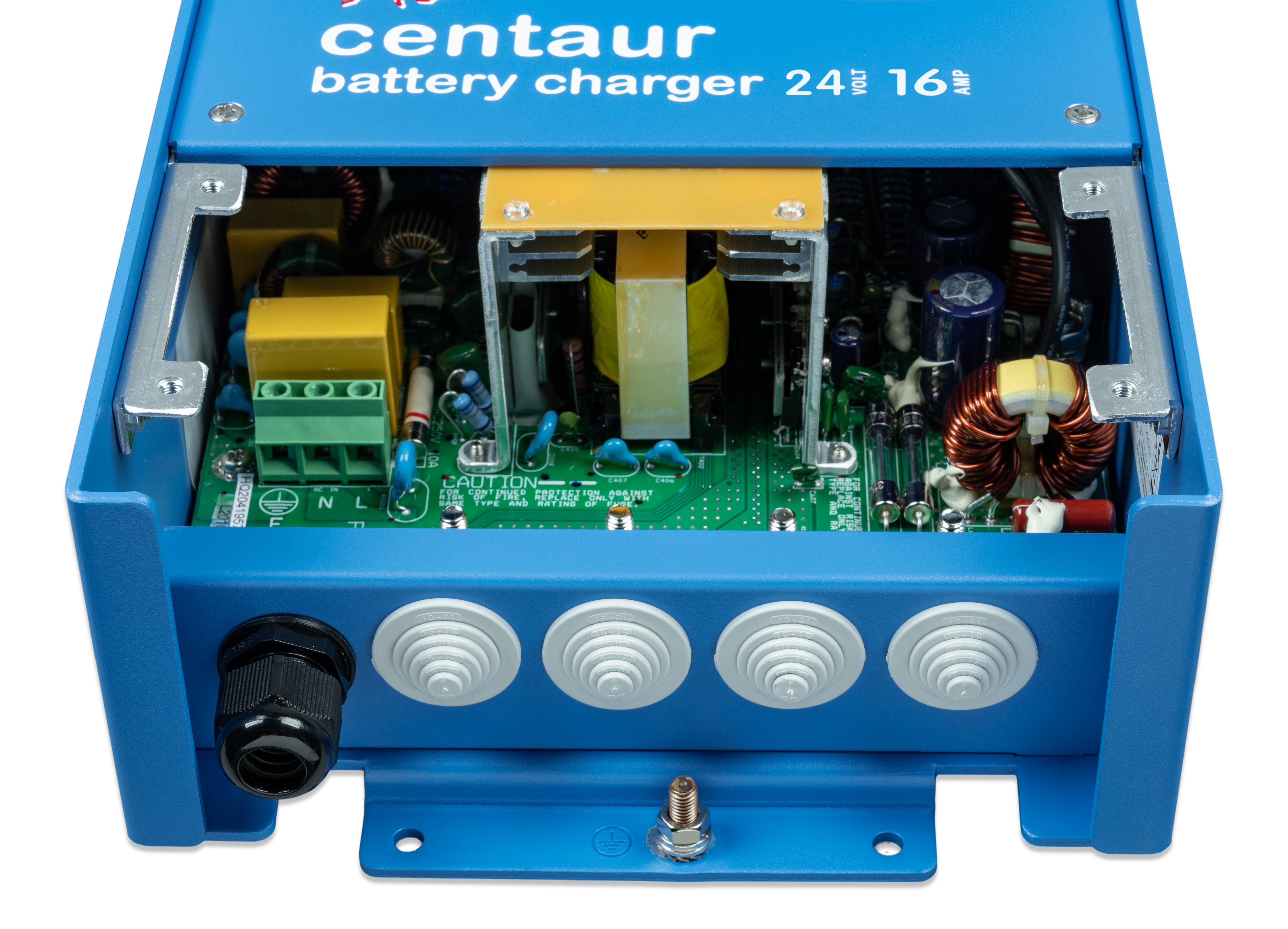

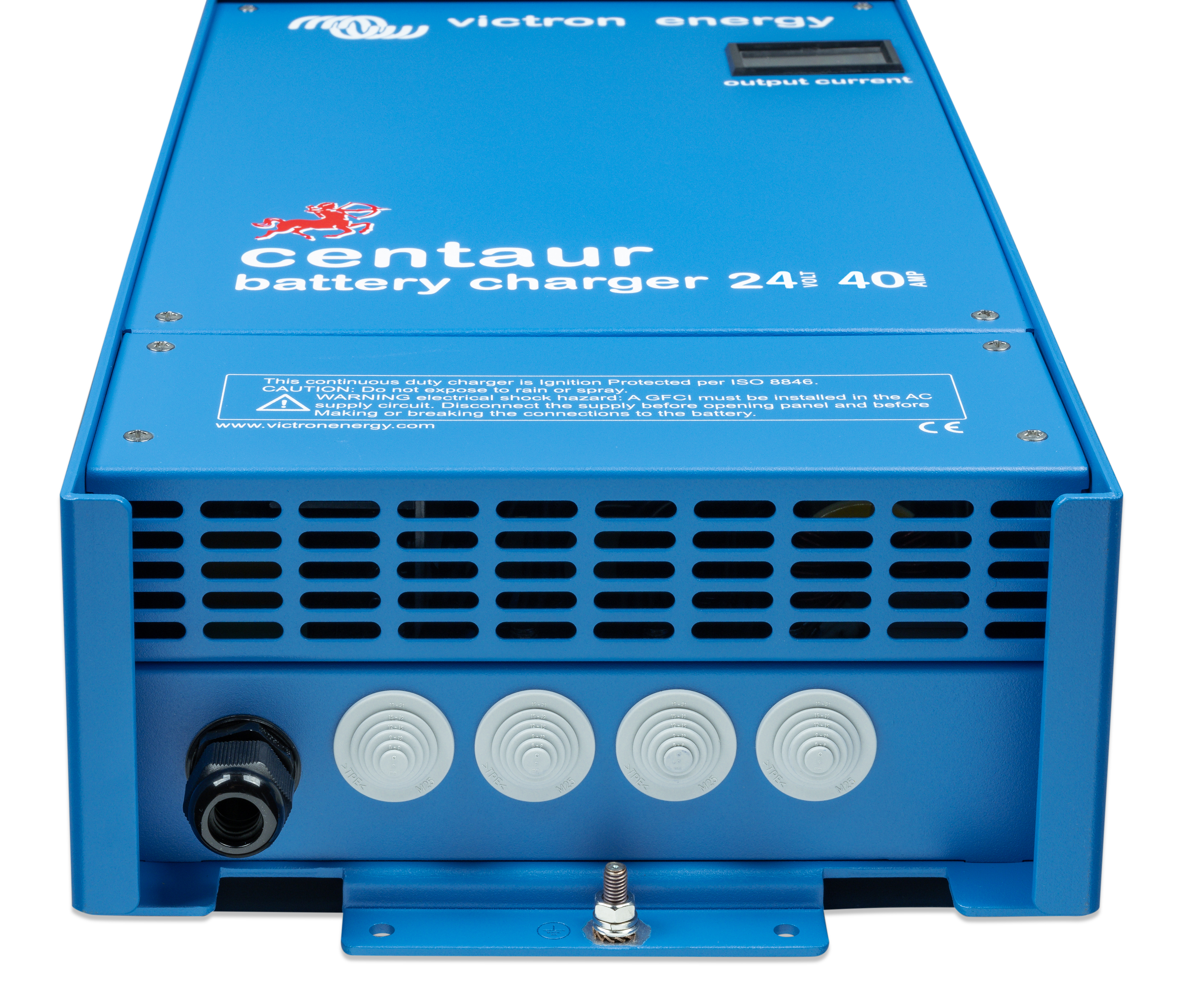

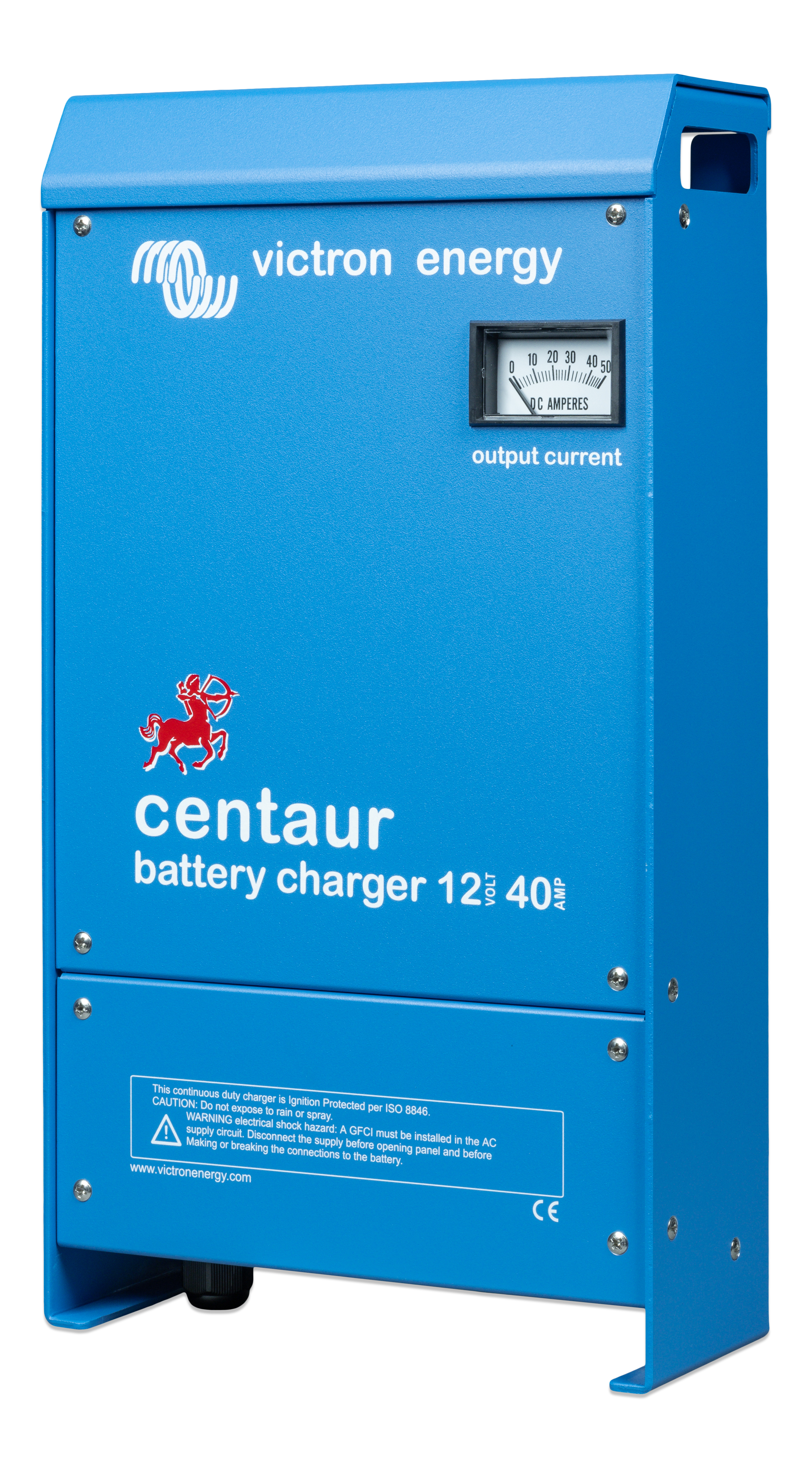

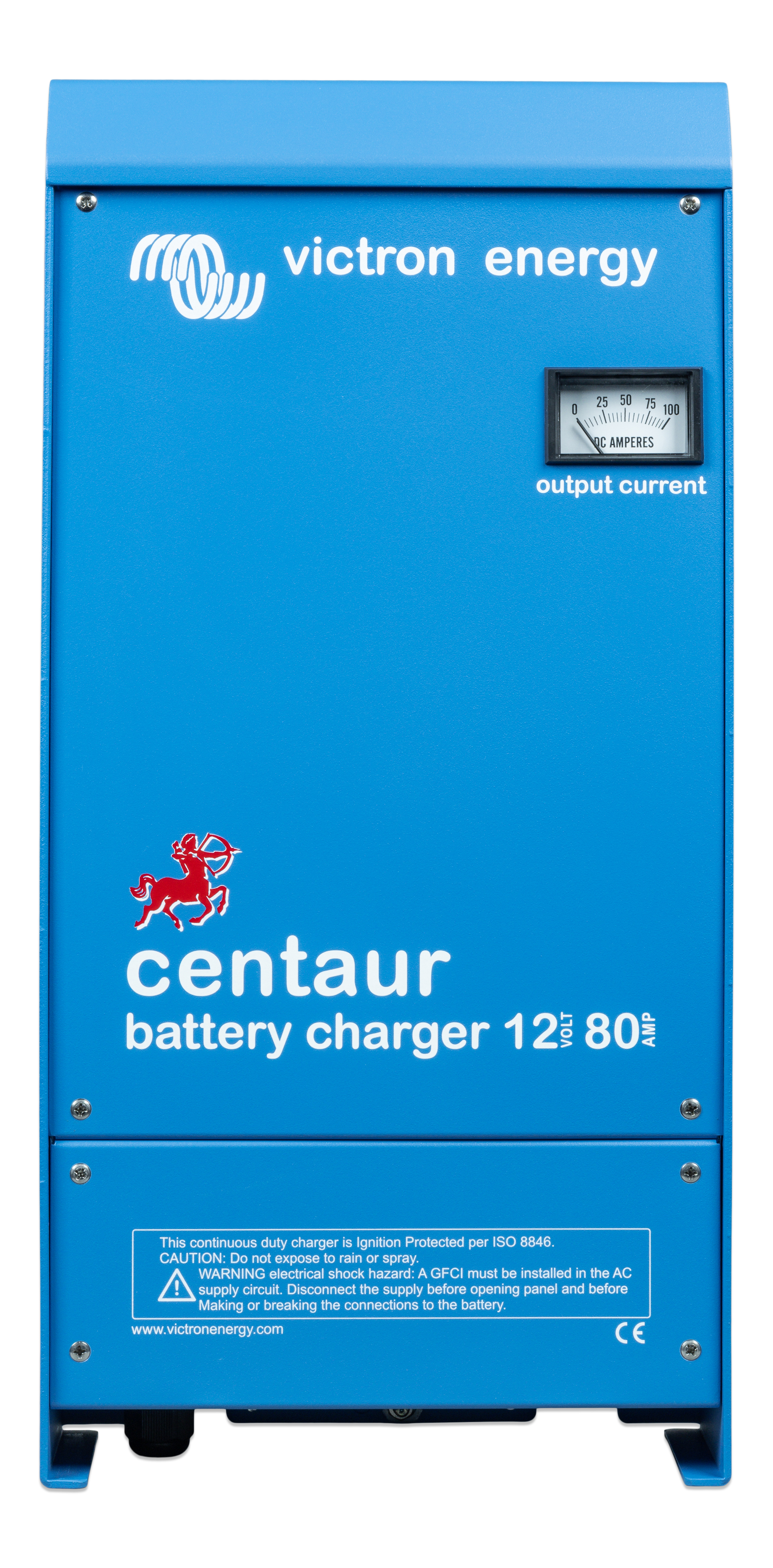

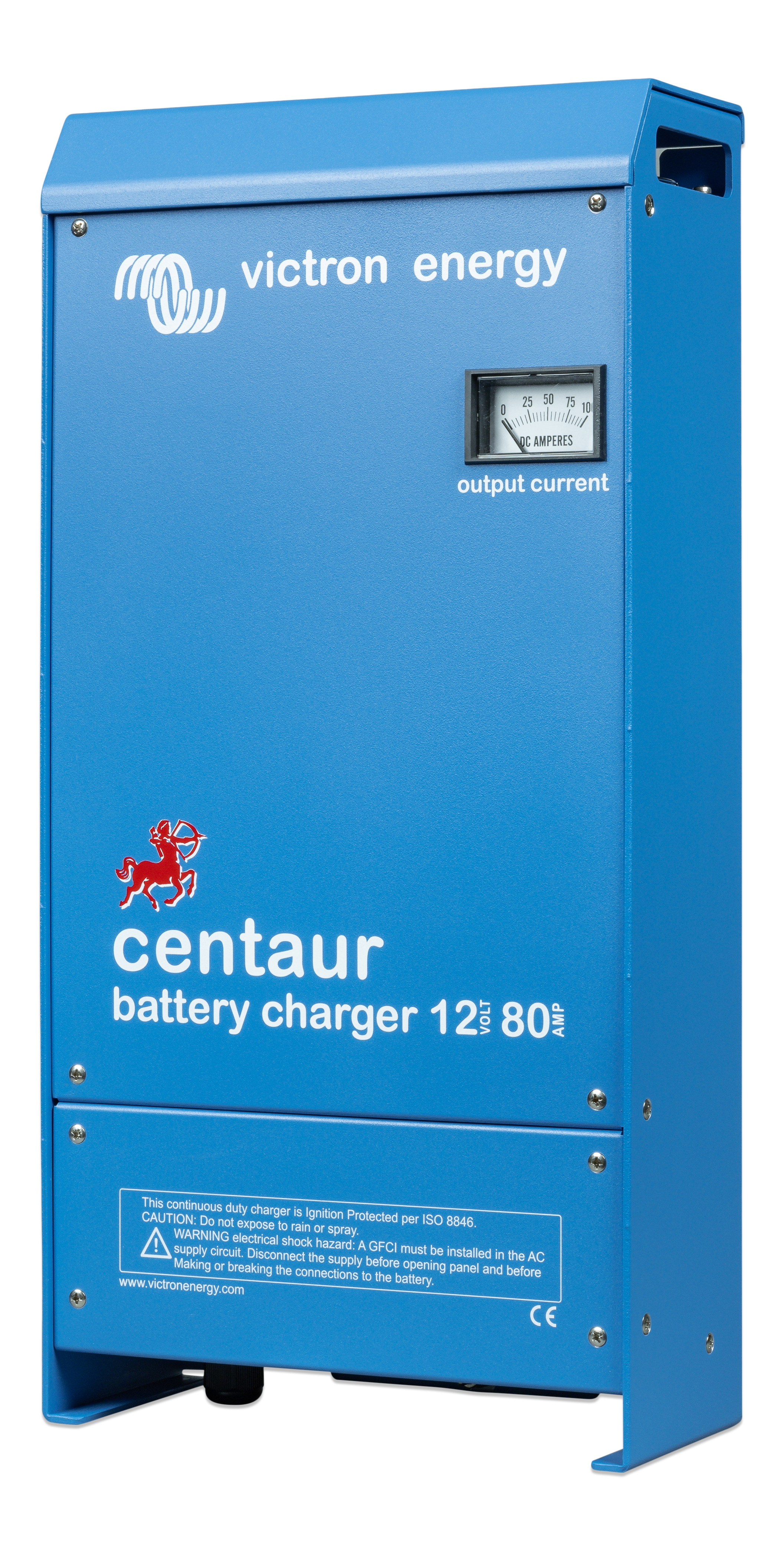

Centaur Charger

<p>The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world. </p><p>Crucially,
and unlike many other products that state universal input,
the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations. </p> <p>The range spans 12V and 24V models from 16A through to 100A.</p>

Códigos SKU

CCH012020000 CCH012030000 CCH012040000 CCH012050000 CCH012060000 CCH012080000 CCH012100000 CCH024016000 CCH024030000 CCH024040000 CCH024060000
DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal
12 V
A C Input Voltage Range
[ 90, 265 ] V
A C Input Voltage Bucket
120 V - 240 V
D C Input Voltage Range
[ 90, 400 ] V
Ac Input Frequency Range
[ 45, 65 ] Hz
Power Factor
1
Charge Voltage Absorption
14.3 V
Charge Voltage Float
13.5 V
Number Of Charge Outputs
3
Charge Current Nominal
20 A
Output Am Meter
1
Charge Algorithm
IUoU, three stage charging
Battery Capacity Range
[ 80, 200 ] Ah
Temperature Sensor
Internal
Temperature Compensation
-12 mV/°C
Programable
Charge voltages selectable via DIP switches
Forced Cooling
1
Protections
Output short-circuit, Over temperature
Operating Temperature Range
[ -20, 60 ] °C
Output Temperature Derating
Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F).
Ignition Protected
1
Max Humidity
95 %
Ac Connection Terminal Type
Screw terminals 4 mm² (12 AWG)
Battery Connection Terminal Type
M6 bolts
Material
Aluminium
Colour
Blue (RAL 5012)
Protection Category
IP20
Weight
3.8 kg
Height
351 mm
Width
214 mm
Depth
110 mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission Immunity
EN 55014-1, EN-IEC 61000-3-2, EN 55014-2, EN-IEC 61000-3-3
Battery Voltage Nominal
12 V
A C Input Voltage Range
[ 90, 265 ] V
A C Input Voltage Bucket
120 V - 240 V
D C Input Voltage Range
[ 90, 400 ] V
Ac Input Frequency Range
[ 45, 65 ] Hz
Power Factor
1
Charge Voltage Absorption
14.3 V
Charge Voltage Float
13.5 V
Number Of Charge Outputs
3
Charge Current Nominal
50 A
Output Am Meter
1
Charge Algorithm
IUoU, three stage charging
Battery Capacity Range
[ 200, 500 ] Ah
Temperature Sensor
Internal
Temperature Compensation
-12 mV/°C
Programable
Charge voltages selectable via DIP switches
Forced Cooling
1
Protections
Output short-circuit, Over temperature
Operating Temperature Range
[ -20, 60 ] °C
Output Temperature Derating
Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F).
Ignition Protected
1
Max Humidity
95 %
Ac Connection Terminal Type
screw-clamp 4 mm² (AWG 6)
Battery Connection Terminal Type
M8 bolts
Material
Aluminium
Colour
Blue (RAL 5012)
Protection Category
IP20
Weight
5 kg
Height
437 mm
Width
239 mm
Depth
110 mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3
Battery Voltage Nominal
12 V
A C Input Voltage Range
[ 90, 265 ] V
A C Input Voltage Bucket
120 V - 240 V
D C Input Voltage Range
[ 90, 400 ] V
Ac Input Frequency Range
[ 45, 65 ] Hz
Power Factor
1
Charge Voltage Absorption
14.3 V
Charge Voltage Float
13.5 V
Number Of Charge Outputs
3
Charge Current Nominal
60 A
Output Am Meter
1
Charge Algorithm
IUoU, three stage charging
Battery Capacity Range
[ 240, 600 ] Ah
Temperature Sensor
Internal
Temperature Compensation
-12 mV/°C
Programable
Charge voltages selectable via DIP switches
Forced Cooling
1
Protections
Output short-circuit, Over temperature
Operating Temperature Range
[ -20, 60 ] °C
Output Temperature Derating
Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F).
Ignition Protected
1
Max Humidity
95 %
Ac Connection Terminal Type
screw-clamp 4 mm² (AWG 6)
Battery Connection Terminal Type
M8 bolts
Material
Aluminium
Colour
Blue (RAL 5012)
Protection Category
IP20
Weight
5 kg
Height
437 mm
Width
239 mm
Depth
110 mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3

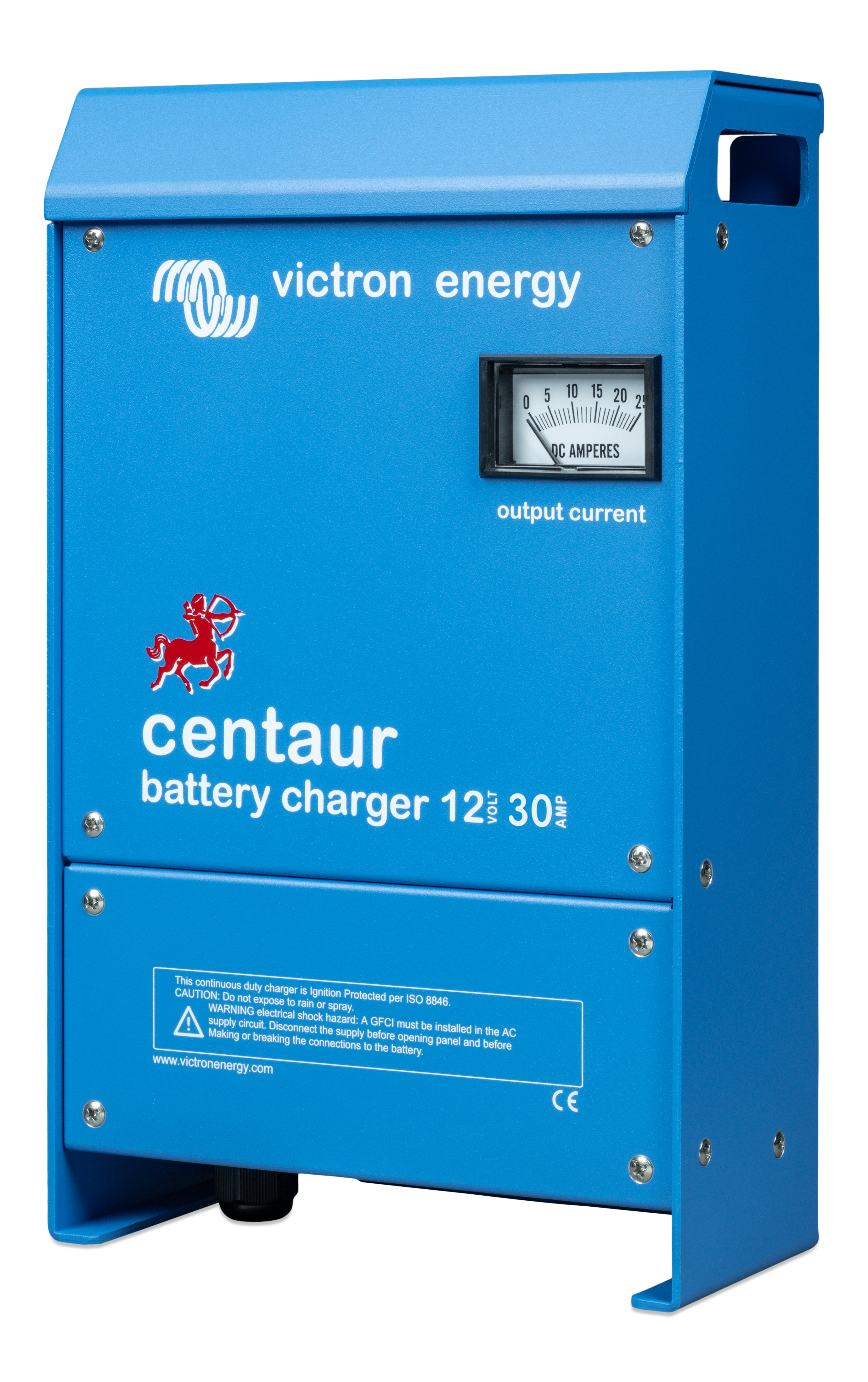

Battery Voltage Nominal
12 V
A C Input Voltage Range
[ 90, 265 ] V
A C Input Voltage Bucket
120 V - 240 V
D C Input Voltage Range
[ 45, 65 ] V
Ac Input Frequency Range
[ 45, 65 ] Hz
Power Factor
1
Charge Voltage Absorption
14.3 V
Charge Voltage Float
13.5 V
Number Of Charge Outputs
3
Charge Current Nominal
30 A
Output Am Meter
1
Charge Algorithm
IUoU, three stage charging
Battery Capacity Range
[ 120, 300 ] Ah
Temperature Sensor
Internal
Temperature Compensation
-12 mV/°C
Programable
Charge voltages selectable via DIP switches
Forced Cooling
1
Protections
Output short-circuit, Over temperature
Operating Temperature Range
[ -20, 60 ] °C
Output Temperature Derating
Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F).
Ignition Protected
1
Max Humidity
95 %
Ac Connection Terminal Type
screw-clamp 4 mm² (AWG 6)
Battery Connection Terminal Type
M6 bolts
Material
Aluminium
Colour
Blue (RAL 5012)
Protection Category
IP20
Weight
3.8 kg
Height
351 mm
Width
214 mm
Depth
110 mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3

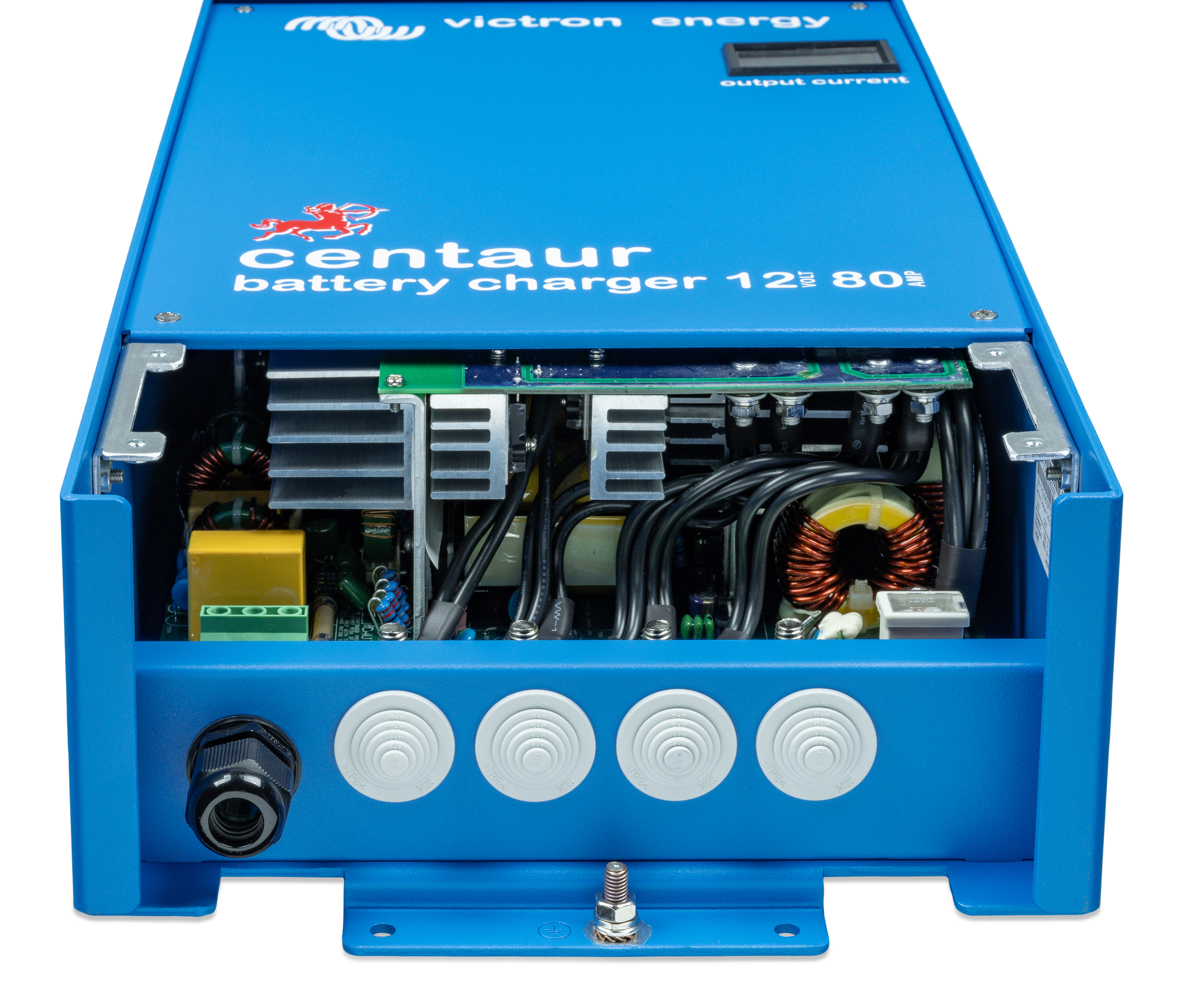

Battery Voltage Nominal
12 V
A C Input Voltage Range
[ 90, 265 ] V
A C Input Voltage Bucket
120 V - 240 V
D C Input Voltage Range
[ 90, 400 ] V
Ac Input Frequency Range
[ 45, 65 ] Hz
Power Factor
1
Charge Voltage Absorption
13.4 V
Charge Voltage Float
13.5 V
Number Of Charge Outputs
3
Charge Current Nominal
80 A
Output Am Meter
1
Charge Algorithm
IUoU, three stage charging
Battery Capacity Range
[ 320, 800 ] Ah
Temperature Sensor
Internal
Temperature Compensation
-12 mV/°C
Programable
Charge voltages selectable via DIP switches
Forced Cooling
1
Protections
Output short-circuit, Over temperature
Operating Temperature Range
[ -20, 60 ] °C
Output Temperature Derating
Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F).
Ignition Protected
1
Max Humidity
95 %
Ac Connection Terminal Type
screw-clamp 4 mm² (AWG 6)
Battery Connection Terminal Type
M8 bolts
Material
Aluminium
Colour
Blue (RAL 5012)
Protection Category
IP20
Weight
12 kg
Height
514 mm
Width
252 mm
Depth
123 mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3

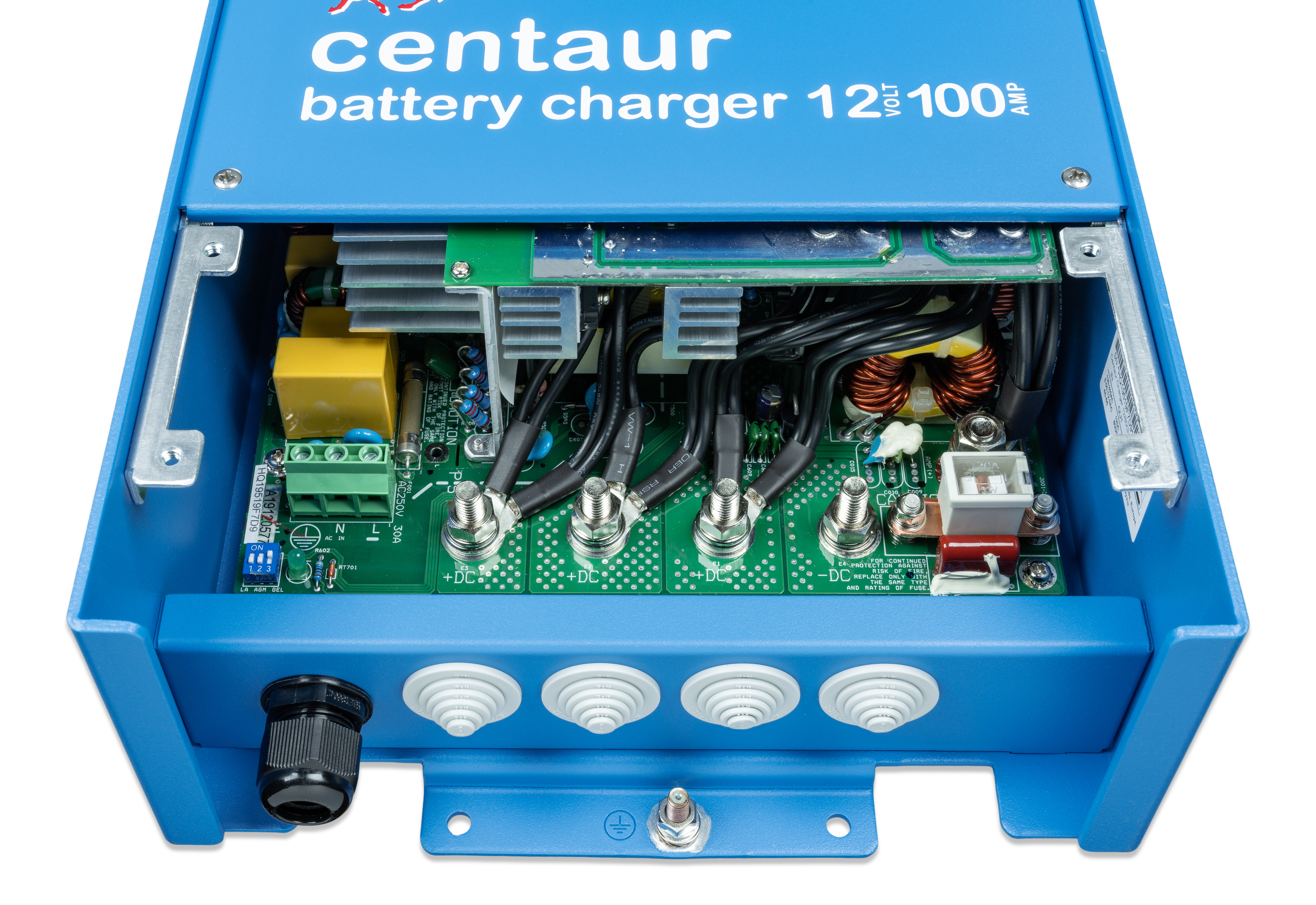

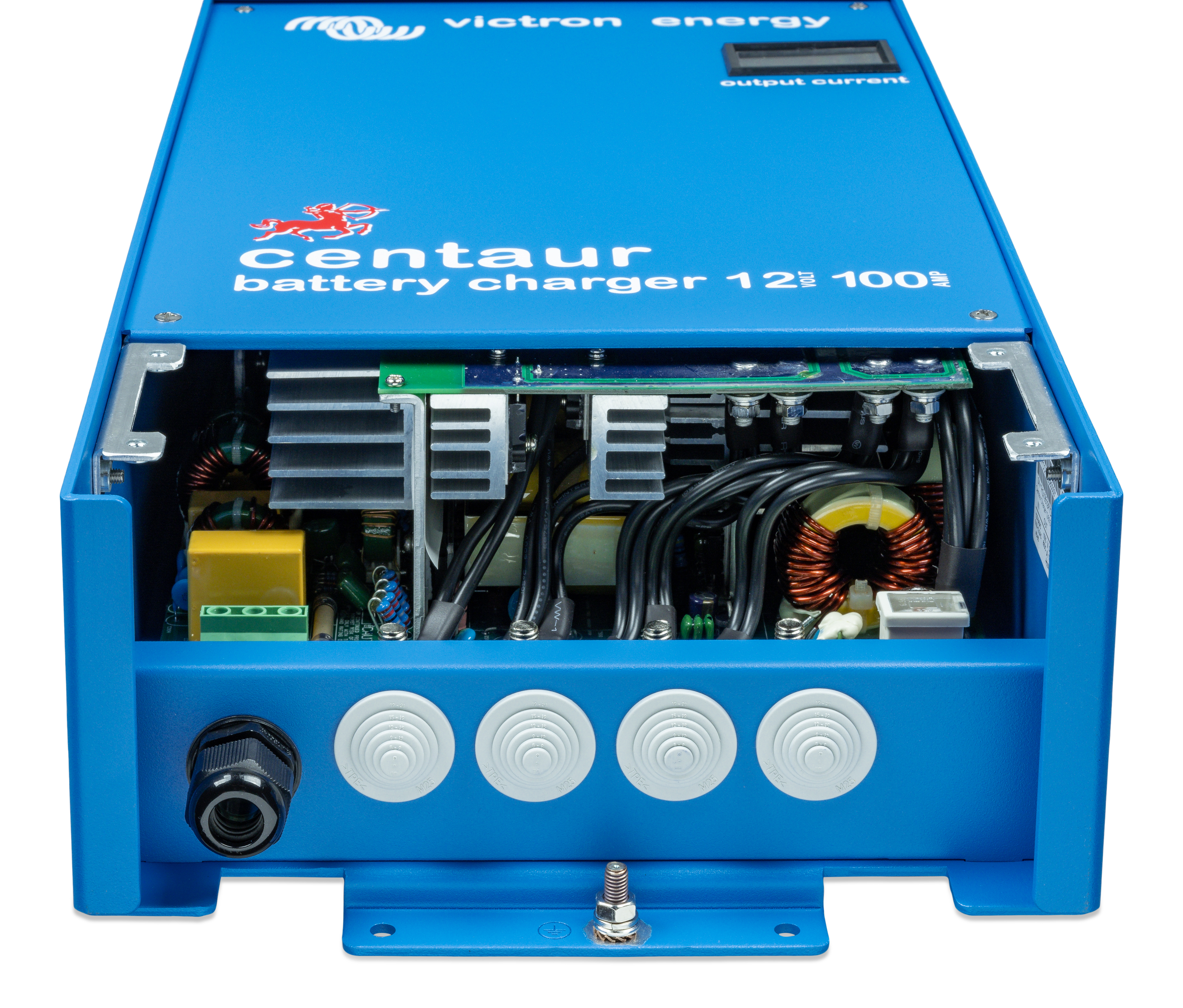

Battery Voltage Nominal
12 V
A C Input Voltage Range
[ 90, 265 ] V
A C Input Voltage Bucket
120 V - 240 V
D C Input Voltage Range
[ 90, 400 ] V
Ac Input Frequency Range
[ 45, 65 ] Hz
Power Factor
1
Charge Voltage Absorption
14.3 V
Charge Voltage Float
13.5 V
Number Of Charge Outputs
3
Charge Current Nominal
100 A
Output Am Meter
1
Charge Algorithm
IUoU, three stage charging
Battery Capacity Range
[ 320, 800 ] Ah
Temperature Sensor
Internal
Temperature Compensation
-12 mV/°C
Programable
Charge voltages selectable via DIP switches
Forced Cooling
1
Protections
Output short-circuit, Over temperature
Operating Temperature Range
[ -20, 60 ] °C
Ignition Protected
1
Max Humidity
95 %
Ac Connection Terminal Type
screw-clamp 4 mm² (AWG 6)
Battery Connection Terminal Type
M8 bolts
Material
Aluminium
Colour
Blue (RAL 5012)
Protection Category
IP20
Weight
12 kg
Height
514 mm
Width
252 mm
Depth
123 mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3

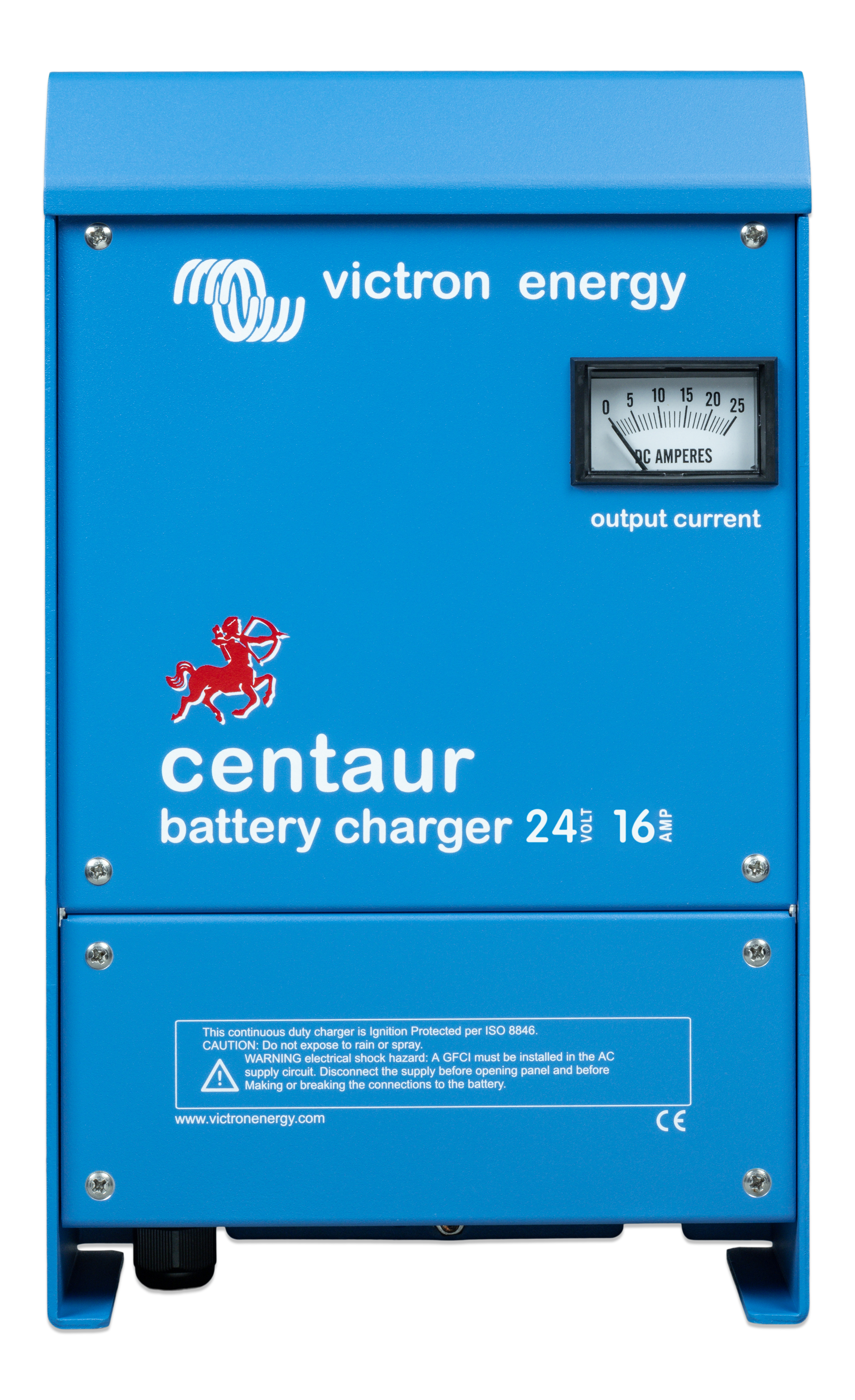

Battery Voltage Nominal
24 V
A C Input Voltage Range
[ 90, 265 ] V
A C Input Voltage Bucket
120 V - 240 V
D C Input Voltage Range
[ 90, 400 ] V
Ac Input Frequency Range
[ 45, 65 ] Hz
Power Factor
1
Charge Voltage Absorption
28.5 V
Charge Voltage Float
27 V
Number Of Charge Outputs
3
Charge Current Nominal
16 A
Output Am Meter
1
Charge Algorithm
IUoU, three stage charging
Battery Capacity Range
[ 45, 150 ] Ah
Temperature Sensor
Internal
Temperature Compensation
-12 mV/°C
Programable
Charge voltages selectable via DIP switches
Forced Cooling
1
Protections
Output short-circuit, Over temperature
Operating Temperature Range
[ -20, 60 ] °C
Output Temperature Derating
Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F).
Ignition Protected
1
Max Humidity
95 %
Ac Connection Terminal Type
screw-clamp 4 mm² (AWG 6)
Battery Connection Terminal Type
M6 bolts
Material
Aluminium
Colour
Blue (RAL 5012)
Protection Category
IP20
Weight
3.8 kg
Height
351 mm
Width
214 mm
Depth
110 mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3
Battery Voltage Nominal
24 V
A C Input Voltage Range
[ 90, 265 ] V
A C Input Voltage Bucket
120 V - 240 V
D C Input Voltage Range
[ 90, 400 ] V
Ac Input Frequency Range
[ 45, 65 ] Hz
Power Factor
1
Charge Voltage Absorption
28.5 V
Charge Voltage Float
27 V
Number Of Charge Outputs
3
Charge Current Nominal
30 A
Output Am Meter
1
Charge Algorithm
IUoU, three stage charging
Battery Capacity Range
[ 120, 300 ] Ah
Temperature Sensor
Internal
Temperature Compensation
-12 mV/°C
Programable
Charge voltages selectable via DIP switches
Forced Cooling
1
Protections
Output short-circuit, Over temperature
Operating Temperature Range
[ -20, 50 ] °C
Output Temperature Derating
Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F).
Ignition Protected
1
Max Humidity
95 %
Ac Connection Terminal Type
screw-clamp 4 mm² (AWG 6)
Battery Connection Terminal Type
M8 bolts
Material
Aluminium
Colour
Blue (RAL 5012)
Protection Category
IP20
Weight
5 kg
Height
437 mm
Width
239 mm
Depth
110 mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3

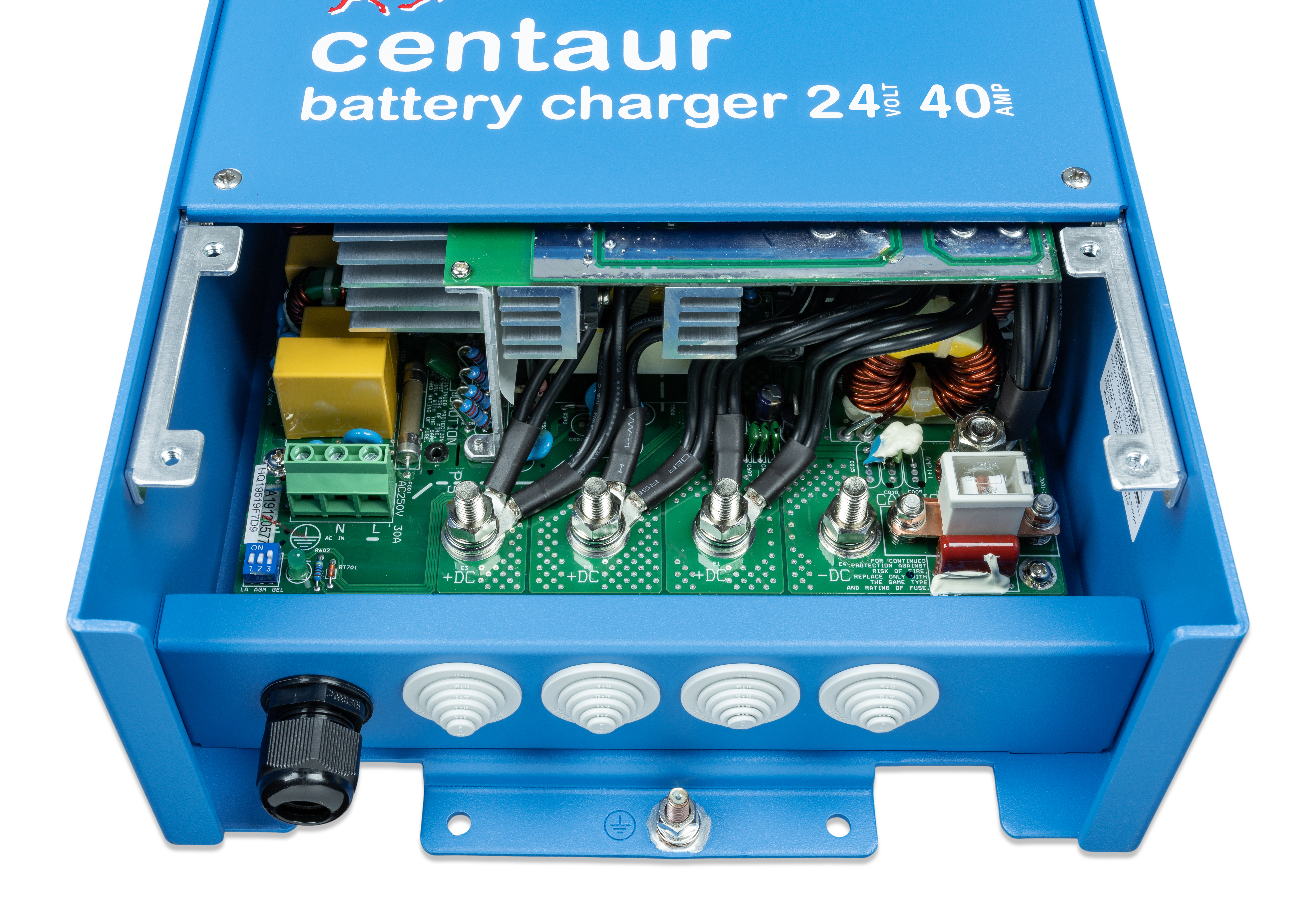

Battery Voltage Nominal
24 V
A C Input Voltage Range
[ 90, 265 ] V
A C Input Voltage Bucket
120 V - 240 V
D C Input Voltage Range
[ 90, 400 ] V
Ac Input Frequency Range
[ 45, 65 ] Hz
Power Factor
1
Charge Voltage Absorption
28.5 V
Charge Voltage Float
27 V
Number Of Charge Outputs
3
Charge Current Nominal
40 A
Output Am Meter
1
Charge Algorithm
IUoU, three stage charging
Battery Capacity Range
[ 160, 400 ] Ah
Temperature Sensor
Internal
Temperature Compensation
-12 mV/°C
Programable
Charge voltages selectable via DIP switches
Forced Cooling
1
Protections
Output short-circuit, Over temperature
Operating Temperature Range
[ -20, 50 ] °C
Output Temperature Derating
Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F).
Ignition Protected
1
Max Humidity
95 %
Ac Connection Terminal Type
screw-clamp 4 mm² (AWG 6)
Battery Connection Terminal Type
M8 bolts
Material
Aluminium
Colour
Blue (RAL 5012)
Protection Category
IP20
Weight
12 kg
Height
514 mm
Width
252 mm
Depth
123 mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3
Battery Voltage Nominal
24 V
A C Input Voltage Range
[ 90, 265 ] V
A C Input Voltage Bucket
120 V - 240 V
D C Input Voltage Range
[ 40, 400 ] V
Ac Input Frequency Range
[ 45, 65 ] Hz
Power Factor
1
Charge Voltage Absorption
28.5 V
Charge Voltage Float
27 V
Number Of Charge Outputs
3
Charge Current Nominal
60 A
Output Am Meter
1
Charge Algorithm
IUoU, three stage charging
Battery Capacity Range
[ 240, 600 ] Ah
Temperature Sensor
Internal
Temperature Compensation
-12 mV/°C
Programable
Charge voltages selectable via DIP switches
Forced Cooling
1
Protections
Output short-circuit, Over temperature
Operating Temperature Range
[ -20, 60 ] °C
Output Temperature Derating
Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F).
Ignition Protected
1
Max Humidity
95 %
Ac Connection Terminal Type
screw-clamp 4 mm² (AWG 6)
Battery Connection Terminal Type
M8 bolts
Material
Aluminium
Colour
Blue (RAL 5012)
Protection Category
IP20
Weight
12 kg
Height
514 mm
Width
252 mm
Depth
123 mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3

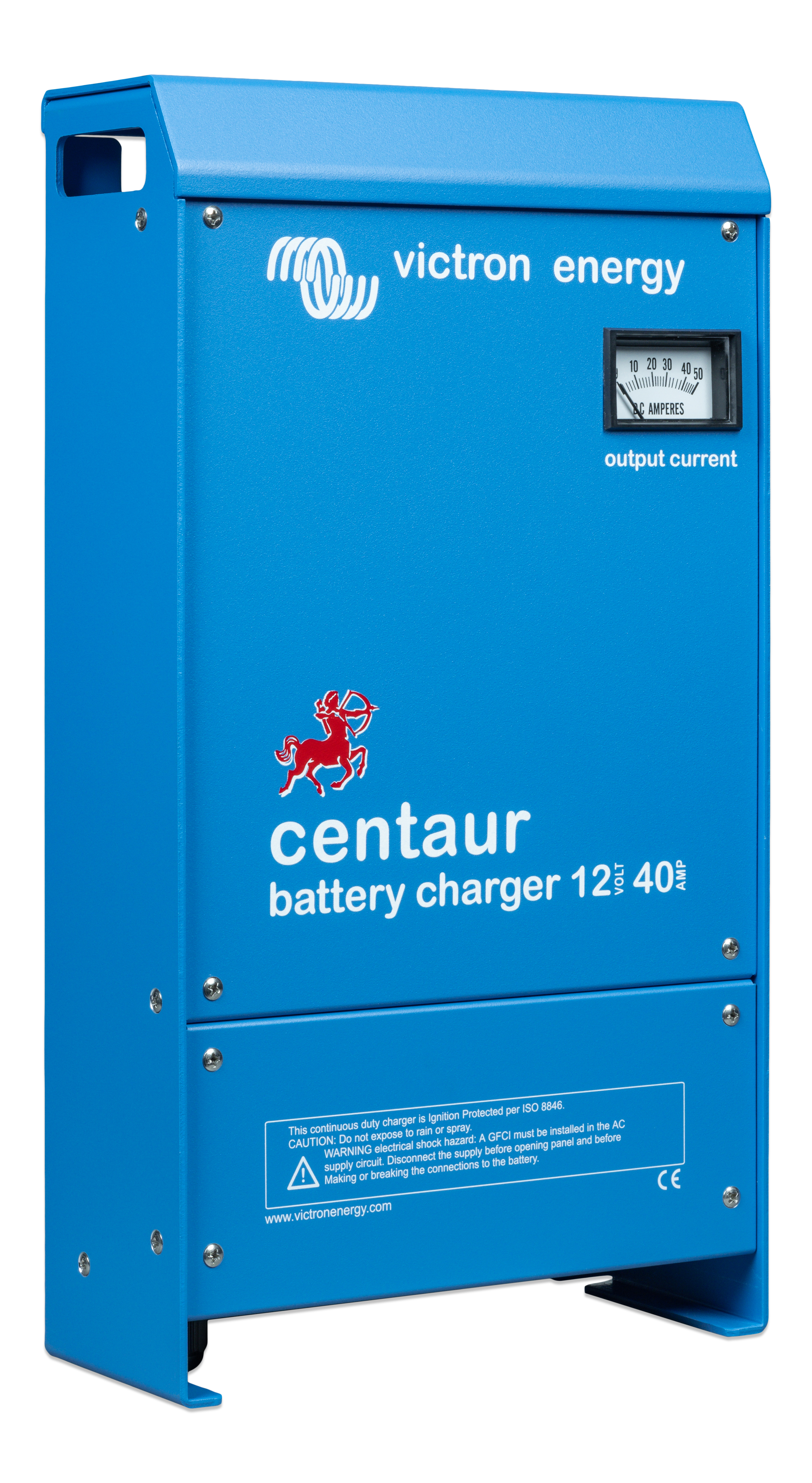

Battery Voltage Nominal
12 V
A C Input Voltage Range
[ 90, 265 ] V
A C Input Voltage Bucket
120 V - 240 V
D C Input Voltage Range
[ 90, 400 ] V
Ac Input Frequency Range
[ 45, 65 ] Hz
Power Factor
1
Charge Voltage Absorption
14.3 V
Charge Voltage Float
28.5 V
Number Of Charge Outputs
3
Charge Current Nominal
40 A
Output Am Meter
1
Charge Algorithm
IUoU, three stage charging
Battery Capacity Range
[ 160, 400 ] Ah
Temperature Sensor
Internal
Temperature Compensation
-12 mV/°C
Programable
Charge voltages selectable via DIP switches
Forced Cooling
1
Protections
Output short-circuit, Over temperature
Operating Temperature Range
[ -20, 60 ] °C
Output Temperature Derating
Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F).
Ignition Protected
1
Max Humidity
95 %
Ac Connection Terminal Type
screw-clamp 4 mm² (AWG 6)
Battery Connection Terminal Type
M8 bolts
Material
Aluminium
Colour
Blue (RAL 5012)
Protection Category
IP20
Weight
5 kg
Height
437 mm
Width
239 mm
Depth
110 mm
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission Immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3
← Volver a productos Victron
