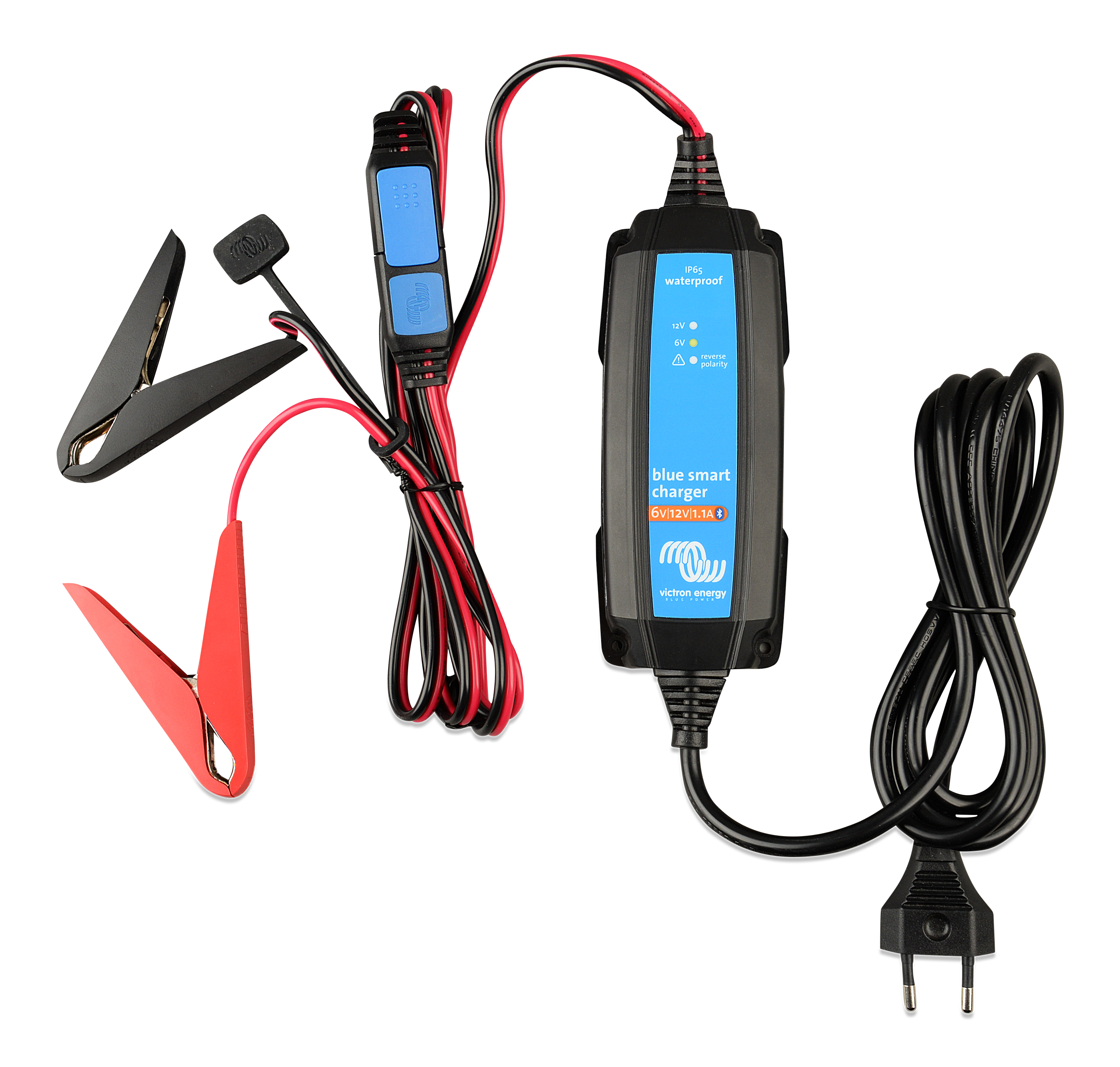

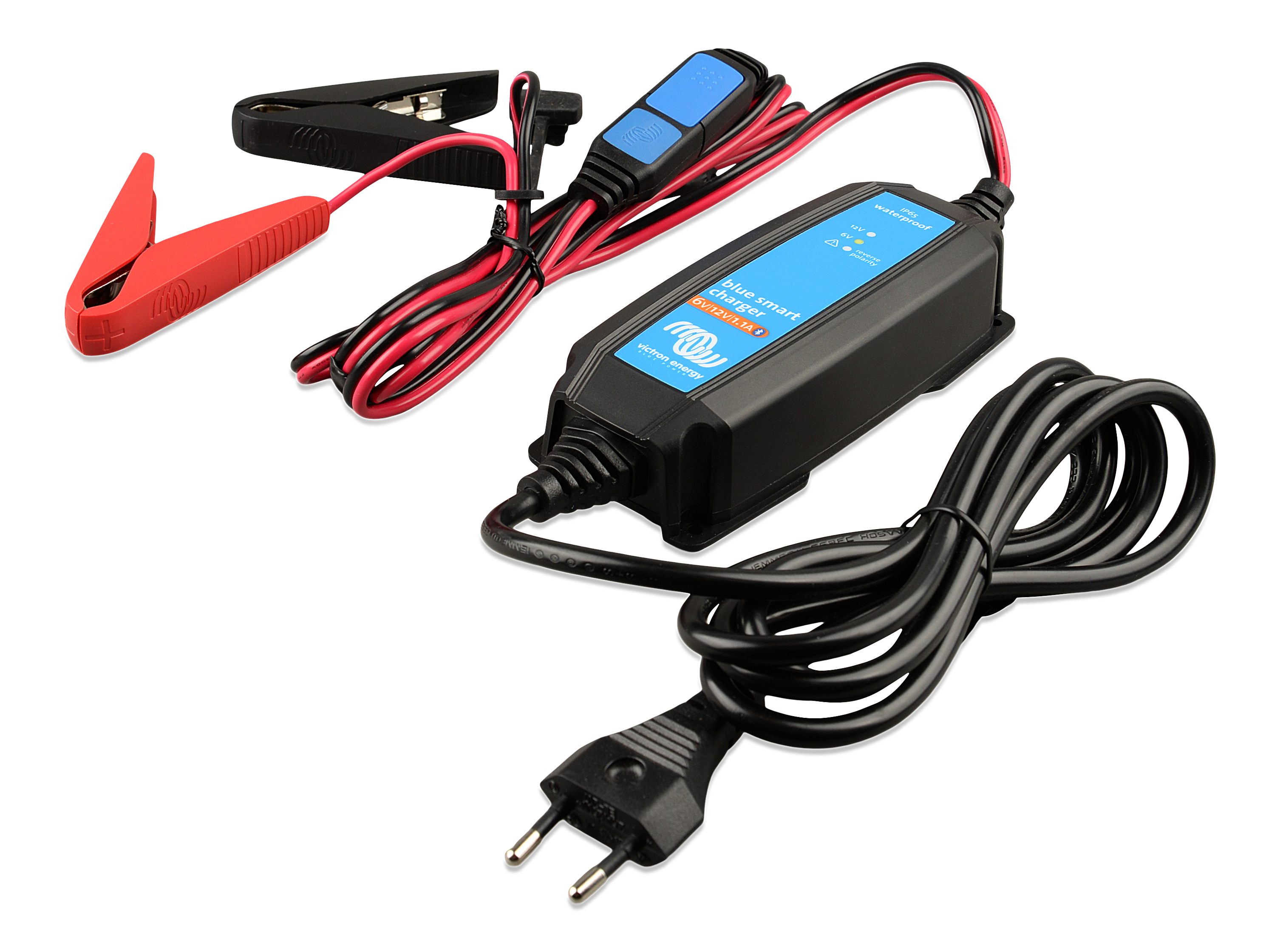

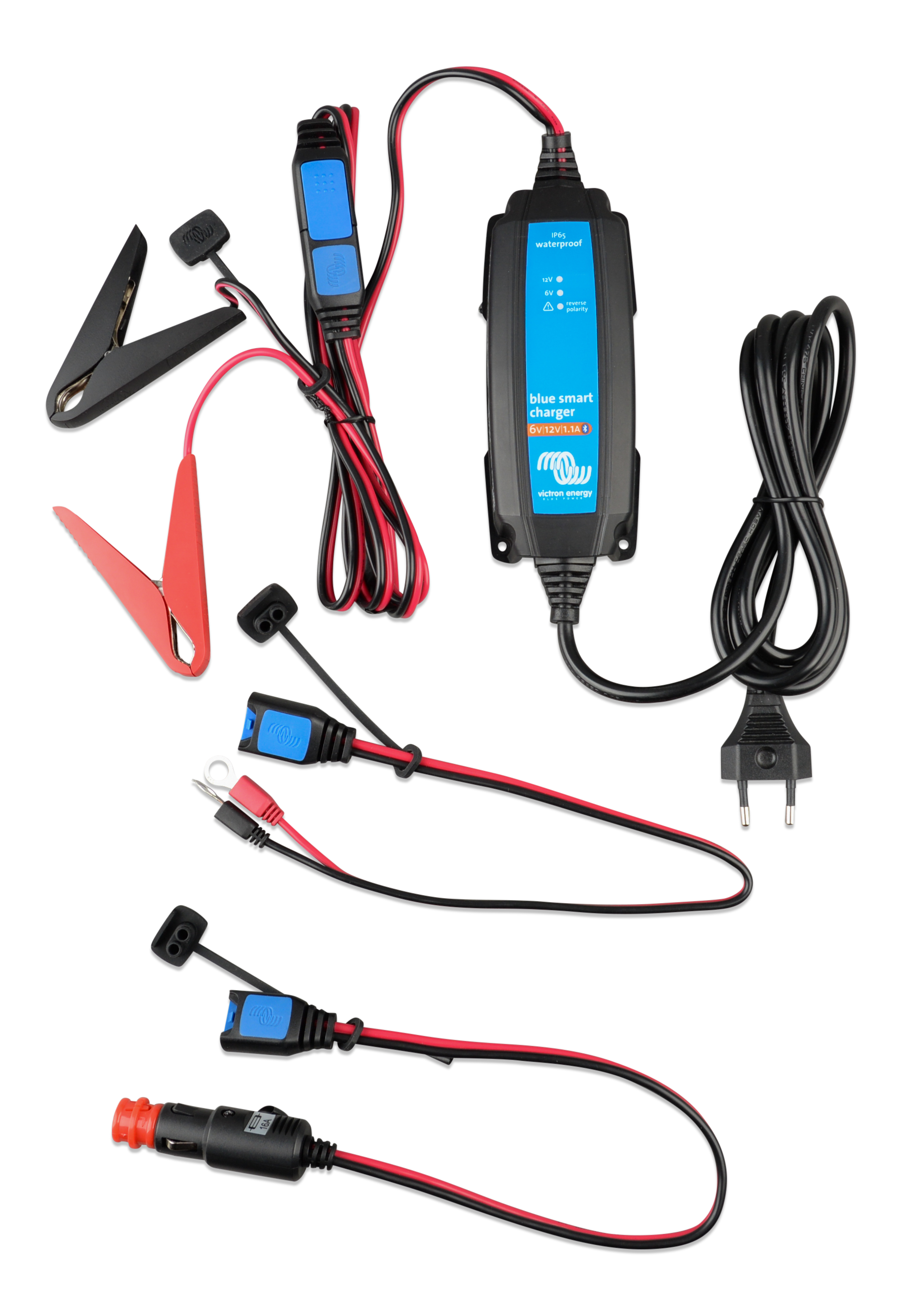

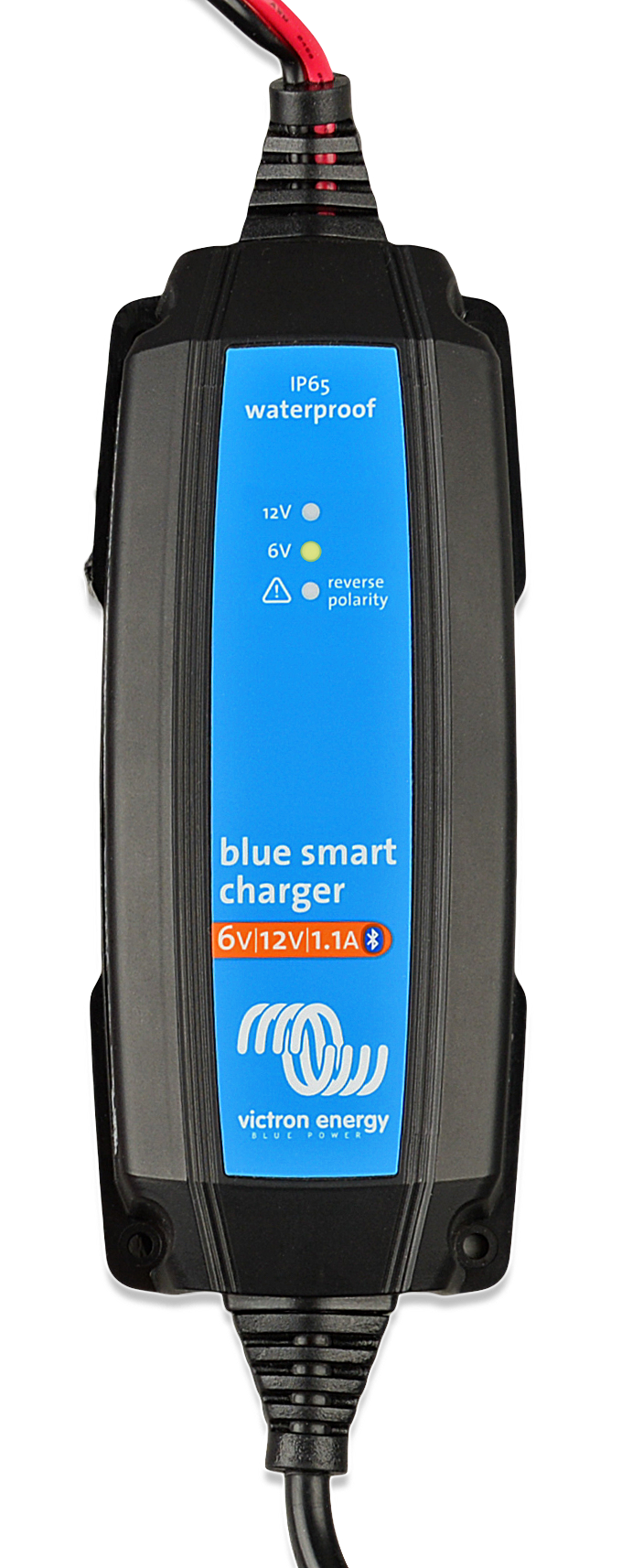

Blue Smart IP65 Charger

SKU principal: BPC120731064R

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles,
such as (classic) cars; motorbikes; boats and camper-vans.New: IP65 6V/12V 1.1A New: IP65 12/5 replaced by smaller equivalent model: IP65s 12/5

Códigos SKU

BPC120731064R BPC121031064R BPC121531064R BPC240531064R BPC240831064R BPC120731014R BPC121031014R BPC121531014R BPC240531014R BPC240831014R BPC120731024R BPC121031024R BPC121531024R BPC240831024R BPC120731104R BPC120533064R BPC120533014R BPC121531104R BPC121031104R BPC240831104R BPC120533024R BPC120433014R BPC120433064R BPC120433024R BPC120433034R BPC120533034R BPC120731034R BPC121031034R BPC121531034R BPC240531034R BPC240831034R BPC240531104R BPC120531104R BPC241331064 BPC241331034 BPC122531064 BPC122531034 BPC122531024 BPC241331024 BPC122531014 BPC241331014 BPC120134034R BPC120134024R BPC120134014R BPC120134124R BPC122531124 BPC241331124 BPC121532064R BPC240832064R BPC120435014R BPC120435024R BPC120435034R BPC120435064R BPC120535014R BPC120535024R BPC120535034R BPC120535064R BPC121032014R BPC121032034R BPC121532014R BPC121532034R BPC240832014R BPC121032064R BPC121032024R BPC121532024R

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 12 V
Six Volt Setting: 1
Charge Current Nominal: 1.1 A
Charge Current Low: 0.5 A
A C Input Voltage Range: [ 100, 250 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 82 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation6: -8 mV/°C
Temperature Compensation12: -16 mV/°C
Back Current Drain: 0.1 mA
Back Current Drain Month: 0.14 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -30, 50 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ)
Battery Connection Terminal Type: Red and black 1.5 meter cable with M8 eyelets
Protection Category: IP65
Weight: 0.4 kg
Height: 38 mm
Width: 64 mm
Depth: 153 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 5 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 45 mm
Width: 81 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 7 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Six Volt Setting: 1
Charge Current Nominal: 1.1 A
Charge Current Low: 0.5 A
A C Input Voltage Range: [ 100, 130 ] VAC
A C Input Voltage Bucket: 120 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 82 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation6: -8 mV/°C
Temperature Compensation12: -16 mV/°C
Back Current Drain: 0.1 mA
Back Current Drain Month: 0.14 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -30, 50 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.4 kg
Height: 38 mm
Width: 64 mm
Depth: 153 mm
Safety: CSA C22.2, EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 15 A
Charge Current Low: 4 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-1, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 25 A
Charge Current Low: 10 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 1.9 kg
Height: 75 mm
Width: 104 mm
Depth: 240 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 10 A
Charge Current Low: 3 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 5 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 47 mm
Width: 95 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 8 A
Charge Current Low: 3 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Over temperature, Output short-circuit
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 13 A
Charge Current Low: 4 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 1.9 kg
Height: 75 mm
Width: 140 mm
Depth: 240 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 5 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 100, 130 ] VAC
A C Input Voltage Bucket: 120 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 45 mm
Width: 81 mm
Depth: 182 mm
Safety: CSA C22.2, EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 7 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 100, 130 ] VAC
A C Input Voltage Bucket: 120 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 47 mm
Width: 95 mm
Depth: 182 mm
Safety: CSA C22.2, EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 10 A
Charge Current Low: 3 A
A C Input Voltage Range: [ 100, 130 ] VAC
A C Input Voltage Bucket: 120 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 1, 058 mm
Depth: 190 mm
Safety: CSA C22.2, EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 15 A
Charge Current Low: 4 A
A C Input Voltage Range: [ 10, 130 ] VAC
A C Input Voltage Bucket: 120 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: CSA C22.2, EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 5 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 100, 130 ] VAC
A C Input Voltage Bucket: 120 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 47 mm
Width: 95 mm
Depth: 182 mm
Safety: CSA C22.2, EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-2, EN-IEC 61000-6-1
Battery Voltage Nominal: 12 V
Charge Current Nominal: 25 A
Charge Current Low: 10 A
A C Input Voltage Range: [ 100, 130 ] VAC
A C Input Voltage Bucket: 120 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 1.9 kg
Height: 75 mm
Width: 140 mm
Depth: 240 mm
Safety: CSA C22.2, EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 13 A
Charge Current Low: 4 A
A C Input Voltage Range: [ 100, 130 ] VAC
A C Input Voltage Bucket: 120 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 1.9 kg
Height: 75 mm
Width: 140 mm
Depth: 240 mm
Safety: CSA C22.2, EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 8 A
Charge Current Low: 3 A
A C Input Voltage Range: [ 100, 130 ] VAC
A C Input Voltage Bucket: 120 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.8 meter (6 feet) with US NEMA 5-15 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: CSA C22.2, EN-IEC 60335-1, EN-IEC 60335-2-29, UL 1236
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 5 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/17 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 45 mm
Width: 81 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 4 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/17 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 45 mm
Width: 81 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 7 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/17 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 47 mm
Width: 95 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 15 A
Charge Current Low: 4 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/17 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 25 A
Charge Current Low: 10 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/17 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 1.9 kg
Height: 75 mm
Width: 140 mm
Depth: 240 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 5 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/17 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 47 mm
Width: 95 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 8 A
Charge Current Low: 3 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/17 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 13 A
Charge Current Low: 4 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/17 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 1.9 kg
Height: 75 mm
Width: 140 mm
Depth: 240 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 10 A
Charge Current Low: 3 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/17 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 10 A
A C Input Voltage Bucket: 230 V
Number Of Charge Outputs: 1
Standby Power Consumption: 0.5 W
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/16 plug
Protection Category: IP65
Battery Voltage Nominal: 12 V
Charge Current Nominal: 25 A
Charge Current Low: 10 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/16 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 1.9 kg
Height: 75 mm
Width: 140 mm
Depth: 240 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 8 A
Charge Current Low: 3 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/16 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 5 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/16 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 47 mm
Width: 95 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 13 A
Charge Current Low: 4 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/16 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 1.9 kg
Height: 75 mm
Width: 140 mm
Depth: 240 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 15 A
Charge Current Low: 4 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/16 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 4 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 1, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/16 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 45 mm
Width: 81 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 5 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/16 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 45 mm
Width: 81 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 7 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/16 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 47 mm
Width: 95 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Six Volt Setting: 1
Charge Current Nominal: 1.1 A
Charge Current Low: 0.4 A
A C Input Voltage Range: [ 100, 250 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 56 ] Hz
Number Of Charge Outputs: 1
Efficiency: 82 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation6: -8 mV/°C
Temperature Compensation12: -16 mV/°C
Back Current Drain: 0.1 mA
Back Current Drain Month: 1.4 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -30, 50 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with CEE 7/16 plug
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.4 kg
Height: 38 mm
Width: 64 mm
Depth: 153 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 4 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -60 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with BS 1363 plug (UK)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 45 mm
Width: 81 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Six Volt Setting: 1
Charge Current Nominal: 1.1 A
Charge Current Low: 0.5 A
A C Input Voltage Range: [ 100, 250 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 82 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation6: -8 mV/°C
Temperature Compensation12: -16 mV/°C
Back Current Drain: 0.1 mA
Back Current Drain Month: 0.14 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -30, 50 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with BS 1363 plug (UK)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.4 kg
Height: 38 mm
Width: 64 mm
Depth: 153 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 5 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with BS 1363 plug (UK)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 45 mm
Width: 81 mm
Depth: 95 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 7 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with BS 1363 plug (UK)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 47 mm
Width: 95 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 10 A
Charge Current Low: 3 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Over temperature, Output short-circuit
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with BS 1363 plug (UK)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 15 A
Charge Current Low: 4 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with BS 1363 plug (UK)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 25 A
Charge Current Low: 10 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with BS 1363 plug (UK)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 1.9 kg
Height: 75 mm
Width: 140 mm
Depth: 240 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 8 A
Charge Current Low: 3 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with BS 1363 plug (UK)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 0.9 kg
Height: 60 mm
Width: 105 mm
Depth: 190 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 24 V
Charge Current Nominal: 13 A
Charge Current Low: 4 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 95 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 28.8V High: 29.4V Lithium: 28.4V
Charge Voltage Float: Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage Storage: Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -32 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with BS 1363 plug (UK)
Battery Connection Terminal Type: Red and black 1.5 meter cable with plugable M8 eyelets or clamps
Protection Category: IP65
Weight: 1.9 kg
Height: 75 mm
Width: 104 mm
Depth: 240 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2
Battery Voltage Nominal: 12 V
Charge Current Nominal: 4 A
Charge Current Low: 2 A
A C Input Voltage Range: [ 180, 265 ] VAC
A C Input Voltage Bucket: 230 V
Ac Input Frequency Range: [ 45, 65 ] Hz
Number Of Charge Outputs: 1
Efficiency: 94 %
Standby Power Consumption: 0.5 W
Charge Voltage Absorption: Normal: 14.4V High: 14.7V Lithium: 14.2V
Charge Voltage Float: Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage Storage: Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Algorithm: Adaptive, 7-stage
Lithium Compatible: 1
Temperature Compensation: -16 mV/°C
Back Current Drain: 1 mA
Back Current Drain Month: 0.7 Ah/mo
Power Supply Mode: 1
Programable: 1
Bluetooth: Yes, -4dBm, 2402 – 2480 MHz
Protections: Battery reverse polarity, Output short-circuit, Over temperature
Operating Temperature Range: [ -40, 60 ] °C
Ouput Full Rated: 30 °C
Max Humidity: 95 %
Ac Connection Terminal Type: Cable of 1.5 meter with AS/NZS 3112 plug (AU/NZ)
Protection Category: IP65
Weight: 0.9 kg
Height: 45 mm
Width: 81 mm
Depth: 182 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
Emission: EN 55014-1, EN-IEC 61000-3-2, EN-IEC 61000-6-3
Immunity: EN 55014-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2

← Volver a productos Victron
