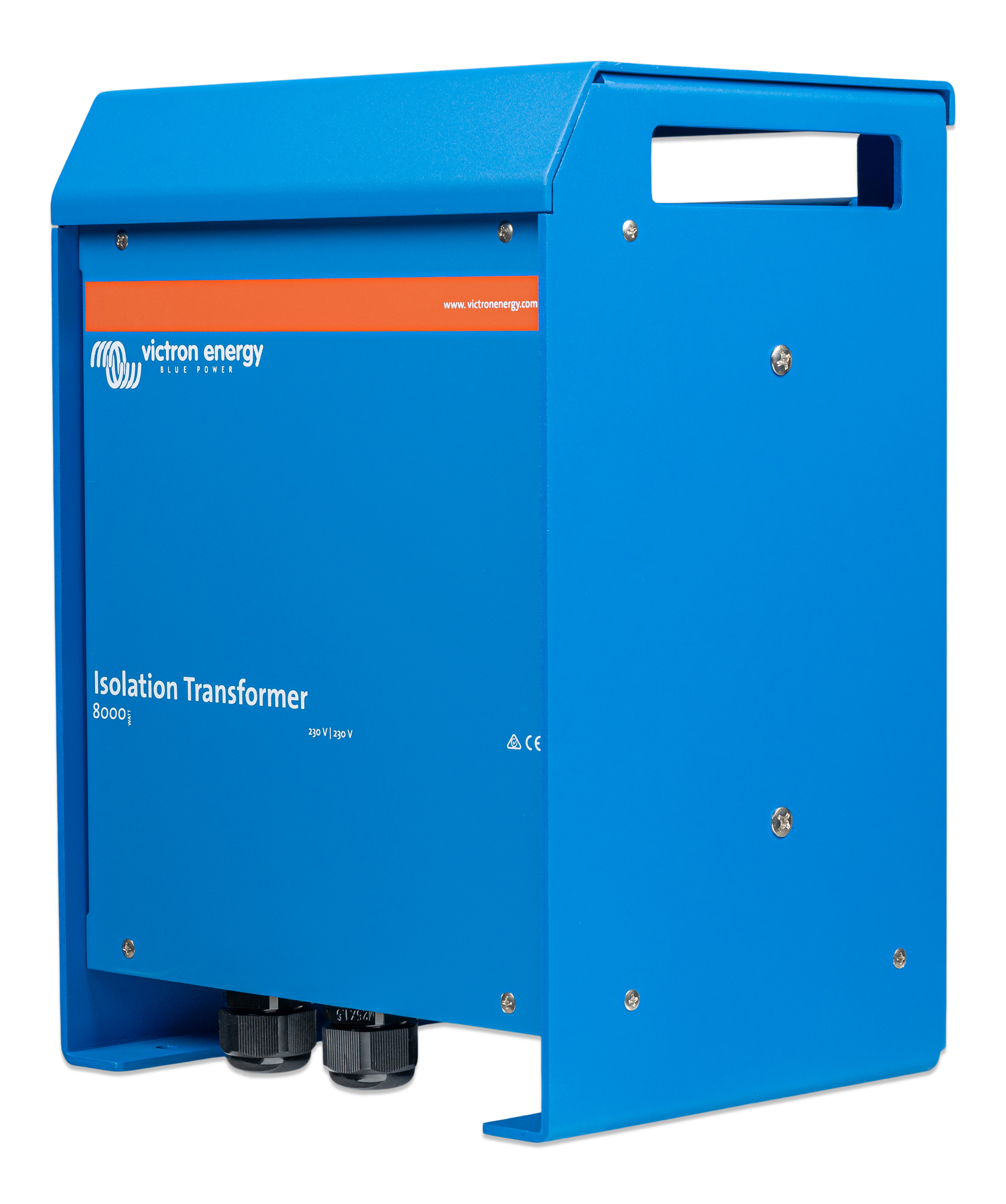

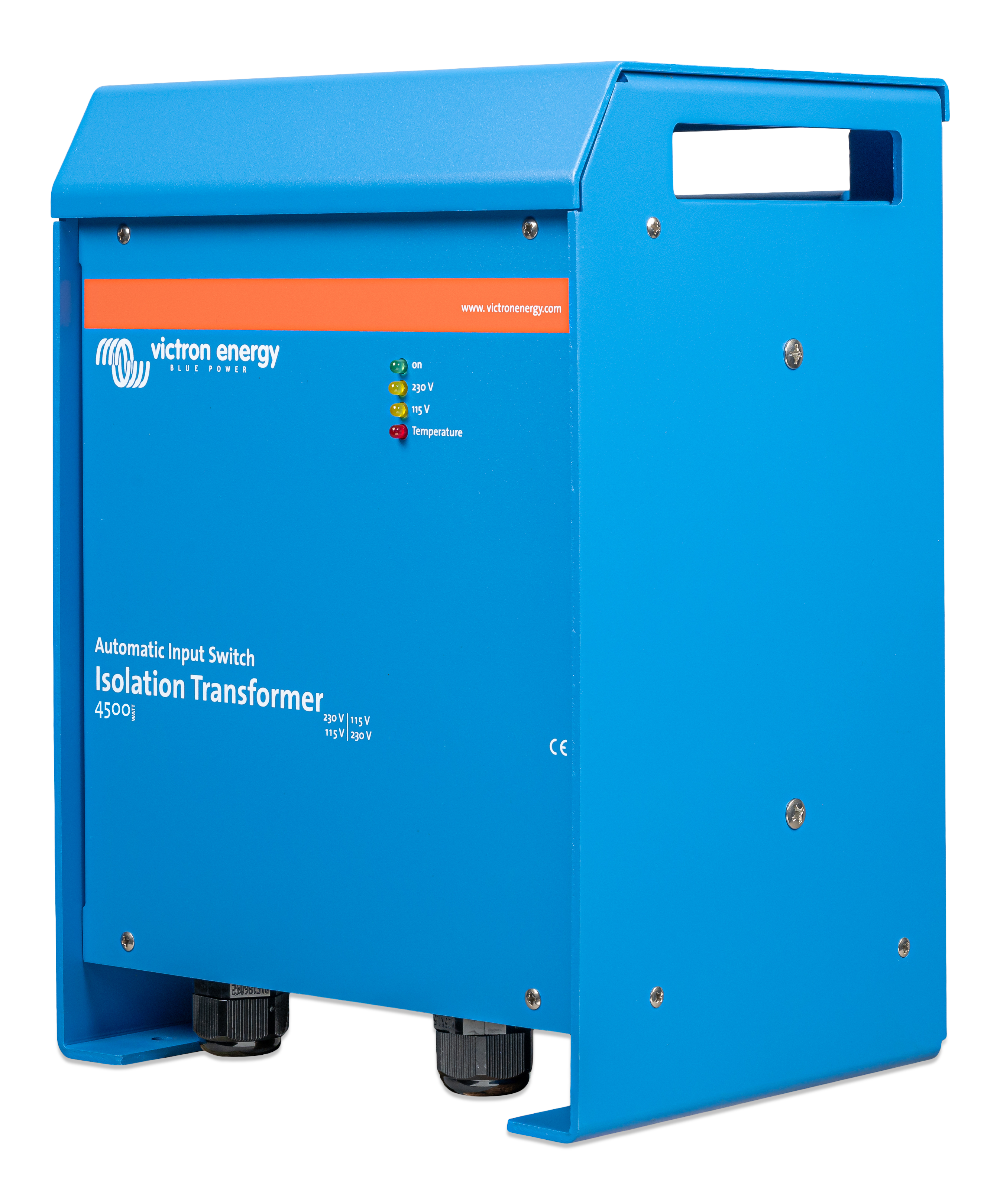

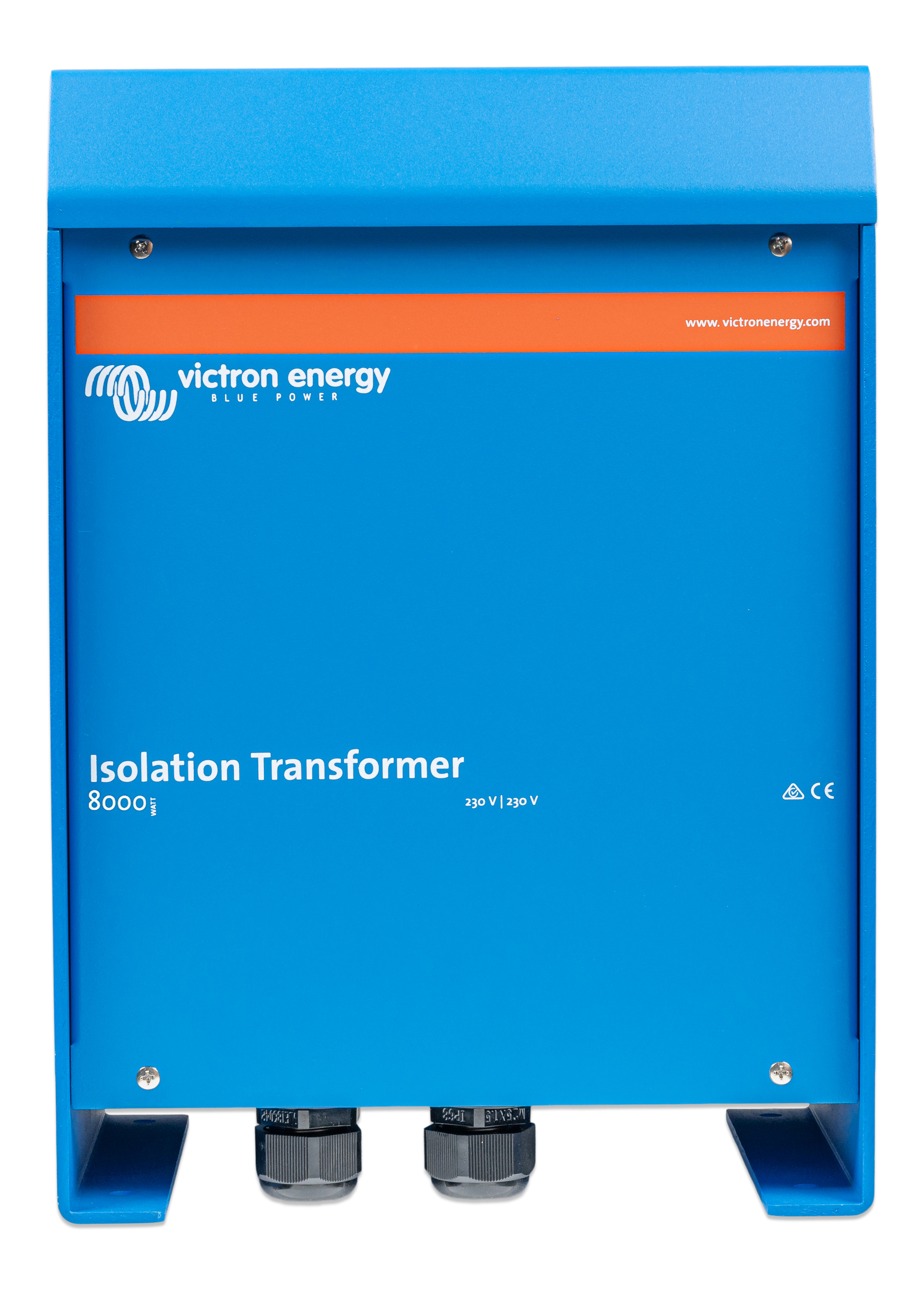

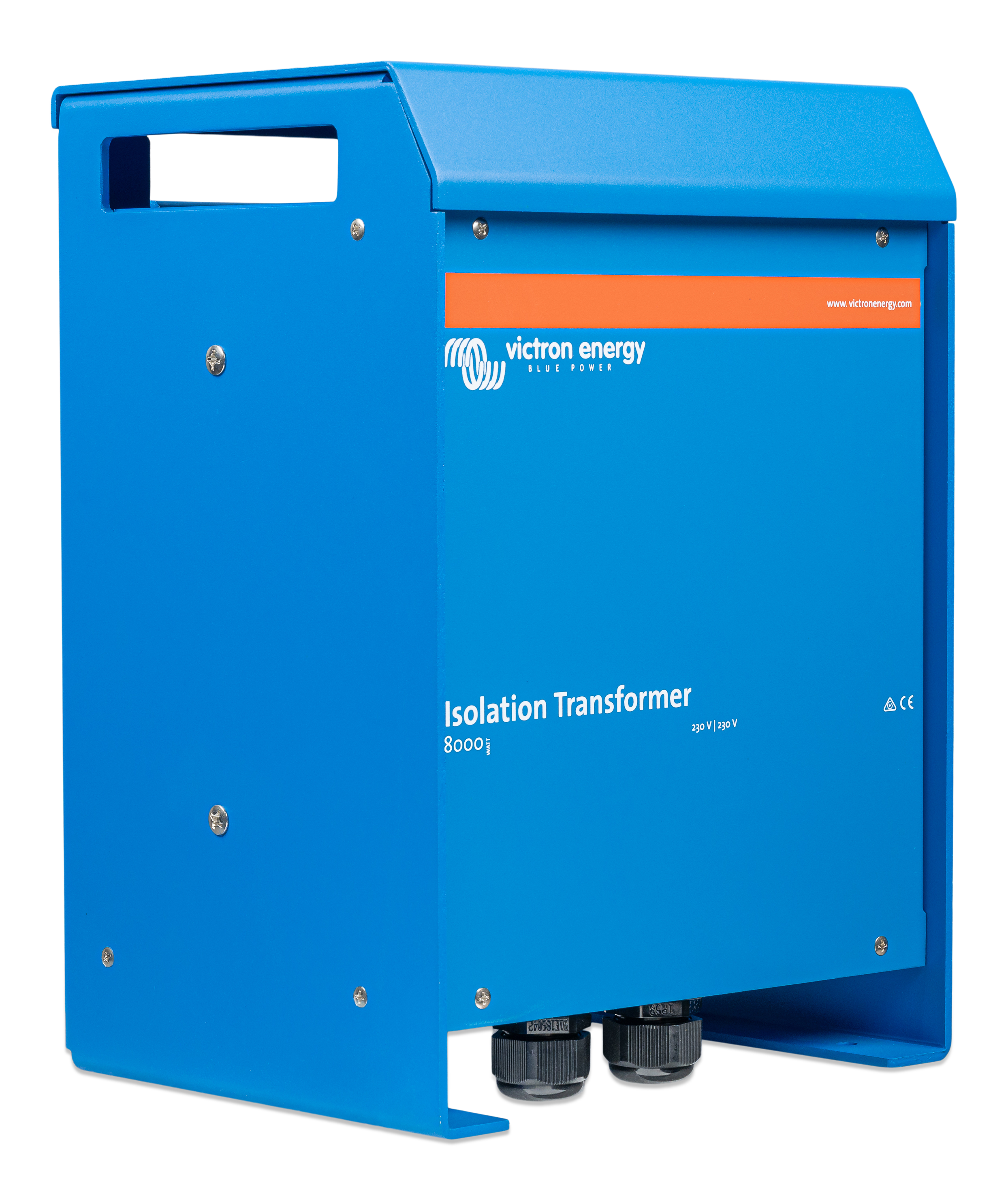

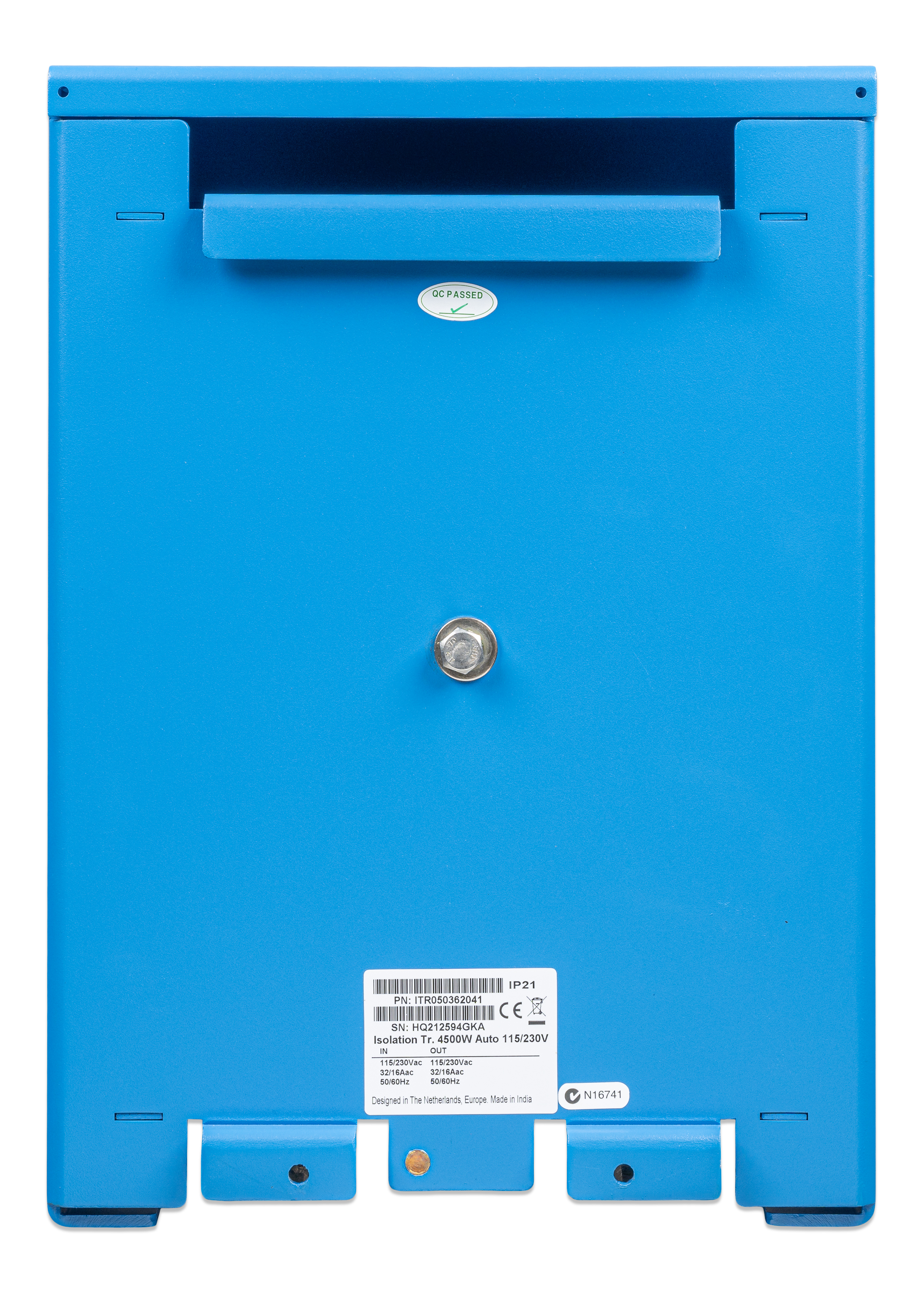

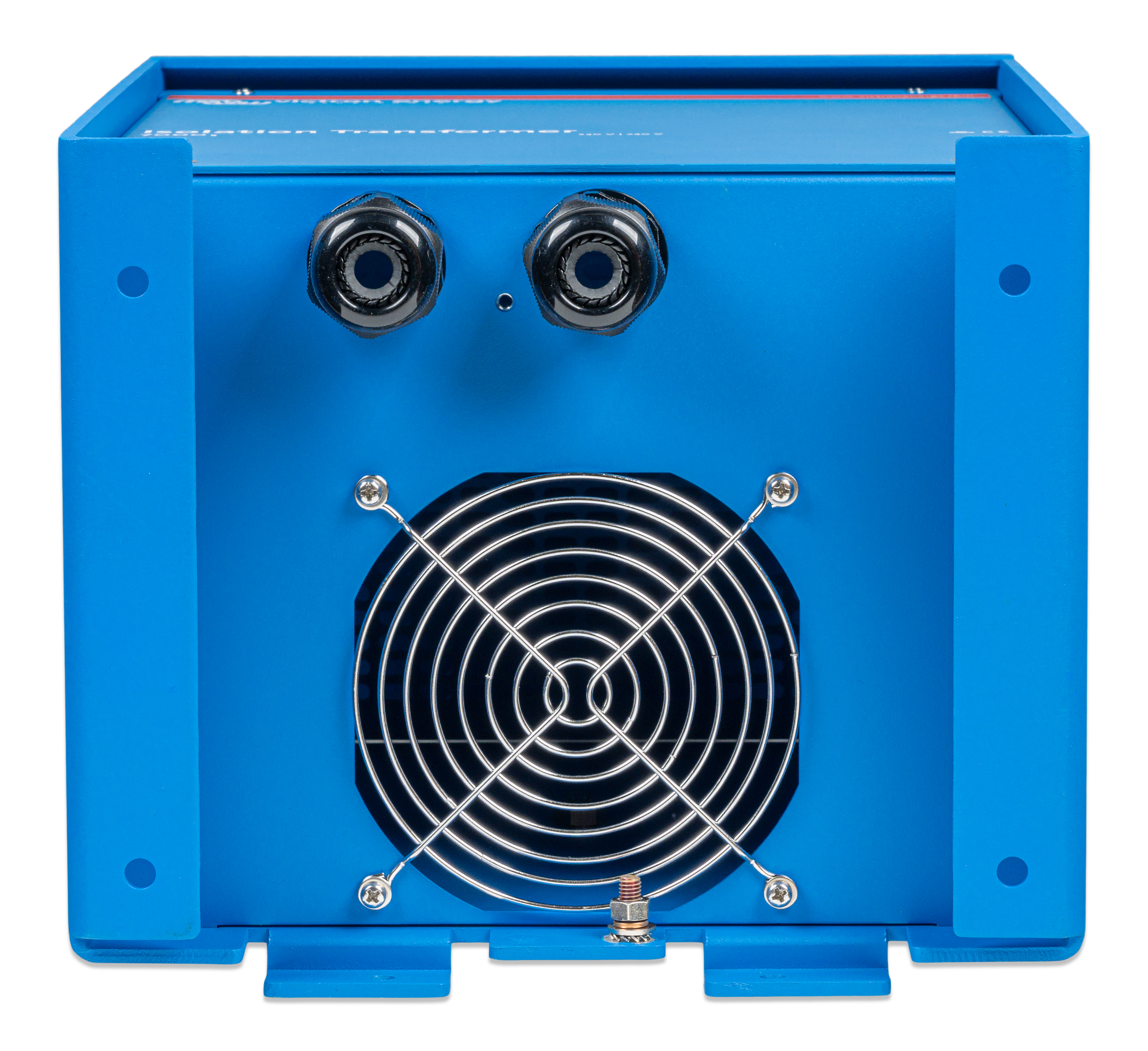

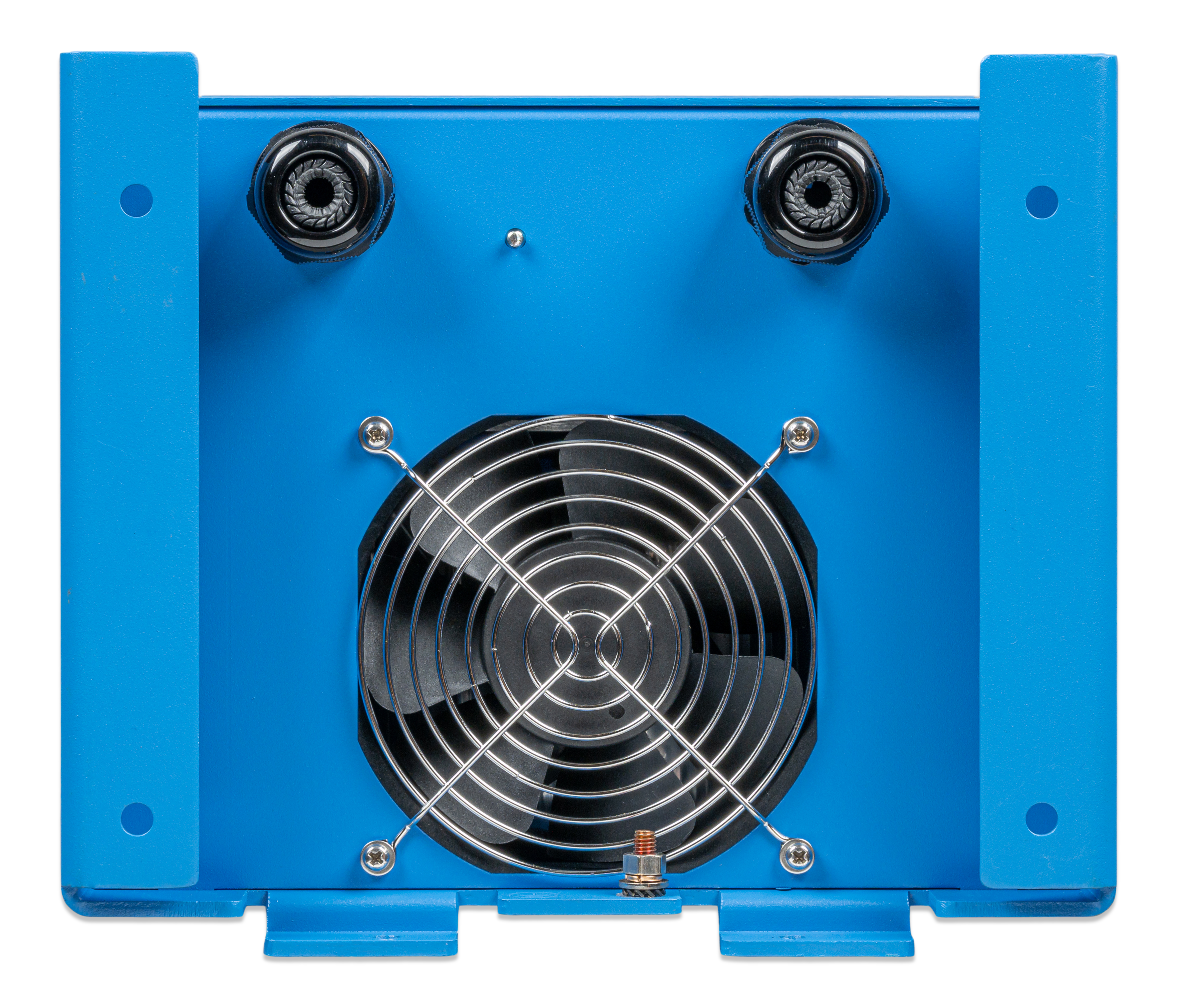

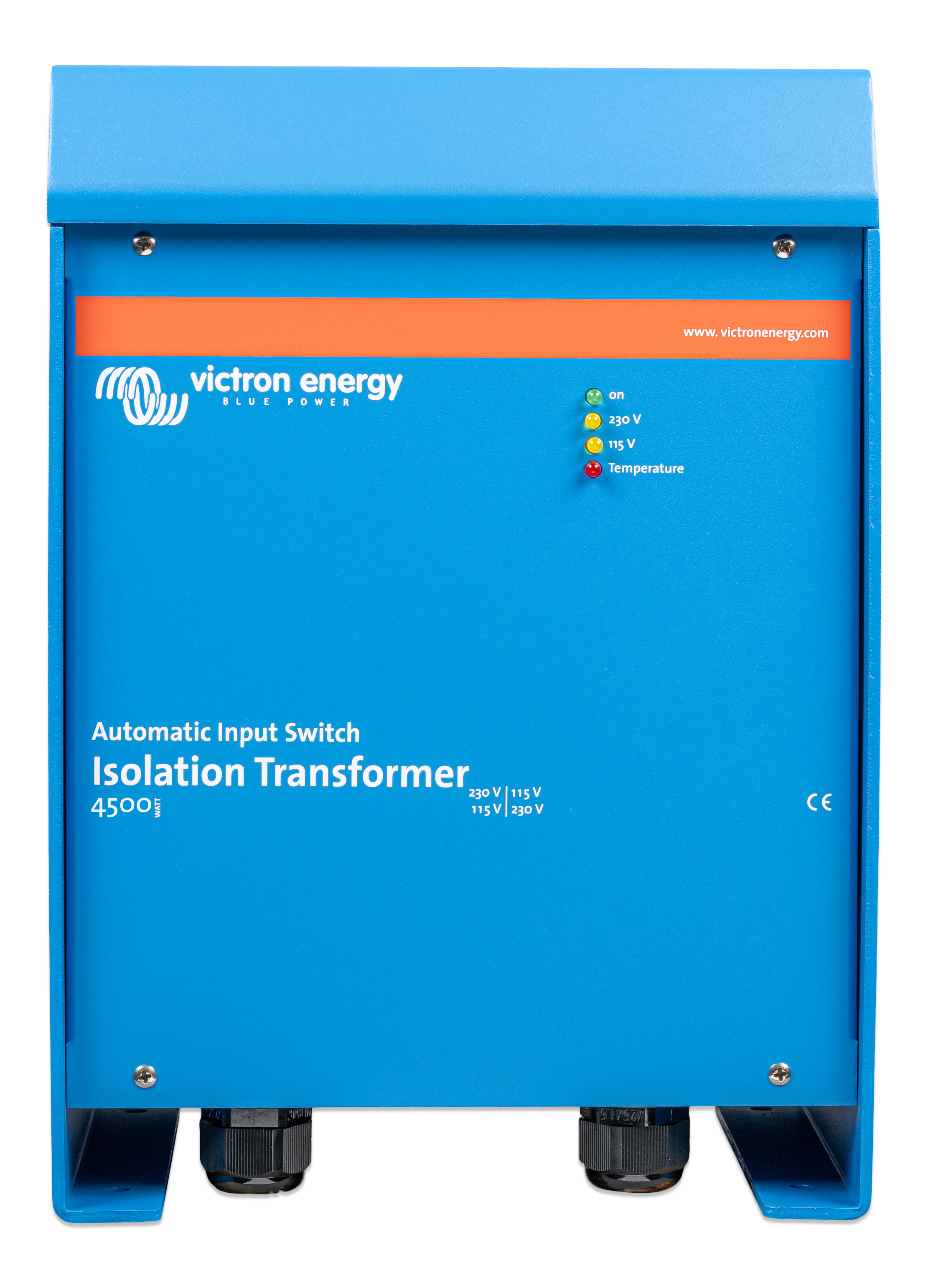

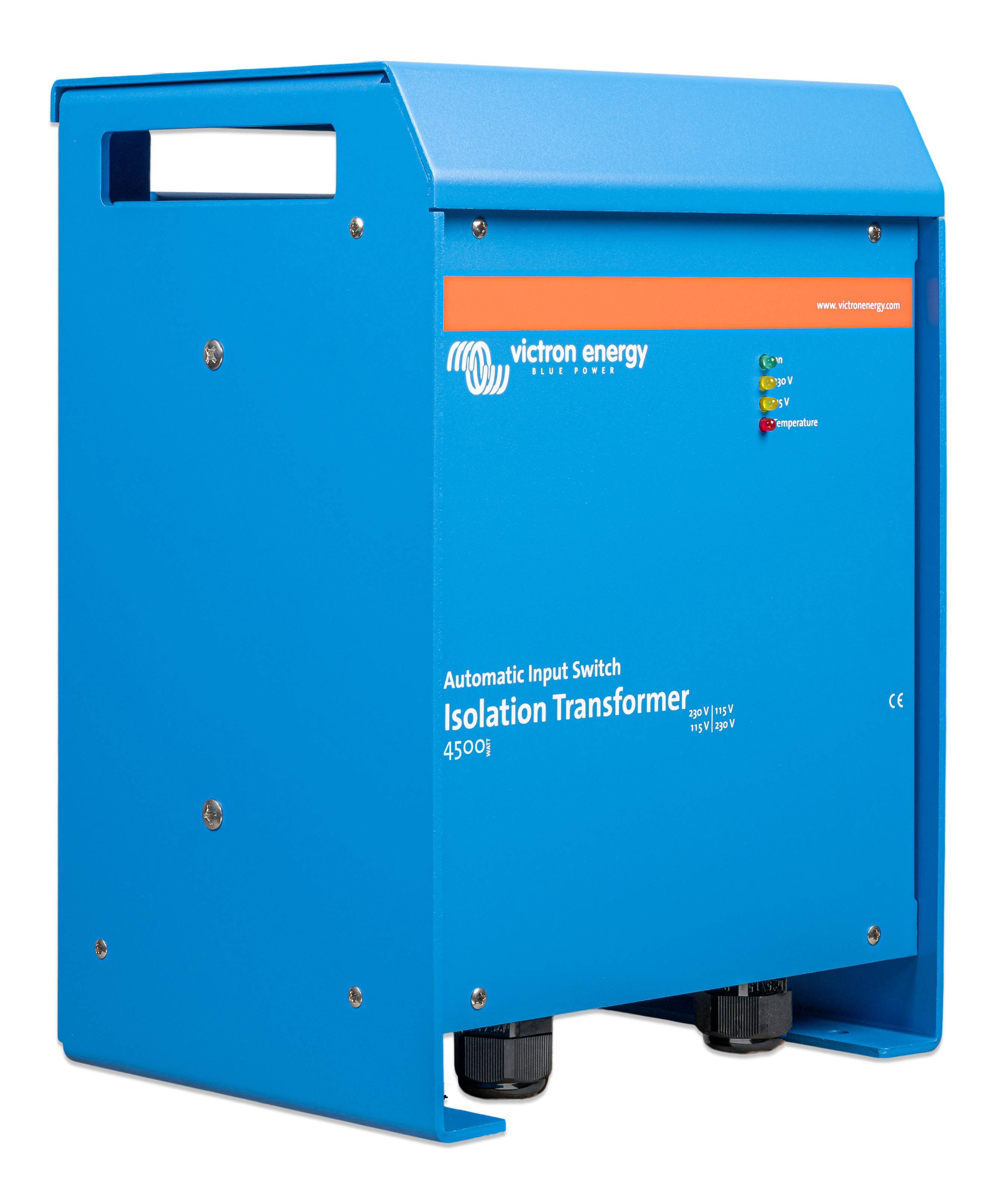

Isolation Transformers

SKU principal: ITR040202041

Indispensable in professional marine energy systems. It prevents electrolytic corrosion and above all serves as a device to guarantee a safe electric system. Toroidal wound technology for quietness and high efficiency. Soft start circuitry will ensure that the shore circuit breaker will not trip when plugged in.

Códigos SKU

ITR040202041 ITR040362041 ITR000702001 ITR050362041 ITR000702002 ITR040252042 ITR040362042 ITR050362042 ITR000802002 ITR050452042 ITR040252043 ITR040452042

DATOS DEL FABRICANTE

Especificaciones técnicas

Power Rating: 2, 000 W
A C Input Voltage: 115 or 230V
A C Output Voltage: 115 or 230V
Frequency: [ 50, 60 ] Hz
A C Output Current Rating115: 17 A
A C Output Current Rating230: 8.5 A
Can Be Used As115 Or230 Transformer: 1
Input Circuit Breaker: 1
Soft Start: 1
Transformer Type: Toroidal
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 10 kg
Height: 375 mm
Width: 214 mm
Depth: 110 mm
Safety: EN 60076
Power Rating: 3, 600
A C Input Voltage: 115 or 230V
A C Output Voltage: 115 or 230V
Frequency: [ 50, 60 ] Hz
A C Output Current Rating115: 16 A
A C Output Current Rating230: 32 A
Automatic A C Input Detection: 1
Can Be Used As115 Or230 Transformer: 1
Input Circuit Breaker: 1
Soft Start: 1
Transformer Type: Toroidal
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 24 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN 60076
Power Rating: 3, 600 W
A C Input Voltage: 115 or 230V
A C Output Voltage: 115 or 230V
Frequency: [ 50, 60 ] Hz
A C Output Current Rating115: 32 A
A C Output Current Rating230: 16 A
Automatic A C Input Detection
Can Be Used As115 Or230 Transformer: 1
Input Circuit Breaker: 1
Soft Start: 1
Transformer Type: Toroidal
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 23 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN 60076
Power Rating: 7, 000 W
A C Input Voltage: 230V
A C Output Voltage: 230V
Frequency: [ 50, 60 ] Hz
A C Output Current Rating230: 32 A
Input Circuit Breaker: 1
Soft Start: 1
Transformer Type: Toroidal
Colour: Blue (RAL 5012)
Material: Aluminium
Protection Category: IP21
Weight: 31 kg
Height: 362 mm
Width: 258 mm
Depth: 218 mm
Safety: EN 60076
