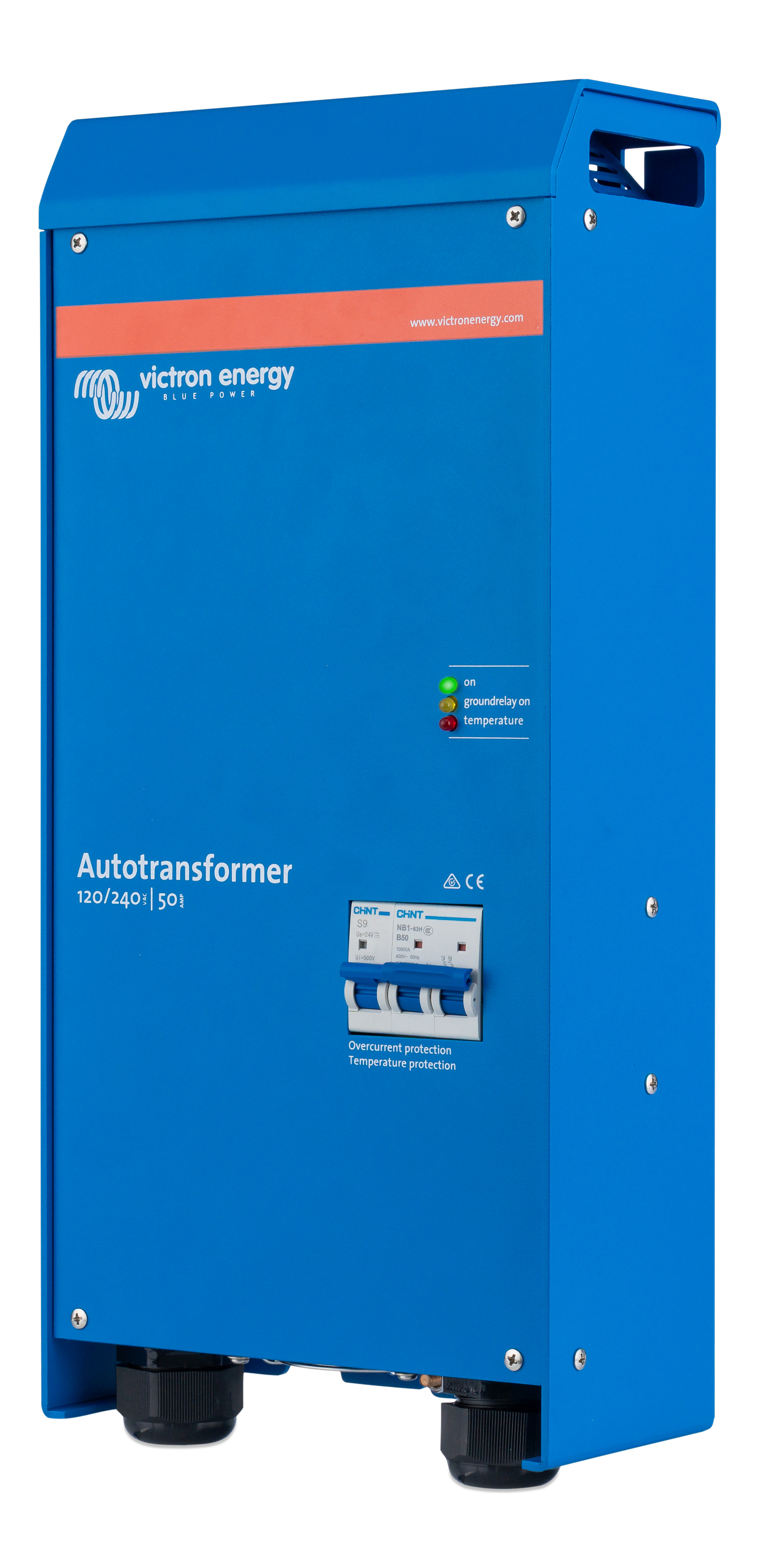

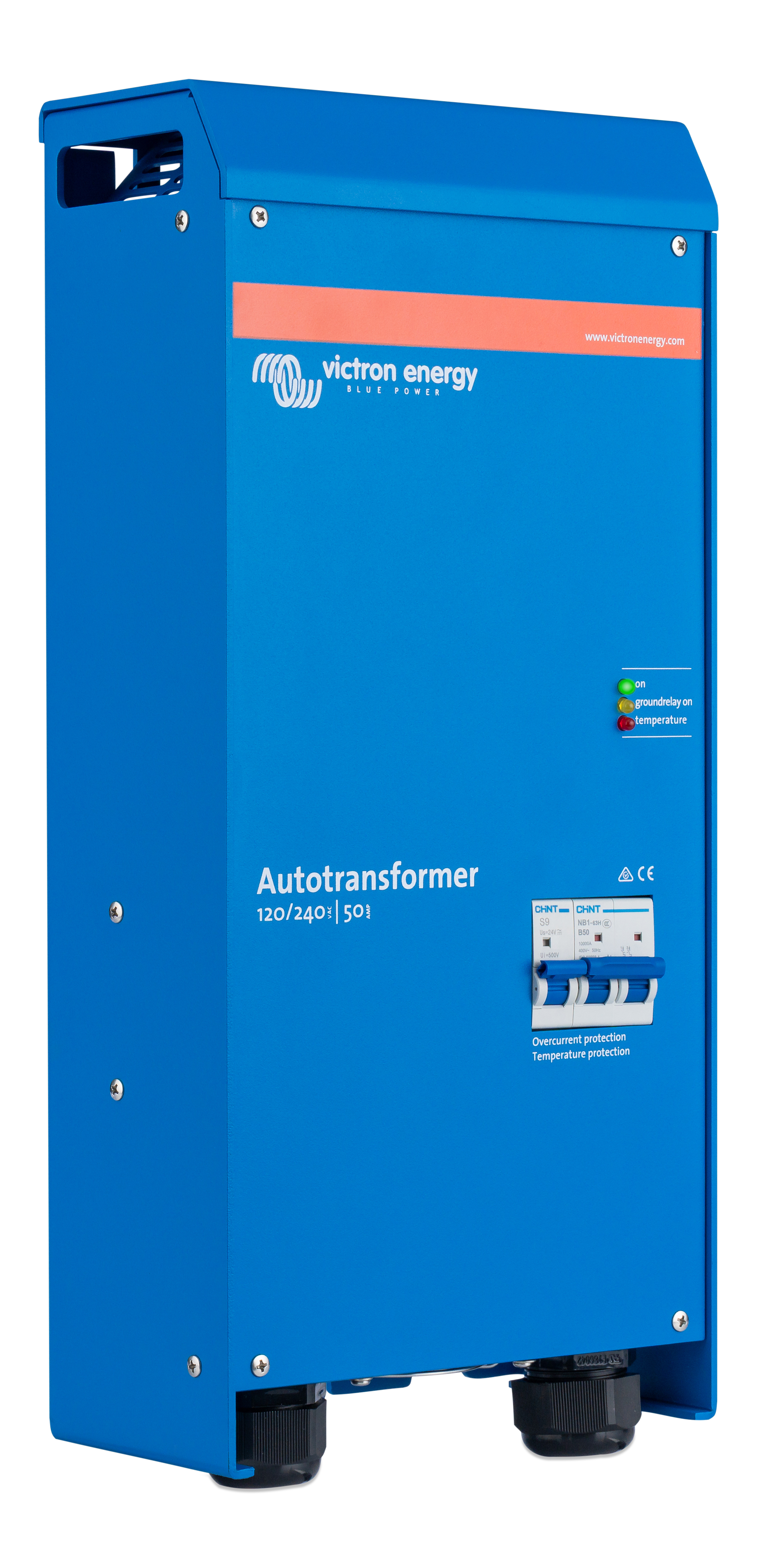

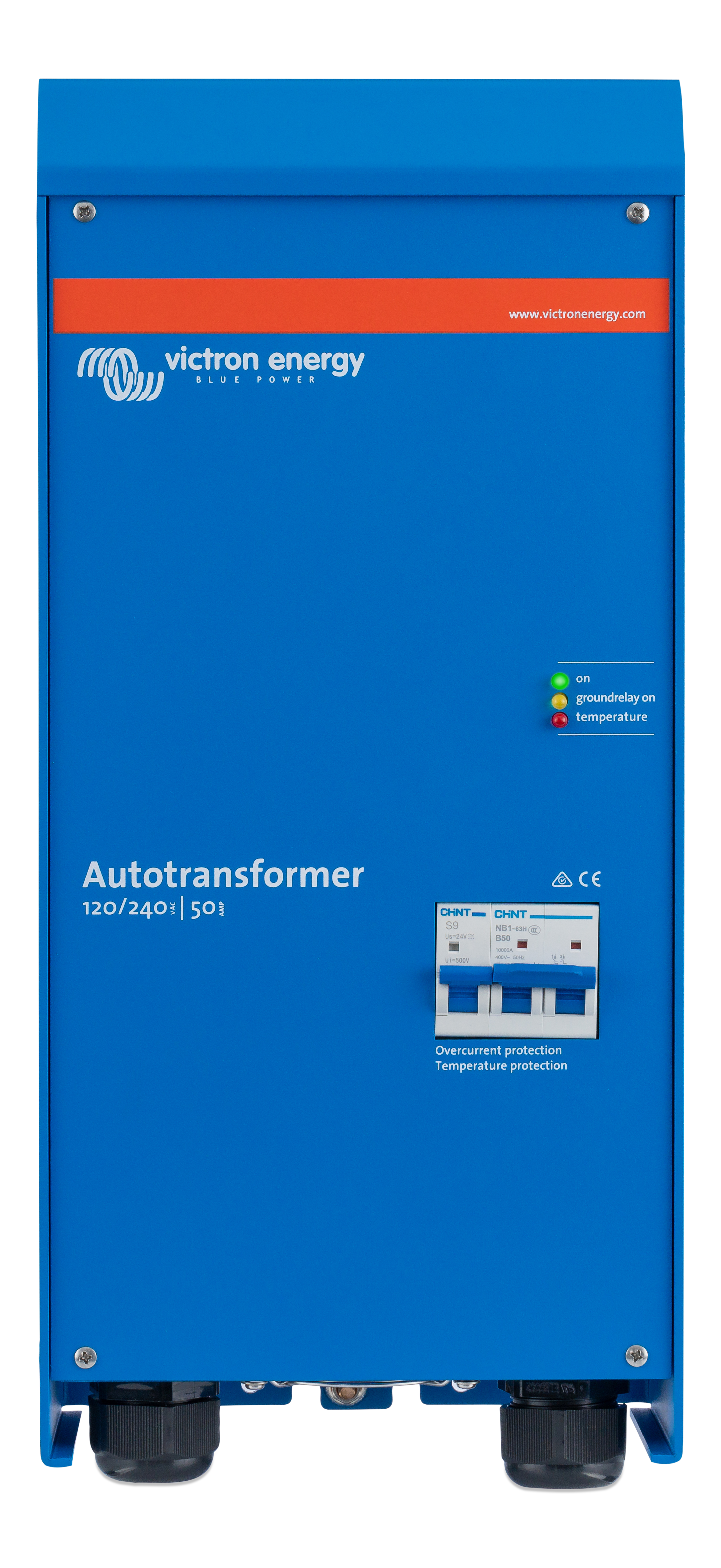

Autotransformer

SKU principal: ITR000100001

Autotransformer

<p>An Autotransformer can be used for step up,
step down and split phase output balancing purposes.<br>While the step up and step down functions are fairly straightforward,
split phase output balancing may require some more attention.</p>

Códigos SKU

ITR000100001 ITR000100101 ITR000100052 ITR000100102

DATOS DEL FABRICANTE

Especificaciones técnicas

Ac Input Voltage: 120 VAC
Ac Output Voltage: 240 VAC
Input Circuit Breaker: 100A, Two Pole
Frequency: [ 50, 60 ] Hz
Max A C Feed Current240 V A C: 100 A
Neutral Current30M: 32 A
Neutral Power Rating30M: 3, 800 VA
Neutral Current Cont: 28 A
Transformer Type: Toroidal
Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Material: Aluminium
Protection Category: IP21
Weight: 13.5 kg
Height: 425 mm
Width: 214 mm
Depth: 110 mm
Safety: EN 60076
Ac Input Voltage: 120 VAC
Ac Output Voltage: 240 VAC
Input Circuit Breaker: 32A, Two Pole
Frequency: [ 50, 50 ] Hz
Max A C Feed Current240 V A C: 32 A
Neutral Current30M: 32 A
Neutral Power Rating30M: 3, 800 VA
Neutral Current Cont: 28 A
Transformer Type: Toroidal
Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Material: Aluminium
Protection Category: IP21
Weight: 12.5 kg
Height: 425 mm
Width: 214 mm
Depth: 110 mm
Safety: EN 60076
