Lithium NG Batteries

SKU principal: BAT524120620

Building upon the success of our Lithium Smart Series,
the NG (Next Generation) series incorporates significant enhancements. Highlights:<ul><li>Multiple improvements including added read-out of cell voltages and temperatures;</li><li>Maximum single bank size increased to 385kWh;</li><li>Modules available in 12,
24 and 48V;</li><li>Protection class IP65;</li><li>Bracket mounting and strap mounting. </li> </ul> Tailored for those seeking advanced and reliable energy storage,
the Lithium NG series marks a pivotal advancement in our product lineup,
ready to meet the demands of tomorrow.

Códigos SKU

BAT524120620 BAT512110620 BAT512115620 BAT524110620 BAT524130620 BAT548110620 BAT512120620 BAT512130620

DATOS DEL FABRICANTE

Especificaciones técnicas

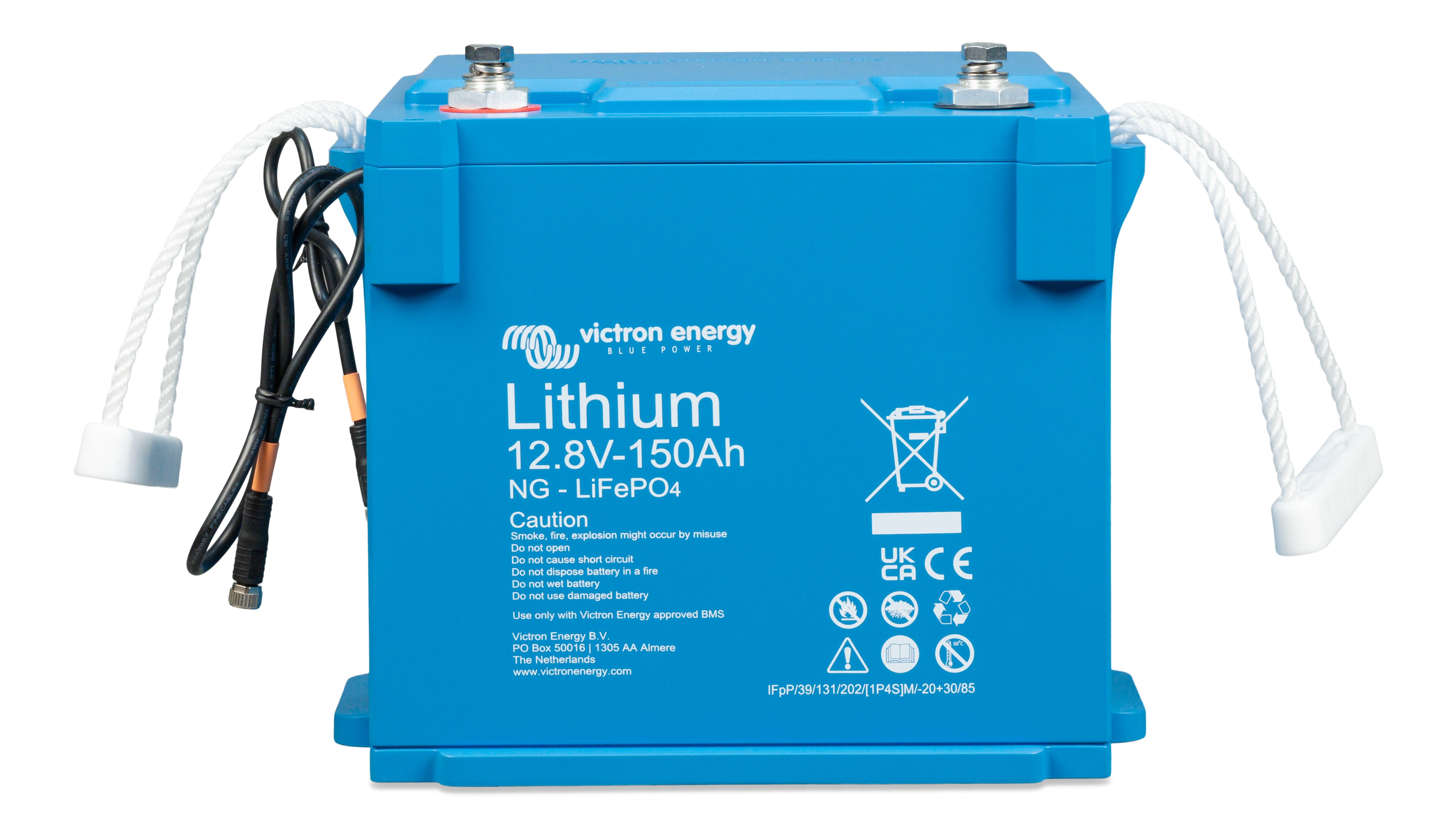

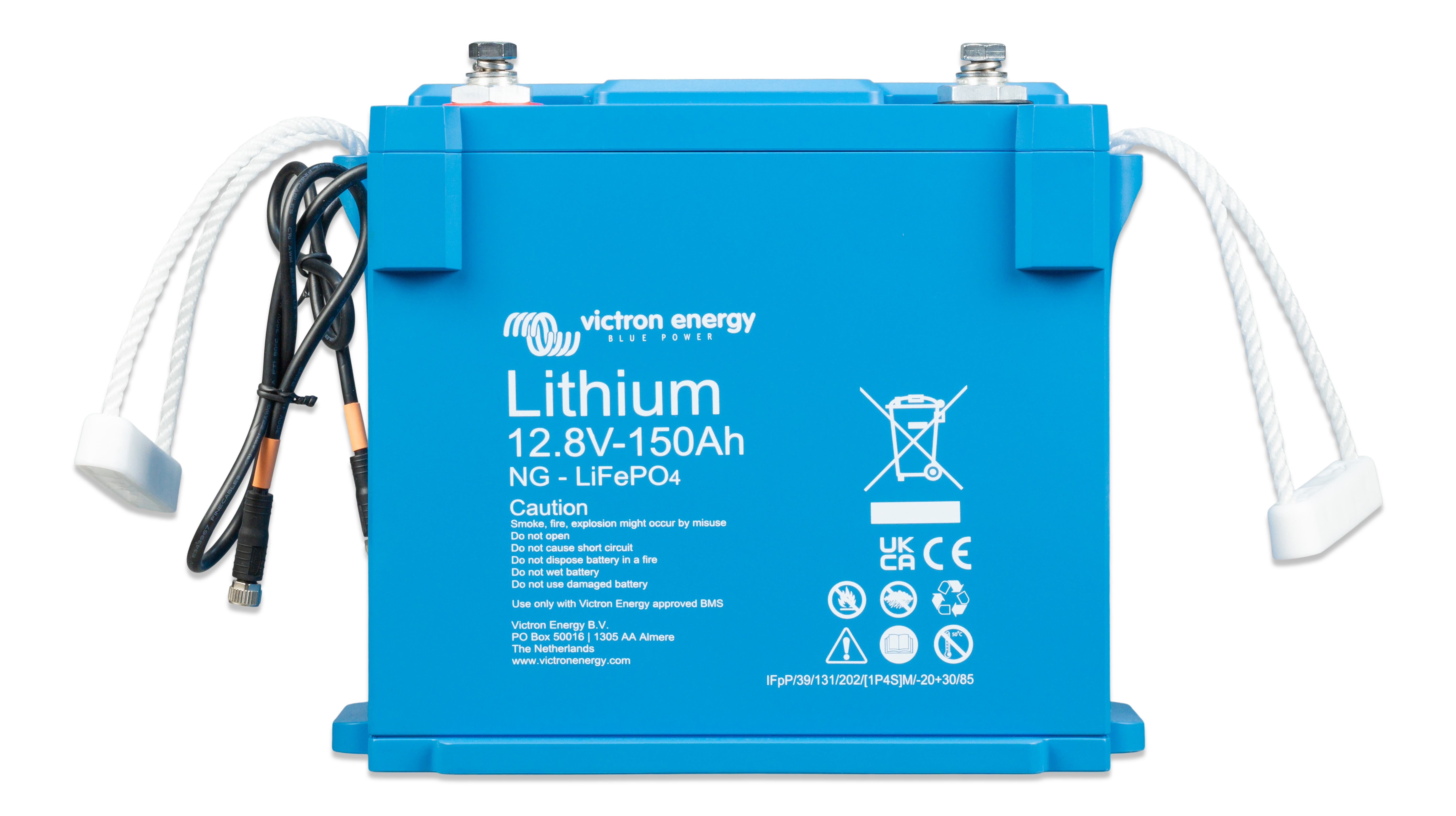

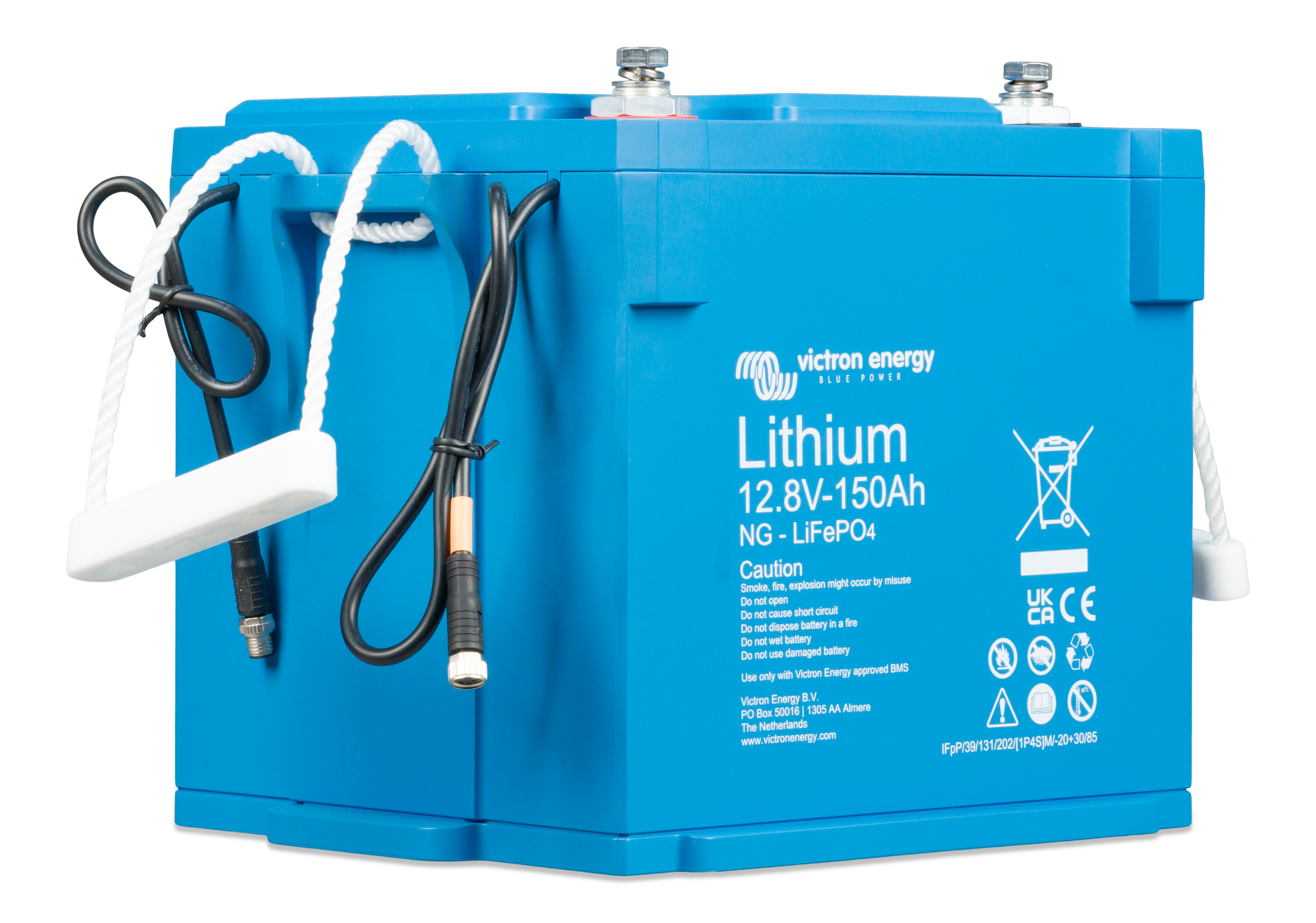

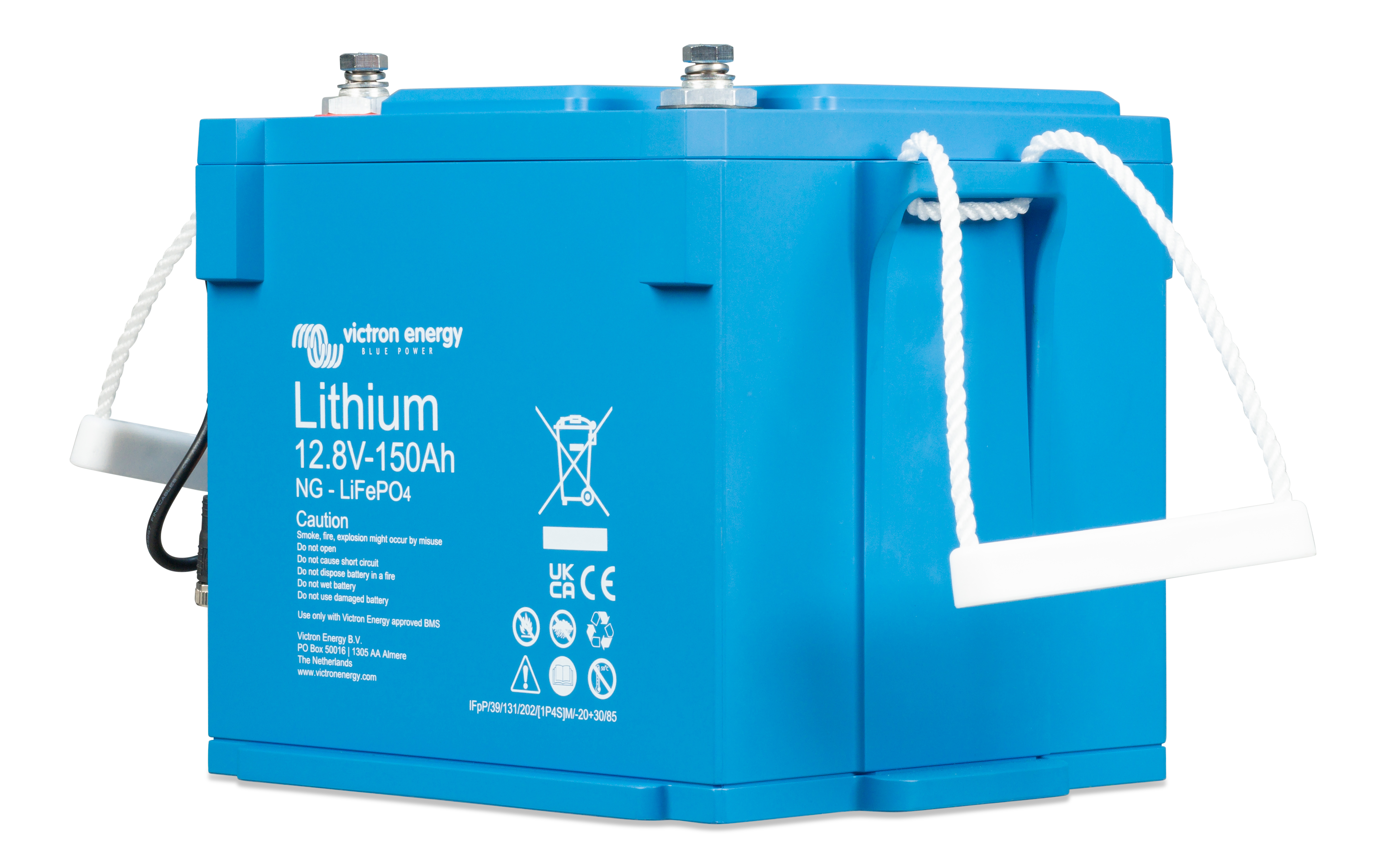

Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 150 Ah
Nominal Energy: 1, 920 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 150 A
Max Pulse Discharge Current: 300 A
End Discharge Voltage: 11.2 V
Internal Resistance: 2 mΩ
Self Discharge Rate: 3 %
Float Charge Voltage: 13.5 V
Max Continuous Charge Current: 150 A
Max Pulse Charge Current: 225 A
Storage Temp Range: [ -45, 70 ] °C
Max Humidity: 95 %
Requires External B M S: 1
Bms Included: 0
Bms: Lynx Smart BMS NG 500A / 1000A (M10 busbars), must be purchased separately
Cell Monitoring: Cell voltages and temperatures, battery current
Bms Cable: 50 cm male and female cable with M8 circular connector with high-speed digital communication
Alarm Feature: Pre-alarm contact on BMS
Bluetooth: In the BMS
Max Battery Per Bms: 50 (384kWh per BMS) (Up to 5 BMS-es can be paralleled)
Firmware Updates: Battery firmware automatically updated by BMS
Repairable: Yes (cover can be removed with screws)
Battery Terminals: M8 threaded inserts
Material: ABS
Colour: Blue (RAL 5012)
Protection Category: IP65
Mounting Method: Strap or mounting brackets
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 14 kg
Height: 205 mm
Width: 250 mm
Depth: 205 mm
Safety Cells: IEC 62619 (pending), UL 1973 (pending), UL 9540A (pending)
Safety Battery: IEC 62619 (pending)
E M C: EN-IEC 61000-6-3, EN-IEC 61000-6-2
Automotive: ECE R10-6
Performance: IEC 62620
Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 200 Ah
Nominal Energy: 2, 560 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 200 A
Max Pulse Discharge Current: 400 A
End Discharge Voltage: 11.2 V
Internal Resistance: 1 mΩ
Self Discharge Rate: 3 %
Float Charge Voltage: 13.5 V
Max Continuous Charge Current: 200 A
Max Pulse Charge Current: 400 A
Storage Temp Range: [ -45, 70 ] °C
Max Humidity: 95 %
Requires External B M S: 1
Bms Included: 0
Bms: Lynx Smart BMS NG 500A / 1000A (M10 busbars), must be purchased separately
Cell Monitoring: Cell voltages and temperatures, battery current
Bms Cable: 50 cm male and female cable with M8 circular connector with high-speed digital communication
Alarm Feature: Pre-alarm contact on BMS
Bluetooth: In the BMS
Max Battery Per Bms: 50 (384kWh per BMS) (Up to 5 BMS-es can be paralleled)
Firmware Updates: Battery firmware automatically updated by BMS
Repairable: Yes (cover can be removed with screws)
Battery Terminals: M8 threaded inserts
Material: ABS
Colour: Blue (RAL 5012)
Protection Category: IP65
Mounting Method: Strap or mounting brackets
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 19 kg
Height: 235 mm
Width: 341 mm
Depth: 160 mm
Safety Cells: IEC 62619, UL 1973, UL 9540A
Safety Battery: IEC 62619 (pending), UL 2054
E M C: EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive: ECE R10-6
Performance: IEC 62620
Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 100 Ah
Nominal Energy: 1, 280 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 100 A
Max Pulse Discharge Current: 200 A
End Discharge Voltage: 11.2 V
Internal Resistance: 2 mΩ
Self Discharge Rate: 3 %
Float Charge Voltage: 13.5 V
Max Continuous Charge Current: 100 A
Max Pulse Charge Current: 200 A
Storage Temp Range: [ -45, 70 ] °C
Max Humidity: 95 %
Requires External B M S: 1
Bms Included: 0
Bms: Lynx Smart BMS NG 500A / 1000A (M10 busbars), must be purchased separately
Cell Monitoring: Cell voltages and temperatures, battery current
Bms Cable: 50 cm male and female cable with M8 circular connector with high-speed digital communication
Alarm Feature: Pre-alarm contact on BMS
Bluetooth: In the BMS
Max Battery Per Bms: 50 (384kWh per BMS) (Up to 5 BMS-es can be paralleled)
Firmware Updates: Battery firmware automatically updated by BMS
Repairable: Yes (cover can be removed with screws)
Battery Terminals: M8 threaded inserts
Material: ABS
Colour: Blue (RAL 5012)
Protection Category: IP65
Mounting Method: Strap or mounting brackets
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 9 kg
Height: 235 mm
Width: 197 mm
Depth: 160 mm
Safety Cells: IEC 62619, UL 1973, UL 9540A
Safety Battery: IEC 62619 (pending), UL 2054
E M C: EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive: ECE R10-6
Performance: IEC 62620
Battery Voltage Nominal: 25.6 V
Battery Voltage Nominal Bucket: 24
Battery Capacity Nominal: 200 Ah
Nominal Energy: 5, 120 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 200 A
Max Pulse Discharge Current: 400 A
End Discharge Voltage: 22.4 V
Internal Resistance: 2 mΩ
Self Discharge Rate: 3 %
Float Charge Voltage: 27 V
Max Continuous Charge Current: 200 A
Max Pulse Charge Current: 400 A
Storage Temp Range: [ -45, 70 ] °C
Max Humidity: 95 %
Requires External B M S: 1
Bms Included: 0
Bms: Lynx Smart BMS NG 500A / 1000A (M10 busbars), must be purchased separately
Cell Monitoring: Cell voltages and temperatures, battery current
Bms Cable: 50 cm male and female cable with M8 circular connector with high-speed digital communication
Alarm Feature: Pre-alarm contact on BMS
Bluetooth: In the BMS
Max Battery Per Bms: 50 (384kWh per BMS) (Up to 5 BMS-es can be paralleled)
Firmware Updates: Battery firmware automatically updated by BMS
Repairable: Yes (cover can be removed with screws)
Battery Terminals: M8 threaded inserts
Material: ABS
Colour: Blue (RAL 5012)
Protection Category: IP65
Mounting Method: Strap or mounting brackets
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 37 kg
Height: 235 mm
Width: 648 mm
Depth: 162 mm
Safety Cells: UL 1973, UL 9540A, IEC 62619
Safety Battery: IEC 62619 (pending), UL 2054
E M C: EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive: ECE R10-6
Performance: IEC 62620
Battery Voltage Nominal: 25.6 V
Battery Voltage Nominal Bucket: 24
Battery Capacity Nominal: 300 Ah
Nominal Energy: 7, 680 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 300 A
Max Pulse Discharge Current: 600 A
End Discharge Voltage: 22.4 V
Internal Resistance: 1 mΩ
Self Discharge Rate: 3 %
Float Charge Voltage: 27 V
Max Continuous Charge Current: 300 A
Max Pulse Charge Current: 450 A
Storage Temp Range: [ -45, 70 ] °C
Max Humidity: 95 %
Requires External B M S: 1
Bms Included: 0
Bms: Lynx Smart BMS NG 500A / 1000A (M10 busbars), must be purchased separately
Cell Monitoring: Cell voltages and temperatures, battery current
Bms Cable: 50 cm male and female cable with M8 circular connector with high-speed digital communication
Alarm Feature: Pre-alarm contact on BMS
Bluetooth: In the BMS
Max Battery Per Bms: 50 (384kWh per BMS) (Up to 5 BMS-es can be paralleled)
Firmware Updates: Battery firmware automatically updated by BMS
Repairable: Yes (cover can be removed with screws)
Battery Terminals: M8 threaded inserts
Material: ABS
Colour: Blue (RAL 5012)
Protection Category: IP65
Mounting Method: Strap or mounting brackets
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 52 kg
Height: 206 mm
Width: 841 mm
Depth: 205 mm
Safety Cells: UL 1973 (pending), UL 9540A (pending), IEC 62619 (pending)
Safety Battery: IEC 62619 (pending)
E M C: EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive: ECE R10-6
Performance: IEC 62620
Battery Voltage Nominal: 51.2 V
Battery Voltage Nominal Bucket: 48
Battery Capacity Nominal: 100 Ah
Nominal Energy: 5, 120 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 100 A
Max Pulse Discharge Current: 200 A
End Discharge Voltage: 44.8 V
Internal Resistance: 8 mΩ
Self Discharge Rate: 3 %
Float Charge Voltage: 54 V
Max Continuous Charge Current: 100 A
Max Pulse Charge Current: 200 A
Storage Temp Range: [ -45, 70 ] °C
Max Humidity: 95 %
Requires External B M S: 1
Bms Included: 0
Bms: Lynx Smart BMS NG 500A / 1000A (M10 busbars), must be purchased separately
Cell Monitoring: Cell voltages and temperatures, battery current
Bms Cable: 50 cm male and female cable with M8 circular connector with high-speed digital communication
Alarm Feature: Pre-alarm contact on BMS
Bluetooth: In the BMS
Max Battery Per Bms: 50 (384kWh per BMS) (Up to 5 BMS-es can be paralleled)
Firmware Updates: Battery firmware automatically updated by BMS
Repairable: Yes (cover can be removed with screws)
Battery Terminals: M8 threaded inserts
Material: ABS
Colour: Blue (RAL 5012)
Protection Category: IP65
Mounting Method: Strap or mounting brackets
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 37 kg
Height: 235 mm
Width: 648 mm
Depth: 162 mm
Safety Cells: UL 1973 (pending), UL 9540A (pending), IEC 62619 (pending)
Safety Battery: IEC 62619 (pending), UL 2054
E M C: EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive: ECE R10-6
Performance: IEC 62620
Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 300 Ah
Nominal Energy: 3, 840 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 300 A
Max Pulse Discharge Current: 600 A
End Discharge Voltage: 11.2 V
Internal Resistance: 1 mΩ
Self Discharge Rate: 3 %
Float Charge Voltage: 13.5 V
Max Continuous Charge Current: 300 A
Max Pulse Charge Current: 600 A
Storage Temp Range: [ -45, 70 ] °C
Max Humidity: 95 %
Requires External B M S: 1
Bms Included: 0
Bms: Lynx Smart BMS NG 500A / 1000A (M10 busbars), must be purchased separately
Cell Monitoring: Cell voltages and temperatures, battery current
Bms Cable: 50 cm male and female cable with M8 circular connector with high-speed digital communication
Alarm Feature: Pre-alarm contact on BMS
Bluetooth: In the BMS
Max Battery Per Bms: 50 (384kWh per BMS) (Up to 5 BMS-es can be paralleled)
Firmware Updates: Battery firmware automatically updated by BMS
Repairable: Yes (cover can be removed with screws)
Battery Terminals: M8 threaded inserts
Material: ABS
Colour: Blue (RAL 5012)
Protection Category: IP65
Mounting Method: Strap or mounting brackets
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 29 kg
Height: 206 mm
Width: 447 mm
Depth: 205 mm
Safety Cells: IEC 62619 (pending), UL 1973 (pending), UL 9540A (pending)
Safety Battery: IEC 62619 (pending)
E M C: EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive: ECE R10-6
Performance: IEC 62620
Battery Voltage Nominal: 25.6 V
Battery Voltage Nominal Bucket: 24
Battery Capacity Nominal: 100 Ah
Nominal Energy: 2, 560 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 100 A
Max Pulse Discharge Current: 200 A
End Discharge Voltage: 22.4 V
Internal Resistance: 4 mΩ
Self Discharge Rate: 3 %
Float Charge Voltage: 27 V
Max Continuous Charge Current: 100 A
Max Pulse Charge Current: 200 A
Storage Temp Range: [ -45, 70 ] °C
Max Humidity: 95 %
Requires External B M S: 1
Bms Included: 0
Bms: Lynx Smart BMS NG 500A / 1000A (M10 busbars), must be purchased separately
Cell Monitoring: Cell voltages and temperatures, battery current
Bms Cable: 50 cm male and female cable with M8 circular connector with high-speed digital communication
Alarm Feature: Pre-alarm contact on BMS
Bluetooth: In the BMS
Max Battery Per Bms: 50 (384kWh per BMS) (Up to 5 BMS-es can be paralleled)
Firmware Updates: Battery firmware automatically updated by BMS
Repairable: Yes (cover can be removed with screws)
Battery Terminals: M8 threaded inserts
Material: ABS
Colour: Blue (RAL 5012)
Protection Category: IP65
Mounting Method: Strap or mounting brackets
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 19 kg
Height: 235 mm
Width: 341 mm
Depth: 160 mm
Safety Cells: UL 1973, UL 9540A, IEC 62619
Safety Battery: IEC 62619 (pending), UL 2054
E M C: EN-IEC 61000-6-2, EN-IEC 61000-6-3
Automotive: ECE R10-6
Performance: IEC 62620

← Volver a productos Victron
