Lithium Battery Smart 12, 8V & 25, 6V

SKU principal: BAT512110610

<ul><li>With integrated cell balancing </li><li>Can be parallel and series connected </li><li>Bluetooth app available to monitor cell voltage and temperature </li></ul>Requires one of these BMS-es: <ul><li><a href="https://www.victronenergy.com/battery-management-systems/ve-bus-bms" target="_blank">VE. Bus BMS / VE.Bus BMS V2</a> – recommended for systems with our inverter/chargers. </li><li><a href="https://www.victronenergy.com/battery-management-systems/smallbms" target="_blank">smallBMS</a> – recommended for use in small systems. </li><li><a href="https://www.victronenergy.com/battery-management-systems/smart-bms-12-200" target="_blank">Smart BMS 12/200</a> - recommended for use in Automotive and Marine systems having DC-loads and Alternators. </li><li><a href="https://www.victronenergy.com/battery-management-systems/smart-bms-current-limiter" target="_blank">Smart BMS CL 12/100</a> – recommended for use in Automotive and Marine systems having DC-loads and Alternators.</li><li><a href="https://www.victronenergy.com/battery-management-systems/lynx-smart-bms" target="_blank">Lynx Smart BMS</a> - recommended for use in large systems.</li></ul>For details,
see down below in the Related products section.

Códigos SKU

BAT512110610 BAT512120610 BAT512116610 BAT512050610 BAT524120610 BAT512132410 BAT524110610 BAT512118610 BAT512115610

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 25.6 V
Battery Voltage Nominal Bucket: 24
Battery Capacity Nominal: 200 Ah
Nominal Capacity0: 160 Ah
Nominal Capacity20: 100 Ah
Nominal Energy: 5, 120 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 400 A
Rec Discharge Current: 200 A
End Discharge Voltage: 22.4 V
Internal Resistance: 1.5 mΩ
Float Charge Voltage: 27 V
Recom Max Charge Current: 100 A
Operating Temp Range Charge: [ 5, 50 ] °C
Operating Temp Range Discharge: [ -20, 50 ] °C
Storage Temp Range: [ -45, 70 ] °C
Max Storage Time: 1 y
Max Humidity: 95 %
Requires External B M S: 1
Bms: Male and female cable with M8 circular connector, length 50cm
Max Battery Per Bms: 20 (102kWh per BMS) (Up to 5 BMS-es can be paralleled)
Bluetooth: Yes
Communication Port: Bluetooth
Battery Terminals: M8 threaded inserts
Colour: Blue (RAL 5012)
Protection Category: IP22
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 39 kg
Height: 237 mm
Width: 650 mm
Depth: 163 mm
Safety Cells: UL 1973, IEC 62619, UL 9540A
Safety Battery: EN-IEC 60335-1, IEC 62368-1, IEC 61427-1
E M C: EN-IEC 61000-6-3, EN 55014-1
Automotive: ECE R10-6
Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 100 Ah
Nominal Capacity0: 80 Ah
Nominal Capacity20: 50 Ah
Nominal Energy: 1, 280 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 200 A
Rec Discharge Current: 100 A
End Discharge Voltage: 11.2 V
Internal Resistance: 0.8 mΩ
Float Charge Voltage: 13.5 V
Max Charge Current: 200 A
Recom Max Charge Current: 50 A
Operating Temp Range Charge: [ 5, 50 ] °C
Operating Temp Range Discharge: [ -20, 50 ] °C
Storage Temp Range: [ -45, 70 ] °C
Max Storage Time: 1 y
Max Humidity: 95 %
Requires External B M S: 1
Bms: Male and female cable with M8 circular connector, length 50cm
Max Battery Per Bms: 20 (102kWh per BMS) (Up to 5 BMS-es can be paralleled)
Bluetooth: Yes
Communication Port: Bluetooth
Battery Terminals: M8 threaded inserts
Colour: Blue (RAL 5012)
Protection Category: IP22
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 14 kg
Height: 197 mm
Width: 321 mm
Depth: 152 mm
Safety Cells: UL 1973, IEC 62619, UL 9540A
Safety Battery: EN-IEC 60335-1, IEC 62368-1, IEC 61427-1
E M C: EN-IEC 61000-6-3, EN 55014-1
Automotive: ECE R10-6
Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 200 Ah
Nominal Capacity0: 160 Ah
Nominal Capacity20: 100 Ah
Nominal Energy: 2, 560 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 400 A
Rec Discharge Current: 200 A
End Discharge Voltage: 11.2 V
Internal Resistance: 0.8 mΩ
Float Charge Voltage: 13.5 V
Recom Max Charge Current: 100 A
Operating Temp Range Charge: [ 5, 50 ] °C
Operating Temp Range Discharge: [ -20, 50 ] °C
Storage Temp Range: [ -45, 70 ] °C
Max Storage Time: 1 y
Max Humidity: 95 %
Requires External B M S: 1
Bms: Male and female cable with M8 circular connector, length 50cm
Max Battery Per Bms: 20 (102kWh per BMS) (Up to 5 BMS-es can be paralleled)
Bluetooth: Yes
Communication Port: Bluetooth
Battery Terminals: M8 threaded inserts
Colour: Blue (RAL 5012)
Protection Category: IP22
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 20 kg
Height: 237 mm
Width: 321 mm
Depth: 152 mm
Safety Cells: UL 1973, IEC 62619, UL 9540A
Safety Battery: EN-IEC 60335-1, IEC 61427-1, IEC 62368-1
E M C: EN-IEC 61000-6-3, EN 55014-1
Automotive: ECE R10-6
Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 180 Ah
Nominal Capacity0: 150 Ah
Nominal Capacity20: 90 Ah
Nominal Energy: 2, 304 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 360 A
Rec Discharge Current: 180 A
End Discharge Voltage: 11.2 V
Internal Resistance: 0.9 mΩ
Float Charge Voltage: 13.5 V
Recom Max Charge Current: 90 A
Operating Temp Range Charge: [ 5, 50 ] °C
Operating Temp Range Discharge: [ -20, 50 ] °C
Storage Temp Range: [ -45, 70 ] °C
Max Storage Time: 1 y
Max Humidity: 95 %
Requires External B M S: 1
Bms: Male and female cable with M8 circular connector, length 50cm
Max Battery Per Bms: 20 (102kWh per BMS) (Up to 5 BMS-es can be paralleled)
Bluetooth: Yes
Communication Port: Bluetooth
Battery Terminals: M8 threaded inserts
Colour: Blue (RAL 5012)
Protection Category: IP22
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 18 kg
Height: 237 mm
Width: 321 mm
Depth: 152 mm
Safety Cells: UL 1973, IEC 62619, UL 9540A
Safety Battery: EN-IEC 60335-1, IEC 61427-1, IEC 62368-1
E M C: EN-IEC 61000-6-3, EN 55014-1
Automotive: ECE R10-6
Battery Voltage Nominal: 25.6 V
Battery Voltage Nominal Bucket: 24
Battery Capacity Nominal: 100 Ah
Nominal Capacity0: 80 Ah
Nominal Capacity20: 50 Ah
Nominal Energy: 2, 560 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 200 A
Rec Discharge Current: 100 A
End Discharge Voltage: 22.4 V
Internal Resistance: 1.6 mΩ
Float Charge Voltage: 27 V
Recom Max Charge Current: 50 A
Operating Temp Range Charge: [ 5, 50 ] °C
Operating Temp Range Discharge: [ -20, 50 ] °C
Storage Temp Range: [ -45, 70 ] °C
Max Storage Time: 1 y
Max Humidity: 95 %
Requires External B M S: 1
Bms: Male and female cable with M8 circular connector, length 50cm
Max Battery Per Bms: 20 (102kWh per BMS) (Up to 5 BMS-es can be paralleled)
Bluetooth: Yes
Communication Port: Bluetooth
Battery Terminals: M8 threaded inserts
Colour: Blue (RAL 5012)
Protection Category: IP22
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 28 kg
Height: 197 mm
Width: 650 mm
Depth: 163 mm
Safety Cells: UL 1973, IEC 62619, UL 9540A
Safety Battery: EN-IEC 60335-1, IEC 62368-1, IEC 61427-1
E M C: EN-IEC 61000-6-3, EN 55014-1
Automotive: ECE R10-6

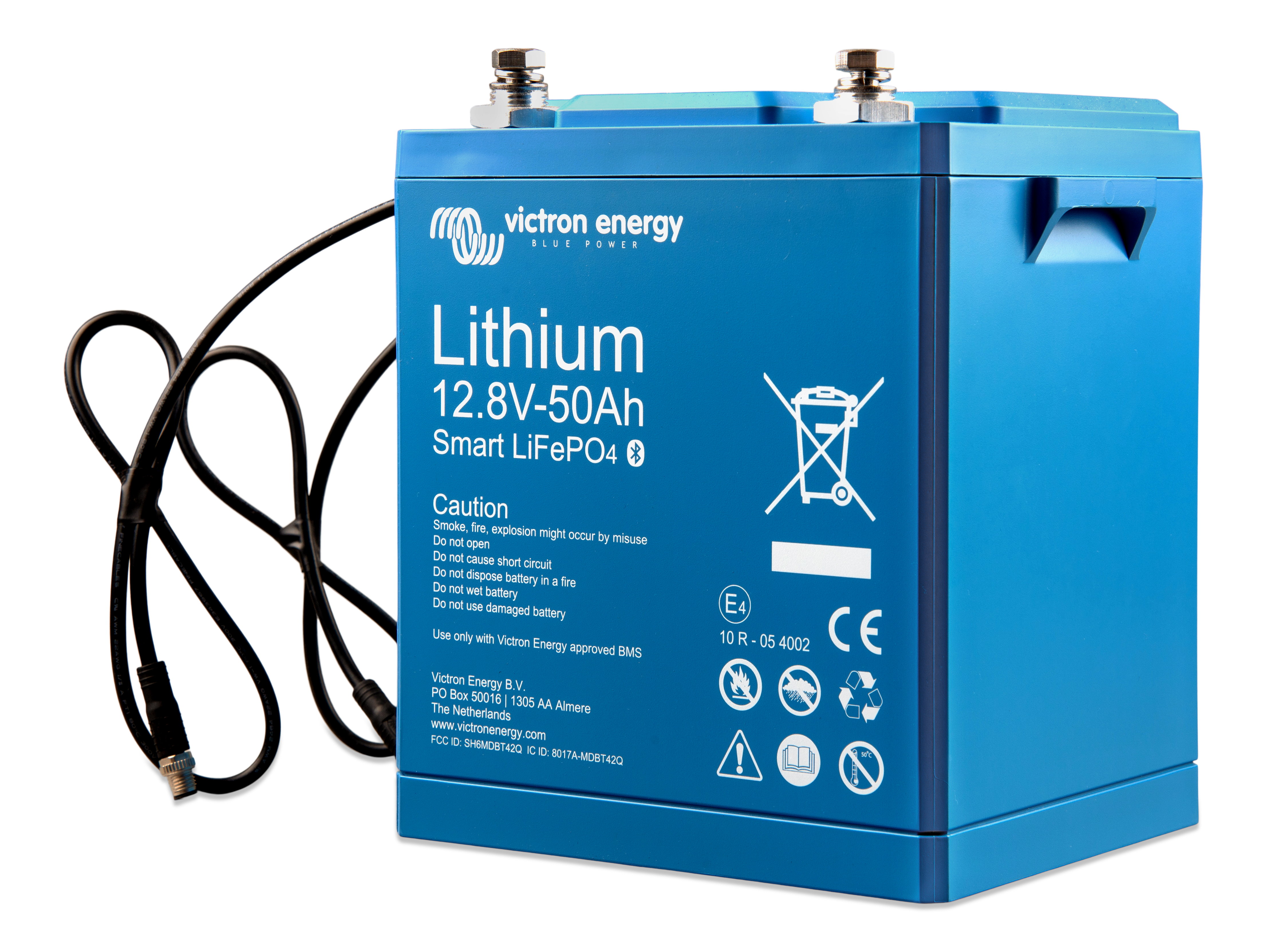

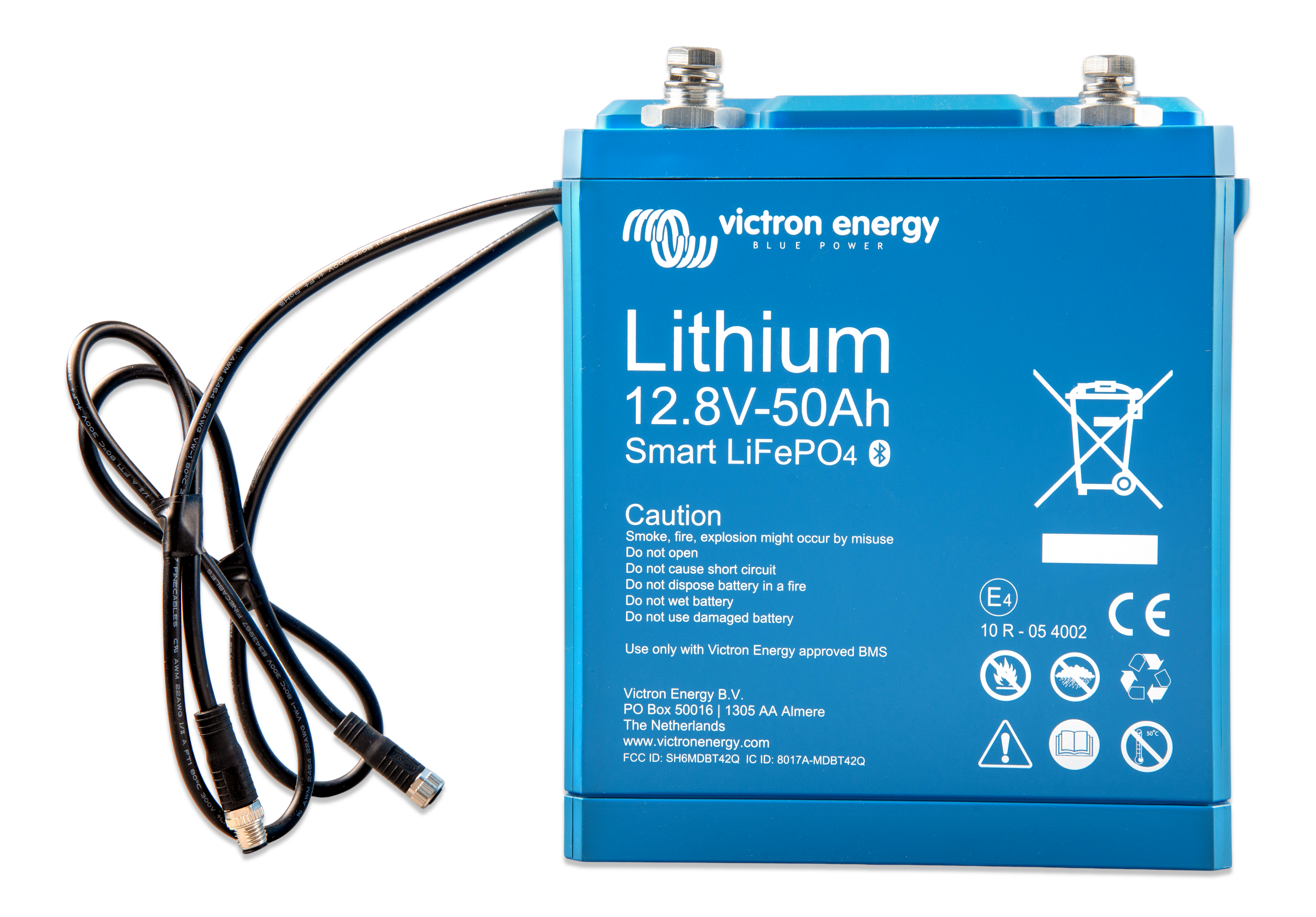

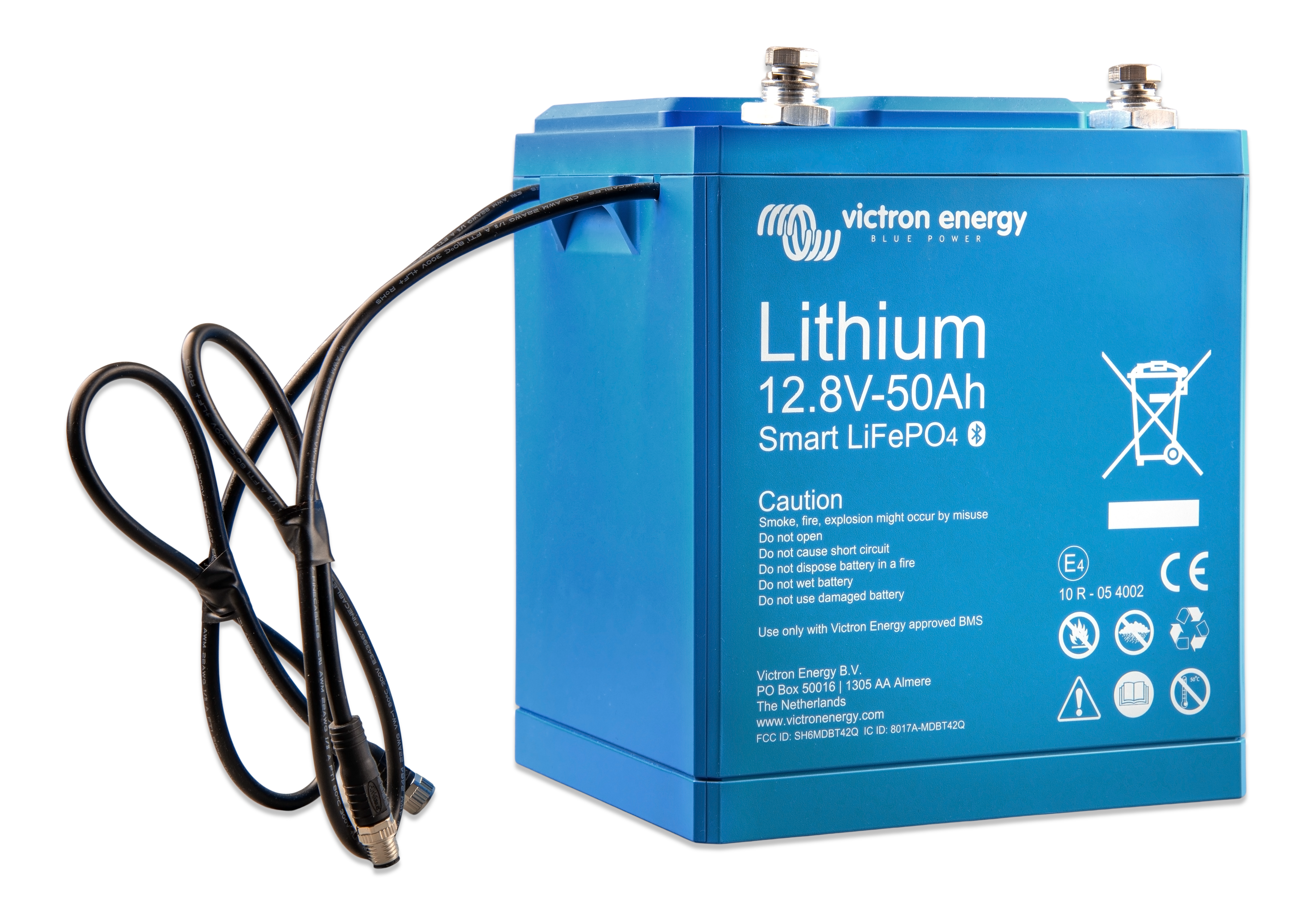

Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 50 Ah
Nominal Capacity0: 40 Ah
Nominal Capacity20: 25 Ah
Nominal Energy: 640 Wh
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Design Life80: 2, 500 cycles
Cycle Design Life70: 3, 000 cycles
Cycle Design Life50: 5, 000 cycles
Max Continuous Discharge Current: 100 A
Rec Discharge Current: 50 A
End Discharge Voltage: 11.2 V
Internal Resistance: 2 mΩ
Float Charge Voltage: 13.5 V
Recom Max Charge Current: 30 A
Operating Temp Range Charge: [ 5, 50 ] °C
Operating Temp Range Discharge: [ -20, 50 ] °C
Storage Temp Range: [ -45, 70 ] °C
Max Storage Time: 1 y
Max Humidity: 95 %
Requires External B M S: 1
Bms: Male and female cable with M8 circular connector, length 50cm
Max Battery Per Bms: 20 (102kWh per BMS) (Up to 5 BMS-es can be paralleled)
Bluetooth: Yes
Communication Port: Bluetooth
Battery Terminals: M8 threaded inserts
Colour: Blue (RAL 5012)
Protection Category: IP22
Mounting Orientation: The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down
Weight: 7 kg
Height: 199 mm
Width: 188 mm
Depth: 147 mm
Safety Cells: UL 1973, IEC 62619, UL 9540A
Safety Battery: EN-IEC 60335-1, IEC 62368-1, IEC 61427-1
E M C: EN-IEC 61000-6-3, EN 55014-1
Automotive: ECE R10-6
