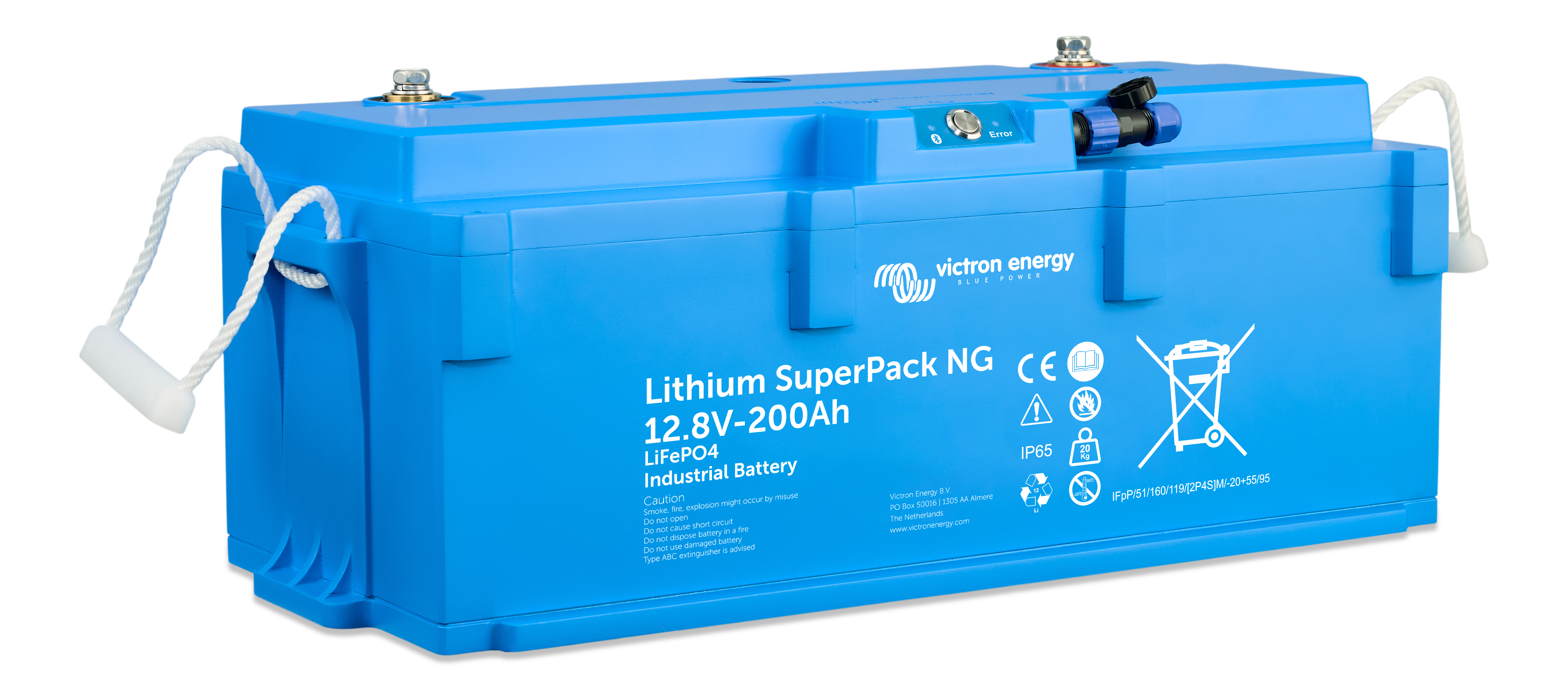

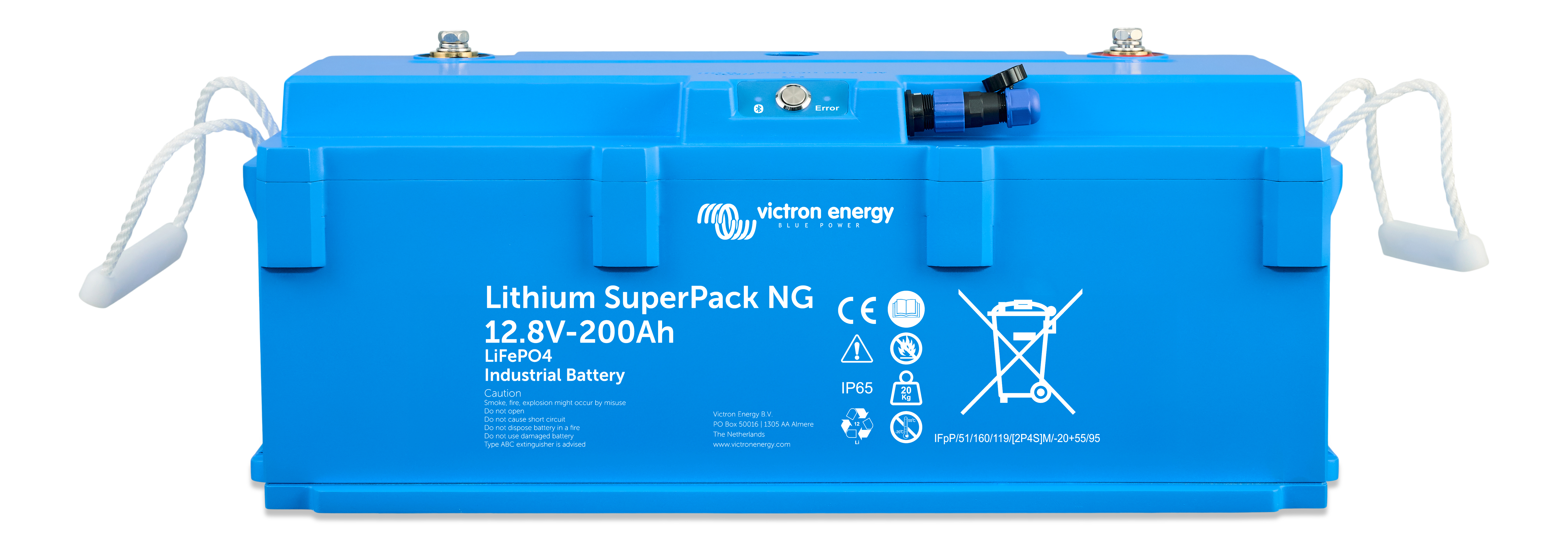

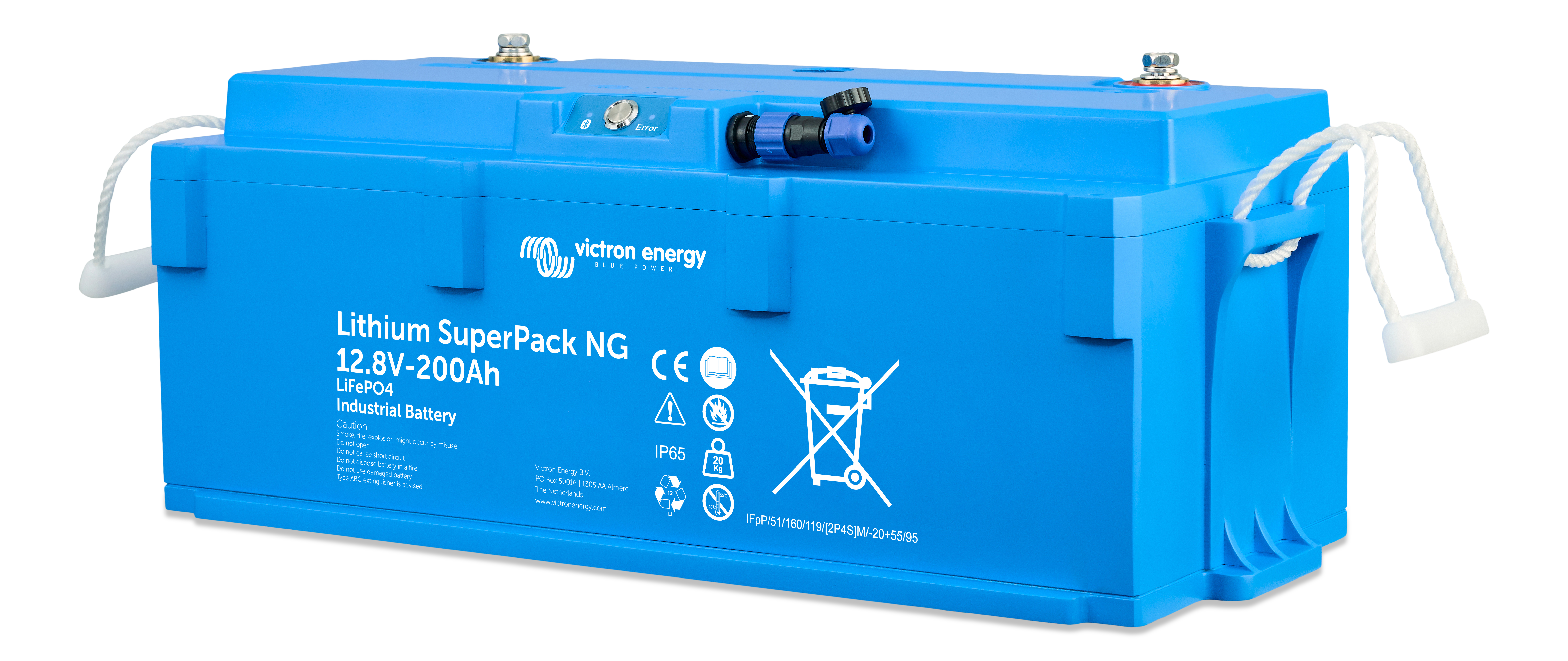

Lithium SuperPack NG

SKU principal: BAT512110740

The Lithium SuperPack NG is a drop-in replacement for lead-acid batteries,
ideal for new builds or retrofits,
and works with the VictronConnect app. Available in 12V,
24V and 48V models,
it features a built-in Battery Management System,
integrated heating for subzero charging,
and an on/off switch for safe off-season storage without removing the battery. With the VictronConnect app,
users can monitor State of Charge and configure settings. Capable of continuously delivering peak power,
the Lithium SuperPack NG eliminates the need for bulky battery banks. It fits under a passenger seat or in other tight spaces,
making a lithium upgrade even easier. With its bi-directional e-switch to avoid unnecessary shutdowns and multiple protection layers for harsh environments,
the Lithium SuperPack NG provides lithium power that simply works. Anywhere.<o:p></o:p>

Códigos SKU

BAT512110740 BAT512120740 BAT524110740 ASS032300010 ASS032300030

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 200 Ah
Nominal Energy: 2, 560 Wh
Heatmap Included: 1
Cycle Design Life80: 2, 500 cycles
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 93 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Max Continuous Discharge Current: 400 A
End Discharge Voltage: 11.2 V
Float Charge Voltage: 13.5 V
Max Cont Charge Current: 200 A
Operating Temp Range Charge: [ -30, 60 ] °C
Operating Temp Range Discharge: [ -30, 60 ] °C
Storage Temp Range: [ -40, 65 ] °C
Max Storage Time25: 1 y
Max Storage Time40: 3 mo
Max Humidity: 95 %
Parallel Configuration: Yes, Unlimited
Series Configuration: No
Bms Included: 1
Requires External B M S: 0
Battery Terminals: M8 female 20mm including nut screws
Protection Category: IP65
Mounting Orientation: Upright or on its side (providing the terminals do not face downward)
Weight: 20.5 kg
Height: 173 mm
Width: 198 mm
Depth: 466 mm
Safety Cells: IEC 62619, UL 1973, UL 9540A
Safety Battery: IEC 62619 (pending)
E M C: EN-IEC 61000-6-3, EN-IEC 61000-6-2
Automotive: ECE R10-7
Battery Voltage Nominal: 25.6 V
Battery Voltage Nominal Bucket: 24
Battery Capacity Nominal: 100 Ah
Nominal Energy: 2, 560 Wh
Heatmap Included: 1
Cycle Design Life80: 2, 500 cycles
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Max Continuous Discharge Current: 200 A
End Discharge Voltage: 22.4 V
Float Charge Voltage: 27 V
Max Cont Charge Current: 100 A
Operating Temp Range Charge: [ -30, 60 ] °C
Operating Temp Range Discharge: [ -30, 60 ] °C
Storage Temp Range: [ -40, 65 ] °C
Max Storage Time25: 1 y
Max Storage Time40: 3 mo
Max Humidity: 95 %
Parallel Configuration: Yes, Unlimited
Series Configuration: No
Bms Included: 1
Requires External B M S: 0
Battery Terminals: M8 female 20mm including nut screws
Protection Category: IP65
Mounting Orientation: Upright or on its side (providing the terminals do not face downward)
Weight: 20.5 kg
Height: 173 mm
Width: 198 mm
Depth: 466 mm
Safety Cells: IEC 62619, UL 1973, UL 9540A
Safety Battery: IEC 62619 (pending)
E M C: EN-IEC 61000-6-3, EN-IEC 61000-6-2
Automotive: ECE R10-7
Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 100 Ah
Nominal Energy: 1, 280 Wh
Heatmap Included: 1
Cycle Design Life80: 2, 500 cycles
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 93 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Max Continuous Discharge Current: 200 A
End Discharge Voltage: 11.2 V
Float Charge Voltage: 13.5 V
Max Cont Charge Current: 100 A
Operating Temp Range Charge: [ -30, 60 ] °C
Operating Temp Range Discharge: [ -30, 60 ] °C
Storage Temp Range: [ -40, 65 ] °C
Max Storage Time25: 1 y
Max Storage Time40: 3 mo
Max Humidity: 95 %
Parallel Configuration: Yes, Unlimited
Series Configuration: No
Bms Included: 1
Requires External B M S: 0
Battery Terminals: M8 female 20mm including nut screws
Protection Category: IP65
Mounting Orientation: Upright or on its side (providing the terminals do not face downward)
Weight: 10.7 kg
Height: 173 mm
Width: 173 mm
Depth: 273 mm
Safety Cells: IEC 62619, UL 1973, UL 9540A
Safety Battery: IEC 62619 (pending)
E M C: EN-IEC 61000-6-3, EN-IEC 61000-6-2
Automotive: ECE R10-7
