Lithium SuperPack 12, 8V & 25, 6V

SKU principal: BAT512020705

The Lithium SuperPack batteries are extremely easy to install,
not needing any additional components. The internal switch will disconnect the battery in case of over discharge,
over charge or high temperature.The Lithium SuperPack batteries can be connected in parallel. Series connection is not allowed.

Códigos SKU

BAT512020705 BAT512060705 BAT512120705 BAT524050705 BAT512110710 BAT512110712

DATOS DEL FABRICANTE

Especificaciones técnicas

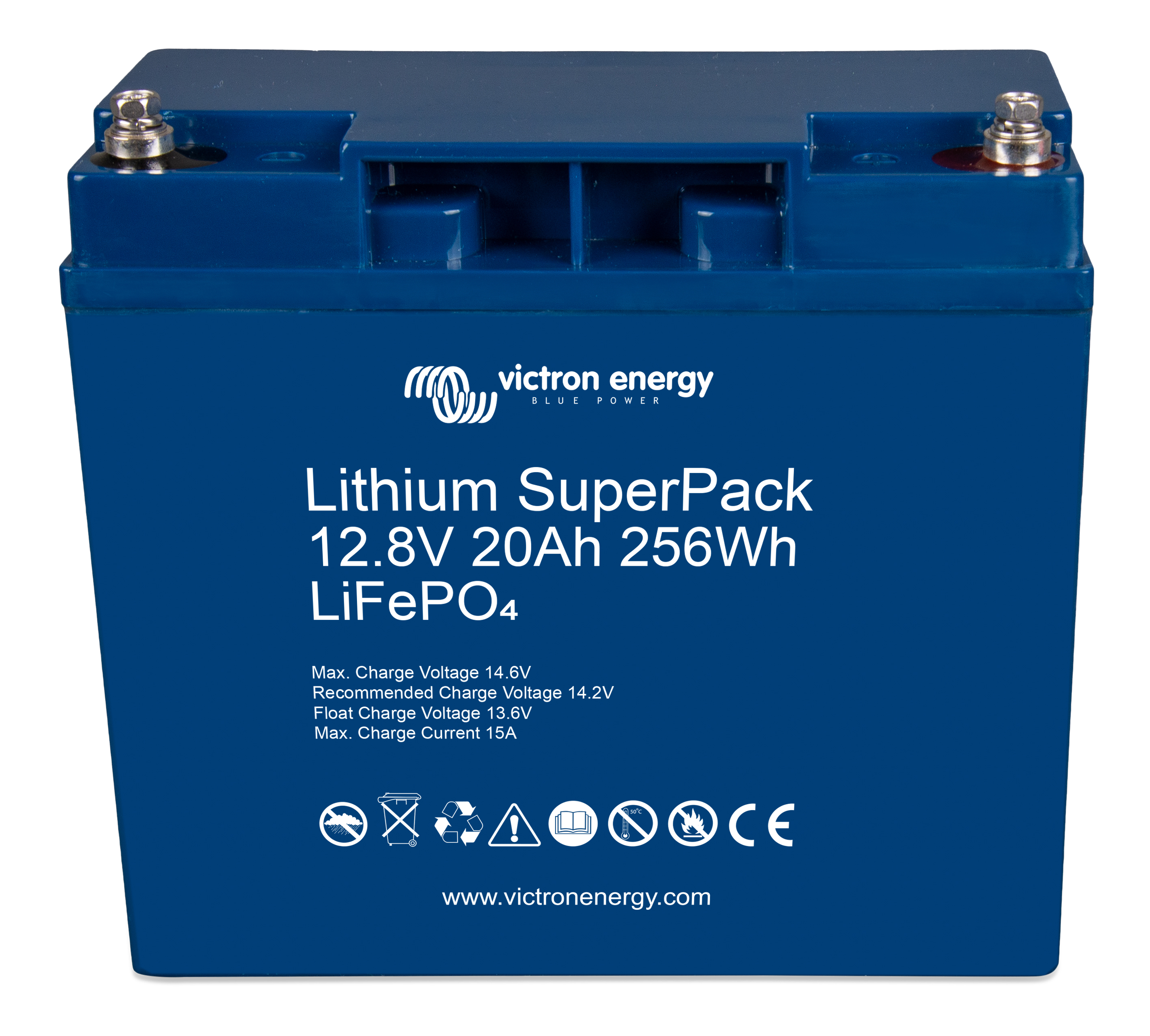

Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 20 Ah
Nominal Capacity0: 16 Ah
Nominal Energy: 256 Wh
Cycle Design Life80: 2, 500 cycles
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Max Continuous Discharge Current: 30 A
Peak Discharge Current: 80 A
End Discharge Voltage: 10 V
Absorption Charge Voltage Range: [ 14.2, 14.4 ] V
Float Charge Voltage: 13.5 V
Operating Temp Range Charge: [ -∞, 45 ] °C
Operating Temp Range Discharge: [ -20, 50 ] °C
Storage Temp Range: [ -40, 65 ] °C
Max Storage Time25: 1 y
Max Storage Time40: 3 mo
Max Humidity: 95 %
Parallel Configuration: Yes, Unlimited
Series Configuration: No
Bms Included: 1
Battery Terminals: M5 threaded inserts
Protection Category: IP43
Mounting Orientation: Upright or on its side (providing the terminals do not face downward)
Weight: 3 kg
Height: 167 mm
Width: 181 mm
Depth: 77 mm

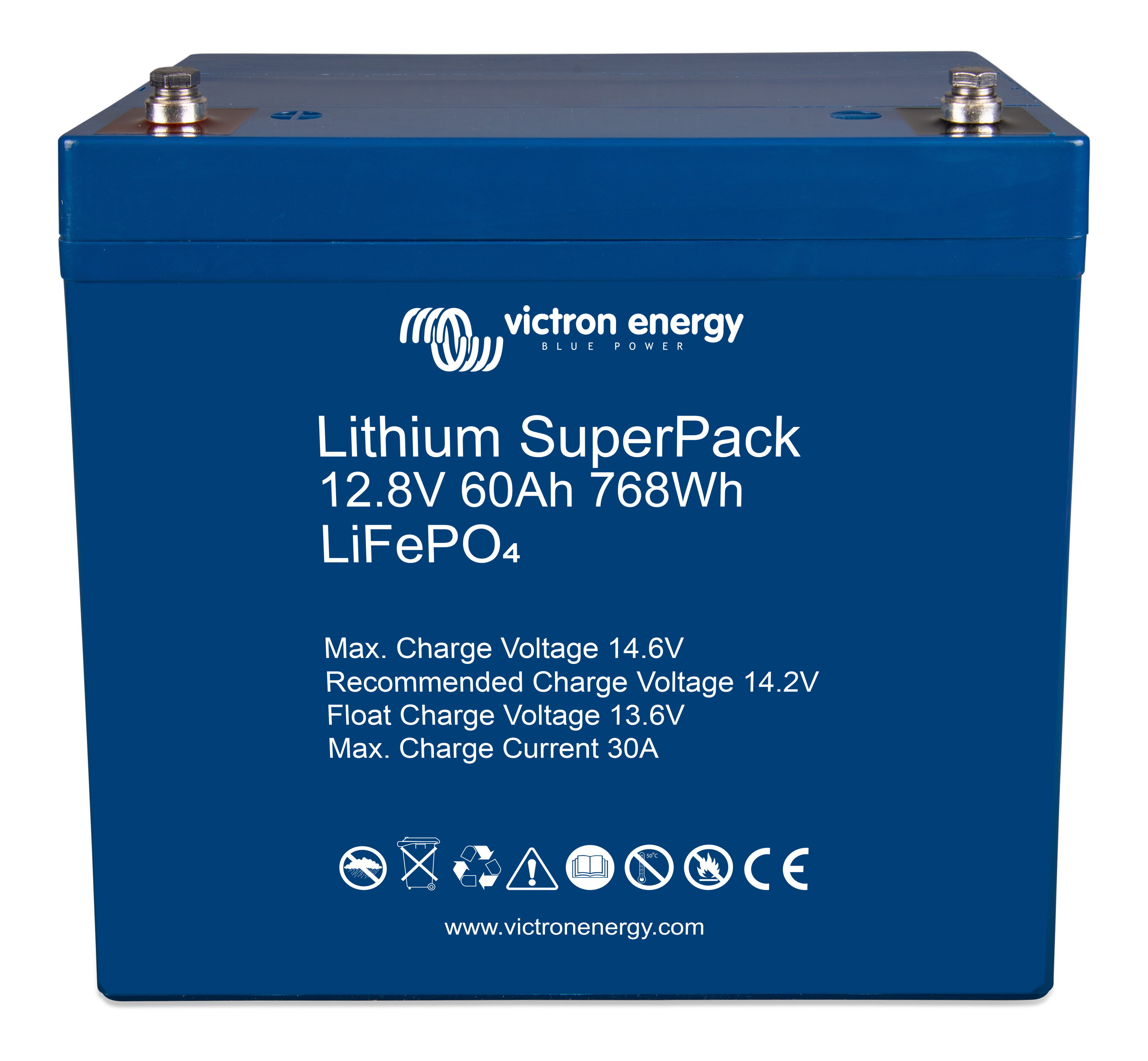

Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 60 Ah
Nominal Capacity0: 48 Ah
Nominal Energy: 768 Wh
Cycle Design Life80: 2, 500 cycles
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Max Continuous Discharge Current: 30 A
Peak Discharge Current: 80 A
End Discharge Voltage: 10 V
Absorption Charge Voltage Range: [ 14.2, 14.4 ] V
Float Charge Voltage: 13.5 V
Operating Temp Range Charge: [ -∞, 45 ] °C
Operating Temp Range Discharge: [ -20, 50 ] °C
Storage Temp Range: [ -40, 65 ] °C
Max Storage Time25: 1 y
Max Storage Time40: 3 mo
Max Humidity: 95 %
Parallel Configuration: Yes, Unlimited
Series Configuration: No
Bms Included: 1
Battery Terminals: M6 threaded inserts
Protection Category: IP43
Mounting Orientation: Upright or on its side (providing the terminals do not face downward)
Weight: 7.5 kg
Height: 213 mm
Width: 229 mm
Depth: 138 mm

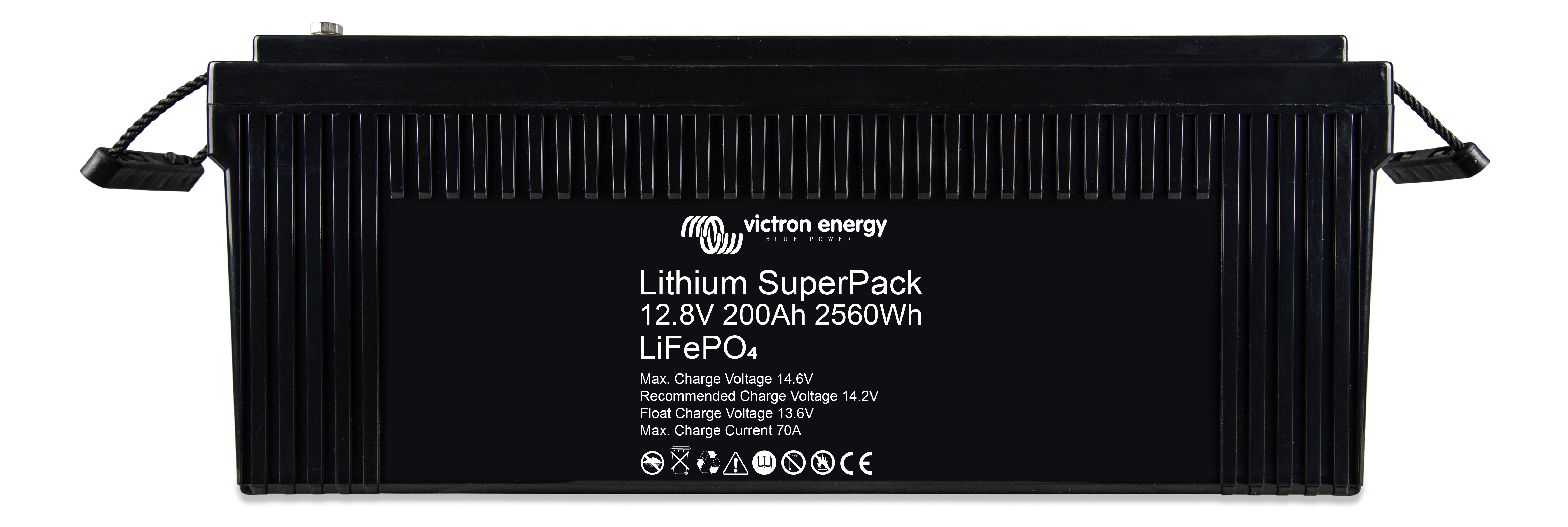

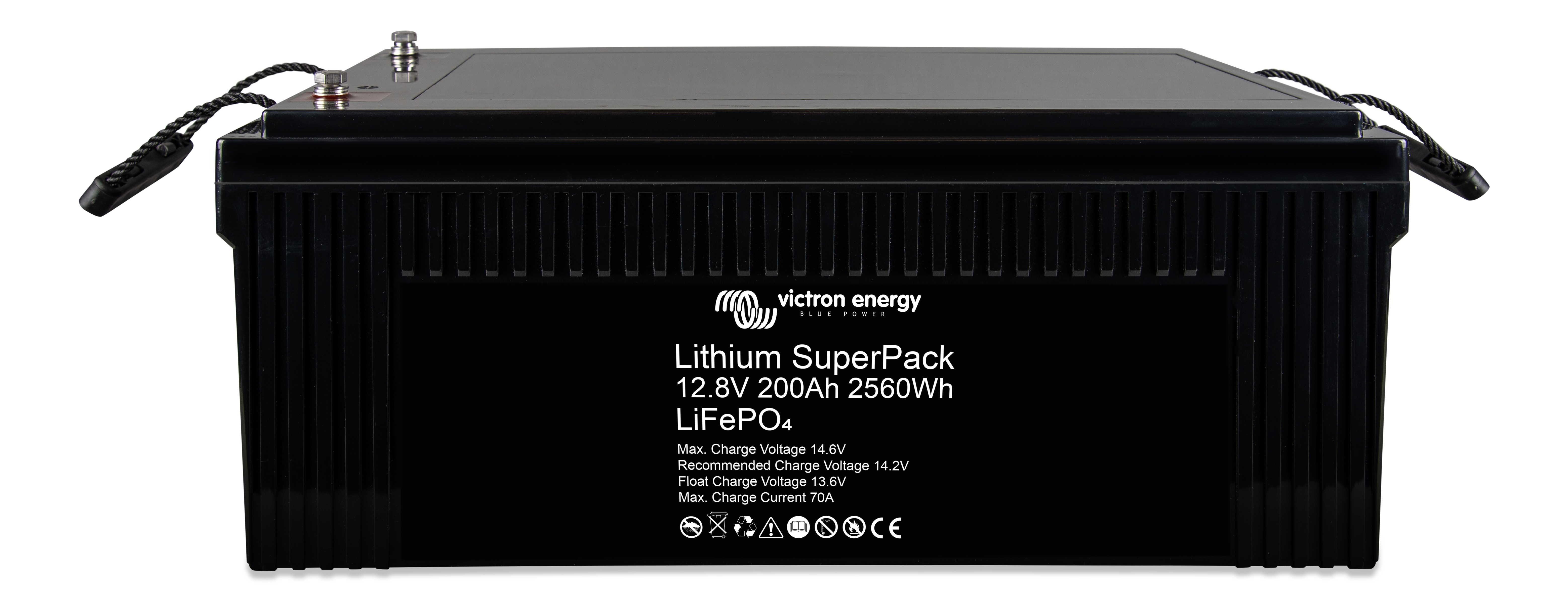

Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 200 Ah
Nominal Capacity0: 160 Ah
Nominal Energy: 2, 560 Wh
Cycle Design Life80: 2, 500 cycles
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Max Continuous Discharge Current: 70 A
Peak Discharge Current: 100 A
End Discharge Voltage: 10 V
Absorption Charge Voltage Range: [ 14.2, 14.4 ] V
Float Charge Voltage: 13.5 V
Operating Temp Range Charge: [ -∞, 45 ] °C
Operating Temp Range Discharge: [ -20, 50 ] °C
Storage Temp Range: [ -40, 65 ] °C
Max Storage Time25: 1 y
Max Storage Time40: 3 mo
Max Humidity: 95 %
Parallel Configuration: Yes, Unlimited
Series Configuration: No
Bms Included: 1
Requires External B M S: 0
Battery Terminals: M8 threaded inserts
Protection Category: IP43
Mounting Orientation: Upright or on its side (providing the terminals do not face downward)
Weight: 21 kg
Height: 208 mm
Width: 520 mm
Depth: 269 mm

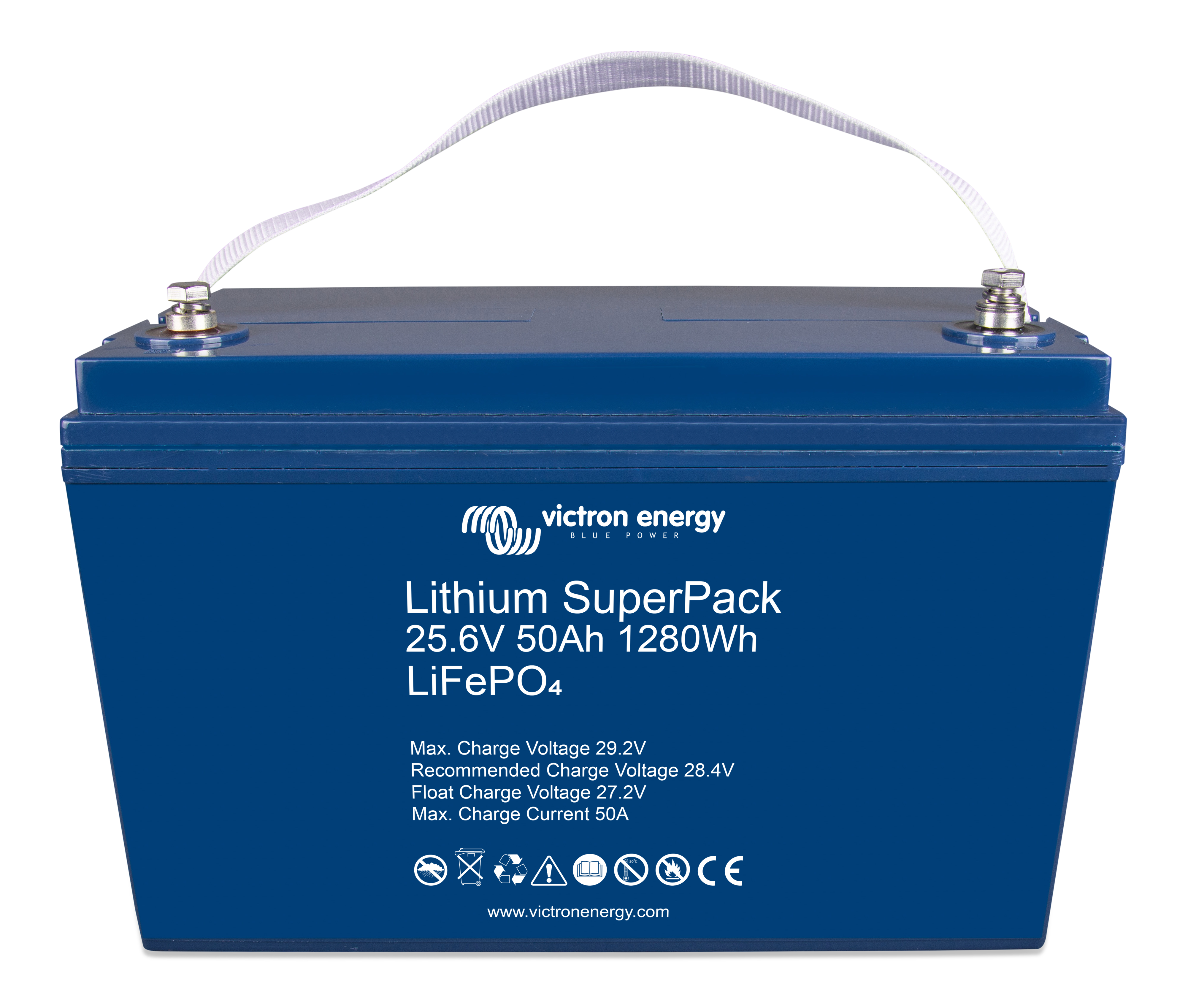

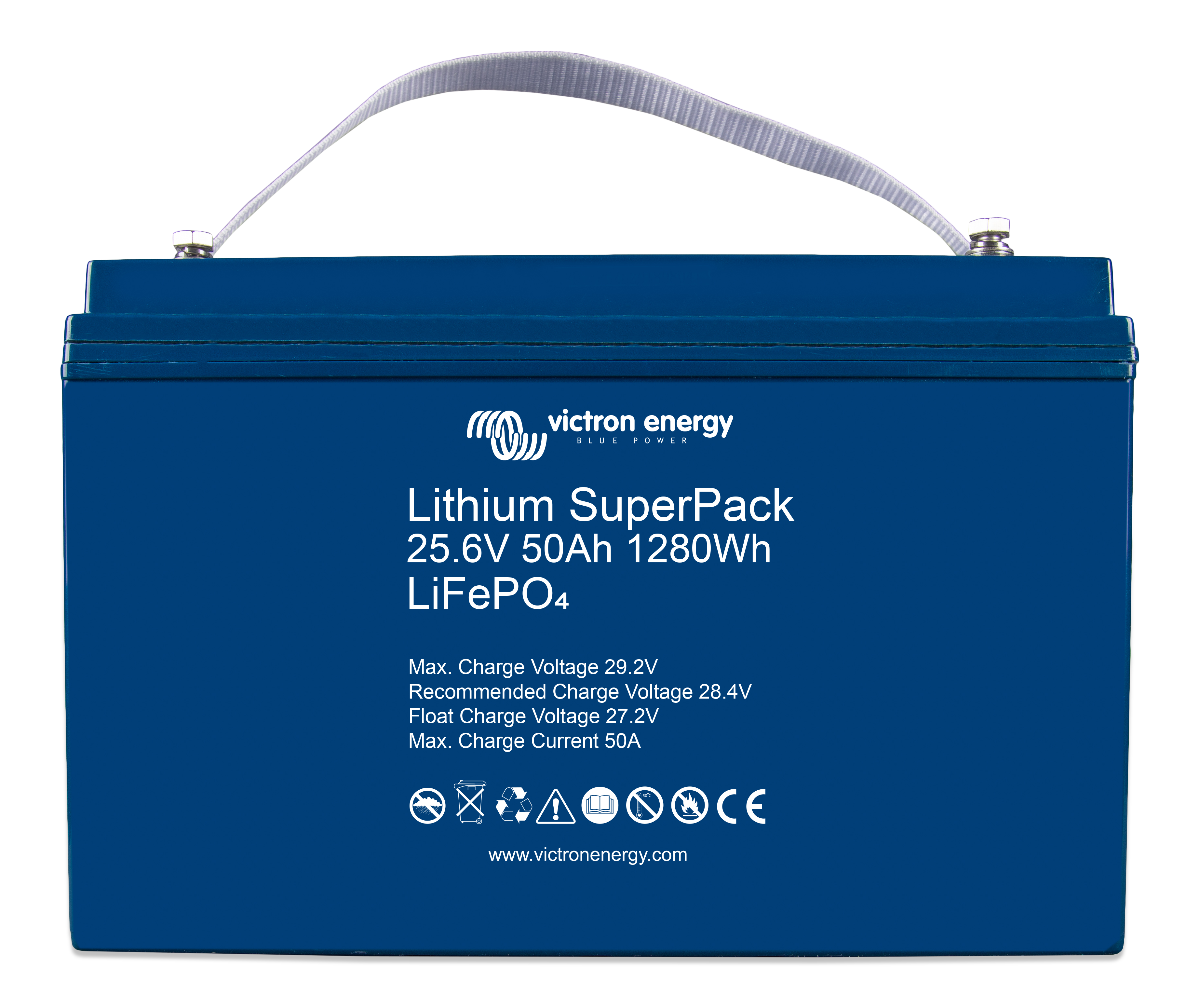

Battery Voltage Nominal: 25.6 V
Battery Voltage Nominal Bucket: 24
Battery Capacity Nominal: 50 Ah
Nominal Capacity0: 40 Ah
Nominal Energy: 1, 280 Wh
Cycle Design Life80: 2, 500 cycles
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Max Continuous Discharge Current: 50 A
Peak Discharge Current: 100 A
End Discharge Voltage: 20 V
Absorption Charge Voltage Range: [ 28.4, 28.8 ] V
Float Charge Voltage: 27 V
Operating Temp Range Charge: [ -∞, 45 ] °C
Operating Temp Range Discharge: [ -20, 50 ] °C
Storage Temp Range: [ -40, 65 ] °C
Max Storage Time25: 1 y
Max Storage Time40: 3 mo
Max Humidity: 95 %
Parallel Configuration: Yes, Unlimited
Series Configuration: No
Bms Included: 1
Battery Terminals: M8 threaded inserts
Protection Category: IP43
Mounting Orientation: Upright or on its side (providing the terminals do not face downward)
Weight: 14 kg
Height: 220 mm
Width: 330 mm
Depth: 172 mm
Battery Voltage Nominal: 12.8 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 100 Ah
Nominal Capacity0: 80 Ah
Nominal Energy: 1, 280 Wh
Cycle Design Life80: 2, 500 cycles
Capacity Loss: 1 %
Energy Loss: 1 %
Efficiency: 92 %
Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Max Continuous Discharge Current: 100 A
Peak Discharge Current: 150 A
End Discharge Voltage: 10 V
Absorption Charge Voltage Range: [ 14.2, 14.4 ] V
Float Charge Voltage: 13.5 V
Operating Temp Range Charge: [ -∞, 45 ] °C
Operating Temp Range Discharge: [ -20, 50 ] °C
Storage Temp Range: [ -40, 65 ] °C
Max Storage Time25: 1 y
Max Storage Time40: 3 mo
Max Humidity: 95 %
Parallel Configuration: Yes, Unlimited
Series Configuration: No
Bms Included: 1
Battery Terminals: M8 threaded inserts
Protection Category: IP43
Mounting Orientation: Upright or on its side (providing the terminals do not face downward)
Weight: 10.5 kg
Height: 215 mm
Width: 306 mm
Depth: 169 mm
