AGM Super Cycle battery

SKU principal: BAT412025081

<div>The Victron AGM Super Cycle Battery is designed for applications that involve frequent deep discharges.</div><div>Thanks to improvements in battery electrochemistry,
it resists sulfation and plate softening,
even after repeated 100% depth of discharge (DoD) cycles.</div><div>Tests have shown that Super Cycle batteries can withstand at least 300 full 100% DoD cycles. This makes them a reliable choice for mobile,
off-grid and marine applications where occasional full discharges or frequent partial discharges are expected.</div><div><br></div>

Códigos SKU

BAT412025081 BAT412038081 BAT412060081 BAT412110081 BAT412112081 BAT412117081 BAT412123081 BAT412015080 BAT412060082 BAT412015081

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Nominal: 12 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 60 Ah
Chemistry: Lead-acid
Technology: Flat plate AGM (Absorbent Glass Mat)
Seal Type: Sealed VLRA (Valve Regulated Lead Acid)
Battery Voltage Nominal: 12 V
Battery Voltage Nominal Bucket: 12

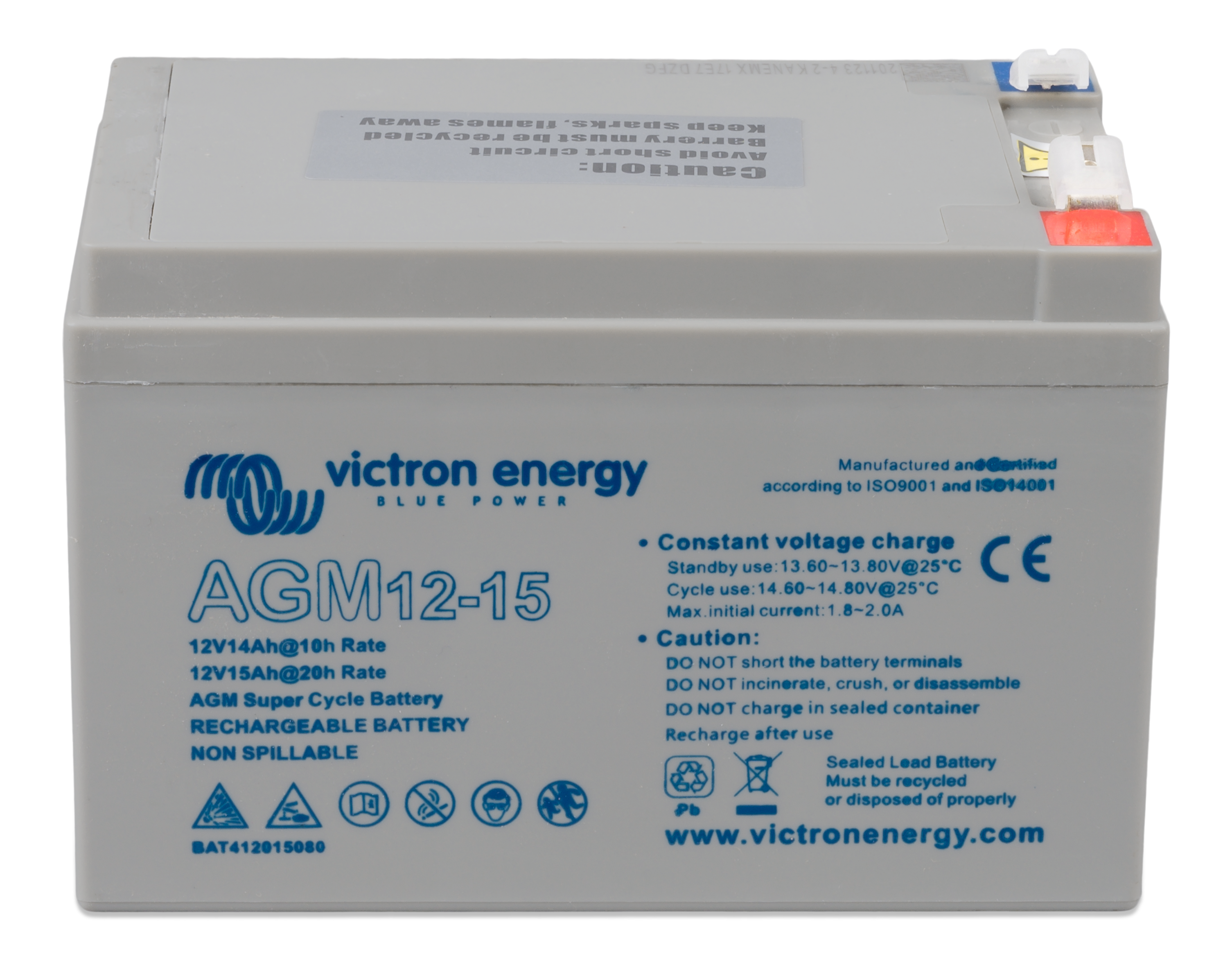

Battery Capacity Nominal: 15 Ah
Capacity C20: 15 Ah
Capacity C10: 14 Ah
Capacity C5: 13 Ah
Chemistry: Lead-acid
Technology: Flat plate AGM (Absorbent Glass Mat) with improved electrolyte
Seal Type: Sealed VLRA (Valve Regulated Lead Acid)
Cycle Design Life100: 300 cycles
Cycle Design Life60: 700 cycles
Cycle Design Life40: 1, 000 cycles

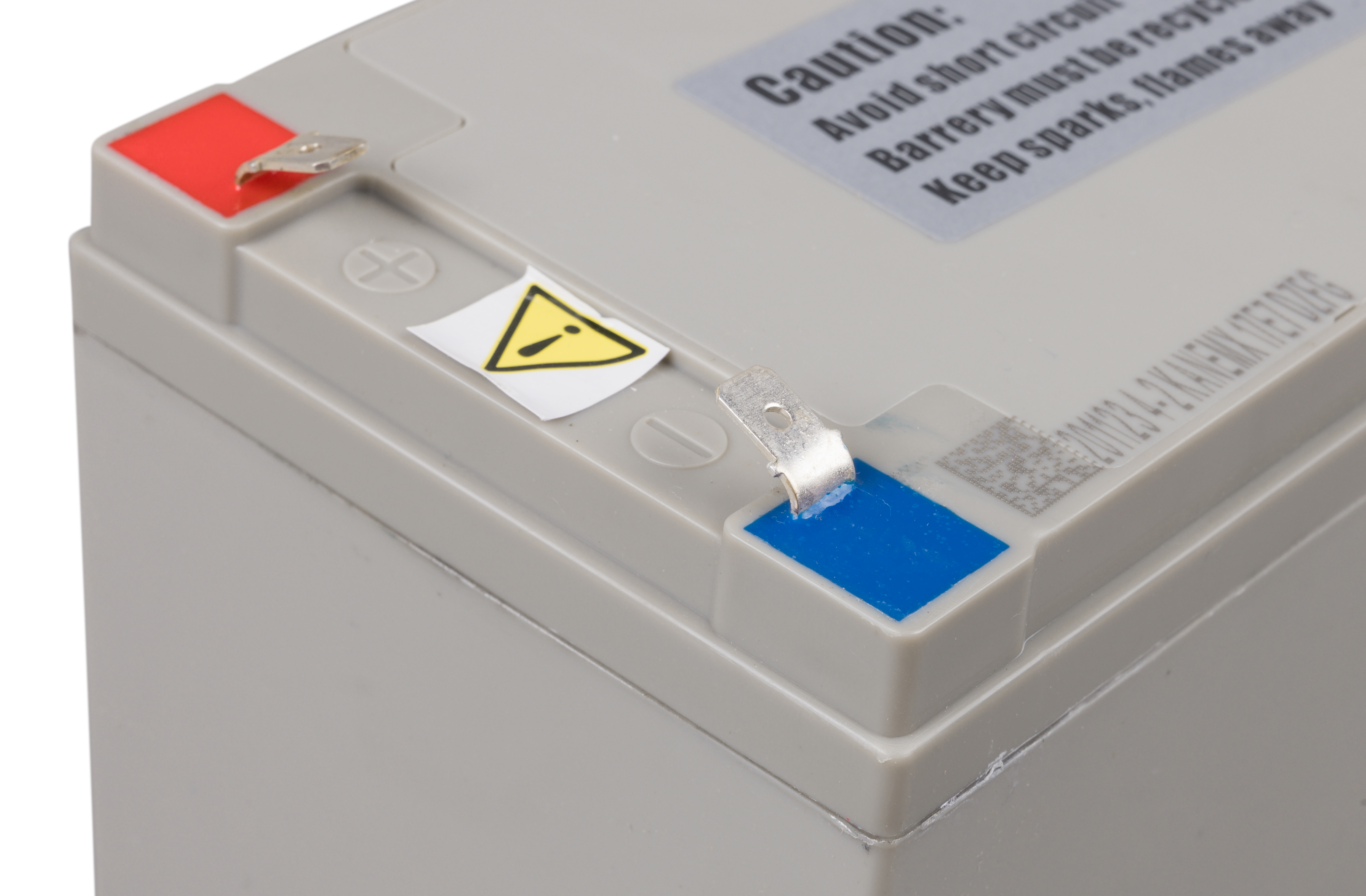

Battery Terminals: Faston tab 6.3 x 0.8 mm
Weight: 4.1 kg
Length: 151 mm
Width: 100 mm
Height: 103 mm

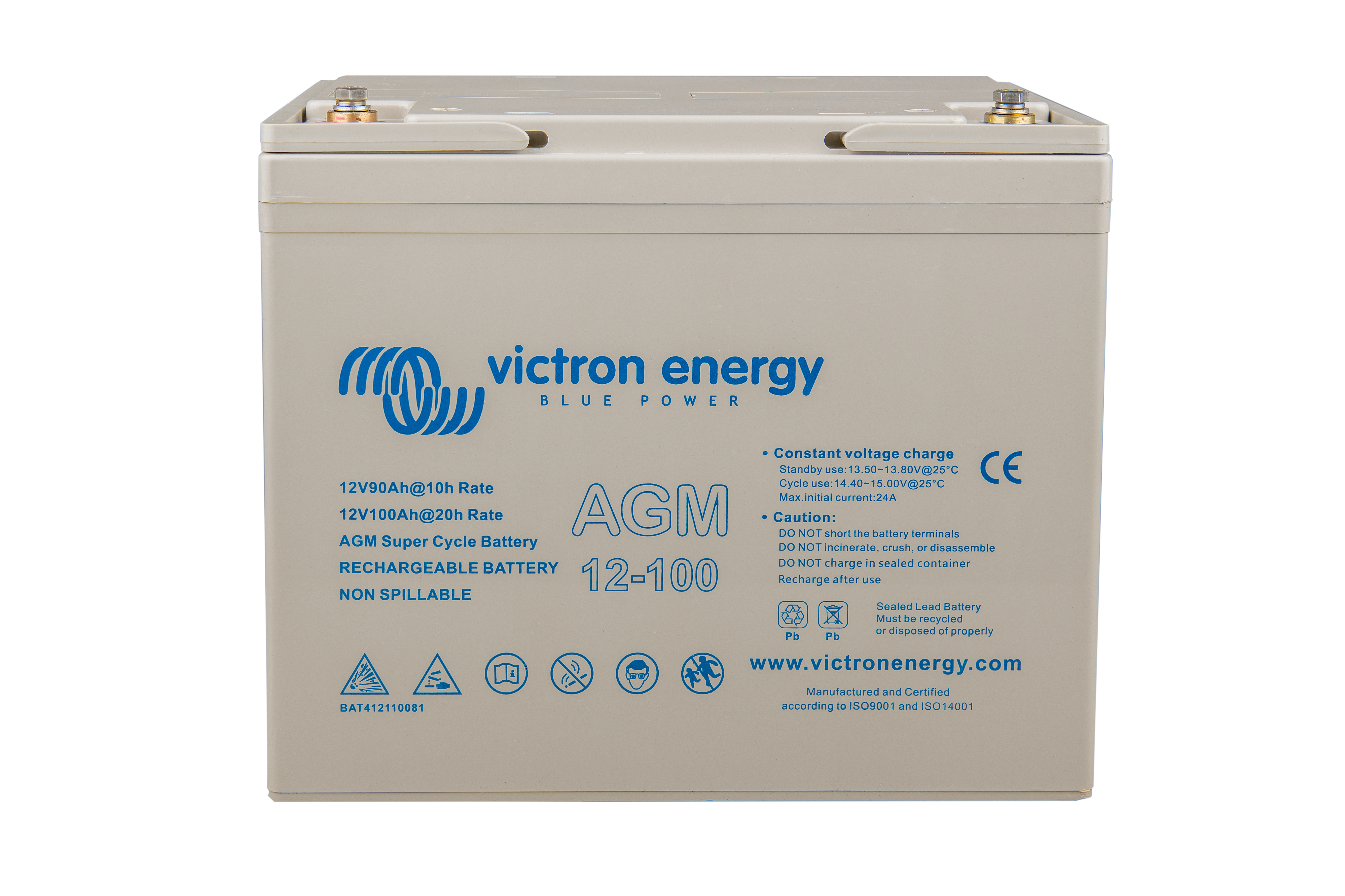

Battery Voltage Nominal: 12 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 100 Ah
Capacity C20: 100 Ah
Capacity C10: 90 Ah
Capacity C5: 82 Ah
Chemistry: Lead-acid
Technology: Flat plate AGM (Absorbent Glass Mat) with improved electrolyte
Seal Type: Sealed VLRA (Valve Regulated Lead Acid)
C C A: 500 A
Reserve Capacity: 170 Ah
Cycle Design Life100: 300 cycles
Cycle Design Life60: 700 cycles
Cycle Design Life40: 1, 000 cycles
Recommended Charge Voltage Absorption: [ 14.2, 14.6 ] V
Recommended Charge Voltage Float: [ 13.5, 13.8 ] V
Recommended Charge Voltage Storage: [ 13.2, 13.5 ] V
Battery Terminals: M6 threaded inserts
Weight: 26 kg
Length: 260 mm
Width: 168 mm
Height: 215 mm
Battery Voltage Nominal: 12 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 125 Ah
Capacity C20: 125 Ah
Capacity C10: 114 Ah
Capacity C5: 105 Ah
Chemistry: Lead-acid
Technology: Flat plate AGM (Absorbent Glass Mat) with improved electrolyte
Seal Type: Sealed VLRA (Valve Regulated Lead Acid)
C C A: 550 A
Reserve Capacity: 220 Ah
Cycle Design Life100: 300 cycles
Cycle Design Life60: 700 cycles
Cycle Design Life40: 1, 000 cycles
Recommended Charge Voltage Absorption: [ 14.2, 14.6 ] V
Recommended Charge Voltage Float: [ 13.5, 13.8 ] V
Recommended Charge Voltage Storage: [ 13.2, 13.5 ] V
Battery Terminals: M8 threaded inserts
Weight: 33 kg
Length: 330 mm
Width: 171 mm
Height: 214 mm
Battery Voltage Nominal: 12 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 170 Ah
Capacity C20: 170 Ah
Capacity C10: 153 Ah
Capacity C5: 145 Ah
Chemistry: Lead-acid
Technology: Flat plate AGM (Absorbent Glass Mat) with improved electrolyte
Seal Type: Sealed VLRA (Valve Regulated Lead Acid)
C C A: 600 A
Reserve Capacity: 290 Ah
Cycle Design Life100: 300 cycles
Cycle Design Life60: 700 cycles
Cycle Design Life40: 1, 000 cycles
Recommended Charge Voltage Absorption: [ 14.2, 14.6 ] V
Recommended Charge Voltage Float: [ 13.5, 13.8 ] V
Recommended Charge Voltage Storage: [ 13.2, 13.5 ] V
Battery Terminals: M8 threaded inserts
Weight: 45 kg
Length: 336 mm
Width: 172 mm
Height: 280 mm

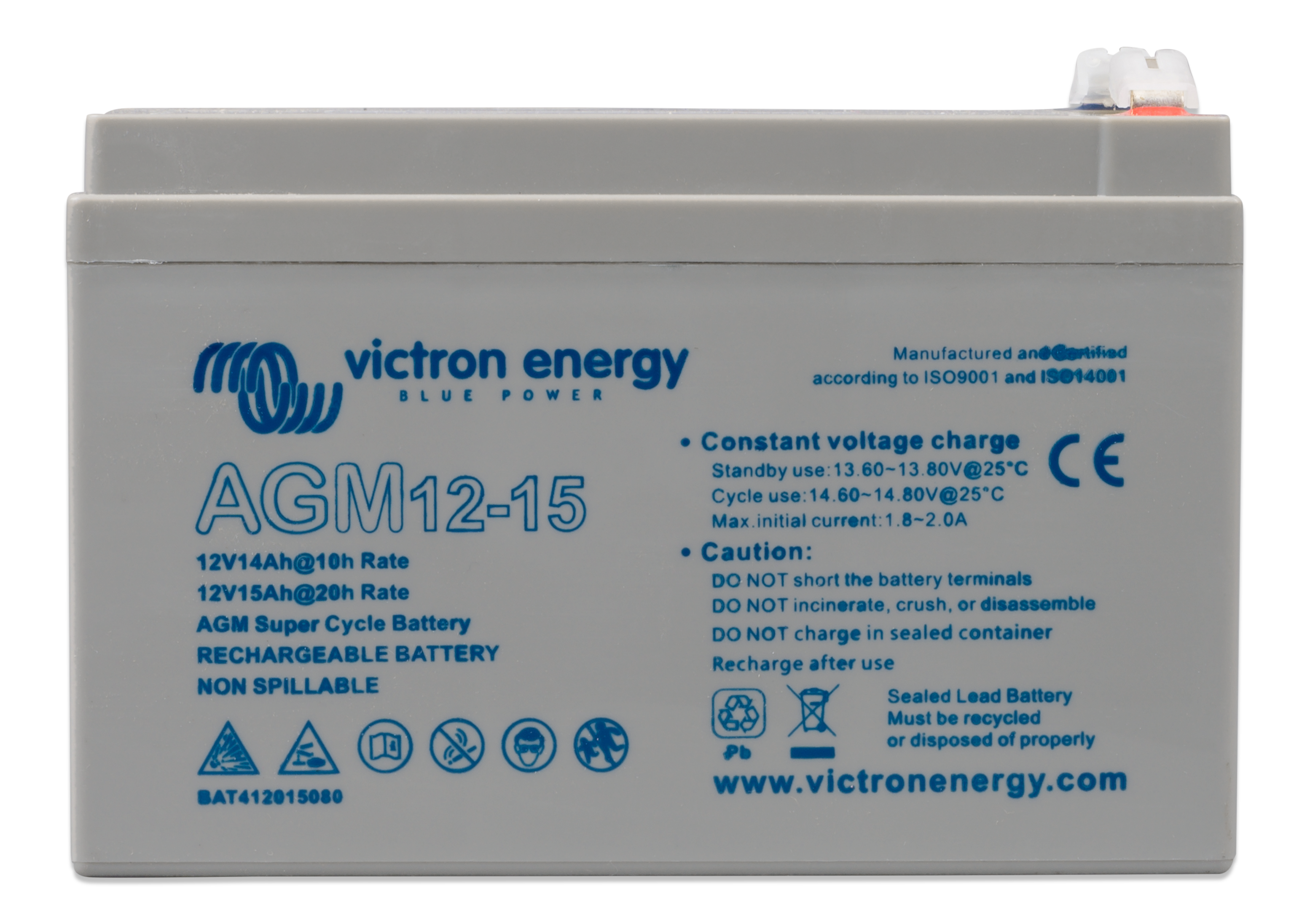

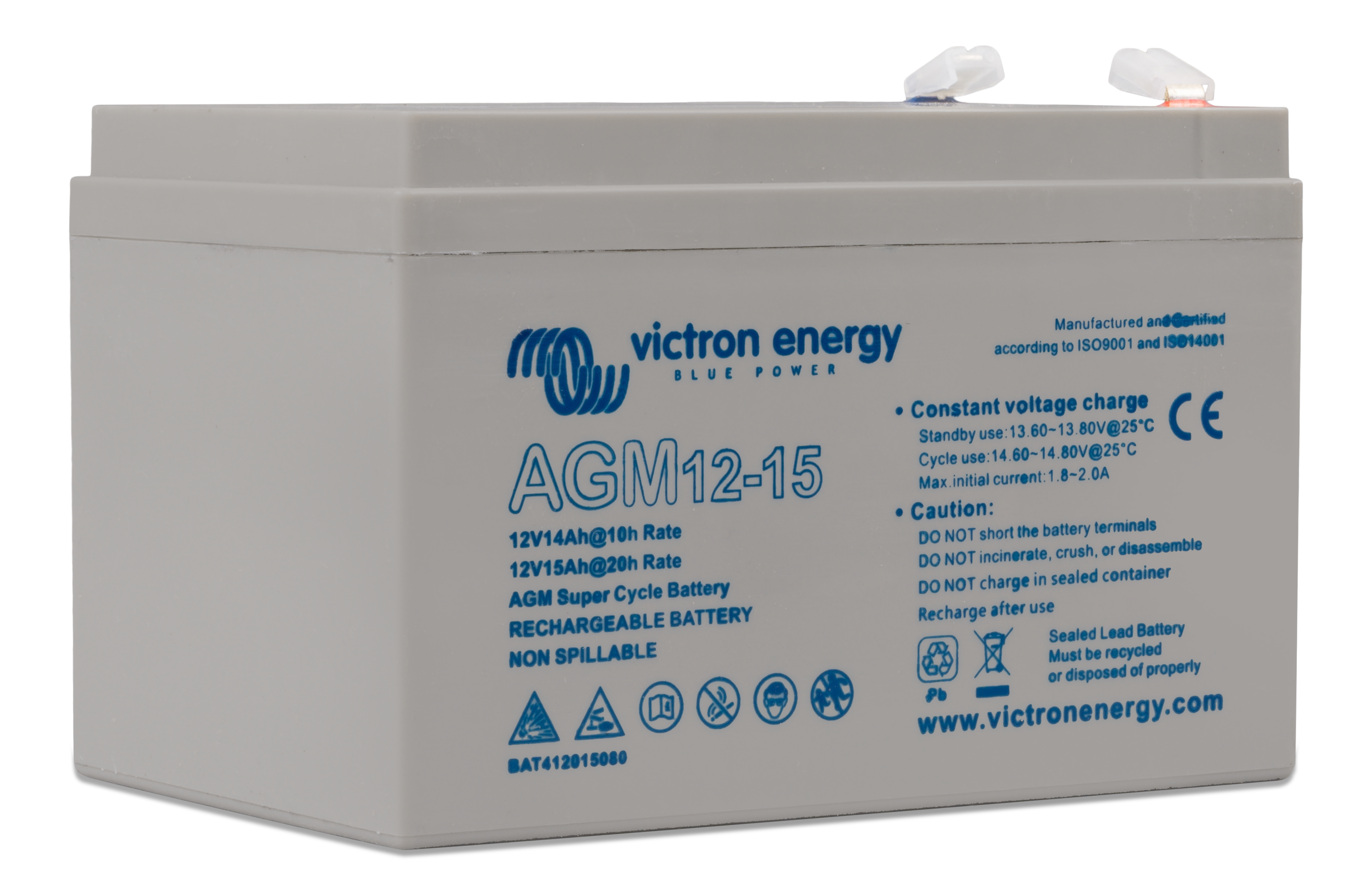

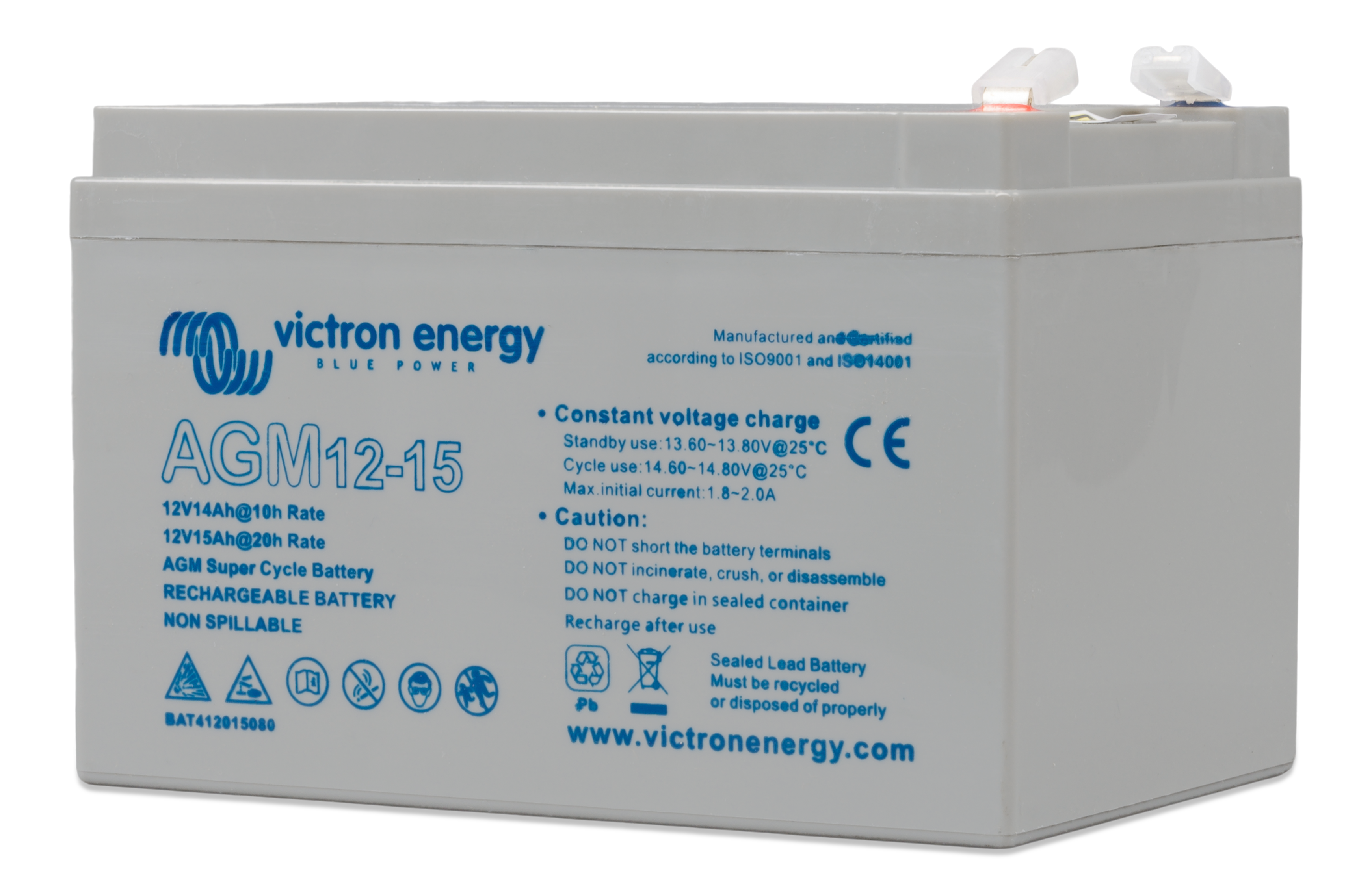

Battery Voltage Nominal: 12 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 15 Ah
Capacity C20: 15 Ah
Capacity C10: 14 Ah
Capacity C5: 13 Ah
Chemistry: Lead-acid
Technology: Flat plate AGM (Absorbent Glass Mat)
Seal Type: Sealed VLRA (Valve Regulated Lead Acid)
Cycle Design Life100: 300 cycles
Cycle Design Life60: 700 cycles
Cycle Design Life40: 1, 000 cycles
Recommended Charge Voltage Absorption: [ 14.2, 14.6 ] V
Recommended Charge Voltage Float: [ 13.5, 13.8 ] V
Recommended Charge Voltage Storage: [ 13.2, 13.5 ] V
Battery Terminals: M5 threaded inserts
Weight: 4.1 kg
Length: 151 mm
Width: 100 mm
Height: 103 mm

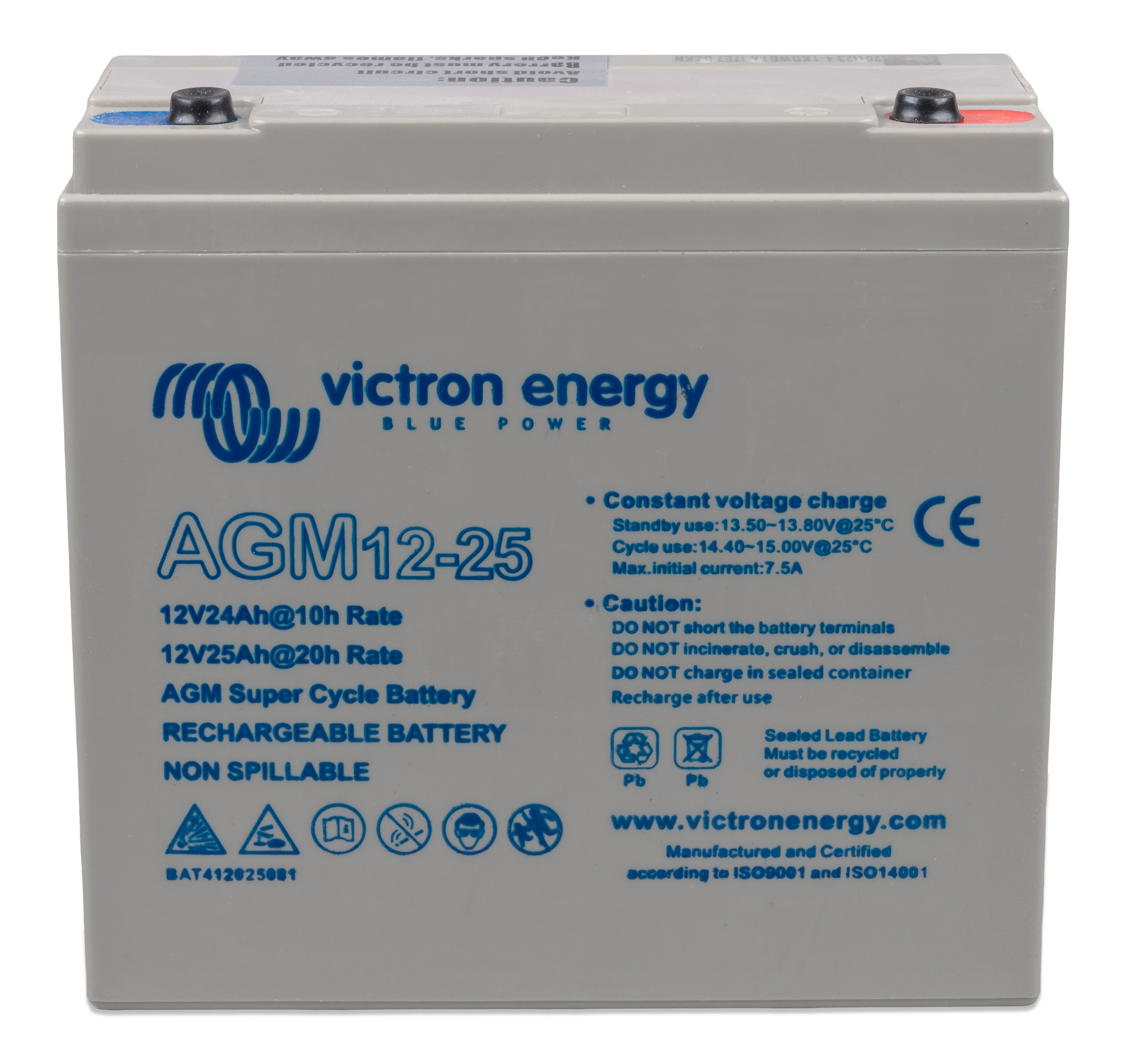

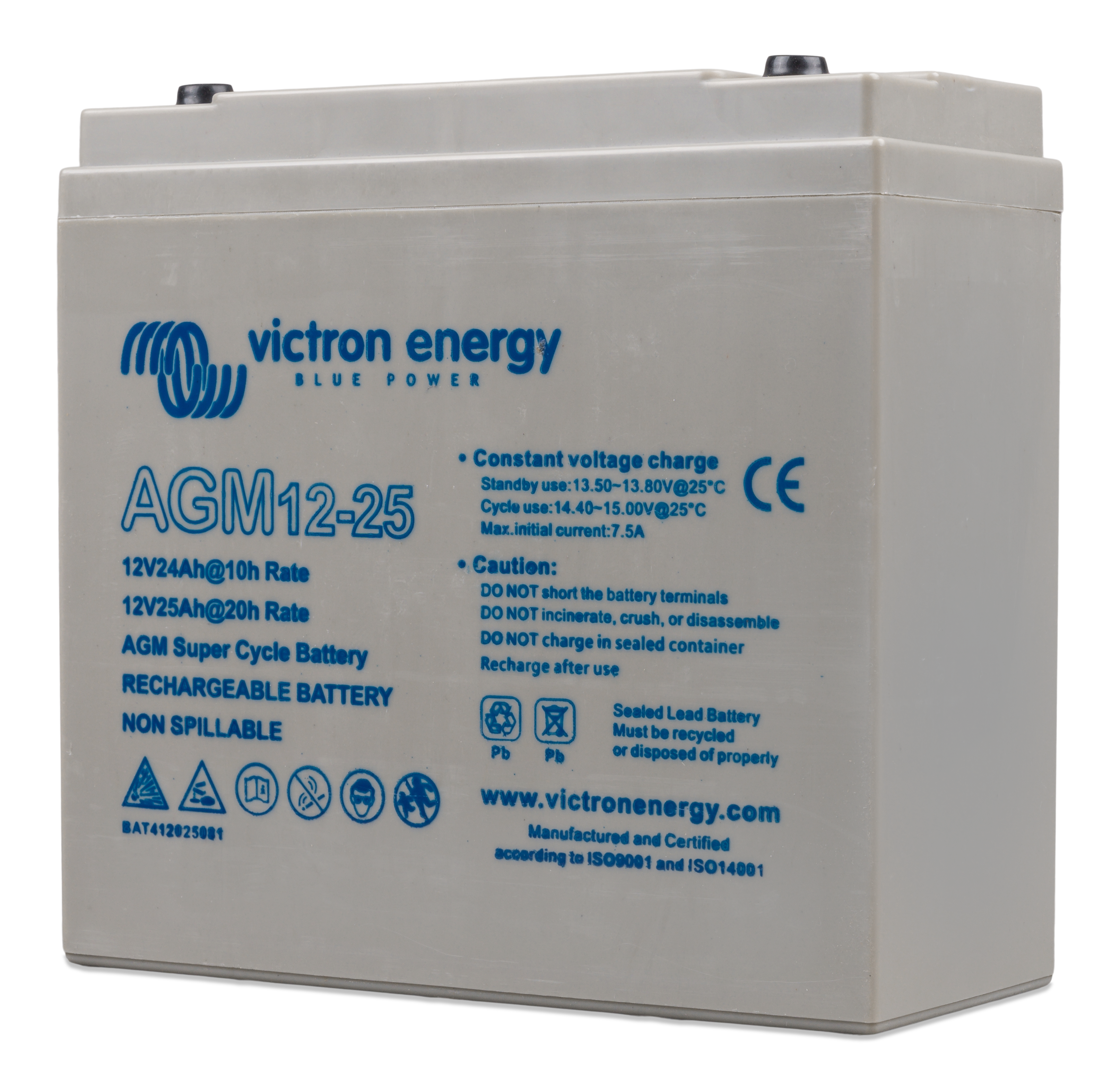

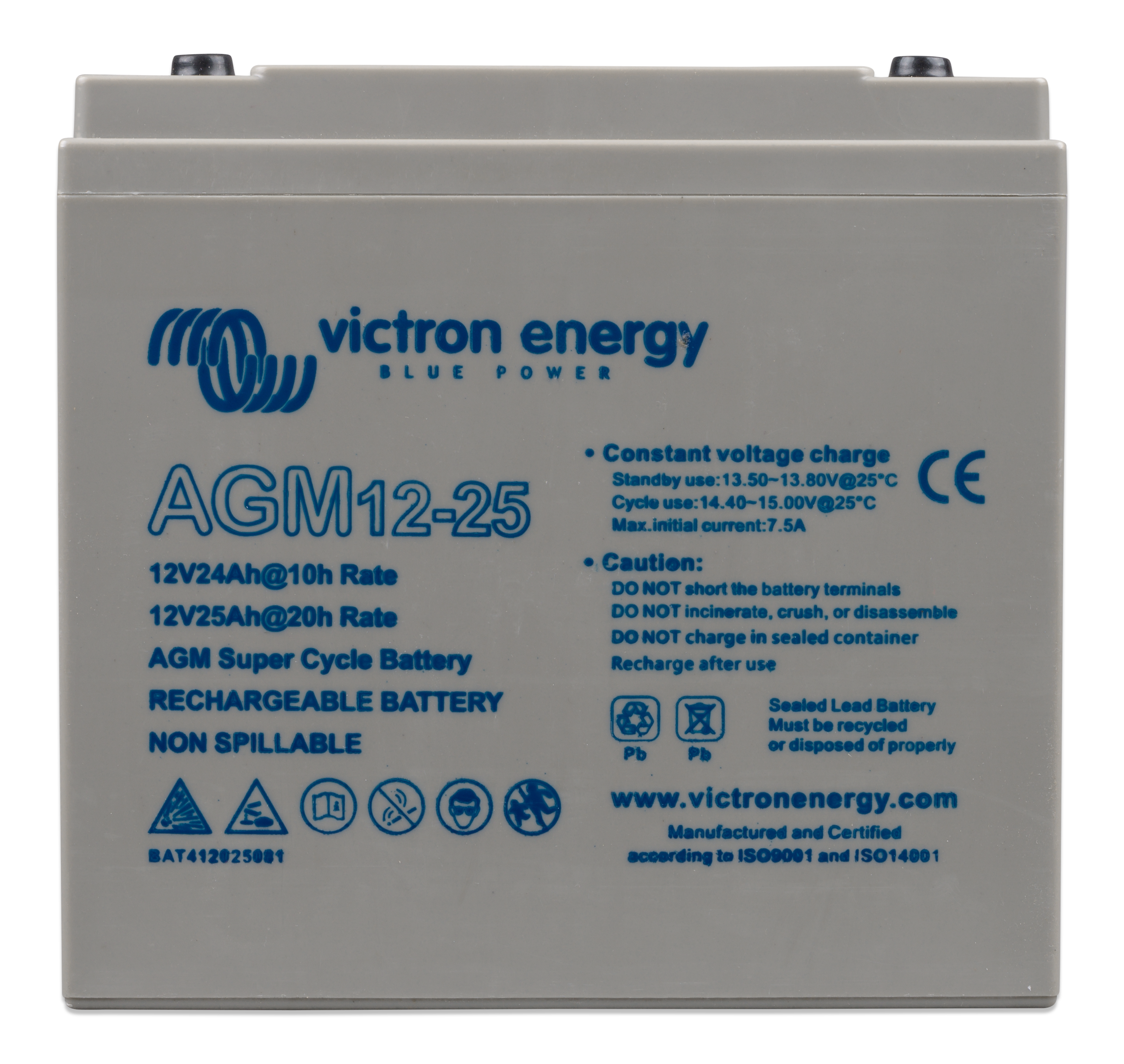

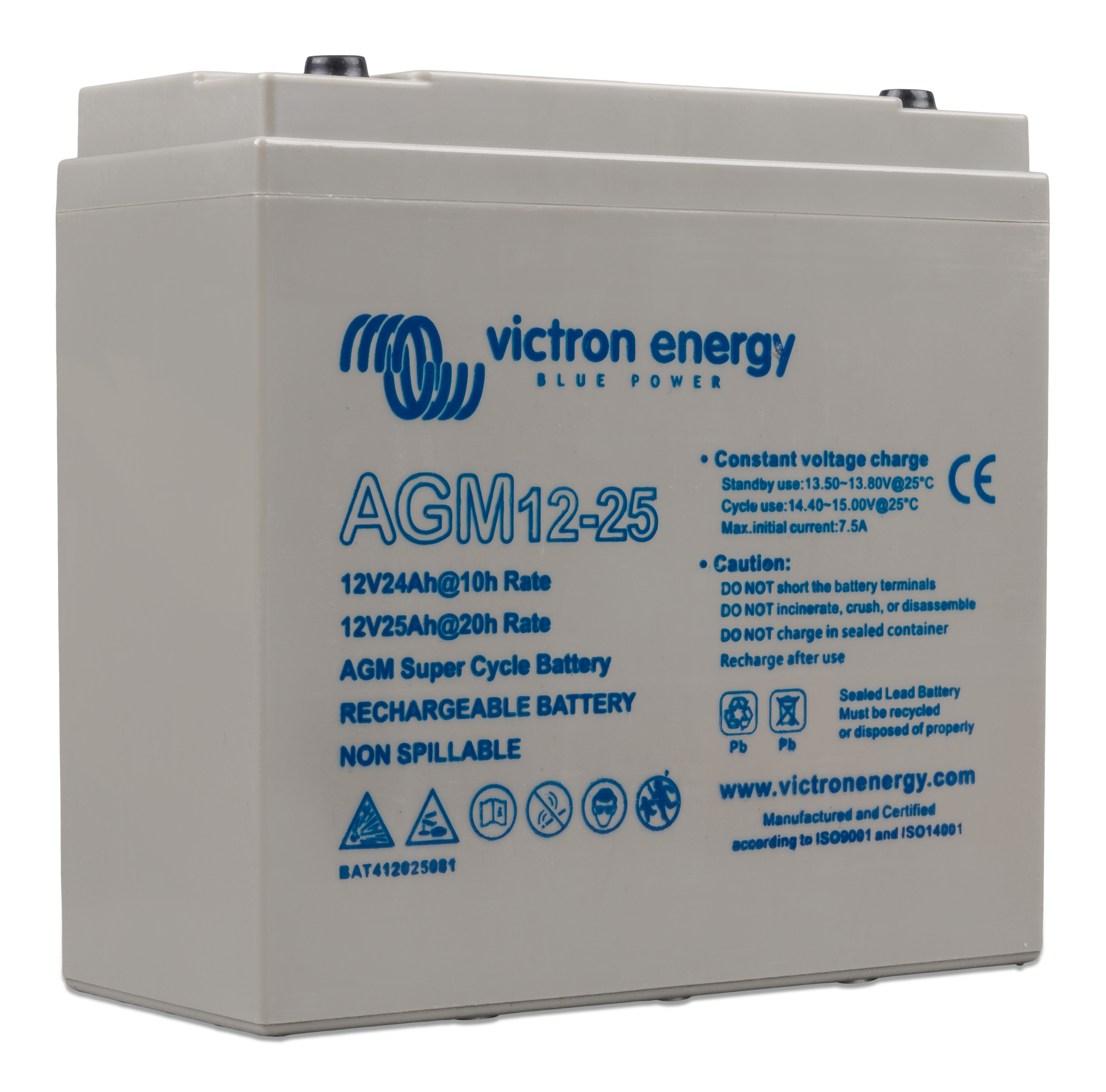

Battery Voltage Nominal: 12 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 25 Ah
Capacity C20: 25 Ah
Capacity C10: 24 Ah
Capacity C5: 22 Ah
Chemistry: Lead-acid
Technology: Flat plate AGM (Absorbent Glass Mat) with improved electrolyte
Seal Type: Sealed VLRA (Valve Regulated Lead Acid)
Cycle Design Life100: 300 cycles
Cycle Design Life60: 700 cycles
Cycle Design Life40: 1, 000 cycles
Recommended Charge Voltage Absorption: [ 14.2, 14.6 ] V
Recommended Charge Voltage Float: [ 13.5, 13.8 ] V
Recommended Charge Voltage Storage: [ 13.2, 13.5 ] V

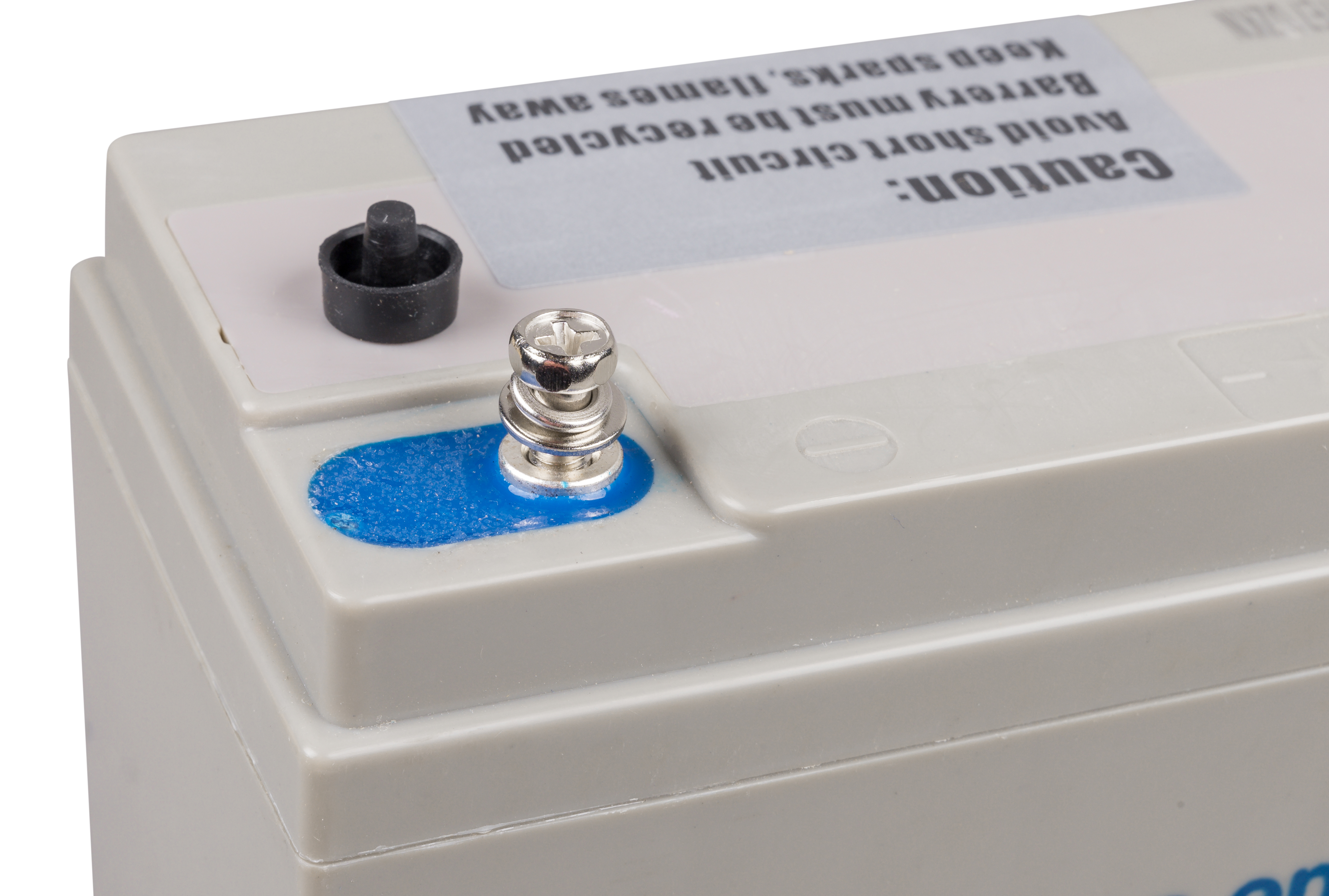

Battery Terminals: M5 threaded inserts
Weight: 6.5 kg
Length: 181 mm
Width: 77 mm
Height: 175 mm

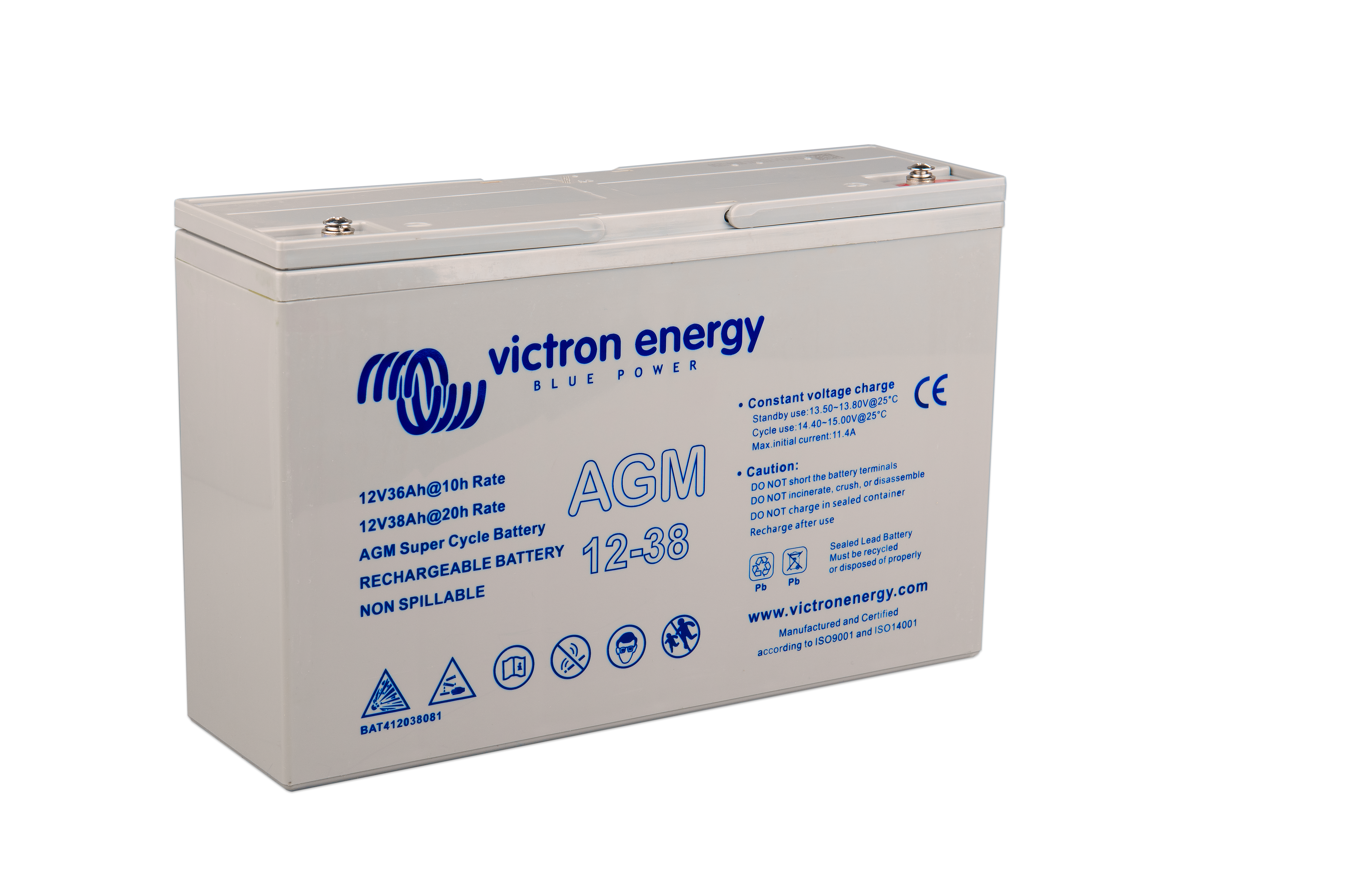

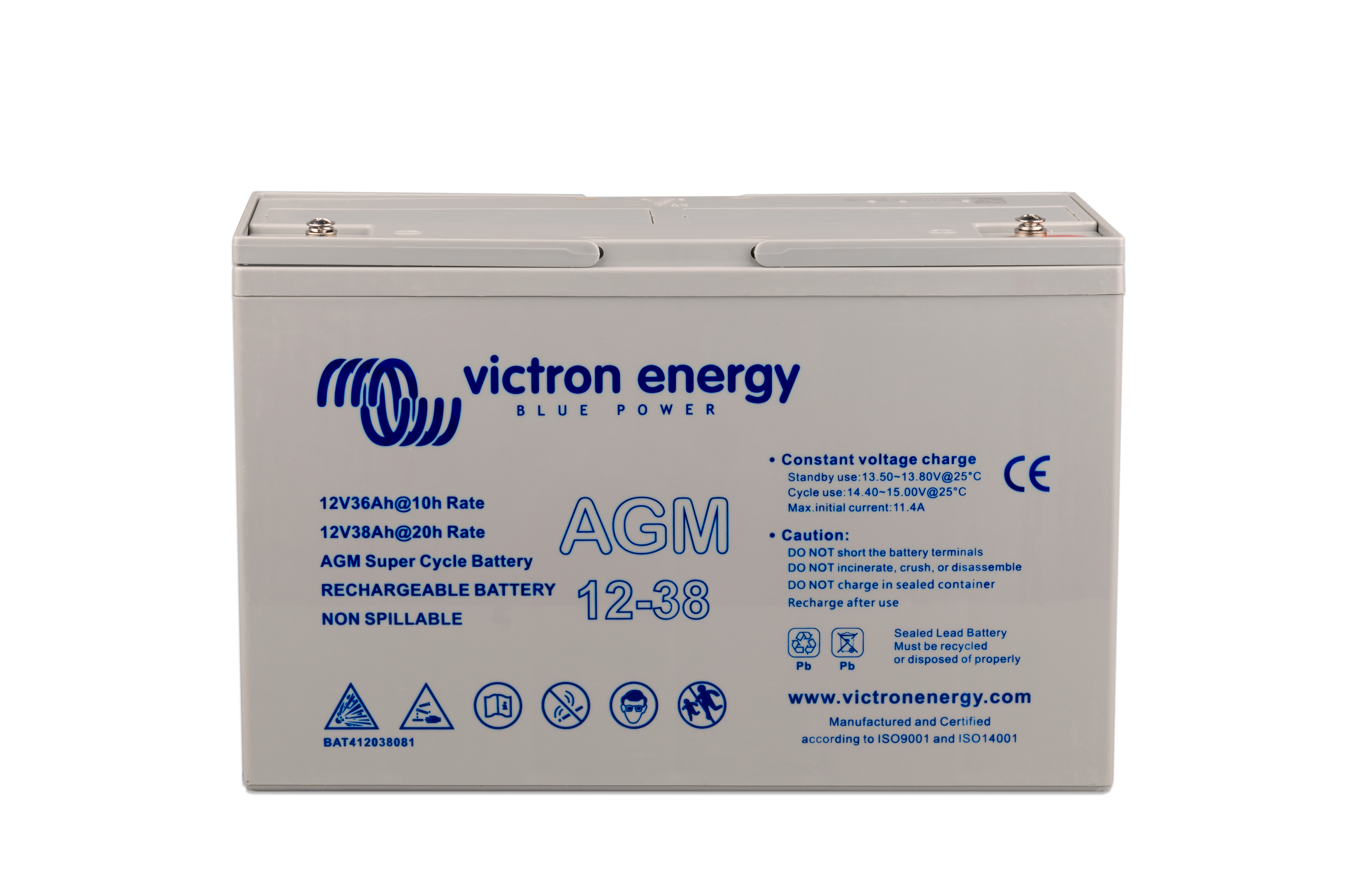

Battery Voltage Nominal: 12 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 38 Ah
Capacity C20: 38 Ah
Capacity C10: 36 Ah
Capacity C5: 34 Ah
Chemistry: Lead-acid
Technology: Flat plate AGM (Absorbent Glass Mat) with improved electrolyte
Seal Type: Sealed VLRA (Valve Regulated Lead Acid)
Cycle Design Life100: 300 cycles
Cycle Design Life60: 700 cycles
Cycle Design Life40: 1, 000 cycles
Recommended Charge Voltage Absorption: [ 14.2, 14.6 ] V
Recommended Charge Voltage Float: [ 13.5, 13.8 ] V
Recommended Charge Voltage Storage: [ 13.2, 13.5 ] V
Battery Terminals: M5 threaded inserts
Weight: 9.5 kg
Length: 267 mm
Width: 77 mm
Height: 175 mm
Battery Voltage Nominal: 12 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 230 Ah
Capacity C20: 230 Ah
Capacity C10: 210 Ah
Capacity C5: 200 Ah
Chemistry: Lead-acid
Technology: Flat plate AGM (Absorbent Glass Mat) with improved electrolyte
Seal Type: Sealed VLRA (Valve Regulated Lead Acid)
C C A: 700 A
Reserve Capacity: 400 Ah
Cycle Design Life100: 300 cycles
Cycle Design Life60: 700 cycles
Cycle Design Life40: 1, 000 cycles
Recommended Charge Voltage Absorption: [ 14.2, 14.6 ] V
Recommended Charge Voltage Float: [ 13.5, 13.8 ] V
Recommended Charge Voltage Storage: [ 13.2, 13.5 ] V
Battery Terminals: M8 threaded inserts
Weight: 57 kg
Length: 532 mm
Width: 207 mm
Height: 226 mm
Battery Voltage Nominal: 12 V
Battery Voltage Nominal Bucket: 12
Battery Capacity Nominal: 60 Ah
Capacity C20: 60 Ah
Capacity C10: 56 Ah
Capacity C5: 52 Ah
Chemistry: Lead-acid
Technology: Flat plate AGM (Absorbent Glass Mat) with improved electrolyte
Seal Type: Sealed VLRA (Valve Regulated Lead Acid)
C C A: 300 A
Reserve Capacity: 900 Ah
Cycle Design Life100: 300 cycles
Cycle Design Life60: 700 cycles
Cycle Design Life40: 1, 000 cycles
Recommended Charge Voltage Absorption: [ 14.2, 14.6 ] V
Recommended Charge Voltage Float: [ 13.5, 13.8 ] V
Recommended Charge Voltage Storage: [ 13.2, 13.5 ] V
Battery Terminals: M6 threaded inserts
Weight: 14 kg
Length: 224 mm
Width: 135 mm
Height: 178 mm
