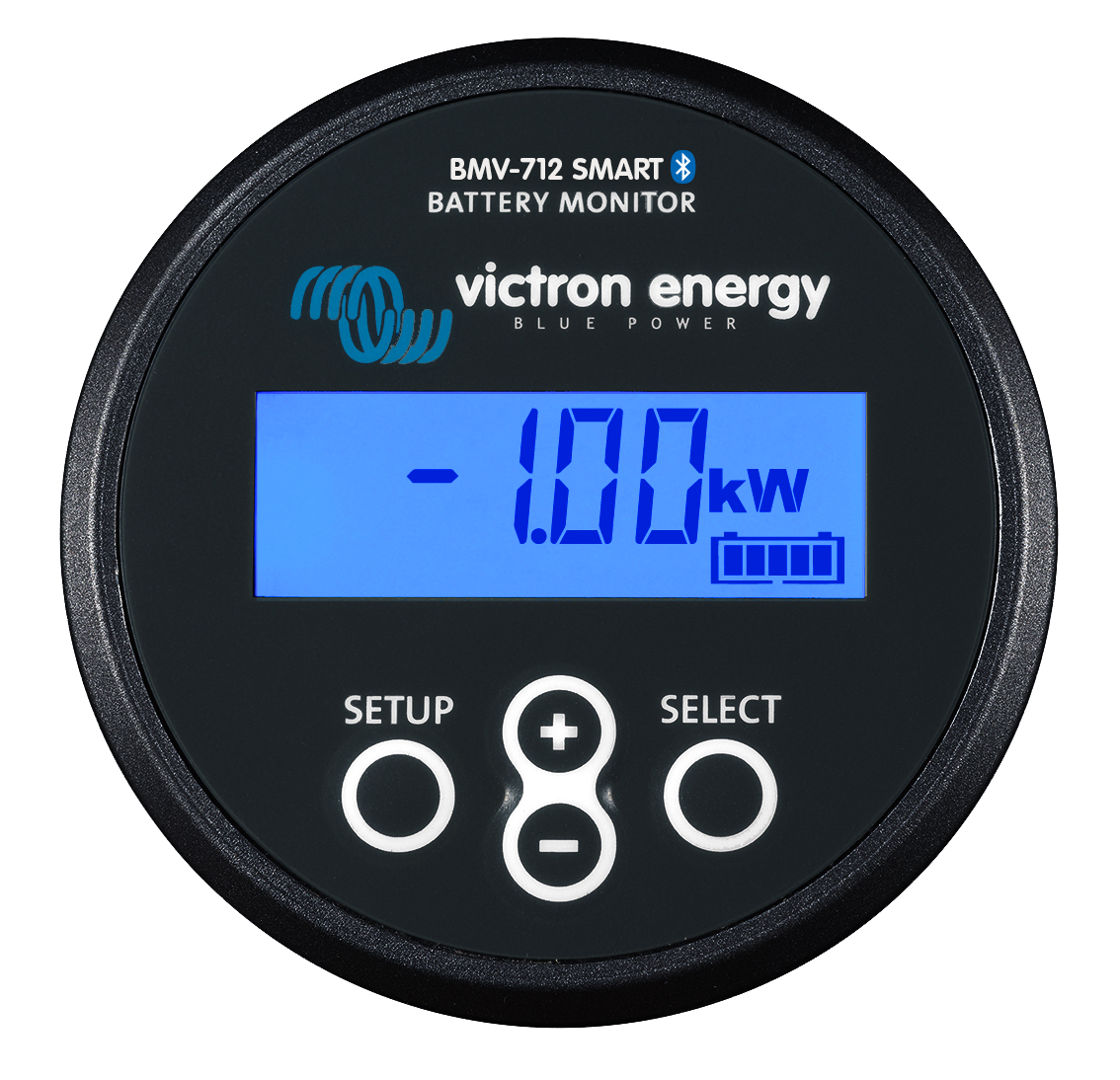

BMV-712 Smart

SKU principal: BAM030712000

BMV-712 Smart

<p>With Bluetooth built-in,
the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products,
wireless communication between products will simplify system installation and enhance performance.</p><p>To read more about the full BMV range & accessories,
see this <a href="https://www.victronenergy.com/blog/2019/08/27/battery-monitors-and-monitoring-solutions/">blog</a>. </p>

Códigos SKU

BAM030712000 BAM030712000R BAM030712200 BAM030712200R

DATOS DEL FABRICANTE

Especificaciones técnicas

Supply Voltage Range: [ 6.5, 70 ] VDC
Current Rating: 500 A
Battery Capacity Measurement Range: [ 1, 9, 999 ] Ah
Current Draw: 1 mA
Input Voltage Measurement Range Auxiliary Battery: [ 6.5, 70 ] VDC
Operating Temperature Range: [ -40, 50 ] °C
Aux Input Fo Auxiliary Battery Voltage: 1
Temperature Sensor: Optional (ASS000100000)
Temperature Measurement Range: [ -20, 50 ] °C
Communication Port: VE.Direct
Bluetooth: 1
Programmable Relay: Bistable relay 60V / 1A , normally open (function can be inverted)
Display: 1
Visual Alarm On Device: 1
Audible Alarm On Device: 1
Current Measurement Resolution: 0.01 A
Voltage Measurement Resolution: 0.01 V
Capacity Measurement Resolution: 0.1 Ah
State Of Charge Measurement Resolution: 0.1 %
Time To Go Measurement Resolution: 1 min
Temperature Resolution: 1 °C
Measurement Accuracy: 0.4 %
Current Measurement Accuracy: 0.4 %
Voltage Measurement Accuracy: 0.3 %
Positive Cable: 1.5m cable with 1A fuse
Aux Cable: 1.5m cable with 1A fuse
Shunt Connection Terminals: M10 bolts
Display Shunt Cable: 10 metre 6-core UTP with RJ12 connectors
Colour: Black
Protection Category: IP55 (not for outdoor use)
Installation: Flush mount
Front Diameter: 63 mm
Front Bezel: 69 x 69mm
Body Diameter: 52 mm
Body Depth: 31 mm
Shunt: 500A / 50mV
Safety: EN 60335-1
Emisison Immunity: EN 55014-1, EN 55014-2
Automotive Directive: ECE R10-4, EN 50498
Data Stored: Battery voltage, Battery current, Battery temperature, Battery state of charge percentage, Battery midpoint deviation, Starter battery voltage
Data Retention Period: 46 d
Supply Voltage Range: [ 6.5, 70 ] VDC
Current Rating: 500 A
Battery Capacity Measurement Range: [ 1, 9, 999 ] Ah
Current Draw: 1 mA
Input Voltage Measurement Range Auxiliary Battery: [ 6.5, 70 ] VDC
Operating Temperature Range: [ -40, 50 ] °C
Aux Input Fo Auxiliary Battery Voltage: 1
Temperature Sensor: Optional (ASS000100000)
Temperature Measurement Range: [ -20, 50 ] °C
Communication Port: VE.Direct
Bluetooth: 1
Programmable Relay: Bistable relay 60V / 1A , normally open (function can be inverted)
Display: 1
Visual Alarm On Device: 1
Audible Alarm On Device: 1
Current Measurement Resolution: 0.01 A
Voltage Measurement Resolution: 0.01 V
Capacity Measurement Resolution: 0.1 Ah
State Of Charge Measurement Resolution: 0.1 %
Time To Go Measurement Resolution: 1 min
Temperature Resolution: 1 °C
Measurement Accuracy: 0.4 %
Current Measurement Accuracy: 0.4 %
Voltage Measurement Accuracy: 0.3 %
Positive Cable: 1.5m cable with 1A fuse
Aux Cable: 1.5m cable with 1A fuse
Shunt Connection Terminals: M10 bolts
Colour: Grey
Protection Category: IP55 (not for outdoor use)
Front Diameter: 63 mm
Front Bezel: 69 x 69mm
Body Diameter: 52 mm
Body Depth: 31 mm
Shunt: 500A / 50mV
Safety: EN 60335-1
Emisison Immunity: EN 55014-1, EN 55014-2
Automotive Directive: ECE R10-4, EN 50498
Data Stored: Battery voltage, Battery current, Battery temperature, Battery state of charge percentage, Battery midpoint deviation, Starter battery voltage, Load output Current
Data Retention Period: 46 d
Supply Voltage Range: [ 6.5, 70 ] VDC
Current Rating: 500 A
Battery Capacity Measurement Range: [ 1, 9, 999 ] Ah
Current Draw: 1 mA
Input Voltage Measurement Range Auxiliary Battery: [ 6.5, 70 ] VDC
Operating Temperature Range: [ -40, 50 ] °C
Aux Input Fo Auxiliary Battery Voltage: 1
Temperature Sensor: Optional (ASS000100000)
Temperature Measurement Range: [ -20, 50 ] °C
Bluetooth: 1
Programmable Relay: Bistable relay 60V / 1A , normally open (function can be inverted)
Display: 1
Visual Alarm On Device: 1
Audible Alarm On Device: 1
Current Measurement Resolution: 0.01 A
Voltage Measurement Resolution: 0.01 V
Capacity Measurement Resolution: 0.1 Ah
State Of Charge Measurement Resolution: 0.1 %
Time To Go Measurement Resolution: 1 min
Temperature Resolution: 1 °C
Measurement Accuracy: 0.4 %
Current Measurement Accuracy: 0.4 %
Voltage Measurement Accuracy: 0.3 %
Positive Cable: 1.5m cable with 1A fuse
Aux Cable: 1.5m cable with 1A fuse
Shunt Connection Terminals: M10 bolts
Display Shunt Cable: 10 metre 6-core UTP with RJ12 connectors
Colour: Black
Protection Category: IP55 (not for outdoor use)
Installation: Flush mount
Front Diameter: 63 mm
Front Bezel: 69 x 69mm
Body Diameter: 52 mm
Body Depth: 31 mm
Shunt: 500A / 50mV
Safety: EN 60335-1
Emisison Immunity: EN 55014-1, EN 55014-2
Automotive Directive: ECE R10-4, EN 50498
Data Stored: Battery voltage, Battery current, Battery temperature, Battery state of charge percentage, Battery midpoint deviation, Starter battery voltage
Data Retention Period: 46 d
Supply Voltage Range: [ 6.5, 70 ] VDC
Current Rating: 500 A
Battery Capacity Measurement Range: [ 1, 9, 999 ] Ah
Current Draw: 1 mA
Input Voltage Measurement Range Auxiliary Battery: [ 6.5, 70 ] VDC
Operating Temperature Range: [ -40, 50 ] °C
Aux Input Fo Auxiliary Battery Voltage: 1
Temperature Sensor: Optional (ASS000100000)
Temperature Measurement Range: [ -20, 50 ] °C
Communication Port: VE.Direct
Bluetooth: 1
Programmable Relay: Bistable relay 60V / 1A , normally open (function can be inverted)
Display: 1
Visual Alarm On Device: 1
Audible Alarm On Device: 1
Current Measurement Resolution: 0.01 A
Voltage Measurement Resolution: 0.01 V
Capacity Measurement Resolution: 0.1 Ah
State Of Charge Measurement Resolution: 0.1 %
Time To Go Measurement Resolution: 1 min
Temperature Resolution: 1 °C
Measurement Accuracy: 0.4 %
Current Measurement Accuracy: 0.4 %
Voltage Measurement Accuracy: 0.3 %
Positive Cable: 1.5m cable with 1A fuse
Aux Cable: 1.5m cable with 1A fuse
Shunt Connection Terminals: M10 bolts
Display Shunt Cable: 10 metre 6-core UTP with RJ12 connectors
Colour: Grey
Protection Category: IP55 (not for outdoor use)
Installation: Flush mount
Front Diameter: 63 mm
Front Bezel: 69 x 69mm
Body Diameter: 52 mm
Body Depth: 31 mm
Shunt: 500A / 50mV
Safety: EN 60335-1
Emisison Immunity: EN 55014-1, EN 55014-2
Automotive Directive: ECE R10-4, EN 50498
Data Stored: Battery voltage, Battery current, Battery temperature, Battery state of charge percentage, Battery midpoint deviation, Starter battery voltage
Data Retention Period: 46 d
