VICTRON ENERGY Battery Switch ON/OFF 275A
Battery isolators and combiners

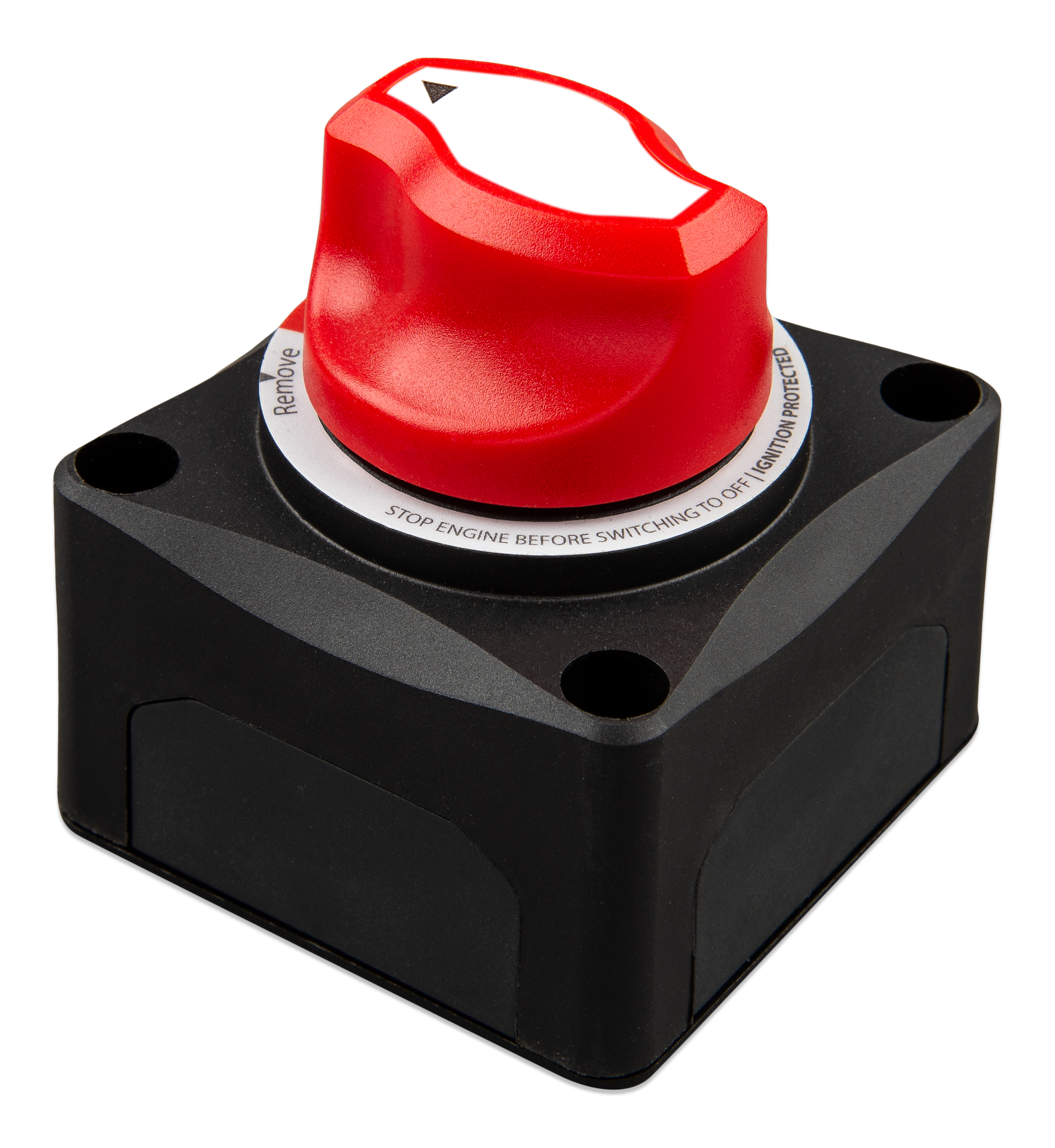

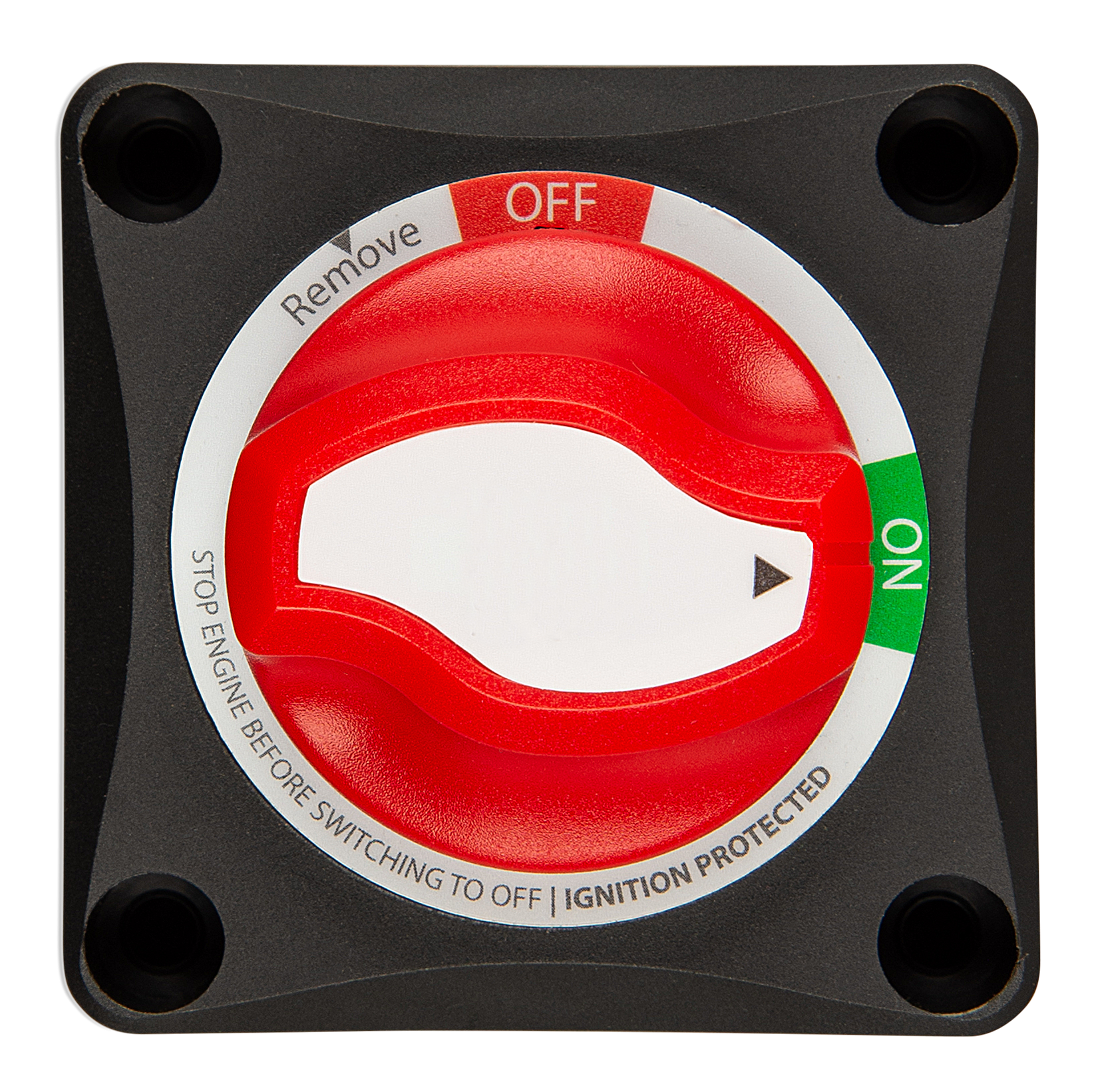

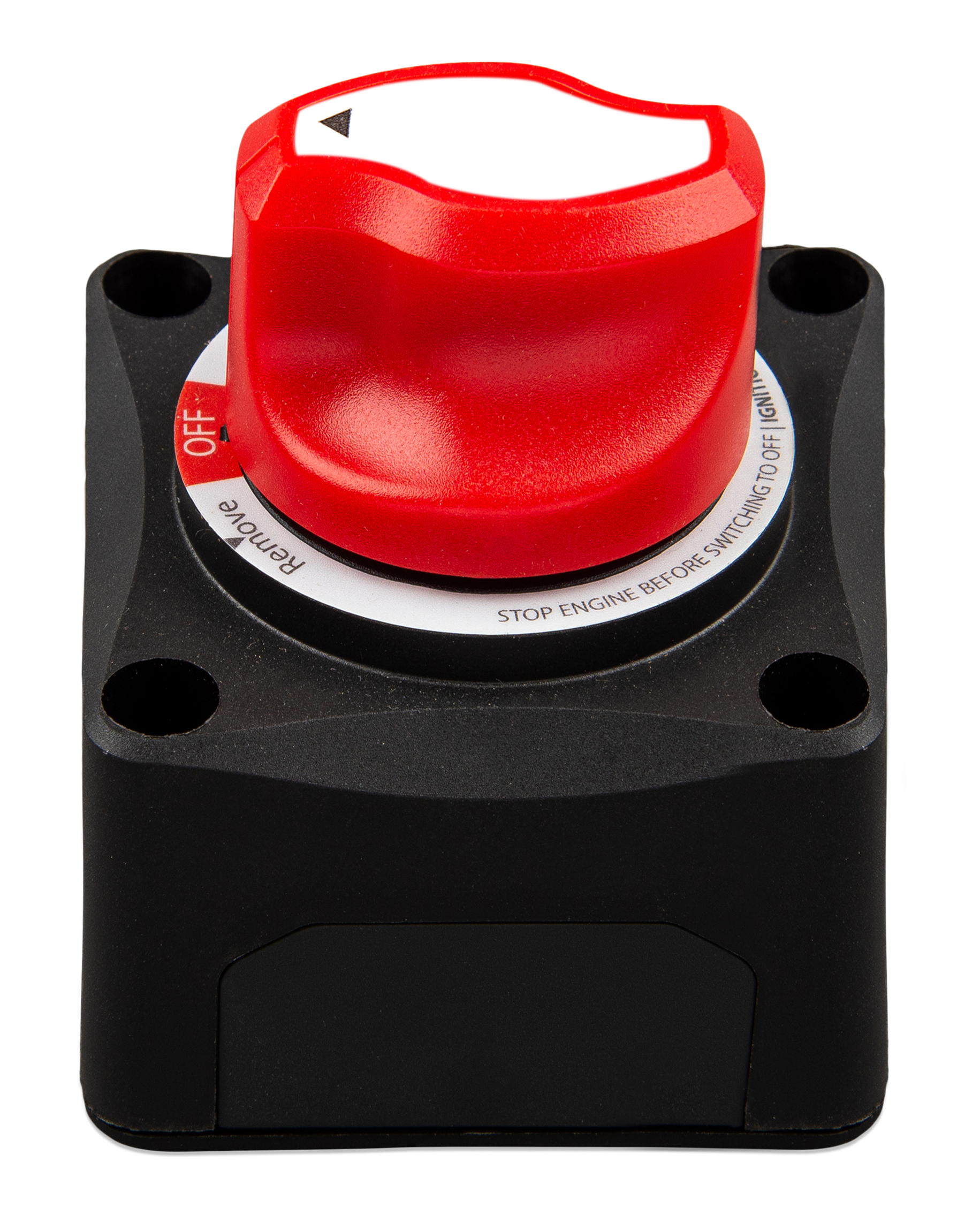

Battery Switch ON/OFF 275A

SKU principal: VBS127010010

Battery Switch 275 A

<p style="margin: 0cm 0cm 16.8pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">The Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes.</p><p style="margin: 0cm 0cm 16.8pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">The Battery Switch can be either surface or panel mounted,
providing flexibility during install.</p><p style="margin: 0cm 0cm 16.8pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.</p>

Códigos SKU

VBS127010010
DATOS DEL FABRICANTE

Especificaciones técnicas

Max Cont Current Rating
275 A
Current Rating60
455 A
Cranking Current Rating
1, 250 A
Max Operating Voltage
60
Terminal Material
Tin plated copper
Terminal Diameter
9.53 mm
Hex Nut Material
Tin plated copper
Base Material
Glass fibre reinforced nylon
Mounting Method
Surface or rear panel mount
Weight
0.2 kg
Length
70 mm
Width
76 mm
Height
70 mm
Ignition Protection
ISO 8846, SAE J1171
