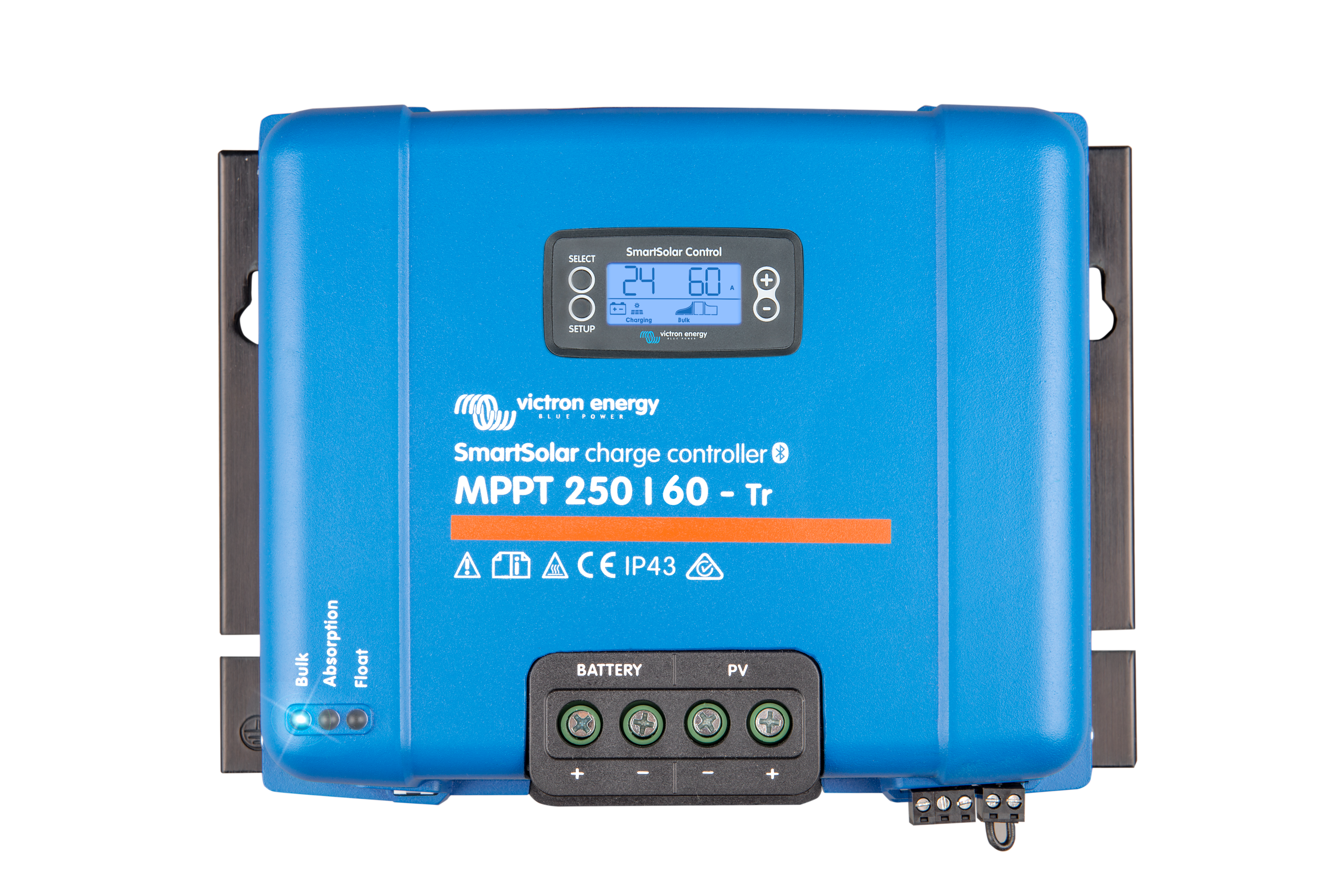

SmartSolar MPPT 150/60 up to 250/70

SKU principal: SCC125060310

<p>A solar charger gathers energy from your solar panels,
and stores it in your batteries. Using the latest,
fastest technology,
SmartSolar maximises this energy-harvest,
driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health,
extending its life.</p><p>The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts,
provided the cells are not permanently sulphated or otherwise damaged.</p>

Códigos SKU

SCC125060310 SCC125085310 SCC125060221 SCC125060320 SCC125060321 SCC125070221 SCC115060311 SCC115070211 SCC115060211

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage Auto Select: 12V / 24V / 48V Auto Select (software tool needed to select 36V)
Rated Charge Current: 60 A
Nominal P Vpower12 V: 860 W
Nominal P Vpower24 V: 1, 720 W
Nominal P Vpower36 V: 2, 580 W
Nominal P Vpower48 V: 3, 440 W
Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)
Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)
Charge Algorithm: Multi-stage adaptive (adjustable)
Temperature Sensor: Internal
Temperature Compensation12 V: -16 mV/°C
Temperature Compensation24 V: -32 mV/°C
Temperature Compensation48 V: -64 mV/°C
Max Efficiency: 98 %
Self Consumption: Less than 35mA @ 12V / 20mA @ 48V
Max P V Open Circuit Voltage: 150 V
Start Up P V D C Voltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
Number Of Trackers: 1
Max P V Current Per Mc4: 30 A
Max P V Short Circuit Current: 50 A
Protections: PV reverse polarity, Output short-circuit, Excessive temperature
Operating Temp Range: [ -30, 60 ] °C
Max Humidity: 95 %
Max Altitude: 5, 000
Environmental Condition: Indoor, unconditioned
Pollution Degree: PD3
Bluetooth: 1
Data Communication: Bluetooth, VE.Direct
Remote On Off Terminal: 1
Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Number Of Sync Parallel Operating Units B T: 10
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
P V Connection Terminal Type: MC4 connectors (two pairs)
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Protection Category: IP22 (connection area), IP43 (electronic components)
Weight: 3 kg
Height: 215 mm
Width: 250 mm
Depth: 95 mm
Safety: EN-IEC 62109-1, UL 1741, CSA C22.2
Data Retention Period: 46 d
Data Stored: Battery voltage, Battery current, Battery temperature, PV voltage, PV current, Load output Current
Battery Voltage Auto Select: 12V / 24V / 48V Auto Select (software tool needed to select 36V)
Rated Charge Current: 70 A
Nominal P Vpower12 V: 1, 000 W
Nominal P Vpower24 V: 2, 000 W
Nominal P Vpower36 V: 3, 000 W
Nominal P Vpower48 V: 4, 000 W
Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)
Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)
Charge Algorithm: Multi-stage adaptive (adjustable)
Temperature Sensor: Internal
Temperature Compensation12 V: -16 mV/°C
Temperature Compensation24 V: -32 mV/°C
Temperature Compensation48 V: -64 mV/°C
Max Efficiency: 98 %
Self Consumption: Less than 35mA @ 12V / 20mA @ 48V
Max P V Open Circuit Voltage: 150 V
Start Up P V D C Voltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
Number Of Trackers: 1
Max P V Short Circuit Current: 50 A
Protections: Excessive temperature, PV reverse polarity, Output short-circuit
Operating Temp Range: [ -30, 60 ] °C
Max Humidity: 95 %
Max Altitude: 5, 000
Environmental Condition: Indoor, unconditioned
Pollution Degree: PD3
Bluetooth: 1
Data Communication: Bluetooth, VE.Direct
Remote On Off Terminal: 1
Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Number Of Sync Parallel Operating Units B T: 10
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
P V Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Protection Category: IP22 (connection area), IP43 (electronic components)
Weight: 3 kg
Height: 185 mm
Width: 250 mm
Depth: 95 mm
Safety: EN-IEC 62109-1, UL 1741, CSA C22.2
Data Retention Period: 46 d
Data Stored: Battery voltage, Battery current, Battery temperature, PV voltage, PV current, Load output Current
Battery Voltage Auto Select: 12V / 24V / 48V Auto Select (software tool needed to select 36V)
Rated Charge Current: 60 A
Nominal P Vpower12 V: 860 W
Nominal P Vpower24 V: 1, 720 W
Nominal P Vpower36 V: 2, 580 W
Nominal P Vpower48 V: 3, 440 W
Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)
Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)
Charge Algorithm: Multi-stage adaptive (adjustable)
Temperature Sensor: Internal
Temperature Compensation12 V: -16 mV/°C
Temperature Compensation24 V: -32 mV/°C
Temperature Compensation48 V: -64 mV/°C
Max Efficiency: 98 %
Self Consumption: Less than 35mA @ 12V / 20mA @ 48V
Max P V Open Circuit Voltage: 150 V
Start Up P V D C Voltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
Number Of Trackers: 1
Max P V Short Circuit Current: 50 A
Protections: PV reverse polarity, Output short-circuit, Excessive temperature
Operating Temp Range: [ -30, 60 ] °C
Max Humidity: 95 %
Max Altitude: 5, 000
Environmental Condition: Indoor, unconditioned
Pollution Degree: PD3
Bluetooth: 1
Data Communication: Bluetooth, VE.Direct
Remote On Off Terminal: 1
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Number Of Sync Parallel Operating Units B T: 10
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
P V Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Colour: Blue (RAL 5012)
Protection Category: IP22 (connection area), IP43 (electronic components)
Weight: 3 kg
Height: 185 mm
Width: 250 mm
Depth: 95 mm
Safety: CSA C22.2, EN-IEC 62109-1, UL 1741
Data Retention Period: 46 d
Data Stored: Battery voltage, Battery current, Battery temperature, PV voltage, PV current, Load output Current
Battery Voltage Auto Select: 12V / 24V / 48V Auto Select (software tool needed to select 36V)
Rated Charge Current: 60 A
Nominal P Vpower12 V: 860 W
Nominal P Vpower24 V: 1, 720 W
Nominal P Vpower36 V: 2, 580 W
Nominal P Vpower48 V: 3, 440 W
Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)
Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)
Charge Algorithm: Multi-stage adaptive (adjustable)
Temperature Sensor: Internal
Temperature Compensation12 V: -16 mV/°C
Temperature Compensation24 V: -32 mV/°C
Temperature Compensation48 V: -64 mV/°C
Max Efficiency: 99 %
Self Consumption: Less than 35mA @ 12V / 20mA @ 48V
Max P V Open Circuit Voltage: 250 V
Start Up P V D C Voltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
Number Of Trackers: 1
Max P V Current Per Mc4: 30 A
Max P V Short Circuit Current: 35 A
Protections: PV reverse polarity, Excessive temperature, Output short-circuit
Operating Temp Range: [ -30, 60 ] °C
Max Humidity: 95 %
Max Altitude: 5, 000
Environmental Condition: Indoor, unconditioned
Pollution Degree: PD3
Bluetooth: 1
Data Communication: Bluetooth, VE.Direct
Remote On Off Terminal: 1
Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Number Of Sync Parallel Operating Units B T: 10
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
P V Connection Terminal Type: MC4 connectors (two pairs)
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Protection Category: IP22 (connection area), IP43 (electronic components)
Weight: 3 kg
Height: 215 mm
Width: 250 mm
Depth: 95 mm
Safety: EN-IEC 62109-1, CSA C22.2, UL 1741
Data Retention Period: 46 d
Data Stored: Battery voltage, Battery current, Battery temperature, PV voltage, PV current, Load output Current
Battery Voltage Auto Select: 12V / 24V / 48V Auto Select (software tool needed to select 36V)
Rated Charge Current: 60 A
Nominal P Vpower12 V: 860 W
Nominal P Vpower24 V: 1, 720 W
Nominal P Vpower36 V: 2, 580 W
Nominal P Vpower48 V: 3, 440 W
Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)
Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)
Charge Algorithm: Multi-stage adaptive (adjustable)
Temperature Sensor: Internal
Temperature Compensation12 V: -16 mV/°C
Temperature Compensation24 V: -32 mV/°C
Temperature Compensation48 V: -64 mV/°C
Max Efficiency: 99 %
Self Consumption: Less than 35mA @ 12V / 20mA @ 48V
Max P V Open Circuit Voltage: 250 V
Start Up P V D C Voltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
Number Of Trackers: 1
Max P V Short Circuit Current: 35 A
Protections: Excessive temperature, Output short-circuit, PV reverse polarity
Operating Temp Range: [ -30, 60 ] °C
Max Humidity: 95 %
Max Altitude: 5, 000
Environmental Condition: Indoor, unconditioned
Pollution Degree: PD3
Bluetooth: 1
Data Communication: Bluetooth, VE.Direct
Remote On Off Terminal: 1
Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Number Of Sync Parallel Operating Units B T: 10
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
P V Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Protection Category: IP22 (connection area), IP43 (electronic components)
Weight: 3 kg
Height: 185 mm
Width: 250 mm
Depth: 95 mm
Safety: CSA C22.2, EN-IEC 62109-1, UL 1741
Data Retention Period: 46 d
Data Stored: Battery voltage, Battery current, Battery temperature, PV voltage, PV current, Load output Current
Battery Voltage Auto Select: 12V / 24V / 48V Auto Select (software tool needed to select 36V)
Rated Charge Current: 70 A
Nominal P Vpower12 V: 1, 000 W
Nominal P Vpower24 V: 2, 000 W
Nominal P Vpower36 V: 3, 000 W
Nominal P Vpower48 V: 4, 000 W
Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)
Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)
Charge Algorithm: Multi-stage adaptive (adjustable)
Temperature Sensor: Internal
Temperature Compensation12 V: -16 mV/°C
Temperature Compensation24 V: -32 mV/°C
Temperature Compensation48 V: -64 mV/°C
Max Efficiency: 99 %
Self Consumption: Less than 35mA @ 12V / 20mA @ 48V
Max P V Open Circuit Voltage: 250 V
Start Up P V D C Voltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
Number Of Trackers: 1
Max P V Short Circuit Current: 35 A
Protections: PV reverse polarity, Output short-circuit, Over temperature
Operating Temp Range: [ -30, 60 ] °C
Max Humidity: 95 %
Max Altitude: 5, 000
Environmental Condition: Indoor, unconditioned
Pollution Degree: PD3
Bluetooth: 1
Data Communication: Bluetooth, VE.Direct
Remote On Off Terminal: 1
Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
Number Of Sync Parallel Operating Units B T: 10
Battery Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
P V Connection Terminal Type: Screw terminals 35 mm² (2 AWG)
Remote On Off Terminal Connection: Screw terminal two pole
Relay Terminal Connection1: Screw terminal 3-pole
Colour: Blue (RAL 5012)
Protection Category: IP43 (electronic components), IP22 (connection area)
Weight: 3 kg
Height: 185 mm
Width: 250 mm
Depth: 95 mm
Safety: CSA C22.2, EN-IEC 62109-1, UL 1741
Data Retention Period: 46 d
Data Stored: Battery voltage, Battery current, Battery temperature, PV voltage, PV current, Load output Current
