BlueSolar PWM

SKU principal: SCC010005000

BlueSolar PWM

BlueSolar PWM-Pro The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable. • Lighting control function,
fully programmable. • Three stage battery charging (bulk,
absorption,
float),

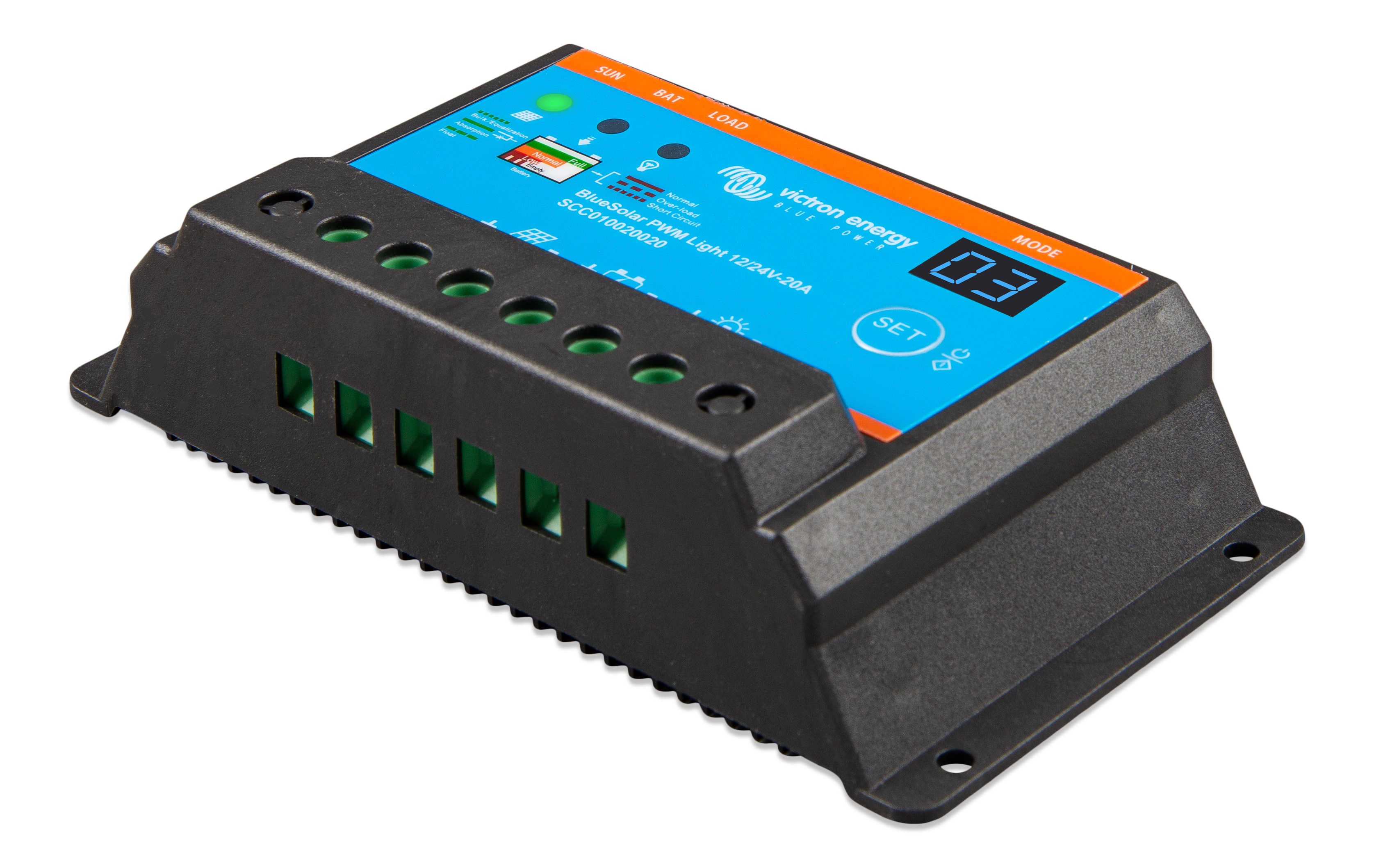

fully programmable. • Integrated battery monitor function (Remote Panel needed to display state of charge). • Load output with low voltage disconnect and manual control (default setting). • Optional external temperature sensor. • Load output protected against over load and short circuit. • Protected against reverse polarity connection of the solar panels and/or battery. • Day/night timing options: see manual Remote Panel for details. BlueSolar PWM-Light • Load output with low battery voltage disconnect function. • Lighting control function,
one timer only. • Two digit seven segment display for quick and easy setting of the load output functionality,
including timer setting. • Three stage battery charging (bulk,
absorption,
float),

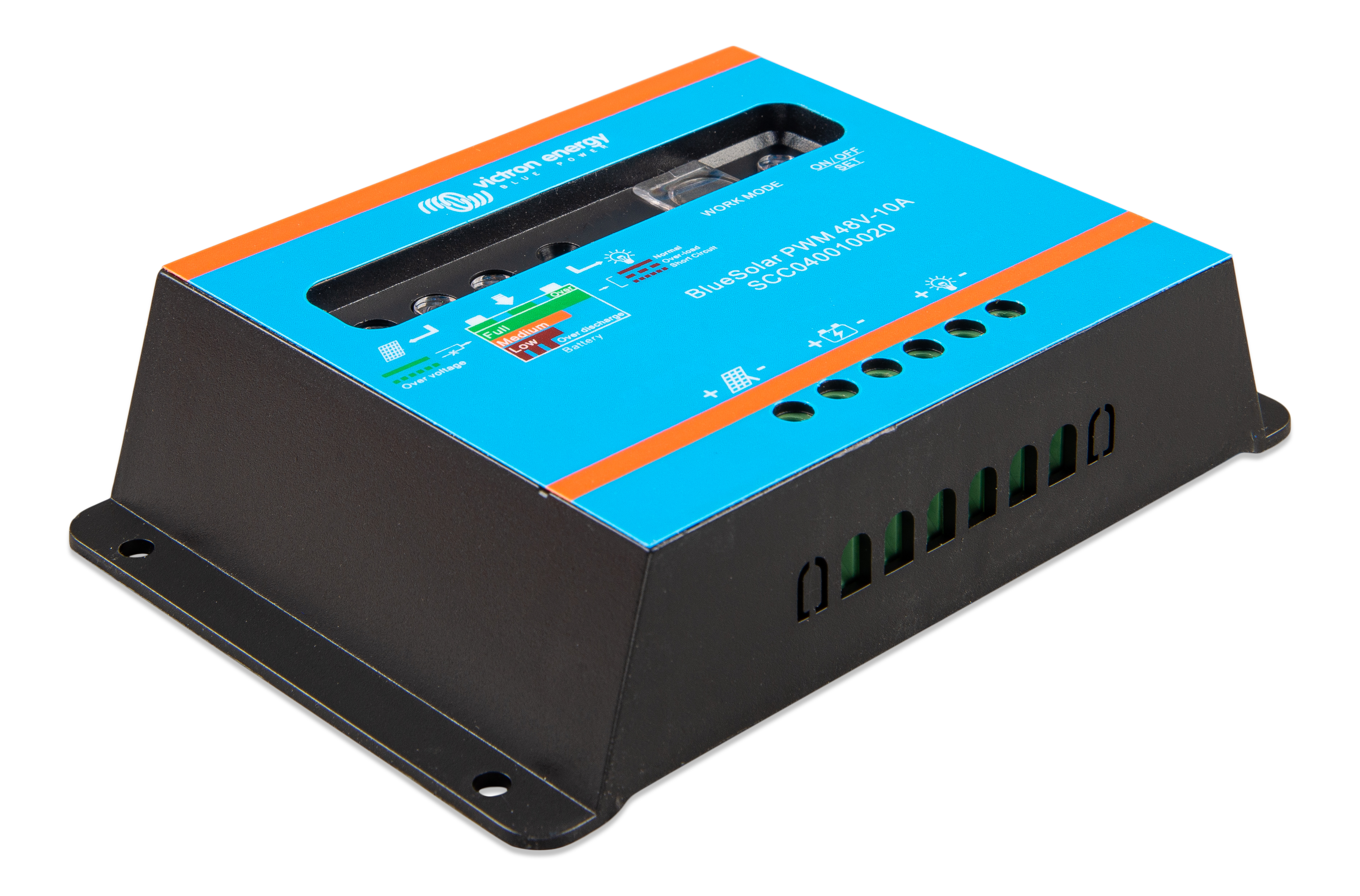

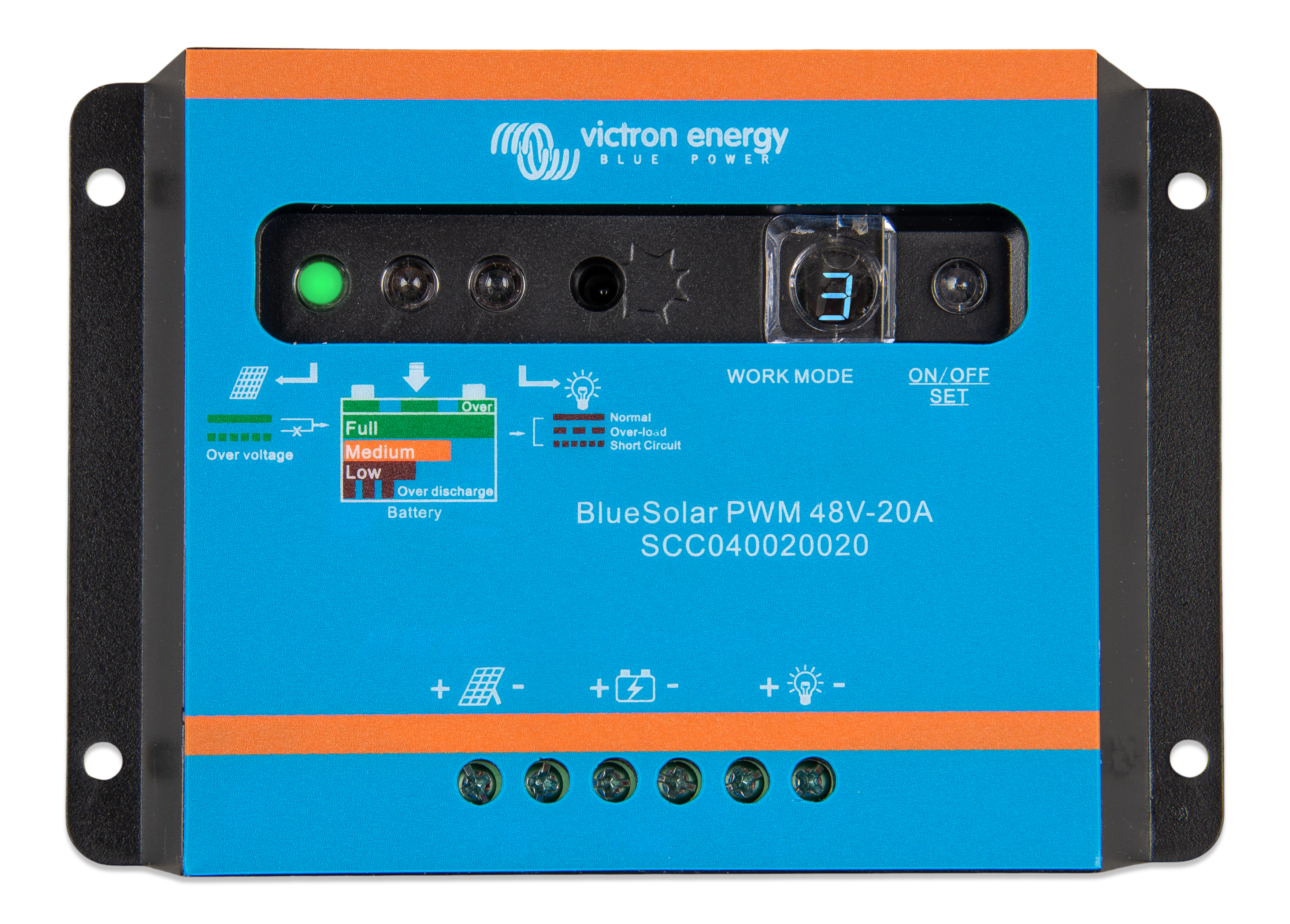

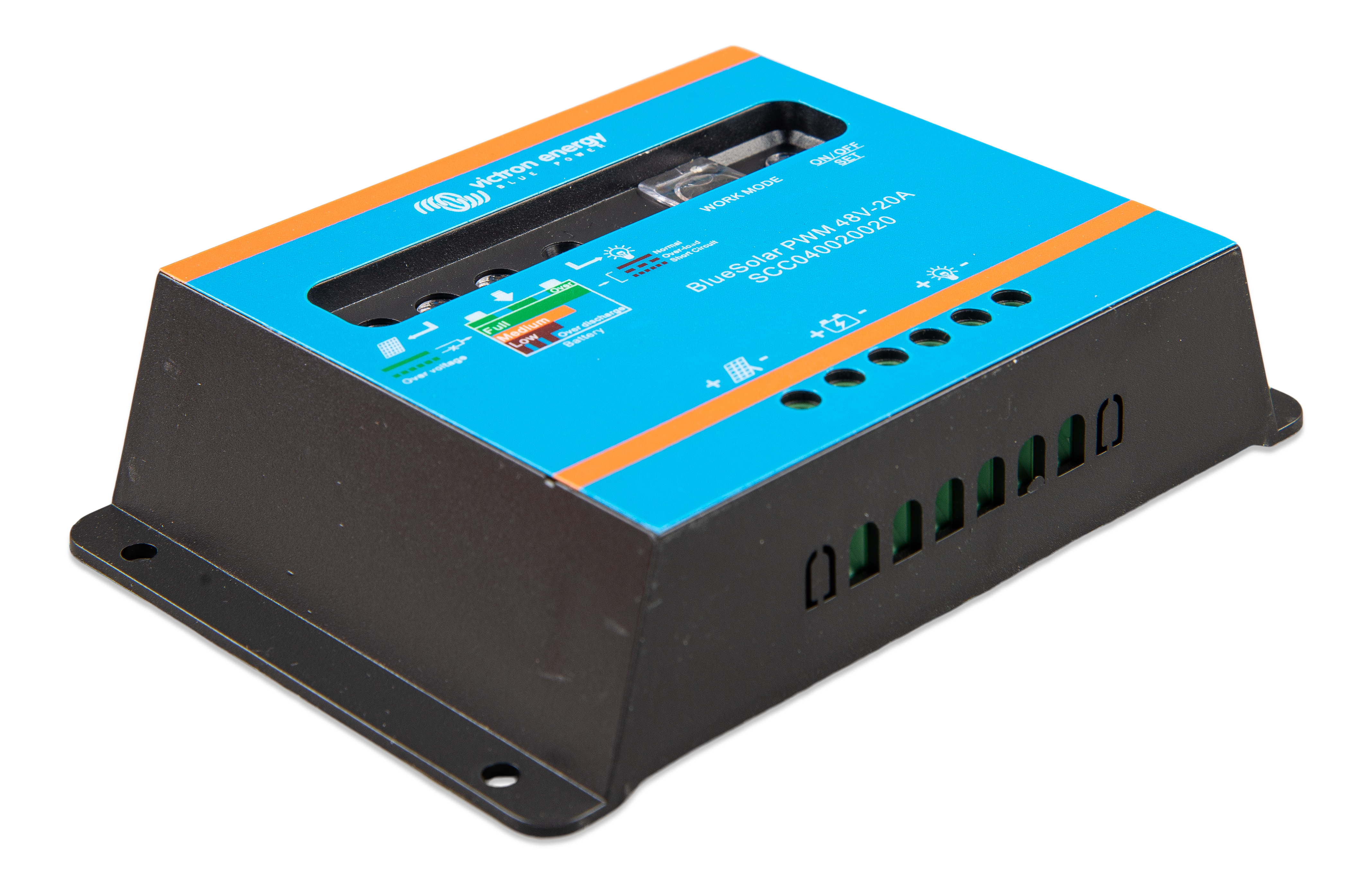

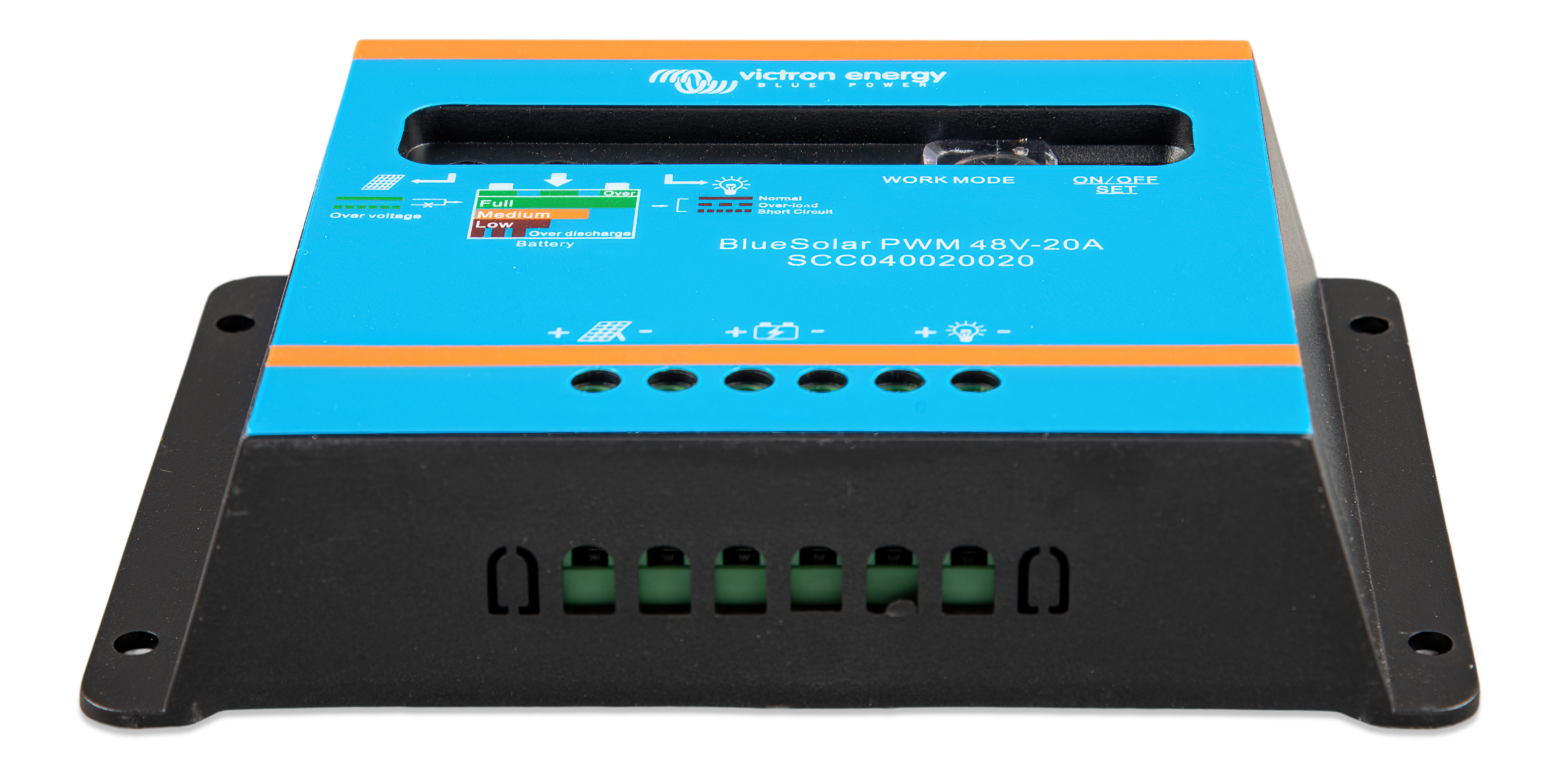

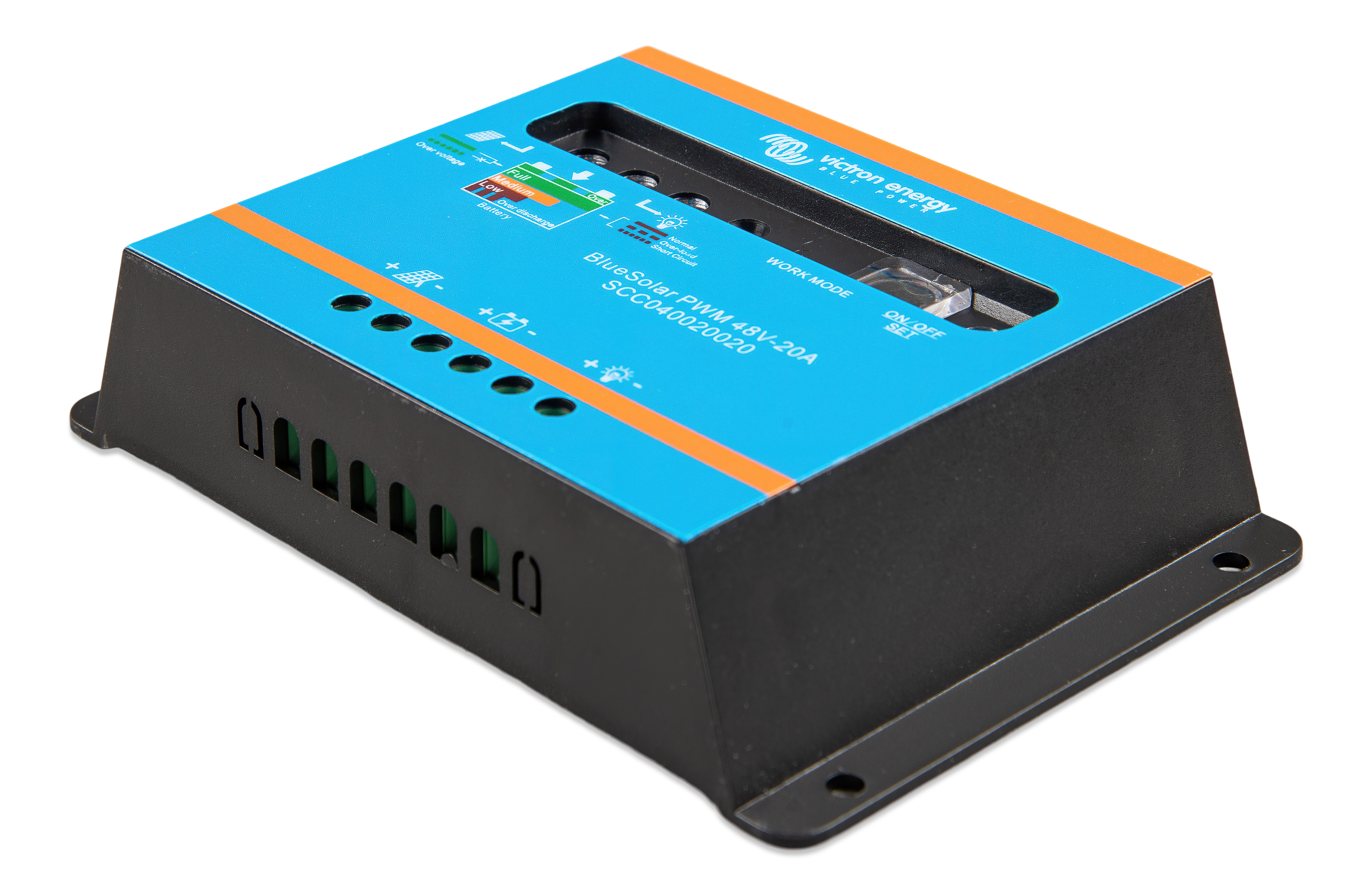

not programmable. • Load output protected against over load and short circuit. • Protected against reverse polarity connection of the solar array and/or battery. • Day/night timing options: see manual for details

Códigos SKU

SCC010005000 SCC010010000 SCC010020020 SCC010030020 SCC040010020 SCC040020020 SCC040030020 SCC010005010 SCC010010010 SCC010020110 SCC010030010

DATOS DEL FABRICANTE

Especificaciones técnicas

Battery Voltage: 12V / 24V (automatic detection)
Rated Charge Current: 10 A
Automatic Load Disconnect: 1
Max Solar Voltage: 28V / 55V
Pv Array12V: Solar panel with 36 cells
Pv Array24V: Solar panel with 72 cells, Two solar panles with 36 cells in series
Self Consumption: 10 mA
Load Output: Manual control + low voltage disconnect
Protections: Battery reverse polarity (fuse), Output short-circuit, Excessive temperature
Temperature Sensor: Yes, optional (artice SCC940100100)
Temperature Compensation: -30 mV / °C resp. -60 mV / °C (if temperature sensor installed)
Remote Panel: Optional (article SCC900300000)
Grounding: Common positive
Operating Temp Range: [ 20, 50 ] °C
Max Humidity: 98 %
Charge Voltage Absorption: 14.4V / 28.8V
Charge Voltage Float: 13.8V / 27.6V
Charge Voltage Equalization: 14.6V / 29.2V
Low Voltage Load Disconnect: 11.1V / 22.2V
Low Voltage Load Reconnect: 12.6V / 25.2V
Battery Connection Terminal Type: Screw terminals 4 mm² (12 AWG)
P V Connection Terminal Type: Screw terminals 4 mm² (12 AWG)
Load Connection Terminal Type: Screw terminals 4 mm² (12 AWG)
Remote On Off Terminal Connection: Screw terminals 4 mm² (12 AWG)
Colour: Grey
Protection Category: IP30
Weight: 0.13 kg
Height: 138 mm
Width: 70 mm
Depth: 37 mm
Safety: EN-IEC 62109-1
Emission: EN-IEC 61000-6-1, ISO 7637-2, EN-IEC 61000-6-3
Battery Voltage: 12V / 24V (automatic detection)
Rated Charge Current: 20 A
Automatic Load Disconnect: 1
Max Solar Voltage: 28V / 55V
Pv Array12V: Solar panel with 36 cells
Pv Array24V: Solar panel with 72 cells, Two solar panles with 36 cells in series
Self Consumption: 10 mA
Load Output: Manual control + low voltage disconnect
Protections: Battery reverse polarity (fuse), Output short-circuit, Excessive temperature
Temperature Sensor: Yes, optional (artice SCC940100100)
Temperature Compensation: -30 mV / °C resp. -60 mV / °C (if temperature sensor installed)
Remote Panel: Optional (article SCC900300000)
Grounding: Common positive
Operating Temp Range: [ -20, 50 ] °C
Max Humidity: 98 %
Charge Voltage Absorption: 14.4V / 28.8V
Charge Voltage Float: 13.8V / 27.6V
Charge Voltage Equalization: 14.6V / 29.2V
Low Voltage Load Disconnect: 11.1V / 22.2V
Low Voltage Load Reconnect: 12.6V / 25.2V
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
P V Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Load Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Colour: Grey
Protection Category: IP30
Weight: 0.3 kg
Height: 160 mm
Width: 82 mm
Depth: 48 mm
Safety: EN-IEC 62109-1
Emission: EN-IEC 61000-6-1, ISO 7637-2, EN-IEC 61000-6-3
Battery Voltage: 12V / 24V (automatic detection)
Rated Charge Current: 30 A
Automatic Load Disconnect: 1
Max Solar Voltage: 28V / 55V
Pv Array12V: Solar panel with 36 cells
Pv Array24V: Solar panel with 72 cells, Two solar panles with 36 cells in series
Self Consumption: 10 mA
Load Output: Manual control + low voltage disconnect
Protections: Battery reverse polarity (fuse), Output short-circuit, Excessive temperature
Temperature Sensor: Yes, optional (artice SCC940100100)
Temperature Compensation: -30 mV / °C resp. -60 mV / °C (if temperature sensor installed)
Remote Panel: Optional (article SCC900300000)
Grounding: Common positive
Operating Temp Range: [ -20, 50 ] °C
Max Humidity: 98 %
Charge Voltage Absorption: 14.4V / 28.8V
Charge Voltage Float: 13.8V / 27.6V
Charge Voltage Equalization: 14.6V / 29.2V
Low Voltage Load Disconnect: 11.1V / 22.2V
Low Voltage Load Reconnect: 12.6V / 25.2V
Battery Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
P V Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Load Connection Terminal Type: Screw terminals 10 mm² (8 AWG)
Colour: Grey
Protection Category: IP30
Weight: 0.5 kg
Height: 200 mm
Width: 100 mm
Depth: 57 mm
Safety: EN-IEC 62109-1
Emission: EN-IEC 61000-6-1, ISO 7637-2, EN-IEC 61000-6-3

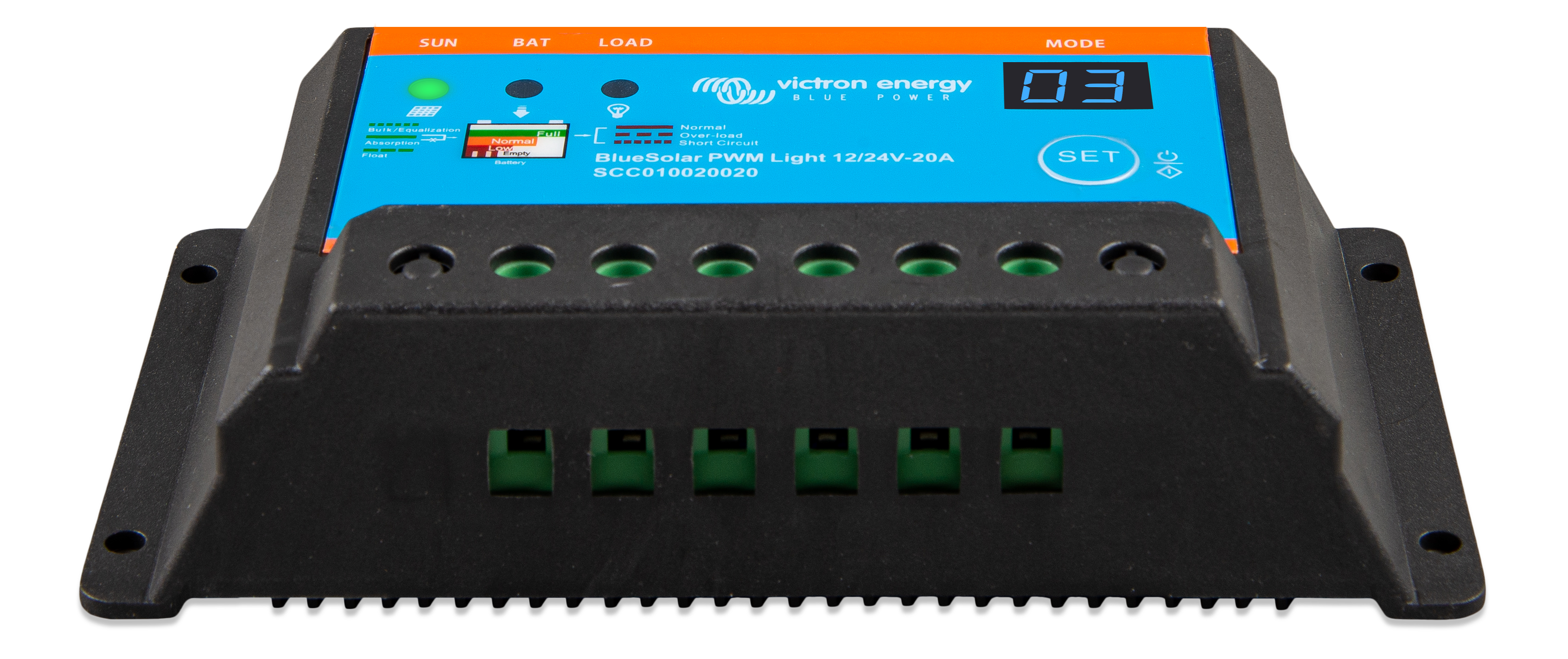

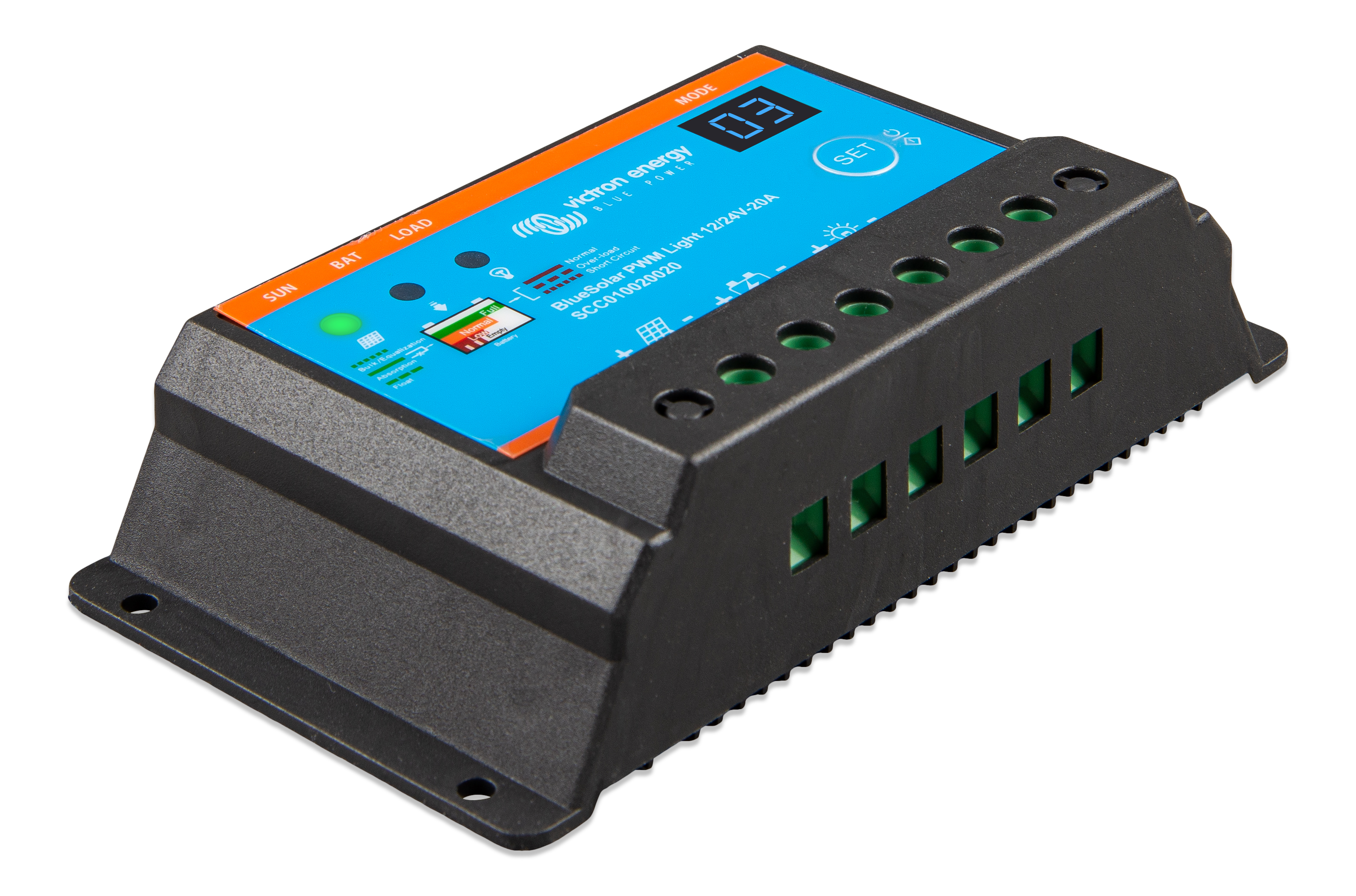

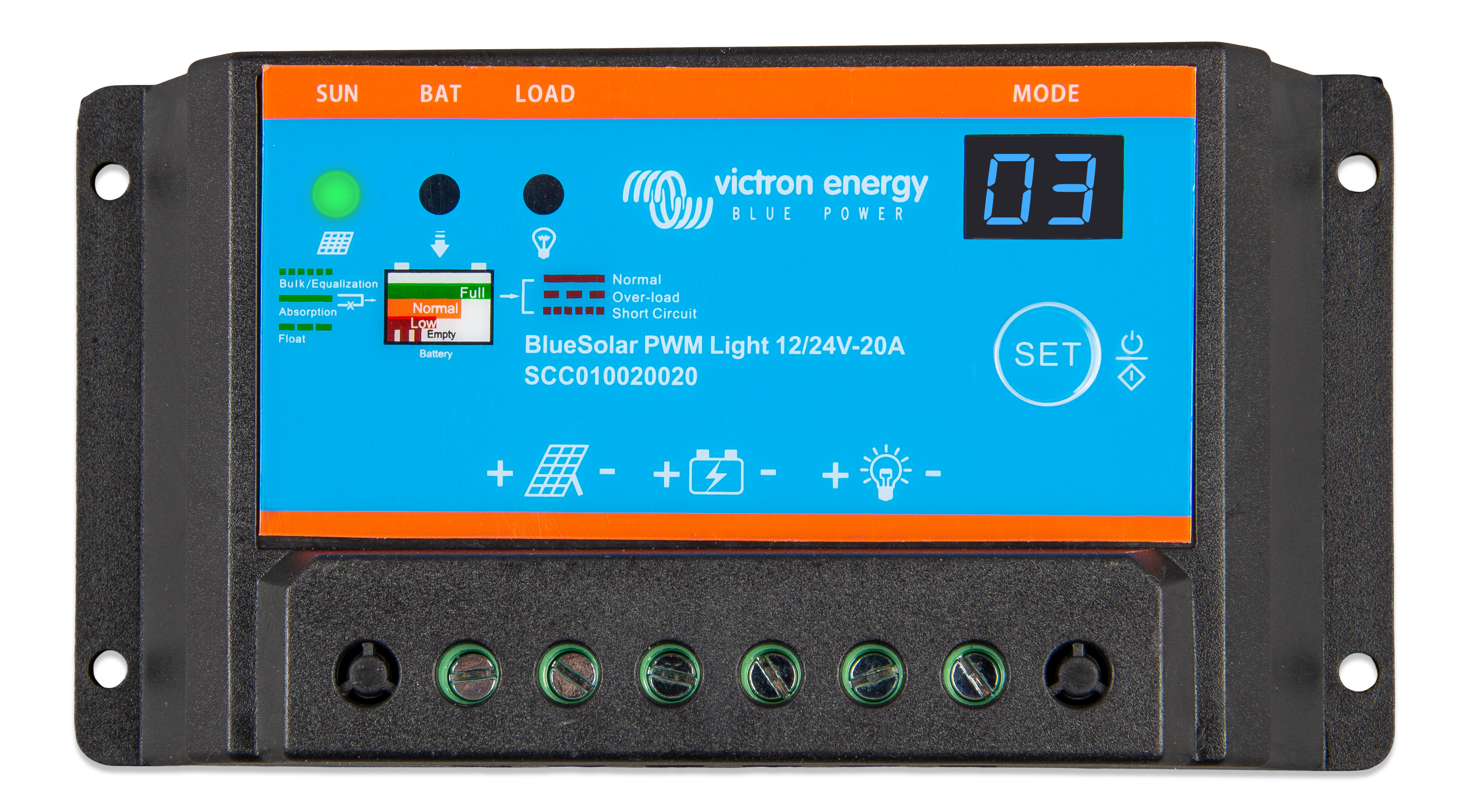

Battery Voltage: 12V / 24V (automatic detection)
Rated Charge Current: 20 A
Automatic Load Disconnect: 1
Max Solar Voltage: 28V / 55V
Pv Array12V: Solar panel with 36 cells
Pv Array24V: Solar panel with 72 cells, Two solar panles with 36 cells in series
Self Consumption: 10 mA
Load Output: Manual control + low voltage disconnect
Protections: Battery reverse polarity (fuse), Output short-circuit, Excessive temperature
Overload Protection130: Shutdown after 60 seconds
Overload Protection160: Shutdown after 5 seconds
Overload Protection S C: Immediate shutdown
Temperature Sensor: No
Temperature Compensation: No
Remote Panel: No
Grounding: Common positive
Operating Temp Range: [ -20, 50 ] °C
Max Humidity: 95 %
Charge Voltage Absorption: 14.2V / 28.4V
Charge Voltage Float: 13.8V / 27.6V
Low Voltage Load Disconnect: 11.2V / 22.4V
Low Voltage Load Reconnect: 12.6V / 25.2V (manual) 13.1V / 26.2V (automatic)
Battery Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
P V Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
Load Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
Colour: Black
Protection Category: IP20
Weight: 0.15 kg
Height: 70 mm
Width: 133 mm
Depth: 33.5 mm
Safety: EN-IEC 62109-1
Emission: EN-IEC 61000-6-1, ISO 7637-2, EN-IEC 61000-6-3
Battery Voltage: 12V / 24V (automatic detection)
Rated Charge Current: 10 A
Automatic Load Disconnect: 1
Max Solar Voltage: 28V / 55V
Pv Array12V: Solar panel with 36 cells
Pv Array24V: Solar panel with 72 cells, Two solar panles with 36 cells in series
Self Consumption: 10 mA
Load Output: Manual control + low voltage disconnect
Protections: Battery reverse polarity (fuse), Output short-circuit, Excessive temperature
Overload Protection130: Shutdown after 60 seconds
Overload Protection160: Shutdown after 5 seconds
Overload Protection S C: Immediate shutdown
Temperature Sensor: No
Temperature Compensation: No
Remote Panel: No
Grounding: Common positive
Operating Temp Range: [ -20, 50 ] °C
Max Humidity: 95 %
Charge Voltage Absorption: 14.2V / 28.4V
Charge Voltage Float: 13.8V / 27.6V
Low Voltage Load Disconnect: 11.2V / 22.4V
Low Voltage Load Reconnect: 12.6V / 25.2V (manual) 13.1V / 26.2V (automatic)
Battery Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
P V Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
Load Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
Colour: Black
Protection Category: IP20
Weight: 0.15 kg
Height: 70 mm
Width: 133 mm
Depth: 33.5 mm
Safety: EN-IEC 62109-1
Emission: EN-IEC 61000-6-1, ISO 7637-2, EN-IEC 61000-6-3
Battery Voltage: 12V / 24V (automatic detection)
Rated Charge Current: 5 A
Automatic Load Disconnect: 1
Max Solar Voltage: 28V / 55V
Pv Array12V: Solar panel with 36 cells
Pv Array24V: Solar panel with 72 cells, Two solar panles with 36 cells in series
Self Consumption: 10 mA
Load Output: Manual control + low voltage disconnect
Protections: Battery reverse polarity (fuse), Output short-circuit, Excessive temperature
Overload Protection130: Shutdown after 60 seconds
Overload Protection160: Shutdown after 5 seconds
Overload Protection S C: Immediate shutdown
Temperature Sensor: No
Temperature Compensation: -30 mV / °C resp. -60 mV / °C (if temperature sensor installed)
Remote Panel: No
Grounding: Common positive
Operating Temp Range: [ -20, 50 ] °C
Max Humidity: 95 %
Charge Voltage Absorption: 14.2V / 28.4V
Charge Voltage Float: 13.8V / 27.6V
Low Voltage Load Disconnect: 11.2V / 22.4V
Low Voltage Load Reconnect: 12.6V / 25.2V (manual) 13.1V / 26.2V (automatic)
Battery Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
P V Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
Load Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
Colour: Black
Protection Category: IP20
Weight: 0.15 kg
Height: 70 mm
Width: 133 mm
Depth: 33.5 mm
Safety: EN-IEC 62109-1
Emission: EN-IEC 61000-6-1, ISO 7637-2, EN-IEC 61000-6-3
Battery Voltage: 12V / 24V (automatic detection)
Rated Charge Current: 5 A
Automatic Load Disconnect: 1
Max Solar Voltage: 28V / 55V
Pv Array12V: Solar panel with 36 cells
Pv Array24V: Solar panel with 72 cells, Two solar panles with 36 cells in series
Self Consumption: 10 mA
Load Output: Manual control + low voltage disconnect
Protections: Battery reverse polarity (fuse), Output short-circuit, Excessive temperature
Temperature Sensor: Yes, optional (artice SCC940100100)
Temperature Compensation: -30 mV / °C resp. -60 mV / °C (if temperature sensor installed)
Remote Panel: Optional (article SCC900300000)
Grounding: Common positive
Operating Temp Range: [ -20, 50 ] °C
Max Humidity: 98 %
Charge Voltage Absorption: 14.4V / 28.8V
Charge Voltage Float: 13.8V / 27.6V
Charge Voltage Equalization: 14.6V / 29.2V
Low Voltage Load Disconnect: 11.1V / 22.2V
Low Voltage Load Reconnect: 12.6V / 25.2V
Battery Connection Terminal Type: Screw terminals 4 mm² (12 AWG)
P V Connection Terminal Type: Screw terminals 4 mm² (12 AWG)
Load Connection Terminal Type: Screw terminals 4 mm² (12 AWG)
Colour: Grey
Protection Category: IP30
Weight: 0.13 kg
Height: 138 mm
Width: 70 mm
Depth: 37 mm
Safety: EN-IEC 62109-1
Emission: EN-IEC 61000-6-1, EN-IEC 61000-6-3, ISO 7637-2

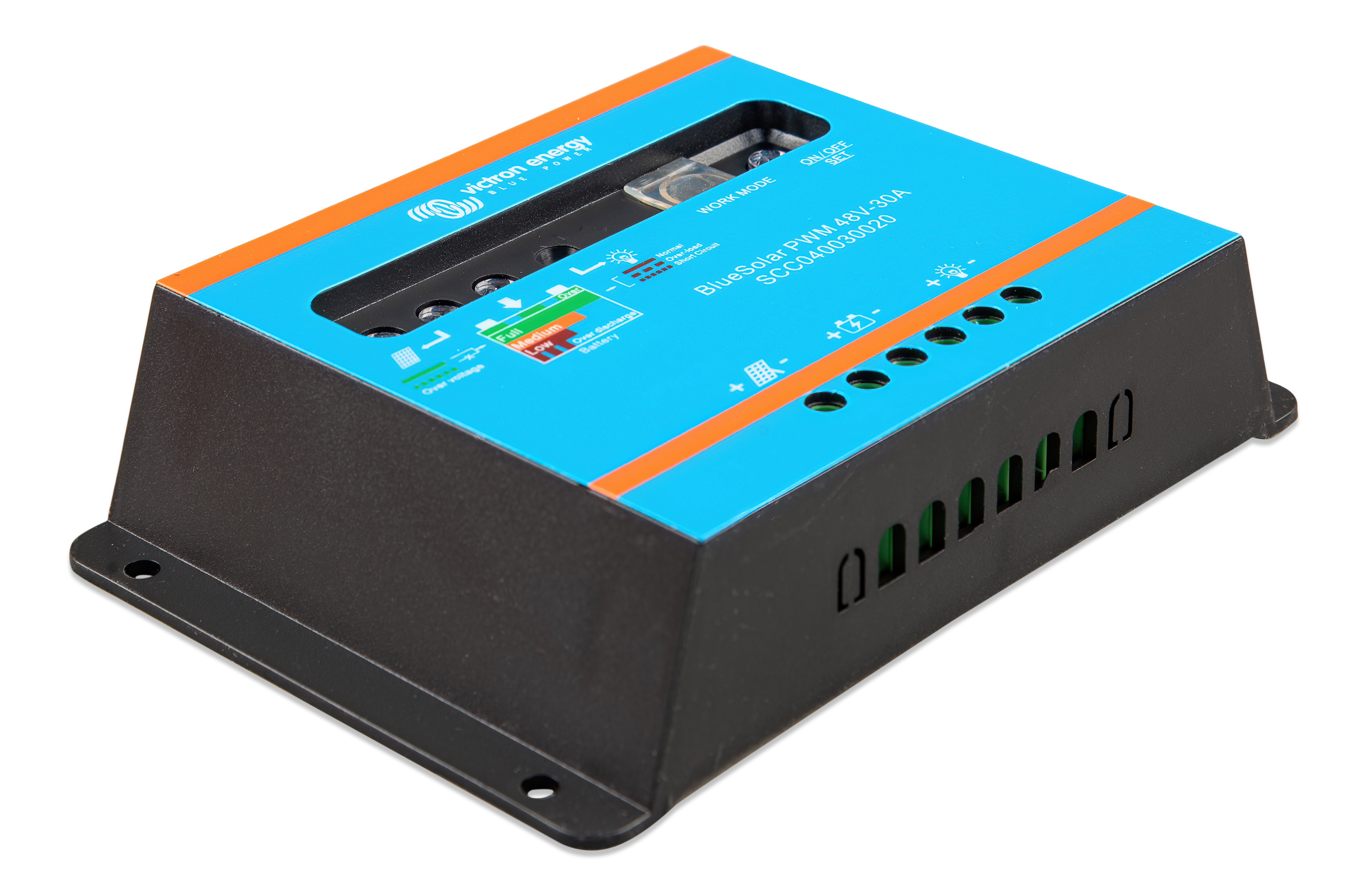

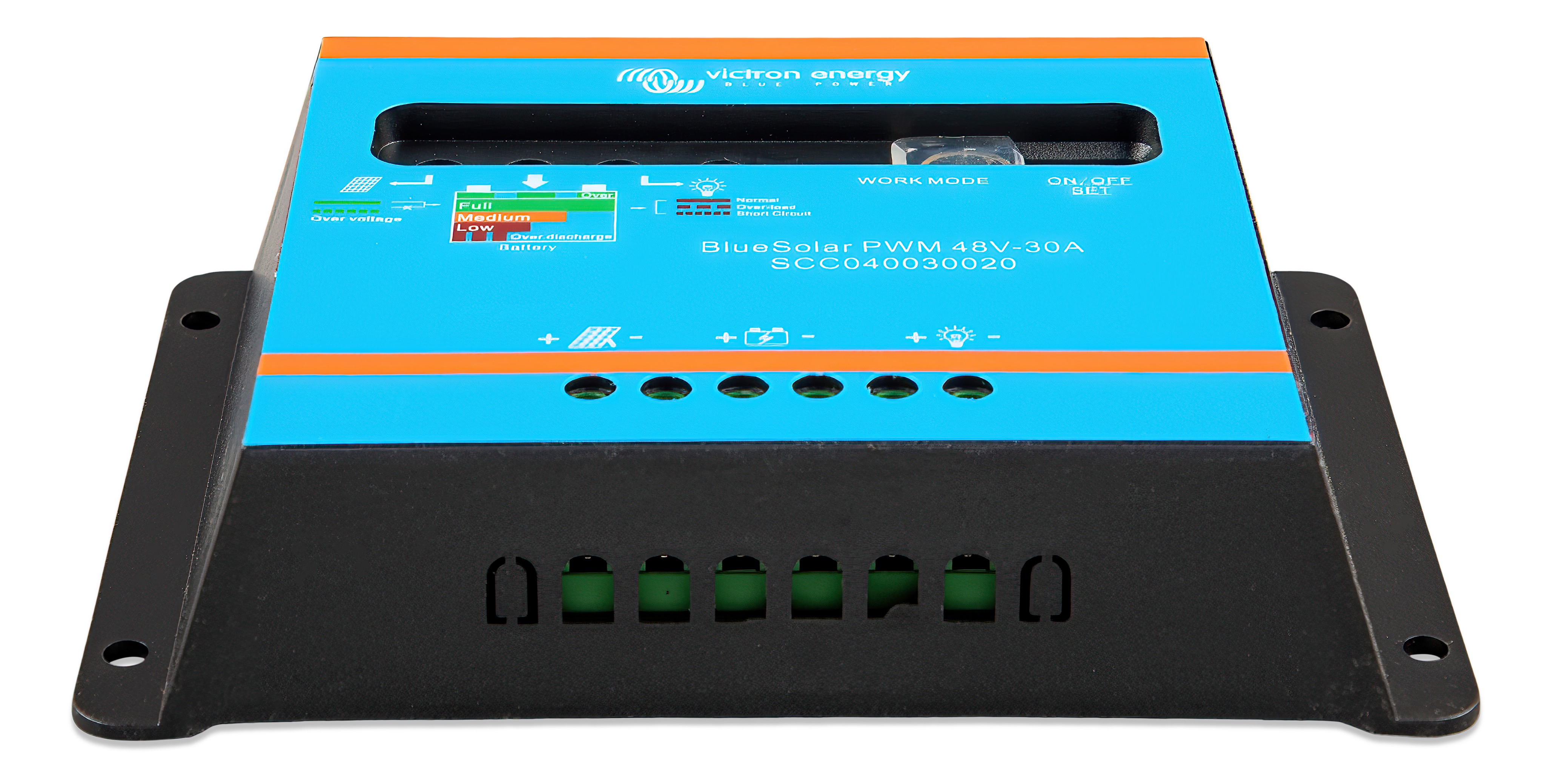

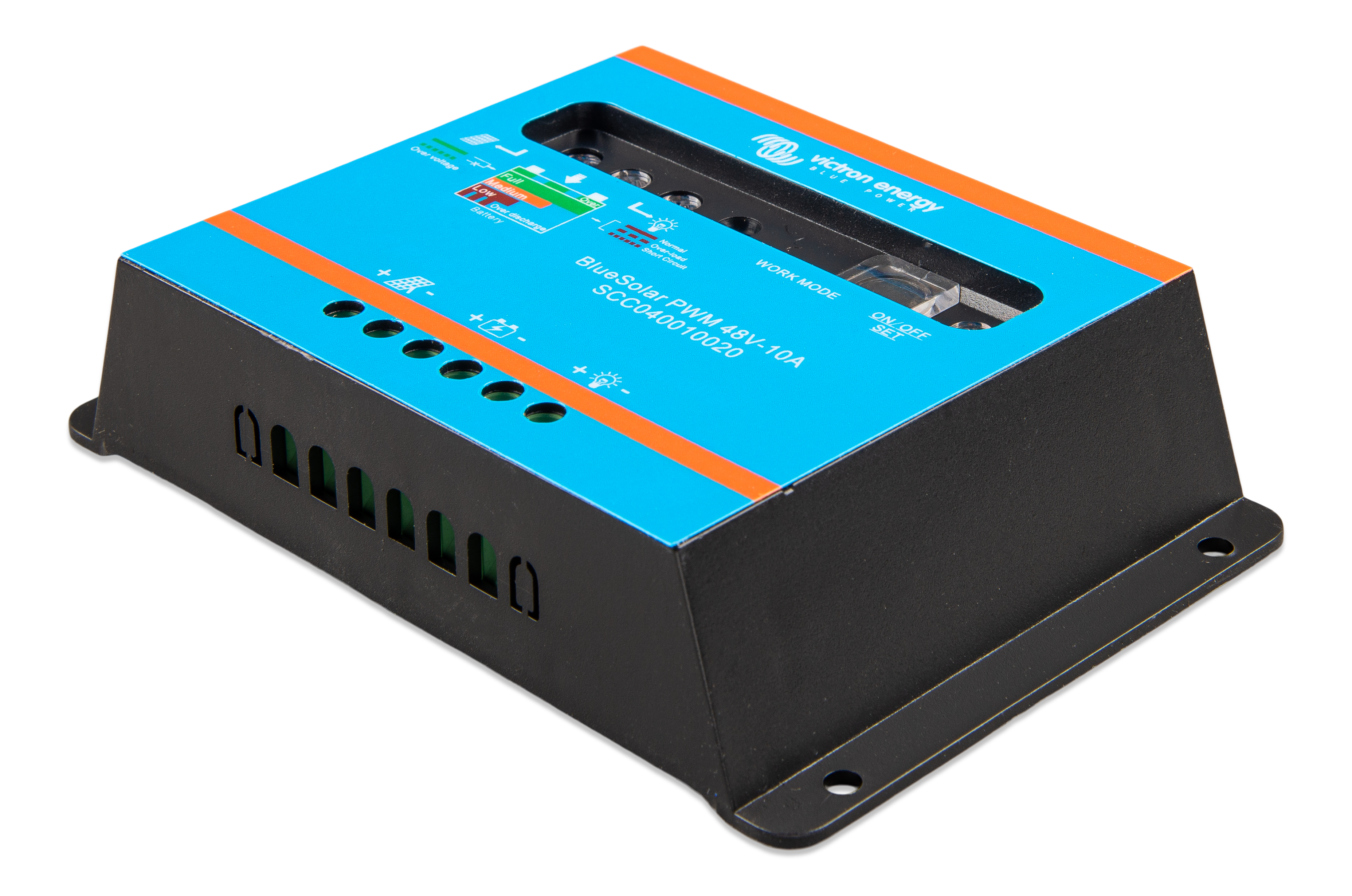

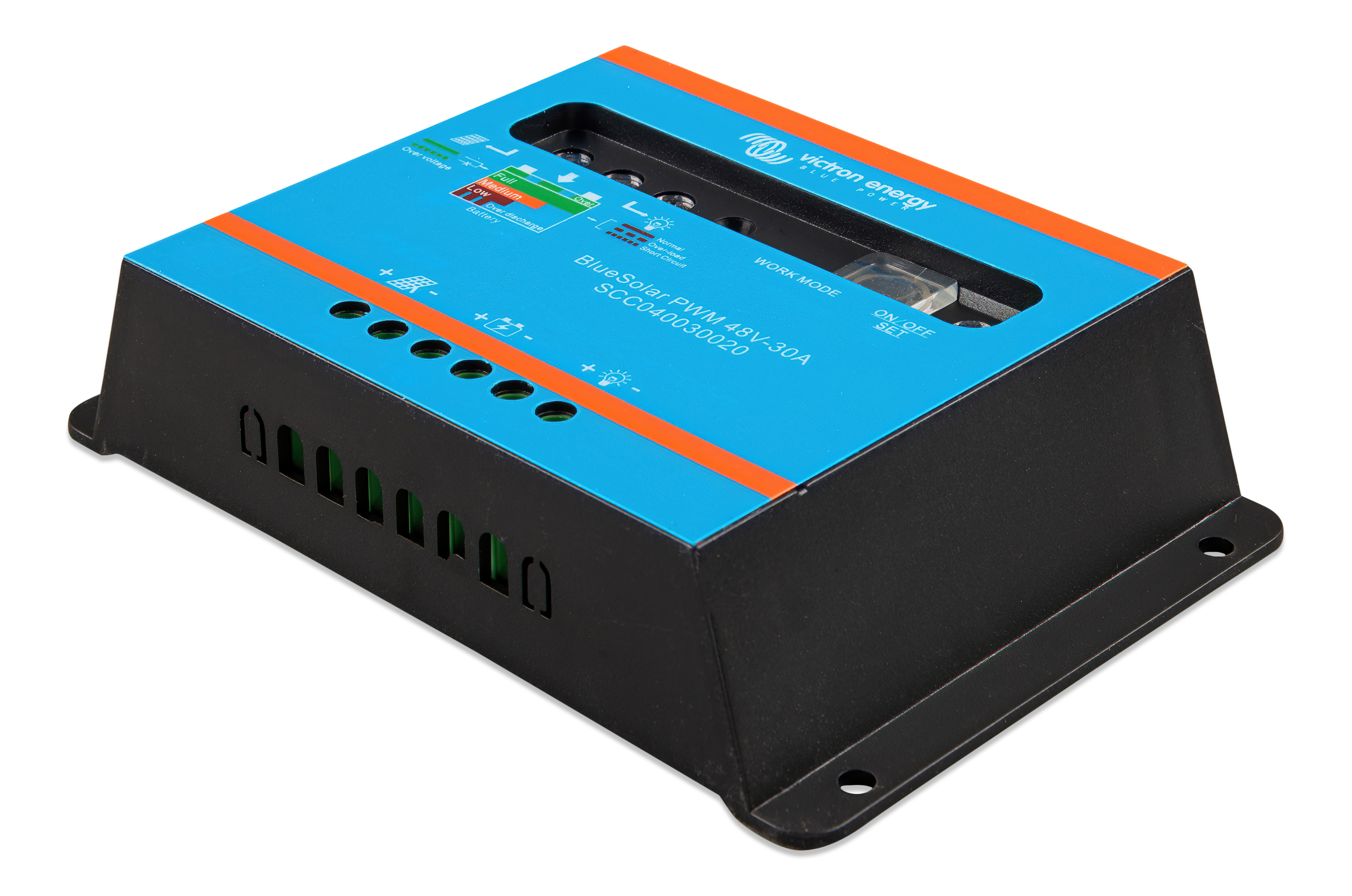

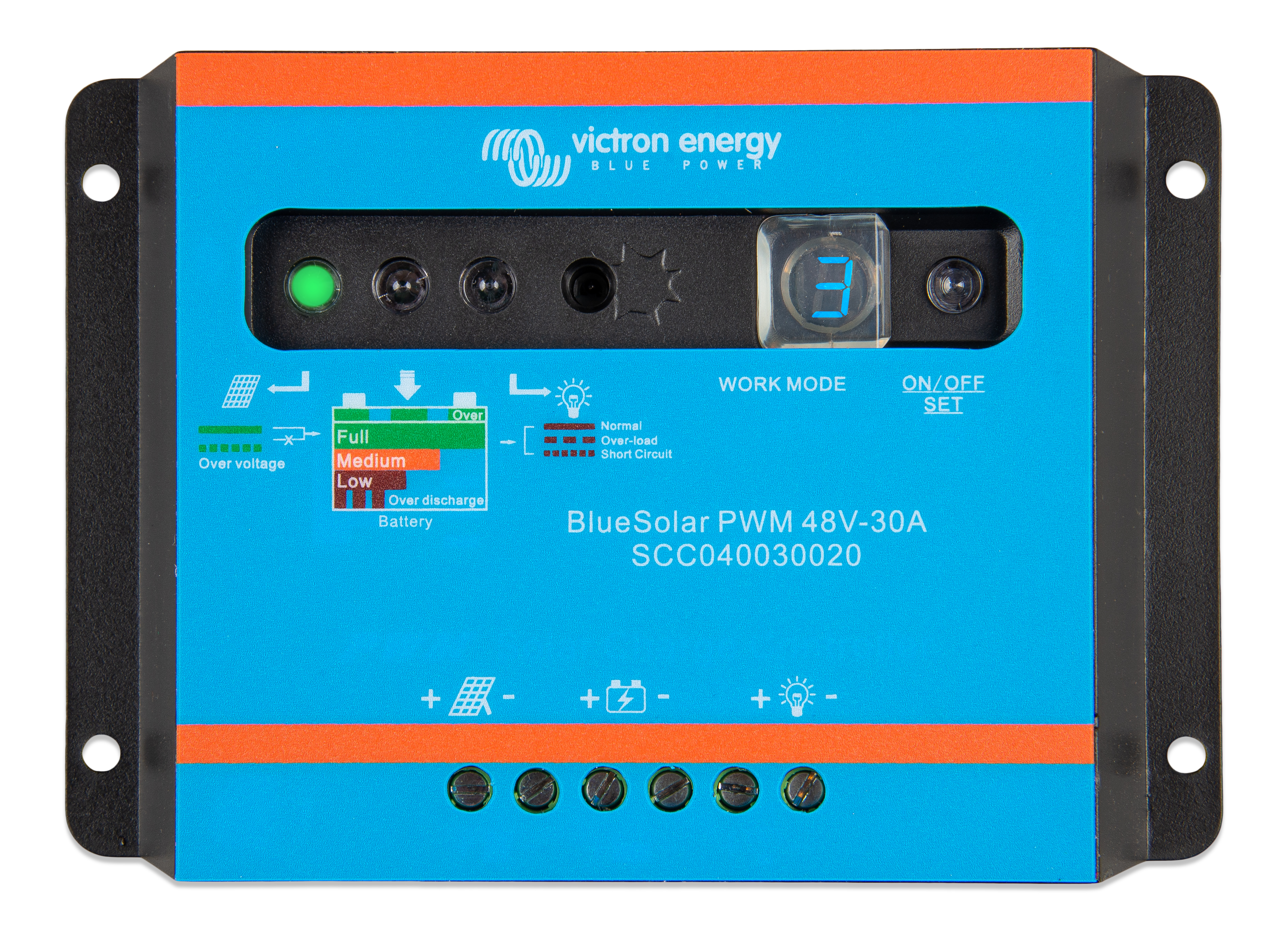

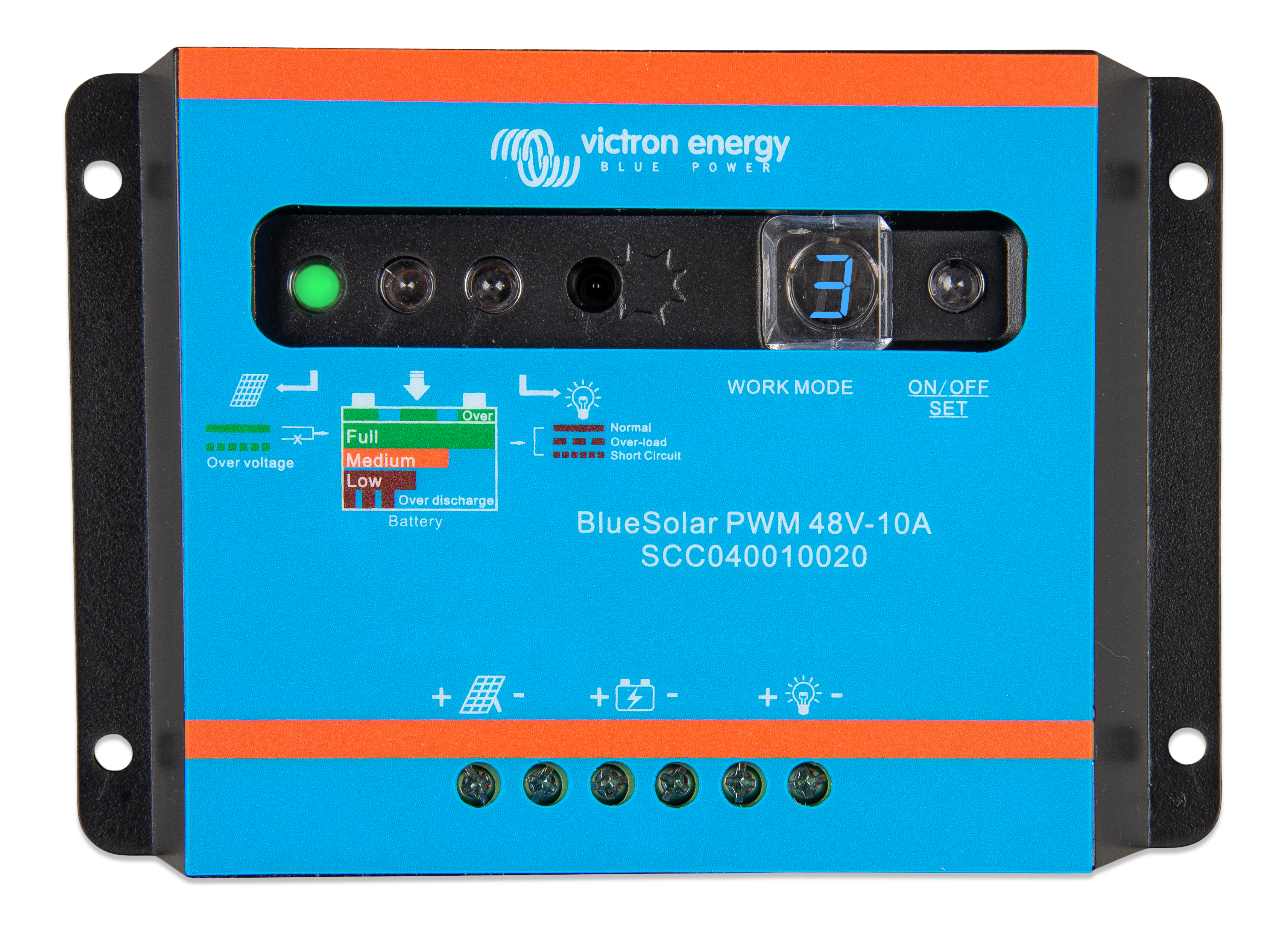

Battery Voltage: 48V
Rated Charge Current: 30 A
Automatic Load Disconnect: 1
Max Solar Voltage: 100V
Pv Array48V: Two solar panles with 72 cells in series, Four solar panles with 36 cells in series
Self Consumption: 10 mA
Load Output: Manual control + low voltage disconnect
Protections: Battery reverse polarity (fuse), Output short-circuit, Excessive temperature
Overload Protection130: Shutdown after 60 seconds
Overload Protection160: Shutdown after 5 seconds
Overload Protection S C: Immediate shutdown
Temperature Sensor: No
Temperature Compensation: No
Remote Panel: No
Grounding: Common positive
Operating Temp Range: [ -20, 50 ] °C
Max Humidity: 95 %
Charge Voltage Bulk: 58.0V
Charge Voltage Absorption: 56.8V
Charge Voltage Float: 55.2V
Low Voltage Load Disconnect: 44.8V
Low Voltage Load Reconnect: 50.4V (manual) 52.4V (automatic)
Battery Connection Terminal Type: Screw terminals 6 mm² (10 AWG)
P V Connection Terminal Type: Screw terminals 6 mm² (10 AWG)
Load Connection Terminal Type: Screw terminals 6 mm² (10 AWG)
Colour: Blue (RAL 5012)
Protection Category: IP20
Weight: 0.17 kg
Height: 95 mm
Width: 140 mm
Depth: 33.5 mm
Safety: EN-IEC 62109-1
Emission: EN-IEC 61000-6-1, ISO 7637-2, EN-IEC 61000-6-3
Battery Voltage: 12V / 24V (automatic detection)
Rated Charge Current: 30 A
Automatic Load Disconnect: 1
Max Solar Voltage: 28V / 55V
Pv Array12V: Solar panel with 36 cells
Pv Array24V: Solar panel with 72 cells, Two solar panles with 36 cells in series
Self Consumption: 10 mA
Load Output: Manual control + low voltage disconnect
Protections: Battery reverse polarity (fuse), Output short-circuit, Excessive temperature
Overload Protection130: Shutdown after 60 seconds
Overload Protection160: Shutdown after 5 seconds
Overload Protection S C: Immediate shutdown
Temperature Sensor: No
Temperature Compensation: No
Remote Panel: No
Grounding: Common positive
Operating Temp Range: [ -20, 50 ] °C
Max Humidity: 95 %
Charge Voltage Absorption: 14.2V / 28.4V
Charge Voltage Float: 13.8V / 27.6V
Low Voltage Load Disconnect: 11.2V / 22.4V
Low Voltage Load Reconnect: 12.6V / 25.2V (manual) 13.1V / 26.2V (automatic)
Battery Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
P V Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
Load Connection Terminal Type: Screw terminals 5 mm² (10 AWG)
Colour: Black
Protection Category: IP20
Weight: 0.2 kg
Height: 70 mm
Width: 133
Depth: 33.5 mm
Safety: EN-IEC 62109-1
Emission: EN-IEC 61000-6-1, ISO 7637-2, EN-IEC 61000-6-3

← Volver a productos Victron
