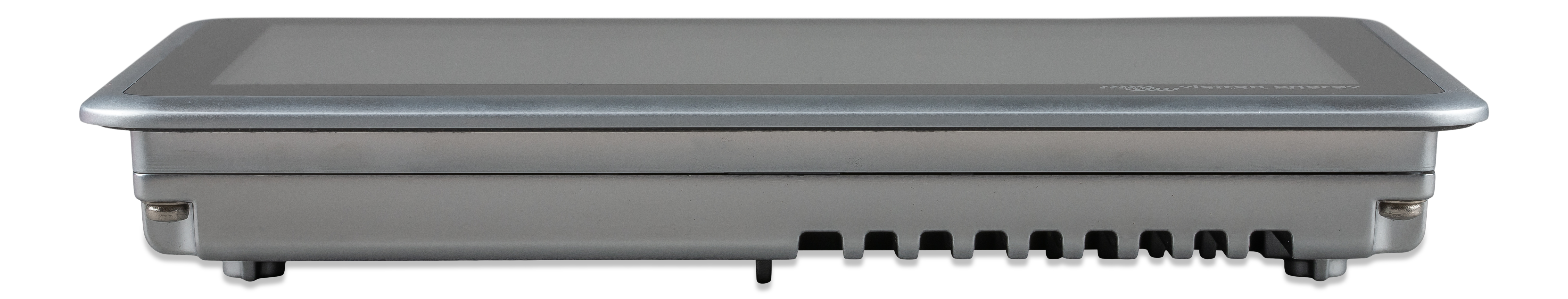

VICTRON ENERGY Ekrano GX
Communication centres

Ekrano GX

SKU principal: BPP900480100

Ekrano GX

<div>The Ekrano GX represents the next generation in the GX product family. With its complete range of connections and interfaces as well as its integrated 7-inch touchscreen display,
it is the most powerful GX device to date and allows you to</div><div>always have perfect control over your system from wherever you are and to maximise its performance. Simply access your system via our <a href="https://www.victronenergy.com/panel-systems-remote-monitoring/vrm" target="_blank">Victron Remote Management (VRM) portal</a>,
or access it directly,
using the built-in touchscreen,
a Multi-Functional Display (MFD) or our <a href="https://www.victronenergy.com/panel-systems-remote-monitoring/victronconnect" target="_blank">VictronConnect app</a> thanks to its built-in WiFi Access Point.</div><div>The Ekrano GX is also the successor to the Color Control GX.</div>

Códigos SKU

BPP900480100
DATOS DEL FABRICANTE

Especificaciones técnicas

Supply Voltage Range
[ 8, 70 ] V
Power Draw Disp12
6.2 W
Power Draw Disp24
6.6 W
Power Draw Disp48
7.4 W
Power Draw12
2.6 W
Power Draw24
3 W
Power Draw48
3.7 W
Mounting
Panel integrated flush mount or blind hole mount with included mounting accessories
Operating Temp Range
[ -20, 50 ] °C
Ve Direct
3x isolated - (max. possible VE.Direct devices: 25)
Ve Bus
1x isolated bus with 2 paralleled RJ45 sockets
Ve Can
2x one isolated the other non-isolated
Bms Can
Yes – see VE.Can
Bluetooth
Yes
Ethernet
Yes
Wifi
Yes
Usb
2x USB-A host ports (max. 1.5 A@5 V combined)
Micro Sd Card Slot
1x SDHC cards up to max. 32 GB
Cellular
No
Antenna
No
Factory Sim
No
Resistive Tank Level Inputs
3
Temperature Sense Input
2
Digital Inputs
2
Ruuvi Tag Support
Yes
Relays
2
Relay Type
NO/NC, DC up to 30VDC: 6A, DC up to 70VDC: 1 A, AC: 6A, 125VAC
Buzzer
1
Colour
Blue (RAL 5012)
Protection Category
IP54 front (when installed with steel bracket), IP31 (when installed with springs), IP21 back
Height
124 mm
Width
187 mm
Depth
29.8 mm
Safety
IEC 62368-1
Emission
EN 3011489-1, EN 3011489-17
Automotive Directive
ECE R10-6
