Energy Meters VM-3P75CT, VM-3P5A, ET112, ET340, EM24 Ethernet & EM540

SKU principal: REL300100000

Energy Meters are typically used in an <a href="https://www.victronenergy.com/media/pg/Energy_Storage_System/en/ess-introduction---features.html">Energy Storage System</a>,
to measure the power and energy of the entire application at the distribution box and minimises energy import or export to the grid. They can also be used to measure the output of a PV inverter or AC loads and display the data on GX devices such as the <a href="https://www.victronenergy.com/panel-systems-remote-monitoring/cerbo-gx#manual" target="_blank" style="">Cerbo GX</a> or <a href="https://www.victronenergy.com/display-and-panels/ekrano-gx" target="_blank">Ekrano GX</a> and the <a href="https://www.victronenergy.com/panel-systems-remote-monitoring/vrm" target="_blank" style="">VRM Portal</a>.There are several models available from Victron:<ul><li style="margin-bottom: 0cm; line-height: normal;">Victron VM-3P75CT energy meter (Ethernet and VE.Can - for three-phase and split-phase,
uses supplied CTs,

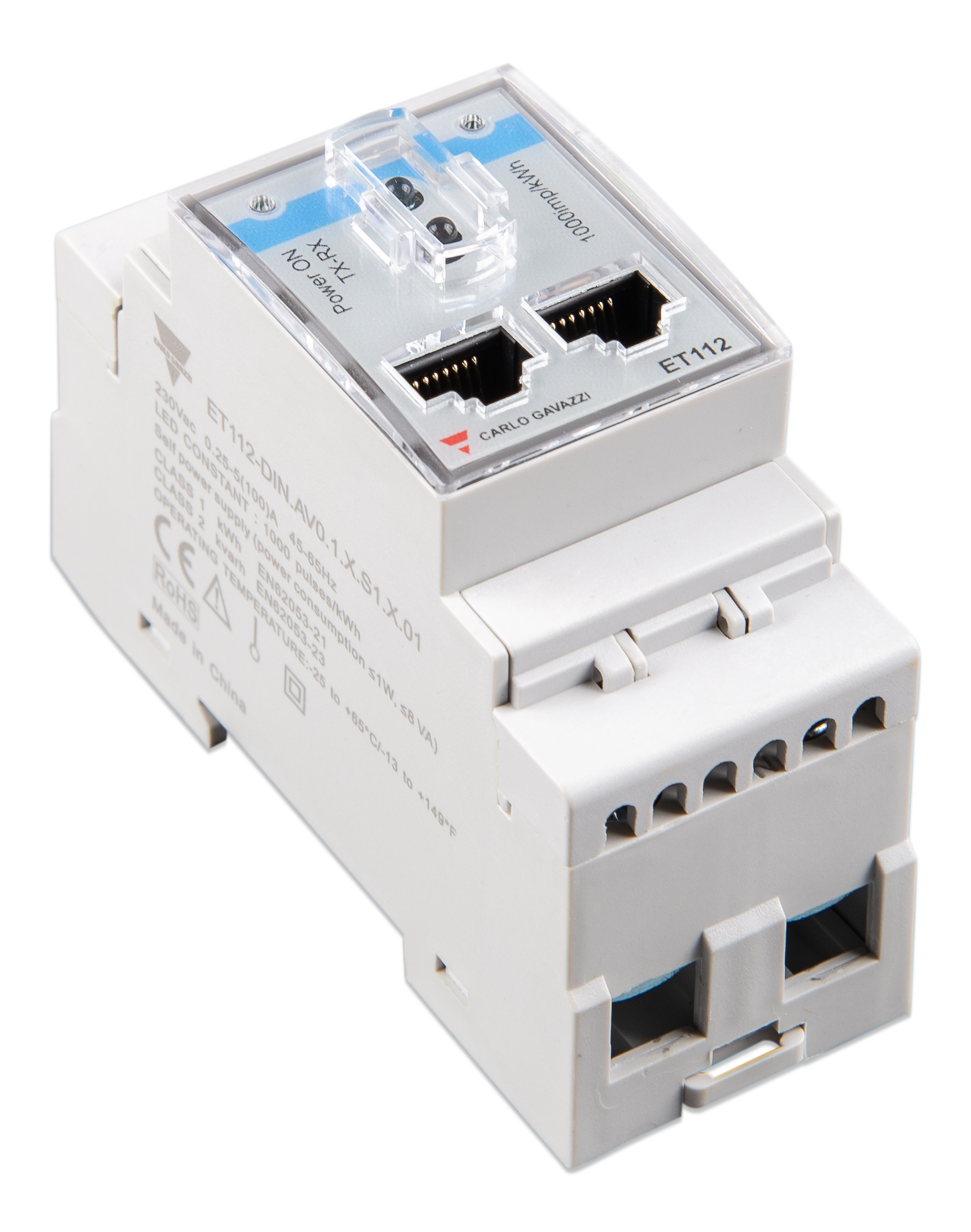

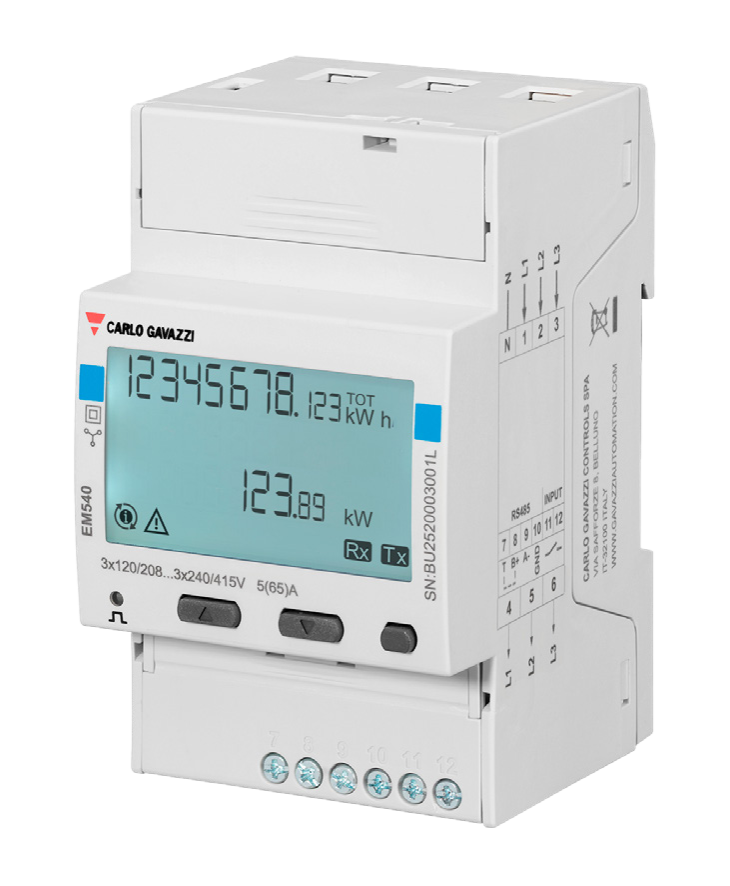

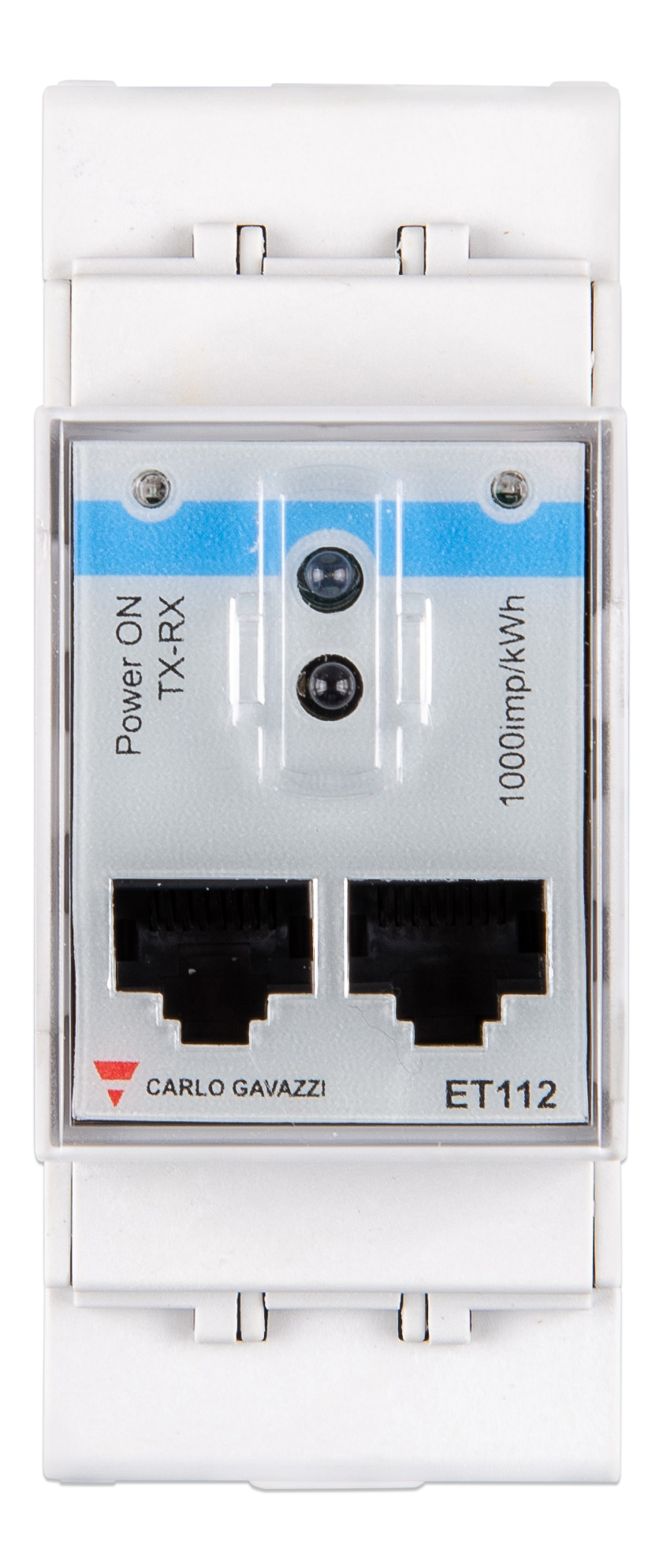

max. 80A per phase)</li><li style="margin-bottom: 0cm; line-height: normal;">Victron VM-3P5A energy meter (Ethernet and VE.Can - for three-phase and split-phase)</li><li style="margin-bottom: 0cm; line-height: normal;">ET112 (RS485 - for single-phase max 100A)</li><li style="margin-bottom: 0cm; line-height: normal;">ET340 (RS485 - for three-phase max. 65A)</li><li style="margin-bottom: 0cm; line-height: normal;">EM24 Ethernet (Ethernet - for three-phase max. 65A)</li><li style="margin-bottom: 0cm; line-height: normal;">EM540 (RS485 - for three-phase max. 65A)</li></ul>For more information,
please see the <a href="https://www.victronenergy.com/upload/documents/Datasheet-Energy-Meters-Selection-Guide-EN-(1).pdf" target="_blank">Selection Guide - Energy Meters PDF</a> below.

Códigos SKU

REL300100000 REL300300000 REL200100000 REL200200100 REL200100100 REL200300100 REL200320100

DATOS DEL FABRICANTE

Especificaciones técnicas

Voltage Connection: Direct
Input Voltage Range L N: [ 85, 265 ] V
Input Voltage Range L L: [ 150, 460 ] V
Frequency Select: 50Hz or 60Hz
Current Connection: Via current transformers (included - wire length 640 mm)
Rated Current: 75 A
Ve Can Port: Two RJ45 connectors (VE.Can terminators included)
Ethernet Port: One RJ45 connector, Modbus UDP
Refresh Rate: 100 ms
Power Type: Self-power supply via L1-N
Consumption W: 1.45 W
Consumption V A: 3.1 VA
Frequency: 50Hz or 60Hz
Voltage Connection Terminal: Screw terminals 0.25 - 1.5 mm² (24 - 16 AWG)
Current Transformer Connection Terminal: Pluggable screw terminals (included)
Material: polycarbonate
Colour: Blue (RAL 5012)
Protection Category: IP20
Weight: 0.37 kg
Height: 90 mm
Width: 71 mm
Depth: 59 mm
Indoor Outdoor Usage: Indoor only
Operating Temp Range: [ -10, 55 ] °C
Storage Temp Range: [ -20, 70 ] °C
Max Humidity: 90 %
Altitude: 2, 000 m
Mains Voltage Fluctuations: ±0.1 Vin
Overvoltage Category: Cat.III
Pollution Degree: 2
Safety: EN-IEC 61010-1
Voltage Connection: Direct
Input Voltage Range L N: [ 85, 265 ] VAC
Input Voltage Range L L: [ 150, 460 ] VAC
Frequency Select: 50Hz or 60Hz
Current Connection: Via current transformers (not included)
Rated Current: 5 A
Ve Can Port: Two RJ45 connectors (VE.Can terminators included)
Ethernet Port: One RJ45 connector, Modbus UDP
Refresh Rate: 100 ms
Power Type: Self-powered supply via N-L1-L2-L3
Consumption W: 1.85 W
Consumption V A: 3.5 VA
Frequency: 50Hz or 60Hz
Voltage Connection Terminal: Screw terminals 1, 0 to 2, 5 mm² (22 to 12 AWG)
Current Transformer Connection Terminal: Pluggable screw terminals (included)
Material: polycarbonate
Colour: Blue (RAL 5012)
Protection Category: IP20
Weight: 0.26 kg
Height: 90 mm
Width: 71 mm
Depth: 59 mm
Indoor Outdoor Usage: Indoor only
Operating Temp Range: [ -10, 55 ] °C
Storage Temp Range: [ -20, 70 ] °C
Max Humidity: 90 %
Altitude: 2, 000 m
Mains Voltage Fluctuations: ±0, 1 Vin
Overvoltage Category: Cat. III
Pollution Degree: 2
Safety: EN-IEC 61010-1
