Lynx Distributor

SKU principal: LYN060102000

Lynx Distributor

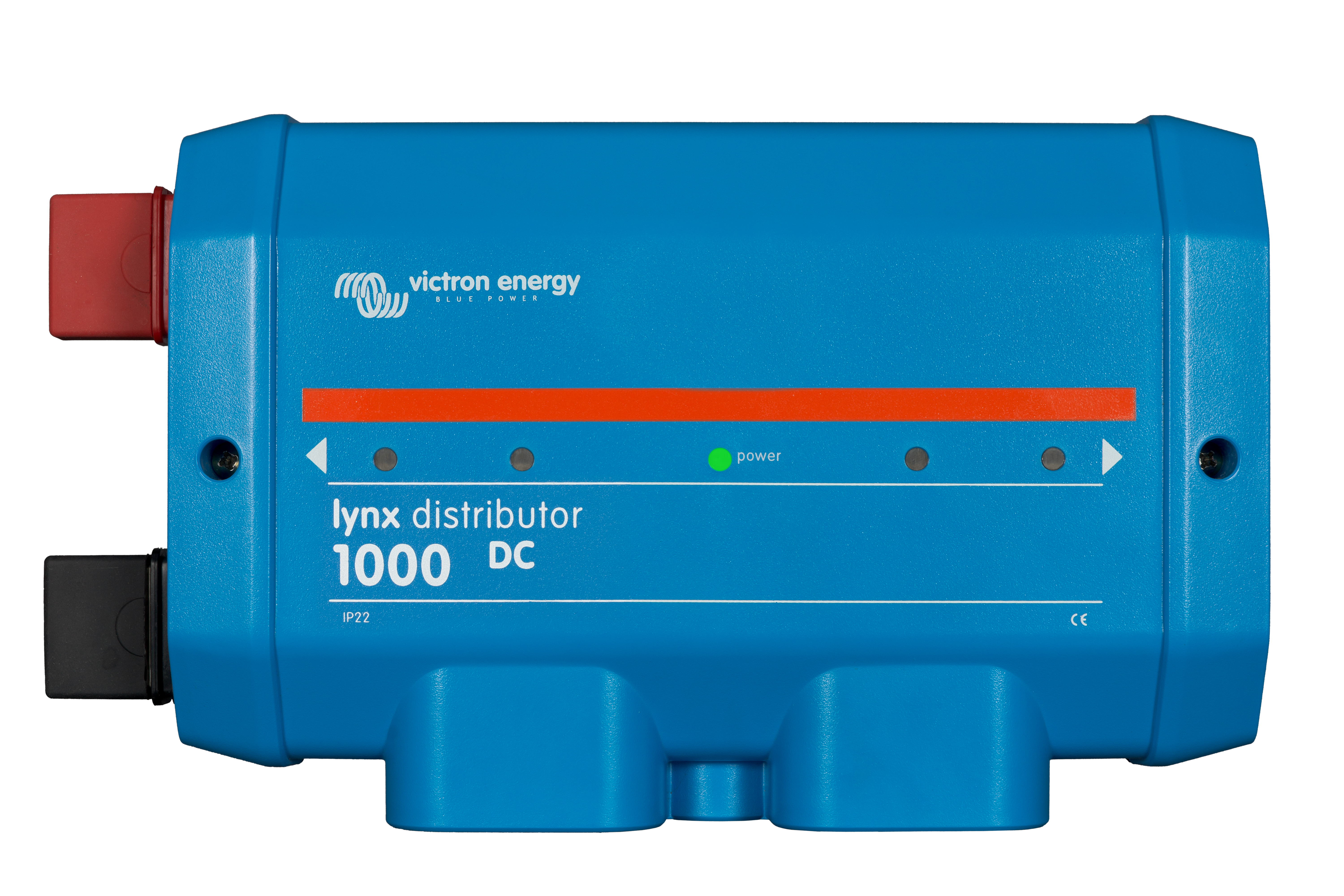

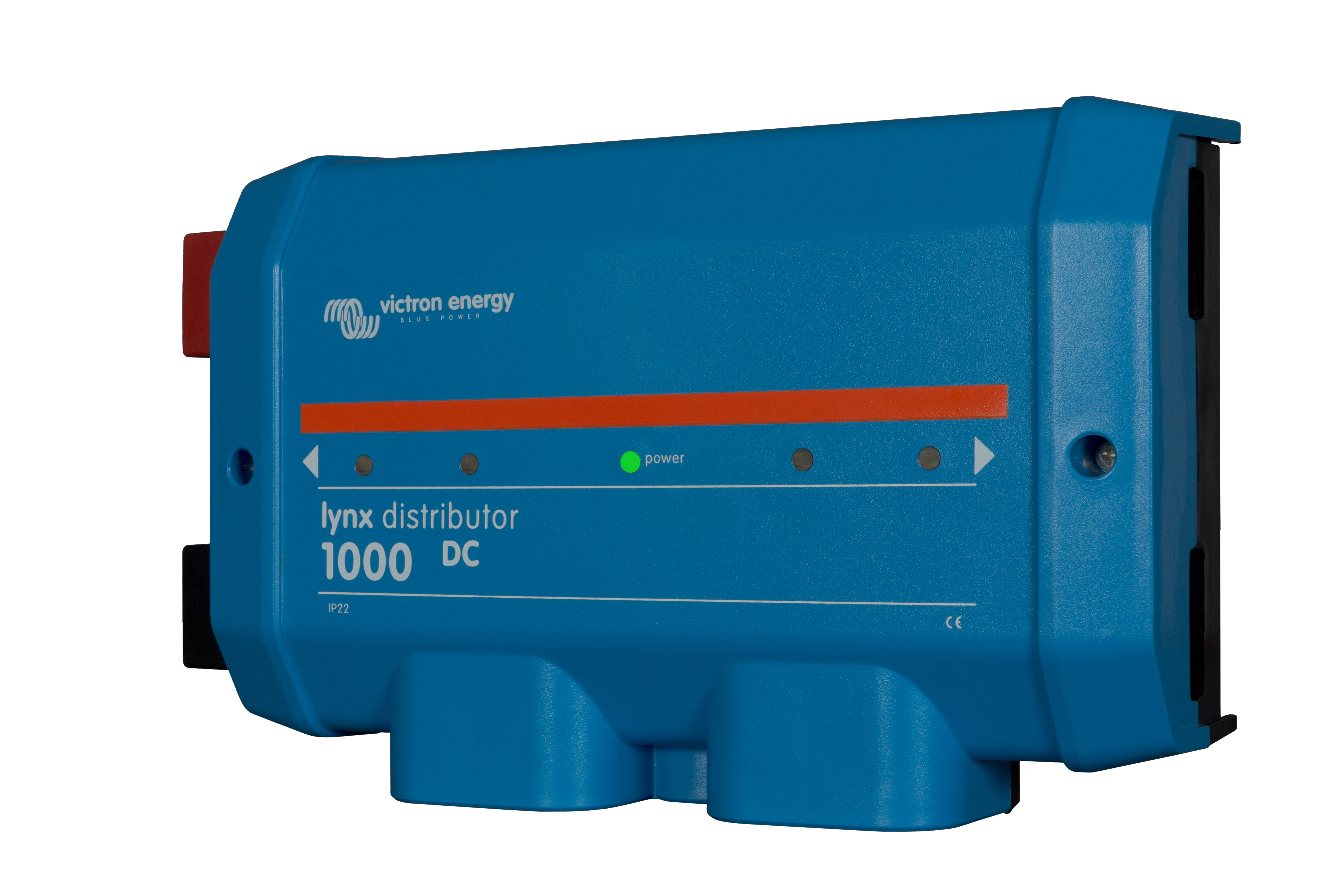

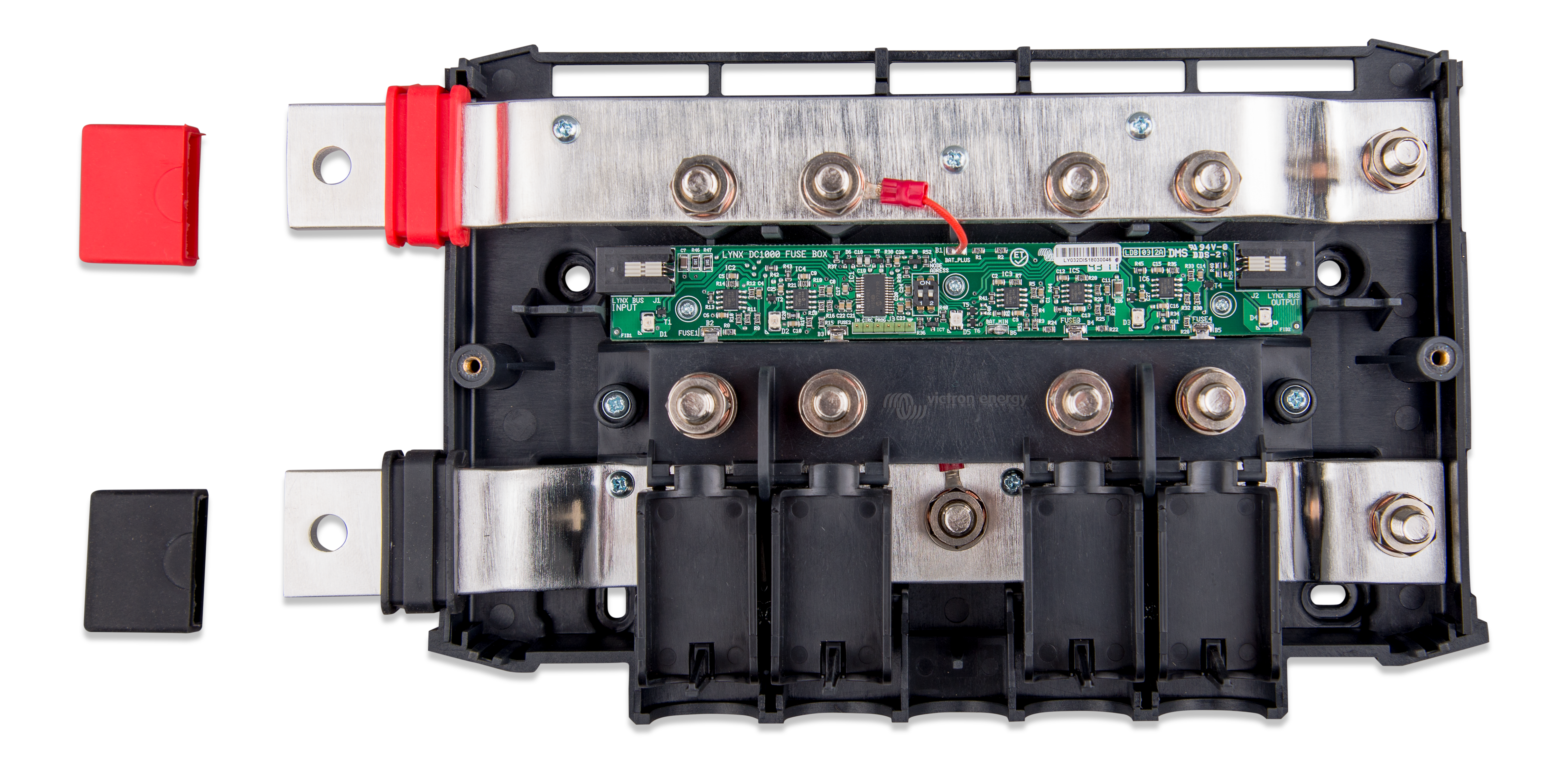

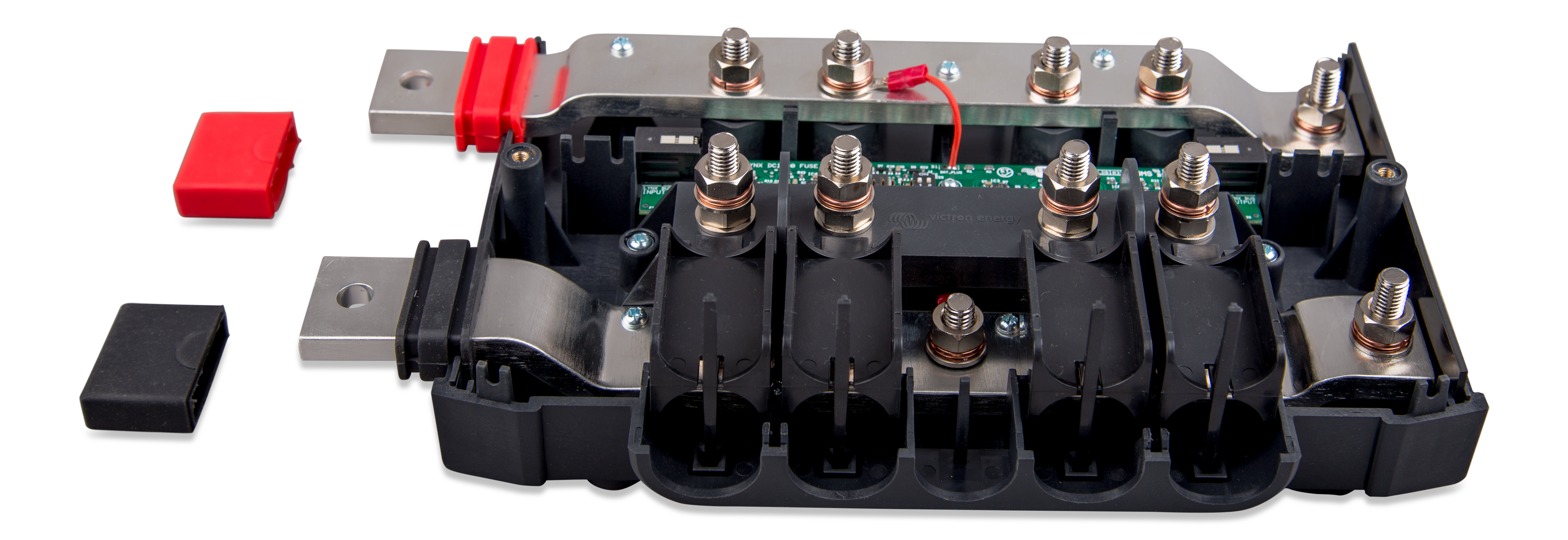

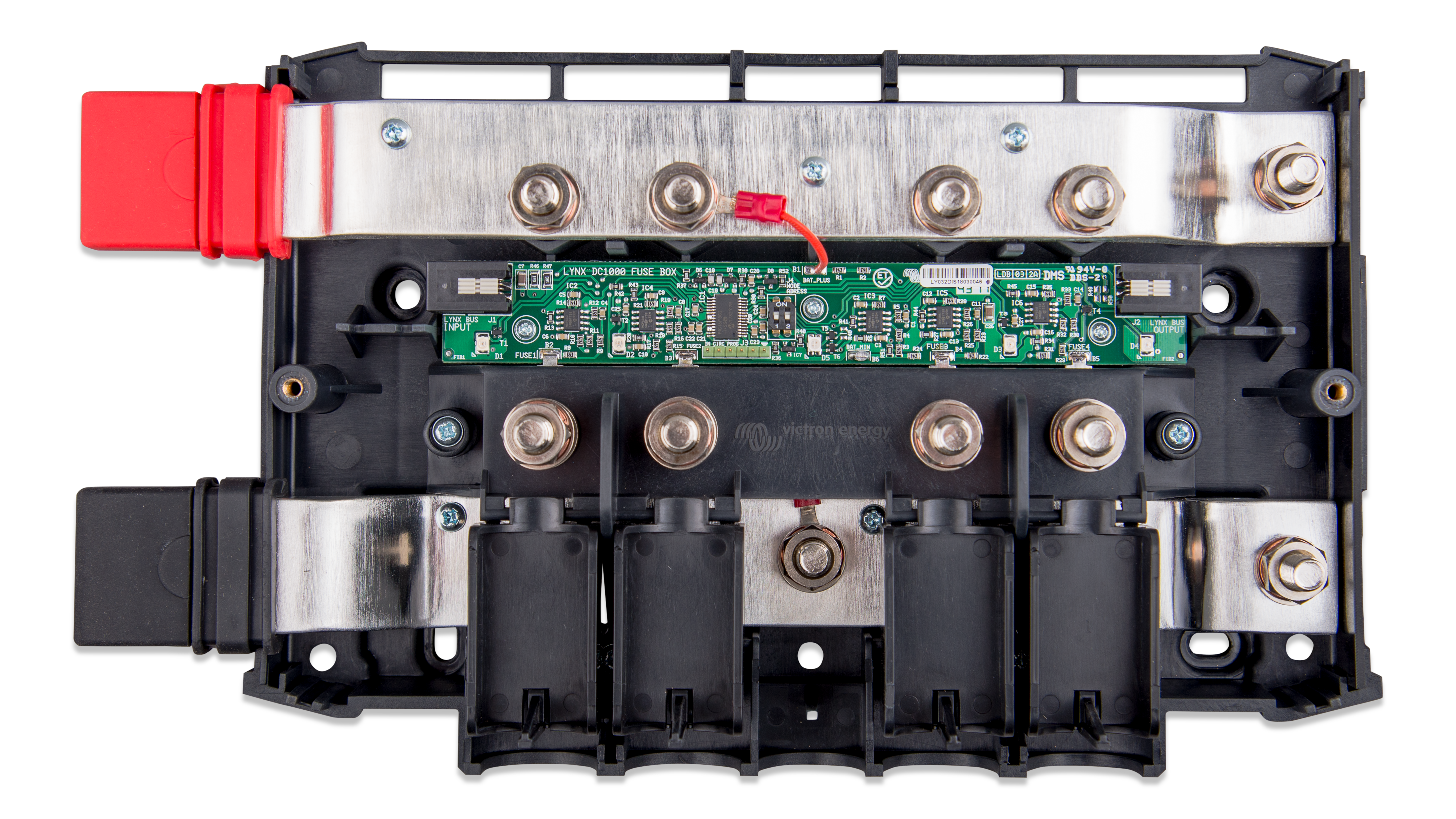

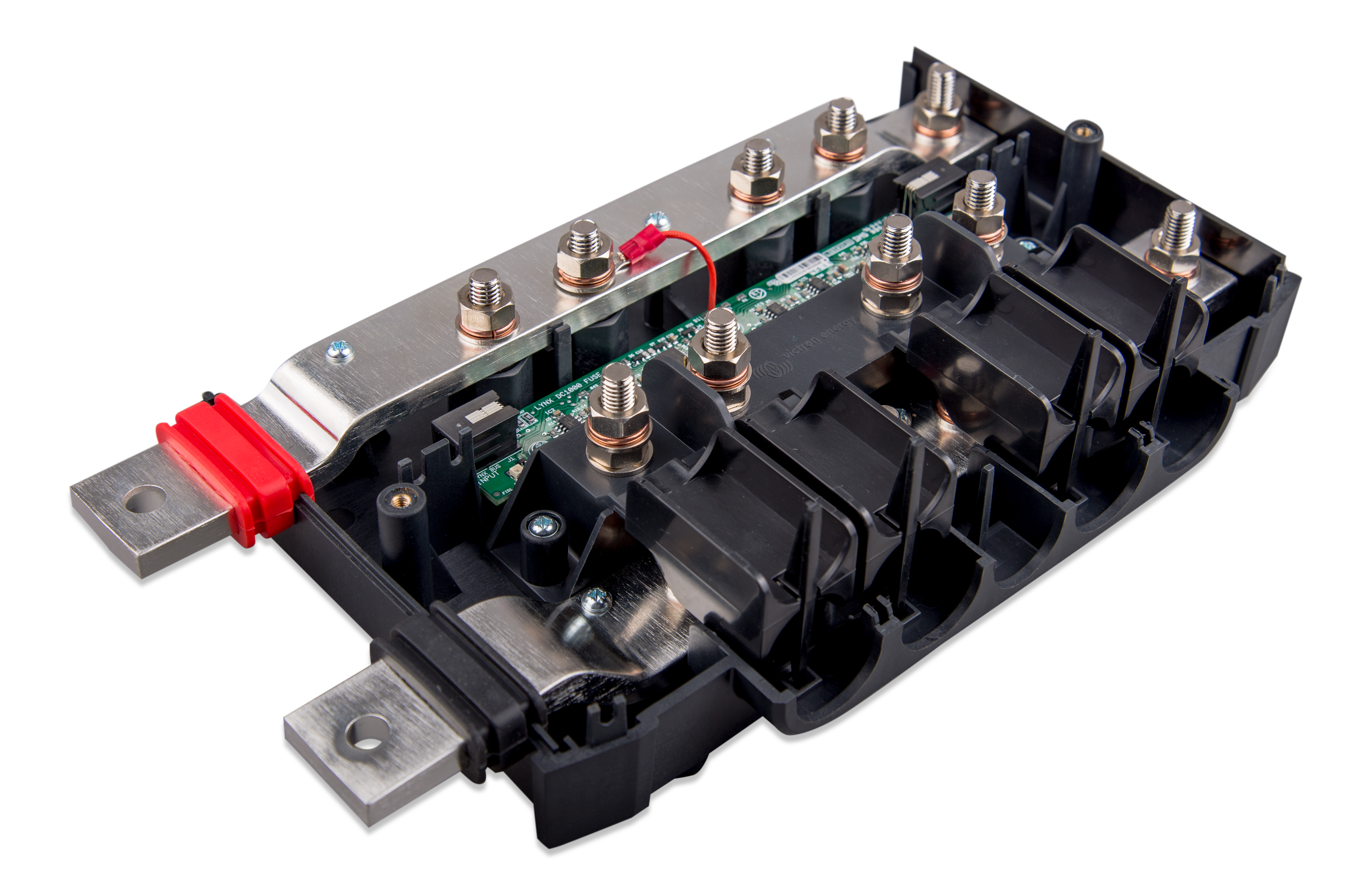

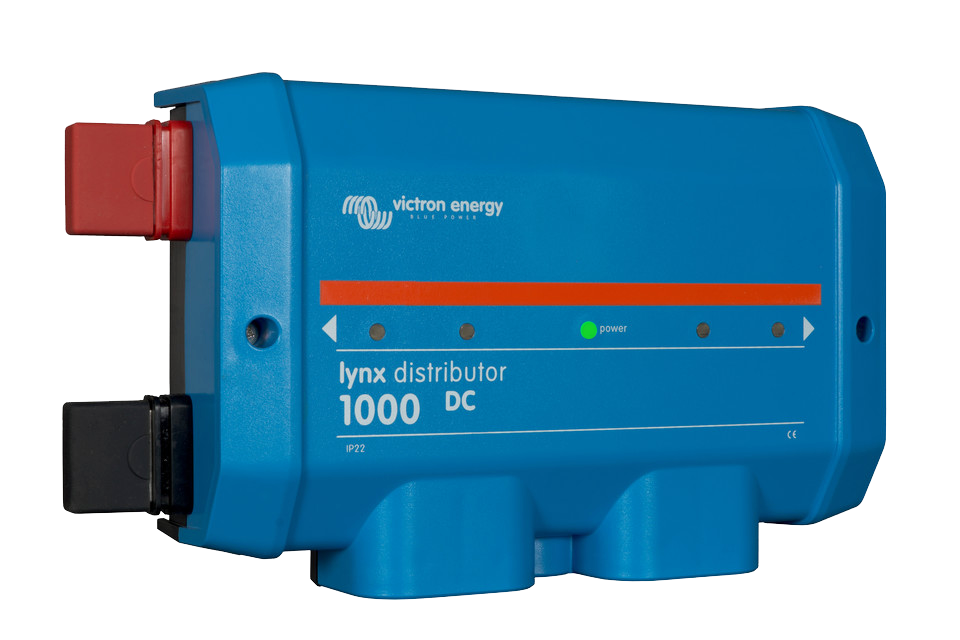

<p class="MsoNormal">A modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front. The Lynx Distributor is part of the modular Lynx distribution system,
available as M8 and M10 models.<o:p></o:p></p>

Códigos SKU

LYN060102000 LYN060102010

DATOS DEL FABRICANTE

Especificaciones técnicas

Voltage Range: [ 9, 60 ] V
Current Rating: 1, 000 A
System Voltages: 12V or 24V or 48V
Reverse Polarity Protection: Yes (he RJ10 cable connection is not protected against reverse polarity)
Power Consumption: Maximum 100mA with all LEDs illuminated (Powered from Lynx Shunt VE.Can or Lynx Smart BMS)
Busbar Material: Tinned copper
Busbar Dimensions: 8mm x 30mm
Operating Temp Range: [ -40, 60 ] °C
Storage Temp Range: [ -40, 60 ] °C
Max Humidity: 95 %
Busbar Connections: M8
Fuse Connections: 3/8"
Data Connection: 40 cm RJ10 cable (included)
Material: ABS
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 2.2 kg
Height: 170 mm
Width: 290 mm
Depth: 80 mm
Voltage Range: [ 9, 60 ] V
Current Rating: 1, 000 A
System Voltages: 12V or 24V or 48V
Reverse Polarity Protection: Yes (he RJ10 cable connection is not protected against reverse polarity)
Power Consumption: Maximum 100mA with all LEDs illuminated (Powered from Lynx Shunt VE.Can or Lynx Smart BMS)
Busbar Material: Tinned copper
Busbar Dimensions: 8mm x 30mm
Operating Temp Range: [ -40, 60 ] °C
Storage Temp Range: [ -40, 60 ] °C
Max Humidity: 95 %
Busbar Connections: M8
Fuse Connections: 3/8"
Data Connection: 40 cm RJ10 cable (included)
Material: ABS
Colour: Blue (RAL 5012)
Protection Category: IP22
Weight: 2.2 kg
Height: 170 mm
Width: 290 mm
Depth: 80 mm
