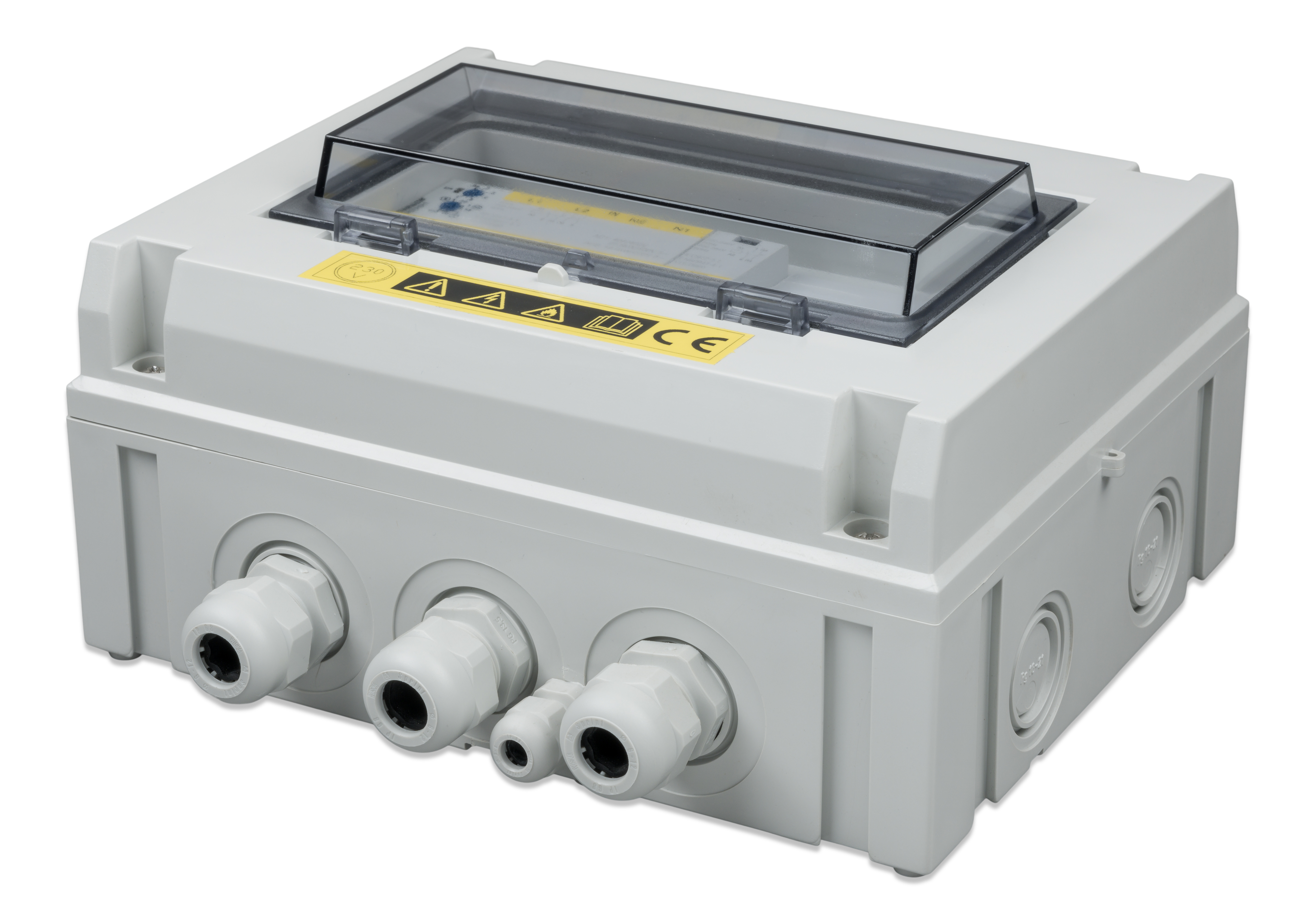

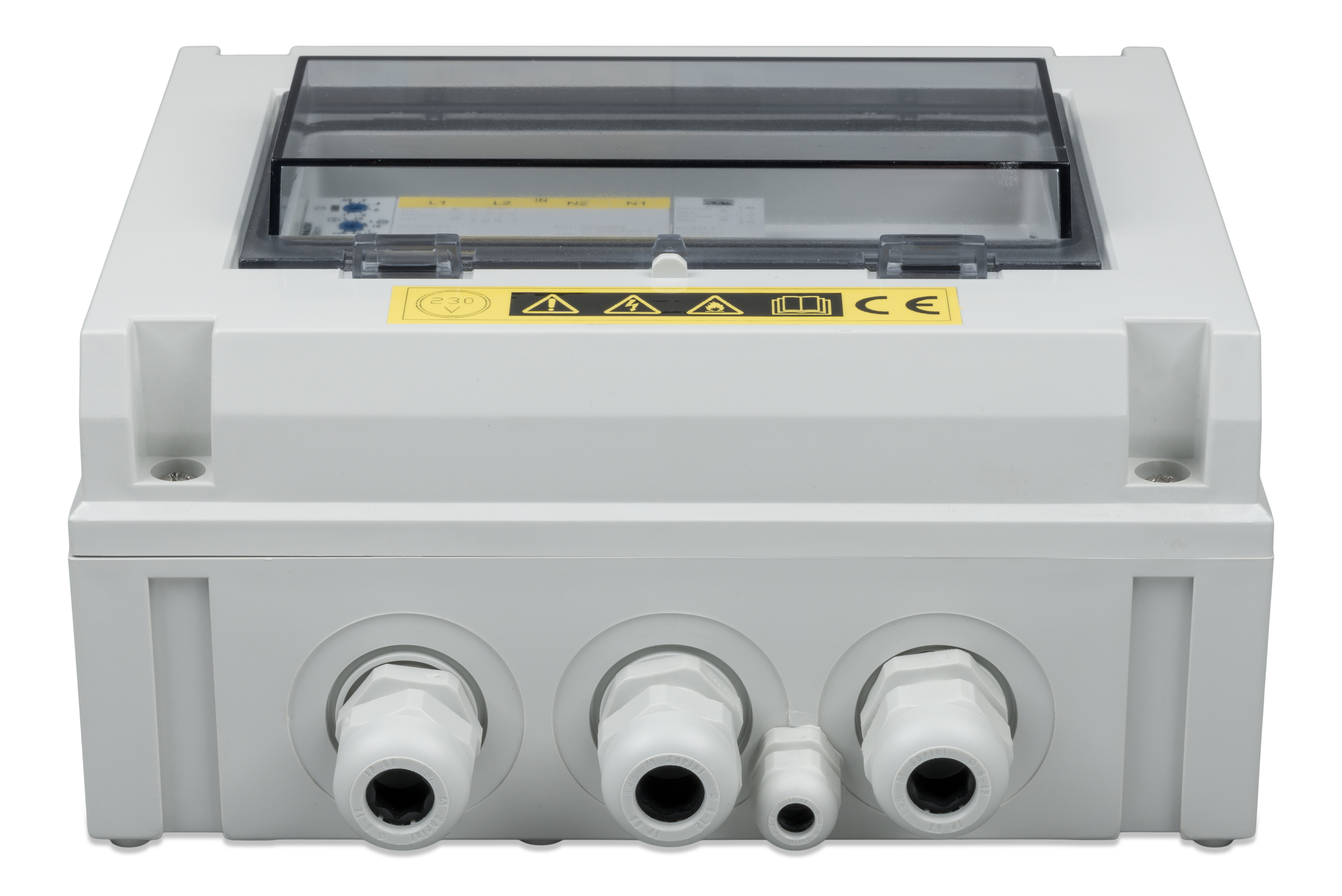

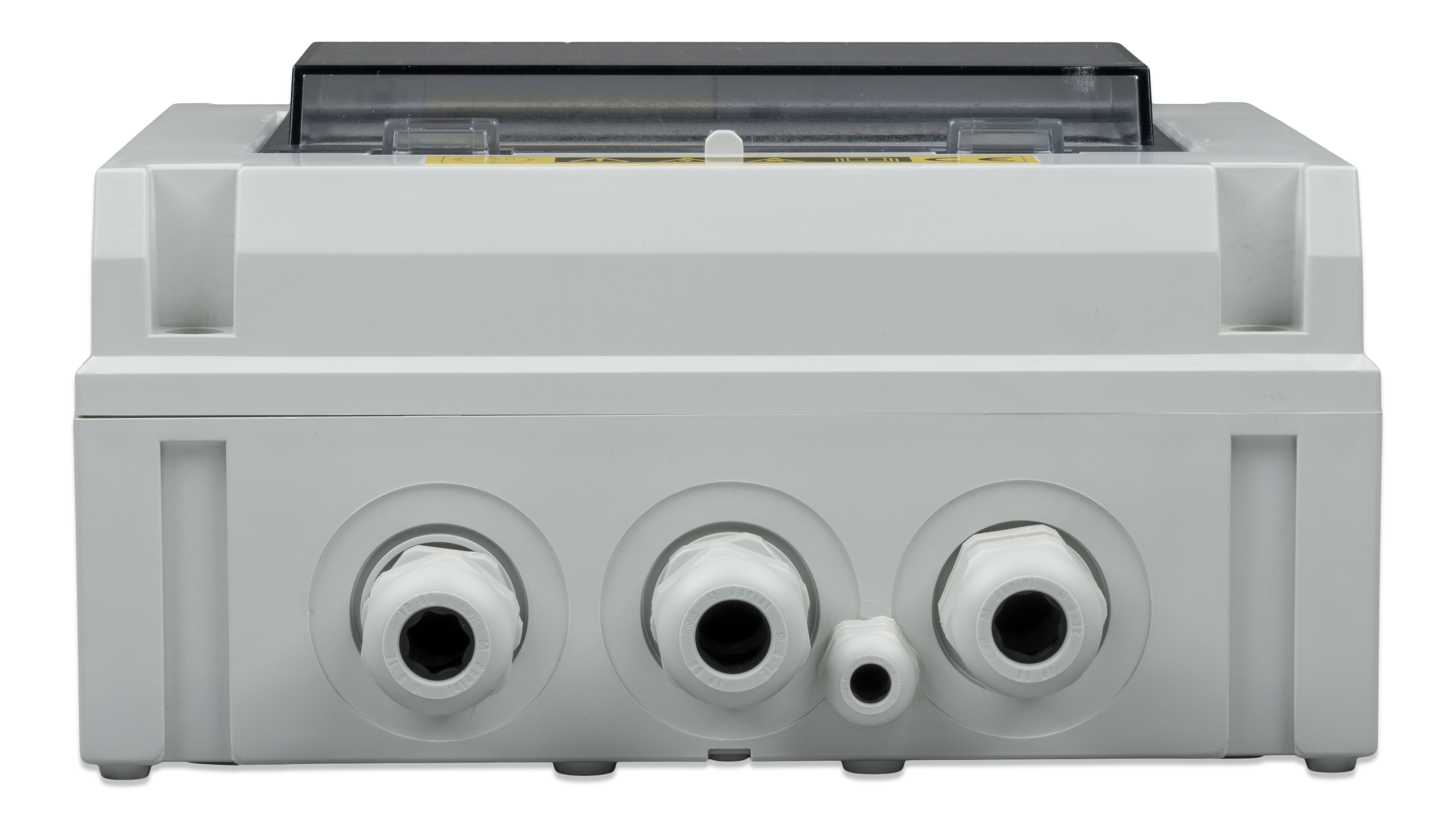

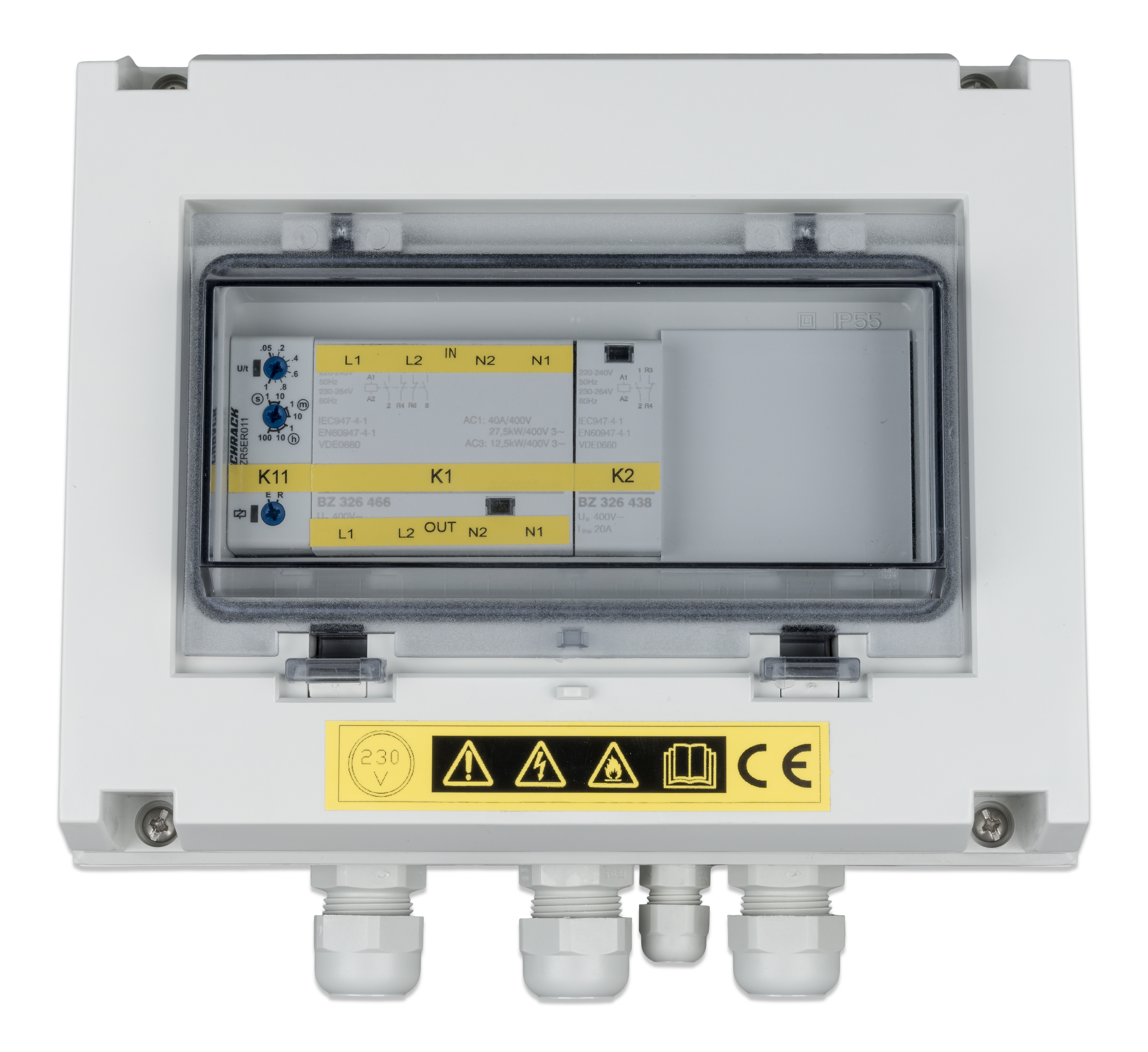

VE Transfer Switch

SKU principal: COS230502100

VE Transfer Switch

The VE Transfer Switch automatically switches between different power sources: between a generator and shore power,
between an inverter and a generator or between an inverter and shore power. The VE Transfer Switch has two inputs and one output,

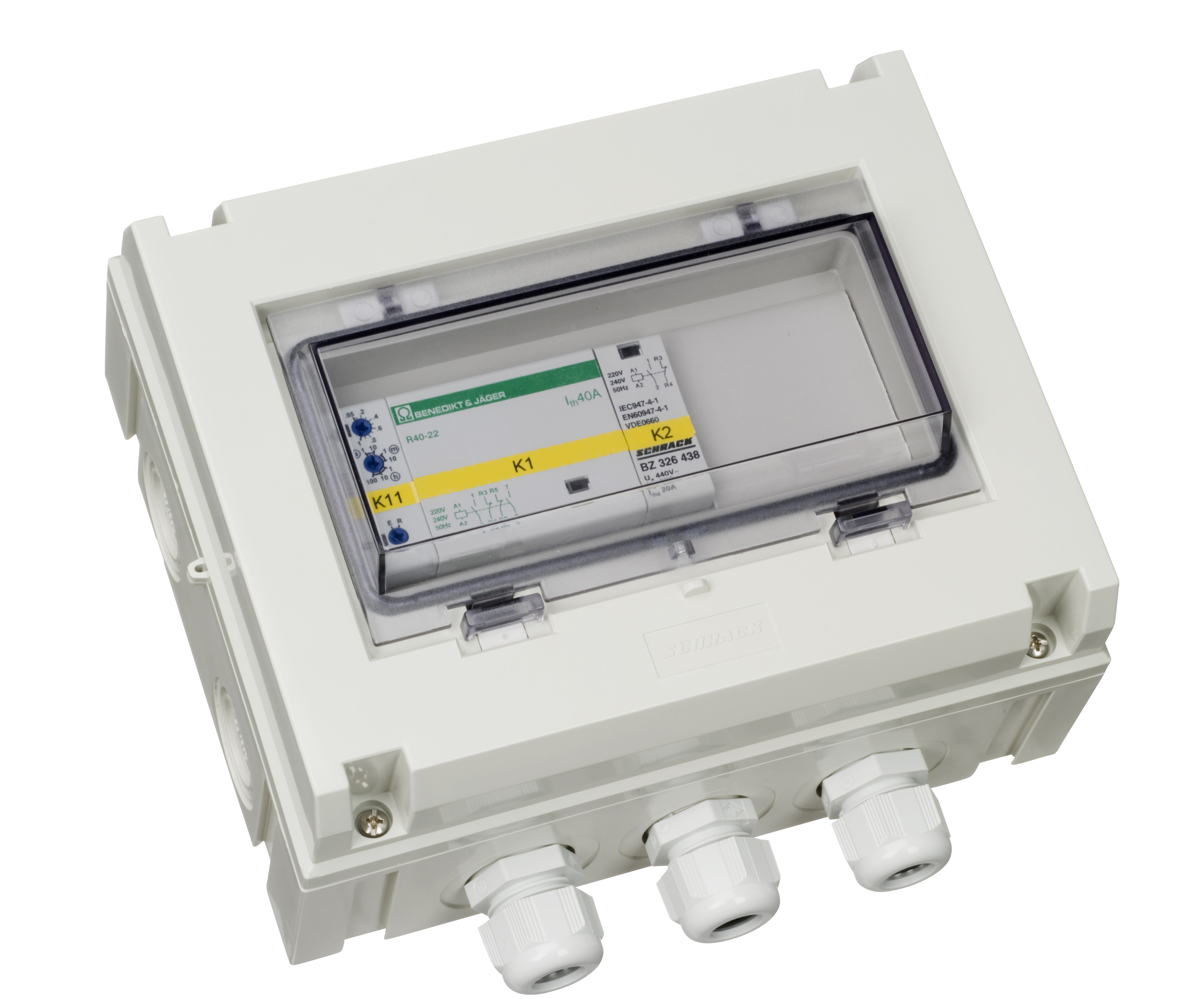

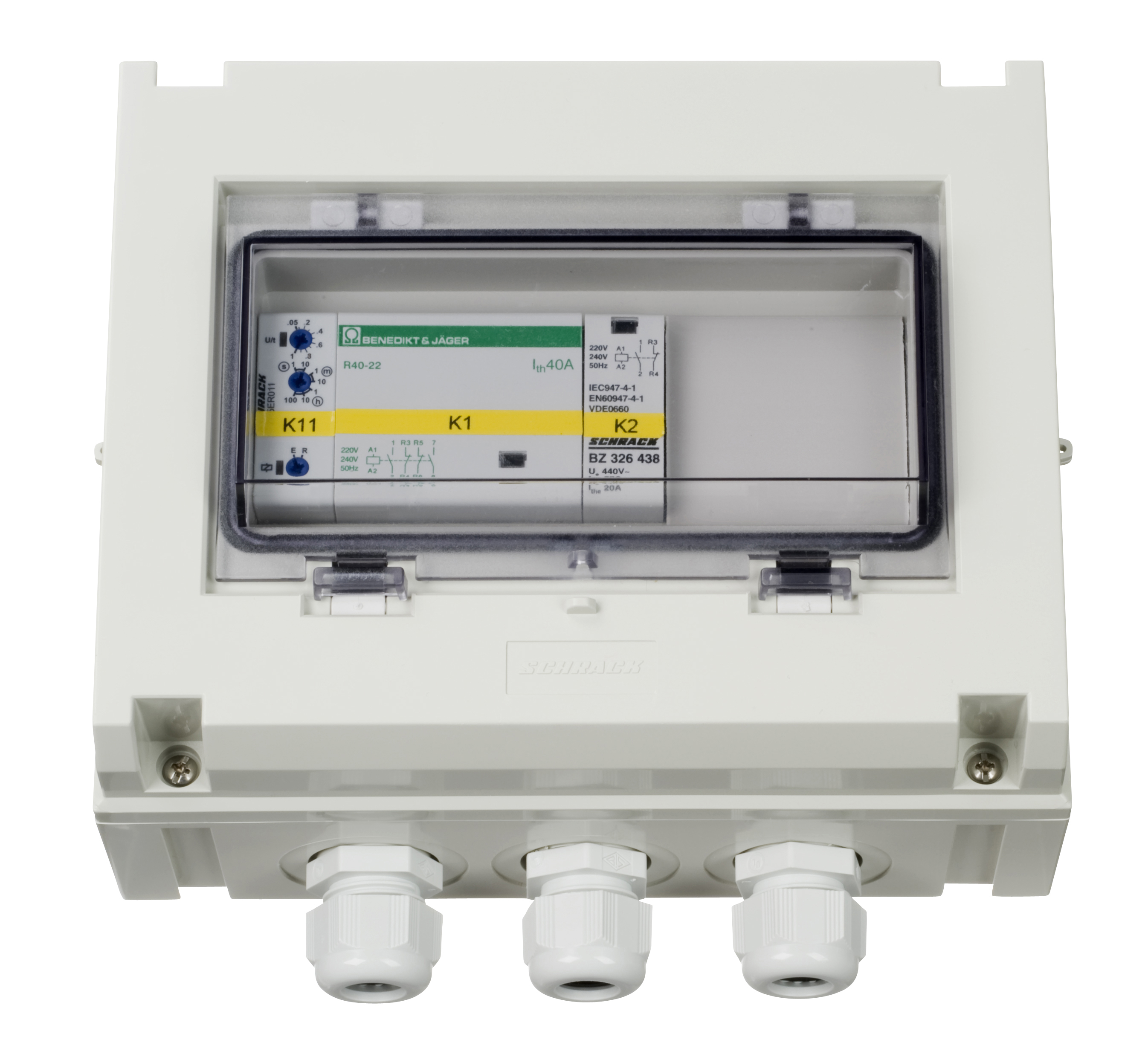

it automatically transfers the available AC power to the output.The VE Transfer Switch is available in two models:<ul><li>5kVA,
single phase,

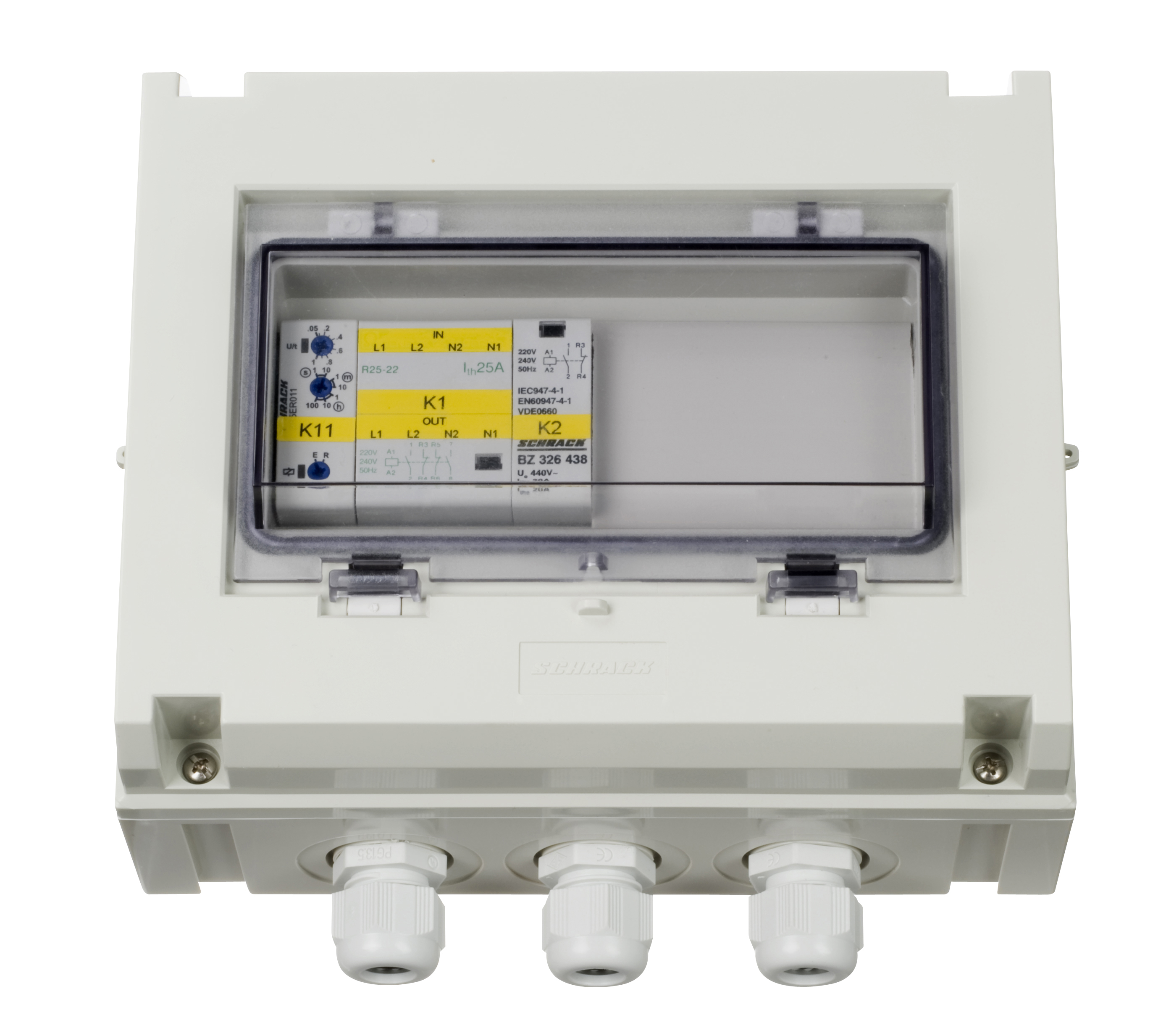

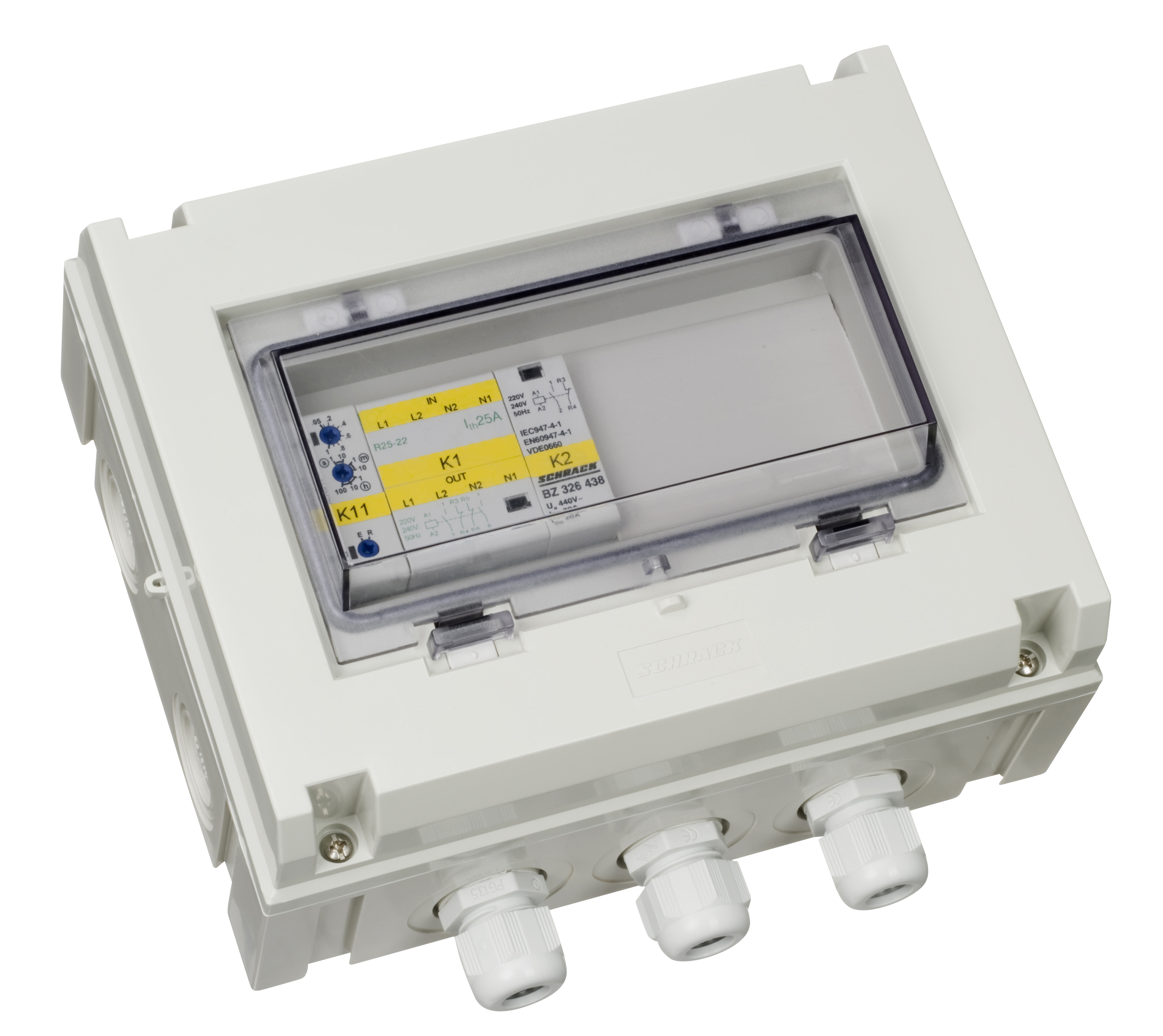

200-250Vac</li><li class="MsoListParagraph" style="margin-left:0cm;mso-list:l0 level1 lfo1">10kVA,
single phase,
200-250Vac<o:p></o:p></li></ul>

Códigos SKU

COS230502100 COS230103100

DATOS DEL FABRICANTE

Especificaciones técnicas

Ac Input Voltage Range: [ 200, 250 ] V
Input Current Rating1: 40 A
Input Current Rating2: 40 A
Output Current Rating: 40 A
Max Power: 8 kW
Power Consumption1: 6 VA
Closing Transfer Time: [ 10, 20 ] ms
Opening Transfer Time1: [ 5, 30 ] ms
Contact Delay: Approximately 10s (adjustable)
Aux Contact: 200 - 240Vac - 20A - cos phi = 1
Operating Temp Range: [ -5, 60 ] °C
Max Humidity: 95 %
Ac Connections: Screw terminals
Material: ABS
Colour: Light grey (RAL 7035)
Protection Category: IP54
Weight: 1.65 kg
Height: 175 mm
Width: 215 mm
Depth: 120 mm
Ac Input Voltage Range: [ 200, 250 ] V
Input Current Rating1: 20 A
Input Current Rating2: 20 A
Output Current Rating: 20 A
Max Power: 1.3 kW
Power Consumption1: 6 VA
Closing Transfer Time: [ 10, 20 ] ms
Opening Transfer Time1: [ 5, 20 ] ms
Contact Delay: Approximately 10s (adjustable)
Aux Contact: 200 - 240Vac - 20A - cos phi = 1
Operating Temp Range: [ -5, 60 ] °C
Max Humidity: 95 %
Ac Connections: Screw terminals
Material: ABS
Colour: Light grey (RAL 7035)
Protection Category: IP54
Weight: 1.85 kg
Height: 175 mm
Width: 215 mm
Depth: 120 mm
